WinAPIEx UDF

ProgAndy · September 13, 2011

I've just updated to the latest version and discovered a tiny issue, easily fixed.

This is no bug

Changelog
WinAPIEx.au3 now does not includes the APIConstants.au3. If you want to use constants that are declared in APIConstants.au3, you must include it in your scripts by using "#Include" keyword.

Ward · September 21, 2011

A small bug report:

_WinAPI_EnumResourceNames

_WinAPI_EnumResourceLanguages

_WinAPI_EnumResourceTypes

Last line "Return SetError(Number(Not $__Data), 0, $__Data)" always set @Error = 1

Ward · September 21, 2011

I found another major bug in WinAPIEx (this bug will crash script).

In _WinAPI_PathFindExtension, it read the memory allocate by DllStructCreate as return value:

Local $tData = DllStructCreate('wchar[1024]')
...
Return DllStructGetData(DllStructCreate('wchar[1024]', $Ret[0]), 1)

The problem is, DllStructGetData will not stop when it enconter null wchar.

However, $Ret[0] alwasy > DllstructGetPtr($tData)

So if it reach the memory boundary, the script will crash.

It seems a lot of functions need modify...

Edited September 21, 2011 by Ward

Yashied · September 21, 2011

A small bug report:
_WinAPI_EnumResourceNames
_WinAPI_EnumResourceLanguages
_WinAPI_EnumResourceTypes
Last line "Return SetError(Number(Not $__Data), 0, $__Data)" always set @Error = 1

Fixed. Thanks.

I found another major bug in WinAPIEx (this bug will crash script).
In _WinAPI_PathFindExtension, it read the memory allocate by DllStructCreate as return value:
Local $tData = DllStructCreate('wchar[1024]')
...
Return DllStructGetData(DllStructCreate('wchar[1024]', $Ret[0]), 1)
The problem is, DllStructGetData will not stop when it enconter null wchar.
However, $Ret[0] alwasy > DllstructGetPtr($tData)
So if it reach the memory boundary, the script will crash.

It seems a lot of functions need modify...

This is not serious, in many functions the path length is limited to MAX_PATH. Anyway, 1024 characters should be enough for any valid path. In those functions where MSDN said about maximum string length, I wrote exactly that value.

$Ret[0] contains the address of the "." if an extension is found, or the address of the terminating null character otherwise.

DllStructGetData(DllStructCreate('wchar[1024]', $Ret[0]), 1)

will work anyway.

Edited September 21, 2011 by Yashied

Ward · September 21, 2011

This is not serious, in many functions the path length is limited to MAX_PATH. Anyway, 1024 characters should be enough for any valid path. In those functions where MSDN said about maximum string length, I wrote exactly that value.
DllStructGetData(DllStructCreate('wchar[1024]', $Ret[0]), 1)
will work anyway.

No, it is very serious. Why I found this bug, because it sometime crash my example of IconImage.

And after long time debug, I finally found the reason by ollydbg...

It only work if the memory allocate by Local $tData = DllStructCreate('wchar[1024]') not reach memory boundary.

If "DllstructGetPtr($tData) + 1025 * sizeof(wchar)" is invalid memory (you only allocate 1024), the script crash. And believe me, it not often, but sometimes happen.

Edited September 21, 2011 by Ward

Ascend4nt · September 21, 2011

Regarding the DLLStruct issue - Ward is correct here in that its dangerous to wrap memory with a struct without knowing how big the given allocation was. However, I think with 'wchar' wrapped around a null-term string, you *may* be safe depending on how AutoIt pulls the string (my best guess is it scans for a null-term rather than grab the whole chunk, but its best not to guess!). If it was 'byte' then you would definitely have a crash waiting to happen, as AutoIt would try to grab the entire 1024 bytes, which would overstep the size of the allocated memory.

The solution here is pretty easy - just declare the return as 'str' or 'wstr'. AutoIt will grab as much as it needs and nothing more. So for example, you can shorten the given example to:

$aRet = DllCall('shlwapi.dll', 'wstr', 'PathFindFileNameW', 'wstr', "C:\example\path\with\filename.ext")
If @error=0 Then ConsoleWrite("Result of call: "&$aRet[0]&@CRLF)

keep up the good work :graduated:

Yashied · September 22, 2011

Yes, but how much memory to allocate AutoIt within DllCall() itself? The whole stack? :graduated:

trancexx · September 22, 2011

AutoIt will allocate no less than what's size of 65536 characters.

Yashied · September 22, 2011

@Ward

OK. I currently replace 1024 to 2048. In the future look what can do.

Ward · September 22, 2011

Why not just use Ascend4nt's way? It's easy and works well without problem.

Ascend4nt · September 22, 2011

AutoIt will allocate no less than what's size of 65536 characters.

For return strings?

Yashied · September 22, 2011

@Ward

OK. All fixed.

:graduated:

trancexx · September 22, 2011

For return strings?

For "str" and "wstr" dllcall types. The resulting strings can't be longer than that.

Ascend4nt · September 22, 2011

For "str" and "wstr" dllcall types. The resulting strings can't be longer than that.

Okay, I think there was a miscommunication there. Parameters that are passed as 'wstr' do get the 65536 character buffer allocated, but a return from a function that happens to be of 'str' or 'wstr' type isn't allocated by AutoIt, nor is it restricted to 65536 characters (strings in excess of 100,000+ chars work fine).

However, in the function discussed, the pointer returned actually points within the buffer passed to the function (I somehow missed this the first time around), so the actual size is dependent on where in the string the pointer points. And of course if the parameter type used for 'pPath' was 'wstr', it will be <= 65536 chars.

Hmm, in pondering Yashied's original function design, if he keeps the 1st DLLStruct, there isn't even a need for a 2nd DLLStruct to be created. A StringMid() could be done with a calculation of '(returned_ptr - struct_ptr)/2+1'. Or he could keep it as it was and change the 2nd struct of 1024 chars to instead be the # of chars remaining. But meh, 'wstr' is the easiest/fastest way to go.

trancexx · September 22, 2011

But meh, 'wstr' is the easiest/fastest way to go.

Of course. This should be forced whenever possible.

Yashied · September 29, 2011

The library has been updated.

v3.5

Added the following functions.

_WinAPI_CompressBitmapBits
_WinAPI_ComputeCrc32
_WinAPI_CreateANDBitmap
_WinAPI_CreateDIBColorTable
_WinAPI_CreateEmptyIcon
_WinAPI_GetBitmapDimensionEx
_WinAPI_GetDIBColorTable
_WinAPI_GetExtended
_WinAPI_GetObjectNameByHandle
_WinAPI_InvertANDBitmap
_WinAPI_IsAlphaBitmap
_WinAPI_PathAddBackslash
_WinAPI_PathAddExtension
_WinAPI_PathCommonPrefix
_WinAPI_PathCanonicalize
_WinAPI_PathCreateFromUrl
_WinAPI_PathIsUNC
_WinAPI_PathIsUNCServer
_WinAPI_PathIsUNCServerShare
_WinAPI_PlgBlt
_WinAPI_ReleaseStream
_WinAPI_SaveHBITMAPToFile
_WinAPI_SetBitmapDimensionEx
_WinAPI_SetDIBColorTable
_WinAPI_StrFormatByteSizeEx
_WinAPI_SwapQWord
_WinAPI_SwapWord
_WinAPI_ZeroMemory
Added examples for the functions above.
Added missing Airplane.wav file that is used in some examples.
Added missing Dialog Box Styles ($DS_*), Window Styles ( $WS_*), and Extended Window Styles ($WS_EX_*) constans.
Added two optional parameters in _WinAPI_CreateDIB() functions, see its description.
Rewrited _WinAPI_AddIconTransparency() function to improve performance.
Rewrited _WinAPI_SwapDWord() function for other purposes, see its description.
The _WinAPI_SaveHICONToFile() function now works with 16, 24, and 32 bits-per-pixel icon. Also creates an alpha channel for the 32 bits-per-pixel icon, and optionaly uses a PNG compression if icon size exceed or equal to 256x256 pixels.
The _WinAPI_Create32BitHICON() function now always creates an icon with alpha channel and AND bitmask bitmap.
Changed design of DllCall() call in some functions to improve performance.
Changed header in _WinAPI_Create32BitHBITMAP() function, see its description.
Changed the default buffer size from 8192 to 16384 characters that uses the _WinAPI_FindTextDlg() and _WinAPI_ReplaceTextDlg() functions.
Fixed bug in many functions that could cause crash the script due to insufficient size of allocated memory. (Thanks Ward)
Fixed bug in _WinAPI_AddIconOverlay(), _WinAPI_Create32BitHBITMAP(), and _WinAPI_Create32BitHICON() functions causing to incorrect conversion if the source icon was loaded from a PNG compressed image (Vista and later)
Fixed bug in _WinAPI_AddIconTransparency() function causing to incorrect conversion if the source icon is non 32 bits-per-pixel icon.
Fixed bug in _WinAPI_EnumResource... functions due to which the @error flag is always contained non-zero value. (Thanks Ward)
Fixed bug in _WinAPI_GetClipBox() and _WinAPI_GetRgnBox() functions causing to error if $tagRECT structure has not been created before calling these functions.
Fixed bug in _WinAPI_SaveHICONToFile() function causing to creating a corrupted .ico file if HICON is invalid.
Fixed bug in _WinAPI_UniqueHardwareID() function causing to generating an incorrect GUID if $UHID_HDD flag is set.
Updated documentation.

Edited October 2, 2011 by Yashied

JScript · September 29, 2011

Very, very, very nice!!!

Thanks,

João Carlos.

rchockxm · September 29, 2011

thanks update!

rchockxm

October 2, 2011

LAST VERSION - 3.5
29-Sep-11

This library contains the WinAPI functions are not included for unknown reasons to the native AutoIt WinAPI library. I use this UDF in nearly all of my programs, and decided to share it with the AutoIt community. I agree that over time some of these functions will be part of the native AutoIt library, but still... The library includes some undocumented, but useful functions (eg _WinAPI_GetFontResourceInfo()). The library also contains all the necessary constants to work with the appropriate functions. Most functions from this UDF intended for experienced users, but beginners will find the same lot of useful information for yourself. I will be to periodically add new functions to the library.

The archive contains WinAPIEx library, and as usual an excellent examples from me. Some examples I took from this forum and to simplify them for better understanding. For those who use SciTE (full version) I have prepared the au3.userudfs.properties and au3.user.calltips.api files to highlight functions from this UDF in your scripts. Just copy this files to ...SciTEProperties and ...SciTEapi, respectively. I hope this UDF will be useful for many as for me. I look forward to any feedback and suggestions. Maybe somebody wants to add new WinAPI functions?

Credits

Authenticity
GEOSoft
KaFu
Martin
MrCreatoR
Prog@ndy
Rover
WideBoyDixon

Available functions

_WinAPI_AbortPath
_WinAPI_AboutDlg
_WinAPI_ActivateKeyboardLayout
_WinAPI_AddClipboardFormatListener
_WinAPI_AddFontMemResourceEx
_WinAPI_AddFontResourceEx
_WinAPI_AddIconOverlay
_WinAPI_AddIconTransparency
_WinAPI_AddMRUString
_WinAPI_AdjustTokenPrivileges
_WinAPI_AdjustWindowRectEx
_WinAPI_AlphaBlend
_WinAPI_AngleArc
_WinAPI_AnimateWindow
_WinAPI_Arc
_WinAPI_ArcTo
_WinAPI_ArrayToStruct
_WinAPI_AssignProcessToJobObject
_WinAPI_AssocGetPerceivedType
_WinAPI_AssocQueryString
_WinAPI_BeginBufferedPaint
_WinAPI_BeginDeferWindowPos
_WinAPI_BeginPaint
_WinAPI_BeginPath
_WinAPI_BeginUpdateResource
_WinAPI_BringWindowToTop
_WinAPI_BroadcastSystemMessage
_WinAPI_BrowseForFolderDlg
_WinAPI_BufferedPaintClear
_WinAPI_BufferedPaintInit
_WinAPI_BufferedPaintSetAlpha
_WinAPI_BufferedPaintUnInit
_WinAPI_CalculatePopupWindowPosition
_WinAPI_CascadeWindows
_WinAPI_CharToOem
_WinAPI_ChildWindowFromPointEx
_WinAPI_ClipCursor
_WinAPI_CloseDesktop
_WinAPI_CloseEnhMetaFile
_WinAPI_CloseFigure
_WinAPI_CloseThemeData
_WinAPI_CloseWindow
_WinAPI_CloseWindowStation
_WinAPI_CoInitialize
_WinAPI_ColorHLSToRGB
_WinAPI_ColorRGBToHLS
_WinAPI_CombineTransform
_WinAPI_CommandLineToArgv
_WinAPI_CommDlgExtendedErrorEx
_WinAPI_CompressBitmapBits
_WinAPI_ComputeCrc32
_WinAPI_CopyBitmap
_WinAPI_CopyCursor
_WinAPI_CopyEnhMetaFile
_WinAPI_CopyFileEx
_WinAPI_CopyImage
_WinAPI_CopyRect
_WinAPI_CopyStruct
_WinAPI_CoTaskMemAlloc
_WinAPI_CoTaskMemFree
_WinAPI_CoTaskMemRealloc
_WinAPI_CoUninitialize
_WinAPI_Create32BitHBITMAP
_WinAPI_Create32BitHICON
_WinAPI_CreateANDBitmap
_WinAPI_CreateBitmapIndirect
_WinAPI_CreateBrushIndirect
_WinAPI_CreateCaret
_WinAPI_CreateCompatibleBitmapEx
_WinAPI_CreateDesktop
_WinAPI_CreateDIB
_WinAPI_CreateDIBColorTable
_WinAPI_CreateDIBitmap
_WinAPI_CreateDIBSection
_WinAPI_CreateDirectoryEx
_WinAPI_CreateEllipticRgn
_WinAPI_CreateEmptyIcon
_WinAPI_CreateEnhMetaFile
_WinAPI_CreateFileEx
_WinAPI_CreateFileMapping
_WinAPI_CreateGUID
_WinAPI_CreateIcon
_WinAPI_CreateIconFromResourceEx
_WinAPI_CreateIconIndirect
_WinAPI_CreateJobObject
_WinAPI_CreateMargins
_WinAPI_CreateMRUList
_WinAPI_CreateMutex
_WinAPI_CreateNullRgn
_WinAPI_CreateObjectID
_WinAPI_CreatePoint
_WinAPI_CreatePolygonRgn
_WinAPI_CreateRect
_WinAPI_CreateRectEx
_WinAPI_CreateRectRgnIndirect
_WinAPI_CreateSemaphore
_WinAPI_CreateSize
_WinAPI_CreateStreamOnHGlobal
_WinAPI_CreateString
_WinAPI_CreateTransform
_WinAPI_CreateWindowStation
_WinAPI_DeferWindowPos
_WinAPI_DefineDosDevice
_WinAPI_DefSubclassProc
_WinAPI_DeleteEnhMetaFile
_WinAPI_DeleteFile
_WinAPI_DeleteObjectID
_WinAPI_DeleteVolumeMountPoint
_WinAPI_DeregisterShellHookWindow
_WinAPI_DestroyCaret
_WinAPI_DestroyCursor
_WinAPI_DeviceIoControl
_WinAPI_DisplayStruct
_WinAPI_DllGetVersion
_WinAPI_DllInstall
_WinAPI_DllUninstall
_WinAPI_DPtoLP
_WinAPI_DragAcceptFiles
_WinAPI_DragFinish
_WinAPI_DragQueryFileEx
_WinAPI_DragQueryPoint
_WinAPI_DrawAnimatedRects
_WinAPI_DrawBitmap
_WinAPI_DrawShadowText
_WinAPI_DrawThemeBackground
_WinAPI_DrawThemeEdge
_WinAPI_DrawThemeIcon
_WinAPI_DrawThemeParentBackground
_WinAPI_DrawThemeText
_WinAPI_DrawThemeTextEx
_WinAPI_DuplicateHandle
_WinAPI_DwmEnableBlurBehindWindow
_WinAPI_DwmEnableComposition
_WinAPI_DwmGetColorizationColor
_WinAPI_DwmGetWindowAttribute
_WinAPI_DwmExtendFrameIntoClientArea
_WinAPI_DwmInvalidateIconicBitmaps
_WinAPI_DwmIsCompositionEnabled
_WinAPI_DwmQueryThumbnailSourceSize
_WinAPI_DwmRegisterThumbnail
_WinAPI_DwmSetIconicLivePreviewBitmap
_WinAPI_DwmSetIconicThumbnail
_WinAPI_DwmSetWindowAttribute
_WinAPI_DwmUnregisterThumbnail
_WinAPI_DwmUpdateThumbnailProperties
_WinAPI_DWordToFloat
_WinAPI_DWordToInt
_WinAPI_EjectMedia
_WinAPI_Ellipse
_WinAPI_EmptyWorkingSet
_WinAPI_EndBufferedPaint
_WinAPI_EndDeferWindowPos
_WinAPI_EndPaint
_WinAPI_EndPath
_WinAPI_EndUpdateResource
_WinAPI_EnumChildProcess
_WinAPI_EnumChildWindows
_WinAPI_EnumDesktops
_WinAPI_EnumDesktopWindows
_WinAPI_EnumDeviceDrivers
_WinAPI_EnumDisplaySettings
_WinAPI_EnumDllProc
_WinAPI_EnumMRUList
_WinAPI_EnumPageFiles
_WinAPI_EnumProcessModules
_WinAPI_EnumProcessThreads
_WinAPI_EnumProcessWindows
_WinAPI_EnumResourceLanguages
_WinAPI_EnumResourceNames
_WinAPI_EnumResourceTypes
_WinAPI_EnumSystemLocales
_WinAPI_EnumWindowStations
_WinAPI_EqualMemory
_WinAPI_EqualRect
_WinAPI_EqualRgn
_WinAPI_ExcludeClipRect
_WinAPI_ExtCreatePen
_WinAPI_ExtCreateRegion
_WinAPI_ExtFloodFill
_WinAPI_ExtractIcon
_WinAPI_ExtSelectClipRgn
_WinAPI_FatalExit
_WinAPI_FileInUse
_WinAPI_FillMemory
_WinAPI_FillPath
_WinAPI_FillRect
_WinAPI_FillRgn
_WinAPI_FindResource
_WinAPI_FindResourceEx
_WinAPI_FindTextDlg
_WinAPI_FlattenPath
_WinAPI_FloatToDWord
_WinAPI_FlushFRBuffer
_WinAPI_FlushViewOfFile
_WinAPI_FormatDriveDlg
_WinAPI_FrameRect
_WinAPI_FrameRgn
_WinAPI_FreeMRUList
_WinAPI_FreeResource
_WinAPI_GdiComment
_WinAPI_GetActiveWindow
_WinAPI_GetAllUsersProfileDirectory
_WinAPI_GetApplicationRestartSettings
_WinAPI_GetArcDirection
_WinAPI_GetAsyncKeyState
_WinAPI_GetBinaryType
_WinAPI_GetBitmapBits
_WinAPI_GetBitmapDimension
_WinAPI_GetBitmapDimensionEx
_WinAPI_GetBkColor
_WinAPI_GetBoundsRect
_WinAPI_GetBufferedPaintBits
_WinAPI_GetBufferedPaintDC
_WinAPI_GetBufferedPaintTargetDC
_WinAPI_GetBufferedPaintTargetRect
_WinAPI_GetBValue
_WinAPI_GetCaretBlinkTime
_WinAPI_GetCaretPos
_WinAPI_GetCDType
_WinAPI_GetClassInfoEx
_WinAPI_GetClassLongEx
_WinAPI_GetClipboardSequenceNumber
_WinAPI_GetClipBox
_WinAPI_GetClipCursor
_WinAPI_GetClipRgn
_WinAPI_GetCompressedFileSize
_WinAPI_GetCompression
_WinAPI_GetConnectedDlg
_WinAPI_GetCurrentDirectory
_WinAPI_GetCurrentHwProfile
_WinAPI_GetCurrentObject
_WinAPI_GetCurrentPosition
_WinAPI_GetCurrentProcessExplicitAppUserModelID
_WinAPI_GetCurrentThemeName
_WinAPI_GetCursor
_WinAPI_GetDateFormat
_WinAPI_GetDCEx
_WinAPI_GetDefaultPrinter
_WinAPI_GetDefaultUserProfileDirectory
_WinAPI_GetDeviceDriverBaseName
_WinAPI_GetDeviceDriverFileName
_WinAPI_GetDeviceGammaRamp
_WinAPI_GetDIBColorTable
_WinAPI_GetDiskFreeSpaceEx
_WinAPI_GetDllDirectory
_WinAPI_GetDriveBusType
_WinAPI_GetDriveGeometryEx
_WinAPI_GetDriveNumber
_WinAPI_GetDriveType
_WinAPI_GetEnhMetaFile
_WinAPI_GetEnhMetaFileBits
_WinAPI_GetEnhMetaFileDescription
_WinAPI_GetEnhMetaFileDimension
_WinAPI_GetEnhMetaFileHeader
_WinAPI_GetErrorMessage
_WinAPI_GetErrorMode
_WinAPI_GetExitCodeProcess
_WinAPI_GetExtended
_WinAPI_GetFileAttributes
_WinAPI_GetFileInformationByHandle
_WinAPI_GetFileSizeOnDisk
_WinAPI_GetFileTitle
_WinAPI_GetFileType
_WinAPI_GetFileVersionInfo
_WinAPI_GetFinalPathNameByHandle
_WinAPI_GetFontResourceInfo
_WinAPI_GetForegroundWindow
_WinAPI_GetFRBuffer
_WinAPI_GetFullPathName
_WinAPI_GetGraphicsMode
_WinAPI_GetGUIThreadInfo
_WinAPI_GetGValue
_WinAPI_GetHandleInformation
_WinAPI_GetHGlobalFromStream
_WinAPI_GetIconDimension
_WinAPI_GetIconInfoEx
_WinAPI_GetIdleTime
_WinAPI_GetKeyboardLayout
_WinAPI_GetKeyboardLayoutList
_WinAPI_GetKeyboardState
_WinAPI_GetKeyboardType
_WinAPI_GetKeyNameText
_WinAPI_GetKeyState
_WinAPI_GetLastActivePopup
_WinAPI_GetLayeredWindowAttributes
_WinAPI_GetLocaleInfo
_WinAPI_GetLogicalDrives
_WinAPI_GetMapMode
_WinAPI_GetMessageExtraInfo
_WinAPI_GetModuleFileNameEx
_WinAPI_GetModuleHandleEx
_WinAPI_GetModuleInformation
_WinAPI_GetObjectID
_WinAPI_GetObjectNameByHandle
_WinAPI_GetObjectType
_WinAPI_GetOutlineTextMetrics
_WinAPI_GetParentProcess
_WinAPI_GetPerformanceInfo
_WinAPI_GetPhysicallyInstalledSystemMemory
_WinAPI_GetPixel
_WinAPI_GetPolyFillMode
_WinAPI_GetPosFromRect
_WinAPI_GetProcAddress
_WinAPI_GetProcessCommandLine
_WinAPI_GetProcessFileName
_WinAPI_GetProcessHandleCount
_WinAPI_GetProcessID
_WinAPI_GetProcessIoCounters
_WinAPI_GetProcessMemoryInfo
_WinAPI_GetProcessName
_WinAPI_GetProcessShutdownParameters
_WinAPI_GetProcessTimes
_WinAPI_GetProcessUser
_WinAPI_GetProcessWindowStation
_WinAPI_GetProcessWorkingDirectory
_WinAPI_GetProfilesDirectory
_WinAPI_GetPwrCapabilities
_WinAPI_GetRegionData
_WinAPI_GetRegKeyNameByHandle
_WinAPI_GetRgnBox
_WinAPI_GetROP2
_WinAPI_GetRValue
_WinAPI_GetShellWindow
_WinAPI_GetStartupInfo
_WinAPI_GetString
_WinAPI_GetSystemDefaultLCID
_WinAPI_GetSystemDEPPolicy
_WinAPI_GetSystemInfo
_WinAPI_GetSystemPowerStatus
_WinAPI_GetSystemTimes
_WinAPI_GetSystemWow64Directory
_WinAPI_GetTempFileName
_WinAPI_GetTextAlign
_WinAPI_GetTextCharacterExtra
_WinAPI_GetTextColor
_WinAPI_GetTextFace
_WinAPI_GetTextMetrics
_WinAPI_GetThemeAppProperties
_WinAPI_GetThemeBackgroundContentRect
_WinAPI_GetThemeBackgroundExtent
_WinAPI_GetThemeBackgroundRegion
_WinAPI_GetThemeBitmap
_WinAPI_GetThemeBool
_WinAPI_GetThemeColor
_WinAPI_GetThemeDocumentationProperty
_WinAPI_GetThemeEnumValue
_WinAPI_GetThemeFilename
_WinAPI_GetThemeFont
_WinAPI_GetThemeInt
_WinAPI_GetThemeMargins
_WinAPI_GetThemeMetric
_WinAPI_GetThemePartSize
_WinAPI_GetThemePosition
_WinAPI_GetThemePropertyOrigin
_WinAPI_GetThemeRect
_WinAPI_GetThemeString
_WinAPI_GetThemeSysBool
_WinAPI_GetThemeSysColor
_WinAPI_GetThemeSysColorBrush
_WinAPI_GetThemeSysFont
_WinAPI_GetThemeSysInt
_WinAPI_GetThemeSysSize
_WinAPI_GetThemeSysString
_WinAPI_GetThemeTextExtent
_WinAPI_GetThemeTextMetrics
_WinAPI_GetThemeTransitionDuration
_WinAPI_GetThreadDesktop
_WinAPI_GetThreadErrorMode
_WinAPI_GetTickCount
_WinAPI_GetTickCount64
_WinAPI_GetTimeFormat
_WinAPI_GetTopWindow
_WinAPI_GetUDFColorMode
_WinAPI_GetUDFVersion
_WinAPI_GetUpdateRect
_WinAPI_GetUpdateRgn
_WinAPI_GetUserDefaultLCID
_WinAPI_GetUserObjectInformation
_WinAPI_GetVersion
_WinAPI_GetVersionEx
_WinAPI_GetVolumeNameForVolumeMountPoint
_WinAPI_GetWindowDisplayAffinity
_WinAPI_GetWindowExt
_WinAPI_GetWindowFileName
_WinAPI_GetWindowInfo
_WinAPI_GetWindowLongEx
_WinAPI_GetWindowOrg
_WinAPI_GetWindowSubclass
_WinAPI_GetWindowTheme
_WinAPI_GetWorkArea
_WinAPI_GetWorldTransform
_WinAPI_GradientFill
_WinAPI_Hex64
_WinAPI_HiByte
_WinAPI_HideCaret
_WinAPI_HiDWord
_WinAPI_InflateRect
_WinAPI_IntersectClipRect
_WinAPI_IntersectRect
_WinAPI_IntToDWord
_WinAPI_InvalidateRect
_WinAPI_InvalidateRgn
_WinAPI_InvertANDBitmap
_WinAPI_InvertColor
_WinAPI_InvertRect
_WinAPI_InvertRgn
_WinAPI_IOCTL
_WinAPI_IsAlphaBitmap
_WinAPI_IsBadCodePtr
_WinAPI_IsBadReadPtr
_WinAPI_IsBadStringPtr
_WinAPI_IsBadWritePtr
_WinAPI_IsChild
_WinAPI_IsDoorOpen
_WinAPI_IsHungAppWindow
_WinAPI_IsIconic
_WinAPI_IsInternetConnected
_WinAPI_IsLoadKBLayout
_WinAPI_IsNetworkAlive
_WinAPI_IsProcessInJob
_WinAPI_IsProcessorFeaturePresent
_WinAPI_IsRectEmpty
_WinAPI_IsThemeActive
_WinAPI_IsThemeBackgroundPartiallyTransparent
_WinAPI_IsThemePartDefined
_WinAPI_IsValidLocale
_WinAPI_IsWindowEnabled
_WinAPI_IsWindowUnicode
_WinAPI_IsWow64Process
_WinAPI_IsWritable
_WinAPI_IsZoomed
_WinAPI_Keybd_Event
_WinAPI_KillTimer
_WinAPI_LineDDA
_WinAPI_LoadCursor
_WinAPI_LoadCursorFromFile
_WinAPI_LoadIconWithScaleDown
_WinAPI_LoadIndirectString
_WinAPI_LoadKeyboardLayout
_WinAPI_LoadMedia
_WinAPI_LoadResource
_WinAPI_LoByte
_WinAPI_LockDevice
_WinAPI_LockFile
_WinAPI_LockResource
_WinAPI_LockWindowUpdate
_WinAPI_LockWorkStation
_WinAPI_LoDWord
_WinAPI_LongMid
_WinAPI_LookupIconIdFromDirectoryEx
_WinAPI_LPtoDP
_WinAPI_LZNTCompress
_WinAPI_LZNTDecompress
_WinAPI_MapViewOfFile
_WinAPI_MapVirtualKey
_WinAPI_MaskBlt
_WinAPI_MessageBoxCheck
_WinAPI_MessageBoxIndirect
_WinAPI_ModifyWorldTransform
_WinAPI_MoveFileEx
_WinAPI_MoveMemory
_WinAPI_MoveToEx
_WinAPI_NtStatusToDosError
_WinAPI_OemToChar
_WinAPI_OffsetPoints
_WinAPI_OffsetClipRgn
_WinAPI_OffsetRect
_WinAPI_OffsetRgn
_WinAPI_OffsetWindowOrg
_WinAPI_OpenDesktop
_WinAPI_OpenFileById
_WinAPI_OpenFileMapping
_WinAPI_OpenIcon
_WinAPI_OpenInputDesktop
_WinAPI_OpenJobObject
_WinAPI_OpenMutex
_WinAPI_OpenProcessToken
_WinAPI_OpenSemaphore
_WinAPI_OpenThemeData
_WinAPI_OpenWindowStation
_WinAPI_PageSetupDlg
_WinAPI_PaintDesktop
_WinAPI_PaintRgn
_WinAPI_PatBlt
_WinAPI_PathAddBackslash
_WinAPI_PathAddExtension
_WinAPI_PathCanonicalize
_WinAPI_PathCommonPrefix
_WinAPI_PathCompactPath
_WinAPI_PathCompactPathEx
_WinAPI_PathCreateFromUrl
_WinAPI_PathFindExtension
_WinAPI_PathFindFileName
_WinAPI_PathFindNextComponent
_WinAPI_PathFindOnPath
_WinAPI_PathGetArgs
_WinAPI_PathGetCharType
_WinAPI_PathGetDriveNumber
_WinAPI_PathIsContentType
_WinAPI_PathIsDirectory
_WinAPI_PathIsDirectoryEmpty
_WinAPI_PathIsExe
_WinAPI_PathIsFileSpec
_WinAPI_PathIsLFNFileSpec
_WinAPI_PathIsRelative
_WinAPI_PathIsRoot
_WinAPI_PathIsSameRoot
_WinAPI_PathIsSystemFolder
_WinAPI_PathIsUNC
_WinAPI_PathIsUNCServer
_WinAPI_PathIsUNCServerShare
_WinAPI_PathMakeSystemFolder
_WinAPI_PathMatchSpec
_WinAPI_PathParseIconLocation
_WinAPI_PathRelativePathTo
_WinAPI_PathRemoveArgs
_WinAPI_PathRemoveBackslash
_WinAPI_PathRemoveExtension
_WinAPI_PathRemoveFileSpec
_WinAPI_PathRenameExtension
_WinAPI_PathSearchAndQualify
_WinAPI_PathSkipRoot
_WinAPI_PathStripPath
_WinAPI_PathStripToRoot
_WinAPI_PathToRegion
_WinAPI_PathUndecorate
_WinAPI_PathUnExpandEnvStrings
_WinAPI_PathUnmakeSystemFolder
_WinAPI_PathUnquoteSpaces
_WinAPI_PathYetAnotherMakeUniqueName
_WinAPI_PickIconDlg
_WinAPI_PlayEnhMetaFile
_WinAPI_PlaySound
_WinAPI_PlgBlt
_WinAPI_PolyBezier
_WinAPI_PolyBezierTo
_WinAPI_PolyDraw
_WinAPI_Polygon
_WinAPI_PrintDlg
_WinAPI_PrintDlgEx
_WinAPI_PrintWindow
_WinAPI_PtInRectEx
_WinAPI_PtInRegion
_WinAPI_PtVisible
_WinAPI_QueryDosDevice
_WinAPI_QueryInformationJobObject
_WinAPI_QueryPerformanceCounter
_WinAPI_QueryPerformanceFrequency
_WinAPI_RadialGradientFill
_WinAPI_Rectangle
_WinAPI_RectInRegion
_WinAPI_RectVisible
_WinAPI_RegCloseKey
_WinAPI_RegConnectRegistry
_WinAPI_RegCopyTree
_WinAPI_RegCopyTreeEx
_WinAPI_RegCreateKey
_WinAPI_RegDeleteEmptyKey
_WinAPI_RegDeleteKey
_WinAPI_RegDeleteKeyValue
_WinAPI_RegDeleteTree
_WinAPI_RegDeleteTreeEx
_WinAPI_RegDeleteValue
_WinAPI_RegDisableReflectionKey
_WinAPI_RegDuplicateHKey
_WinAPI_RegEnableReflectionKey
_WinAPI_RegEnumKey
_WinAPI_RegEnumValue
_WinAPI_RegFlushKey
_WinAPI_RegisterApplicationRestart
_WinAPI_RegisterClassEx
_WinAPI_RegisterHotKey
_WinAPI_RegisterPowerSettingNotification
_WinAPI_RegisterShellHookWindow
_WinAPI_RegLoadMUIString
_WinAPI_RegNotifyChangeKeyValue
_WinAPI_RegOpenKey
_WinAPI_RegQueryInfoKey
_WinAPI_RegQueryLastWriteTime
_WinAPI_RegQueryMultipleValues
_WinAPI_RegQueryReflectionKey
_WinAPI_RegQueryValue
_WinAPI_RegRestoreKey
_WinAPI_RegSaveKey
_WinAPI_RegSetValue
_WinAPI_ReleaseMutex
_WinAPI_ReleaseSemaphore
_WinAPI_ReleaseStream
_WinAPI_RemoveClipboardFormatListener
_WinAPI_RemoveFontMemResourceEx
_WinAPI_RemoveFontResourceEx
_WinAPI_RemoveWindowSubclass
_WinAPI_ReOpenFile
_WinAPI_ReplaceFile
_WinAPI_ReplaceTextDlg
_WinAPI_ResetEvent
_WinAPI_ResizeBitmap
_WinAPI_RestartDlg
_WinAPI_RestoreDC
_WinAPI_RGB
_WinAPI_RotatePoints
_WinAPI_RoundRect
_WinAPI_SaveDC
_WinAPI_SaveHBITMAPToFile
_WinAPI_SaveHICONToFile
_WinAPI_ScaleWindowExt
_WinAPI_SelectClipPath
_WinAPI_SelectClipRgn
_WinAPI_SendMessageTimeout
_WinAPI_SetActiveWindow
_WinAPI_SetArcDirection
_WinAPI_SetBitmapBits
_WinAPI_SetBitmapDimensionEx
_WinAPI_SetBoundsRect
_WinAPI_SetClassLongEx
_WinAPI_SetCompression
_WinAPI_SetCaretBlinkTime
_WinAPI_SetCaretPos
_WinAPI_SetCurrentDirectory
_WinAPI_SetCurrentProcessExplicitAppUserModelID
_WinAPI_SetDCBrushColor
_WinAPI_SetDCPenColor
_WinAPI_SetDefaultPrinter
_WinAPI_SetDeviceGammaRamp
_WinAPI_SetDIBColorTable
_WinAPI_SetDIBitsToDevice
_WinAPI_SetDllDirectory
_WinAPI_SetEnhMetaFileBits
_WinAPI_SetErrorMode
_WinAPI_SetFileAttributes
_WinAPI_SetFilePointerEx
_WinAPI_SetForegroundWindow
_WinAPI_SetFRBuffer
_WinAPI_SetGraphicsMode
_WinAPI_SetHandleInformation
_WinAPI_SetInformationJobObject
_WinAPI_SetKeyboardLayout
_WinAPI_SetKeyboardState
_WinAPI_SetLayeredWindowAttributes
_WinAPI_SetLocaleInfo
_WinAPI_SetMapMode
_WinAPI_SetMessageExtraInfo
_WinAPI_SetParent
_WinAPI_SetPixel
_WinAPI_SetPolyFillMode
_WinAPI_SetProcessShutdownParameters
_WinAPI_SetProcessWindowStation
_WinAPI_SetRectRgn
_WinAPI_SetROP2
_WinAPI_SetStretchBltMode
_WinAPI_SetSystemCursor
_WinAPI_SetTextAlign
_WinAPI_SetTextCharacterExtra
_WinAPI_SetTextJustification
_WinAPI_SetThemeAppProperties
_WinAPI_SetThreadDesktop
_WinAPI_SetThreadErrorMode
_WinAPI_SetThreadExecutionState
_WinAPI_SetTimer
_WinAPI_SetUDFColorMode
_WinAPI_SetUserObjectInformation
_WinAPI_SetVolumeMountPoint
_WinAPI_SetWindowDisplayAffinity
_WinAPI_SetWindowExt
_WinAPI_SetWindowLongEx
_WinAPI_SetWindowOrg
_WinAPI_SetWindowSubclass
_WinAPI_SetWindowTheme
_WinAPI_SetWinEventHook
_WinAPI_SetWorldTransform
_WinAPI_SfcIsFileProtected
_WinAPI_SfcIsKeyProtected
_WinAPI_ShellAddToRecentDocs
_WinAPI_ShellChangeNotify
_WinAPI_ShellChangeNotifyDeregister
_WinAPI_ShellChangeNotifyRegister
_WinAPI_ShellEmptyRecycleBin
_WinAPI_ShellExecute
_WinAPI_ShellExtractAssociatedIcon
_WinAPI_ShellExtractIcon
_WinAPI_ShellFileOperation
_WinAPI_ShellGetFileInfo
_WinAPI_ShellGetKnownFolderPath
_WinAPI_ShellGetLocalizedName
_WinAPI_ShellGetPathFromIDList
_WinAPI_ShellGetSetFolderCustomSettings
_WinAPI_ShellGetSettings
_WinAPI_ShellGetSpecialFolderLocation
_WinAPI_ShellGetSpecialFolderPath
_WinAPI_ShellGetStockIconInfo
_WinAPI_ShellILCreateFromPath
_WinAPI_ShellNotifyIcon
_WinAPI_ShellNotifyIconGetRect
_WinAPI_ShellObjectProperties
_WinAPI_ShellOpenFolderAndSelectItems
_WinAPI_ShellOpenWithDlg
_WinAPI_ShellQueryRecycleBin
_WinAPI_ShellQueryUserNotificationState
_WinAPI_ShellRemoveLocalizedName
_WinAPI_ShellRestricted
_WinAPI_ShellSetLocalizedName
_WinAPI_ShellSetSettings
_WinAPI_ShellStartNetConnectionDlg
_WinAPI_ShowCaret
_WinAPI_ShowLastError
_WinAPI_ShowOwnedPopups
_WinAPI_ShutdownBlockReasonCreate
_WinAPI_ShutdownBlockReasonDestroy
_WinAPI_ShutdownBlockReasonQuery
_WinAPI_ShutdownDlg
_WinAPI_SizeOfResource
_WinAPI_StretchBlt
_WinAPI_StretchDIBits
_WinAPI_StrFormatByteSize
_WinAPI_StrFormatByteSizeEx
_WinAPI_StrFormatKBSize
_WinAPI_StrFromTimeInterval
_WinAPI_StrLen
_WinAPI_StrokeAndFillPath
_WinAPI_StrokePath
_WinAPI_StructToArray
_WinAPI_SubtractRect
_WinAPI_SwitchColor
_WinAPI_SwitchDesktop
_WinAPI_SwitchToThisWindow
_WinAPI_SwapDWord
_WinAPI_SwapQWord
_WinAPI_SwapWord
_WinAPI_TextOut
_WinAPI_TileWindows
_WinAPI_TransparentBlt

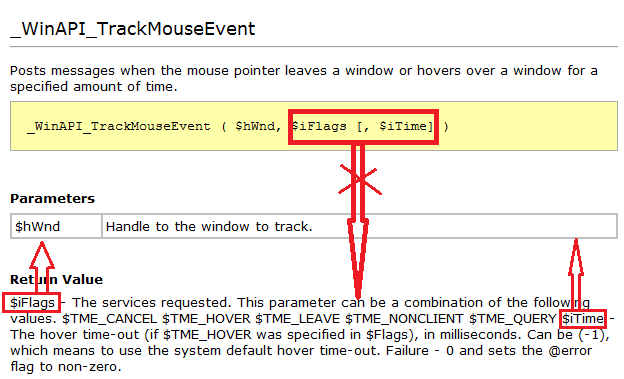

_WinAPI_TrackMouseEvent
_WinAPI_UnhookWinEvent
_WinAPI_UnionRect
_WinAPI_UnionStruct
_WinAPI_UniqueHardwareID
_WinAPI_UnloadKeyboardLayout
_WinAPI_UnlockFile
_WinAPI_UnmapViewOfFile
_WinAPI_UnregisterApplicationRestart
_WinAPI_UnregisterClass
_WinAPI_UnregisterHotKey
_WinAPI_UnregisterPowerSettingNotification
_WinAPI_UpdateLayeredWindowEx
_WinAPI_UpdateResource
_WinAPI_UrlCreateFromPath
_WinAPI_UrlEscape
_WinAPI_UrlFixup
_WinAPI_UrlGetPart
_WinAPI_UrlIs
_WinAPI_UrlUnescape
_WinAPI_ValidateRect
_WinAPI_ValidateRgn
_WinAPI_VerQueryRoot
_WinAPI_VerQueryValue
_WinAPI_WidenPath
_WinAPI_WindowFromDC
_WinAPI_Wow64EnableWow64FsRedirection
_WinAPI_ZeroMemory

WinAPI Extended UDF Library v3.5
(Previous downloads: 15878)

October 2, 2011

LAST VERSION - 3.5
29-Sep-11

This library contains the WinAPI functions are not included for unknown reasons to the native AutoIt WinAPI library. I use this UDF in nearly all of my programs, and decided to share it with the AutoIt community. I agree that over time some of these functions will be part of the native AutoIt library, but still... The library includes some undocumented, but useful functions (eg _WinAPI_GetFontResourceInfo()). The library also contains all the necessary constants to work with the appropriate functions. Most functions from this UDF intended for experienced users, but beginners will find the same lot of useful information for yourself. I will be to periodically add new functions to the library.

The archive contains WinAPIEx library, and as usual an excellent examples from me. Some examples I took from this forum and to simplify them for better understanding. For those who use SciTE (full version) I have prepared the au3.userudfs.properties and au3.user.calltips.api files to highlight functions from this UDF in your scripts. Just copy this files to ...SciTEProperties and ...SciTEapi, respectively. I hope this UDF will be useful for many as for me. I look forward to any feedback and suggestions. Maybe somebody wants to add new WinAPI functions?

Credits

Authenticity
GEOSoft
KaFu
Martin
MrCreatoR
Prog@ndy
Rover
WideBoyDixon

Available functions

_WinAPI_AbortPath
_WinAPI_AboutDlg
_WinAPI_ActivateKeyboardLayout
_WinAPI_AddClipboardFormatListener
_WinAPI_AddFontMemResourceEx
_WinAPI_AddFontResourceEx
_WinAPI_AddIconOverlay
_WinAPI_AddIconTransparency
_WinAPI_AddMRUString
_WinAPI_AdjustTokenPrivileges
_WinAPI_AdjustWindowRectEx
_WinAPI_AlphaBlend
_WinAPI_AngleArc
_WinAPI_AnimateWindow
_WinAPI_Arc
_WinAPI_ArcTo
_WinAPI_ArrayToStruct
_WinAPI_AssignProcessToJobObject
_WinAPI_AssocGetPerceivedType
_WinAPI_AssocQueryString
_WinAPI_BeginBufferedPaint
_WinAPI_BeginDeferWindowPos
_WinAPI_BeginPaint
_WinAPI_BeginPath
_WinAPI_BeginUpdateResource
_WinAPI_BringWindowToTop
_WinAPI_BroadcastSystemMessage
_WinAPI_BrowseForFolderDlg
_WinAPI_BufferedPaintClear
_WinAPI_BufferedPaintInit
_WinAPI_BufferedPaintSetAlpha
_WinAPI_BufferedPaintUnInit
_WinAPI_CalculatePopupWindowPosition
_WinAPI_CascadeWindows
_WinAPI_CharToOem
_WinAPI_ChildWindowFromPointEx
_WinAPI_ClipCursor
_WinAPI_CloseDesktop
_WinAPI_CloseEnhMetaFile
_WinAPI_CloseFigure
_WinAPI_CloseThemeData
_WinAPI_CloseWindow
_WinAPI_CloseWindowStation
_WinAPI_CoInitialize
_WinAPI_ColorHLSToRGB
_WinAPI_ColorRGBToHLS
_WinAPI_CombineTransform
_WinAPI_CommandLineToArgv
_WinAPI_CommDlgExtendedErrorEx
_WinAPI_CompressBitmapBits
_WinAPI_ComputeCrc32
_WinAPI_CopyBitmap
_WinAPI_CopyCursor
_WinAPI_CopyEnhMetaFile
_WinAPI_CopyFileEx
_WinAPI_CopyImage
_WinAPI_CopyRect
_WinAPI_CopyStruct
_WinAPI_CoTaskMemAlloc
_WinAPI_CoTaskMemFree
_WinAPI_CoTaskMemRealloc
_WinAPI_CoUninitialize
_WinAPI_Create32BitHBITMAP
_WinAPI_Create32BitHICON
_WinAPI_CreateANDBitmap
_WinAPI_CreateBitmapIndirect
_WinAPI_CreateBrushIndirect
_WinAPI_CreateCaret
_WinAPI_CreateCompatibleBitmapEx
_WinAPI_CreateDesktop
_WinAPI_CreateDIB
_WinAPI_CreateDIBColorTable
_WinAPI_CreateDIBitmap
_WinAPI_CreateDIBSection
_WinAPI_CreateDirectoryEx
_WinAPI_CreateEllipticRgn
_WinAPI_CreateEmptyIcon
_WinAPI_CreateEnhMetaFile
_WinAPI_CreateFileEx
_WinAPI_CreateFileMapping
_WinAPI_CreateGUID
_WinAPI_CreateIcon
_WinAPI_CreateIconFromResourceEx
_WinAPI_CreateIconIndirect
_WinAPI_CreateJobObject
_WinAPI_CreateMargins
_WinAPI_CreateMRUList
_WinAPI_CreateMutex
_WinAPI_CreateNullRgn
_WinAPI_CreateObjectID
_WinAPI_CreatePoint
_WinAPI_CreatePolygonRgn
_WinAPI_CreateRect
_WinAPI_CreateRectEx
_WinAPI_CreateRectRgnIndirect
_WinAPI_CreateSemaphore
_WinAPI_CreateSize
_WinAPI_CreateStreamOnHGlobal
_WinAPI_CreateString
_WinAPI_CreateTransform
_WinAPI_CreateWindowStation
_WinAPI_DeferWindowPos
_WinAPI_DefineDosDevice
_WinAPI_DefSubclassProc
_WinAPI_DeleteEnhMetaFile
_WinAPI_DeleteFile
_WinAPI_DeleteObjectID
_WinAPI_DeleteVolumeMountPoint
_WinAPI_DeregisterShellHookWindow
_WinAPI_DestroyCaret
_WinAPI_DestroyCursor
_WinAPI_DeviceIoControl
_WinAPI_DisplayStruct
_WinAPI_DllGetVersion
_WinAPI_DllInstall
_WinAPI_DllUninstall
_WinAPI_DPtoLP
_WinAPI_DragAcceptFiles
_WinAPI_DragFinish
_WinAPI_DragQueryFileEx
_WinAPI_DragQueryPoint
_WinAPI_DrawAnimatedRects
_WinAPI_DrawBitmap
_WinAPI_DrawShadowText
_WinAPI_DrawThemeBackground
_WinAPI_DrawThemeEdge
_WinAPI_DrawThemeIcon
_WinAPI_DrawThemeParentBackground
_WinAPI_DrawThemeText
_WinAPI_DrawThemeTextEx
_WinAPI_DuplicateHandle
_WinAPI_DwmEnableBlurBehindWindow
_WinAPI_DwmEnableComposition
_WinAPI_DwmGetColorizationColor
_WinAPI_DwmGetWindowAttribute
_WinAPI_DwmExtendFrameIntoClientArea
_WinAPI_DwmInvalidateIconicBitmaps
_WinAPI_DwmIsCompositionEnabled
_WinAPI_DwmQueryThumbnailSourceSize
_WinAPI_DwmRegisterThumbnail
_WinAPI_DwmSetIconicLivePreviewBitmap
_WinAPI_DwmSetIconicThumbnail
_WinAPI_DwmSetWindowAttribute
_WinAPI_DwmUnregisterThumbnail
_WinAPI_DwmUpdateThumbnailProperties
_WinAPI_DWordToFloat
_WinAPI_DWordToInt
_WinAPI_EjectMedia
_WinAPI_Ellipse
_WinAPI_EmptyWorkingSet
_WinAPI_EndBufferedPaint
_WinAPI_EndDeferWindowPos
_WinAPI_EndPaint
_WinAPI_EndPath
_WinAPI_EndUpdateResource
_WinAPI_EnumChildProcess
_WinAPI_EnumChildWindows
_WinAPI_EnumDesktops
_WinAPI_EnumDesktopWindows
_WinAPI_EnumDeviceDrivers
_WinAPI_EnumDisplaySettings
_WinAPI_EnumDllProc
_WinAPI_EnumMRUList
_WinAPI_EnumPageFiles
_WinAPI_EnumProcessModules
_WinAPI_EnumProcessThreads
_WinAPI_EnumProcessWindows
_WinAPI_EnumResourceLanguages
_WinAPI_EnumResourceNames
_WinAPI_EnumResourceTypes
_WinAPI_EnumSystemLocales
_WinAPI_EnumWindowStations
_WinAPI_EqualMemory
_WinAPI_EqualRect
_WinAPI_EqualRgn
_WinAPI_ExcludeClipRect
_WinAPI_ExtCreatePen
_WinAPI_ExtCreateRegion
_WinAPI_ExtFloodFill
_WinAPI_ExtractIcon
_WinAPI_ExtSelectClipRgn
_WinAPI_FatalExit
_WinAPI_FileInUse
_WinAPI_FillMemory
_WinAPI_FillPath
_WinAPI_FillRect
_WinAPI_FillRgn
_WinAPI_FindResource
_WinAPI_FindResourceEx
_WinAPI_FindTextDlg
_WinAPI_FlattenPath
_WinAPI_FloatToDWord
_WinAPI_FlushFRBuffer
_WinAPI_FlushViewOfFile
_WinAPI_FormatDriveDlg
_WinAPI_FrameRect
_WinAPI_FrameRgn
_WinAPI_FreeMRUList
_WinAPI_FreeResource
_WinAPI_GdiComment
_WinAPI_GetActiveWindow
_WinAPI_GetAllUsersProfileDirectory
_WinAPI_GetApplicationRestartSettings
_WinAPI_GetArcDirection
_WinAPI_GetAsyncKeyState
_WinAPI_GetBinaryType
_WinAPI_GetBitmapBits
_WinAPI_GetBitmapDimension
_WinAPI_GetBitmapDimensionEx
_WinAPI_GetBkColor
_WinAPI_GetBoundsRect
_WinAPI_GetBufferedPaintBits
_WinAPI_GetBufferedPaintDC
_WinAPI_GetBufferedPaintTargetDC
_WinAPI_GetBufferedPaintTargetRect
_WinAPI_GetBValue
_WinAPI_GetCaretBlinkTime
_WinAPI_GetCaretPos
_WinAPI_GetCDType
_WinAPI_GetClassInfoEx
_WinAPI_GetClassLongEx
_WinAPI_GetClipboardSequenceNumber
_WinAPI_GetClipBox
_WinAPI_GetClipCursor
_WinAPI_GetClipRgn
_WinAPI_GetCompressedFileSize
_WinAPI_GetCompression
_WinAPI_GetConnectedDlg
_WinAPI_GetCurrentDirectory
_WinAPI_GetCurrentHwProfile
_WinAPI_GetCurrentObject
_WinAPI_GetCurrentPosition
_WinAPI_GetCurrentProcessExplicitAppUserModelID
_WinAPI_GetCurrentThemeName
_WinAPI_GetCursor
_WinAPI_GetDateFormat
_WinAPI_GetDCEx
_WinAPI_GetDefaultPrinter
_WinAPI_GetDefaultUserProfileDirectory
_WinAPI_GetDeviceDriverBaseName
_WinAPI_GetDeviceDriverFileName
_WinAPI_GetDeviceGammaRamp
_WinAPI_GetDIBColorTable
_WinAPI_GetDiskFreeSpaceEx
_WinAPI_GetDllDirectory
_WinAPI_GetDriveBusType
_WinAPI_GetDriveGeometryEx
_WinAPI_GetDriveNumber
_WinAPI_GetDriveType
_WinAPI_GetEnhMetaFile
_WinAPI_GetEnhMetaFileBits
_WinAPI_GetEnhMetaFileDescription
_WinAPI_GetEnhMetaFileDimension
_WinAPI_GetEnhMetaFileHeader
_WinAPI_GetErrorMessage
_WinAPI_GetErrorMode
_WinAPI_GetExitCodeProcess
_WinAPI_GetExtended
_WinAPI_GetFileAttributes
_WinAPI_GetFileInformationByHandle
_WinAPI_GetFileSizeOnDisk
_WinAPI_GetFileTitle
_WinAPI_GetFileType
_WinAPI_GetFileVersionInfo
_WinAPI_GetFinalPathNameByHandle
_WinAPI_GetFontResourceInfo
_WinAPI_GetForegroundWindow
_WinAPI_GetFRBuffer
_WinAPI_GetFullPathName
_WinAPI_GetGraphicsMode
_WinAPI_GetGUIThreadInfo
_WinAPI_GetGValue
_WinAPI_GetHandleInformation
_WinAPI_GetHGlobalFromStream
_WinAPI_GetIconDimension
_WinAPI_GetIconInfoEx
_WinAPI_GetIdleTime
_WinAPI_GetKeyboardLayout
_WinAPI_GetKeyboardLayoutList
_WinAPI_GetKeyboardState
_WinAPI_GetKeyboardType
_WinAPI_GetKeyNameText
_WinAPI_GetKeyState
_WinAPI_GetLastActivePopup
_WinAPI_GetLayeredWindowAttributes
_WinAPI_GetLocaleInfo
_WinAPI_GetLogicalDrives
_WinAPI_GetMapMode
_WinAPI_GetMessageExtraInfo
_WinAPI_GetModuleFileNameEx
_WinAPI_GetModuleHandleEx
_WinAPI_GetModuleInformation
_WinAPI_GetObjectID
_WinAPI_GetObjectNameByHandle
_WinAPI_GetObjectType
_WinAPI_GetOutlineTextMetrics
_WinAPI_GetParentProcess
_WinAPI_GetPerformanceInfo
_WinAPI_GetPhysicallyInstalledSystemMemory
_WinAPI_GetPixel
_WinAPI_GetPolyFillMode
_WinAPI_GetPosFromRect
_WinAPI_GetProcAddress
_WinAPI_GetProcessCommandLine
_WinAPI_GetProcessFileName
_WinAPI_GetProcessHandleCount
_WinAPI_GetProcessID
_WinAPI_GetProcessIoCounters
_WinAPI_GetProcessMemoryInfo
_WinAPI_GetProcessName
_WinAPI_GetProcessShutdownParameters
_WinAPI_GetProcessTimes
_WinAPI_GetProcessUser
_WinAPI_GetProcessWindowStation
_WinAPI_GetProcessWorkingDirectory
_WinAPI_GetProfilesDirectory
_WinAPI_GetPwrCapabilities
_WinAPI_GetRegionData
_WinAPI_GetRegKeyNameByHandle
_WinAPI_GetRgnBox
_WinAPI_GetROP2
_WinAPI_GetRValue
_WinAPI_GetShellWindow
_WinAPI_GetStartupInfo
_WinAPI_GetString
_WinAPI_GetSystemDefaultLCID
_WinAPI_GetSystemDEPPolicy
_WinAPI_GetSystemInfo
_WinAPI_GetSystemPowerStatus
_WinAPI_GetSystemTimes
_WinAPI_GetSystemWow64Directory
_WinAPI_GetTempFileName
_WinAPI_GetTextAlign
_WinAPI_GetTextCharacterExtra
_WinAPI_GetTextColor
_WinAPI_GetTextFace
_WinAPI_GetTextMetrics
_WinAPI_GetThemeAppProperties
_WinAPI_GetThemeBackgroundContentRect
_WinAPI_GetThemeBackgroundExtent
_WinAPI_GetThemeBackgroundRegion
_WinAPI_GetThemeBitmap
_WinAPI_GetThemeBool
_WinAPI_GetThemeColor
_WinAPI_GetThemeDocumentationProperty
_WinAPI_GetThemeEnumValue
_WinAPI_GetThemeFilename
_WinAPI_GetThemeFont
_WinAPI_GetThemeInt
_WinAPI_GetThemeMargins
_WinAPI_GetThemeMetric
_WinAPI_GetThemePartSize
_WinAPI_GetThemePosition
_WinAPI_GetThemePropertyOrigin
_WinAPI_GetThemeRect
_WinAPI_GetThemeString
_WinAPI_GetThemeSysBool
_WinAPI_GetThemeSysColor
_WinAPI_GetThemeSysColorBrush
_WinAPI_GetThemeSysFont
_WinAPI_GetThemeSysInt
_WinAPI_GetThemeSysSize
_WinAPI_GetThemeSysString
_WinAPI_GetThemeTextExtent
_WinAPI_GetThemeTextMetrics
_WinAPI_GetThemeTransitionDuration
_WinAPI_GetThreadDesktop
_WinAPI_GetThreadErrorMode
_WinAPI_GetTickCount
_WinAPI_GetTickCount64
_WinAPI_GetTimeFormat
_WinAPI_GetTopWindow
_WinAPI_GetUDFColorMode
_WinAPI_GetUDFVersion
_WinAPI_GetUpdateRect
_WinAPI_GetUpdateRgn
_WinAPI_GetUserDefaultLCID
_WinAPI_GetUserObjectInformation
_WinAPI_GetVersion
_WinAPI_GetVersionEx
_WinAPI_GetVolumeNameForVolumeMountPoint
_WinAPI_GetWindowDisplayAffinity
_WinAPI_GetWindowExt
_WinAPI_GetWindowFileName
_WinAPI_GetWindowInfo
_WinAPI_GetWindowLongEx
_WinAPI_GetWindowOrg
_WinAPI_GetWindowSubclass
_WinAPI_GetWindowTheme
_WinAPI_GetWorkArea
_WinAPI_GetWorldTransform
_WinAPI_GradientFill
_WinAPI_Hex64
_WinAPI_HiByte
_WinAPI_HideCaret
_WinAPI_HiDWord
_WinAPI_InflateRect
_WinAPI_IntersectClipRect
_WinAPI_IntersectRect
_WinAPI_IntToDWord
_WinAPI_InvalidateRect
_WinAPI_InvalidateRgn
_WinAPI_InvertANDBitmap
_WinAPI_InvertColor
_WinAPI_InvertRect
_WinAPI_InvertRgn
_WinAPI_IOCTL
_WinAPI_IsAlphaBitmap
_WinAPI_IsBadCodePtr
_WinAPI_IsBadReadPtr
_WinAPI_IsBadStringPtr
_WinAPI_IsBadWritePtr
_WinAPI_IsChild
_WinAPI_IsDoorOpen
_WinAPI_IsHungAppWindow
_WinAPI_IsIconic
_WinAPI_IsInternetConnected
_WinAPI_IsLoadKBLayout
_WinAPI_IsNetworkAlive
_WinAPI_IsProcessInJob
_WinAPI_IsProcessorFeaturePresent
_WinAPI_IsRectEmpty
_WinAPI_IsThemeActive
_WinAPI_IsThemeBackgroundPartiallyTransparent
_WinAPI_IsThemePartDefined
_WinAPI_IsValidLocale
_WinAPI_IsWindowEnabled
_WinAPI_IsWindowUnicode
_WinAPI_IsWow64Process
_WinAPI_IsWritable
_WinAPI_IsZoomed
_WinAPI_Keybd_Event
_WinAPI_KillTimer
_WinAPI_LineDDA
_WinAPI_LoadCursor
_WinAPI_LoadCursorFromFile
_WinAPI_LoadIconWithScaleDown
_WinAPI_LoadIndirectString
_WinAPI_LoadKeyboardLayout
_WinAPI_LoadMedia
_WinAPI_LoadResource
_WinAPI_LoByte
_WinAPI_LockDevice
_WinAPI_LockFile
_WinAPI_LockResource
_WinAPI_LockWindowUpdate
_WinAPI_LockWorkStation
_WinAPI_LoDWord
_WinAPI_LongMid
_WinAPI_LookupIconIdFromDirectoryEx
_WinAPI_LPtoDP
_WinAPI_LZNTCompress
_WinAPI_LZNTDecompress
_WinAPI_MapViewOfFile
_WinAPI_MapVirtualKey
_WinAPI_MaskBlt
_WinAPI_MessageBoxCheck
_WinAPI_MessageBoxIndirect
_WinAPI_ModifyWorldTransform
_WinAPI_MoveFileEx
_WinAPI_MoveMemory
_WinAPI_MoveToEx
_WinAPI_NtStatusToDosError
_WinAPI_OemToChar
_WinAPI_OffsetPoints
_WinAPI_OffsetClipRgn
_WinAPI_OffsetRect
_WinAPI_OffsetRgn
_WinAPI_OffsetWindowOrg
_WinAPI_OpenDesktop
_WinAPI_OpenFileById
_WinAPI_OpenFileMapping
_WinAPI_OpenIcon
_WinAPI_OpenInputDesktop
_WinAPI_OpenJobObject
_WinAPI_OpenMutex
_WinAPI_OpenProcessToken
_WinAPI_OpenSemaphore
_WinAPI_OpenThemeData
_WinAPI_OpenWindowStation
_WinAPI_PageSetupDlg
_WinAPI_PaintDesktop
_WinAPI_PaintRgn
_WinAPI_PatBlt
_WinAPI_PathAddBackslash
_WinAPI_PathAddExtension
_WinAPI_PathCanonicalize
_WinAPI_PathCommonPrefix
_WinAPI_PathCompactPath
_WinAPI_PathCompactPathEx
_WinAPI_PathCreateFromUrl
_WinAPI_PathFindExtension
_WinAPI_PathFindFileName
_WinAPI_PathFindNextComponent
_WinAPI_PathFindOnPath
_WinAPI_PathGetArgs
_WinAPI_PathGetCharType
_WinAPI_PathGetDriveNumber
_WinAPI_PathIsContentType
_WinAPI_PathIsDirectory
_WinAPI_PathIsDirectoryEmpty
_WinAPI_PathIsExe
_WinAPI_PathIsFileSpec
_WinAPI_PathIsLFNFileSpec
_WinAPI_PathIsRelative
_WinAPI_PathIsRoot
_WinAPI_PathIsSameRoot
_WinAPI_PathIsSystemFolder
_WinAPI_PathIsUNC
_WinAPI_PathIsUNCServer
_WinAPI_PathIsUNCServerShare
_WinAPI_PathMakeSystemFolder
_WinAPI_PathMatchSpec
_WinAPI_PathParseIconLocation
_WinAPI_PathRelativePathTo
_WinAPI_PathRemoveArgs
_WinAPI_PathRemoveBackslash
_WinAPI_PathRemoveExtension
_WinAPI_PathRemoveFileSpec
_WinAPI_PathRenameExtension
_WinAPI_PathSearchAndQualify
_WinAPI_PathSkipRoot
_WinAPI_PathStripPath
_WinAPI_PathStripToRoot
_WinAPI_PathToRegion
_WinAPI_PathUndecorate
_WinAPI_PathUnExpandEnvStrings
_WinAPI_PathUnmakeSystemFolder
_WinAPI_PathUnquoteSpaces
_WinAPI_PathYetAnotherMakeUniqueName
_WinAPI_PickIconDlg
_WinAPI_PlayEnhMetaFile
_WinAPI_PlaySound
_WinAPI_PlgBlt
_WinAPI_PolyBezier
_WinAPI_PolyBezierTo
_WinAPI_PolyDraw
_WinAPI_Polygon
_WinAPI_PrintDlg
_WinAPI_PrintDlgEx
_WinAPI_PrintWindow
_WinAPI_PtInRectEx
_WinAPI_PtInRegion
_WinAPI_PtVisible
_WinAPI_QueryDosDevice
_WinAPI_QueryInformationJobObject
_WinAPI_QueryPerformanceCounter
_WinAPI_QueryPerformanceFrequency
_WinAPI_RadialGradientFill
_WinAPI_Rectangle
_WinAPI_RectInRegion
_WinAPI_RectVisible
_WinAPI_RegCloseKey
_WinAPI_RegConnectRegistry
_WinAPI_RegCopyTree
_WinAPI_RegCopyTreeEx
_WinAPI_RegCreateKey
_WinAPI_RegDeleteEmptyKey
_WinAPI_RegDeleteKey
_WinAPI_RegDeleteKeyValue
_WinAPI_RegDeleteTree
_WinAPI_RegDeleteTreeEx
_WinAPI_RegDeleteValue
_WinAPI_RegDisableReflectionKey
_WinAPI_RegDuplicateHKey
_WinAPI_RegEnableReflectionKey
_WinAPI_RegEnumKey
_WinAPI_RegEnumValue
_WinAPI_RegFlushKey
_WinAPI_RegisterApplicationRestart
_WinAPI_RegisterClassEx
_WinAPI_RegisterHotKey
_WinAPI_RegisterPowerSettingNotification
_WinAPI_RegisterShellHookWindow
_WinAPI_RegLoadMUIString
_WinAPI_RegNotifyChangeKeyValue
_WinAPI_RegOpenKey
_WinAPI_RegQueryInfoKey
_WinAPI_RegQueryLastWriteTime
_WinAPI_RegQueryMultipleValues
_WinAPI_RegQueryReflectionKey
_WinAPI_RegQueryValue
_WinAPI_RegRestoreKey
_WinAPI_RegSaveKey
_WinAPI_RegSetValue
_WinAPI_ReleaseMutex
_WinAPI_ReleaseSemaphore
_WinAPI_ReleaseStream
_WinAPI_RemoveClipboardFormatListener
_WinAPI_RemoveFontMemResourceEx
_WinAPI_RemoveFontResourceEx
_WinAPI_RemoveWindowSubclass
_WinAPI_ReOpenFile
_WinAPI_ReplaceFile
_WinAPI_ReplaceTextDlg
_WinAPI_ResetEvent
_WinAPI_ResizeBitmap
_WinAPI_RestartDlg
_WinAPI_RestoreDC
_WinAPI_RGB
_WinAPI_RotatePoints
_WinAPI_RoundRect
_WinAPI_SaveDC
_WinAPI_SaveHBITMAPToFile
_WinAPI_SaveHICONToFile
_WinAPI_ScaleWindowExt
_WinAPI_SelectClipPath
_WinAPI_SelectClipRgn
_WinAPI_SendMessageTimeout
_WinAPI_SetActiveWindow
_WinAPI_SetArcDirection
_WinAPI_SetBitmapBits
_WinAPI_SetBitmapDimensionEx
_WinAPI_SetBoundsRect
_WinAPI_SetClassLongEx
_WinAPI_SetCompression
_WinAPI_SetCaretBlinkTime
_WinAPI_SetCaretPos
_WinAPI_SetCurrentDirectory
_WinAPI_SetCurrentProcessExplicitAppUserModelID
_WinAPI_SetDCBrushColor
_WinAPI_SetDCPenColor
_WinAPI_SetDefaultPrinter
_WinAPI_SetDeviceGammaRamp
_WinAPI_SetDIBColorTable
_WinAPI_SetDIBitsToDevice
_WinAPI_SetDllDirectory
_WinAPI_SetEnhMetaFileBits
_WinAPI_SetErrorMode
_WinAPI_SetFileAttributes
_WinAPI_SetFilePointerEx
_WinAPI_SetForegroundWindow
_WinAPI_SetFRBuffer
_WinAPI_SetGraphicsMode
_WinAPI_SetHandleInformation
_WinAPI_SetInformationJobObject
_WinAPI_SetKeyboardLayout
_WinAPI_SetKeyboardState
_WinAPI_SetLayeredWindowAttributes
_WinAPI_SetLocaleInfo
_WinAPI_SetMapMode
_WinAPI_SetMessageExtraInfo
_WinAPI_SetParent
_WinAPI_SetPixel
_WinAPI_SetPolyFillMode
_WinAPI_SetProcessShutdownParameters
_WinAPI_SetProcessWindowStation
_WinAPI_SetRectRgn
_WinAPI_SetROP2
_WinAPI_SetStretchBltMode
_WinAPI_SetSystemCursor
_WinAPI_SetTextAlign
_WinAPI_SetTextCharacterExtra
_WinAPI_SetTextJustification
_WinAPI_SetThemeAppProperties
_WinAPI_SetThreadDesktop
_WinAPI_SetThreadErrorMode
_WinAPI_SetThreadExecutionState
_WinAPI_SetTimer
_WinAPI_SetUDFColorMode
_WinAPI_SetUserObjectInformation
_WinAPI_SetVolumeMountPoint
_WinAPI_SetWindowDisplayAffinity
_WinAPI_SetWindowExt
_WinAPI_SetWindowLongEx
_WinAPI_SetWindowOrg
_WinAPI_SetWindowSubclass
_WinAPI_SetWindowTheme
_WinAPI_SetWinEventHook
_WinAPI_SetWorldTransform
_WinAPI_SfcIsFileProtected
_WinAPI_SfcIsKeyProtected
_WinAPI_ShellAddToRecentDocs
_WinAPI_ShellChangeNotify
_WinAPI_ShellChangeNotifyDeregister
_WinAPI_ShellChangeNotifyRegister
_WinAPI_ShellEmptyRecycleBin
_WinAPI_ShellExecute
_WinAPI_ShellExtractAssociatedIcon
_WinAPI_ShellExtractIcon
_WinAPI_ShellFileOperation
_WinAPI_ShellGetFileInfo
_WinAPI_ShellGetKnownFolderPath
_WinAPI_ShellGetLocalizedName
_WinAPI_ShellGetPathFromIDList
_WinAPI_ShellGetSetFolderCustomSettings
_WinAPI_ShellGetSettings
_WinAPI_ShellGetSpecialFolderLocation
_WinAPI_ShellGetSpecialFolderPath
_WinAPI_ShellGetStockIconInfo
_WinAPI_ShellILCreateFromPath
_WinAPI_ShellNotifyIcon
_WinAPI_ShellNotifyIconGetRect
_WinAPI_ShellObjectProperties
_WinAPI_ShellOpenFolderAndSelectItems
_WinAPI_ShellOpenWithDlg
_WinAPI_ShellQueryRecycleBin
_WinAPI_ShellQueryUserNotificationState
_WinAPI_ShellRemoveLocalizedName
_WinAPI_ShellRestricted
_WinAPI_ShellSetLocalizedName
_WinAPI_ShellSetSettings
_WinAPI_ShellStartNetConnectionDlg
_WinAPI_ShowCaret
_WinAPI_ShowLastError
_WinAPI_ShowOwnedPopups
_WinAPI_ShutdownBlockReasonCreate
_WinAPI_ShutdownBlockReasonDestroy
_WinAPI_ShutdownBlockReasonQuery
_WinAPI_ShutdownDlg
_WinAPI_SizeOfResource
_WinAPI_StretchBlt
_WinAPI_StretchDIBits
_WinAPI_StrFormatByteSize
_WinAPI_StrFormatByteSizeEx
_WinAPI_StrFormatKBSize
_WinAPI_StrFromTimeInterval
_WinAPI_StrLen
_WinAPI_StrokeAndFillPath
_WinAPI_StrokePath
_WinAPI_StructToArray
_WinAPI_SubtractRect
_WinAPI_SwitchColor
_WinAPI_SwitchDesktop
_WinAPI_SwitchToThisWindow
_WinAPI_SwapDWord
_WinAPI_SwapQWord
_WinAPI_SwapWord
_WinAPI_TextOut
_WinAPI_TileWindows
_WinAPI_TransparentBlt
_WinAPI_TrackMouseEvent
_WinAPI_UnhookWinEvent
_WinAPI_UnionRect
_WinAPI_UnionStruct
_WinAPI_UniqueHardwareID
_WinAPI_UnloadKeyboardLayout
_WinAPI_UnlockFile
_WinAPI_UnmapViewOfFile
_WinAPI_UnregisterApplicationRestart
_WinAPI_UnregisterClass
_WinAPI_UnregisterHotKey
_WinAPI_UnregisterPowerSettingNotification
_WinAPI_UpdateLayeredWindowEx
_WinAPI_UpdateResource
_WinAPI_UrlCreateFromPath
_WinAPI_UrlEscape
_WinAPI_UrlFixup
_WinAPI_UrlGetPart
_WinAPI_UrlIs
_WinAPI_UrlUnescape
_WinAPI_ValidateRect
_WinAPI_ValidateRgn
_WinAPI_VerQueryRoot
_WinAPI_VerQueryValue
_WinAPI_WidenPath
_WinAPI_WindowFromDC
_WinAPI_Wow64EnableWow64FsRedirection
_WinAPI_ZeroMemory

WinAPI Extended UDF Library v3.5
(Previous downloads: 15878)

Sign In

WinAPIEx UDF

Recommended Posts

ProgAndy

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

Yashied

Yashied

Yashied

Posted Images

Ward

Ward

Yashied

Ward

Ascend4nt

Yashied

trancexx

Yashied

Ward

Ascend4nt

Yashied

trancexx

Ascend4nt

trancexx

Yashied

JScript

rchockxm

131738

131738

Create an account or sign in to comment

Create an account

Sign in

Recently Browsing 0 members

Browse

AutoIt Resources

Release

Beta
