Hi All,

I am having some problems with DllCall - specifically using mediainfo.dll.

I have read the information with mediainfo.dll and also the info on dllcall - but for the life of me i can't understand it.... :D

I simply want to make a call to mediainfo.dll and retrieve the Video codec information only. Can someone please help?

The code below is what comes with the mediainfo.dll and this is the autoit example...

;Loading the DLL
$DLL=DllOpen("MediaInfo.dll")

;Info
$Info_Parameters=DllCall($DLL, "wstr", "MediaInfo_Option", "ptr", 0, "wstr", "Info_Parameters", "wstr", "")
MsgBox(0, "MediaInfo_Option - Info_Parameters", $Info_Parameters[0])
$Info_Capacities=DllCall($DLL, "wstr", "MediaInfo_Option", "ptr", 0, "wstr", "Info_Capacities", "wstr", "")
MsgBox(0, "MediaInfo_Option - Info_Capacities", $Info_Capacities[0])
$Info_Codecs=DllCall($DLL, "wstr", "MediaInfo_Option", "ptr", 0, "wstr", "Info_Codecs", "wstr", "")
MsgBox(0, "MediaInfo_Option - Info_Codecs", $Info_Codecs[0])

;New MediaInfo handle
$Handle=DllCall($DLL, "ptr", "MediaInfo_New")

;Open
$Open_Result=DllCall($DLL, "int", "MediaInfo_Open", "ptr", $Handle[0], "wstr", "Example.ogg")

;Inform with Complete=false
DllCall($DLL, "wstr", "MediaInfo_Option", "ptr", 0, "wstr", "Complete", "wstr", "")
$Inform=DllCall($DLL, "wstr", "MediaInfo_Inform", "ptr", $Handle[0], "int", 0)
MsgBox(0, "Inform with Complete=false", $Inform[0])

;Inform with Complete=true
DllCall($DLL, "wstr", "MediaInfo_Option", "ptr", 0, "wstr", "Complete", "wstr", "1")
$Inform=DllCall($DLL, "wstr", "MediaInfo_Inform", "ptr", $Handle[0], "int", 0)
MsgBox(0, "Inform with Complete=true", $Inform[0])

;Custom Inform
DllCall($DLL, "wstr", "MediaInfo_Option", "ptr", 0, "wstr", "Inform", "wstr", "General;Example : FileSize=%FileSize%")
$Inform=DllCall($DLL, "wstr", "MediaInfo_Inform", "ptr", $Handle[0], "int", 0)
MsgBox(0, "Custom Inform", $Inform[0])

;Get with Stream=General and Parameter=FileSize
$Info_Get=DllCall($DLL, "wstr", "MediaInfo_Get", "ptr", $Handle[0], "int", 0, "int", 0, "wstr", "FileSize", "int", 1, "int", 0)
MsgBox(0, "Get with Stream=General and Parameter=FileSize", $Info_Get[0])

;GetI with Stream=General and Parameter=46
$Info_GetI=DllCall($DLL, "wstr", "MediaInfo_GetI", "ptr", $Handle[0], "int", 0, "int", 0, "int", 46, "int", 1, "int", 0)
MsgBox(0, "Get with Stream=General and Parameter=46", $Info_GetI[0])

;Count_Get with StreamKind=Stream_Audio
$Count_Get=DllCall($DLL, "int", "MediaInfo_Count_Get", "ptr", $Handle[0], "int", 2, "int", 0)
MsgBox(0, "Count_Get with StreamKind=Stream_Audio", $Count_Get[0])

;Get with Stream=General and Parameter=AudioCount
$Info_Get=DllCall($DLL, "wstr", "MediaInfo_Get", "ptr", $Handle[0], "int", 0, "int", 0, "wstr", "AudioCount", "int", 1, "int", 0)
MsgBox(0, "Get with Stream=General and Parameter=AudioCount", $Info_Get[0])

;Get with Stream=Audio and Parameter=StreamCount
$Info_Get=DllCall($DLL, "wstr", "MediaInfo_Get", "ptr", $Handle[0], "int", 2, "int", 0, "wstr", "StreamCount", "int", 1, "int", 0)
MsgBox(0, "Get with Stream=Audio and Parameter=StreamCount", $Info_Get[0])

;Delete MediaInfo handle
$Handle=DllCall($DLL, "none", "MediaInfo_Delete", "ptr", $Handle[0])

;Close the DLL
DllClose($dll)

all help appreciated!

Link to comment
Share on other sites
ProgAndy Universalist

ProgAndy

Posted
Posted (edited)

Found it here (doxygen of the headerfile, only needed up to line 247)

Edited by ProgAndy

*GERMAN* [note: you are not allowed to remove author / modified info from my UDFs]My UDFs:[_SetImageBinaryToCtrl] [_TaskDialog] [AutoItObject] [Animated GIF (GDI+)] [ClipPut for Image] [FreeImage] [GDI32 UDFs] [GDIPlus Progressbar] [Hotkey-Selector] [Multiline Inputbox] [MySQL without ODBC] [RichEdit UDFs] [SpeechAPI Example] [WinHTTP]UDFs included in AutoIt: FTP_Ex (as FTPEx), _WinAPI_SetLayeredWindowAttributes

Link to comment
Share on other sites
trancexx Universalist

trancexx

Posted
Posted

...ProgAndy will.

@Simplify iT, try this:

$hDLL = DllOpen("MediaInfo.dll")


; New MediaInfo handle
$aMediaInfo = DllCall($hDLL, "ptr", "MediaInfo_New")
$hMediaInfo = $aMediaInfo[0]


; Open
DllCall($hDLL, "dword", "MediaInfo_Open", _
        "ptr", $hMediaInfo, _ ; Handle
        "wstr", "FullPathToSomeVideoFile.avi.mpeg.whatever") ; Full path


; MediaInfo
$aMediaInfoGet = DllCall($hDLL, "wstr", "MediaInfo_Get", _
        "ptr", $hMediaInfo, _ ; Handle
        "int", 0, _ ; StreamKind
        "int", 0, _ ; StreamNumber
        "wstr", "Video_Format_List", _ ; Video Codecs in this file, separated by /
        "int", 1, _ ; KindOfInfo
        "int", 0) ; KindOfSearch

$sMediaInfo = $aMediaInfoGet[0]
ConsoleWrite("Video Codecs in this file, separated by / : " & $sMediaInfo & @CRLF)


; General MediaInfo
$aMediaInfoInform = DllCall($hDLL, "wstr", "MediaInfo_Inform", _
        "ptr", $hMediaInfo, _ ; Handle
        "int", 0) ; Options

$sMediaInfoInform = $aMediaInfoInform[0]

ConsoleWrite($sMediaInfoInform & @CRLF)

DllCall($hDLL, "none", "MediaInfo_Close", "ptr", $hMediaInfo)

DllClose($hDLL)

♡♡♡

.

eMyvnE

Link to comment
Share on other sites
Simplify iT Seeker

Simplify iT

Posted
  • Author
Posted

Hi

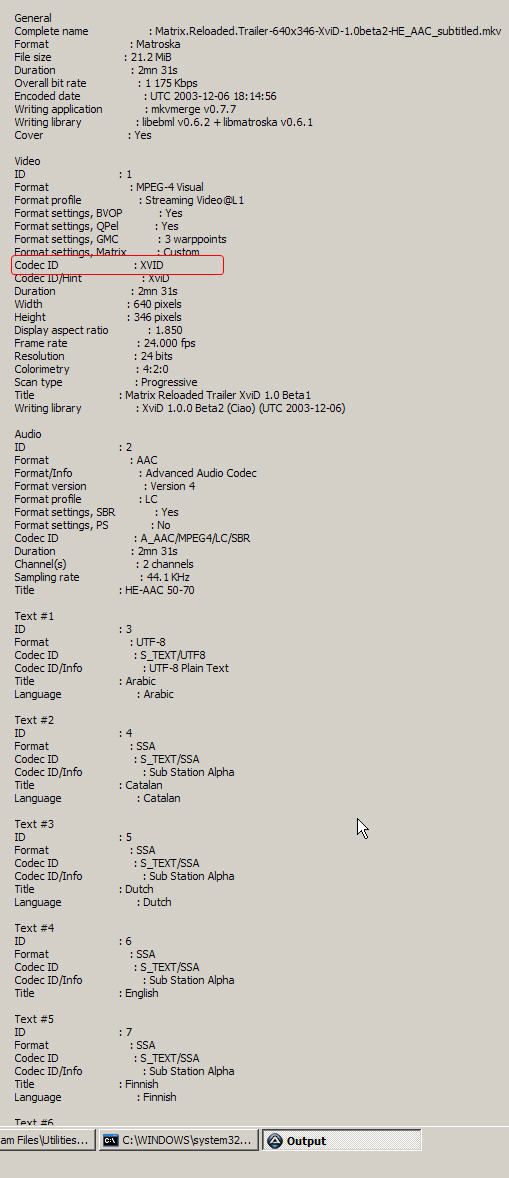

with this script (and a couple of changes) if get this output - i am just looking to get the video codec only (video codecID)

$hDLL = DllOpen("MediaInfo.dll")


; New MediaInfo handle
$aMediaInfo = DllCall($hDLL, "ptr", "MediaInfo_New")
$hMediaInfo = $aMediaInfo[0]


; Open
DllCall($hDLL, "dword", "MediaInfo_Open", _
        "ptr", $hMediaInfo, _; Handle
        "wstr", "Matrix.Reloaded.Trailer-640x346-XviD-1.0beta2-HE_AAC_subtitled.mkv"); Full path


; MediaInfo
$aMediaInfoGet = DllCall($hDLL, "wstr", "MediaInfo_Get", _
        "ptr", $hMediaInfo, _; Handle
        "int", 0, _; StreamKind
        "int", 0, _; StreamNumber
        "wstr", "Video_Format_List", _; Video Codecs in this file, separated by /
        "int", 1, _; KindOfInfo
        "int", 0); KindOfSearch

$sMediaInfo = $aMediaInfoGet[0]
ConsoleWrite("Video Codecs in this file, separated by / : " & $sMediaInfo & @CRLF)


; General MediaInfo
$aMediaInfoInform = DllCall($hDLL, "wstr", "MediaInfo_Inform", _
        "ptr", $hMediaInfo, _; Handle
        "int", 0); Options

$sMediaInfoInform = $aMediaInfoInform[0]

;ConsoleWrite($sMediaInfoInform & @CRLF)
MsgBox(0, "Output", $sMediaInfoInform)

DllCall($hDLL, "none", "MediaInfo_Close", "ptr", $hMediaInfo)

DllClose($hDLL)


Link to comment
Share on other sites
trancexx Universalist

trancexx

Posted
Posted

Just change part below ; MediaInfo to this:

; MediaInfo
$aMediaInfoGet = DllCall($hDLL, "wstr", "MediaInfo_Get", _
        "ptr", $hMediaInfo, _ ; Handle
        "int", 1, _ ; StreamKind <--Video
        "int", 0, _ ; StreamNumber
        "wstr", "CodecID", _ ; Codec ID <-- this
        "int", 1, _ ; KindOfInfo
        "int", 0) ; KindOfSearch

$sMediaInfo = $aMediaInfoGet[0]
ConsoleWrite("Video Codec ID: " & $sMediaInfo & @CRLF)

♡♡♡

.

eMyvnE

Link to comment
Share on other sites
  • 6 months later...
bentom Wayfarer

bentom

Posted
Posted

Hello,

a time ago, but I want to use the same dll (or commandline) for getting the framerate of a video. As I want to use it for a whole Blu-Ray directory, I have some questions. Perhaps someone knows how to handle this.

with the command line: MediaInfo.exe -f "z:\Medien\Testvideodirectory\" I get all the information including the framerate. But I do not know how to use this with the dll call. Perhaps it could be easier to directly get the information from the command line but I did not get it. Can someone help?

Regards,

Alex

Link to comment
Share on other sites
  • 2 years later...
Tin2tin Wayfarer

Tin2tin

Posted
Posted (edited)

Sorry for digging up this old thread, but I'm trying to extract "Encoded date". This info shows up in red in the console when all extracted info is written, but when that info is extracted directly it writes nothing?

; MediaInfo
$aMediaInfoGet = DllCall($hDLL, "wstr", "MediaInfo_Get", _
"ptr", $hMediaInfo, _ ; Handle
"int", 1, _ ; StreamKind <--Video
"int", 0, _ ; StreamNumber
"wstr", "Encoded date", _ ; Codec ID <-- this
"int", 1, _ ; KindOfInfo
"int", 0) ; KindOfSearch

$sMediaInfo = $aMediaInfoGet[0]
ConsoleWrite("Encoded date: " & $sMediaInfo & @CRLF)
Edited by Tin2tin
DVD slideshow GUI
Link to comment
Share on other sites
KaFu Universalist

KaFu

Posted
Posted

Give the string "Encoded_Date" a try...

de.png OS: Win10-22H2 - 64bit - German, AutoIt Version: 3.3.16.1, AutoIt Editor: SciTE, Website: https://funk.eu
prog_icon_amt.png AMT - Auto-Movie-Thumbnailer (2024-Oct-13) prog_icon_bic.png BIC - Batch-Image-Cropper (2023-Apr-01) prog_icon_cop.png COP - Color Picker (2009-May-21)
prog_icon_dcs.png DCS - Dynamic Cursor Selector (2024-Oct-13) prog_icon_hmw.png HMW - Hide my Windows (2024-Oct-19) prog_icon_hrc.png HRC - HotKey Resolution Changer (2012-May-16)
prog_icon_icu.png ICU - Icon Configuration Utility (2018-Sep-16) prog_icon_smf.png SMF - Search my Files (2024-Oct-20) - THE file info and duplicates search tool prog_icon_ssd.png SSD - Set Sound Device (2017-Sep-16)

Link to comment
Share on other sites
KaFu Universalist

KaFu

Posted
Posted

It's in the dll download package. I found this one at this location

MediaInfo_DLL_0.7.60_Windows_i386_WithoutInstallerDevelopersList_Of_ParametersVideo.csv
