SAP UDF

[microAsinello]

Thank you. It looks very good.

[hzrqishk]

Hi.

Anyone know how to get text from the sidebar?

Image as attached.

session.findById("wnd[0]").maximize
session.findById("wnd[0]/sbar").doubleClick
session.findById("wnd[0]/shellcont").close

It can't be copied directly. Usually I will double click it and copy the status from the window.

Thanks!

[mLipok]

thanks to StSchnell   I found some intereting resource:

http://basicguide.stschnell.de/

http://basicguide.stschnell.de/tocnintro.pdf

http://basicguide.stschnell.de/basicguide.sources.zip

[arulpugazh]

Hey there, after some research and some free programming courses from MIT on the web... I managed to better understand the SAP UDF Function and how to amend it to serve my needs.



I was basically just in need to be able to select a "Tab" in SAP (see a few posts above). The solution was actually pretty simple... I just had to change a few characters while adding one more "Case" in the _SAPObjSelect



Basically, I just added the following :





; Tab
Case StringInStr($object_id, "/tab") > 0

$sap_session.findById("wnd[" & $sap_window_num & "]/" & $object_id).select



Saved this into a SAP2.Au3 that I called in as an Include (removing the original SAP.Au3) and now I'm able to move from Tab to Tab without getting any annoying error messages...



Not sure if it's worth updating the whole UDF.... yet. Maybe in the same manner I added the GuiTab selection there are other objects that could be added...

Thanks a lot. This worked for me.

[prudviRaju]

can we use the above SAP UDF's for SAP730 version as well?

[water]

I think it should work as long as SAP GUI Scripting interface is enabled.

[prudviRaju]

thank you so much for the quick reply

[prudviRaju]

follow these manual steps in SAP:



• Select the "Customize Local Layout" button on the toolbar.
• Select "Script Development Tools".
• Select "Do a hit test on the window".
• Move your mouse to the object you want the ID of.
• Click "Copy Id" in the Scripting Wizard.
• Paste this ID into the function in your script.
• Remove all text upto and including "wnd[n]/".



HI in the above steps

after selecting "Customize Local Layout" button on the toolbar.

Script Development Tools option is not present(I am using SAP730)

Edited March 30, 2016 by prudviRaju

[prudviRaju]

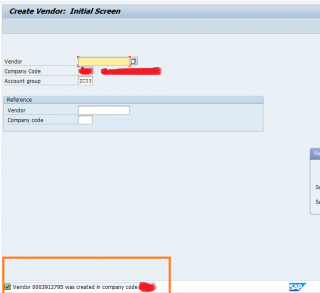

Anyone know how to get text from the sbar its id is : session.findById("wnd[0]/sbar").doubleClick





[Zoldex]

Hi,

it does not seem to work anymore on SAP740...

_SAPSessAttach("SAP Easy Access")

returns this:

>Running:(3.3.14.2):C:\Program Files (x86)\AutoIt3\autoit3.exe "C:\Cancellabili\SAP Test\_SAPSessAttach.au3"
--> Press Ctrl+Alt+Break to Restart or Ctrl+Break to Stop
Unable to find the window with title "SAP Easy Access" to attach to.
"C:\Cancellabili\SAP Test\SAP.au3" (446) : ==> Variable must be of type "Object".:
$sap_session.findById("wnd[" & $sap_window_num & "]/" & $object_id).text = $object_value
$sap_session^ ERROR
->14:58:30 AutoIt3.exe ended.rc:1

Of course, the SaAP Easy Access window is open..



Any hint?

[water]

Maybe the window title has changed?

[Zoldex]

On 27/1/2017 at 3:28 PM, water said:

Maybe the window title has changed?

Don't know, but it seems to be the same...

Can't understand.

[water]

Run Winlist to check the names of the existing windows.

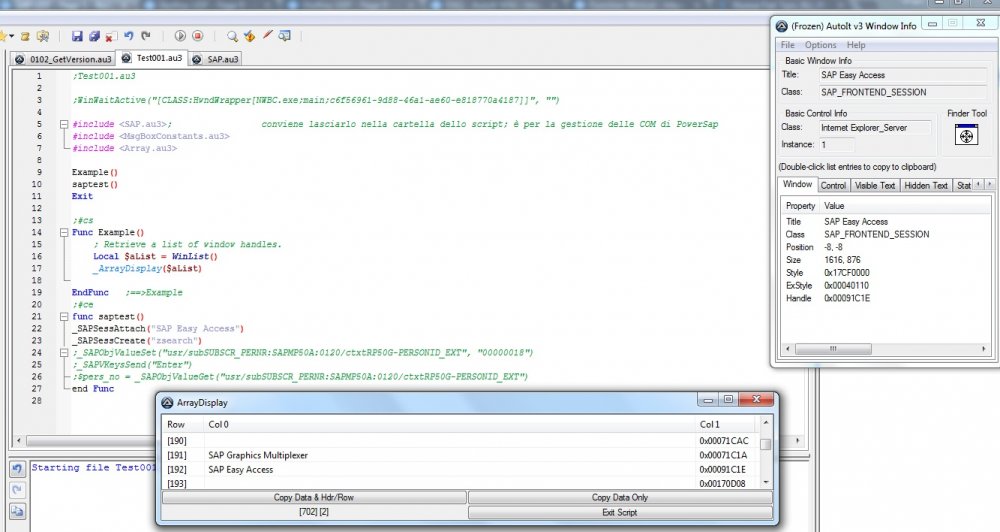

[Zoldex]

On 2/2/2017 at 8:21 AM, water said:

Run Winlist to check the names of the existing windows.

The name is the same.

and the error has changed..

Edited February 24, 2017 by Zoldex

[DJKMan]

On 4/4/2016 at 10:18 AM, prudviRaju said:



Anyone know how to get text from the sbar its id is : session.findById("wnd[0]/sbar").doubleClick

Since this thread shows up first on Google I thought I'd share this bit of info here.

Func _SAP_ReadStatus()
    ConsoleWrite("[SAP Automation] - Reading Status" & @CRLF)
    $SAP_Status = $sap_session.findById("wnd[0]/sbar").text
    ConsoleWrite("[SAP Automation] - Status: " & $SAP_Status & @CRLF)
    Return $SAP_Status
EndFunc   ;==>_SAP_ReadStatus

Tweak as necessary.



Regarding the script failing to attach to the  SAP Easy Access screen, I've also been having intermittent issues with connecting to SAP now. The same exact script works just fine on one computer but fails completely on another computer with an identical environment. I've even had one computer that used to be able to run SAP scripts then suddenly stops working. Same SAP client and all. Can anyone guess what's going on here?

Edited May 24, 2017 by DJKMan

[lillo78]

Hi, i was trying to make an automation in SAP with AutoIt , Sean Griffin library's version 0.3, but it seems that even though the "Scripting is installed!" message is displayed the robot can not access to SAP.

Also, the "Script Recording and Playback" option in SAP is disabled.

Anyone any idea how to solve this?

I'm trying to contact the system administrators in the meantime.



Thnks in advance.

[TheDeath]

Hello,

at first great thing  Sean Griffin!

I hope it´s ok that i added a new function and expand 2 function.

New function:

_SAPgetGrid()

Spoiler

expandcollapse popup

; #FUNCTION# ;===============================================================================
;
; Name...........:  _SAPgetGrid()
; Description ...:  Deselects an object within the currently attached session of SAP.
; Syntax.........:  _SAPgetGrid($object_id, $GridListView=0)
; Parameters ....:  $object_id  - The short ID of the object to deselect.
;                                   An object's ID is determined using the SAP Scripting Wizard.
;                                   In SAP, select the "Customize Local Layout" button on the toolbar,
;                                   then "Script Development Tools".  Select "Do a hit test on the window".
;                                   Move your mouse to the object you want the ID of.
;                                   Click "Copy Id" in the Scripting Wizard.
;                                   Paste this ID into this variable in your script, then remove all text
;                                   upto and including "wnd[n]/".
;                   $GridListView - The Listview variable for fill in the 2DArray
; Return values .:  On Success with Listview - Returns 1
;                   On Success without Listview - Returns a 2DArray
;                   On Failure  - Returns 0
; Author ........:  TheDeath24
; Modified.......:
; Remarks .......:  A prerequisite is that the function "_SAPSessAttach" has already been executed.
;                   This function currently supports the following SAP objects:
;                       Gridtable
; Related .......:
; Link ..........:
; Example .......:  No
;
; ;==========================================================================================
func _SAPgetGrid($object_id, $GridListView=0)
    Local $Cols
    Local $Rows
    Local $array[0][0]
    Local $columnnames[0]
    $sap_object_id = $object_id

    Select

         Case StringInStr($object_id, "/cntl") > 0
             $table = $sap_session.findById("wnd[" & $sap_window_num & "]/" & $object_id)
             $Rows = Number($table.RowCount())
             $Cols = Number($table.ColumnCount())
             ReDim $columnnames[$Cols]
             For $j = 0 To $Cols-1
               $columnnames[$j] = $table.Columnorder($j)
             Next
             ReDim $array[$Rows][$Cols]
             For $p=0 To $Cols-1
               For $k=0 To $Rows-1
                  $array[$k][$p]=$table.GetCellValue($k,$columnnames[$p])
               Next
            Next

            if $GridListView <> 0 Then
               For $o = 0 To $Cols-1
                  _GUICtrlListView_AddColumn($GridListView, $columnnames[$o], 30)
               Next
               For $n = 0 To UBound($array) - 1
                  _GUICtrlListView_AddItem($GridListView, $array[$n][0], -1, $n)
                  For $s = 1 To UBound($array, 2) - 1
                     _GUICtrlListView_AddSubItem($GridListView, $n, $array[$n][$s], $s)
                  Next
               Next
               Return 1
            Endif

    EndSelect

    Return $array
 EndFunc



Expand functions:

_SAPObjDeselect() ;--- now with GuiList

Spoiler

expandcollapse popup

; #FUNCTION# ;===============================================================================
;
; Name...........:  _SAPObjDeselect()
; Description ...:  Deselects an object within the currently attached session of SAP.
; Syntax.........:  _SAPObjDeselect($object_id,  $row=0))
; Parameters ....:  $object_id  - The short ID of the object to deselect.
;                                   An object's ID is determined using the SAP Scripting Wizard.
;                                   In SAP, select the "Customize Local Layout" button on the toolbar,
;                                   then "Script Development Tools".  Select "Do a hit test on the window".
;                                   Move your mouse to the object you want the ID of.
;                                   Click "Copy Id" in the Scripting Wizard.
;                                   Paste this ID into this variable in your script, then remove all text
;                                   upto and including "wnd[n]/".
;                   $row        -   The row of the List you what to deselect. It begin´s with 0.
; Return values .:  On Success  - Returns 1
;                   On Failure  - Returns 0
; Author ........:  seangriffin
; Modified.......:  TheDeath24 - 28.02.2018
; Remarks .......:  A prerequisite is that the function "_SAPSessAttach" has already been executed.
;                   This function currently supports the following SAP objects:
;                       GuiCheckBox
;                       GuiLabel
;                       GuiList
; Related .......:
; Link ..........:
; Example .......:  No
;
; ;==========================================================================================
func _SAPObjDeselect($object_id, $row=0)

    $sap_object_id = $object_id

    Select

        ; GuiCheckBox
        Case    StringInStr($object_id, "/rad") > 0 Or _
                StringInStr($object_id, "/chk") > 0

            $sap_session.findById("wnd[" & $sap_window_num & "]/" & $object_id).selected = False

        ; GuiLabel
        Case    StringInStr($object_id, "/lbl") > 0

            ; If the GuiLabel is not a collapsed twistie, then select it (for a GuiLabel twistie, this will collapse it)
            if StringCompare($sap_session.findById("wnd[" & $sap_window_num & "]/" & $object_id).text, "4") <> 0 Then

                $sap_session.findById("wnd[" & $sap_window_num & "]/" & $object_id).setFocus
                $sap_session.findById("wnd[" & $sap_window_num & "]/" & $object_id).caretPosition = 1
                _SAPVKeysSend("F2")
             EndIf

         ; GuiList
         Case StringInStr($object_id, "/tbl") > 0

             $sap_session.findById("wnd[" & $sap_window_num & "]/" & $object_id).setFocus
             $sap_session.findById("wnd[" & $sap_window_num & "]/" & $object_id).getAbsoluteRow($row).Selected = False
    EndSelect

    Return 1
EndFunc



_SAPObjselect() ;--- now with GuiList

Spoiler

expandcollapse popup

; #FUNCTION# ;===============================================================================
;
; Name...........:  _SAPObjSelect()
; Description ...:  Selects an object within the currently attached session of SAP.
; Syntax.........:  _SAPObjSelect($object_id, $row=0)
; Parameters ....:  $object_id  - The short ID of the object to select.
;                                   An object's ID is determined using the SAP Scripting Wizard.
;                                   In SAP, select the "Customize Local Layout" button on the toolbar,
;                                   then "Script Development Tools".  Select "Do a hit test on the window".
;                                   Move your mouse to the object you want the ID of.
;                                   Click "Copy Id" in the Scripting Wizard.
;                                   Paste this ID into this variable in your script, then remove all text
;                                   upto and including "wnd[n]/".
;                   $row        -   The row of the List you what to select. It begin´s with 0.
; Return values .:  On Success  - Returns 1
;                   On Failure  - Returns 0
; Author ........:  seangriffin
; Modified.......:  TheDeath24 - 28.02.2018
; Remarks .......:  A prerequisite is that the function "_SAPSessAttach" has already been executed.
;                   This function currently supports the following SAP objects:
;                       GuiButton
;                       GuiRadioButton
;                       GuiCheckBox
;                       GuiMenubar
;                       GuiLabel
;                       GuiList
; Related .......:
; Link ..........:
; Example .......:  Yes
;
; ;==========================================================================================
func _SAPObjSelect($object_id, $row=0)

    $sap_object_id = $object_id

    Select

        ; GuiButtons
        Case    StringInStr($object_id, "/btn") > 0

            $sap_session.findById("wnd[" & $sap_window_num & "]/" & $object_id).press

        ; GuiRadioButton
        Case    StringInStr($object_id, "/rad") > 0

            $sap_session.findById("wnd[" & $sap_window_num & "]/" & $object_id).select

        ; GuiCheckBox
        Case    StringInStr($object_id, "/rad") > 0 Or _
                StringInStr($object_id, "/chk") > 0

            $sap_session.findById("wnd[" & $sap_window_num & "]/" & $object_id).selected = True

        ; GuiMenubar
        Case    StringInStr($object_id, "mbar/") > 0

            $sap_session.findById("wnd[" & $sap_window_num & "]/" & $object_id).select

        ; GuiLabel
        Case    StringInStr($object_id, "/lbl") > 0

            ; If the GuiLabel is not an expanded twistie, then select it (for a GuiLabel twistie, this will expand it)
            if StringCompare($sap_session.findById("wnd[" & $sap_window_num & "]/" & $object_id).text, "5") <> 0 Then

                $sap_session.findById("wnd[" & $sap_window_num & "]/" & $object_id).setFocus
                $sap_session.findById("wnd[" & $sap_window_num & "]/" & $object_id).caretPosition = 1
                _SAPVKeysSend("F2")
             EndIf

         ; GuiList
        Case StringInStr($object_id, "/tbl") > 0

             $sap_session.findById("wnd[" & $sap_window_num & "]/" & $object_id).setFocus
             $sap_session.findById("wnd[" & $sap_window_num & "]/" & $object_id).getAbsoluteRow($row).Selected = True

    EndSelect

    Return 1
 EndFunc





[t0nZ]

Hi to all, our company has moved to SAP and I must  automate the most repetitive operation.

So I noticed this UDF and start make experiments.

Facts: I have SAP 7.40 and the UDF, in the last version 0.4, is working, sort of.

By now I accomplished to do have this code working:

#include <SAP.au3>
_SAPSessAttach("SAP Easy Access")
_SAPObjValueSet("tbar[0]/okcd", "vf03")
sleep(250)
_SAPVKeysSend("Enter")
sleep(500)
_SAPObjValueSet("usr/ctxtVBRK-VBELN", "4550103097")
sleep(250)
_SAPVKeysSend("Enter")
sleep(500)

with the last two lines I am able to insert an invoice number in a field, and with "enter" I move to another screen.

Now I am stuck in the screenshot attached, if you can see I want to press the button as by red arrow.

But I tried with _sapobjselect with no luck, I think my problem is to figure the real name of the button.

With the SAP script recorder I have this:

If Not IsObject(application) Then
   Set SapGuiAuto  = GetObject("SAPGUI")
   Set application = SapGuiAuto.GetScriptingEngine
End If
If Not IsObject(connection) Then
   Set connection = application.Children(0)
End If
If Not IsObject(session) Then
   Set session    = connection.Children(0)
End If
If IsObject(WScript) Then
   WScript.ConnectObject session,     "on"
   WScript.ConnectObject application, "on"
End If
session.findById("wnd[0]").maximize
session.findById("wnd[0]/tbar[0]/okcd").text = "vf03"
session.findById("wnd[0]").sendVKey 0
session.findById("wnd[0]/usr/ctxtVBRK-VBELN").text = "4550004107"
session.findById("wnd[0]/usr/ctxtVBRK-VBELN").caretPosition = 10
session.findById("wnd[0]").sendVKey 0
session.findById("wnd[0]/titl/shellcont/shell").pressButton "%GOS_TOOLBOX"
session.findById("wnd[0]/shellcont/shell").pressButton "VIEW_ATTA"
session.findById("wnd[1]/usr/cntlCONTAINER_0100/shellcont/shell").currentCellColumn = "BITM_DESCR"
session.findById("wnd[1]/usr/cntlCONTAINER_0100/shellcont/shell").selectedRows = "0"
session.findById("wnd[1]/usr/cntlCONTAINER_0100/shellcont/shell").doubleClickCurrentCell

And  I am unable to replicate the press button (but.. is that a "button " ?) steps (the first in the image is the "%GOS_TOOLBOX"

to be clear, mouse-pressing  that button opens a small toolbar and on that there is the sub-button "VIEW_ATTA"

Any ideas ?



PS I found this tool working

But It doesn't help for now, shows to me same object names as vbscript...

Edited May 8, 2018 by t0nZ
clarified my problem...

[embe]

On ‎01‎.‎02‎.‎2017 at 5:38 PM, Zoldex said:

Don't know, but it seems to be the same...

Can't understand.

I'm also experiencing this error. Anyone who knows why this is happening? Any help would be much appreciated.

SAP version 7400.3.12.1130

AutoIt v3.3.14.5

[djchaney3]

I know this thread has been around a bit, but I was curious if anyone has been able to (and can show me examples of) select columns so they can be hidden or a filter applied?

Currently I am just selecting the Filter Button and trying to add a row to the filter but having issues...

Here is the code I am currently working on...

If _SAPSessAttach("[CLASS:SAP_FRONTEND_SESSION]") = False Then ; Attach to the session window and open TCODE

   Run("C:\Program Files (x86)\SAP\FrontEnd\SAPgui\sapgui.exe /H/sap.xxxxxxxxxxx.com") ; Open SAP
   WinWaitActive ("[CLASS:SAP_FRONTEND_SESSION]","SAP",1) ; Wait 1 second to allow SAP to open

   Send  ("UserName")
   Send ("{TAB}")
   Send  ("Password")
   Send ("{ENTER}")

   _SAPSessAttach("[CLASS:SAP_FRONTEND_SESSION]","TCODE") ; Attach to the session window and open TCODE

Else
   _SAPObjValueSet ("tbar[0]/okcd","/nTCODE")
   _SAPVKeysSend("Enter")
EndIf

_SAPObjSelect("usr/btn%_PARBPL_%_APP_%-VALU_PUSH") ; Press the Multiple Selection button.

;**********************************************************************************************************************
_SAPSessAttach("Multiple Selection for Work center") ; Attach to the selection window
; Put the Work Center into the lower and upper field.
_SAPObjValueSet("usr/tabsTAB_STRIP/tabpSIVA/ssubSCREEN_HEADER:SAPLALDB:3010/tblSAPLALDBSINGLE/ctxtRSCSEL_255-SLOW_I[1,0]","WC1")
_SAPObjValueSet("usr/tabsTAB_STRIP/tabpSIVA/ssubSCREEN_HEADER:SAPLALDB:3010/tblSAPLALDBSINGLE/ctxtRSCSEL_255-SLOW_I[1,1]","WC2")
_SAPObjSelect("tbar[0]/btn[8]") ; Press the Execute button.

;**********************************************************************************************************************
_SAPSessAttach("Dispatch List") ; Attach to the session window
_SAPObjSelect("tbar[1]/btn[8]") ; Press the Execute button.
_SAPObjSelect("tbar[1]/btn[29]") ; Press the Set Filter button.

;**********************************************************************************************************************
_SAPSessAttach("Define Filter Criteria") ; Attach to the selection window
_SAPObjPropertySet("usr/subSUB_DYN0500:SAPLSKBH:0600/cntlCONTAINER1_FILT/shellcont/shell", "selectedRows", "12") ******NOT WORKING*****
_SAPObjSelect("usr/subSUB_DYN0500:SAPLSKBH:0600/btnAPP_WL_SING") ; Press the Multiple Selection button.



Edited July 3, 2019 by djchaney3
Clarify - Added Picture
