GUI Designer: Koda 1.7.3.0

Zedna · September 17, 2007

Bug Report
Width and height of Labels don't save; only the position.

Set AutoSize property in Object Inspector to False :-)

Edited September 17, 2007 by Zedna

JohnBailey · September 17, 2007

Set AutoSize property in Object Inspector to False :-)

haha I'm embarrassed

thanks!

martin · September 18, 2007

Koda V1.7.0.0

Small error

-the cursors are set to style 2 when they should be set to 11 or 13 for SIZENS or SIZEWE.

Wish.

Resizing options, $GUI_DOCKRIGHT etc.

Confusion.

Can't open some projects, all the views are cleared. The one I can open I can't see how to view or edit it.

martin

Edited September 18, 2007 by martin

Lazycat · September 18, 2007

Koda V1.7.0.0
Small error
-the cursors are set to style 2 when they should be set to 11 or 13 for SIZENS or SIZEWE.

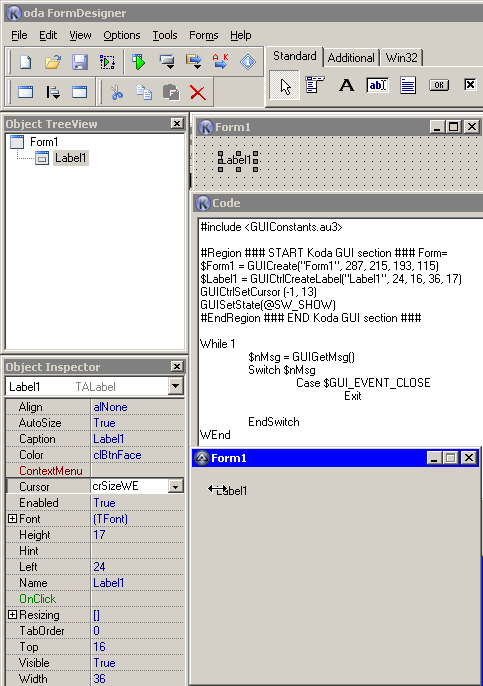

Just tried - they are sets to 11 and 13 correspondely... what I do wrong?

Wish.
Resizing options, $GUI_DOCKRIGHT etc.

All controls already have "Resizing" property...

Confusion.
Can't open some projects, all the views are cleared. The one I can open I can't see how to view or edit it.

Confused with this sentence... Can you explain?

martin · September 18, 2007

Just tried - they are sets to 11 and 13 correspondely... what I do wrong?

If I use a label for a splitter bar and set the cursor to suit then it is always set to 2 in the code. Same I think for buttons. In the example below I have 3 labels with crHsplit or crVsplit but the code generated sets them at 2.

I've tried setting the cursor to crHsplit for and edit and a form and I get the same problem. So how did you do it to make it work?

#include <GUIConstants.au3>

#Region ### START Koda GUI section ### Form=d:\program files\autoit3\beta\koda\forms\monitor\splitter02.kxf
$Form2 = GUICreate("Form2", 413, 298, 305, 219)
$Edit1 = GUICtrlCreateEdit("", 0, 0, 289, 241)
GUICtrlSetData(-1, "Edit1")
$Label1 = GUICtrlCreateLabel("", 4, 240, 284, 4)
GUICtrlSetBkColor(-1, 0x808080)
GUICtrlSetCursor (-1, 2);<---------------------wrong
$Label2 = GUICtrlCreateLabel("", 288, 120, 124, 4)
GUICtrlSetBkColor(-1, 0xA0A0A4)
GUICtrlSetCursor (-1, 2);<-------------------wrong
$Label3 = GUICtrlCreateLabel("", 288, 0, 4, 297)
GUICtrlSetBkColor(-1, 0x808080)
GUICtrlSetCursor (-1, 2);<-------------------wrong
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit

    EndSwitch
WEnd

BTW, to help you answer problems, would it be helpful if Koda included the version number in the code commect like this

#Region ### START Koda V1.7.0.0 GUI section ### Form=d:\program files\autoit3\beta\koda\forms\monitor\splitter02.kxf?

All controls already have "Resizing" property...

You are right of course. Haven't used Koda for a few weeks and I was looking in the styles page instead of the properties. Apologies.

Confused with this sentence... Can you explain?

I have several projects which do not contain very much, but only one will open. The others give me a title in Koda which tells me I have a project open, but there is no other information, all the Form, Object Tree, Object inspector windows are blank. I can't see at the moment what makes one work and another not. I will play with it tonight or tomorrow.

The one that does open doesn't have any option that I can find, (maybe I'm just missing the obvious again) for adding or editing notes or adding a new form etc.

I thought there used to be an option in the View menu for projects, but it's not there now.

Lazycat · September 19, 2007

If I use a label for a splitter bar and set the cursor to suit then it is always set to 2 in the code. Same I think for buttons. In the example below I have 3 labels with crHsplit or crVsplit but the code generated sets them at 2.
I've tried setting the cursor to crHsplit for and edit and a form and I get the same problem. So how did you do it to make it work?

Ah, ok, now I recall. Looks like crHsplit and crVsplit are non-standard cursors, at least they are not in list of cursors supported by GUICtrlSetCursor. That why they are was substituted with standard cursor. Maybe I'll try to remove them from the list, but need a big effort for this seeming simple thing...

BTW, to help you answer problems, would it be helpful if Koda included the version number in the code commect like this
#Region ### START Koda V1.7.0.0 GUI section ### Form=d:\program files\autoit3\beta\koda\forms\monitor\splitter02.kxf?

This is possible, but not sure. Will think.

I have several projects which do not contain very much, but only one will open. The others give me a title in Koda which tells me I have a project open, but there is no other information, all the Form, Object Tree, Object inspector windows are blank. I can't see at the moment what makes one work and another not. I will play with it tonight or tomorrow.
The one that does open doesn't have any option that I can find, (maybe I'm just missing the obvious again) for adding or editing notes or adding a new form etc.
I thought there used to be an option in the View menu for projects, but it's not there now.

If you talk about projects part, then as you can see, this is still unfinished and hidden right now. Wait for next beta stage where it back

martin · September 19, 2007

Ah, ok, now I recall. Looks like crHsplit and crVsplit are non-standard cursors, at least they are not in list of cursors supported by GUICtrlSetCursor. That why they are was substituted with standard cursor. Maybe I'll try to remove them from the list, but need a big effort for this seeming simple thing...

?But they are supported by GuiCtrlSetCursor, so please don't remove them, just set the code to 11 or 13 instead of 2. If I edit the code then the split cursors show as expected.

If you talk about projects part, then as you can see, this is still unfinished and hidden right now. Wait for next beta stage where it back

OK. I look forward to the next version.

Thanks for your replies Lazycat.

Lazycat · September 19, 2007

?But they are supported by GuiCtrlSetCursor, so please don't remove them, just set the code to 11 or 13 instead of 2. If I edit the code then the split cursors show as expected.

martin, 11 and 13 values Koda generating for crSizeNS, crSizeWE, since in autoit those values show size arrows cursors, not splitter ones! I agree, generating nothing for non-standard cursors not the best way, but generating cursors with different look imo not better. I think better remove unsupported cursors at all.

martin · September 19, 2007

martin, 11 and 13 values Koda generating for crSizeNS, crSizeWE, since in autoit those values show size arrows cursors, not splitter ones! I agree, generating nothing for non-standard cursors not the best way, but generating cursors with different look imo not better. I think better remove unsupported cursors at all.

Damn, you're right again. I must have been wearing the wrong pair of glasses.

In that case yes, best to remove the split cursors. That's a pity.

JohnBailey · September 20, 2007

Bug Report / Question:

When I import the following script, the GUI appears for a second and then disappears. I must minimize Koda, then restore Koda. However, this results in the GUI being the full size of the screen. Why?

#include <GUIConstants.au3>
$Toolbar = GUICreate("QuickRef Function Poster", 201, 801, -1, -1, -1, BitOR($WS_EX_TOOLWINDOW,$WS_EX_TOPMOST))
GUISetBkColor(0x716F64)
$ListView = GUICtrlCreateList("", 15, 120, 170, 538, BitOR($LBS_SORT,$LBS_STANDARD,$WS_VSCROLL,$WS_BORDER), $WS_EX_STATICEDGE)
GUICtrlSetFont(-1, 8, 800, 0, "Rockwell")
GUICtrlSetBkColor(-1, 0xD4D0C8)
$Input = GUICtrlCreateInput("", 15, 96, 170, 22)
GUICtrlSetFont(-1, 9, 800, 0, "Rockwell")
$Accept = GUICtrlCreateButton("Add To Clipboard", 15, 688, 170, 30, 0)
GUICtrlCreateLabel("QuickRef Function Poster", 2, 16, 194, 22)
GUICtrlSetFont(-1, 11, 800, 0, "Rockwell")
GUICtrlSetColor(-1, 0xFFFFFF)
GUICtrlSetBkColor(-1, 0x716F64)
GUISetState(@SW_SHOW)
While 1
    Sleep(25)
WEnd

JohnBailey · September 20, 2007

Bug Report / Question:
When I import the following script, the GUI appears for a second and then disappears. I must minimize Koda, then restore Koda. However, this results in the GUI being the full size of the screen. Why?

This solves the problem: $Toolbar = GUICreate("QuickRef Function Poster", 201, 801);, -1, -1, -1, BitOR($WS_EX_TOOLWINDOW,$WS_EX_TOPMOST))

but not $Toolbar = GUICreate("QuickRef Function Poster", 201, 801, -1, -1, -1);, BitOR($WS_EX_TOOLWINDOW,$WS_EX_TOPMOST))

Why?

Blue_Drache · September 20, 2007

BUG REPORT:

Koda v1.7.0.0

Nature of the bug: Graphical display of form scroll bars.

See attached screen shot.

Steps:

1) Create new form

2) Create an EDIT control on the form

3) Set the styles WS_HSCROLL and WS_VSCROLL to "OFF"

4) Save form

5) Quit Koda

6) Start Koda

7) Load prior form

8) Verify that WS_HSCROLL and WS_VSCROLL are still off, but graphically are still displayed.

User must cycle checkmarks again to remove display of scrollbars that shouldn't be there in the first place.

Other than that, good program!

Edited September 20, 2007 by Blue_Drache

Lazycat · September 20, 2007

BUG REPORT:
Koda v1.7.0.0
Nature of the bug: Graphical display of form scroll bars.
...
User must cycle checkmarks again to remove display of scrollbars that shouldn't be there in the first place.
Other than that, good program!

Seems someone already reported this... This is weird problem, that appear only for Edit control, though it's code the same as for other.

The only way I can found now - recreate control just after loading.

Fixed for maintenance release, thanks.

LongBowNZ · September 21, 2007

Any chance you could add support for people who have their taskbar at the top since the title bar is hidden behind it?

Blue_Drache · September 21, 2007

As a quick fix, alt+space will yield the system menu. Select "Move" and use arrow keys to move the window. It's a pain, but it can be done.

Lazycat · September 21, 2007

After you move window from behind the bar, as Blue_Drache suggested, you can choose save window position in settings, and Koda will always start at desired position.

Lazycat · September 21, 2007

Bug Report / Question:
When I import the following script, the GUI appears for a second and then disappears. I must minimize Koda, then restore Koda. However, this results in the GUI being the full size of the screen. Why?

Oh, I'm missed your posts, sorry.

This is bug with incorrect handling -1/default in certain situations. I know about it, this is first candidate to fix in Au3tokoda

LongBowNZ · September 21, 2007

As a quick fix, alt+space will yield the system menu. Select "Move" and use arrow keys to move the window. It's a pain, but it can be done.

After you move window from behind the bar, as Blue_Drache suggested, you can choose save window position in settings, and Koda will always start at desired position.

Cheers

martin · September 21, 2007

After you move window from behind the bar, as Blue_Drache suggested, you can choose save window position in settings, and Koda will always start at desired position.

In case it's of any interest, this is what I do.

FormCreate(Sender:TObject);
var
 screenrect:TRect;
begin

 SystemParametersInfo( SPI_GETWORKAREA ,  0,  Addr(screenrect), 0);

 form1.Top := screenrect.Top;

Lazycat · September 24, 2007

In case it's of any interest, this is what I do.

FormCreate(Sender:TObject);
var
 screenrect:TRect;
begin

 SystemParametersInfo( SPI_GETWORKAREA ,  0,  Addr(screenrect), 0);

 form1.Top := screenrect.Top;

Yeah, this can do the thing, I'll try.
