Graphical AutoIt Debugger

[vangelis]

Send me an example file and I will take a look. I can't seem to get ScintillaNet to display correctly, even though Scintilla does.

I receive a lot of spammer requests for accounts, so try adding an account again. Send me a PM here with the name and I will look out for it.

Steve

this is exactly loaded from debugger editor

Opt("WinWaitDelay", 100)

Opt("WinDetectHiddenText", 1)

Opt("MouseCoordMode", 0)

$var = "��������"

Run('C:\Program Files\Mozilla Firefox\firefox.exe')

_WinWaitActivate("Google - Mozilla Firefox", "")

Sleep(200)

Send("autoit{ENTER}")

_WinWaitActivate("autoit - ��������� Google - Mozilla Firefox", "")

MouseClick("left", 387, 328, 1)

_WinWaitActivate("AutoIt | AutoItScript - Mozilla Firefox", "")

MouseMove(491, 189)

MouseDown("left")

MouseMove(499, 215)

MouseUp("left")

MouseClick("left", 547, 441, 1)

_WinWaitActivate("AutoIt - Mozilla Firefox", "")

MouseClick("left", 120, 432, 1)

at the status bar show : Develpement Mode UTF-8

Now What happens :

i write something in Greek and it dispalays it ok

Opt("WinWaitDelay", 100)

Opt("WinDetectHiddenText", 1)

Opt("MouseCoordMode", 0)

$var = "Ελληνικα"

Run('C:\Program Files\Mozilla Firefox\firefox.exe')

_WinWaitActivate("Google - Mozilla Firefox", "")

Sleep(200)

Send("autoit{ENTER}")

_WinWaitActivate("autoit - Αναζητηση Google - Mozilla Firefox", "")

MouseClick("left", 387, 328, 1)

_WinWaitActivate("AutoIt | AutoItScript - Mozilla Firefox", "")

MouseMove(491, 189)

MouseDown("left")

MouseMove(499, 215)

MouseUp("left")

MouseClick("left", 547, 441, 1)

_WinWaitActivate("AutoIt - Mozilla Firefox", "")

MouseClick("left", 120, 432, 1)

By the time i hit save everything turns just like the first time i loaded the script.

$var = "��������" e.t.c.

I press the SciteEdit and the file loads ok and also i can see the greek letters correctly.

The Encoding in Scite says that i use my Codepage Property.

Now the Strange thing

I retype the Greek letters and hit save and i get error on Tidy

Tidy AutoIt3 v2.1.0.0 Copyright © Jos van der Zande December 28, 2009

!> Script is encoded in UTF8 which is not supported .. stopping process.

So i am saying that something is wrong with the encoding of the file while saving.

although the status continuously say it is UTF-8.

So i retype greek and start Debug (i havent saved it!!)

also on the program trace i see there is a mixed up of the same kind.

At the Line $var = "Ελληνικα" The trace shows correctly the line beeing traced (i mean the greek letters)

but the variable you show on the treeview node holds ��������

Ok , I hope i gave you the best possible description of the problems.

This strange !! you fill ok the root trace node an

[vangelis]

There is also another thing i forgot to mention.

When i eliminate all greek characters and replace them with english and hit save the status bar shows US-ASCII

When i retype greek again and hit save the file is UTF-8

[chrshea]

I'd like to download this program but the links don't work on the webpage at:

http://www.thefoolonthehill.net/drupal/AutoIt%20Debugger

[Stumpii]

I'd like to download this program but the links don't work on the webpage at:

http://www.thefoolonthehill.net/drupal/AutoIt%20Debugger

Apologies. Fixed the links now. For some reason it uploaded as ..exe instead of .exe

[Alandor]

Ok, I was reading all pages of the thread from the beginning so I see the unicode problem is being a really pain in the ass for long now. So not trying to make pressure here about the subject, just only want to share my experiences when dealing with It hoping that can help you Stumpii when you decide to fight again with this.

First of all, I am using AutoIt latest stable release and have not installed the beta (as being older I think it is useless now) and Scite full (Scite4AutoIt) last version from web. The testing machine is Windows XP SP3 spanish. The .NET version was 2.0 then I updated to 3.5.

OK, let's go for the thing. By default my Scite scripts are/were coded using the "code page property" (which I guess is ASCII). First I noticed some changes in the encoding related behavior of the debugger depending on the .NET framework version. Using 2.0 the debugger always stays in US-ASCII mode when loading a file with non english characters and just completely ignore those characters (they just disappear). With 3.5 update I started to notice what other people already said, the debugger encoding changes to UTF-8 and the special characters are shown as little boxes. Tried to save file from debugger and load again, same boxes, as the same in Scite or notepad++. Now the boxes appear in all them. Next thing I tried was to use notepad++ to convert one script with special characters to UTF-8 and save it. Scite showed correctly encoding and characters so I loaded into the debugger and then suddenly an ScintillaNet error window appeared complaining about encoding. So I created new au3 file, loaded in Scite, changed encoding to UTF8, saved, added some special characters and saved again and tried to load it with debugger and again same error. But I noticed two strange things. First, the characters are showed correctly as they should. Second, the encoding information shows US-ASCII. So it seems perhaps something is twisted somewhere and the program is trying to load/save ASCII as UTF, and UTF as ASCII. Here is the picture:

Also I attached the file showed in the picture, just in case.

Nuevo AutoIt v3 Script.au3

Edited May 10, 2011 by Alandor

[Alandor]

Also I think found a little bug with "Run to cursor" option. If I press the "Run to cursor" button, it executes the script, make debug and pauses at the cursor line as expected. Then I press "Stop" button. All OK. But, If now I press the "Run" button It always stop where the cursor was when I pressed "Run to cursor" before instead of continue executing all the script as It should. I have to exit debugger and load again to be able to just "Run" the script.

[Stumpii]

Also I think found a little bug with "Run to cursor" option. If I press the "Run to cursor" button, it executes the script, make debug and pauses at the cursor line as expected. Then I press "Stop" button. All OK. But, If now I press the "Run" button It always stop where the cursor was when I pressed "Run to cursor" before instead of continue executing all the script as It should. I have to exit debugger and load again to be able to just "Run" the script.

This will be fixed in the next version.

Thanks, Steve

[Alandor]

This will be fixed in the next version.

Thanks, Steve

Thanx very much Stumpii. Your work is much appreciated.

[Alandor]

Also I found ";AutoIt_Debugger_Command:Disable_Debug" is not working. I have this in my script:

;AutoIt_Debugger_Command:Disable_Debug
#include <FastFind.au3>
;AutoIt_Debugger_Command:Enable_Debug

But it's always debugging that include. Is it a bug or is it me doing something wrong ?

Greetings,

Alandor

[Stumpii]

Also I found ";AutoIt_Debugger_Command:Disable_Debug" is not working. I have this in my script:

;AutoIt_Debugger_Command:Disable_Debug
#include <FastFind.au3>
;AutoIt_Debugger_Command:Enable_Debug

But it's always debugging that include. Is it a bug or is it me doing something wrong ?

Greetings,

Alandor

Each script file is processed separately, so what you need to do is add those command lines to the top and bottom of the FastFind.au3 file instead.

[Alandor]

Each script file is processed separately, so what you need to do is add those command lines to the top and bottom of the FastFind.au3 file instead.

Oh, I see. Thanx very much for the help.

[willichan]

Enhancement request:

The debugger does not seem to look for #include files in the paths defined in "HKEY_CURRENT_USER\Software\AutoIt v3\AutoIt\Include". (see help file for #include)

Can support for this be added to the debugger?

I keep personal UDF, and UDFs that I have modified in a separate folder from the standard includes.

[Stumpii]

New version. Download from first post.

Rev 0.44.0 - 16 Aug 11

Added: Support for unlimited command line arguments.

Changed: Document settings now stored in binary .dat file that will support future changes better.

Changed: Removed Command Line Arguments from Options form and created a separate dockable form.

Fixed: Dock panel .config files are always recreated if they do not exist in the users profile. Thanks BodoWitcha.

Added: Forward and Back mouse buttons now navigate forward and back through the code editor window.

Changed: Rewrote code related to determining AutoIt location. Thanks BodoWitcha.

Fixed: Problem related to local variable fix introducing error with @error variable in debug mode. Thanks BodoWitcha.

Added: 'Use default AutoIt folders' and 'Portable AutoIt folders' options on Options tab.

Changed: Reorganised the CreateDebug module. This should speed up debug generation. Thanks BodoWitcha.

Fixed: 'Run to cursor' option remembers previous settings and stops next time the same script is debugged. Thanks Alandor.

Added: Processing of Include files from the registry. Thanks willichan.

[gcriaco]

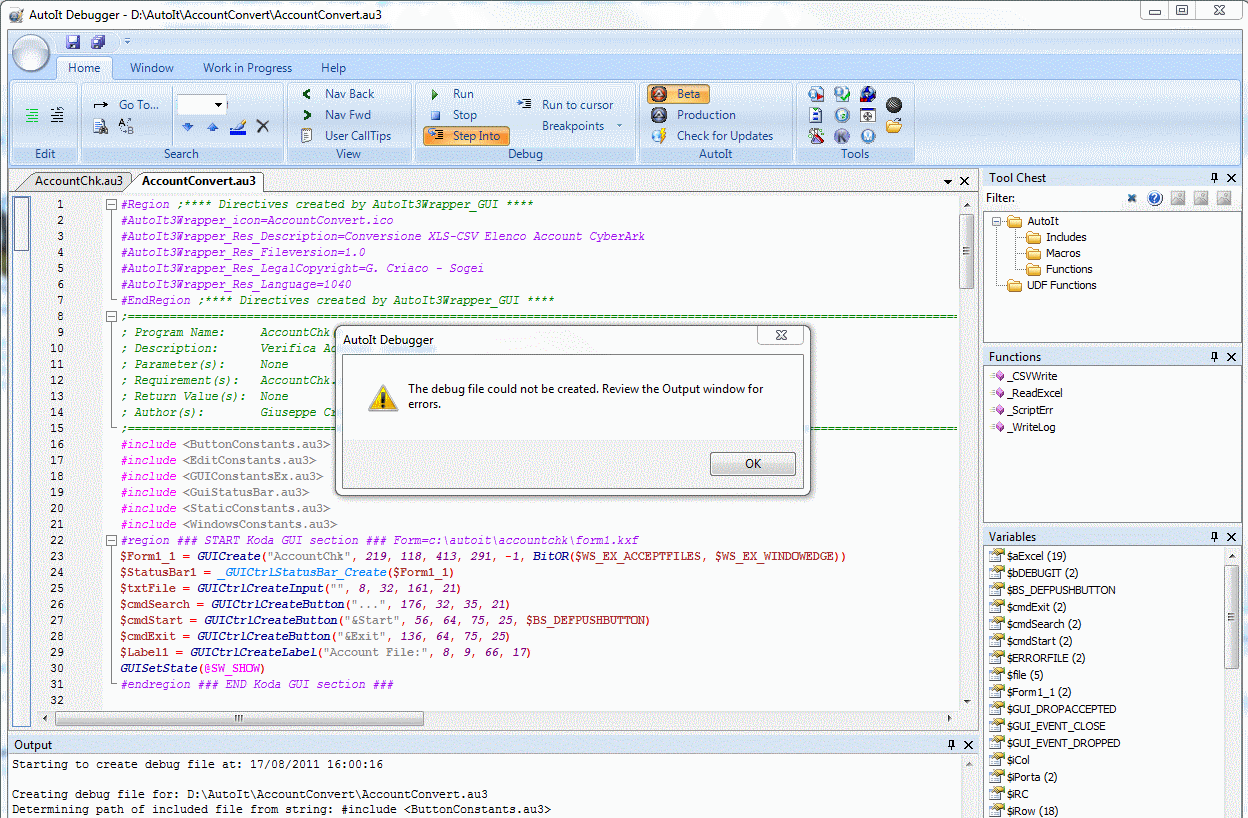

The Debugger doesn't find the include files of any script: "Determining path of included file from string: #include <ButtonConstants.au3>...". See the attached screenshot.

My OS is Win7 64 bit italian.

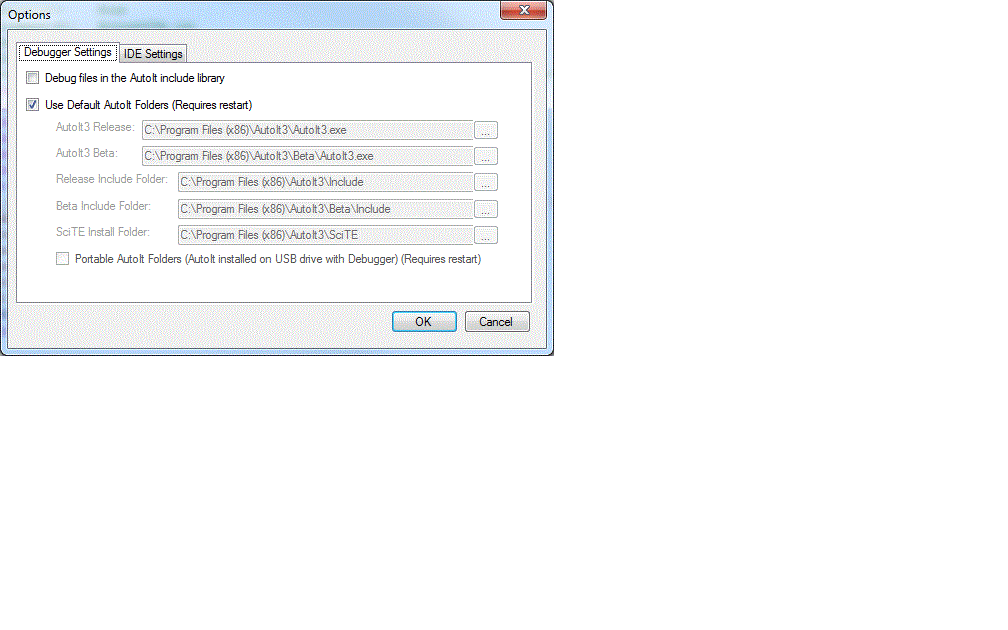

The Debugger options are OK: "C:\Program Files (x86)\AutoIt3\Beta\Include". The same happens on production environment.

Best regards

Peppe

AccountConvert.au3

Edited August 18, 2011 by gcriaco

[Stumpii]

The Debugger doesn't find the include files of any script: "Determining path of included file from string: #include <ButtonConstants.au3>...". See the attached screenshot.

My OS is Win7 64 bit italian.

The Debugger options are OK: "C:\Program Files (x86)\AutoIt3\Beta\Include". The same happens on production environment.

Best regards

Peppe

Please post the screenshot. I have tried it here and it appears to be fine. This is what you should see:

http://screencast.com/t/CANGix9t

Thanks, Steve

[gcriaco]

Please post the screenshot. I have tried it here and it appears to be fine. This is what you should see:

http://screencast.com/t/CANGix9t

Thanks, Steve

See my previous post for attachments.

Thanks

Peppe

[BrewManNH]

See my previous post for attachments.

Thanks

Peppe

Is your version of Windows an Italian version? If it is, then Program Files isn't called Program Files on that version is it?

[Stumpii]

See my previous post for attachments.

Thanks

Peppe

New version should fix that. Download from first post.

Rev 0.44.1 - 18 Aug 11

Fixed: Issue determining Include paths when Registry is not used. Thanks gcriaco.

Added: Highlighting of identical text (variables, functions, etc.).

Thanks, Steve

[gcriaco]

New version should fix that. Download from first post.

Rev 0.44.1 - 18 Aug 11

Fixed: Issue determining Include paths when Registry is not used. Thanks gcriaco.

Added: Highlighting of identical text (variables, functions, etc.).

Thanks, Steve

Anything OK. Thank you very much

[Stumpii]

New version available. Download link in first post.

This should make debugging more stable in general and especially in Win 7 with UAC enabled.

Rev 0.44.2 - 27 Aug 11

Fixed: Re-ordered ConsoleWrite so that it writes to the Debugger before a breakpoint if a breakpoint is set on that line.

Fixed: Sending a variable to the debugger was clearing the @error and @extended macros.

Changed: Better detection and debugging of system include locations.

Changed: System include files now debugged in %TEMP% folder, not AutoIt include folders. Thanks BodoWitcha.

Changed: Removed calls to all includes in the debug include.
