Save as pdf

[mustilem23]

Helo

I am trying to create a scenario to press the export repot button of the ERP program running over the internet and save it as a pdf. Can you support me with the scenario codes?

The button I want to press and the save as field .

[Nine]

What have you tried so far ?  Have you run au3info.exe tool over the button ?

[mustilem23]

I checked the help files but I wasn't very successful, I think this area is not a button or when I hover over something I don't know, it becomes an export report.

I am very new to these types of scenarios, but when I show a target with a mouse click, sometimes there is a deviation, my aim is to save the pdf to a specific folder by clicking the export report button when the window opens and saying save as, can you help me? Please.
My starting codes for the scenario.



#include <AutoItConstants.au3>

Func _WinWaitActivate($title,$text,$timeout=0)
        WinWait($title,$text,$timeout)
        If Not WinActive($title,$text) Then WinActivate($title,$text)
        WinWaitActive($title,$text,$timeout)
                               Local $olMailItem = 0

EndFunc

_WinWaitActivate("015 - SSH Teklif -","")

MouseClick($MOUSE_CLICK_LEFT,1130 , 241, 1)

I guess it can't see it as a button in au3 info. Here is the screenshot when I hover over it.



[Nine]

Try a ControlClick on the control.  (show full summary of au3info)

Edited Wednesday at 01:14 PM by Nine

[mustilem23]

I saw it in a help scenario and added it but it gave an error. Would this complete image be enough?



#include <AutoItConstants.au3>

Func _WinWaitActivate($title,$text,$timeout=0)
        WinWait($title,$text,$timeout)
        If Not WinActive($title,$text) Then WinActivate($title,$text)
        WinWaitActive($title,$text,$timeout)
                               Local $olMailItem = 0




EndFunc


  _WinWaitActivate("015 - SSH Teklif -","")

Sleep(2000)

    ControlClick( "", "Export Report")
    MouseClick($MOUSE_CLICK_LEFT,1130 , 241, 1)





[Nine]

Your ControlClick is totally wrong.  First param is the title of the window, second is empty, third is the ClassnameNN.

Also I don't understand your MouseClick as it seems to be way off your target button.

When I say full summary, I want to see all tabs (in your case I want to see the toolbar tab).

[mustilem23]

I added time and mouse click, it is not important for testing, we can delete it.







expandcollapse popup

>>>> Window <<<<
Title:  015 - SSH Teklif - MUSTAFA DOGRU @ PRODN1 DURMAZLAR SP1 - IFS Applications
Class:  WindowsForms10.Window.8.app.0.19bcb90_r12_ad1
Position:   -7, -7
Size:   1295, 695
Style:  0x17CF0000
ExStyle:    0x00050100
Handle: 0x003914F8

>>>> Control <<<<
Class:  WindowsForms10.Window.8.app.0.19bcb90_r12_ad1
Instance:   58
ClassnameNN:    WindowsForms10.Window.8.app.0.19bcb90_r12_ad158
Name:
Advanced (Class):   [CLASS:WindowsForms10.Window.8.app.0.19bcb90_r12_ad1; INSTANCE:58]
ID: 151192
Text:
Position:   56, 69
Size:   1213, 21
ControlClick Coords:    11, 14
Style:  0x56010000
ExStyle:    0x00010000
Handle: 0x00024E98

>>>> Mouse <<<<
Position:   67, 106
Cursor ID:  0
Color:  0x8E4A94

>>>> StatusBar <<<<

>>>> ToolsBar <<<<

>>>> Visible Text <<<<
tsContainer
fndBreadCrumb1
toolStrip1
Main Report
1
Current Page No.: 1
toolStrip1


>>>> Hidden Text <<<<
navigatorBox1
(...)
elementHost1
Please wait while the document is processing.
fndExplorerMainMenu1

I did not get any results this way either.



#include <AutoItConstants.au3>

Func _WinWaitActivate($title,$text,$timeout=0)
        WinWait($title,$text,$timeout)
        If Not WinActive($title,$text) Then WinActivate($title,$text)
        WinWaitActive($title,$text,$timeout)
                               Local $olMailItem = 0




EndFunc


  _WinWaitActivate("015 - SSH Teklif -","")


    ControlClick(015 - SSH Teklif - MUSTAFA DOGRU @ PRODN1 DURMAZLAR SP1 - IFS Applications, "WindowsForms10.Window.8.app.0.19bcb90_r12_ad1", "Export Report")



[Nine]

Ok you do not have a standard toolbar accessible.

Your ControlClick is still wrong.  Please open help file and read carefully what it says.  I already told you that second param is empty and the third is ClassnameNN.  I didn't say that for nothing.

It should be :

ControlClick("015 - SSH Teklif", "", "WindowsForms10.Window.8.app.0.19bcb90_r12_ad158")

Run your code from Scite.  It would have told you that your ControlClick was wrong.  At least make an effort to write a runable script...

Edited Wednesday at 02:45 PM by Nine

[mustilem23]

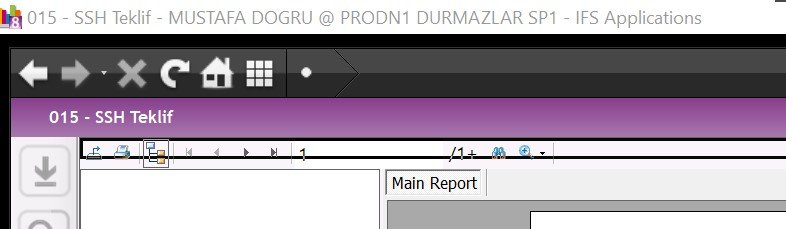

Tekrar merhabalar, birden fazla kez denediğim için en son oluşan hatayı paylaşmak istedim. Şu anda çalışıyor ama yine de istediğim yere tıklayamıyorum. Pencere bilgisinde böyle bir şey fark ettim. Fareyi o alana getirdiğimde ekteki resimdeki siyah dikdörtgen alan çıkıyor. Burası tam olarak düğmelerin olduğu alandır. Acaba bu yüzden mi Raporu dışa aktar düğmesine basamıyorum. Sınıf alanını ileri geri hareket ettiriyorum herhangi bir değişiklik yok, isim kontrol tıklama koordinatı değişiyor sadece benim butonum 11 10 sanırım hata burada. Ancak normal kullandığımda, fare üzerine getirildiğinde Raporu Dışa Aktar olarak görünüyor. Lütfen, ben acemiyim, bana yardım edebilir misiniz?



[Jos]

Something went wrong in translation! please use English.

[mLipok]

You should use UIA
