Create & refresh a WinAPI Picture in a GUI


Go to solution Solved by ioa747,

Recommended Posts

Dear community

I want to do a simple thing, that I need to be "fast"
The simpliest way may occur clipping or eat too much ressources because of the frequencey of changes, so ... I wrote partially code and asked for the end to ChatGPT4o

He helped on some points, but get definitely stuck (and stupid) on other, so here's my code

  • _GetGradientColor($Value) returns a color in a 0-100% gradient as picture illustrates below
  • _MyWinAPI_CreateIcon( $posX, $posY, $Color ) creates a rounded square filled with color retreived from _GetGradientColor($Value) ans set generic icons before GUISetState(@SW_SHOW, $hGUI)
  • _MyWinAPI_UpdateIcon($idIcon, $Color) retrives the id of the icon ands "should" change its color, but either it does not. It sounds to be a bad handling of objects but I am unable to figure it.

    Here's full code with functions dans GUI example

    #include <StaticConstants.au3>
    #include "C:\Program Files (x86)\AutoIt3\Examples\Helpfile\Extras\WM_NOTIFY.au3"
    #include <GuiButton.au3>
    #include <WinAPIGdi.au3>
    #include <GUIConstantsEx.au3>

    Func _GetGradientColor($Value)
        ; Limit the value to the range [0, 100]
        If $Value < 0 Or $Value > 100 Then Return SetError(1, 0, 0)

        Local $Red = 0, $Green = 0, $Blue = 0

        ; Gradient from pure red to pure orange (0-25%)
        If $Value <= 25 Then
            $Red = 255
            $Green = Int(255 * ($Value / 25))
            $Blue = 0

        ; Gradient from pure orange to pure yellow (26-40%)
        ElseIf $Value <= 40 Then
            $Red = 255
            $Green = 255
            $Blue = 0

        ; Gradient from pure yellow to pure green (41-50%)
        ElseIf $Value <= 50 Then
            $Red = 255 - Int(255 * (($Value - 40) / 10))
            $Green = 255
            $Blue = 0

        ; Gradient from pure green to pure cyan (51-80%)
        ElseIf $Value <= 80 Then
            $Red = 0
            $Green = 255
            $Blue = Int(255 * (($Value - 50) / 30))

        ; Gradient from pure cyan to pure blue (81-100%)
        Else
            $Red = 0
            $Green = Int(255 - (255 * (($Value - 80) / 20)))
            $Blue = 255
        EndIf

        ; Return the color in BGR format (for AutoIt)
        Return "0x" & Hex($Blue, 2) & Hex($Green, 2) & Hex($Red, 2)
    EndFunc

    Func _MyWinAPI_UpdateIcon($idIcon, $Color)
        ; Size and other parameters
        Local $cornerRadius = 7, $Size = 15

        ; Get the handle of the existing Pic control
        Local $hPic = GUICtrlGetHandle($idIcon)

        ; Create a new compatible bitmap
        Local $hDev = _WinAPI_GetDC($hPic)
        Local $hDC = _WinAPI_CreateCompatibleDC($hDev)
        Local $hSource = _WinAPI_CreateCompatibleBitmapEx($hDev, $Size, $Size, _WinAPI_SwitchColor(_WinAPI_GetSysColor($COLOR_3DFACE)))
        Local $hSv = _WinAPI_SelectObject($hDC, $hSource)

        ; Create a brush for the background of the box
        Local $hBrush = _WinAPI_CreateSolidBrush($Color)
        Local $hOldBrush = _WinAPI_SelectObject($hDC, $hBrush)

        ; Create a pen to draw the outline
        Local $hPen = _WinAPI_CreatePen($PS_SOLID, 1, $Color)
        Local $hOldPen = _WinAPI_SelectObject($hDC, $hPen)

        ; Draw the rounded rectangle
        Local $tRECT = _WinAPI_CreateRect(0, 0, $Size, $Size)
        _WinAPI_RoundRect($hDC, $tRECT, $cornerRadius, $cornerRadius)

        ; Reset the old brush and pen
        _WinAPI_SelectObject($hDC, $hOldBrush)
        _WinAPI_DeleteObject($hBrush)
        _WinAPI_SelectObject($hDC, $hOldPen)
        _WinAPI_DeleteObject($hPen)

        ; Update the Pic control image
        GUICtrlSetImage($idIcon, $hSource)

        ; Clean up resources
        _WinAPI_SelectObject($hDC, $hSv)
        _WinAPI_DeleteDC($hDC)
        _WinAPI_ReleaseDC($hPic, $hDev)

        ; Free the previous bitmap
        Return $idIcon
    EndFunc


    Func _MyWinAPI_CreateIcon( $posX, $posY, $Color )
        Local $cornerRadius = 7, $Size = 15

        ; Create a Pic control to draw the rounded box
        Local $idIcon = GUICtrlCreatePic ('', $posX, $posY, $Size, $Size )
        Local $hPic = GUICtrlGetHandle ( $idIcon )

        ; Create a compatible bitmap
        Local $hDev = _WinAPI_GetDC ( $hPic )
        Local $hDC = _WinAPI_CreateCompatibleDC ( $hDev )
        Local $hSource = _WinAPI_CreateCompatibleBitmapEx($hDev, $Size, $Size, _WinAPI_SwitchColor(_WinAPI_GetSysColor($COLOR_3DFACE)))
        Local $hSv = _WinAPI_SelectObject ( $hDC, $hSource )

        ; Create a brush for the background of the box
        Local $hBrush = _WinAPI_CreateSolidBrush ( $Color )
        Local $hOldBrush = _WinAPI_SelectObject ( $hDC, $hBrush )

        ; Create a pen to draw the outline
        Local $hPen = _WinAPI_CreatePen ( $PS_SOLID, 1, $Color )
        Local $hOldPen = _WinAPI_SelectObject ( $hDC, $hPen )

        ; Draw the rounded rectangle
        Local $tRECT = _WinAPI_CreateRect (0, 0, $Size, $Size )
        _WinAPI_RoundRect ( $hDC, $tRECT, $cornerRadius, $cornerRadius )

        ; Reset the old brushes and pens
        _WinAPI_SelectObject ( $hDC, $hOldBrush )
        _WinAPI_DeleteObject ( $hBrush )
        _WinAPI_SelectObject ( $hDC, $hOldPen )
        _WinAPI_DeleteObject ( $hPen )

        ; Add the image to the control
        _SendMessage ( $hPic, $STM_SETIMAGE, 0, $hSource )
        _WinAPI_SelectObject ( $hDC, $hSv )
        _WinAPI_DeleteDC ( $hDC )

        ; Release the resources
        _WinAPI_ReleaseDC ( $hPic, $hDev )

        Return SetError ( @error, @extended, $idIcon )
    EndFunc
    ; Create the main GUI window
    Global $hGUI = GUICreate("Test color change of icons", 400, 300)
    GUISetBkColor(0x252525)

    ; Create a button to change the icon color
    Global $idButton = GUICtrlCreateButton("Change Icon Color", 150, 200, 100, 30)

    ; Create an initial icon
    Global $idIcon = _MyWinAPI_CreateIcon(150, 100, _GetGradientColor(50))

    ; Show the GUI
    GUISetState(@SW_SHOW, $hGUI)

    ; Main loop
    While 1
        Switch GUIGetMsg()
            Case $GUI_EVENT_CLOSE
                ExitLoop

            Case $idButton
                ; Generate a random value between 1 and 100
                Local $RandomValue = Random(1, 100, 1)

                ; Get the new color
                Local $NewColor = _GetGradientColor($RandomValue)

                ; Update the existing icon's color
                _MyWinAPI_UpdateIcon(GUICtrlGetHandle($idIcon), $NewColor)
                GUISetState(@SW_SHOW, $hGUI)
        EndSwitch
    WEnd

    Any help would greatly appreciated, WinAPI is somehow at border at my knowledges, but I ma still ready ty learn :)

    Regards




Edited by Ebola57
Link to comment
Share on other sites

; Update the Pic control image
; GUICtrlSetImage($idIcon, $hSource)
; GUICtrlSetImage works with image files (not handles) **

; Update the Pic control image using _SendMessage instead of GUICtrlSetImage
_SendMessage($hPic, $STM_SETIMAGE, 0, $hSource)



Edited by ioa747

I know that I know nothing

Link to comment
Share on other sites

I have a result using this instruction in the update function :

_WinAPI_DrawBitmap

At least it updates and changes the color of the picture control but I'm not satisfied. I wish @UEZ reads this and brings his expertise, he'll explain in a glance what should be done to solve your issue.

By the way, something needs to be changed in the script :

_MyWinAPI_UpdateIcon(GUICtrlGetHandle($idIcon), $NewColor) ; $idIcon should be passed, not its handle


Func _MyWinAPI_UpdateIcon($idIcon, $Color)
    ...
    ConsoleWrite("$idIcon = " & $idIcon & @crlf) ; $idIcon = 0x006C078E (?)  <===========

    ; Get the handle of the existing Pic control
    Local $hPic = GUICtrlGetHandle($idIcon)

    ConsoleWrite("$idIcon = " & $idIcon & "   $hPic = " & $hPic & @crlf) ; $idIcon = 0x006C078E   $hPic = 0 (??)

Good luck

@ioa747 In my tests, _SendMessage() wasn't enough and didn't update the pic control. Only _WinAPI_DrawBitmap coupled with _SendMessage updated the control.

Edited by pixelsearch
Link to comment
Share on other sites

  • Solution

with these add  it works

; Update the Pic control image using _SendMessage instead of GUICtrlSetImage
_SendMessage($hPic, $STM_SETIMAGE, 0, $hSource)

in Case $idButton

; Update the existing icon's color
_MyWinAPI_UpdateIcon($idIcon, $NewColor)

_WinAPI_RedrawWindow(GUICtrlGetHandle($idIcon)) ;**


Edit:
during the tests I did I forgot that I added the
_WinAPI_RedrawWindow(GUICtrlGetHandle($idIcon))

after
_MyWinAPI_UpdateIcon($idIcon, $NewColor)

Edited by ioa747

I know that I know nothing

Link to comment
Share on other sites

Glad you made it, _WinAPI_RedrawWindow added by ioa747 refreshed the control nicely :)

We could combine both functions (create & update) in a single one, as they got plenty of code in common, for example :

#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WinAPIGdi.au3>
#include <WinAPISysInternals.au3>
#include <WindowsConstants.au3>

; Create the main GUI window
GUICreate("Test color change of icons", 400, 300)
GUISetBkColor(0x252525) ; blackish

; Create a button to change the icon color
Global $idButton = GUICtrlCreateButton("Change Icon Color", 150, 200, 100, 30)

; Create a Pic control to draw the rounded box
Global $Size = 15
Global $hPic = GUICtrlGetHandle ( GUICtrlCreatePic ('', 150, 100, $Size, $Size ) )

; Create an initial icon
_MyWinAPI_UpdateIcon(_GetGradientColor(50)) ; green

; Show the GUI
GUISetState(@SW_SHOW)

; Main loop
While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            ExitLoop

        Case $idButton
            ; Generate a random value between 1 and 100
            Local $RandomValue = Random(1, 100, 1)

            ; Get the new color
            Local $NewColor = _GetGradientColor($RandomValue)

            ; Update the existing icon's color
            _MyWinAPI_UpdateIcon($NewColor)
            _WinAPI_RedrawWindow($hPic)
    EndSwitch
WEnd

;==============================================
Func _GetGradientColor($Value)
    ; Limit the value to the range [0, 100]
    If $Value < 0 Or $Value > 100 Then Return SetError(1, 0, 0)

    Local $Red = 0, $Green = 0, $Blue = 0

    ; Gradient from pure red to pure orange (0-25%)
    If $Value <= 25 Then
        $Red = 255
        $Green = Int(255 * ($Value / 25))
        $Blue = 0

    ; Gradient from pure orange to pure yellow (26-40%)
    ElseIf $Value <= 40 Then
        $Red = 255
        $Green = 255
        $Blue = 0

    ; Gradient from pure yellow to pure green (41-50%)
    ElseIf $Value <= 50 Then
        $Red = 255 - Int(255 * (($Value - 40) / 10))
        $Green = 255
        $Blue = 0

    ; Gradient from pure green to pure cyan (51-80%)
    ElseIf $Value <= 80 Then
        $Red = 0
        $Green = 255
        $Blue = Int(255 * (($Value - 50) / 30))

    ; Gradient from pure cyan to pure blue (81-100%)
    Else
        $Red = 0
        $Green = Int(255 - (255 * (($Value - 80) / 20)))
        $Blue = 255
    EndIf

    ; Return the color in BGR format (for AutoIt)
    Return "0x" & Hex($Blue, 2) & Hex($Green, 2) & Hex($Red, 2)
EndFunc

;==============================================
Func _MyWinAPI_UpdateIcon( $Color )

    Local $cornerRadius = 7

    ; Create a compatible bitmap
    Local $hDev = _WinAPI_GetDC ( $hPic )
    Local $hDC = _WinAPI_CreateCompatibleDC ( $hDev )
    Local $hSource = _WinAPI_CreateCompatibleBitmapEx($hDev, $Size, $Size, _WinAPI_SwitchColor(_WinAPI_GetSysColor($COLOR_3DFACE)))
    Local $hSv = _WinAPI_SelectObject ( $hDC, $hSource )

    ; Create a brush for the background of the box
    Local $hBrush = _WinAPI_CreateSolidBrush ( $Color )
    Local $hOldBrush = _WinAPI_SelectObject ( $hDC, $hBrush )

    ; Create a pen to draw the outline
    Local $hPen = _WinAPI_CreatePen ( $PS_SOLID, 1, $Color )
    Local $hOldPen = _WinAPI_SelectObject ( $hDC, $hPen )

    ; Draw the rounded rectangle
    Local $tRECT = _WinAPI_CreateRect (0, 0, $Size, $Size )
    _WinAPI_RoundRect ( $hDC, $tRECT, $cornerRadius, $cornerRadius )

    ; Add the image to the control
    _SendMessage ( $hPic, $STM_SETIMAGE, 0, $hSource )
    Local $hObj = _SendMessage($hPic, $STM_GETIMAGE)
    If $hObj <> $hSource Then _WinAPI_DeleteObject($hSource)

    ; Reset the old brushes and pens (originals)
    _WinAPI_SelectObject ( $hDC, $hOldBrush )
    _WinAPI_DeleteObject ( $hBrush )
    _WinAPI_SelectObject ( $hDC, $hOldPen )
    _WinAPI_DeleteObject ( $hPen )

    ; Release the resources
    _WinAPI_SelectObject ( $hDC, $hSv ) ; reset original context
    _WinAPI_ReleaseDC ( $hPic, $hDev )
    _WinAPI_DeleteDC ( $hDC )
EndFunc



Link to comment
Share on other sites

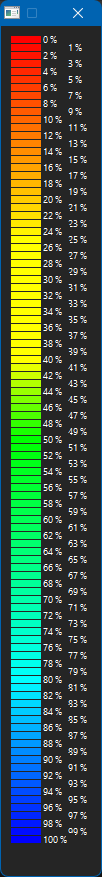

Maybe just build an array with the gradient values that runs once when the script is started and use it as a lookup table, no need to do the calculations all the time, there is only 101 of them that doesnt change, always the same, better yet, just hardcode them in and get rid of the _GetGradientColor() function, greener and more CO² friendly and sligthly faster.

#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WinAPIGdi.au3>
#include <WinAPISysInternals.au3>
#include <WindowsConstants.au3>

Global $GradientColor[101] = [0x0000FF,0x000AFF,0x0014FF,0x001EFF,0x0028FF,0x0033FF,0x003DFF,0x0047FF,0x0051FF,0x005BFF, _
                              0x0066FF,0x0070FF,0x007AFF,0x0084FF,0x008EFF,0x0099FF,0x00A3FF,0x00ADFF,0x00B7FF,0x00C1FF, _
                              0x00CCFF,0x00D6FF,0x00E0FF,0x00EAFF,0x00F4FF,0x00FFFF,0x00FFFF,0x00FFFF,0x00FFFF,0x00FFFF, _
                              0x00FFFF,0x00FFFF,0x00FFFF,0x00FFFF,0x00FFFF,0x00FFFF,0x00FFFF,0x00FFFF,0x00FFFF,0x00FFFF, _
                              0x00FFFF,0x00FFE6,0x00FFCC,0x00FFB3,0x00FF99,0x00FF80,0x00FF66,0x00FF4D,0x00FF33,0x00FF1A, _
                              0x00FF00,0x08FF00,0x11FF00,0x19FF00,0x22FF00,0x2AFF00,0x33FF00,0x3BFF00,0x44FF00,0x4CFF00, _
                              0x55FF00,0x5DFF00,0x66FF00,0x6EFF00,0x77FF00,0x7FFF00,0x88FF00,0x90FF00,0x99FF00,0xA1FF00, _
                              0xAAFF00,0xB2FF00,0xBBFF00,0xC3FF00,0xCCFF00,0xD4FF00,0xDDFF00,0xE5FF00,0xEEFF00,0xF6FF00, _
                              0xFFFF00,0xFFF200,0xFFE500,0xFFD800,0xFFCC00,0xFFBF00,0xFFB200,0xFFA500,0xFF9900,0xFF8C00, _
                              0xFF7F00,0xFF7200,0xFF6600,0xFF5900,0xFF4C00,0xFF3F00,0xFF3300,0xFF2600,0xFF1900,0xFF0C00, _
                              0xFF0000]
; Create the main GUI window
GUICreate("Test color change of icons", 400, 300)
GUISetBkColor(0x252525) ; blackish

; Create a button to change the icon color
Global $idButton = GUICtrlCreateButton("Change Icon Color", 150, 200, 100, 30)

; Create a Pic control to draw the rounded box
Global $Size = 15
Global $hPic = GUICtrlGetHandle ( GUICtrlCreatePic ('', 150, 100, $Size, $Size ) )

; Create an initial icon
_MyWinAPI_UpdateIcon($GradientColor[50]) ; green

; Show the GUI
GUISetState(@SW_SHOW)

; Main loop
While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            ExitLoop

        Case $idButton
            ; Generate a random value between 1 and 100
            Local $RandomValue = Random(1, 100, 1)

            ; Get the new color
            Local $NewColor = $GradientColor[$RandomValue]

            ; Update the existing icon's color
            _MyWinAPI_UpdateIcon($NewColor)
            _WinAPI_RedrawWindow($hPic)
    EndSwitch
WEnd

;==============================================
Func _MyWinAPI_UpdateIcon( $Color )

    Local $cornerRadius = 7

    ; Create a compatible bitmap
    Local $hDev = _WinAPI_GetDC ( $hPic )
    Local $hDC = _WinAPI_CreateCompatibleDC ( $hDev )
    Local $hSource = _WinAPI_CreateCompatibleBitmapEx($hDev, $Size, $Size, _WinAPI_SwitchColor(_WinAPI_GetSysColor($COLOR_3DFACE)))
    Local $hSv = _WinAPI_SelectObject ( $hDC, $hSource )

    ; Create a brush for the background of the box
    Local $hBrush = _WinAPI_CreateSolidBrush ( $Color )
    Local $hOldBrush = _WinAPI_SelectObject ( $hDC, $hBrush )

    ; Create a pen to draw the outline
    Local $hPen = _WinAPI_CreatePen ( $PS_SOLID, 1, $Color )
    Local $hOldPen = _WinAPI_SelectObject ( $hDC, $hPen )

    ; Draw the rounded rectangle
    Local $tRECT = _WinAPI_CreateRect (0, 0, $Size, $Size )
    _WinAPI_RoundRect ( $hDC, $tRECT, $cornerRadius, $cornerRadius )

    ; Add the image to the control
    _SendMessage ( $hPic, $STM_SETIMAGE, 0, $hSource )
    Local $hObj = _SendMessage($hPic, $STM_GETIMAGE)
    If $hObj <> $hSource Then _WinAPI_DeleteObject($hSource)

    ; Reset the old brushes and pens (originals)
    _WinAPI_SelectObject ( $hDC, $hOldBrush )
    _WinAPI_DeleteObject ( $hBrush )
    _WinAPI_SelectObject ( $hDC, $hOldPen )
    _WinAPI_DeleteObject ( $hPen )

    ; Release the resources
    _WinAPI_SelectObject ( $hDC, $hSv ) ; reset original context
    _WinAPI_ReleaseDC ( $hPic, $hDev )
    _WinAPI_DeleteDC ( $hDC )
EndFunc

Btw, isnt something missing here...

; Gradient from pure orange to pure yellow (26-40%)
    ElseIf $Value <= 40 Then
        $Red = 255
        $Green = 255
        $Blue = 0



Edited by Werty

Some guy's script + some other guy's script = my script!

Link to comment
Share on other sites

15 hours ago, pixelsearch said:

Glad you made it, _WinAPI_RedrawWindow added by ioa747 refreshed the control nicely :)

We could combine both functions (create & update) in a single one, as they got plenty of code in common, for example :

[...]

I will carefully read your codes, and get the best benefit of it

Link to comment
Share on other sites

10 hours ago, Werty said:

Maybe just build an array with the gradient values that runs once when the script is started and use it as a lookup table, no need to do the calculations all the time, there is only 101 of them that doesnt change, always the same, better yet, just hardcode them in and get rid of the _GetGradientColor() function, greener and more CO² friendly and sligthly faster.

#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WinAPIGdi.au3>
#include <WinAPISysInternals.au3>
#include <WindowsConstants.au3>

Global $GradientColor[101] = [0x0000FF,0x000AFF,0x0014FF,0x001EFF,0x0028FF,0x0033FF,0x003DFF,0x0047FF,0x0051FF,0x005BFF, _
                              0x0066FF,0x0070FF,0x007AFF,0x0084FF,0x008EFF,0x0099FF,0x00A3FF,0x00ADFF,0x00B7FF,0x00C1FF, _
                              0x00CCFF,0x00D6FF,0x00E0FF,0x00EAFF,0x00F4FF,0x00FFFF,0x00FFFF,0x00FFFF,0x00FFFF,0x00FFFF, _
                              0x00FFFF,0x00FFFF,0x00FFFF,0x00FFFF,0x00FFFF,0x00FFFF,0x00FFFF,0x00FFFF,0x00FFFF,0x00FFFF, _
                              0x00FFFF,0x00FFE6,0x00FFCC,0x00FFB3,0x00FF99,0x00FF80,0x00FF66,0x00FF4D,0x00FF33,0x00FF1A, _
                              0x00FF00,0x08FF00,0x11FF00,0x19FF00,0x22FF00,0x2AFF00,0x33FF00,0x3BFF00,0x44FF00,0x4CFF00, _
                              0x55FF00,0x5DFF00,0x66FF00,0x6EFF00,0x77FF00,0x7FFF00,0x88FF00,0x90FF00,0x99FF00,0xA1FF00, _
                              0xAAFF00,0xB2FF00,0xBBFF00,0xC3FF00,0xCCFF00,0xD4FF00,0xDDFF00,0xE5FF00,0xEEFF00,0xF6FF00, _
                              0xFFFF00,0xFFF200,0xFFE500,0xFFD800,0xFFCC00,0xFFBF00,0xFFB200,0xFFA500,0xFF9900,0xFF8C00, _
                              0xFF7F00,0xFF7200,0xFF6600,0xFF5900,0xFF4C00,0xFF3F00,0xFF3300,0xFF2600,0xFF1900,0xFF0C00, _
                              0xFF0000]
; Create the main GUI window
GUICreate("Test color change of icons", 400, 300)
GUISetBkColor(0x252525) ; blackish

; Create a button to change the icon color
Global $idButton = GUICtrlCreateButton("Change Icon Color", 150, 200, 100, 30)

; Create a Pic control to draw the rounded box
Global $Size = 15
Global $hPic = GUICtrlGetHandle ( GUICtrlCreatePic ('', 150, 100, $Size, $Size ) )

; Create an initial icon
_MyWinAPI_UpdateIcon($GradientColor[50]) ; green

; Show the GUI
GUISetState(@SW_SHOW)

; Main loop
While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            ExitLoop

        Case $idButton
            ; Generate a random value between 1 and 100
            Local $RandomValue = Random(1, 100, 1)

            ; Get the new color
            Local $NewColor = $GradientColor[$RandomValue]

            ; Update the existing icon's color
            _MyWinAPI_UpdateIcon($NewColor)
            _WinAPI_RedrawWindow($hPic)
    EndSwitch
WEnd

;==============================================
Func _MyWinAPI_UpdateIcon( $Color )

    Local $cornerRadius = 7

    ; Create a compatible bitmap
    Local $hDev = _WinAPI_GetDC ( $hPic )
    Local $hDC = _WinAPI_CreateCompatibleDC ( $hDev )
    Local $hSource = _WinAPI_CreateCompatibleBitmapEx($hDev, $Size, $Size, _WinAPI_SwitchColor(_WinAPI_GetSysColor($COLOR_3DFACE)))
    Local $hSv = _WinAPI_SelectObject ( $hDC, $hSource )

    ; Create a brush for the background of the box
    Local $hBrush = _WinAPI_CreateSolidBrush ( $Color )
    Local $hOldBrush = _WinAPI_SelectObject ( $hDC, $hBrush )

    ; Create a pen to draw the outline
    Local $hPen = _WinAPI_CreatePen ( $PS_SOLID, 1, $Color )
    Local $hOldPen = _WinAPI_SelectObject ( $hDC, $hPen )

    ; Draw the rounded rectangle
    Local $tRECT = _WinAPI_CreateRect (0, 0, $Size, $Size )
    _WinAPI_RoundRect ( $hDC, $tRECT, $cornerRadius, $cornerRadius )

    ; Add the image to the control
    _SendMessage ( $hPic, $STM_SETIMAGE, 0, $hSource )
    Local $hObj = _SendMessage($hPic, $STM_GETIMAGE)
    If $hObj <> $hSource Then _WinAPI_DeleteObject($hSource)

    ; Reset the old brushes and pens (originals)
    _WinAPI_SelectObject ( $hDC, $hOldBrush )
    _WinAPI_DeleteObject ( $hBrush )
    _WinAPI_SelectObject ( $hDC, $hOldPen )
    _WinAPI_DeleteObject ( $hPen )

    ; Release the resources
    _WinAPI_SelectObject ( $hDC, $hSv ) ; reset original context
    _WinAPI_ReleaseDC ( $hPic, $hDev )
    _WinAPI_DeleteDC ( $hDC )
EndFunc

Btw, isnt something missing here...

; Gradient from pure orange to pure yellow (26-40%)
    ElseIf $Value <= 40 Then
        $Red = 255
        $Green = 255
        $Blue = 0



Well, you're abslotuley right, most of my code and this part included is not optimised at all.

The purpose is a home run in agil method to see if I can reach my goal fast.

As soon as it will be done, I will start optimisations

I had by the past some issues working wiht very large arrays, it frightened me a bit vs brute force CPU, but for 100 values it's indeed worth it.
I d'ont know exactly if code is wirght, I tweaked it with ChatGPT to offset the colors, this is not a regular color scale. I shrinked the green and the yellow and tried to avoid cyan for some visual perceptions workarounds

Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
 Share

  • Recently Browsing   0 members

    • No registered users viewing this page.
×
×
  • Create New...
