How to read the 'text' value from an input field?

[cag8f]

> in this shot icons 2 and 3 do not exist for me

You're referencing the blue chevron, and the red x icons on the left?  If so, those are 'Continue task' and 'Cancel task' respectively.  I guess they are present because this screenshot is technically part of a ShareX 'After workflow task?'  That is just an educated guess though.

Let me try to explain my question again.

Your code contains AutoIt code to do the following in ShareX:

• Automatically create a rectangle, then change its border size.
• Automatically create an arrow, then change its border size and arrow head direction.

What I would like to do is slightly different:

• Before any AutoIt code is executed, I will manually create either a rectangle or an arrow in ShareX.
• After the shape has been created on-screen, execute AutoIt code to automatically change the border size, regardless of whether a rectange or arrow is selected.  This code should not require any additional user input,

Would you agree that my primary issue is the following:  How will my AutoIt code know exactly where to click to open 'Tool options?'

If so, thoughts?  I guess as a last resort I can choose a pixel that will have COLOR-A if rectangle is selected, and COLOR-B if arrow is selected.  Then my code can read the color of this pixel, which should then tell it where to click in order to open 'Tool options.

[ioa747]

On 6/28/2023 at 5:37 PM, cag8f said:

I guess as a last resort I can choose a pixel that will have COLOR-A if rectangle is selected

line     43-58

expandcollapse popup

#AutoIt3Wrapper_Au3Check_Parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6 -w 7

;~ ShareXMenu("Send", "r") ;Rectangle
MouseClickDrag("left", 100, 100, 300, 300)
ShareXMenu("Set_ToolOptions", "BorderSize=5") ;set BorderSize

;----------------------------------------------------------------------------------------
Func ShareXMenu($sCommand, $sOption)
;~ https://getsharex.com/docs/keybinds#tools
;~ Tools
;~ Keybind  Description
;~ Send, "m"    Select and move
;~ Send, "r"    Rectangle
;~ Send, "e"    Ellipse
;~ Send, "f"    Freehand
;~ Send, "l"    Line
;~ Send, "a"    Arrow
;~ Send, "o"    Text (Outline)
;~ Send, "t"    Text (Background)
;~ Send, "s"    Speech balloon
;~ Send, "i"    Step
;~ Send, "b"    Blur
;~ Send, "p"    Pixelate
;~ Send, "h"    Highlight
;~ Send, "c"    Crop image
;~ Send, "x"    Cut out
;~
;~ Click, 190  Click on 190=Select and move
;~ Set_ToolOptions, "BorderSize=5"  Set BorderSize to 5
;~ Set_ToolOptions, "BorderStyle=DashDot"  Set BorderStyle to DashDot
;~ Set_ToolOptions, "ArrowHeadDirection=Both"  Set Arrow Head Direction to Both

    ;window handle
    Local $hWnd = WinWait("ShareX - Editor menu", "", 3)
    If Not $hWnd Then Exit ConsoleWrite("! exit ShareX Not exist" & @CRLF)
    Local $hWndImageEditor = WinGetHandle("ShareX - Image editor")
    Local $aWinPos = WinGetPos($hWnd)
    Local Const $iSZ = $aWinPos[3] / 2 ; - 16
    Local Static $sActiveTool = "SelectAndMove" ;Select and move
    Local $hWndToolOptions, $ilPos, $aSplt
    WinActivate($hWnd)

    ;Get  tools with PixelSearch
    Local $aArea[] = [1290, 20, 1345, 50] ;SearchArea left,top,right,bottom I guess +70 for you = [1360, 20, 1415, 50]
    Local $SearchColor = 0x7A8CA1 ;Light slate gray 0x7A8CA1 is  the gray from the ToolOptions icon with Nord Dark theme
    Local $aCoord = PixelSearch($aArea[0], $aArea[1], $aArea[2], $aArea[3], $SearchColor, 6)

    If @error Then
        ConsoleWrite("! Error X and Y" & @CRLF)
    Else
        ConsoleWrite("Pixel Found at  X and Y are: " & $aCoord[0] & "," & $aCoord[1] & @CRLF)
        If $aCoord[0] > 1300 Then ; I guess +70 for you = 1370
            $sActiveTool = "Rectangle"
        Else
            $sActiveTool = "Arrow"
        EndIf
    EndIf

    ConsoleWrite("-> $sActiveTool:" & $sActiveTool & @CRLF)

    Switch $sCommand
        Case "Send"
            ;ConsoleWrite("- Send:" & $sOption & @CRLF)
            Switch $sOption
                Case "r"    ;Rectangle
                    $sActiveTool = "Rectangle"
                Case "a"    ;Arrow
                    $sActiveTool = "Arrow"
                Case Else
                    $sActiveTool = "SelectAndMove"
            EndSwitch
            WinActivate($hWndImageEditor)
            Sleep(20)
            Send($sOption)
        Case "Click"
            $sOption = Int($sOption)
            ;ConsoleWrite("- Click:" & $sOption & @CRLF)
            ControlClick($hWnd, "", "WindowsForms10.Window.8.app.0.1a52015_r22_ad11", "left", 1, $sOption, $iSZ)
            ;MouseMove($aWinPos[0] + $sOption, $aWinPos[1] + $iSZ)
        Case "Set_ToolOptions"
            ;ConsoleWrite("- Set_ToolOptions:" & $sOption & @CRLF)
            Switch $sActiveTool
                Case "Rectangle"  ;Rectangle
                    $ilPos = 869  ; * <- give here the Rectangle ToolOptions position
                    ConsoleWrite("- Rectangle $ilPos=" & $ilPos & @CRLF)
                    ;first click Tool Options
                    ControlClick($hWnd, "", "WindowsForms10.Window.8.app.0.1a52015_r22_ad11", "left", 1, $ilPos, $iSZ)
                    $hWndToolOptions = WinWait("[CLASS:WindowsForms10.Window.808.app.0.1a52015_r22_ad1]", "", 3)
                    If Not $hWndToolOptions Then Exit ConsoleWrite("! exit Not $hWndToolOptions" & @CRLF)
                    $aSplt = StringSplit($sOption, "=")
                    If $aSplt[0] <> 2 Then Exit ConsoleWrite("! exit" & @CRLF)
                    Switch $aSplt[1]
                        Case "BorderSize"
                            ControlSetText($hWndToolOptions, "", "WindowsForms10.EDIT.app.0.1a52015_r22_ad11", $aSplt[2] & @CRLF)
                            Sleep(20)
                            ControlSend($hWndToolOptions, "", "WindowsForms10.EDIT.app.0.1a52015_r22_ad11", "{TAB}{ESC}")
                        Case "CornerRadius"
                            ControlSetText($hWndToolOptions, "", "WindowsForms10.EDIT.app.0.1a52015_r22_ad12", $aSplt[2])
                            Sleep(20)
                            ControlSend($hWndToolOptions, "", "WindowsForms10.EDIT.app.0.1a52015_r22_ad12", "{ENTER}")
                        Case "BorderStyle"
                            ControlFocus($hWndToolOptions, "", "WindowsForms10.COMBOBOX.app.0.1a52015_r22_ad11")
                            Switch $aSplt[2]
                                Case "Solid"
                                    Send("s")
                                Case "Dash"
                                    Send("sd")
                                Case "Dot"
                                    Send("sdd")
                                Case "DashDot"
                                    Send("sddd")
                                Case "DashDotDot"
                                    Send("sdddd")
                            EndSwitch
                            Sleep(20)
                            ControlSend($hWndToolOptions, "", "WindowsForms10.COMBOBOX.app.0.1a52015_r22_ad11", "{TAB}{ESC}")
                    EndSwitch
                Case "Arrow"      ;Arrow
                    $ilPos = 843  ; * <- give here the Arrow ToolOptions position
                    ConsoleWrite("- Arrow $ilPos=" & $ilPos & @CRLF)
                    ;first click Tool Options
                    ControlClick($hWnd, "", "WindowsForms10.Window.8.app.0.1a52015_r22_ad11", "left", 1, $ilPos, $iSZ)
                    $hWndToolOptions = WinWait("[CLASS:WindowsForms10.Window.808.app.0.1a52015_r22_ad1]", "", 3)
                    If Not $hWndToolOptions Then Exit ConsoleWrite("! exit Not $hWndToolOptions" & @CRLF)
                    $aSplt = StringSplit($sOption, "=")
                    If $aSplt[0] <> 2 Then Exit ConsoleWrite("! exit  $aSplt[0] <> 2" & @CRLF)
                    Switch $aSplt[1]
                        Case "BorderSize"
                            ControlSetText($hWndToolOptions, "", "WindowsForms10.EDIT.app.0.1a52015_r22_ad11", $aSplt[2] & @CRLF)
                            Sleep(20)
                            ControlSend($hWndToolOptions, "", "WindowsForms10.EDIT.app.0.1a52015_r22_ad11", "{TAB}{ESC}")
                        Case "CornerRadius"
                            ControlSetText($hWndToolOptions, "", "WindowsForms10.EDIT.app.0.1a52015_r22_ad12", $aSplt[2])
                            Sleep(20)
                            ControlSend($hWndToolOptions, "", "WindowsForms10.EDIT.app.0.1a52015_r22_ad12", "{ENTER}")
                        Case "BorderStyle"
                            ControlFocus($hWndToolOptions, "", "WindowsForms10.COMBOBOX.app.0.1a52015_r22_ad11")
                            Switch $aSplt[2]
                                Case "Solid"
                                    Send("s")
                                Case "Dash"
                                    Send("sd")
                                Case "Dot"
                                    Send("sdd")
                                Case "DashDot"
                                    Send("sddd")
                                Case "DashDotDot"
                                    Send("sdddd")
                            EndSwitch
                        Case "ArrowHeadDirection"
                            ControlFocus($hWndToolOptions, "", "WindowsForms10.COMBOBOX.app.0.1a52015_r22_ad12")
                            Switch $aSplt[2]
                                Case "End"
                                    Send("e")
                                Case "Start"
                                    Send("s")
                                Case "Both"
                                    Send("b")
                            EndSwitch
                            Sleep(20)
                            ControlSend($hWndToolOptions, "", "WindowsForms10.COMBOBOX.app.0.1a52015_r22_ad12", "{TAB}{ESC}")
                    EndSwitch
                Case Else
                    Return SetError(1, 1, 0)
            EndSwitch
    EndSwitch
EndFunc   ;==>ShareXMenu
;----------------------------------------------------------------------------------------



Edited June 30, 2023 by ioa747
I changed the color

[cag8f]

OK thanks very much for this!  Looks like it is exactly what I need.  Give me a few days to have a proper read/test.

Edit:  It does the trick (with a few mods).  So thanks for that!

Edited June 30, 2023 by cag8f

[cag8f]

@ioa747 I'm back 🙂  I'm still finalizing what I want, but have run into a new issue.

In short, I have code that does exactly what is desired/expected when I run it from within SciTE (by pressing F5).  But when I move that same code into a new .au3 file, and assign it to run when a keyboard shortcut is pressed, the code seems to skip the last step--i.e. the 'Tool options' dropdown remains open, as if no 'Enter' key press was sent (see screenshot below).

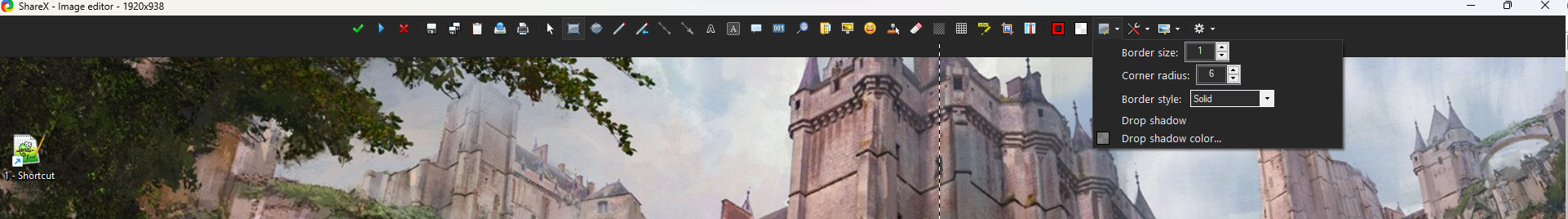

Thoughts?  Here's a screenshot of the still-open 'Tool options.'  After that I've  posted both version of my code.

Naked code.  This is working as desired/expected when I run it via SciTE (with F5)--including the last `ControlSend` command.  Note:  When run, the code opens 'Tool options' and sets a value for 'Border Size.'  The last step in this code is one you added:  to send an "Enter" key press to the 'Border Size' control.

Local $hWnd = WinWait("ShareX - Editor menu", "", 3)
Local $aWinPos = WinGetPos($hWnd)
Local Const $iSZ = $aWinPos[3] / 2 ; - 16
ConsoleWrite(ControlClick($hWnd, "", "WindowsForms10.Window.8.app.0.1a52015_r6_ad11", "left", 1, 1356-416, $iSZ) & @CRLF)
ControlSetText("[CLASS:WindowsForms10.Window.20808.app.0.1a52015_r6_ad1]", "", "WindowsForms10.EDIT.app.0.1a52015_r6_ad11", "1")
Sleep(50)
ControlSend("[CLASS:WindowsForms10.Window.20808.app.0.1a52015_r6_ad1]", "", "WindowsForms10.EDIT.app.0.1a52015_r6_ad11", "{ENTER}")

Keyboard shortcut code. Executing this code, via its keyboard shortcut, leaves the 'Tool options' dropdown open:

Opt("SendKeyDelay", 0) ; 0 removes completely the delay
Opt("SendKeyDownDelay", 0) ; 0 removes completely the delay

Local $kb_sxb = "!^v"; define keyboard shortcut to toggle ShareX border size between 1 and 5. Uses ctrl+alt+v.

HotKeySet($kb_sxb, "send_sxb")

Func send_sxb(); Check value of ShareX border size.  If 5, change to 1.  Otherwise, change to 5.
    HotKeySet($kb_sxb) ; deactivate the hotkey in case the user presses it too long

    ;Begin naked code that I copied from previous .au3 file.
    Local $hWnd = WinWait("ShareX - Editor menu", "", 3)
    Local $aWinPos = WinGetPos($hWnd)
    Local Const $iSZ = $aWinPos[3] / 2 ; - 16
    ConsoleWrite(ControlClick($hWnd, "", "WindowsForms10.Window.8.app.0.1a52015_r6_ad11", "left", 1, 1356-416, $iSZ) & @CRLF)
    ControlSetText("[CLASS:WindowsForms10.Window.20808.app.0.1a52015_r6_ad1]", "", "WindowsForms10.EDIT.app.0.1a52015_r6_ad11", "1")
    Sleep(50)
    ControlSend("[CLASS:WindowsForms10.Window.20808.app.0.1a52015_r6_ad1]", "", "WindowsForms10.EDIT.app.0.1a52015_r6_ad11", "{ENTER}")
    ;End naked code that I copied from previous .au3 file.

    HotKeySet($kb_sxb, "send_sxb"); reactivate it
EndFunc



[ioa747]

yes, I also encountered some problems with the enter (and it also gave me an audio notification as an error - Default Beep)
if you noticed in the last post I replaced it with a tab for updating and an esc for closing

ControlSend($hWndToolOptions, "", "WindowsForms10.EDIT.app.0.1a52015_r22_ad11", "{TAB}{ESC}")



[cag8f]

Ah cool.  OK give me some time to try that out, thanks.

I had also noticed the beeping as well.

[cag8f]

It worked--thanks!

Edited August 22, 2023 by cag8f

[cag8f]

@ioa747 I'm having a problem with control/handle IDs changing on me, requiring me to manually update my code to reflect the new IDs.  How do you handle that?  I posted details here.

[Nine]

As mentioned by @mLipok, you can use regexp to find the control handle based on CLASS (not CLASSNN).  Something like this could work if there is no other control having the same pattern :

Local $hCrlt = ControlGetHandle($hWnd, "", "[REGEXPCLASS:WindowsForms10\.Window\.8\.app\.0\.[a-z0-9]{7}_r6_ad\d*]"

Notice the \d* at the end, since I do not know if you gave a CLASSNN (I supposed so), I made it search for some optional numbers.  You can also combine with other parameters like X/YW/H, INSTANCE, etc (see help file).

Edited August 24, 2023 by Nine
added precision
