Ignore Control in TabOrder

[water]

Using the Tab key in a GUI activates the next Control in the order defined when creating the GUI.

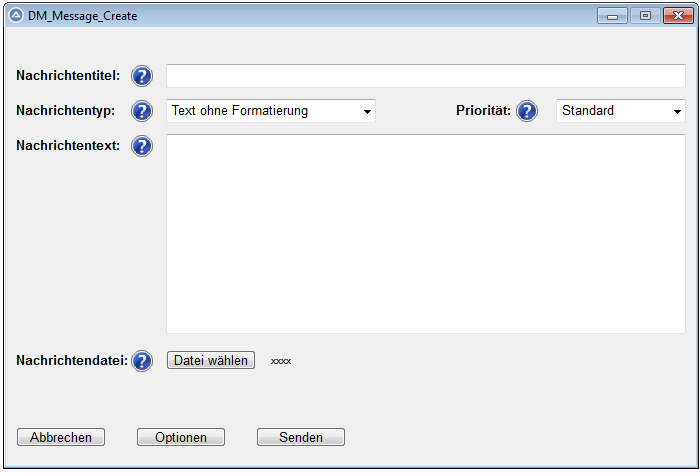

Now I want to ignore a Control (the question mark icon). This icon displays some help text using a ToolTip. When ignored the ToolTip should still be displayed.

When the user wants to jump to the next input Control he has to press Tab twice because the icon Control gets activated (which is not visible to the user) before the input Control gets activated.
Does anyone have a solution for this problem?

[Melba23]

water,

Have you tried removing the $WS_TABSTOP style from the relevant control? It is a default setting when the icon control is created.

M23

Edited March 18, 2023 by Melba23
Speeling!

[pixelsearch]

If it can help, I use it in scripts as Melba23 just indicated, with this code :

Case $idRadio_1
    $iHow_Choose_img = 1 ; a whole folder (no recursion) using FileSelectFolder()
    Remove_Style($WS_TABSTOP, $idRadio_1) ; cf note dans F10() , pareil pour tous les autres boutons radios ci-dessous.

Case $idRadio_2
    $iHow_Choose_img = 2 ; a whole folder + subfolders, using  FileSelectFolder()
    Remove_Style($WS_TABSTOP, $idRadio_2)

Case $idRadio_3
    $iHow_Choose_img = 3 ; pick files individually, using FileOpenDialog()
    Remove_Style($WS_TABSTOP, $idRadio_3)

;====================================================
Func Remove_Style($iStyleToRemove, $id1, $id2 = 0, $id3 = 0, $id4 = 0, $id5 = 0, _
    $id6 = 0, $id7 = 0, $id8 = 0, $id9 = 0, $id10 = 0)

    Local $hControl, $iStyle
    For $i = 1 To @NumParams - 1 ; @NumParams doit être compris entre 2 et 11. Le 1er paramètre sera toujours le style à ôter.
        $hControl = GUICtrlGetHandle(Eval("id" & $i))
        $iStyle = _WinAPI_GetWindowLong($hControl, $GWL_STYLE)
        If BitAND($iStyle, $iStyleToRemove) = $iStyleToRemove Then
            _WinAPI_SetWindowLong($hControl, $GWL_STYLE, BitXOR($iStyle, $iStyleToRemove))
        Endif
    Next

EndFunc ; Remove_Style()

The function can also be called like this (real syntax found in the script) :

Remove_Style($WS_TABSTOP, $idRadio_1, $idRadio_2, $idRadio_3, $idRadio_4, $idRadio_11, _
    $idRadio_12, $idRadio_13, $idToolTip, $idButton_OK, $idButton_Cancel)



Edited March 18, 2023 by pixelsearch

[water]

You guys are absolutely amazing
Thank you both for this solution, it works like a charm!

Unfortunately I can only mark a single post as solution So I marked Melba's post as the solution and pixelsearch's post got a like

Edited March 18, 2023 by water
