send key tab jumps somewhere else

gal9

By gal9,
in AutoIt General Help and Support

 Share
Go to solution Solved by ioa747,

Recommended Posts

ioa747 Universalist

ioa747

Posted
Posted
; #FUNCTION# ;---------------------------------------------------------------------------
; Name...........: _GroupPolicy()
; Description ...: Opens and uses the Group Policy Editor to configure the given settings
; Syntax.........: _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting [, $sOption = ""])
; Parameters ....: $sPolicyPath     - The path of nodes to navigate
;                  $sPolicyItem     - The Item/option to navigate/edit
;                  $iSetting           - 0=Disabled, 1=Enabled, 2=Configured
;                  $sOption         - Options in form "ClassnameNN;SendKey"
;----------------------------------------------------------------------------------------
Func _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting, $sOption = "")

$sOption = "WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f"     it sends 'f' to control  for 'First Time'

This policy setting allows you to require a pin for pairing.
If you set this to 'Never', a pin isn't required for pairing.
If you set this to 'First Time', the pairing ceremony for new
devices will always require a PIN.
If you set this to 'Always', all pairings will require PIN.



it works normally for me, it doesn't ask me anything, when you do it manually, it asks you for something?

https://fileport.io/SEvYva9WBZbf         I couldn't see it

I know that I know nothing

Link to comment
Share on other sites
  • Replies 165
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

Jos
Jos

Was just playing a little and sort-off suggesting to show how things should be done by tidying code when posting an answer.

ioa747
ioa747

you should press enter to open the new window where you can see more details depending on the parameter (value) <image>

ioa747
ioa747

As example how to get with controls #RequireAdmin #AutoIt3Wrapper_UseX64=y #AutoIt3Wrapper_Res_requestedExecutionLevel=requireAdministrator Example() Fun

Posted Images

gal9 Adventurer

gal9

Posted
  • Author
Posted (edited)
1 hour ago, ioa747 said:
; #FUNCTION# ;---------------------------------------------------------------------------
; Name...........: _GroupPolicy()
; Description ...: Opens and uses the Group Policy Editor to configure the given settings
; Syntax.........: _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting [, $sOption = ""])
; Parameters ....: $sPolicyPath     - The path of nodes to navigate
;                  $sPolicyItem     - The Item/option to navigate/edit
;                  $iSetting           - 0=Disabled, 1=Enabled, 2=Configured
;                  $sOption         - Options in form "ClassnameNN;SendKey"
;----------------------------------------------------------------------------------------
Func _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting, $sOption = "")

$sOption = "WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f"     it sends 'f' to control  for 'First Time'

This policy setting allows you to require a pin for pairing.
If you set this to 'Never', a pin isn't required for pairing.
If you set this to 'First Time', the pairing ceremony for new
devices will always require a PIN.
If you set this to 'Always', all pairings will require PIN.



it works normally for me, it doesn't ask me anything, when you do it manually, it asks you for something?

https://fileport.io/SEvYva9WBZbf         I couldn't see it

1. about this $sOption = "WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f"     it sends 'f' to control  for 'First Time'
i see and  I understood that but if you can see this:
https://www.dropbox.com/s/xo1wapciwxswzto/Require pin for pairing.mp4?dl=0
this is the video you see it is open "Require pin for pairing" but i is not do enable it to save it to not configure.
2. you can help after I send to enable or disable so it is closed the popup. It doesn't matter which window opens, if a window opens, close it or click OK
3. about parameter i do compile and send
_GroupPolicy2.exe "\Computer Configuration\Administrative Templates\Windows Components\Connect" "Require pin for pairing" "1" "WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11; f"
it is doesn't work for me. I think it's an array and need do something like that


If $CmdLine[0] = 4 Then
    ; Assign the values from command line to variables
    Global $param1 = $CmdLine[1]
    Global $param2 = $CmdLine[2]
    Global $param3 = $CmdLine[3]
    Global $param4 = $CmdLine[4]

    ; Use the variables in your script
    ; ...
Else
    ; Display an error message or usage instructions
    MsgBox(16, "Error", "Invalid number of command line arguments.")
EndIf

What do you think?
but i see msgbox with parameters but i is But it got stuck
https://www.dropbox.com/s/3fofa21db3emzgi/parmter.mp4?dl=0
after it is open the GPO is close the exe

Edited by gal9
Link to comment
Share on other sites
ioa747 Universalist

ioa747

Posted
Posted (edited)

_GroupPolicy2.au3

#RequireAdmin
#AutoIt3Wrapper_UseX64=y
#include <Constants.au3>
#include <Array.au3>
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <GuiButton.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <MsgBoxConstants.au3>

Opt("TrayIconDebug", 1) ;0=no info, 1=debug line info  ; * <---

;==============================================================
; FUNCTION: _Example
; DESCRIPTION: This function opens the Group Policy Object Editor,
;   navigates to the specified policy setting, and changes its value
;   to the specified setting.
; PARAMETERS:
;   $CmdLine[1] - The path of nodes to navigate.
;   $CmdLine[2] - The name of the policy setting to be changed.
;   $CmdLine[3] - The value of the policy setting to be changed 0=Disabled, 1=Enabled, 2=Configured
;   $CmdLine[4] - Options in form "ClassnameNN;SendKey"
;==============================================================

; "\Computer Configuration\Administrative Templates\Windows Components\Microsoft Edge", "Allow Adobe Flash", 0
; "\Computer Configuration\Administrative Templates\Windows Components\Connect", "Require pin for pairing", 1, "WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f"

If Not $CmdLine[0] Then
    Global $CmdLine[5] = [4, "\Computer Configuration\Administrative Templates\Windows Components\Connect", "Require pin for pairing", 1, "WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f"]
EndIf

Global $iMsgBoxAnswer = "The setting" & @CRLF
$iMsgBoxAnswer &= $CmdLine[1] & @CRLF
$iMsgBoxAnswer &= $CmdLine[2] & @CRLF
$iMsgBoxAnswer &= "will be set to " & $CmdLine[3] & @CRLF

$iMsgBoxAnswer = MsgBox(4097, "This Msgbox will time out in 3 seconds", $iMsgBoxAnswer, 3)

Select
    Case $iMsgBoxAnswer = 1 ;OK
        ;nothing
    Case $iMsgBoxAnswer = 2 ;Cancel
        Exit
EndSelect

ConsoleWrite("$CmdLine[0]=" & $CmdLine[0] & @CRLF)

If $CmdLine[0] = 4 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3], $CmdLine[4])
ElseIf $CmdLine[0] = 3 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3])
Else
    $iMsgBoxAnswer = MsgBox(4096, "incorect number of parameters", $CmdLine[0])
EndIf


Exit

; #FUNCTION# ;---------------------------------------------------------------------------
; Name...........: _GroupPolicy()
; Description ...: Opens and uses the Group Policy Editor to configure the given settings
; Syntax.........: _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting [, $sOption = ""])
; Parameters ....: $sPolicyPath     - The path of nodes to navigate
;                  $sPolicyItem     - The Item/option to navigate/edit
;                  $iSetting           - 0=Disabled, 1=Enabled, 2=Configured
;                  $sOption         - Options in form "ClassnameNN;SendKey"
;----------------------------------------------------------------------------------------
Func _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting, $sOption = "")

    If Not WinExists("Local Group Policy Editor") Then
        Run("c:\Windows\system32\mmc.exe " & "C:\share\open_close_gpedit\gpedit_v1.msc /a")
        WinWait("Local Group Policy Editor", '', 5)
    EndIf

    ;Retrieves the 'Local Group Policy Editor' window handle
    Local $hGPO = WinActivate("Local Group Policy Editor")
    ConsoleWrite("$hGPO=" & $hGPO & @CRLF)

    ;Retrieves the SysTreeView321 control handle
    Local $hTreeView_1 = ControlGetHandle($hGPO, "", "SysTreeView321")

    ;Sets the focus to $hTreeView_1
    ControlFocus($hGPO, "", $hTreeView_1)
    Sleep(50)

    $sPolicyPath = "Local Computer Policy" & $sPolicyPath
    ConsoleWrite("$sPolicyPath=" & $sPolicyPath & @CRLF)
    ConsoleWrite("$sPolicyItem=" & $sPolicyItem & @CRLF)

    Local $aPath = StringSplit($sPolicyPath, "\", 1)
    Local $tmpPath = ""
    ;ConsoleWrite("" & @CRLF)
    For $i = 1 To $aPath[0]
        $tmpPath &= $aPath[$i] & "|"
        ;ConsoleWrite("$tmpPath=" & StringTrimRight($tmpPath, 1) & @CRLF)
        ControlTreeView($hGPO, "", $hTreeView_1, "Expand", StringTrimRight($tmpPath, 1))
        ControlTreeView($hGPO, "", $hTreeView_1, "Select", StringTrimRight($tmpPath, 1))
        Sleep(50)
    Next

    ;at the bottom tabs we go right to the standard tab
    ControlFocus($hGPO, "", "AMCCustomTab1")
    ControlSend($hGPO, "", "AMCCustomTab1", "{RIGHT}")
    Sleep(50)

    ;Retrieves the SysListView321 control handle
    Local $hListView = ControlGetHandle($hGPO, "", "SysListView321")

    ;Sets the focus to SysListView321
    ControlFocus($hGPO, "", $hListView)
    Sleep(50)

    ;find the item
    Local $FindItem = ControlListView($hGPO, "", $hListView, "FindItem", $sPolicyItem)
    Sleep(500)
    ConsoleWrite("$FindItem=" & $FindItem & @CRLF)

    ;If not found then Return Error
    If $FindItem = -1 Then
        ConsoleWrite("not found the entry:'" & $sPolicyItem & "'" & @CRLF)
        Return SetError(1, 0, "")
    EndIf

    ;select the found item
    ControlListView($hGPO, "", $hListView, "Select", $FindItem)
    Sleep(50)

    ;and send enter to open it
    ControlSend($hGPO, '', $hListView, '{ENTER}')

    ;---------------------------------------------------------------

    Local $hGPOedit = WinWait("[CLASS:WindowsForms10.Window.8.app.0.297b065_r69_ad1]", "", 1)
    ConsoleWrite("$hGPOedit=" & $hGPOedit & @CRLF)

    If WinExists($hGPOedit) Then ; normal
        ConsoleWrite("$hGPOedit=normal" & @CRLF)
        ControlFocus($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16")
        Switch $iSetting
            Case 0 ;Disabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "d")
                ConsoleWrite("$iSetting=Disabled" & @CRLF)

            Case 1 ;Enabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "e")
                ConsoleWrite("$iSetting=Enabled" & @CRLF)

                If StringLen($sOption) > 0 Then
                    ConsoleWrite("$sOption=" & $sOption & @CRLF)
                    Local $aOpt = StringSplit($sOption, ";", 1)
                    ControlSend($hGPOedit, "", $aOpt[1], $aOpt[2])
                EndIf

            Case 2 ;Configured
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "c")
                ConsoleWrite("$iSetting=Configured" & @CRLF)

        EndSwitch

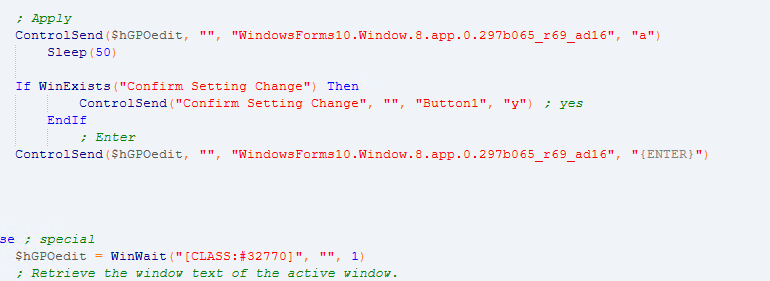

        ; Apply
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "a")

        ; Enter
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "{ENTER}")

    Else ; special
        $hGPOedit = WinWait("[CLASS:#32770]", "", 1)
        ; Retrieve the window text of the active window.
        Local $sText = WinGetText($hGPOedit)
        ConsoleWrite($sText & @CRLF)
        If StringLeft($sText, 22) = "Local Security Setting" Then
            ConsoleWrite("$hGPOedit=special" & @CRLF)
            Switch $iSetting
                Case 0 ;Disabled
                    ControlSend($hGPOedit, "", "Button3", "s")
                    ConsoleWrite("$iSetting=Disabled" & @CRLF)

                Case 1 ;Enabled
                    ControlSend($hGPOedit, "", "Button2", "e")
                    ConsoleWrite("$iSetting=Enabled" & @CRLF)

            EndSwitch
            ControlSend($hGPOedit, "", "SysTabControl321", "{ENTER}")
            Sleep(50)
        EndIf

    EndIf

    ;---------------------------------------------------------------

;~  Exit  ; <-- ****************************************************

    ControlFocus($hGPO, "", $hTreeView_1)
    Sleep(50)
    ControlSend($hGPO, "", $hTreeView_1, "{ALT down}{F4}{ALT up}")

    $hGPO = WinWait("Microsoft Management Console", "", 1)
    ControlSend($hGPO, "", "Static2", "{N}")

    Return $sPolicyItem

EndFunc   ;==>_GroupPolicy
;----------------------------------------------------------------------------------------



Edited by ioa747
I find changes in the class names

I know that I know nothing

Link to comment
Share on other sites
gal9 Adventurer

gal9

Posted
  • Author
Posted (edited)
26 minutes ago, ioa747 said:

_GroupPolicy2.au3

#RequireAdmin
#AutoIt3Wrapper_UseX64=y
#include <Constants.au3>
#include <Array.au3>
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <GuiButton.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <MsgBoxConstants.au3>

Opt("TrayIconDebug", 1) ;0=no info, 1=debug line info  ; * <---

;==============================================================
; FUNCTION: _Example
; DESCRIPTION: This function opens the Group Policy Object Editor,
;   navigates to the specified policy setting, and changes its value
;   to the specified setting.
; PARAMETERS:
;   $CmdLine[1] - The path of nodes to navigate.
;   $CmdLine[2] - The name of the policy setting to be changed.
;   $CmdLine[3] - The value of the policy setting to be changed 0=Disabled, 1=Enabled, 2=Configured
;   $CmdLine[4] - Options in form "ClassnameNN;SendKey"
;==============================================================

; "\Computer Configuration\Administrative Templates\Windows Components\Microsoft Edge", "Allow Adobe Flash", 0
; "\Computer Configuration\Administrative Templates\Windows Components\Connect", "Require pin for pairing", 1, "WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f"

If Not $CmdLine[0] Then
    Global $CmdLine[5] = [4, "\Computer Configuration\Administrative Templates\Windows Components\Connect", "Require pin for pairing", 1, "WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f"]
EndIf

Global $iMsgBoxAnswer = "The setting" & @CRLF
$iMsgBoxAnswer &= $CmdLine[1] & @CRLF
$iMsgBoxAnswer &= $CmdLine[2] & @CRLF
$iMsgBoxAnswer &= "will be set to " & $CmdLine[3] & @CRLF

$iMsgBoxAnswer = MsgBox(4097, "This Msgbox will time out in 3 seconds", $iMsgBoxAnswer, 3)

Select
    Case $iMsgBoxAnswer = 1 ;OK
        ;nothing
    Case $iMsgBoxAnswer = 2 ;Cancel
        Exit
EndSelect

ConsoleWrite("$CmdLine[0]=" & $CmdLine[0] & @CRLF)

If $CmdLine[0] = 4 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3], $CmdLine[4])
ElseIf $CmdLine[0] = 3 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3])
Else
    $iMsgBoxAnswer = MsgBox(4096, "incorect number of parameters", $CmdLine[0])
EndIf


Exit

; #FUNCTION# ;---------------------------------------------------------------------------
; Name...........: _GroupPolicy()
; Description ...: Opens and uses the Group Policy Editor to configure the given settings
; Syntax.........: _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting [, $sOption = ""])
; Parameters ....: $sPolicyPath     - The path of nodes to navigate
;                  $sPolicyItem     - The Item/option to navigate/edit
;                  $iSetting           - 0=Disabled, 1=Enabled, 2=Configured
;                  $sOption         - Options in form "ClassnameNN;SendKey"
;----------------------------------------------------------------------------------------
Func _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting, $sOption = "")

    If Not WinExists("Local Group Policy Editor") Then
        Run("c:\Windows\system32\mmc.exe " & "C:\share\open_close_gpedit\gpedit_v1.msc /a")
        WinWait("Local Group Policy Editor", '', 5)
    EndIf

    ;Retrieves the 'Local Group Policy Editor' window handle
    Local $hGPO = WinActivate("Local Group Policy Editor")
    ConsoleWrite("$hGPO=" & $hGPO & @CRLF)

    ;Retrieves the SysTreeView321 control handle
    Local $hTreeView_1 = ControlGetHandle($hGPO, "", "SysTreeView321")

    ;Sets the focus to $hTreeView_1
    ControlFocus($hGPO, "", $hTreeView_1)
    Sleep(50)

    $sPolicyPath = "Local Computer Policy" & $sPolicyPath
    ConsoleWrite("$sPolicyPath=" & $sPolicyPath & @CRLF)
    ConsoleWrite("$sPolicyItem=" & $sPolicyItem & @CRLF)

    Local $aPath = StringSplit($sPolicyPath, "\", 1)
    Local $tmpPath = ""
    ;ConsoleWrite("" & @CRLF)
    For $i = 1 To $aPath[0]
        $tmpPath &= $aPath[$i] & "|"
        ;ConsoleWrite("$tmpPath=" & StringTrimRight($tmpPath, 1) & @CRLF)
        ControlTreeView($hGPO, "", $hTreeView_1, "Expand", StringTrimRight($tmpPath, 1))
        ControlTreeView($hGPO, "", $hTreeView_1, "Select", StringTrimRight($tmpPath, 1))
        Sleep(50)
    Next

    ;at the bottom tabs we go right to the standard tab
    ControlFocus($hGPO, "", "AMCCustomTab1")
    ControlSend($hGPO, "", "AMCCustomTab1", "{RIGHT}")
    Sleep(50)

    ;Retrieves the SysListView321 control handle
    Local $hListView = ControlGetHandle($hGPO, "", "SysListView321")

    ;Sets the focus to SysListView321
    ControlFocus($hGPO, "", $hListView)
    Sleep(50)

    ;find the item
    Local $FindItem = ControlListView($hGPO, "", $hListView, "FindItem", $sPolicyItem)
    Sleep(500)
    ConsoleWrite("$FindItem=" & $FindItem & @CRLF)

    ;If not found then Return Error
    If $FindItem = -1 Then
        ConsoleWrite("not found the entry:'" & $sPolicyItem & "'" & @CRLF)
        Return SetError(1, 0, "")
    EndIf

    ;select the found item
    ControlListView($hGPO, "", $hListView, "Select", $FindItem)
    Sleep(50)

    ;and send enter to open it
    ControlSend($hGPO, '', $hListView, '{ENTER}')

    ;---------------------------------------------------------------

    Local $hGPOedit = WinWait("[CLASS:WindowsForms10.Window.8.app.0.297b065_r69_ad1]", "", 1)
    ConsoleWrite("$hGPOedit=" & $hGPOedit & @CRLF)

    If WinExists($hGPOedit) Then ; normal
        ConsoleWrite("$hGPOedit=normal" & @CRLF)
        ControlFocus($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16")
        Switch $iSetting
            Case 0 ;Disabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "d")
                ConsoleWrite("$iSetting=Disabled" & @CRLF)

            Case 1 ;Enabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "e")
                ConsoleWrite("$iSetting=Enabled" & @CRLF)

                If StringLen($sOption) > 0 Then
                    ConsoleWrite("$sOption=" & $sOption & @CRLF)
                    Local $aOpt = StringSplit($sOption, ";", 1)
                    ControlSend($hGPOedit, "", $aOpt[1], $aOpt[2])
                EndIf

            Case 2 ;Configured
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "c")
                ConsoleWrite("$iSetting=Configured" & @CRLF)

        EndSwitch

        ; Apply
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "a")

        ; Enter
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "{ENTER}")

    Else ; special
        $hGPOedit = WinWait("[CLASS:#32770]", "", 1)
        ; Retrieve the window text of the active window.
        Local $sText = WinGetText($hGPOedit)
        ConsoleWrite($sText & @CRLF)
        If StringLeft($sText, 22) = "Local Security Setting" Then
            ConsoleWrite("$hGPOedit=special" & @CRLF)
            Switch $iSetting
                Case 0 ;Disabled
                    ControlSend($hGPOedit, "", "Button3", "s")
                    ConsoleWrite("$iSetting=Disabled" & @CRLF)

                Case 1 ;Enabled
                    ControlSend($hGPOedit, "", "Button2", "e")
                    ConsoleWrite("$iSetting=Enabled" & @CRLF)

            EndSwitch
            ControlSend($hGPOedit, "", "SysTabControl321", "{ENTER}")
            Sleep(50)
        EndIf

    EndIf

    ;---------------------------------------------------------------

;~  Exit  ; <-- ****************************************************

    ControlFocus($hGPO, "", $hTreeView_1)
    Sleep(50)
    ControlSend($hGPO, "", $hTreeView_1, "{ALT down}{F4}{ALT up}")

    $hGPO = WinWait("Microsoft Management Console", "", 1)
    ControlSend($hGPO, "", "Static2", "{N}")

    Return $sPolicyItem

EndFunc   ;==>_GroupPolicy
;----------------------------------------------------------------------------------------



i have problem sometimes it is work and sometimes not:
https://www.dropbox.com/s/7hnxqyxivyit2cl/not work.mp4?dl=0
before you edited your comment it is work and It's acting weird maybe need more sleep? or compile 64 or 86?

and about Popup You have a solution?


Edited by gal9
Link to comment
Share on other sites
gal9 Adventurer

gal9

Posted
  • Author
Posted
Just now, ioa747 said:

in the video it looks like

"WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11; f"

pay attention, it doesn't want a space after ;

"WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f"

I think it's a x64 compile issue only this work for me Could this be the solution?

Link to comment
Share on other sites
gal9 Adventurer

gal9

Posted
  • Author
Posted

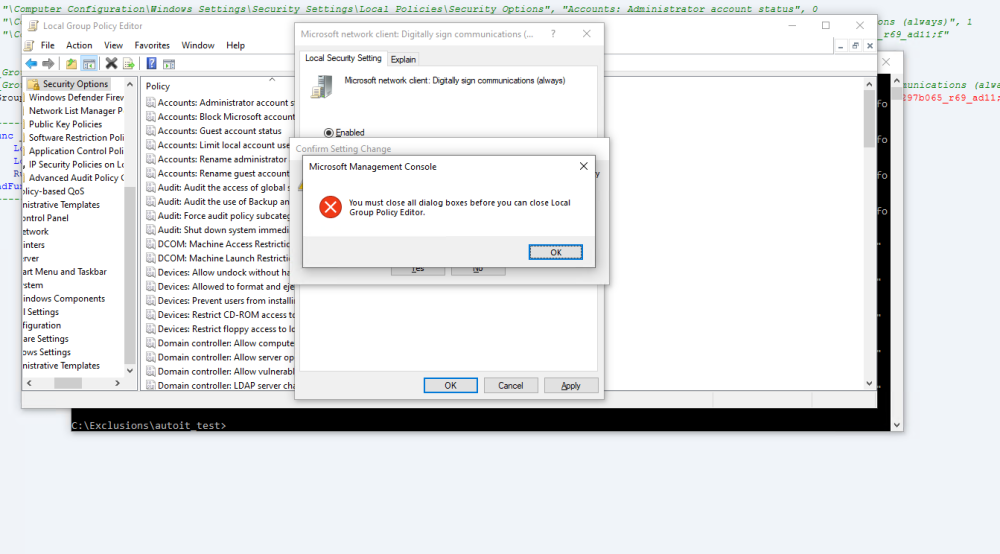

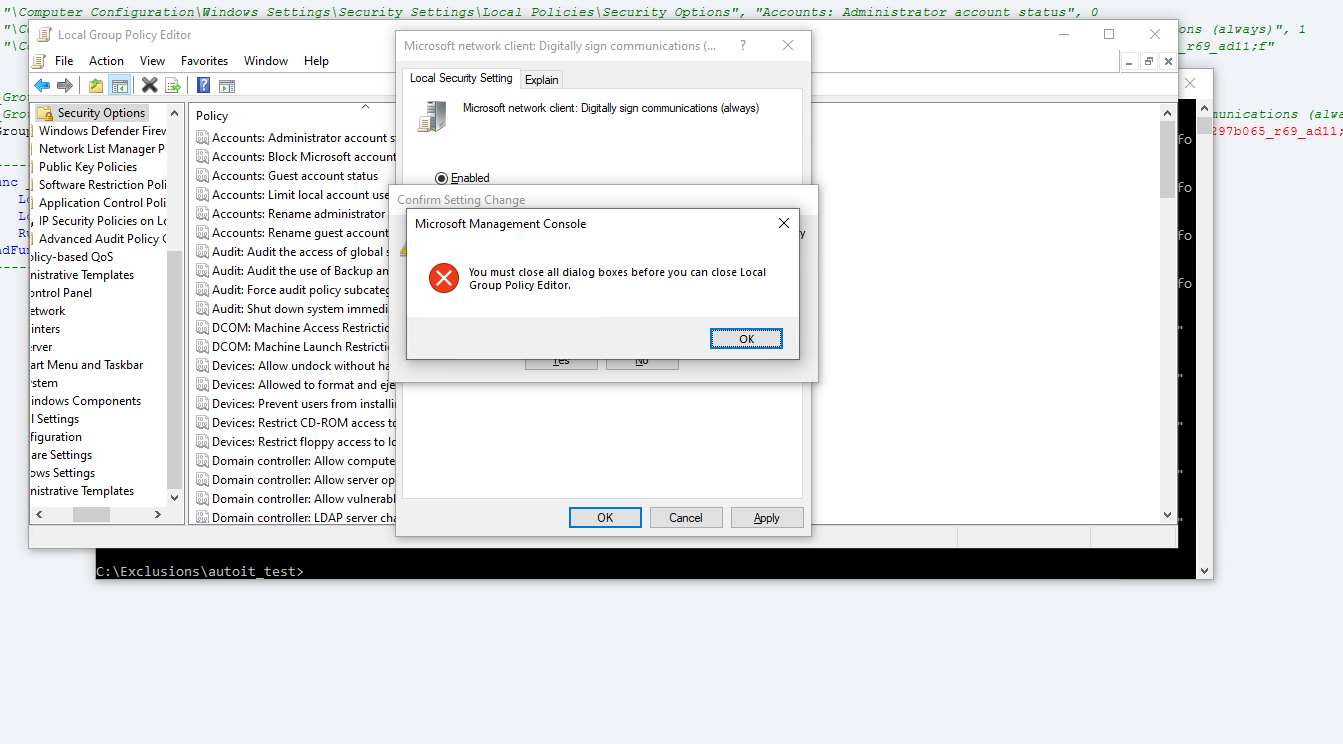

28 minutes ago, ioa747 said:
If WinExists("Confirm Setting Change") Then
    ControlSend("Confirm Setting Change", "", "Button1", "y")             ; yes
EndIf



it is doesn't work  for me maybe i need change the location i put in?? it is close the screen but no  continue
https://www.dropbox.com/s/ef1s1sqloheo0qu/popup.mp4?dl=0
and thanks a loot !

Link to comment
Share on other sites
ioa747 Universalist

ioa747

Posted
Posted

*New Setting
$iSetting           - 0=Disabled, 1=Enabled, 2=Configured, 3=find & exit



_GroupPolicy2.au3

#RequireAdmin
#AutoIt3Wrapper_UseX64=y
#include <Constants.au3>
#include <Array.au3>
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <GuiButton.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <MsgBoxConstants.au3>

Opt("TrayIconDebug", 1) ;0=no info, 1=debug line info  ; * <---

;==============================================================
; FUNCTION: _Example
; DESCRIPTION: This function opens the Group Policy Object Editor,
;   navigates to the specified policy setting, and changes its value
;   to the specified setting.
; PARAMETERS:
;   $CmdLine[1] - The path of nodes to navigate.
;   $CmdLine[2] - The name of the policy setting to be changed.
;   $CmdLine[3] - The value of the policy setting to be changed 0=Disabled, 1=Enabled, 2=Configured
;   $CmdLine[4] - Options in form "ClassnameNN;SendKey"
;==============================================================

; "\Computer Configuration\Administrative Templates\Windows Components\Microsoft Edge", "Allow Adobe Flash", 0
; "\Computer Configuration\Administrative Templates\Windows Components\Connect", "Require pin for pairing", 1, "WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f"
; "\Computer Configuration\Windows Settings\Security Settings\Local Policies\Security Options", "Microsoft network client: Digitally sign communications (always)", 3

If Not $CmdLine[0] Then
    Global $CmdLine[5] = [4, "\Computer Configuration\Windows Settings\Security Settings\Local Policies\Security Options", "Microsoft network client: Digitally sign communications (always)", 3]
EndIf

Global $iMsgBoxAnswer = "The setting" & @CRLF
$iMsgBoxAnswer &= $CmdLine[1] & @CRLF
$iMsgBoxAnswer &= $CmdLine[2] & @CRLF
$iMsgBoxAnswer &= "will be set to " & $CmdLine[3] & @CRLF

$iMsgBoxAnswer = MsgBox(4097, "This Msgbox will time out in 3 seconds", $iMsgBoxAnswer, 3)

Select
    Case $iMsgBoxAnswer = 1 ;OK
        ;nothing
    Case $iMsgBoxAnswer = 2 ;Cancel
        Exit
EndSelect

ConsoleWrite("$CmdLine[0]=" & $CmdLine[0] & @CRLF)

If $CmdLine[0] = 4 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3], $CmdLine[4])
ElseIf $CmdLine[0] = 3 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3])
Else
    $iMsgBoxAnswer = MsgBox(4096, "incorect number of parameters", $CmdLine[0])
EndIf


Exit

; #FUNCTION# ;---------------------------------------------------------------------------
; Name...........: _GroupPolicy()
; Description ...: Opens and uses the Group Policy Editor to configure the given settings
; Syntax.........: _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting [, $sOption = ""])
; Parameters ....: $sPolicyPath     - The path of nodes to navigate
;                  $sPolicyItem     - The Item/option to navigate/edit
;                  $iSetting           - 0=Disabled, 1=Enabled, 2=Configured, 3=find & exit
;                  $sOption         - Options in form "ClassnameNN;SendKey"
;----------------------------------------------------------------------------------------
Func _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting, $sOption = "")

    If Not WinExists("Local Group Policy Editor") Then
        Run("c:\Windows\system32\mmc.exe " & "C:\share\open_close_gpedit\gpedit_v1.msc /a")
        WinWait("Local Group Policy Editor", '', 5)
    EndIf

    ;Retrieves the 'Local Group Policy Editor' window handle
    Local $hGPO = WinActivate("Local Group Policy Editor")
    ConsoleWrite("$hGPO=" & $hGPO & @CRLF)

    ;Retrieves the SysTreeView321 control handle
    Local $hTreeView_1 = ControlGetHandle($hGPO, "", "SysTreeView321")

    ;Sets the focus to $hTreeView_1
    ControlFocus($hGPO, "", $hTreeView_1)
    Sleep(50)

    $sPolicyPath = "Local Computer Policy" & $sPolicyPath
    ConsoleWrite("$sPolicyPath=" & $sPolicyPath & @CRLF)
    ConsoleWrite("$sPolicyItem=" & $sPolicyItem & @CRLF)

    Local $aPath = StringSplit($sPolicyPath, "\", 1)
    Local $tmpPath = ""
    ;ConsoleWrite("" & @CRLF)
    For $i = 1 To $aPath[0]
        $tmpPath &= $aPath[$i] & "|"
        ;ConsoleWrite("$tmpPath=" & StringTrimRight($tmpPath, 1) & @CRLF)
        ControlTreeView($hGPO, "", $hTreeView_1, "Expand", StringTrimRight($tmpPath, 1))
        ControlTreeView($hGPO, "", $hTreeView_1, "Select", StringTrimRight($tmpPath, 1))
        Sleep(50)
    Next

    ;at the bottom tabs we go right to the standard tab
    ControlFocus($hGPO, "", "AMCCustomTab1")
    ControlSend($hGPO, "", "AMCCustomTab1", "{RIGHT}")
    Sleep(50)

    ;Retrieves the SysListView321 control handle
    Local $hListView = ControlGetHandle($hGPO, "", "SysListView321")

    ;Sets the focus to SysListView321
    ControlFocus($hGPO, "", $hListView)
    Sleep(50)

    ;find the item
    Local $FindItem = ControlListView($hGPO, "", $hListView, "FindItem", $sPolicyItem)
    Sleep(500)
    ConsoleWrite("$FindItem=" & $FindItem & @CRLF)

    ;If not found then Return Error
    If $FindItem = -1 Then
        ConsoleWrite("not found the entry:'" & $sPolicyItem & "'" & @CRLF)
        Return SetError(1, 0, "")
    EndIf

    ;select the found item
    ControlListView($hGPO, "", $hListView, "Select", $FindItem)
    Sleep(50)

    ;and send enter to open it
    ControlSend($hGPO, '', $hListView, '{ENTER}')

    ;---------------------------------------------------------------

    Local $hGPOedit = WinWait("[CLASS:WindowsForms10.Window.8.app.0.297b065_r69_ad1]", "", 1)
    ConsoleWrite("$hGPOedit=" & $hGPOedit & @CRLF)

    If WinExists($hGPOedit) Then ; normal
        ConsoleWrite("$hGPOedit=normal" & @CRLF)
        ControlFocus($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16")
        Switch $iSetting
            Case 0 ;Disabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "d")
                ConsoleWrite("$iSetting=Disabled" & @CRLF)

            Case 1 ;Enabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "e")
                ConsoleWrite("$iSetting=Enabled" & @CRLF)

                If StringLen($sOption) > 0 Then
                    ConsoleWrite("$sOption=" & $sOption & @CRLF)
                    Local $aOpt = StringSplit($sOption, ";", 1)
                    ControlSend($hGPOedit, "", $aOpt[1], $aOpt[2])
                EndIf

            Case 2 ;Configured
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "c")
                ConsoleWrite("$iSetting=Configured" & @CRLF)

            Case 3 ;find & exit
                ;ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "c")
                ConsoleWrite("$iSetting=find & exit" & @CRLF)
                Exit

        EndSwitch

        ; Apply
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "a")

        ; Enter
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "{ENTER}")

    Else ; special
        $hGPOedit = WinWait("[CLASS:#32770]", "", 1)
        ; Retrieve the window text of the active window.
        Local $sText = WinGetText($hGPOedit)
        ConsoleWrite($sText & @CRLF)
        If StringLeft($sText, 22) = "Local Security Setting" Then
            ConsoleWrite("$hGPOedit=special" & @CRLF)
            Switch $iSetting
                Case 0 ;Disabled
                    ControlSend($hGPOedit, "", "Button3", "s")
                    ConsoleWrite("$iSetting=Disabled" & @CRLF)

                Case 1 ;Enabled
                    ControlSend($hGPOedit, "", "Button2", "e")
                    ConsoleWrite("$iSetting=Enabled" & @CRLF)

                Case 3 ;find & exit
                    ConsoleWrite("$iSetting=find & exit" & @CRLF)
                    Exit

            EndSwitch
            ControlSend($hGPOedit, "", "SysTabControl321", "{ENTER}")
            Sleep(50)

            If WinExists("Confirm Setting Change") Then
                ControlSend("Confirm Setting Change", "", "Button1", "y") ; yes
            EndIf

        EndIf

    EndIf

    ;---------------------------------------------------------------

;~  Exit  ; <-- ****************************************************

    ControlFocus($hGPO, "", $hTreeView_1)
    Sleep(50)
    ControlSend($hGPO, "", $hTreeView_1, "{ALT down}{F4}{ALT up}")

    $hGPO = WinWait("Microsoft Management Console", "", 1)
    ControlSend($hGPO, "", "Static2", "{N}")

    Return $sPolicyItem

EndFunc   ;==>_GroupPolicy
;----------------------------------------------------------------------------------------



I know that I know nothing

Link to comment
Share on other sites
gal9 Adventurer

gal9

Posted
  • Author
Posted (edited)
1 hour ago, ioa747 said:

*New Setting
$iSetting           - 0=Disabled, 1=Enabled, 2=Configured, 3=find & exit



_GroupPolicy2.au3

#RequireAdmin
#AutoIt3Wrapper_UseX64=y
#include <Constants.au3>
#include <Array.au3>
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <GuiButton.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <MsgBoxConstants.au3>

Opt("TrayIconDebug", 1) ;0=no info, 1=debug line info  ; * <---

;==============================================================
; FUNCTION: _Example
; DESCRIPTION: This function opens the Group Policy Object Editor,
;   navigates to the specified policy setting, and changes its value
;   to the specified setting.
; PARAMETERS:
;   $CmdLine[1] - The path of nodes to navigate.
;   $CmdLine[2] - The name of the policy setting to be changed.
;   $CmdLine[3] - The value of the policy setting to be changed 0=Disabled, 1=Enabled, 2=Configured
;   $CmdLine[4] - Options in form "ClassnameNN;SendKey"
;==============================================================

; "\Computer Configuration\Administrative Templates\Windows Components\Microsoft Edge", "Allow Adobe Flash", 0
; "\Computer Configuration\Administrative Templates\Windows Components\Connect", "Require pin for pairing", 1, "WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f"
; "\Computer Configuration\Windows Settings\Security Settings\Local Policies\Security Options", "Microsoft network client: Digitally sign communications (always)", 3

If Not $CmdLine[0] Then
    Global $CmdLine[5] = [4, "\Computer Configuration\Windows Settings\Security Settings\Local Policies\Security Options", "Microsoft network client: Digitally sign communications (always)", 3]
EndIf

Global $iMsgBoxAnswer = "The setting" & @CRLF
$iMsgBoxAnswer &= $CmdLine[1] & @CRLF
$iMsgBoxAnswer &= $CmdLine[2] & @CRLF
$iMsgBoxAnswer &= "will be set to " & $CmdLine[3] & @CRLF

$iMsgBoxAnswer = MsgBox(4097, "This Msgbox will time out in 3 seconds", $iMsgBoxAnswer, 3)

Select
    Case $iMsgBoxAnswer = 1 ;OK
        ;nothing
    Case $iMsgBoxAnswer = 2 ;Cancel
        Exit
EndSelect

ConsoleWrite("$CmdLine[0]=" & $CmdLine[0] & @CRLF)

If $CmdLine[0] = 4 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3], $CmdLine[4])
ElseIf $CmdLine[0] = 3 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3])
Else
    $iMsgBoxAnswer = MsgBox(4096, "incorect number of parameters", $CmdLine[0])
EndIf


Exit

; #FUNCTION# ;---------------------------------------------------------------------------
; Name...........: _GroupPolicy()
; Description ...: Opens and uses the Group Policy Editor to configure the given settings
; Syntax.........: _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting [, $sOption = ""])
; Parameters ....: $sPolicyPath     - The path of nodes to navigate
;                  $sPolicyItem     - The Item/option to navigate/edit
;                  $iSetting           - 0=Disabled, 1=Enabled, 2=Configured, 3=find & exit
;                  $sOption         - Options in form "ClassnameNN;SendKey"
;----------------------------------------------------------------------------------------
Func _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting, $sOption = "")

    If Not WinExists("Local Group Policy Editor") Then
        Run("c:\Windows\system32\mmc.exe " & "C:\share\open_close_gpedit\gpedit_v1.msc /a")
        WinWait("Local Group Policy Editor", '', 5)
    EndIf

    ;Retrieves the 'Local Group Policy Editor' window handle
    Local $hGPO = WinActivate("Local Group Policy Editor")
    ConsoleWrite("$hGPO=" & $hGPO & @CRLF)

    ;Retrieves the SysTreeView321 control handle
    Local $hTreeView_1 = ControlGetHandle($hGPO, "", "SysTreeView321")

    ;Sets the focus to $hTreeView_1
    ControlFocus($hGPO, "", $hTreeView_1)
    Sleep(50)

    $sPolicyPath = "Local Computer Policy" & $sPolicyPath
    ConsoleWrite("$sPolicyPath=" & $sPolicyPath & @CRLF)
    ConsoleWrite("$sPolicyItem=" & $sPolicyItem & @CRLF)

    Local $aPath = StringSplit($sPolicyPath, "\", 1)
    Local $tmpPath = ""
    ;ConsoleWrite("" & @CRLF)
    For $i = 1 To $aPath[0]
        $tmpPath &= $aPath[$i] & "|"
        ;ConsoleWrite("$tmpPath=" & StringTrimRight($tmpPath, 1) & @CRLF)
        ControlTreeView($hGPO, "", $hTreeView_1, "Expand", StringTrimRight($tmpPath, 1))
        ControlTreeView($hGPO, "", $hTreeView_1, "Select", StringTrimRight($tmpPath, 1))
        Sleep(50)
    Next

    ;at the bottom tabs we go right to the standard tab
    ControlFocus($hGPO, "", "AMCCustomTab1")
    ControlSend($hGPO, "", "AMCCustomTab1", "{RIGHT}")
    Sleep(50)

    ;Retrieves the SysListView321 control handle
    Local $hListView = ControlGetHandle($hGPO, "", "SysListView321")

    ;Sets the focus to SysListView321
    ControlFocus($hGPO, "", $hListView)
    Sleep(50)

    ;find the item
    Local $FindItem = ControlListView($hGPO, "", $hListView, "FindItem", $sPolicyItem)
    Sleep(500)
    ConsoleWrite("$FindItem=" & $FindItem & @CRLF)

    ;If not found then Return Error
    If $FindItem = -1 Then
        ConsoleWrite("not found the entry:'" & $sPolicyItem & "'" & @CRLF)
        Return SetError(1, 0, "")
    EndIf

    ;select the found item
    ControlListView($hGPO, "", $hListView, "Select", $FindItem)
    Sleep(50)

    ;and send enter to open it
    ControlSend($hGPO, '', $hListView, '{ENTER}')

    ;---------------------------------------------------------------

    Local $hGPOedit = WinWait("[CLASS:WindowsForms10.Window.8.app.0.297b065_r69_ad1]", "", 1)
    ConsoleWrite("$hGPOedit=" & $hGPOedit & @CRLF)

    If WinExists($hGPOedit) Then ; normal
        ConsoleWrite("$hGPOedit=normal" & @CRLF)
        ControlFocus($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16")
        Switch $iSetting
            Case 0 ;Disabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "d")
                ConsoleWrite("$iSetting=Disabled" & @CRLF)

            Case 1 ;Enabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "e")
                ConsoleWrite("$iSetting=Enabled" & @CRLF)

                If StringLen($sOption) > 0 Then
                    ConsoleWrite("$sOption=" & $sOption & @CRLF)
                    Local $aOpt = StringSplit($sOption, ";", 1)
                    ControlSend($hGPOedit, "", $aOpt[1], $aOpt[2])
                EndIf

            Case 2 ;Configured
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "c")
                ConsoleWrite("$iSetting=Configured" & @CRLF)

            Case 3 ;find & exit
                ;ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "c")
                ConsoleWrite("$iSetting=find & exit" & @CRLF)
                Exit

        EndSwitch

        ; Apply
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "a")

        ; Enter
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "{ENTER}")

    Else ; special
        $hGPOedit = WinWait("[CLASS:#32770]", "", 1)
        ; Retrieve the window text of the active window.
        Local $sText = WinGetText($hGPOedit)
        ConsoleWrite($sText & @CRLF)
        If StringLeft($sText, 22) = "Local Security Setting" Then
            ConsoleWrite("$hGPOedit=special" & @CRLF)
            Switch $iSetting
                Case 0 ;Disabled
                    ControlSend($hGPOedit, "", "Button3", "s")
                    ConsoleWrite("$iSetting=Disabled" & @CRLF)

                Case 1 ;Enabled
                    ControlSend($hGPOedit, "", "Button2", "e")
                    ConsoleWrite("$iSetting=Enabled" & @CRLF)

                Case 3 ;find & exit
                    ConsoleWrite("$iSetting=find & exit" & @CRLF)
                    Exit

            EndSwitch
            ControlSend($hGPOedit, "", "SysTabControl321", "{ENTER}")
            Sleep(50)

            If WinExists("Confirm Setting Change") Then
                ControlSend("Confirm Setting Change", "", "Button1", "y") ; yes
            EndIf

        EndIf

    EndIf

    ;---------------------------------------------------------------

;~  Exit  ; <-- ****************************************************

    ControlFocus($hGPO, "", $hTreeView_1)
    Sleep(50)
    ControlSend($hGPO, "", $hTreeView_1, "{ALT down}{F4}{ALT up}")

    $hGPO = WinWait("Microsoft Management Console", "", 1)
    ControlSend($hGPO, "", "Static2", "{N}")

    Return $sPolicyItem

EndFunc   ;==>_GroupPolicy
;----------------------------------------------------------------------------------------



1. what is new ? find & exit only for find?
i run this line

_GroupPolicy2.exe "\Computer Configuration\Windows Settings\Security Settings\Local Policies\Security Options" "Microsoft network client: Digitally sign communications (always)" "1"

Only it doesn't close my gpo😆

edit:

ok i add sleep and it is work...

2. and i want to use headless so i see you use
    Local $hGPO = WinActivate("Local Group Policy Editor")
so I replaced it with the line
    Local $hGPO = WinWait("Local Group Policy Editor")
Do you know another place in the code that can hurt me in headless?
the script not run in headless

Edited by gal9
Link to comment
Share on other sites
ioa747 Universalist

ioa747

Posted
Posted
17 hours ago, gal9 said:

1. what is new ? find & exit i run this line

_GroupPolicy2.exe "\Computer Configuration\Windows Settings\Security Settings\Local Policies\Security Options" "Microsoft network client: Digitally sign communications (always)" "1"

$iSetting           - 0=Disabled, 1=Enabled, 2=Configured, 3=find & exit

_GroupPolicy2.exe "\Computer Configuration\Windows Settings\Security Settings\Local Policies\Security Options" "Microsoft network client: Digitally sign communications (always)" "3"

 as the name says find & exit
in development state as help tool, if want to check if everything is fine, or if you want catch a control with info tool ;)

I know that I know nothing

Link to comment
Share on other sites
gal9 Adventurer

gal9

Posted
  • Author
Posted
18 hours ago, ioa747 said:

*New Setting
$iSetting           - 0=Disabled, 1=Enabled, 2=Configured, 3=find & exit



_GroupPolicy2.au3

#RequireAdmin
#AutoIt3Wrapper_UseX64=y
#include <Constants.au3>
#include <Array.au3>
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <GuiButton.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <MsgBoxConstants.au3>

Opt("TrayIconDebug", 1) ;0=no info, 1=debug line info  ; * <---

;==============================================================
; FUNCTION: _Example
; DESCRIPTION: This function opens the Group Policy Object Editor,
;   navigates to the specified policy setting, and changes its value
;   to the specified setting.
; PARAMETERS:
;   $CmdLine[1] - The path of nodes to navigate.
;   $CmdLine[2] - The name of the policy setting to be changed.
;   $CmdLine[3] - The value of the policy setting to be changed 0=Disabled, 1=Enabled, 2=Configured
;   $CmdLine[4] - Options in form "ClassnameNN;SendKey"
;==============================================================

; "\Computer Configuration\Administrative Templates\Windows Components\Microsoft Edge", "Allow Adobe Flash", 0
; "\Computer Configuration\Administrative Templates\Windows Components\Connect", "Require pin for pairing", 1, "WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f"
; "\Computer Configuration\Windows Settings\Security Settings\Local Policies\Security Options", "Microsoft network client: Digitally sign communications (always)", 3

If Not $CmdLine[0] Then
    Global $CmdLine[5] = [4, "\Computer Configuration\Windows Settings\Security Settings\Local Policies\Security Options", "Microsoft network client: Digitally sign communications (always)", 3]
EndIf

Global $iMsgBoxAnswer = "The setting" & @CRLF
$iMsgBoxAnswer &= $CmdLine[1] & @CRLF
$iMsgBoxAnswer &= $CmdLine[2] & @CRLF
$iMsgBoxAnswer &= "will be set to " & $CmdLine[3] & @CRLF

$iMsgBoxAnswer = MsgBox(4097, "This Msgbox will time out in 3 seconds", $iMsgBoxAnswer, 3)

Select
    Case $iMsgBoxAnswer = 1 ;OK
        ;nothing
    Case $iMsgBoxAnswer = 2 ;Cancel
        Exit
EndSelect

ConsoleWrite("$CmdLine[0]=" & $CmdLine[0] & @CRLF)

If $CmdLine[0] = 4 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3], $CmdLine[4])
ElseIf $CmdLine[0] = 3 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3])
Else
    $iMsgBoxAnswer = MsgBox(4096, "incorect number of parameters", $CmdLine[0])
EndIf


Exit

; #FUNCTION# ;---------------------------------------------------------------------------
; Name...........: _GroupPolicy()
; Description ...: Opens and uses the Group Policy Editor to configure the given settings
; Syntax.........: _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting [, $sOption = ""])
; Parameters ....: $sPolicyPath     - The path of nodes to navigate
;                  $sPolicyItem     - The Item/option to navigate/edit
;                  $iSetting           - 0=Disabled, 1=Enabled, 2=Configured, 3=find & exit
;                  $sOption         - Options in form "ClassnameNN;SendKey"
;----------------------------------------------------------------------------------------
Func _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting, $sOption = "")

    If Not WinExists("Local Group Policy Editor") Then
        Run("c:\Windows\system32\mmc.exe " & "C:\share\open_close_gpedit\gpedit_v1.msc /a")
        WinWait("Local Group Policy Editor", '', 5)
    EndIf

    ;Retrieves the 'Local Group Policy Editor' window handle
    Local $hGPO = WinActivate("Local Group Policy Editor")
    ConsoleWrite("$hGPO=" & $hGPO & @CRLF)

    ;Retrieves the SysTreeView321 control handle
    Local $hTreeView_1 = ControlGetHandle($hGPO, "", "SysTreeView321")

    ;Sets the focus to $hTreeView_1
    ControlFocus($hGPO, "", $hTreeView_1)
    Sleep(50)

    $sPolicyPath = "Local Computer Policy" & $sPolicyPath
    ConsoleWrite("$sPolicyPath=" & $sPolicyPath & @CRLF)
    ConsoleWrite("$sPolicyItem=" & $sPolicyItem & @CRLF)

    Local $aPath = StringSplit($sPolicyPath, "\", 1)
    Local $tmpPath = ""
    ;ConsoleWrite("" & @CRLF)
    For $i = 1 To $aPath[0]
        $tmpPath &= $aPath[$i] & "|"
        ;ConsoleWrite("$tmpPath=" & StringTrimRight($tmpPath, 1) & @CRLF)
        ControlTreeView($hGPO, "", $hTreeView_1, "Expand", StringTrimRight($tmpPath, 1))
        ControlTreeView($hGPO, "", $hTreeView_1, "Select", StringTrimRight($tmpPath, 1))
        Sleep(50)
    Next

    ;at the bottom tabs we go right to the standard tab
    ControlFocus($hGPO, "", "AMCCustomTab1")
    ControlSend($hGPO, "", "AMCCustomTab1", "{RIGHT}")
    Sleep(50)

    ;Retrieves the SysListView321 control handle
    Local $hListView = ControlGetHandle($hGPO, "", "SysListView321")

    ;Sets the focus to SysListView321
    ControlFocus($hGPO, "", $hListView)
    Sleep(50)

    ;find the item
    Local $FindItem = ControlListView($hGPO, "", $hListView, "FindItem", $sPolicyItem)
    Sleep(500)
    ConsoleWrite("$FindItem=" & $FindItem & @CRLF)

    ;If not found then Return Error
    If $FindItem = -1 Then
        ConsoleWrite("not found the entry:'" & $sPolicyItem & "'" & @CRLF)
        Return SetError(1, 0, "")
    EndIf

    ;select the found item
    ControlListView($hGPO, "", $hListView, "Select", $FindItem)
    Sleep(50)

    ;and send enter to open it
    ControlSend($hGPO, '', $hListView, '{ENTER}')

    ;---------------------------------------------------------------

    Local $hGPOedit = WinWait("[CLASS:WindowsForms10.Window.8.app.0.297b065_r69_ad1]", "", 1)
    ConsoleWrite("$hGPOedit=" & $hGPOedit & @CRLF)

    If WinExists($hGPOedit) Then ; normal
        ConsoleWrite("$hGPOedit=normal" & @CRLF)
        ControlFocus($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16")
        Switch $iSetting
            Case 0 ;Disabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "d")
                ConsoleWrite("$iSetting=Disabled" & @CRLF)

            Case 1 ;Enabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "e")
                ConsoleWrite("$iSetting=Enabled" & @CRLF)

                If StringLen($sOption) > 0 Then
                    ConsoleWrite("$sOption=" & $sOption & @CRLF)
                    Local $aOpt = StringSplit($sOption, ";", 1)
                    ControlSend($hGPOedit, "", $aOpt[1], $aOpt[2])
                EndIf

            Case 2 ;Configured
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "c")
                ConsoleWrite("$iSetting=Configured" & @CRLF)

            Case 3 ;find & exit
                ;ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "c")
                ConsoleWrite("$iSetting=find & exit" & @CRLF)
                Exit

        EndSwitch

        ; Apply
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "a")

        ; Enter
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "{ENTER}")

    Else ; special
        $hGPOedit = WinWait("[CLASS:#32770]", "", 1)
        ; Retrieve the window text of the active window.
        Local $sText = WinGetText($hGPOedit)
        ConsoleWrite($sText & @CRLF)
        If StringLeft($sText, 22) = "Local Security Setting" Then
            ConsoleWrite("$hGPOedit=special" & @CRLF)
            Switch $iSetting
                Case 0 ;Disabled
                    ControlSend($hGPOedit, "", "Button3", "s")
                    ConsoleWrite("$iSetting=Disabled" & @CRLF)

                Case 1 ;Enabled
                    ControlSend($hGPOedit, "", "Button2", "e")
                    ConsoleWrite("$iSetting=Enabled" & @CRLF)

                Case 3 ;find & exit
                    ConsoleWrite("$iSetting=find & exit" & @CRLF)
                    Exit

            EndSwitch
            ControlSend($hGPOedit, "", "SysTabControl321", "{ENTER}")
            Sleep(50)

            If WinExists("Confirm Setting Change") Then
                ControlSend("Confirm Setting Change", "", "Button1", "y") ; yes
            EndIf

        EndIf

    EndIf

    ;---------------------------------------------------------------

;~  Exit  ; <-- ****************************************************

    ControlFocus($hGPO, "", $hTreeView_1)
    Sleep(50)
    ControlSend($hGPO, "", $hTreeView_1, "{ALT down}{F4}{ALT up}")

    $hGPO = WinWait("Microsoft Management Console", "", 1)
    ControlSend($hGPO, "", "Static2", "{N}")

    Return $sPolicyItem

EndFunc   ;==>_GroupPolicy
;----------------------------------------------------------------------------------------



Trying to convert the code and replace ControlFocus with SetFocus for headless mode failed. Without success, I would appreciate the help

#RequireAdmin
#AutoIt3Wrapper_UseX64=y
#include <Constants.au3>
#include <Array.au3>
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <GuiButton.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <MsgBoxConstants.au3>

Opt("TrayIconDebug", 1) ;0=no info, 1=debug line info  ; * <---

;==============================================================
; FUNCTION: _Example
; DESCRIPTION: This function opens the Group Policy Object Editor,
;   navigates to the specified policy setting, and changes its value
;   to the specified setting.
; PARAMETERS:
;   $CmdLine[1] - The path of nodes to navigate.
;   $CmdLine[2] - The name of the policy setting to be changed.
;   $CmdLine[3] - The value of the policy setting to be changed 0=Disabled, 1=Enabled, 2=Configured
;   $CmdLine[4] - Options in form "ClassnameNN;SendKey"
;==============================================================

; "\Computer Configuration\Administrative Templates\Windows Components\Microsoft Edge", "Allow Adobe Flash", 0
; "\Computer Configuration\Administrative Templates\Windows Components\Connect", "Require pin for pairing", 1, "WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f"
; "\Computer Configuration\Windows Settings\Security Settings\Local Policies\Security Options", "Microsoft network client: Digitally sign communications (always)", 3

If Not $CmdLine[0] Then
    Global $CmdLine[5] = [4, "\Computer Configuration\Windows Settings\Security Settings\Local Policies\Security Options", "Microsoft network client: Digitally sign communications (always)", 3]
EndIf

Global $iMsgBoxAnswer = "The setting" & @CRLF
$iMsgBoxAnswer &= $CmdLine[1] & @CRLF
$iMsgBoxAnswer &= $CmdLine[2] & @CRLF
$iMsgBoxAnswer &= "will be set to " & $CmdLine[3] & @CRLF

$iMsgBoxAnswer = MsgBox(4097, "This Msgbox will time out in 3 seconds", $iMsgBoxAnswer, 3)

Select
    Case $iMsgBoxAnswer = 1 ;OK
        ;nothing
    Case $iMsgBoxAnswer = 2 ;Cancel
        Exit
EndSelect

ConsoleWrite("$CmdLine[0]=" & $CmdLine[0] & @CRLF)

If $CmdLine[0] = 4 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3], $CmdLine[4])
ElseIf $CmdLine[0] = 3 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3])
Else
    $iMsgBoxAnswer = MsgBox(4096, "incorect number of parameters", $CmdLine[0])
EndIf


Exit

; #FUNCTION# ;---------------------------------------------------------------------------
; Name...........: _GroupPolicy()
; Description ...: Opens and uses the Group Policy Editor to configure the given settings
; Syntax.........: _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting [, $sOption = ""])
; Parameters ....: $sPolicyPath     - The path of nodes to navigate
;                  $sPolicyItem     - The Item/option to navigate/edit
;                  $iSetting           - 0=Disabled, 1=Enabled, 2=Configured, 3=find & exit
;                  $sOption         - Options in form "ClassnameNN;SendKey"
;----------------------------------------------------------------------------------------
Func _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting, $sOption = "")

    If Not WinExists("Local Group Policy Editor") Then
        Run("c:\Windows\system32\mmc.exe " & "C:\share\open_close_gpedit\gpedit_v1.msc /a")
        WinWait("Local Group Policy Editor", '', 5)
    EndIf

    ;Retrieves the 'Local Group Policy Editor' window handle
    Local $hGPO = WinWait("Local Group Policy Editor")
    ConsoleWrite("$hGPO=" & $hGPO & @CRLF)

    ;Retrieves the SysTreeView321 control handle
    Local $hTreeView_1 = ControlGetHandle($hGPO, "", "SysTreeView321")

    ;Sets the focus to $hTreeView_1
    ControlGetHandle($hGPO, "", $hTreeView_1)
    Sleep(50)

    $sPolicyPath = "Local Computer Policy" & $sPolicyPath
    ConsoleWrite("$sPolicyPath=" & $sPolicyPath & @CRLF)
    ConsoleWrite("$sPolicyItem=" & $sPolicyItem & @CRLF)

    Local $aPath = StringSplit($sPolicyPath, "\", 1)
    Local $tmpPath = ""
    ;ConsoleWrite("" & @CRLF)
    For $i = 1 To $aPath[0]
        $tmpPath &= $aPath[$i] & "|"
        ;ConsoleWrite("$tmpPath=" & StringTrimRight($tmpPath, 1) & @CRLF)
        ControlTreeView($hGPO, "", $hTreeView_1, "Expand", StringTrimRight($tmpPath, 1))
        ControlTreeView($hGPO, "", $hTreeView_1, "Select", StringTrimRight($tmpPath, 1))
        Sleep(50)
    Next

    ;at the bottom tabs we go right to the standard tab
    ControlGetHandle($hGPO, "", "AMCCustomTab1")
    ControlSend($hGPO, "", "AMCCustomTab1", "{RIGHT}")
    Sleep(50)

    ;Retrieves the SysListView321 control handle
    Local $hListView = ControlGetHandle($hGPO, "", "SysListView321")

    ;Sets the focus to SysListView321
    ControlGetHandle($hGPO, "", $hListView)
    Sleep(50)

    ;find the item
    Local $FindItem = ControlListView($hGPO, "", $hListView, "FindItem", $sPolicyItem)
    Sleep(500)
    ConsoleWrite("$FindItem=" & $FindItem & @CRLF)

    ;If not found then Return Error
    If $FindItem = -1 Then
        ConsoleWrite("not found the entry:'" & $sPolicyItem & "'" & @CRLF)
        Return SetError(1, 0, "")
    EndIf

    ;select the found item
    ControlListView($hGPO, "", $hListView, "Select", $FindItem)
    Sleep(50)

    ;and send enter to open it
    ControlSend($hGPO, '', $hListView, '{ENTER}')

    ;---------------------------------------------------------------

    Local $hGPOedit = WinWait("[CLASS:WindowsForms10.Window.8.app.0.297b065_r69_ad1]", "", 1)
    ConsoleWrite("$hGPOedit=" & $hGPOedit & @CRLF)

    If WinExists($hGPOedit) Then ; normal
        ConsoleWrite("$hGPOedit=normal" & @CRLF)
        ControlGetHandle($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16")
        Switch $iSetting
            Case 0 ;Disabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "d")
                ConsoleWrite("$iSetting=Disabled" & @CRLF)

            Case 1 ;Enabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "e")
                ConsoleWrite("$iSetting=Enabled" & @CRLF)

                If StringLen($sOption) > 0 Then
                    ConsoleWrite("$sOption=" & $sOption & @CRLF)
                    Local $aOpt = StringSplit($sOption, ";", 1)
                    ControlSend($hGPOedit, "", $aOpt[1], $aOpt[2])
                EndIf

            Case 2 ;Configured
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "c")
                ConsoleWrite("$iSetting=Configured" & @CRLF)

            Case 3 ;find & exit
                ;ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "c")
                ConsoleWrite("$iSetting=find & exit" & @CRLF)
                Exit

        EndSwitch

        ; Apply
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "a")

        ; Enter
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "{ENTER}")

    Else ; special
        $hGPOedit = WinWait("[CLASS:#32770]", "", 1)
        ; Retrieve the window text of the active window.
        Local $sText = WinGetText($hGPOedit)
        ConsoleWrite($sText & @CRLF)
        If StringLeft($sText, 22) = "Local Security Setting" Then
            ConsoleWrite("$hGPOedit=special" & @CRLF)
            Switch $iSetting
                Case 0 ;Disabled
                    ControlSend($hGPOedit, "", "Button3", "s")
                    ConsoleWrite("$iSetting=Disabled" & @CRLF)

                Case 1 ;Enabled
                    ControlSend($hGPOedit, "", "Button2", "e")
                    ConsoleWrite("$iSetting=Enabled" & @CRLF)

                Case 3 ;find & exit
                    ConsoleWrite("$iSetting=find & exit" & @CRLF)
                    Exit

            EndSwitch
            ControlSend($hGPOedit, "", "SysTabControl321", "{ENTER}")
            Sleep(50)

            If WinExists("Confirm Setting Change") Then
                ControlSend("Confirm Setting Change", "", "Button1", "y") ; yes
            EndIf

        EndIf

    EndIf

    ;---------------------------------------------------------------

;~  Exit  ; <-- ****************************************************
    Sleep(100)

    ControlGetHandle($hGPO, "", $hTreeView_1)
    Sleep(50)
    ControlSend($hGPO, "", $hTreeView_1, "{ALT down}{F4}{ALT up}")

    $hGPO = WinWait("Microsoft Management Console", "", 1)
    ControlSend($hGPO, "", "Static2", "{N}")

    Return $sPolicyItem

EndFunc   ;==>_GroupPolicy
;----------------------------------------------------------------------------------------



Link to comment
Share on other sites
gal9 Adventurer

gal9

Posted
  • Author
Posted
1 minute ago, ioa747 said:

$iSetting           - 0=Disabled, 1=Enabled, 2=Configured, 3=find & exit

_GroupPolicy2.exe "\Computer Configuration\Windows Settings\Security Settings\Local Policies\Security Options" "Microsoft network client: Digitally sign communications (always)" "3"

 as the name says find & exit
in development state as help tool, if want to check if everything is fine, or if you want catch a control with info tool ;)

yes it works for me and the code work for me only the headless mode

Link to comment
Share on other sites
ioa747 Universalist

ioa747

Posted
Posted

I edited them where I found them, take a look to see if I missed something

#RequireAdmin
#AutoIt3Wrapper_UseX64=y
#AutoIt3Wrapper_Au3Check_Parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6 -w 7
#include <Constants.au3>
#include <Array.au3>
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <GuiButton.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <MsgBoxConstants.au3>

;~ Opt("TrayIconDebug", 1) ;0=no info, 1=debug line info  ; * <---

;==============================================================
; FUNCTION: _Example
; DESCRIPTION: This function opens the Group Policy Object Editor,
;   navigates to the specified policy setting, and changes its value
;   to the specified setting.
; PARAMETERS:
;   $CmdLine[1] - $sPolicyPath - The path of nodes to navigate
;   $CmdLine[2] - $sPolicyItem - The Item/option to navigate/edit
;   $CmdLine[3] - $iSetting    - T0=Disabled, 1=Enabled, 2=Configured, 3=find & exit
;   $CmdLine[4] - $sOption     - Optional Options in form "ClassnameNN;SendKey"
;==============================================================
; EXAMPLES:
; "\Computer Configuration\Administrative Templates\Windows Components\Microsoft Edge", "Allow Adobe Flash", 0                                                          ; * - Normal
; "\Computer Configuration\Windows Settings\Security Settings\Local Policies\Security Options", "Microsoft network client: Digitally sign communications (always)", 3   ; * - Special
; "\Computer Configuration\Administrative Templates\Windows Components\Connect", "Require pin for pairing", 1, "WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f"       ; * - With Option
; Global $CmdLine[5] = [4, "\Computer Configuration\Administrative Templates\Windows Components\Microsoft Edge", "Allow Adobe Flash", 0]

If Not $CmdLine[0] Then
    Global $CmdLine[5]
    $CmdLine[0] = 4 ;cnt
    $CmdLine[1] = "\Computer Configuration\Administrative Templates\Windows Components\Microsoft Edge"
    $CmdLine[2] = "Allow Adobe Flash"
    $CmdLine[3] = 0
    $CmdLine[4] = "" ;optional
EndIf

Global $iMsgBoxAnswer = "The setting" & @CRLF
$iMsgBoxAnswer &= $CmdLine[1] & @CRLF
$iMsgBoxAnswer &= $CmdLine[2] & @CRLF
$iMsgBoxAnswer &= "will be set to " & $CmdLine[3] & @CRLF

$iMsgBoxAnswer = MsgBox(4097, "This Msgbox will time out in 3 seconds", $iMsgBoxAnswer, 3)

Select
    Case $iMsgBoxAnswer = 1 ;OK
        ;nothing
    Case $iMsgBoxAnswer = 2 ;Cancel
        Exit
EndSelect

ConsoleWrite("$CmdLine[0]=" & $CmdLine[0] & @CRLF)

If $CmdLine[0] = 4 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3], $CmdLine[4])
ElseIf $CmdLine[0] = 3 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3])
Else
    $iMsgBoxAnswer = MsgBox(4096, "incorect number of parameters", $CmdLine[0])
EndIf

Exit

; #FUNCTION# ;---------------------------------------------------------------------------
; Name...........: _GroupPolicy()
; Description ...: Opens and uses the Group Policy Editor to configure the given settings
; Syntax.........: _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting [, $sOption = ""])
; Parameters ....: $sPolicyPath     - The path of nodes to navigate
;                  $sPolicyItem     - The Item/option to navigate/edit
;                  $iSetting        - 0=Disabled, 1=Enabled, 2=Configured, 3=find & exit
;                  $sOption         - Options in form "ClassnameNN;SendKey"
;----------------------------------------------------------------------------------------
Func _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting, $sOption = "")

    If Not WinExists("Local Group Policy Editor") Then
        Run("c:\Windows\system32\mmc.exe " & "C:\share\open_close_gpedit\gpedit_v1.msc /a")
        WinWait("Local Group Policy Editor", '', 5)
    EndIf

    ;Retrieves the 'Local Group Policy Editor' window handle
    Local $hGPO = WinActivate("Local Group Policy Editor")
    ConsoleWrite("$hGPO=" & $hGPO & @CRLF)

    ;Retrieves the SysTreeView321 control handle
    Local $hTreeView_1 = ControlGetHandle($hGPO, "", "SysTreeView321")

    $sPolicyPath = "Local Computer Policy" & $sPolicyPath
    ConsoleWrite("--- $sPolicyPath=" & $sPolicyPath & @CRLF)
    ConsoleWrite("--- $sPolicyItem=" & $sPolicyItem & @CRLF)
    ConsoleWrite("--- $iSetting=" & $iSetting & @CRLF)
    ConsoleWrite("--- $sOption=" & $sOption & @CRLF)

    Local $aPath = StringSplit($sPolicyPath, "\", 1)
    Local $tmpPath = ""

    ;Expant the path in $hTreeView_1
    For $i = 1 To $aPath[0]
        $tmpPath &= $aPath[$i] & "|"
        ConsoleWrite("$tmpPath=" & StringTrimRight($tmpPath, 1) & @CRLF)
        ControlTreeView($hGPO, "", $hTreeView_1, "Expand", StringTrimRight($tmpPath, 1))
        ControlTreeView($hGPO, "", $hTreeView_1, "Select", StringTrimRight($tmpPath, 1))
        Sleep(50)
    Next

    ;at the bottom tabs we go right to the standard tab
    ControlSend($hGPO, "", "AMCCustomTab1", "{RIGHT}")
    Sleep(50)

    ;Retrieves the SysListView321 control handle
    Local $hListView = ControlGetHandle($hGPO, "", "SysListView321")

    ;find the item
    Local $FindItem = ControlListView($hGPO, "", $hListView, "FindItem", $sPolicyItem)
    Sleep(500)
    ConsoleWrite("- $FindItem=" & $FindItem & @CRLF)

    ;If not found then Return Error
    If $FindItem = -1 Then
        ConsoleWrite("not found the entry:'" & $sPolicyItem & "'" & @CRLF)
        Return SetError(1, 0, "")
    EndIf

    ;select the found item
    ControlListView($hGPO, "", $hListView, "Select", $FindItem)
    Sleep(50)

    ;snap Selected Item
    Local $SelectedItem = ControlListView($hGPO, "", $hListView, "GetSelected")
    ConsoleWrite("- $SelectedItem=" & $SelectedItem & @CRLF)
    Sleep(50)

    Local $ItemTxt[4]
    ;Returns the text of a given Item to ItemTxt[0]=col0, item[1]=col1, ...
    For $i = 0 To 3
        $ItemTxt[$i] = ControlListView($hGPO, "", $hListView, "GetText", Int($SelectedItem), $i)
        ConsoleWrite("$ItemTxt[" & $i & "]=" & $ItemTxt[$i] & @CRLF)
    Next

    ;and send enter to open it
    ControlSend($hGPO, '', $hListView, '{ENTER}')

    ;---------------------------------------------------------------

    Local $hGPOedit = WinWait("[CLASS:WindowsForms10.Window.8.app.0.297b065_r69_ad1]", "", 1)
    ConsoleWrite("- $hGPOedit=" & $hGPOedit & @CRLF)

    If WinExists($hGPOedit) Then ; normal <-
        ConsoleWrite("> $hGPOedit=normal <" & @CRLF)
        Switch $iSetting
            Case 0 ;Disabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "d")
                ConsoleWrite("-> Disabled" & @CRLF)

            Case 1 ;Enabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "e")
                ConsoleWrite("-> Enabled" & @CRLF)

                If StringLen($sOption) > 0 Then
                    ConsoleWrite("- $sOption=" & $sOption & @CRLF)
                    Local $aOpt = StringSplit($sOption, ";", 1)
                    ControlSend($hGPOedit, "", $aOpt[1], $aOpt[2])
                EndIf

            Case 2 ;Configured
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "c")
                ConsoleWrite("-> Configured" & @CRLF)

            Case 3 ;find & exit
                ConsoleWrite("-> find & exit" & @CRLF)
                Exit

        EndSwitch

        ;Apply
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "a")

        ;Enter
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "{ENTER}")

    Else ;special <-

        $hGPOedit = WinWait("[CLASS:#32770]", "", 1)

        ;Retrieve the window text of the active window.
        Local $sText = WinGetText($hGPOedit)
        ;ConsoleWrite($sText & @CRLF)
        If StringLeft($sText, 22) = "Local Security Setting" Then  ; * <- if "Local Security Setting"
            ConsoleWrite("> $hGPOedit=special <" & @CRLF)
            Switch $iSetting
                Case 0 ;Disabled
                    ControlSend($hGPOedit, "", "Button3", "s")
                    ConsoleWrite("-> Disabled" & @CRLF)

                Case 1 ;Enabled
                    ControlSend($hGPOedit, "", "Button2", "e")
                    ConsoleWrite("-> Enabled" & @CRLF)

                Case 3 ;find & exit
                    ConsoleWrite("-> find & exit" & @CRLF)
                    Exit

            EndSwitch
            ControlSend($hGPOedit, "", "SysTabControl321", "{ENTER}")
            Sleep(50)

            If WinExists("Confirm Setting Change") Then
                ControlSend("Confirm Setting Change", "", "Button1", "y") ; yes
            EndIf

        EndIf

    EndIf

    ;---------------------------------------------------------------

    ;snap Selected Item
    $SelectedItem = ControlListView($hGPO, "", $hListView, "GetSelected")
    ConsoleWrite("- $SelectedItem=" & $SelectedItem & @CRLF)
    Sleep(50)

    ;Returns the text of a given Item to ItemTxt[0]=col0, item[1]=col1, ...
    For $i = 0 To 3
        $ItemTxt[$i] = ControlListView($hGPO, "", $hListView, "GetText", Int($SelectedItem), $i)
        ConsoleWrite("$ItemTxt[" & $i & "]=" & $ItemTxt[$i] & @CRLF)
    Next

;~  Exit  ; <-- ****************************************************

    Sleep(50)
    ControlSend($hGPO, "", $hTreeView_1, "{ALT down}{F4}{ALT up}")

    $hGPO = WinWait("Microsoft Management Console", "", 1)
    ControlSend($hGPO, "", "Static2", "{N}")

    Return $sPolicyItem

EndFunc   ;==>_GroupPolicy
;----------------------------------------------------------------------------------------



I know that I know nothing

Link to comment
Share on other sites
gal9 Adventurer

gal9

Posted
  • Author
Posted (edited)
6 minutes ago, ioa747 said:

I edited them where I found them, take a look to see if I missed something

#RequireAdmin
#AutoIt3Wrapper_UseX64=y
#AutoIt3Wrapper_Au3Check_Parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6 -w 7
#include <Constants.au3>
#include <Array.au3>
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <GuiButton.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <MsgBoxConstants.au3>

;~ Opt("TrayIconDebug", 1) ;0=no info, 1=debug line info  ; * <---

;==============================================================
; FUNCTION: _Example
; DESCRIPTION: This function opens the Group Policy Object Editor,
;   navigates to the specified policy setting, and changes its value
;   to the specified setting.
; PARAMETERS:
;   $CmdLine[1] - $sPolicyPath - The path of nodes to navigate
;   $CmdLine[2] - $sPolicyItem - The Item/option to navigate/edit
;   $CmdLine[3] - $iSetting    - T0=Disabled, 1=Enabled, 2=Configured, 3=find & exit
;   $CmdLine[4] - $sOption     - Optional Options in form "ClassnameNN;SendKey"
;==============================================================
; EXAMPLES:
; "\Computer Configuration\Administrative Templates\Windows Components\Microsoft Edge", "Allow Adobe Flash", 0                                                          ; * - Normal
; "\Computer Configuration\Windows Settings\Security Settings\Local Policies\Security Options", "Microsoft network client: Digitally sign communications (always)", 3   ; * - Special
; "\Computer Configuration\Administrative Templates\Windows Components\Connect", "Require pin for pairing", 1, "WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f"       ; * - With Option
; Global $CmdLine[5] = [4, "\Computer Configuration\Administrative Templates\Windows Components\Microsoft Edge", "Allow Adobe Flash", 0]

If Not $CmdLine[0] Then
    Global $CmdLine[5]
    $CmdLine[0] = 4 ;cnt
    $CmdLine[1] = "\Computer Configuration\Administrative Templates\Windows Components\Microsoft Edge"
    $CmdLine[2] = "Allow Adobe Flash"
    $CmdLine[3] = 0
    $CmdLine[4] = "" ;optional
EndIf

Global $iMsgBoxAnswer = "The setting" & @CRLF
$iMsgBoxAnswer &= $CmdLine[1] & @CRLF
$iMsgBoxAnswer &= $CmdLine[2] & @CRLF
$iMsgBoxAnswer &= "will be set to " & $CmdLine[3] & @CRLF

$iMsgBoxAnswer = MsgBox(4097, "This Msgbox will time out in 3 seconds", $iMsgBoxAnswer, 3)

Select
    Case $iMsgBoxAnswer = 1 ;OK
        ;nothing
    Case $iMsgBoxAnswer = 2 ;Cancel
        Exit
EndSelect

ConsoleWrite("$CmdLine[0]=" & $CmdLine[0] & @CRLF)

If $CmdLine[0] = 4 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3], $CmdLine[4])
ElseIf $CmdLine[0] = 3 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3])
Else
    $iMsgBoxAnswer = MsgBox(4096, "incorect number of parameters", $CmdLine[0])
EndIf

Exit

; #FUNCTION# ;---------------------------------------------------------------------------
; Name...........: _GroupPolicy()
; Description ...: Opens and uses the Group Policy Editor to configure the given settings
; Syntax.........: _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting [, $sOption = ""])
; Parameters ....: $sPolicyPath     - The path of nodes to navigate
;                  $sPolicyItem     - The Item/option to navigate/edit
;                  $iSetting        - 0=Disabled, 1=Enabled, 2=Configured, 3=find & exit
;                  $sOption         - Options in form "ClassnameNN;SendKey"
;----------------------------------------------------------------------------------------
Func _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting, $sOption = "")

    If Not WinExists("Local Group Policy Editor") Then
        Run("c:\Windows\system32\mmc.exe " & "C:\share\open_close_gpedit\gpedit_v1.msc /a")
        WinWait("Local Group Policy Editor", '', 5)
    EndIf

    ;Retrieves the 'Local Group Policy Editor' window handle
    Local $hGPO = WinActivate("Local Group Policy Editor")
    ConsoleWrite("$hGPO=" & $hGPO & @CRLF)

    ;Retrieves the SysTreeView321 control handle
    Local $hTreeView_1 = ControlGetHandle($hGPO, "", "SysTreeView321")

    $sPolicyPath = "Local Computer Policy" & $sPolicyPath
    ConsoleWrite("--- $sPolicyPath=" & $sPolicyPath & @CRLF)
    ConsoleWrite("--- $sPolicyItem=" & $sPolicyItem & @CRLF)
    ConsoleWrite("--- $iSetting=" & $iSetting & @CRLF)
    ConsoleWrite("--- $sOption=" & $sOption & @CRLF)

    Local $aPath = StringSplit($sPolicyPath, "\", 1)
    Local $tmpPath = ""

    ;Expant the path in $hTreeView_1
    For $i = 1 To $aPath[0]
        $tmpPath &= $aPath[$i] & "|"
        ConsoleWrite("$tmpPath=" & StringTrimRight($tmpPath, 1) & @CRLF)
        ControlTreeView($hGPO, "", $hTreeView_1, "Expand", StringTrimRight($tmpPath, 1))
        ControlTreeView($hGPO, "", $hTreeView_1, "Select", StringTrimRight($tmpPath, 1))
        Sleep(50)
    Next

    ;at the bottom tabs we go right to the standard tab
    ControlSend($hGPO, "", "AMCCustomTab1", "{RIGHT}")
    Sleep(50)

    ;Retrieves the SysListView321 control handle
    Local $hListView = ControlGetHandle($hGPO, "", "SysListView321")

    ;find the item
    Local $FindItem = ControlListView($hGPO, "", $hListView, "FindItem", $sPolicyItem)
    Sleep(500)
    ConsoleWrite("- $FindItem=" & $FindItem & @CRLF)

    ;If not found then Return Error
    If $FindItem = -1 Then
        ConsoleWrite("not found the entry:'" & $sPolicyItem & "'" & @CRLF)
        Return SetError(1, 0, "")
    EndIf

    ;select the found item
    ControlListView($hGPO, "", $hListView, "Select", $FindItem)
    Sleep(50)

    ;snap Selected Item
    Local $SelectedItem = ControlListView($hGPO, "", $hListView, "GetSelected")
    ConsoleWrite("- $SelectedItem=" & $SelectedItem & @CRLF)
    Sleep(50)

    Local $ItemTxt[4]
    ;Returns the text of a given Item to ItemTxt[0]=col0, item[1]=col1, ...
    For $i = 0 To 3
        $ItemTxt[$i] = ControlListView($hGPO, "", $hListView, "GetText", Int($SelectedItem), $i)
        ConsoleWrite("$ItemTxt[" & $i & "]=" & $ItemTxt[$i] & @CRLF)
    Next

    ;and send enter to open it
    ControlSend($hGPO, '', $hListView, '{ENTER}')

    ;---------------------------------------------------------------

    Local $hGPOedit = WinWait("[CLASS:WindowsForms10.Window.8.app.0.297b065_r69_ad1]", "", 1)
    ConsoleWrite("- $hGPOedit=" & $hGPOedit & @CRLF)

    If WinExists($hGPOedit) Then ; normal <-
        ConsoleWrite("> $hGPOedit=normal <" & @CRLF)
        Switch $iSetting
            Case 0 ;Disabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "d")
                ConsoleWrite("-> Disabled" & @CRLF)

            Case 1 ;Enabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "e")
                ConsoleWrite("-> Enabled" & @CRLF)

                If StringLen($sOption) > 0 Then
                    ConsoleWrite("- $sOption=" & $sOption & @CRLF)
                    Local $aOpt = StringSplit($sOption, ";", 1)
                    ControlSend($hGPOedit, "", $aOpt[1], $aOpt[2])
                EndIf

            Case 2 ;Configured
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "c")
                ConsoleWrite("-> Configured" & @CRLF)

            Case 3 ;find & exit
                ConsoleWrite("-> find & exit" & @CRLF)
                Exit

        EndSwitch

        ;Apply
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "a")

        ;Enter
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "{ENTER}")

    Else ;special <-

        $hGPOedit = WinWait("[CLASS:#32770]", "", 1)

        ;Retrieve the window text of the active window.
        Local $sText = WinGetText($hGPOedit)
        ;ConsoleWrite($sText & @CRLF)
        If StringLeft($sText, 22) = "Local Security Setting" Then  ; * <- if "Local Security Setting"
            ConsoleWrite("> $hGPOedit=special <" & @CRLF)
            Switch $iSetting
                Case 0 ;Disabled
                    ControlSend($hGPOedit, "", "Button3", "s")
                    ConsoleWrite("-> Disabled" & @CRLF)

                Case 1 ;Enabled
                    ControlSend($hGPOedit, "", "Button2", "e")
                    ConsoleWrite("-> Enabled" & @CRLF)

                Case 3 ;find & exit
                    ConsoleWrite("-> find & exit" & @CRLF)
                    Exit

            EndSwitch
            ControlSend($hGPOedit, "", "SysTabControl321", "{ENTER}")
            Sleep(50)

            If WinExists("Confirm Setting Change") Then
                ControlSend("Confirm Setting Change", "", "Button1", "y") ; yes
            EndIf

        EndIf

    EndIf

    ;---------------------------------------------------------------

    ;snap Selected Item
    $SelectedItem = ControlListView($hGPO, "", $hListView, "GetSelected")
    ConsoleWrite("- $SelectedItem=" & $SelectedItem & @CRLF)
    Sleep(50)

    ;Returns the text of a given Item to ItemTxt[0]=col0, item[1]=col1, ...
    For $i = 0 To 3
        $ItemTxt[$i] = ControlListView($hGPO, "", $hListView, "GetText", Int($SelectedItem), $i)
        ConsoleWrite("$ItemTxt[" & $i & "]=" & $ItemTxt[$i] & @CRLF)
    Next

;~  Exit  ; <-- ****************************************************

    Sleep(50)
    ControlSend($hGPO, "", $hTreeView_1, "{ALT down}{F4}{ALT up}")

    $hGPO = WinWait("Microsoft Management Console", "", 1)
    ControlSend($hGPO, "", "Static2", "{N}")

    Return $sPolicyItem

EndFunc   ;==>_GroupPolicy
;----------------------------------------------------------------------------------------



It doesn't close the gpo and it changes another setting
https://www.dropbox.com/s/k8nn4pp5zlepbrs/hadles.mp4?dl=0
i try change "Require pin for pairing"

Edited by gal9
Link to comment
Share on other sites
ioa747 Universalist

ioa747

Posted
Posted (edited)

run the script first, see if it works, and then from the command line

#RequireAdmin
#AutoIt3Wrapper_UseX64=y
#AutoIt3Wrapper_Au3Check_Parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6 -w 7
#include <Constants.au3>
#include <Array.au3>
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <GuiButton.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <MsgBoxConstants.au3>

;~ Opt("TrayIconDebug", 1) ;0=no info, 1=debug line info  ; * <---

;==============================================================
; FUNCTION: _Example
; DESCRIPTION: This function opens the Group Policy Object Editor,
;   navigates to the specified policy setting, and changes its value
;   to the specified setting.
; PARAMETERS:
;   $CmdLine[1] - $sPolicyPath - The path of nodes to navigate
;   $CmdLine[2] - $sPolicyItem - The Item/option to navigate/edit
;   $CmdLine[3] - $iSetting    - T0=Disabled, 1=Enabled, 2=Configured, 3=find & exit
;   $CmdLine[4] - $sOption     - Optional Options in form "ClassnameNN;SendKey"
;==============================================================
; EXAMPLES:
; "\Computer Configuration\Administrative Templates\Windows Components\Microsoft Edge", "Allow Adobe Flash", 0                                                          ; * - Normal
; "\Computer Configuration\Windows Settings\Security Settings\Local Policies\Security Options", "Microsoft network client: Digitally sign communications (always)", 3   ; * - Special
; "\Computer Configuration\Administrative Templates\Windows Components\Connect", "Require pin for pairing", 1, "WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f"       ; * - With Option
; Global $CmdLine[5] = [4, "\Computer Configuration\Administrative Templates\Windows Components\Microsoft Edge", "Allow Adobe Flash", 0]

If Not $CmdLine[0] Then
    Global $CmdLine[5]
    $CmdLine[0] = 4 ;cnt
    $CmdLine[1] = "\Computer Configuration\Administrative Templates\Windows Components\Connect"
    $CmdLine[2] = "Require pin for pairing"
    $CmdLine[3] = 1
    $CmdLine[4] = "WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f" ;optional
EndIf

Global $iMsgBoxAnswer = "The setting" & @CRLF
$iMsgBoxAnswer &= $CmdLine[1] & @CRLF
$iMsgBoxAnswer &= $CmdLine[2] & @CRLF
$iMsgBoxAnswer &= "will be set to " & $CmdLine[3] & @CRLF

$iMsgBoxAnswer = MsgBox(4097, "This Msgbox will time out in 3 seconds", $iMsgBoxAnswer, 3)

Select
    Case $iMsgBoxAnswer = 1 ;OK
        ;nothing
    Case $iMsgBoxAnswer = 2 ;Cancel
        Exit
EndSelect

ConsoleWrite("$CmdLine[0]=" & $CmdLine[0] & @CRLF)

If $CmdLine[0] = 4 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3], $CmdLine[4])
ElseIf $CmdLine[0] = 3 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3])
Else
    $iMsgBoxAnswer = MsgBox(4096, "incorect number of parameters", $CmdLine[0])
EndIf

Exit

; #FUNCTION# ;---------------------------------------------------------------------------
; Name...........: _GroupPolicy()
; Description ...: Opens and uses the Group Policy Editor to configure the given settings
; Syntax.........: _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting [, $sOption = ""])
; Parameters ....: $sPolicyPath     - The path of nodes to navigate
;                  $sPolicyItem     - The Item/option to navigate/edit
;                  $iSetting        - 0=Disabled, 1=Enabled, 2=Configured, 3=find & exit
;                  $sOption         - Options in form "ClassnameNN;SendKey"
;----------------------------------------------------------------------------------------
Func _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting, $sOption = "")

    If Not WinExists("Local Group Policy Editor") Then
        Run("c:\Windows\system32\mmc.exe " & "C:\share\open_close_gpedit\gpedit_v1.msc /a")
    EndIf

    ;Retrieves the 'Local Group Policy Editor' window handle
    Local $hGPO = WinWait("Local Group Policy Editor", '', 5)

    ConsoleWrite("$hGPO=" & $hGPO & @CRLF)

    ;Retrieves the SysTreeView321 control handle
    Local $hTreeView_1 = ControlGetHandle($hGPO, "", "SysTreeView321")

    $sPolicyPath = "Local Computer Policy" & $sPolicyPath
    ConsoleWrite("--- $sPolicyPath=" & $sPolicyPath & @CRLF)
    ConsoleWrite("--- $sPolicyItem=" & $sPolicyItem & @CRLF)
    ConsoleWrite("--- $iSetting=" & $iSetting & @CRLF)
    ConsoleWrite("--- $sOption=" & $sOption & @CRLF)

    Local $aPath = StringSplit($sPolicyPath, "\", 1)
    Local $tmpPath = ""

    ;Expant the path in $hTreeView_1
    For $i = 1 To $aPath[0]
        $tmpPath &= $aPath[$i] & "|"
        ConsoleWrite("$tmpPath=" & StringTrimRight($tmpPath, 1) & @CRLF)
        ControlTreeView($hGPO, "", $hTreeView_1, "Expand", StringTrimRight($tmpPath, 1))
        ControlTreeView($hGPO, "", $hTreeView_1, "Select", StringTrimRight($tmpPath, 1))
        Sleep(50)
    Next

    ;at the bottom tabs we go right to the standard tab
    ControlSend($hGPO, "", "AMCCustomTab1", "{RIGHT}")
    Sleep(50)

    ;Retrieves the SysListView321 control handle
    Local $hListView = ControlGetHandle($hGPO, "", "SysListView321")

    ;find the item
    Local $FindItem = ControlListView($hGPO, "", $hListView, "FindItem", $sPolicyItem)
    Sleep(500)
    ConsoleWrite("- $FindItem=" & $FindItem & @CRLF)

    ;If not found then Return Error
    If $FindItem = -1 Then
        ConsoleWrite("not found the entry:'" & $sPolicyItem & "'" & @CRLF)
        Return SetError(1, 0, "")
    EndIf

    ;select the found item
    ControlListView($hGPO, "", $hListView, "Select", $FindItem)
    Sleep(50)

    ;snap Selected Item
    Local $SelectedItem = ControlListView($hGPO, "", $hListView, "GetSelected")
    ConsoleWrite("- $SelectedItem=" & $SelectedItem & @CRLF)
    Sleep(50)

    Local $ItemTxt[4]
    ;Returns the text of a given Item to ItemTxt[0]=col0, item[1]=col1, ...
    For $i = 0 To 3
        $ItemTxt[$i] = ControlListView($hGPO, "", $hListView, "GetText", Int($SelectedItem), $i)
        ConsoleWrite("$ItemTxt[" & $i & "]=" & $ItemTxt[$i] & @CRLF)
    Next

    ;and send enter to open it
    ControlSend($hGPO, '', $hListView, '{ENTER}')

    ;---------------------------------------------------------------

    Local $hGPOedit = WinWait("[CLASS:WindowsForms10.Window.8.app.0.297b065_r69_ad1]", "", 1)
    ConsoleWrite("- $hGPOedit=" & $hGPOedit & @CRLF)

    If WinExists($hGPOedit) Then ; normal <-
        ConsoleWrite("> $hGPOedit=normal <" & @CRLF)
        Switch $iSetting
            Case 0 ;Disabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "d")
                ConsoleWrite("-> Disabled" & @CRLF)

            Case 1 ;Enabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "e")
                ConsoleWrite("-> Enabled" & @CRLF)

                If StringLen($sOption) > 0 Then
                    ConsoleWrite("- $sOption=" & $sOption & @CRLF)
                    Local $aOpt = StringSplit($sOption, ";", 1)
                    ControlSend($hGPOedit, "", $aOpt[1], $aOpt[2])
                EndIf

            Case 2 ;Configured
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "c")
                ConsoleWrite("-> Configured" & @CRLF)

            Case 3 ;find & exit
                ConsoleWrite("-> find & exit" & @CRLF)
                Exit

        EndSwitch

        ;Apply
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "a")

        ;Enter
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "{ENTER}")

    Else ;special <-

        $hGPOedit = WinWait("[CLASS:#32770]", "", 1)

        ;Retrieve the window text of the active window.
        Local $sText = WinGetText($hGPOedit)
        ;ConsoleWrite($sText & @CRLF)
        If StringLeft($sText, 22) = "Local Security Setting" Then  ; * <- if "Local Security Setting"
            ConsoleWrite("> $hGPOedit=special <" & @CRLF)
            Switch $iSetting
                Case 0 ;Disabled
                    ControlSend($hGPOedit, "", "Button3", "s")
                    ConsoleWrite("-> Disabled" & @CRLF)

                Case 1 ;Enabled
                    ControlSend($hGPOedit, "", "Button2", "e")
                    ConsoleWrite("-> Enabled" & @CRLF)

                Case 3 ;find & exit
                    ConsoleWrite("-> find & exit" & @CRLF)
                    Exit

            EndSwitch
            ControlSend($hGPOedit, "", "SysTabControl321", "{ENTER}")
            Sleep(50)

            If WinExists("Confirm Setting Change") Then
                ControlSend("Confirm Setting Change", "", "Button1", "y") ; yes
            EndIf

        EndIf

    EndIf

    ;---------------------------------------------------------------

    ;snap Selected Item
    $SelectedItem = ControlListView($hGPO, "", $hListView, "GetSelected")
    ConsoleWrite("- $SelectedItem=" & $SelectedItem & @CRLF)
    Sleep(50)

    ;Returns the text of a given Item to ItemTxt[0]=col0, item[1]=col1, ...
    For $i = 0 To 3
        $ItemTxt[$i] = ControlListView($hGPO, "", $hListView, "GetText", Int($SelectedItem), $i)
        ConsoleWrite("$ItemTxt[" & $i & "]=" & $ItemTxt[$i] & @CRLF)
    Next

;~  Exit  ; <-- ****************************************************

    Sleep(50)
    ControlSend($hGPO, "", $hTreeView_1, "{ALT down}{F4}{ALT up}")

    $hGPO = WinWait("Microsoft Management Console", "", 1)
    ControlSend($hGPO, "", "Static2", "{N}")

    Return $sPolicyItem

EndFunc   ;==>_GroupPolicy
;----------------------------------------------------------------------------------------

edit:

I deleted another one WinActivate()



Edited by ioa747

I know that I know nothing

Link to comment
Share on other sites
gal9 Adventurer

gal9

Posted
  • Author
Posted
20 minutes ago, ioa747 said:

run the script first, see if it works, and then from the command line

#RequireAdmin
#AutoIt3Wrapper_UseX64=y
#AutoIt3Wrapper_Au3Check_Parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6 -w 7
#include <Constants.au3>
#include <Array.au3>
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <GuiButton.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <MsgBoxConstants.au3>

;~ Opt("TrayIconDebug", 1) ;0=no info, 1=debug line info  ; * <---

;==============================================================
; FUNCTION: _Example
; DESCRIPTION: This function opens the Group Policy Object Editor,
;   navigates to the specified policy setting, and changes its value
;   to the specified setting.
; PARAMETERS:
;   $CmdLine[1] - $sPolicyPath - The path of nodes to navigate
;   $CmdLine[2] - $sPolicyItem - The Item/option to navigate/edit
;   $CmdLine[3] - $iSetting    - T0=Disabled, 1=Enabled, 2=Configured, 3=find & exit
;   $CmdLine[4] - $sOption     - Optional Options in form "ClassnameNN;SendKey"
;==============================================================
; EXAMPLES:
; "\Computer Configuration\Administrative Templates\Windows Components\Microsoft Edge", "Allow Adobe Flash", 0                                                          ; * - Normal
; "\Computer Configuration\Windows Settings\Security Settings\Local Policies\Security Options", "Microsoft network client: Digitally sign communications (always)", 3   ; * - Special
; "\Computer Configuration\Administrative Templates\Windows Components\Connect", "Require pin for pairing", 1, "WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f"       ; * - With Option
; Global $CmdLine[5] = [4, "\Computer Configuration\Administrative Templates\Windows Components\Microsoft Edge", "Allow Adobe Flash", 0]

If Not $CmdLine[0] Then
    Global $CmdLine[5]
    $CmdLine[0] = 4 ;cnt
    $CmdLine[1] = "\Computer Configuration\Administrative Templates\Windows Components\Connect"
    $CmdLine[2] = "Require pin for pairing"
    $CmdLine[3] = 1
    $CmdLine[4] = "WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f" ;optional
EndIf

Global $iMsgBoxAnswer = "The setting" & @CRLF
$iMsgBoxAnswer &= $CmdLine[1] & @CRLF
$iMsgBoxAnswer &= $CmdLine[2] & @CRLF
$iMsgBoxAnswer &= "will be set to " & $CmdLine[3] & @CRLF

$iMsgBoxAnswer = MsgBox(4097, "This Msgbox will time out in 3 seconds", $iMsgBoxAnswer, 3)

Select
    Case $iMsgBoxAnswer = 1 ;OK
        ;nothing
    Case $iMsgBoxAnswer = 2 ;Cancel
        Exit
EndSelect

ConsoleWrite("$CmdLine[0]=" & $CmdLine[0] & @CRLF)

If $CmdLine[0] = 4 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3], $CmdLine[4])
ElseIf $CmdLine[0] = 3 Then
    _GroupPolicy($CmdLine[1], $CmdLine[2], $CmdLine[3])
Else
    $iMsgBoxAnswer = MsgBox(4096, "incorect number of parameters", $CmdLine[0])
EndIf

Exit

; #FUNCTION# ;---------------------------------------------------------------------------
; Name...........: _GroupPolicy()
; Description ...: Opens and uses the Group Policy Editor to configure the given settings
; Syntax.........: _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting [, $sOption = ""])
; Parameters ....: $sPolicyPath     - The path of nodes to navigate
;                  $sPolicyItem     - The Item/option to navigate/edit
;                  $iSetting        - 0=Disabled, 1=Enabled, 2=Configured, 3=find & exit
;                  $sOption         - Options in form "ClassnameNN;SendKey"
;----------------------------------------------------------------------------------------
Func _GroupPolicy($sPolicyPath, $sPolicyItem, $iSetting, $sOption = "")

    If Not WinExists("Local Group Policy Editor") Then
        Run("c:\Windows\system32\mmc.exe " & "C:\share\open_close_gpedit\gpedit_v1.msc /a")
    EndIf

    ;Retrieves the 'Local Group Policy Editor' window handle
    Local $hGPO = WinWait("Local Group Policy Editor", '', 5)

    ConsoleWrite("$hGPO=" & $hGPO & @CRLF)

    ;Retrieves the SysTreeView321 control handle
    Local $hTreeView_1 = ControlGetHandle($hGPO, "", "SysTreeView321")

    $sPolicyPath = "Local Computer Policy" & $sPolicyPath
    ConsoleWrite("--- $sPolicyPath=" & $sPolicyPath & @CRLF)
    ConsoleWrite("--- $sPolicyItem=" & $sPolicyItem & @CRLF)
    ConsoleWrite("--- $iSetting=" & $iSetting & @CRLF)
    ConsoleWrite("--- $sOption=" & $sOption & @CRLF)

    Local $aPath = StringSplit($sPolicyPath, "\", 1)
    Local $tmpPath = ""

    ;Expant the path in $hTreeView_1
    For $i = 1 To $aPath[0]
        $tmpPath &= $aPath[$i] & "|"
        ConsoleWrite("$tmpPath=" & StringTrimRight($tmpPath, 1) & @CRLF)
        ControlTreeView($hGPO, "", $hTreeView_1, "Expand", StringTrimRight($tmpPath, 1))
        ControlTreeView($hGPO, "", $hTreeView_1, "Select", StringTrimRight($tmpPath, 1))
        Sleep(50)
    Next

    ;at the bottom tabs we go right to the standard tab
    ControlSend($hGPO, "", "AMCCustomTab1", "{RIGHT}")
    Sleep(50)

    ;Retrieves the SysListView321 control handle
    Local $hListView = ControlGetHandle($hGPO, "", "SysListView321")

    ;find the item
    Local $FindItem = ControlListView($hGPO, "", $hListView, "FindItem", $sPolicyItem)
    Sleep(500)
    ConsoleWrite("- $FindItem=" & $FindItem & @CRLF)

    ;If not found then Return Error
    If $FindItem = -1 Then
        ConsoleWrite("not found the entry:'" & $sPolicyItem & "'" & @CRLF)
        Return SetError(1, 0, "")
    EndIf

    ;select the found item
    ControlListView($hGPO, "", $hListView, "Select", $FindItem)
    Sleep(50)

    ;snap Selected Item
    Local $SelectedItem = ControlListView($hGPO, "", $hListView, "GetSelected")
    ConsoleWrite("- $SelectedItem=" & $SelectedItem & @CRLF)
    Sleep(50)

    Local $ItemTxt[4]
    ;Returns the text of a given Item to ItemTxt[0]=col0, item[1]=col1, ...
    For $i = 0 To 3
        $ItemTxt[$i] = ControlListView($hGPO, "", $hListView, "GetText", Int($SelectedItem), $i)
        ConsoleWrite("$ItemTxt[" & $i & "]=" & $ItemTxt[$i] & @CRLF)
    Next

    ;and send enter to open it
    ControlSend($hGPO, '', $hListView, '{ENTER}')

    ;---------------------------------------------------------------

    Local $hGPOedit = WinWait("[CLASS:WindowsForms10.Window.8.app.0.297b065_r69_ad1]", "", 1)
    ConsoleWrite("- $hGPOedit=" & $hGPOedit & @CRLF)

    If WinExists($hGPOedit) Then ; normal <-
        ConsoleWrite("> $hGPOedit=normal <" & @CRLF)
        Switch $iSetting
            Case 0 ;Disabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "d")
                ConsoleWrite("-> Disabled" & @CRLF)

            Case 1 ;Enabled
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "e")
                ConsoleWrite("-> Enabled" & @CRLF)

                If StringLen($sOption) > 0 Then
                    ConsoleWrite("- $sOption=" & $sOption & @CRLF)
                    Local $aOpt = StringSplit($sOption, ";", 1)
                    ControlSend($hGPOedit, "", $aOpt[1], $aOpt[2])
                EndIf

            Case 2 ;Configured
                ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "c")
                ConsoleWrite("-> Configured" & @CRLF)

            Case 3 ;find & exit
                ConsoleWrite("-> find & exit" & @CRLF)
                Exit

        EndSwitch

        ;Apply
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "a")

        ;Enter
        ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "{ENTER}")

    Else ;special <-

        $hGPOedit = WinWait("[CLASS:#32770]", "", 1)

        ;Retrieve the window text of the active window.
        Local $sText = WinGetText($hGPOedit)
        ;ConsoleWrite($sText & @CRLF)
        If StringLeft($sText, 22) = "Local Security Setting" Then  ; * <- if "Local Security Setting"
            ConsoleWrite("> $hGPOedit=special <" & @CRLF)
            Switch $iSetting
                Case 0 ;Disabled
                    ControlSend($hGPOedit, "", "Button3", "s")
                    ConsoleWrite("-> Disabled" & @CRLF)

                Case 1 ;Enabled
                    ControlSend($hGPOedit, "", "Button2", "e")
                    ConsoleWrite("-> Enabled" & @CRLF)

                Case 3 ;find & exit
                    ConsoleWrite("-> find & exit" & @CRLF)
                    Exit

            EndSwitch
            ControlSend($hGPOedit, "", "SysTabControl321", "{ENTER}")
            Sleep(50)

            If WinExists("Confirm Setting Change") Then
                ControlSend("Confirm Setting Change", "", "Button1", "y") ; yes
            EndIf

        EndIf

    EndIf

    ;---------------------------------------------------------------

    ;snap Selected Item
    $SelectedItem = ControlListView($hGPO, "", $hListView, "GetSelected")
    ConsoleWrite("- $SelectedItem=" & $SelectedItem & @CRLF)
    Sleep(50)

    ;Returns the text of a given Item to ItemTxt[0]=col0, item[1]=col1, ...
    For $i = 0 To 3
        $ItemTxt[$i] = ControlListView($hGPO, "", $hListView, "GetText", Int($SelectedItem), $i)
        ConsoleWrite("$ItemTxt[" & $i & "]=" & $ItemTxt[$i] & @CRLF)
    Next

;~  Exit  ; <-- ****************************************************

    Sleep(50)
    ControlSend($hGPO, "", $hTreeView_1, "{ALT down}{F4}{ALT up}")

    $hGPO = WinWait("Microsoft Management Console", "", 1)
    ControlSend($hGPO, "", "Static2", "{N}")

    Return $sPolicyItem

EndFunc   ;==>_GroupPolicy
;----------------------------------------------------------------------------------------

edit:

I deleted another one WinActivate()



That's what I do but it is not change  "Require pin for pairing" it change what is above it... and not close the GPO
I put in the new code and still the same problem

Link to comment
Share on other sites
ioa747 Universalist

ioa747

Posted
Posted

main console out:

$CmdLine[0]=4
$hGPO=0x000000000021065E
--- $sPolicyPath=Local Computer Policy\Computer Configuration\Administrative Templates\Windows Components\Connect
--- $sPolicyItem=Require pin for pairing
--- $iSetting=1
--- $sOption=WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f
$tmpPath=Local Computer Policy
$tmpPath=Local Computer Policy|Computer Configuration
$tmpPath=Local Computer Policy|Computer Configuration|Administrative Templates
$tmpPath=Local Computer Policy|Computer Configuration|Administrative Templates|Windows Components
$tmpPath=Local Computer Policy|Computer Configuration|Administrative Templates|Windows Components|Connect
- $FindItem=1
- $SelectedItem=1
$ItemTxt[0]=Require pin for pairing
$ItemTxt[1]=Not configured
$ItemTxt[2]=No
$ItemTxt[3]=
- $hGPOedit=0x00000000000E0D8E
> $hGPOedit=normal <
-> Enabled
- $sOption=WindowsForms10.COMBOBOX.app.0.297b065_r69_ad11;f
- $SelectedItem=1
$ItemTxt[0]=Require pin for pairing
$ItemTxt[1]=Enabled
$ItemTxt[2]=No
$ItemTxt[3]=

post yours

I know that I know nothing

Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
 Share
Go to topic listing

  • Recently Browsing   0 members

    • No registered users viewing this page.
×
×
  • Create New...
