send key tab jumps somewhere else

[Jos]

 Was just playing a little and sort-off suggesting to show how things should be done by tidying code when posting an answer.

[gal9]

31 minutes ago, ioa747 said:

expandcollapse popup

#RequireAdmin
#AutoIt3Wrapper_UseX64=y
#AutoIt3Wrapper_Res_requestedExecutionLevel=requireAdministrator

#include <Constants.au3>
#include <Array.au3>
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <GuiButton.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <MsgBoxConstants.au3>


;==============================================================
; FUNCTION: _Example
; DESCRIPTION: This function opens the Group Policy Object Editor,
;   navigates to the specified policy setting, and changes its value
;   to the specified setting.
; PARAMETERS:
;   $metric - The name of the policy setting to be changed.
;   $setting - The value to which the policy setting should be changed.
; RETURNS: None.
;==============================================================



If Not $CmdLine[0] Then Exit Run(@AutoItExe & " " & @ScriptFullPath & " /Allow Adobe Flash /param2 disable")

MsgBox(4096, "message", "The setting  "& $CmdLine[1] & " set to " & $CmdLine[2] & " This box will time out in 3 seconds", 3)
    Sleep(5000)

        Local $mtric =$CmdLine[1]
;       "Allow Adobe Flash"
        Local $setting = $CmdLine[2]
        ;"disable"
_Example($mtric,$setting)
MsgBox(4096, "Test", "The setting saved and set "& $mtric & " to " & $setting & " This box will time out in 3 seconds", 3)
Exit(0)

; Finished!

Func _selectDisEna($setting)
    Sleep(200) ; we give some time until the window appears
    Local $sEditTitle = WinGetTitle("[ACTIVE]")
    ConsoleWrite("$sEditTitle=" & $sEditTitle & @CRLF)
    Local $hGPOedit = WinWaitActive($sEditTitle)
        ControlFocus($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16")

    For $i = 5 To 1 Step -1
 If $setting = "disable" Or $setting ="Disabled" Then
    ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "d")
Sleep(3000)
    ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad112", "a")
EndIf
If $setting = "enabled" Or $setting ="Enabled"  Then
    ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad16", "e")
Sleep(3000)
    ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad112", "a")
EndIf
If $setting = "not configured" Or $setting ="Not configured"  Then
Send("{c}")
EndIf
    ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad112", "{p}")
Next
    ControlSend($hGPOedit, "", "WindowsForms10.Window.8.app.0.297b065_r69_ad112", "{ENTER}")
EndFunc


Func _Example($mtric,$setting)


    ; Run gpedit.msc
    ; Run("c:\Windows\system32\mmc.exe c:\Windows\system32\gpedit.msc /a")
    ;Run("c:\Windows\system32\mmc.exe C:\Users\" & @USERNAME &"\Desktop\script\gpedit_v1.msc /a")
        Run("c:\Windows\system32\mmc.exe " & "C:\share\open_close_gpedit\gpedit_v1.msc /a")

    Sleep(2500)


    Local $hGPO = WinWaitActive("Local Group Policy Editor")
    ConsoleWrite("$hGPO=" & $hGPO & @CRLF)

    Local $hTreeView_1 = ControlGetHandle($hGPO, "", "SysTreeView321")


    Sleep(500)
    ControlSend($hGPO, "", $hTreeView_1, "{ALT}{A}{O}")
    ControlFocus($hGPO, "", "[TITLE:Filter Options]")

    WinWaitActive("[TITLE:Filter Options]")

    Sleep(3500)

If ControlCommand("Filter Options", "Enable &Keyword Filters", "Button2", "IsChecked", "") = 0 Then
    Send("{ALT down}{K}{F}{ALT up}")
Else
    Send("{ALT down}{F}{ALT up}")
EndIf

Sleep(3500)
    ;;Type search
    ControlSend("[TITLE:Filter Options]", "", "[CLASS:Edit; INSTANCE:1]", $mtric)
Sleep(3500)
    ControlSend("[TITLE:Filter Options]", "", "[CLASS:Edit; INSTANCE:1]", "{ENTER}")


    ControlFocus($hGPO, "", $hTreeView_1)
    ControlSend($hGPO, "", $hTreeView_1, "a")

    ControlFocus($hGPO, "", "AMCCustomTab1")
    ControlSend($hGPO, "", "AMCCustomTab1", "{RIGHT}")
;~  Sleep(1000)

    ;Retrieves the SysListView321 control handle
Local $hListView = ControlGetHandle($hGPO, "", "SysListView321")

;Sets the focus to SysListView321
ControlFocus($hGPO, "", $hListView)
Sleep(50)

Local $Item, $ItemCnt, $ItemTxt, $FindItem

ControlSend($hGPO, "", $hListView, "{HOME}")
Sleep(50)

$SelectedItem = ControlListView($hGPO, "", $hListView, "GetSelected")
ConsoleWrite("$SelectedItem=" & $SelectedItem & @CRLF)
Sleep(50)

$ItemCnt = ControlListView($hGPO, "", $hListView, "GetItemCount")
ConsoleWrite("$ItemCnt=" & $ItemCnt & @CRLF)
Sleep(50)

MsgBox(4096, "$ItemCnt", "$ItemCnt "& $ItemCnt , 15)


For $x = 0 To $ItemCnt - 1
    ControlListView($hGPO, "", $hListView, "Select", $x)

    $SelectedItem = ControlListView($hGPO, "", $hListView, "GetSelected")
    ConsoleWrite("$SelectedItem=" & $SelectedItem & "  ")

    $ItemTxt = ControlListView($hGPO, "", $hListView, "GetText", $SelectedItem, 3)
    ConsoleWrite("$ItemTxt=" & $ItemTxt & @CRLF)
    Sleep(1000)
MsgBox(4096, "$ItemCnt", "$ItemTxt "& $ItemTxt , 15)

Next


;Send ("{Ctrl}{S}")
;Send("^s")
;_Validation($mtric,$setting)
Sleep(3500)

WinWaitActive("[CLASS:MMCMainFrame]")
Send("{ALT down}{F4}{ALT up}")
Sleep(2000)
Send ("{N}")

;MsgBox(4096, "Test", "The setting saved and set "& $mtric & " to " & $setting & " This box will time out in 10 seconds", 10)

EndFunc

he wanted some  Sleep(50)

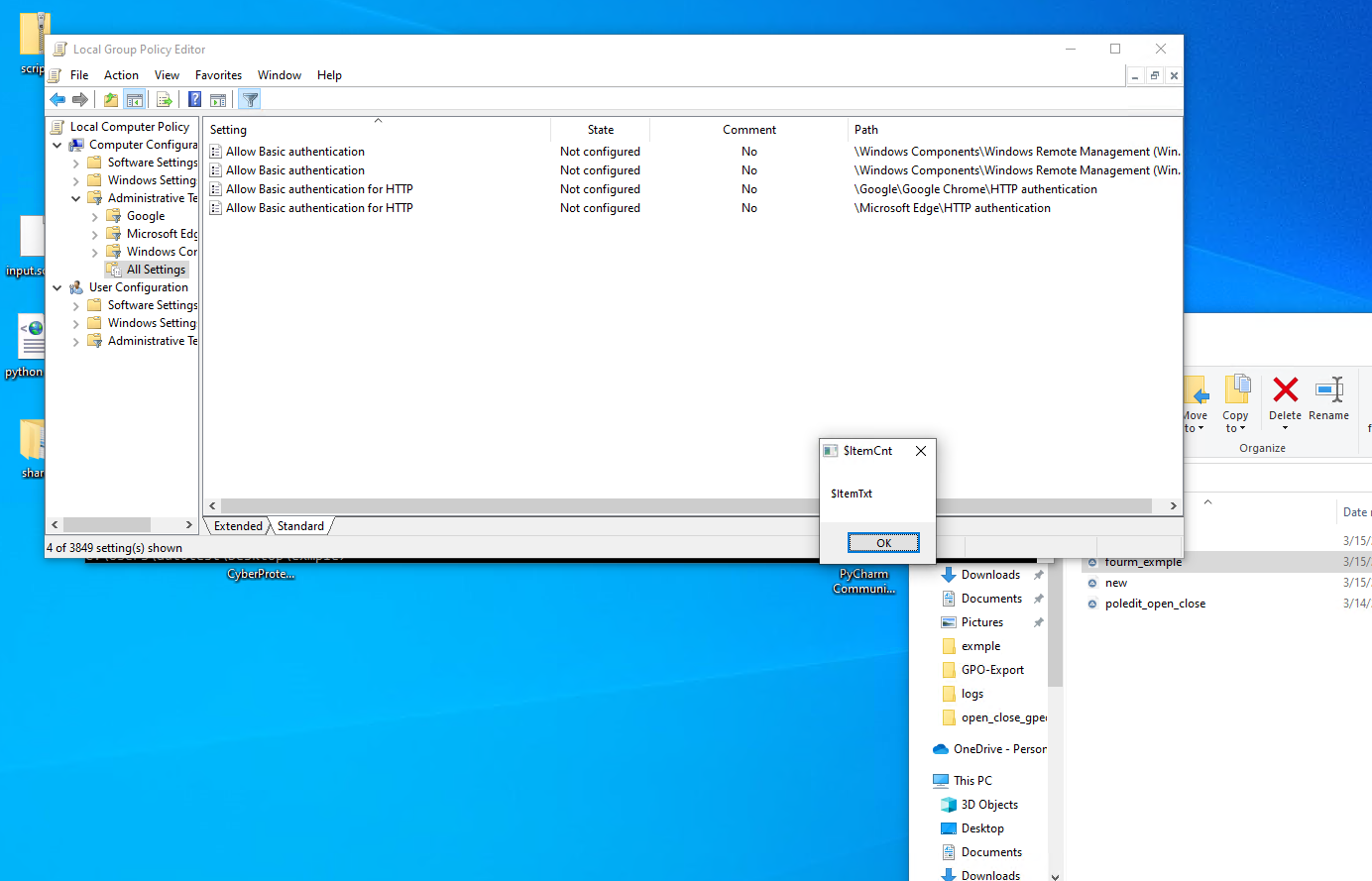

it is now showing me the counter but:
and after the message box i get

[ioa747]

I don't know,  what is the file "C:\share\open_close_gpedit\gpedit_v1.msc /a"

[gal9]

1 minute ago, ioa747 said:

I don't know,  what is the file "C:\share\open_close_gpedit\gpedit_v1.msc /a"

temple of gpedit i can update for you file https://file.io/goBbXkzmGGy4

[ioa747]

what is tha /a parameter

[gal9]

16 minutes ago, ioa747 said:

what is tha /a parameter

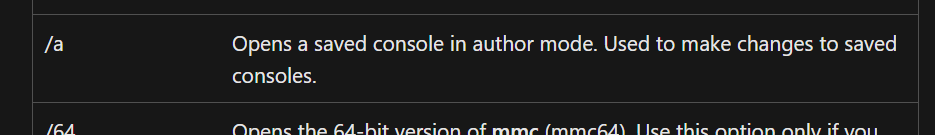

https://learn.microsoft.com/en-us/windows-server/administration/windows-commands/mmc

but if i remove /a it still does not work for me... for you it is work?

[ioa747]

I don't use it yet, so far i am  using the  ShellExecute("C:\WINDOWS\SYSTEM32\MMC.EXE", "C:\WINDOWS\SYSTEM32\GPEDIT.MSC")

Edited March 15, 2023 by ioa747

[gal9]

1 minute ago, ioa747 said:

I don't use it yet, so far i am  using the  ShellExecute("C:\WINDOWS\SYSTEM32\MMC.EXE", "C:\WINDOWS\SYSTEM32\GPEDIT.MSC")

if use this line It stuck in:

[ioa747]

and for me, there must be items for the filter to appear, for example I must first go to all settings, or where settings appear and then is the filter available

[gal9]

1 minute ago, ioa747 said:

and for me, there must be items for the filter to appear, for example I must first go to all settings, or where settings appear and then is the filter available

for to filter to appear you need to be in admintriv template /all setting

[gal9]

8 minutes ago, ioa747 said:

and for me, there must be items for the filter to appear, for example I must first go to all settings, or where settings appear and then is the filter available

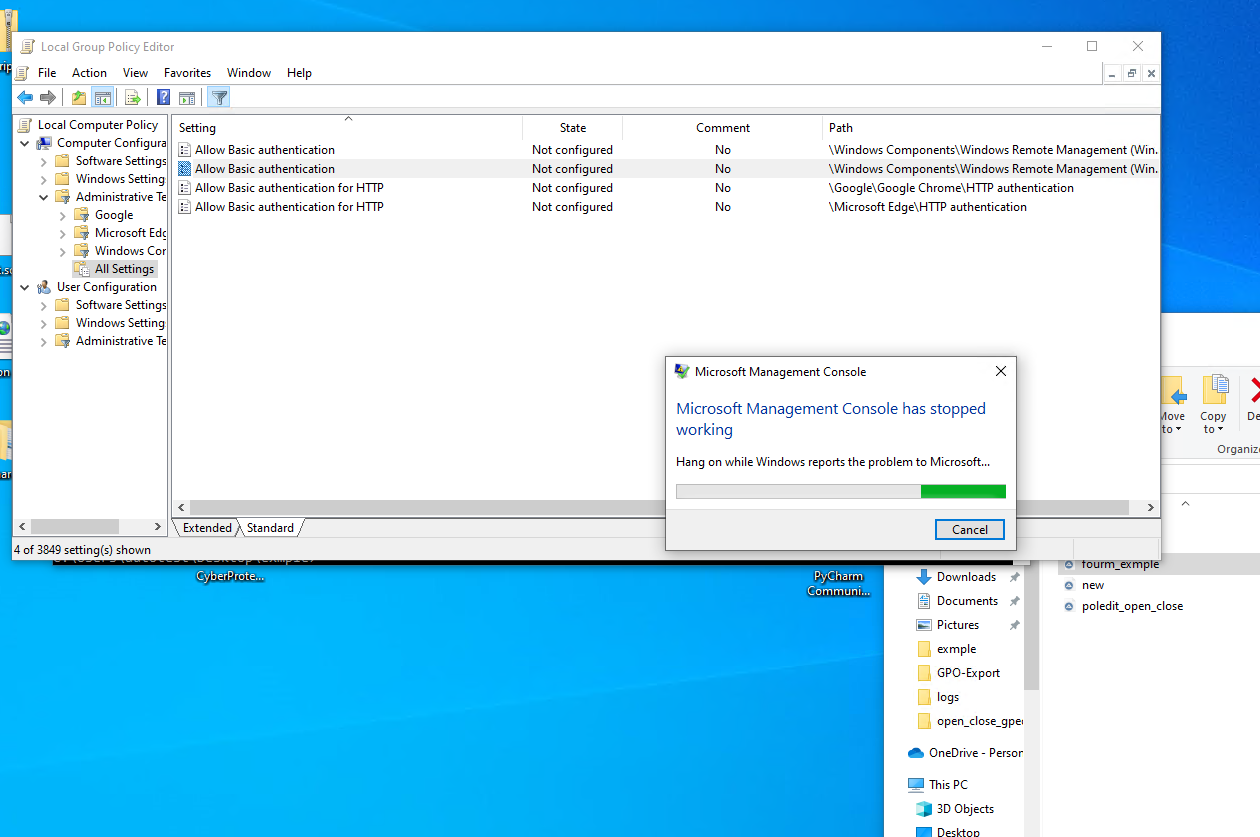

I tried on another machine i get the same error Microsoft management console has stopped working

[ioa747]

that's why I asked because your script didn't work for me, and I had to modify it

here is calls {ALT}{A}{O} before he goes to all setting

Func _Example($mtric,$setting)


    ; Run gpedit.msc
    ; Run("c:\Windows\system32\mmc.exe c:\Windows\system32\gpedit.msc /a")
    ;Run("c:\Windows\system32\mmc.exe C:\Users\" & @USERNAME &"\Desktop\script\gpedit_v1.msc /a")
        Run("c:\Windows\system32\mmc.exe " & "C:\share\open_close_gpedit\gpedit_v1.msc /a")

    Sleep(2500)


    Local $hGPO = WinWaitActive("Local Group Policy Editor")
    ConsoleWrite("$hGPO=" & $hGPO & @CRLF)

    Local $hTreeView_1 = ControlGetHandle($hGPO, "", "SysTreeView321")


    Sleep(500)
    ControlSend($hGPO, "", $hTreeView_1, "{ALT}{A}{O}")
    ControlFocus($hGPO, "", "[TITLE:Filter Options]")

    WinWaitActive("[TITLE:Filter Options]")

    Sleep(3500)



[TheXman]

@gal9

You didn't respond to my question in your previous topic about reading GPO settings, so let me ask it again.  Why are you doing all of this GUI automation in order to simply read & write registry entries?  You are aware that all of these policies are stored in the registry right?



[gal9]

8 minutes ago, ioa747 said:

that's why I asked because your script didn't work for me, and I had to modify it

here is calls {ALT}{A}{O} before he goes to all setting

Func _Example($mtric,$setting)


    ; Run gpedit.msc
    ; Run("c:\Windows\system32\mmc.exe c:\Windows\system32\gpedit.msc /a")
    ;Run("c:\Windows\system32\mmc.exe C:\Users\" & @USERNAME &"\Desktop\script\gpedit_v1.msc /a")
        Run("c:\Windows\system32\mmc.exe " & "C:\share\open_close_gpedit\gpedit_v1.msc /a")

    Sleep(2500)


    Local $hGPO = WinWaitActive("Local Group Policy Editor")
    ConsoleWrite("$hGPO=" & $hGPO & @CRLF)

    Local $hTreeView_1 = ControlGetHandle($hGPO, "", "SysTreeView321")


    Sleep(500)
    ControlSend($hGPO, "", $hTreeView_1, "{ALT}{A}{O}")
    ControlFocus($hGPO, "", "[TITLE:Filter Options]")

    WinWaitActive("[TITLE:Filter Options]")

    Sleep(3500)



yes but i want to search and after go over all results

[gal9]

5 minutes ago, TheXman said:

@gal9

You didn't respond to my question in your previous topic about reading GPO settings, so let me ask it again.  Why are you doing all of this GUI automation in order to simply read & write registry entries?  You are aware that all of these policies are stored in the registry right?



I write automation for a product and write  a registry it is not will be work After consulting with kernel people

[Skysnake]

I think it's restriction of use type issue

[gal9]

1 minute ago, Skysnake said:

I think it's restriction of use type issue

to get the path?

[gal9]

small question if you can help me again with send and ControlSend

22 minutes ago, ioa747 said:

that's why I asked because your script didn't work for me, and I had to modify it

here is calls {ALT}{A}{O} before he goes to all setting

Func _Example($mtric,$setting)


    ; Run gpedit.msc
    ; Run("c:\Windows\system32\mmc.exe c:\Windows\system32\gpedit.msc /a")
    ;Run("c:\Windows\system32\mmc.exe C:\Users\" & @USERNAME &"\Desktop\script\gpedit_v1.msc /a")
        Run("c:\Windows\system32\mmc.exe " & "C:\share\open_close_gpedit\gpedit_v1.msc /a")

    Sleep(2500)


    Local $hGPO = WinWaitActive("Local Group Policy Editor")
    ConsoleWrite("$hGPO=" & $hGPO & @CRLF)

    Local $hTreeView_1 = ControlGetHandle($hGPO, "", "SysTreeView321")


    Sleep(500)
    ControlSend($hGPO, "", $hTreeView_1, "{ALT}{A}{O}")
    ControlFocus($hGPO, "", "[TITLE:Filter Options]")

    WinWaitActive("[TITLE:Filter Options]")

    Sleep(3500)



small question if you can help me again with send and ControlSend

Send("{ALT down}{F4}{ALT up}")
Sleep(2000)
Send ("{N}")

at the end of the code

[ioa747]

1 hour ago, gal9 said:

small question if you can help me again with send and ControlSend

you can send it to  $hTreeView_1

ControlFocus($hGPO, "", $hTreeView_1)
ControlSend($hGPO, "", $hTreeView_1, "{ALT down}{F4}{ALT up}")

but after that, for me,  that  closes Group Policy Editor window , where to send the {N} ?

if not for you then try  ControlSend($hGPO, "", $hTreeView_1, "{N}")

[gal9]

On 3/15/2023 at 6:25 PM, ioa747 said:

you can send it to  $hTreeView_1

ControlFocus($hGPO, "", $hTreeView_1)
ControlSend($hGPO, "", $hTreeView_1, "{ALT down}{F4}{ALT up}")

but after that, for me,  that  closes Group Policy Editor window , where to send the {N} ?

if not for you then try  ControlSend($hGPO, "", $hTreeView_1, "{N}")

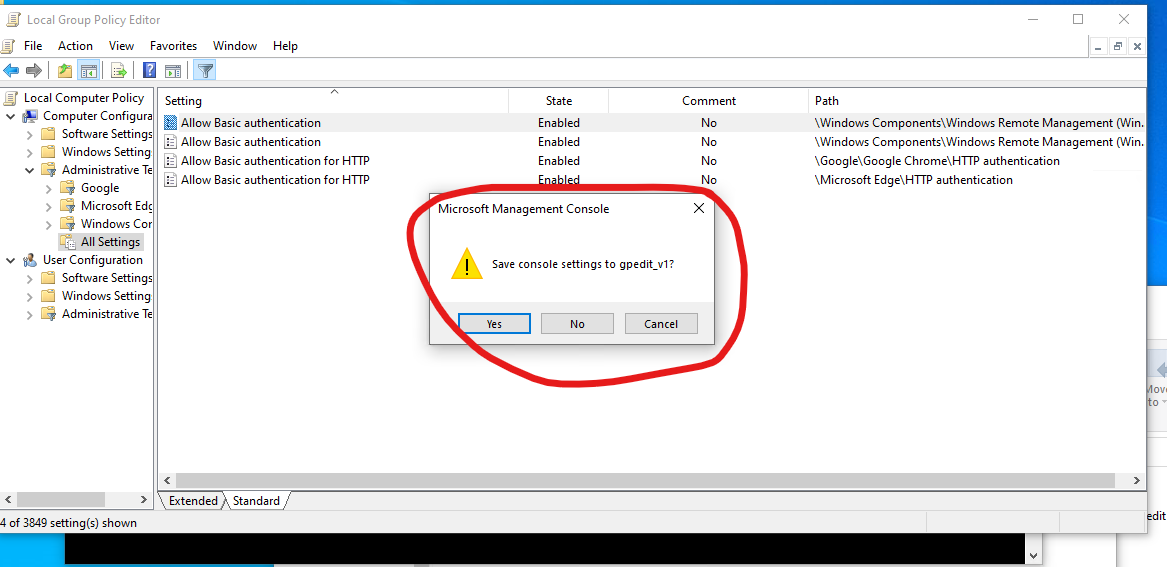

send n for this :

ControlSend($hGPO, "", $hTreeView_1, "{N}")  it is not work
this work for me


Sleep(2000)
    Local $hGPO = WinWaitActive("Microsoft Management Console")

ControlSend($hGPO, "", "[CLASS:Static; INSTANCE:2]", "{N}")

about the path did you succeed?

Edited March 19, 2023 by gal9
