No custom GUI icon in taskbar when au3 script is executed by "Run script" option

[Zedna]

According to this my old post with similar problem: different title on taskbar/gui



here is modification for different icon on taskbar/gui -> which works for me in all situations (Drag/Run/Scite...):

expandcollapse popup

#NoTrayIcon
#include <GUIConstants.au3>
#include <Misc.au3>
#include <SendMessage.au3>

;~ Global Const $WM_SYSCOMMAND = 0x0112
;~ Global Const $SC_MINIMIZE = 0xF020
;~ Global Const $SC_RESTORE = 0xF120
;~ Global Const $WM_MOVE = 0x3
;~ Global Const $WM_SIZE = 0x05

$app = GUICreate("Application title", 1, 1,-1,-1,$WS_POPUP)
GUISetIcon(@ScriptDir & '\test1.ico')
GUISetState(@SW_SHOW, $app)
$gui = GUICreate("Form title", 300, 200, -1, -1, -1, -1, $app)
GUISetIcon(@ScriptDir & '\test2.ico')
GUISetState(@SW_SHOW, $gui)

GUIRegisterMsg($WM_SYSCOMMAND, "WM_SYSCOMMAND")
GUIRegisterMsg($WM_MOVE, "WM_MOVE")

Do
    $msg = GUIGetMsg()
Until $msg = $GUI_EVENT_CLOSE

Func WM_SYSCOMMAND($hWnd, $Msg, $wParam, $lParam)
    Switch $wParam
        Case $SC_MINIMIZE
            _SendMessage($app, $WM_SYSCOMMAND, $SC_MINIMIZE, 0)
            GUISetState(@SW_HIDE, $gui)
            Return 0
        Case $SC_RESTORE
            _SendMessage($app, $WM_SYSCOMMAND, $SC_RESTORE, 0)
            GUISetState(@SW_SHOW, $gui)
            Return 0
    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc

Func WM_MOVE($hWnd, $Msg, $wParam, $lParam)
;~  If $hWnd = $gui Then
        $pos = WinGetPos($gui)
        WinMove($app, '', $pos[0], $pos[1])
;~      WinMove($app, '', _LoWord($wParam), _HiWord($wParam))
;~  EndIf
    Return $GUI_RUNDEFMSG
EndFunc

Func _HiWord($x)
    Return BitShift($x, 16)
EndFunc

Func _LoWord($x)
    Return BitAND($x, 0xFFFF)
EndFunc



Edited February 8, 2023 by Zedna

[ioa747]

unfortunately it doesn't work

[Zedna]

Here is simplified version, which should work also on new AutoIt's versions (I use very old 3.2.12.1):

#NoTrayIcon
#include <GUIConstantsEx.au3>

$app = GUICreate("Application title", 1, 1,-1,-1,0x80000000) ; $WS_POPUP=0x80000000
GUISetIcon(@ScriptDir & '\test1.ico')
GUISetState(@SW_SHOW, $app)
$gui = GUICreate("Form title", 300, 200, -1, -1, -1, -1, $app)
GUISetIcon(@ScriptDir & '\test2.ico')
GUISetState(@SW_SHOW, $gui)

Do
    $msg = GUIGetMsg()
Until $msg = $GUI_EVENT_CLOSE



But this works for me also when running on my (Unzipped) AutoIt 3.3.14.5/3.3.16.1 ...

Edited February 8, 2023 by Zedna

[ioa747]

not working

how do you have it installed?

is portable?   is in C:\Program Files (x86)\ ?

why is possible by drop in folder out of C:\Program Files (x86)\ ?

Edited February 8, 2023 by ioa747

[ioa747]

yesterday i installed it on c:\ , without result,  and I reinstalled it on C:\Program Files (x86)\

Edited February 8, 2023 by ioa747

[Nine]

not working for me either -- @Zedna you have a magical installation

[ioa747]

@Nine can you enlighten us ?

I have this version
v3.3.16.1    19 September, 2022
https://www.autoitscript.com/cgi-bin/getfile.pl?autoit3/autoit-v3-setup.zip

if i run the script from shell with right click custom icon in taskbar not working
if i run the script from SciTE with f5 custom icon in taskbar not working
if i drop the script on C:\Program Files (x86)\AutoIt3\AutoIt3.exe custom icon in taskbar not working

if I copy  the AutoIt3 folder from C:\Program Files (x86)\AutoIt3  to C:\ , and  drop the script on AutoIt3.exe custom icon in taskbar is working

Is there a logical explanation?

[Zedna]

I have got standard instalation by installer 3.2.12.1 + full Scite4AutoIt3 (from that old time).

Newer versions on my computer are only unzipped AutoIt+Scite4AutoIt3.

On my machine it's OK with ALL versions in all scenarios.

I still don't know why it's OK on my machine and not on yours.

EDIT:

I have (completely) disabled UAC on all my computers, maybe try to disable it (temporarily) too ...

Edited February 8, 2023 by Zedna

[Nine]

Which version of OS do you have @Zedna ?

I have totally no idea why it is working for Zedna and not for us all

[Zedna]

Tested on Win10 (at work) and Win7 (at home).

[Nine]

Well, I have both too. And none is working correctly as you.  In fact, you are the only one that works.  So what does it tell you ? You are an MVP, question and answer is on your side to understand and tell us the reason.

[TimRude]

On my Windows 10 system with AutoIt 3.3.16.1 installed, if I have the system taskbar setting 'Combine taskbar buttons' set to 'Always, hide labels', I get the generic AutoIt icon in the taskbar when running an uncompiled script. But if I change that setting to 'Never' or 'When taskbar is full', I see the custom icon.



Edited February 16, 2023 by TimRude

[ioa747]

that is something. But what cracks me up is

if I copy  the AutoIt3 folder from C:\Program Files (x86)\AutoIt3  to C:\ , and  drop the script on AutoIt3.exe custom icon in taskbar is working

Is there a logical explanation?

I have come to the conclusion that something is going on in the windows registry, but I don't know what

[argumentum]

_WinAPI_SetCurrentProcessExplicitAppUserModelID() will fix that

[TimRude]

24 minutes ago, argumentum said:

_WinAPI_SetCurrentProcessExplicitAppUserModelID() will fix that

Yep, it sure does! Now I get the custom icon in the taskbar no matter what 'Combine taskbar buttons' setting I use.

#NoTrayIcon
#include <GUIConstants.au3>
#include <WinAPICom.au3>
#include <WinAPIShellEx.au3>

_WinAPI_SetCurrentProcessExplicitAppUserModelID(_WinAPI_CreateGUID()) ; ensure a unique ID

GUICreate("My Custom GUI", 300, 200)
GUISetIcon(@SystemDir & "\shell32.dll", 239)
GUISetState(@SW_SHOW)

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch
WEnd



Edited February 16, 2023 by TimRude

[pixelsearch]

Hi just to let you know, I'm at my bro's home on a Win11 x64 laptop, with AutoIt portable 3.3.16.1 unzipped on a USB device, extracted from the 17.208 Kb zip file found on the download page : "AutoIt– Self Extracting Archive (for those who don’t like/want an installer)(includes x86 and x64 components and Aut2Exe and AutoItX)"

Now I run Scite.exe from the USB device, then open this .au3 script in Scite and run it with F5 (Go)

GUICreate("Custom icon in Taskbar & Systray", 400, 300)
GUISetIcon(@ScriptDir & '\script.ico') ; ok
TraySetIcon(@ScriptDir & '\script.ico') ; ok

GUISetState()

Do
Until GuiGetMsg() = -3 ; $GUI_EVENT_CLOSE (-3)

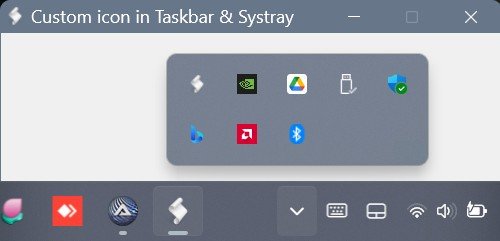

As you can see, the external icon is correctly shown in the 3 places, even when the script is an .au3 file :
In the GUI itself
In Taskbar
In SysTray

I did this test because some posters were surprised why it worked on Zedna's computer but not on their computer.
Hope it helps

Edit: the icon appears also correctly when I press Alt+Tab to switch between tasks.

Edited December 9 by pixelsearch

[ioa747]

@pixelsearch the issue was solved by @argumentum  with the following

On 2/16/2023 at 7:37 AM, argumentum said:

_WinAPI_SetCurrentProcessExplicitAppUserModelID() will fix that

However, let's do a recap.

on my computer: Windows 10 Pro   Version    22H2
with AutoIt Version: 3.3.16.1 installed


• 1) if I run the script below

#AutoIt3Wrapper_Au3Check_Parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6 -w 7
#NoTrayIcon
#include <GUIConstants.au3>
#include <WinAPIShellEx.au3>

;~ _WinAPI_SetCurrentProcessExplicitAppUserModelID(_WinAPI_CreateGUID()) ; ensure a unique ID
GUICreate("My Custom GUI", 300, 200)
GUISetIcon(@ScriptDir & '\test1.ico') ; ok
TraySetIcon(@ScriptDir & '\test1.ico') ; ok
GUISetState(@SW_SHOW)

Do
Until GuiGetMsg() = -3 ; $GUI_EVENT_CLOSE (-3)

• the display is



• 2) if I run the script below

#AutoIt3Wrapper_Au3Check_Parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6 -w 7
#NoTrayIcon
#include <GUIConstants.au3>
#include <WinAPIShellEx.au3>

_WinAPI_SetCurrentProcessExplicitAppUserModelID(_WinAPI_CreateGUID()) ; ensure a unique ID
GUICreate("My Custom GUI", 300, 200)
GUISetIcon(@ScriptDir & '\test1.ico') ; ok
TraySetIcon(@ScriptDir & '\test1.ico') ; ok
GUISetState(@SW_SHOW)

Do
Until GuiGetMsg() = -3 ; $GUI_EVENT_CLOSE (-3)

• the display is



However, as I mentioned above,
if I copy AutoIt3.exe along with the Include folder to @ScriptDir
and drag script1 onto AutoIt3.exe, then the display result is like 2



conclusion?


Also, something else that impressed me is that if I pin AutoIt3.exe to the start menu and right-click,
it also shows me image files.



Please, every comment is appreciated!
Thank you very much



[argumentum]

_WinAPI_CreateGUID() is not a good idea unless to create a constant of the script/project.
Otherwise  StringTrimRight(@ScriptName, 3) [& $VERSION]   would be a good idea, as a copy'n'paste solution.

[ioa747]

Something like that, you mean?

#NoTrayIcon
#include <GUIConstants.au3>
#include <WinAPIShellEx.au3>

_WinAPI_SetCurrentProcessExplicitAppUserModelID(StringTrimRight(@ScriptName, 3) & "_v1.0")
GUICreate("My Custom GUI", 300, 200)
GUISetIcon(@ScriptDir & '\test1.ico') ; ok
TraySetIcon(@ScriptDir & '\test1.ico') ; ok
GUISetState(@SW_SHOW)

Do
Until GuiGetMsg() = -3 ; $GUI_EVENT_CLOSE (-3)



[argumentum]



expandcollapse popup

#AutoIt3Wrapper_AU3Check_Parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6 -w 7
#NoTrayIcon ; either way, upto the coder
#include <GUIConstants.au3>
#include <WinAPIShellEx.au3> ; for _WinAPI_SetCurrentProcessExplicitAppUserModelID($sAppID)
#include <WinAPIProc.au3> ;    for _WinAPI_GetCurrentProcessExplicitAppUserModelID()
;~ #include <WinAPICom.au3> ;  for _WinAPI_CreateGUID()


;~ Global Const $_g__ProcessExplicitAppUserModelID = "{E2971A53-037D-4811-B3E3-FE79C2586831}" ; created with _WinAPI_CreateGUID()
;~ _WinAPI_SetCurrentProcessExplicitAppUserModelID($_g__ProcessExplicitAppUserModelID) ; ensure a unique product ID
; or
Global Const $VERSION = "0.1.2.3" ; @ScriptFullPath would be better than @ScriptName ? ( depending on how the script works )
_WinAPI_SetCurrentProcessExplicitAppUserModelID(StringRight(StringTrimRight(@ScriptFullPath, 3) & $VERSION, 127))  ; ensure a unique product ID [and maybe unique for version too]


; max length of "SetCurrentProcessExplicitAppUserModelID" is 127 char.
ConsoleWrite(' CurrentProcessExplicitAppUserModelID:' & @CRLF & _
        '         StringLen = ' & StringLen(_WinAPI_GetCurrentProcessExplicitAppUserModelID()) & @CRLF & _
        '              AppID >' & _WinAPI_GetCurrentProcessExplicitAppUserModelID() & '< ' & @CRLF & _
        '  @error,@extended = ' & @error & ',' & @extended & @CRLF & @CRLF)


main()
Func main()
    Local $sIcon = StringLeft(@AutoItExe, StringInStr(@AutoItExe, "\", 0, -1)) & "Icons\MyAutoIt3_Red.ico"
    Local $hGUI = GUICreate("My Custom GUI", 300, 200)
    GUISetIcon($sIcon) ; ok
    TraySetIcon($sIcon) ; ok
    Local $idBttn1 = GUICtrlCreateButton("MsgBox without parent", 5, 5, 200, 25)
    Local $idBttn2 = GUICtrlCreateButton("MsgBox with parent", 5, 35, 200, 25)
    GUISetState(@SW_SHOW)

    While "meh" ; it is very important to have fun while coding, for me anyway
        Switch GUIGetMsg()
            Case $GUI_EVENT_CLOSE
                ExitLoop

            Case $idBttn1
                MsgBox(0, "title", "Bttn 1" & @LF & @LF & "w/o parent", 60)
                Do ; the msgbox is smaller than the gui and GuiGetMsg gets queued,
                Until Not GUIGetMsg() ; therefore this avoids closing the gui unwillingly.

            Case $idBttn2 ; hence is better to provide the parent if present.
                MsgBox(0, "title", "Bttn 2" & @LF & @LF & "with parent", 60, $hGUI)

        EndSwitch
    WEnd
    GUIDelete($hGUI)
EndFunc   ;==>main

Yes @ioa747. I too felt that it needed a better presentation than just a phrase.
That's why I posted this.
I tend to tell people to "put code where you mouth is". I was failing my own demands 😁

Edited December 8 by argumentum
