guiCreate problem help.

[marcus_tong]

hi, all.

I am new to autoit, but  I find it quite useful to my usual work.

recently, I create a form, and add some frequent web links to that form.

I convert that form to exe program, and set it "always on top" on my windows deskotp.

i want to add other functions.

1、when I click to form's close button, it will not exit but minimize to the system tray.

2、when I pull the form to the edge of the screen, it will auto hide, when the mouse move to that edge, it can display.

3、when I click system tray icon of that form, it will show me the "exit" but no “Script paused“ menu.

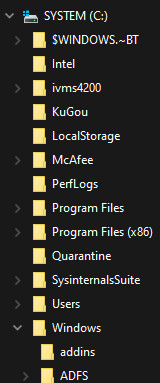

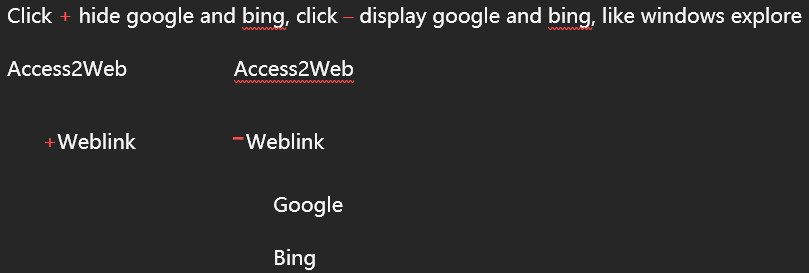

4、finally, i want to add function like windows explorer, but how to make the "arrow" or "cross".

Attachment is the code, and the screenshot.



TestFavrioutWeblink.au3

[marcus_tong]

sorry for the poor English.

Thanks in advance.

[Dan_555]

Lucky i had a script with similar requirements already written, so i could copy&paste few lines into it:

expandcollapse popup

#include <TrayConstants.au3>
#include <GUIConstantsEx.au3>
#include "GUIHyperLink.au3"
#include <WindowsConstants.au3>
Opt("TrayIconHide", 0)
Opt("TrayMenuMode", 11)
Opt("TrayOnEventMode", 0)
Opt("TrayAutoPause",0)
$hGUI = GUICreate("Access2Web", 200, 250, -1, -1, $WS_EX_LAYERED, $WS_EX_TOOLWINDOW)
$tLable = GUICtrlCreateLabel("Access2Web", 10, 10, 60, 15)
WinSetOnTop($hGUI, "", 1)
Global $GUIVISIBLE = 1 ;Set the initial state of the gui

Global $idExit = TrayCreateItem("Exit")
TraySetClick(16)

$SingleClickOpen = 1 ; Set to 1 to open the gui with 1 click on the tray, 0 for doubleclick

If $SingleClickOpen = 0 Then
    $TRAYCLICK = $TRAY_EVENT_PRIMARYDOUBLE
Else
    $TRAYCLICK = $TRAY_EVENT_PRIMARYUP
EndIf

$nAutoItScript_Com_HyperLink = _GUICtrlHyperLink_Create("Google", 25, 35, 155, 15, 0x0000FF, 0x551A8B, _
         -1, 'www.google.com', 'Visit: www.google.com', $hGUI)
$nAutoItScript_Com_HyperLink = _GUICtrlHyperLink_Create("Google1", 25, 65, 155, 15, 0x0000FF, 0x551A8B, _
         -1, 'www.google.com', 'Visit: www.google.com', $hGUI)



GUISetState(@SW_SHOW, $hGUI)

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            ;ConsoleWrite("test" & @CRLF) ;debug info
            GUISetState(@SW_HIDE, $hGUI)
    EndSwitch

    Switch TrayGetMsg()
        Case $idExit
            Exit
        Case $TRAYCLICK
            If $GUIVISIBLE = 0 Then
                GUISetState(@SW_SHOW, $hGUI)
                $GUIVISIBLE = 1
            Else
                GUISetState(@SW_HIDE, $hGUI)
                $GUIVISIBLE = 0
            EndIf
    EndSwitch
WEnd

Func _CreatoRLab_ShowInfo($nCtrlID, $h_GUI)
    MsgBox(64, 'Info', 'HyperLink Clicked:' & @CRLF & GUICtrlRead($nCtrlID), 0, $h_GUI)
EndFunc   ;==>_CreatoRLab_ShowInfo

Solved are your
1.You can single click (changeable to doubleclick) the icon in the tray to open/hide the window.
3. You can click on close to hide the window.

I do not know what you want to do with the 4.

Edited January 18, 2023 by Dan_555
commented out a debug info line

[marcus_tong]

thank you Dan_555, your solution is good. solve1 and 3 problem.

[Dan_555]

Hmm, maybe you are searching for this ?

Global $idTreeview = GUICtrlCreateTreeView(3, 26, 200, 420, BitOR($TVS_HASBUTTONS, $TVS_HASLINES, $TVS_LINESATROOT, $TVS_SHOWSELALWAYS), $WS_EX_CLIENTEDGE)



[marcus_tong]

20 hours ago, Dan_555 said:

Global $idTreeview = GUICtrlCreateTreeView(3, 26, 200, 420, BitOR($TVS_HASBUTTONS, $TVS_HASLINES, $TVS_LINESATROOT, $TVS_SHOWSELALWAYS), $WS_EX_CLIENTEDGE)

sorry Dan_555, i can not understand this command, and i do not know how to apply it.

i am new to autoit.

thanks.

[Dan_555]

Here is what i do, first, when i do not know of a command (well, actually, auto it has so many commands that i must not know them all, just have to know where to read about it !)

Open the autoit-scite editor, paste the line and save it as test.au3

Then place the cursor right before the GuiCtrlCreateTreeView and press f1.

A help file will open. Scroll down, there will be an example file. Click on open this script. It will open in your scite editor and you can  test it.

[marcus_tong]

thanks Dan_555，you help me a lot.

after press f1, autoit show me the help about GUICtrlCreateTreeView. i will try to write the code according to the Example.

[marcus_tong]

On 2/1/2023 at 11:30 PM, Dan_555 said:

Here is what i do, first, when i do not know of a command (well, actually, auto it has so many commands that i must not know them all, just have to know where to read about it !)

Open the autoit-scite editor, paste the line and save it as test.au3

Then place the cursor right before the GuiCtrlCreateTreeView and press f1.

A help file will open. Scroll down, there will be an example file. Click on open this script. It will open in your scite editor and you can  test it.

hi, Dan_555, acording to the page，i tried to write the code, there is quite a lot of command and syntax i do not understand, but efficiently solve my 4 problem.

when i click google, it will execute ShellExecute("google.com").

it is perfect.
