check radio buttons

[gal9]

I hope I'm not spamming.
I'm trying to check if a radio button is checked

If $setting = "enabled"  Then
            If ControlCommand($mtric, "Not &Configured", "[WindowsForms10.BUTTON.app.0.297b065_r64_ad13]", "Check", "") = 1 Then
                Send("{down 1}{ENTER}")
                            Sleep(2000)

            ElseIf ControlCommand($mtric, "&Enabled", "[WindowsForms10.BUTTON.app.0.297b065_r64_ad14]", "Check", "") = 1 Then
                            Sleep(2000)

            ElseIf ControlCommand($mtric, "&Disabled", "[WindowsForms10.BUTTON.app.0.297b065_r64_ad15]", "Check", "") = 1 Then
                Send("{up 1}{ENTER}")
                            Sleep(2000)
            EndIf
EndIf


If $setting = "disable"  Then
    If ControlCommand($mtric, "Not &Configured", "[WindowsForms10.BUTTON.app.0.297b065_r64_ad13]", "Check", "") = 1 Then
            Send("{down 2}{ENTER}")

    ElseIf ControlCommand($mtric, "&Enabled", "[WindowsForms10.BUTTON.app.0.297b065_r64_ad14]","Check", "") = 1 Then
                Send("{down 1}{ENTER}")

    ElseIf ControlCommand($mtric, "&Disabled", "[WindowsForms10.BUTTON.app.0.297b065_r64_ad15]", "Check", "") = 1 Then
                Send("{ENTER}")
            Sleep(2000)
    EndIf
EndIf

it not work. i see this exmple https://www.autoitscript.com/autoit3/docs/functions/GUICtrlCreateRadio.htm but I do not want to create radio buttons I want to read

Edited October 25, 2022 by gal9

[BigDaddyO]

use the same ControlCommand with the switch "IsChecked", ""

[gal9]

1 minute ago, BigDaddyO said:

use the same ControlCommand with the switch "IsChecked", ""

IsChecked work of checkbox not radio buttons


[BigDaddyO]

Did you try it?  What did it return?



Otherwise, I think you can use the GuiCtrl commands if you pass the control handle to them.

#include <GUIConstantsEx.au3>
$hRdo1 = ControlGetHandle($mtric, "Not &Configured", "[WindowsForms10.BUTTON.app.0.297b065_r64_ad13]",)
If BitAND(GUICtrlRead($hRdo1), $GUI_CHECKED) = $GUI_CHECKED Then
    MsgBox(0, "", "It's Checked")
Else
    MsgBox(0, "", "It's NOT checked")
EndIf



[gal9]

On 10/25/2022 at 5:39 PM, BigDaddyO said:

Did you try it?  What did it return?



Otherwise, I think you can use the GuiCtrl commands if you pass the control handle to them.

#include <GUIConstantsEx.au3>
$hRdo1 = ControlGetHandle($mtric, "Not &Configured", "[WindowsForms10.BUTTON.app.0.297b065_r64_ad13]",)
If BitAND(GUICtrlRead($hRdo1), $GUI_CHECKED) = $GUI_CHECKED Then
    MsgBox(0, "", "It's Checked")
Else
    MsgBox(0, "", "It's NOT checked")
EndIf

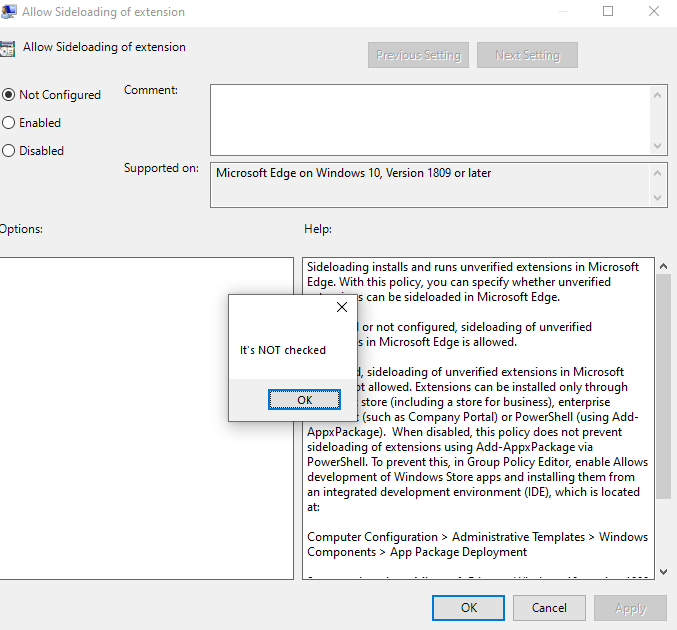

it is work thanks!!!

editing:

no is not

Edited October 28, 2022 by gal9

[gal9]

18 hours ago, BigDaddyO said:

Did you try it?  What did it return?



Otherwise, I think you can use the GuiCtrl commands if you pass the control handle to them.

#include <GUIConstantsEx.au3>
$hRdo1 = ControlGetHandle($mtric, "Not &Configured", "[WindowsForms10.BUTTON.app.0.297b065_r64_ad13]",)
If BitAND(GUICtrlRead($hRdo1), $GUI_CHECKED) = $GUI_CHECKED Then
    MsgBox(0, "", "It's Checked")
Else
    MsgBox(0, "", "It's NOT checked")
EndIf



expandcollapse popup

$notConfigured = ControlGetHandle($mtric, "Not &Configured", "WindowsForms10.BUTTON.app.0.297b065_r64_ad13")
$enabled = ControlGetHandle($mtric, "&Enabled", "WindowsForms10.BUTTON.app.0.297b065_r64_ad14")
$disabled = ControlGetHandle($mtric, "&Disabled", "WindowsForms10.BUTTON.app.0.297b065_r64_ad15")


If $setting = "enabled"  Then
    Sleep(3500)
    WinWaitActive("[WindowsForms10.Window.8.app.0.297b065_r69_ad16]")
    If BitAND(GUICtrlRead($notConfigured), $GUI_CHECKED) = $GUI_CHECKED Then
        Send("{down 1}{ENTER}")
    ElseIf BitAND(GUICtrlRead($disabled), $GUI_CHECKED) = $GUI_CHECKED Then
        Send("{up 1}{ENTER}")
    ElseIf BitAND(GUICtrlRead($enabled), $GUI_CHECKED) = $GUI_CHECKED Then
        Send("{ENTER}")
    EndIf
EndIf


If $setting = "disable"  Then
    Sleep(3500)
    WinWaitActive("[WindowsForms10.Window.8.app.0.297b065_r69_ad16]")
    If BitAND(GUICtrlRead($notConfigured), $GUI_CHECKED) = $GUI_CHECKED Then
            Send("{down 2}{ENTER}")
    ElseIf BitAND(GUICtrlRead($disabled), $GUI_CHECKED) = $GUI_CHECKED Then
        Send("{ENTER}")
    ElseIf BitAND(GUICtrlRead($enabled), $GUI_CHECKED) = $GUI_CHECKED Then
                Send("{down 1}{ENTER}")
    EndIf
EndIf


If $setting = "$not configured"  Then
    Sleep(3500)
    If BitAND(GUICtrlRead($notConfigured), $GUI_CHECKED) = $GUI_CHECKED Then
            Send("{ENTER}")
    ElseIf BitAND(GUICtrlRead($disabled), $GUI_CHECKED) = $GUI_CHECKED Then
        Send("{up 1}{ENTER}")
    ElseIf BitAND(GUICtrlRead($enabled), $GUI_CHECKED) = $GUI_CHECKED Then
                Send("{down 1}{ENTER}")
    EndIf
EndIf

i try to do this but is stuck





not work

Edited October 26, 2022 by gal9

[Nine]

Please refer to _GUICtrlButton_GetCheck in help file.  Note that it requires a handle not a GUI ID.  This is just what you need.

[gal9]

1 minute ago, Nine said:

Please refer to _GUICtrlButton_GetCheck in help file.  Note that it requires a handle not a GUI ID.  This is just what you need.

you mean coordinate?

[Nine]

From help file

Quote

Gets the check state of a radio button or check box



[gal9]

5 minutes ago, Nine said:

From help file



But there crate radio I want to scan WindowsForms how i can't to catch buttons. if you have example scan from

Edited October 26, 2022 by gal9

[Nine]

I don't understand what you are saying.  Just use the function with the handle of your radio button, not that complicated, is it ?



[gal9]

3 minutes ago, Nine said:

I don't understand what you are saying.  Just use the function with the handle of your radio button, not that complicated, is it ?

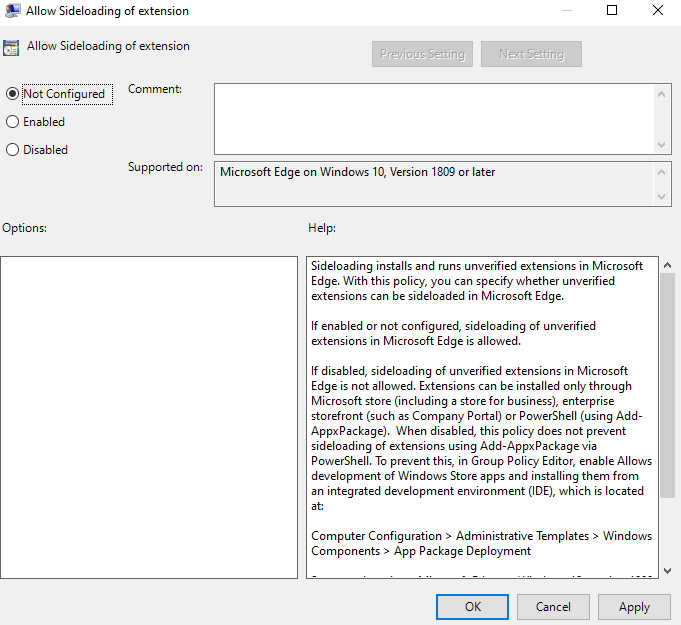

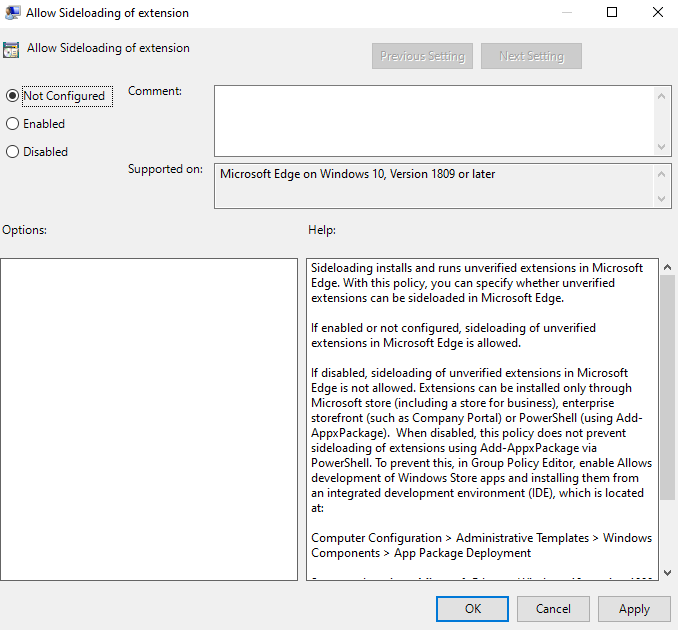

I am using the "Autoit v3 Windows Info", and I found the "Class" and the "Instances" of the radio button.
Now I need to do 2 things:
1) I want to select the radio button by using the "class" and the "instances".

2) I need to validate the status of the same radio button. If the radio button is selected or not selected.





[gal9]

someone can help please

[BigDaddyO]

Nine did help you.  you need to look in the help file at _GUICtrlButton_GetCheck it even has an example.

if that function is not working for you, post the code you use as a test and show what the return from the function is.



[gal9]

On 10/28/2022 at 3:03 PM, BigDaddyO said:

Nine did help you.  you need to look in the help file at _GUICtrlButton_GetCheck it even has an example.

if that function is not working for you, post the code you use as a test and show what the return from the function is.



But in the example they use coordinates I want to use  class and instances

[gal9]

On 10/28/2022 at 3:03 PM, BigDaddyO said:

Nine did help you.  you need to look in the help file at _GUICtrlButton_GetCheck it even has an example.

if that function is not working for you, post the code you use as a test and show what the return from the function is.

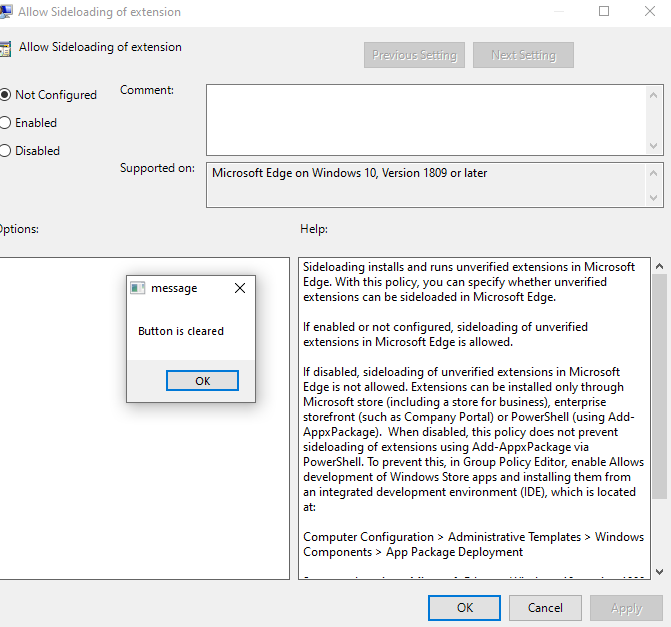

I get three times Button is cleared for not configured enabled disabled

this is my code i try to do like example


expandcollapse popup

#include <Constants.au3>
#include <Array.au3>
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <GuiButton.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>

;
; AutoIt Version: 3.0
; Language:       English
; Platform:       Win9x/NT
; Author:         Jonathan Bennett (jon at autoitscript dot com)
; Modified:       mLipok
;
; Script Function:
;   Opens Notepad, types in some text and then quits the application.
;




If Not $CmdLine[0] Then Exit Run(@AutoItExe & " " & @ScriptFullPath & " /Allow Adobe Flash /param2 disable")

MsgBox(4096, "message", "The setting  "& $CmdLine[1] & " set to " & $CmdLine[2] & " This box will time out in 3 seconds", 3)
    Sleep(5000)

        Local $mtric =$CmdLine[1]
;       "Allow Adobe Flash"
        Local $setting = $CmdLine[2]
        ;"disable"
_Example($mtric,$setting)
MsgBox(4096, "Test", "The setting saved and set "& $mtric & " to " & $setting & " This box will time out in 3 seconds", 3)
Exit(0)

; Finished!


Func _Example($mtric,$setting)


    ; Run gpedit.msc
    ; Run("c:\Windows\system32\mmc.exe c:\Windows\system32\gpedit.msc /a")
    Run("c:\Windows\system32\mmc.exe C:\Users\gal.dahan\Desktop\script\gpedit_v1.msc /a")

    Sleep(2500)

    WinWaitActive("[CLASS:MMCMainFrame]")

    Sleep(500)

    Send("{ALT}{A}{O}")
    While ControlGetFocus("[TITLE:Filter Options]") = ""
        sleep(1)
    WEnd
    WinWaitActive("[TITLE:Filter Options]")

    Sleep(3500)

If ControlCommand("Filter Options", "Enable &Keyword Filters", "Button2", "IsChecked", "") = 0 Then
    Send("{ALT down}{K}{F}{ALT up}")
Else
    Send("{ALT down}{F}{ALT up}")
EndIf

Sleep(3500)
    ;;Type search
Send($mtric)
Sleep(3500)

Send("{ENTER}")
Sleep(5500)
                Send("{tab}{down 1}{ENTER}")
                Sleep(2000)
        Send("{down 2}{ENTER}")
        Sleep(4000)

             Local $notConfigured = ControlGetHandle($mtric, "Not &Configured", "WindowsForms10.BUTTON.app.0.297b065_r64_ad13")
             Local $enabled = ControlGetHandle($mtric, "&Enabled", "WindowsForms10.BUTTON.app.0.297b065_r64_ad14")
             Local $disabled = ControlGetHandle($mtric, "&Disabled", "WindowsForms10.BUTTON.app.0.297b065_r64_ad15")
            Example2()


Sleep(3500)

Send ("{Ctrl}{S}")
Send("^s")
;_Validation($mtric,$setting)
Sleep(3500)

WinWaitActive("[CLASS:MMCMainFrame]")
Send("{ALT down}{F4}{ALT up}")
Sleep(2000)

;MsgBox(4096, "Test", "The setting saved and set "& $mtric & " to " & $setting & " This box will time out in 10 seconds", 10)

EndFunc

Global $g_idMemo

Func Example2()
        Local $idRdo, $idRdo2, $idChk
        Local $notConfigured = ControlGetHandle($mtric, "Not &Configured", "WindowsForms10.BUTTON.app.0.297b065_r64_ad13")
        Local $enabled = ControlGetHandle($mtric, "&Enabled", "WindowsForms10.BUTTON.app.0.297b065_r64_ad14")
        Local $disabled = ControlGetHandle($mtric, "&Disabled", "WindowsForms10.BUTTON.app.0.297b065_r64_ad15")


        _GUICtrlButton_SetCheck($notConfigured)
        _GUICtrlButton_SetFocus($notConfigured) ; set focus, shows this doesn't affect _GUICtrlButton_GetCheck


        GUISetState(@SW_SHOW)

        MemoWrite("$idRdo checked status.: " & @CRLF & @TAB & _ExplainCheckState(_GUICtrlButton_GetCheck($enabled)) & @CRLF)
        MemoWrite("$idRdo2 checked status: " & @CRLF & @TAB & _ExplainCheckState(_GUICtrlButton_GetCheck($notConfigured)) & @CRLF)
        MemoWrite("$idChk checked status.: " & @CRLF & @TAB & _ExplainCheckState(_GUICtrlButton_GetCheck($disabled)) & @CRLF)

        While 1
                Switch GUIGetMsg()
                        Case $GUI_EVENT_CLOSE
                                ExitLoop
                EndSwitch
        WEnd

        Exit
EndFunc   ;==>Example

; Write a line to the memo control
Func MemoWrite($sMessage)
    Local $g_idMemo
        GUICtrlSetData($g_idMemo, $sMessage & @CRLF, 1)
EndFunc   ;==>MemoWrite

Func _ExplainCheckState($iState)
        Switch $iState
                Case $BST_CHECKED
                        MsgBox(4096, "message", "Button is checked.", 3)
                        Return "Button is checked."
                    Case $BST_INDETERMINATE
                        MsgBox(4096, "message", "Button is grayed, indicating an indeterminate state (applies only if the button has the $BS_3STATE or $BS_AUTO3STATE style).", 3)
                        Return "Button is grayed, indicating an indeterminate state (applies only if the button has the $BS_3STATE or $BS_AUTO3STATE style)."
                    Case $BST_UNCHECKED
                        MsgBox(4096, "message", "Button is cleared", 3)
                        Return "Button is cleared"
        EndSwitch
EndFunc   ;==>_ExplainCheckState

it works until the moment I call  Example2() to check the radio buttons. I get three times  "Button is cleared"  I need to check  If it is checked

Edited October 30, 2022 by gal9

[SeanGozlan]

I have also problem with the radio button. There is any good example how to click on a radio button, but without using cordinate.
This is odd. because the autoit tool find the radio button instances and the class easly.

If there is a way to take the cordinate of class ?  and then I can use to click on it.

Please help.

[Nine]

You did not set any error handling, how do you know that any statement is working ?

Now we gonna do a small test, you're gonna run your application manually, then set the radio button "Not configured" manually also.  Then run the following script from Scite :

#include <GuiButton.au3>

Local $hWnd = WinWaitActive("[CLASS:MMCMainFrame]", "", 5)
ConsoleWrite("WinWaitActive " & @error & "/" & $hWnd & @CRLF)
Local $hControl = ControlGetHandle($hWnd, "", "WindowsForms10.BUTTON.app.0.297b065_r64_ad13")
ConsoleWrite("Not configured " & @error & "/" & $hControl & @CRLF)
Local $iResult = _GUICtrlButton_GetCheck($hControl)
If $iResult = $BST_CHECKED Then MsgBox($MB_SYSTEMMODAL, "", "Checked")
If $iResult = $BST_INDETERMINATE  Then MsgBox($MB_SYSTEMMODAL, "", "Inderterminate")
If $iResult = $BST_UNCHECKED  Then MsgBox($MB_SYSTEMMODAL, "", "Cleared")

Report Scite console.

Edited October 30, 2022 by Nine

[gal9]

8 minutes ago, Nine said:

You did not set any error handling, how do you know that any statement is working ?

Now we gonna do a small test, you're gonna run your application manually, then set the radio button "Not configured" manually also.  Then run the following script from Scite :

#include <GuiButton.au3>

Local $hWnd = WinWaitActive("[CLASS:MMCMainFrame]", "", 5)
ConsoleWrite("WinWaitActive " & @error & "/" & $hWnd & @CRLF)
Local $hControl = ControlGetHandle($hWnd, "", "WindowsForms10.BUTTON.app.0.297b065_r64_ad13")
ConsoleWrite("Not configured " & @error & "/" & $hControl & @CRLF)
Local $iResult = _GUICtrlButton_GetCheck($hControl)
If $iResult = $BST_CHECKED Then MsgBox($MB_SYSTEMMODAL, "", "Checked")
If $iResult = $BST_INDETERMINATE  Then MsgBox($MB_SYSTEMMODAL, "", "Inderterminate")
If $iResult = $BST_UNCHECKED  Then MsgBox($MB_SYSTEMMODAL, "", "Cleared")

Report Scite console.

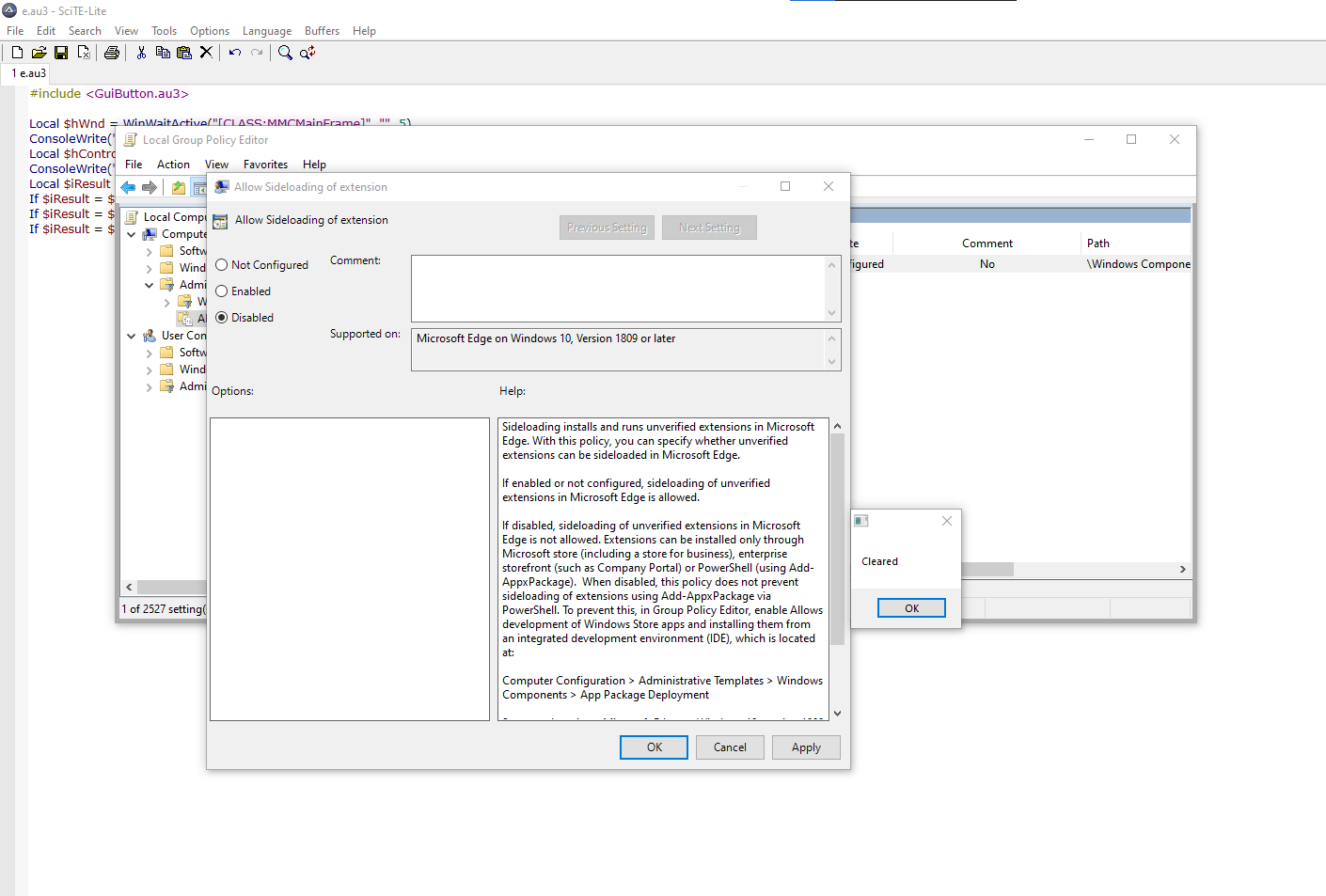

"Not configured" is marked I get Cleared.
"Enabled" is marked I get Cleared.
"Disabled" is marked I get Cleared.

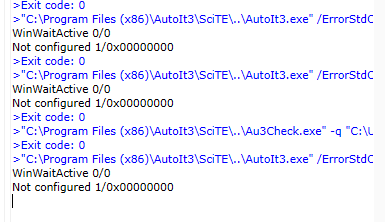

in the console  i get:

Edited October 30, 2022 by gal9

[gal9]

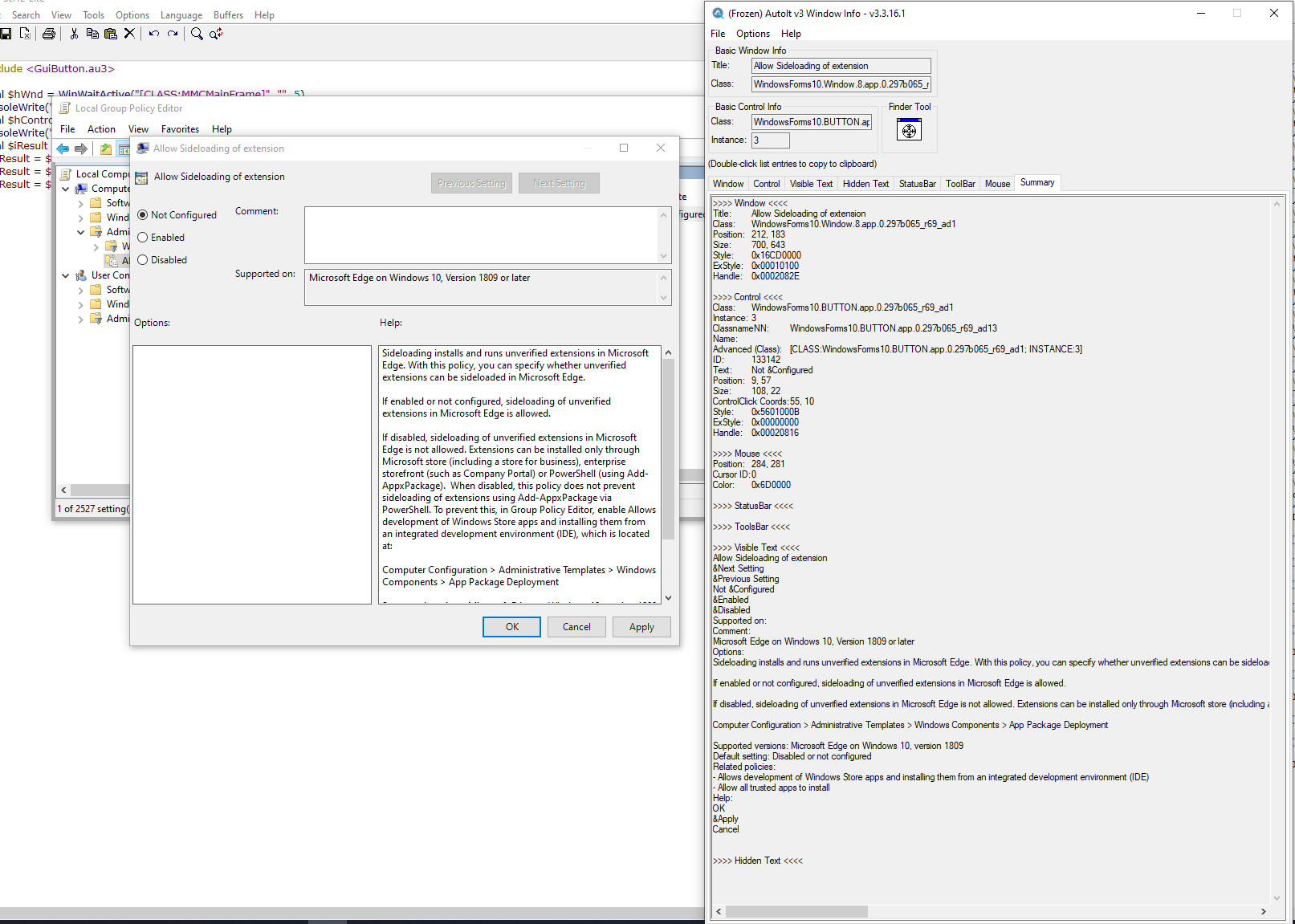

this is my info Maybe a problem there? I don't see any problem
