WebDriver UDF (W3C compliant version) - 2024/09/21

[satter]

#include <File.au3>
#include "wd_core.au3"
#include "wd_helper.au3"

Local $sDesiredCapabilities, $sSession

SetupGecko()

_WD_Startup()

$sSession = _WD_CreateSession($sDesiredCapabilities)
_WD_Navigate($sSession, "https://soap2day.im/")

Func SetupGecko()
_WD_Option('Driver', 'geckodriver.exe')
_WD_Option('DriverParams', '--log trace')
_WD_Option('Port', 4444)
$sDesiredCapabilities = '{"capabilities": {"alwaysMatch": {"browserName": "firefox", "acceptInsecureCerts":true}}}'
EndFunc

I want view  https://soap2day.im using webdriver but cloudflare has blocked.

[Danp2]

@satter Thanks for explaining. Unfortunately, I'm not currently aware of a way to bypass this issue.

[NassauSky]

A quick search it might be possible in python to handle a problem like this using execute_cdp_cmd but I don't think there is a way to do this in autoit but I'm no expert:

https://stackoverflow.com/questions/53039551/selenium-webdriver-modifying-navigator-webdriver-flag-to-prevent-selenium-detec

[Danp2]

@NassauSky See _WD_ExecuteCdpCommand  in wd_helper.au3

[NassauSky]

Question:

Is there a trick to acquiring pre-click elements or pre-keypress elements.

For example if I connect to my webserver which changes html data frequently and I manually type in a value to search for and press enter, it seems $LastFieldVal = _WD_ElementAction($sSession, $LastClickMelem, 'attribute', 'value') is gone instantly after pressing Enter.  The value in the field is not accurate after the Enter key is pressed or a submit button is clicked.

Edited November 27, 2020 by NassauSky

[Danp2]

@NassauSky Not sure that I follow your description of the situation. Are you receiving an error, such as "stale element reference"? Or is the issue that you are unable to retrieve the value that you just entered once the form is submitted?

[NassauSky]

I apologize it’s the latter

[Danp2]

@NassauSky What's your "use case"? In other words, why do you need access to this information? Be specific.



[NassauSky]

@Danp2 Hmmm come to think of it I might not need to do it that way. Generally it's just me running the tests so I can do it myself.  Trying to make my life easier collecting a vast amount of statistics and while I was working on the project I was thinking to make it future usable for a broader spectrum of options.

Thanks for being quick with your responses. It was a holiday.

Edited November 27, 2020 by NassauSky

[samibb]

DEAR @Danp2

i have opened Telnet and i Attached with exist web page .

my case is i could not put a value to text and click the button .

i have use many ways but not working



expandcollapse popup

SetupChrome()
_WD_Startup()

$sSession = _WD_CreateSession($sDesiredCapabilities)
MsgBox(0,'$sSession',$sSession)
;_WD_Navigate($sSession, "https://vpn.saudia.com:11029/1ASIHGAPSV/arp/index.html?SITK=QQC5RKM89J000203FNCAYXNE0002&SITK2=QQC5RKM89J000203FNCAYXNE0002&SYS=PRODUCTION&PHS=PRD")
_WD_Attach  ($sSession,"Amadeus Retailing Platform - PRD(PRODUCTION)",DefaulT)
SendElements("//input[@name=aFSearchParameter]",'056')
;SendElements("//input[ name='aFSearchParameter']",'056')
;SendElements("//input[@ID='txtPassword']",'sami')
MsgBox(0,0,'stop')
;;DemoClick("//button[@ID='btnSearchId']")
;;MsgBox(0,1,'stop')
Func SetupChrome()

_WD_Option('Driver', 'chromedriver.exe')
_WD_Option('Port', 9515)
_WD_Option('DriverParams', '--verbose --log-path="' & @ScriptDir & '\chrome.log"')

$sDesiredCapabilities = '{"capabilities": {"alwaysMatch": {"goog:chromeOptions": {"debuggerAddress": "localhost:9222"}}}}'
EndFunc
Func SendElements($Elment,$TXT)
    Local $sElement, $aElements, $sValue, $sButton, $sResponse, $bDecode, $sDecode, $hFileOpen

    ;***********************************************************************
    $sElement = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, $Elment)
    MsgBox(0,$TXT,$sElement)
  ;***********************************************************************
    Local $TKT_ID = _WD_GetElementByName($sSession, 'aFSearchParameter')
    MsgBox(0,'$TKT_ID',$TKT_ID)
  ;***********************************************************************
    $aElements = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, "//iput", Default)
    _ArrayDisplay($aElements, "Found Elements")
  ;***********************************************************************
for $i = 0 to UBound($aElements)-1
     $sValue = _WD_ElementAction($sSession, StringStripWS($aElements[$i],8),'NAME')
    MsgBox(0,'Name',$sValue)
Next
;***********************************************************************
    $sValue = _WD_ElementAction($sSession, $sElement, 'property', 'value')
    _WD_ElementAction($sSession, $sElement, 'clear')
    ; Set element's contents
    ;MsgBox(0,'Send user',$TXT)
    _WD_ElementAction($sSession, $sElement, 'value', $TXT)


;MsgBox(0,'send done',$sElement)
    ; Retrieve then clear contents

EndFunc



[Danp2]

@samibb Telling me that something doesn't work without any further details isn't very helpful. 😒

Run this code in Scite and then post the resulting output --

#include "wd_core.au3"
#include "wd_helper.au3"

Local $sDesiredCapabilities, $sSession, $sElement

SetupChrome()
_WD_Startup()

$sSession = _WD_CreateSession($sDesiredCapabilities)
_WD_Attach($sSession,"Amadeus Retailing Platform - PRD(PRODUCTION)",DefaulT)

$sElement = _WD_GetElementByName($sSession, 'aFSearchParameter')

If Not @error Then
    _WD_SetElementValue($sSession, $sElement, '056')
EndIf


Func SetupChrome()

_WD_Option('Driver', 'chromedriver.exe')
_WD_Option('Port', 9515)
_WD_Option('DriverParams', '--verbose --log-path="' & @ScriptDir & '\chrome.log"')

$sDesiredCapabilities = '{"capabilities": {"alwaysMatch": {"goog:chromeOptions": {"debuggerAddress": "localhost:9222"}}}}'
EndFunc



[samibb]

@Danp2

good day

expandcollapse popup

>"C:\Program Files (x86)\AutoIt3\SciTE\..\AutoIt3.exe" "C:\Program Files (x86)\AutoIt3\SciTE\AutoIt3Wrapper\AutoIt3Wrapper.au3" /run /prod /ErrorStdOut /in "C:\Users\11003813\Desktop\AutoIT\xxx111.au3" /UserParams
+>07:31:24 Starting AutoIt3Wrapper v.16.612.1119.0 SciTE v.3.6.6.0   Keyboard:00000409  OS:WIN_81/  CPU:X64 OS:X64  Environment(Language:0409)  CodePage:0  utf8.auto.check:4
+>         SciTEDir => C:\Program Files (x86)\AutoIt3\SciTE   UserDir => C:\Program Files (x86)\AutoIt3\SciTE\AutoIt3Wrapper
>Running AU3Check (3.3.14.2)  from:C:\Program Files (x86)\AutoIt3  input:C:\Users\11003813\Desktop\AutoIT\xxx111.au3
+>07:31:24 AU3Check ended.rc:0
>Running:(3.3.14.2):C:\Program Files (x86)\AutoIt3\autoit3.exe "C:\Users\11003813\Desktop\AutoIT\xxx111.au3"
--> Press Ctrl+Alt+Break to Restart or Ctrl+Break to Stop
_WD_IsLatestRelease: True
_WD_IsLatestRelease ==> Success
_WDStartup: OS: WIN_81 WIN32_NT 9600
_WDStartup: AutoIt: 3.3.14.2
_WDStartup: WD.au3: 0.3.1.0 (Up to date)
_WDStartup: WinHTTP:    1.6.4.2
_WDStartup: Driver: chromedriver.exe
_WDStartup: Params: --verbose --log-path="C:\Users\11003813\Desktop\AutoIT\chrome.log"
_WDStartup: Port:   9515
__WD_Post: URL=HTTP://127.0.0.1:9515/session; $sData={"capabilities": {"alwaysMatch": {"goog:chromeOptions": {"debuggerAddress": "localhost:9222"}}}}
__WD_Post: StatusCode=200; ResponseText={"value":{"capabilities":{"acceptInsecureCerts":false,"browserName":"chrome","browserVersion":"86.0....
_WD_CreateSession: {"value":{"capabilities":{"acceptInsecureCerts":false,"browserName":"chrome","browserVersion":"86.0.4240.198","chrome":{"chromedriverVersion":"86.0.4240.22 (398b0743353ff36fb1b82468f63a3a93b4e2e89e-refs/branch-heads/4240@{#378})"},"goog:chromeOptions":{"debuggerAddress":"localhost:9222"},"pageLoadStrategy":"normal","platformName":"","proxy":{},"setWindowRect":false,"strictFileInteractability":false,"timeouts":{"implicit":0,"pageLoad":300000,"script":30000},"unhandledPromptBehavior":"dismiss and notify","webauthn:virtualAuthenticators":true},"sessionId":"15283bdd9a40c0b5b227acb9a5e3b2ce"}}
__WD_Get: URL=HTTP://127.0.0.1:9515/session/15283bdd9a40c0b5b227acb9a5e3b2ce/window/handles
__WD_Get: StatusCode=200; $iResult = 0; $sResponseText={"value":["CDwindow-35DB90B648DE5F59F606CC6BABB831FF","CDwindow-4797BE00D12B8E0B5702AC417283A770","C...
_WD_Window: {"value":["CDwindow-35DB90B648DE5F59F606CC6BABB831FF","CDwindow-4797BE00D12B8E0B5702AC417283A770","C...
__WD_Get: URL=HTTP://127.0.0.1:9515/session/15283bdd9a40c0b5b227acb9a5e3b2ce/window
__WD_Get: StatusCode=200; $iResult = 0; $sResponseText={"value":"CDwindow-35DB90B648DE5F59F606CC6BABB831FF"}...
_WD_Window: {"value":"CDwindow-35DB90B648DE5F59F606CC6BABB831FF"}...
__WD_Post: URL=HTTP://127.0.0.1:9515/session/15283bdd9a40c0b5b227acb9a5e3b2ce/window; $sData={"handle":"CDwindow-35DB90B648DE5F59F606CC6BABB831FF"}
__WD_Post: StatusCode=200; ResponseText={"value":null}...
_WD_Window: {"value":null}...
__WD_Get: URL=HTTP://127.0.0.1:9515/session/15283bdd9a40c0b5b227acb9a5e3b2ce/title
__WD_Get: StatusCode=200; $iResult = 0; $sResponseText={"value":"Amadeus Retailing Platform - PRD(PRODUCTION)"}...
_WD_Action: {"value":"Amadeus Retailing Platform - PRD(PRODUCTION)"}
__WD_Post: URL=HTTP://127.0.0.1:9515/session/15283bdd9a40c0b5b227acb9a5e3b2ce/element; $sData={"using":"xpath","value":"//*[@name=\"aFSearchParameter\"]"}
__WD_Post: StatusCode=404; ResponseText={"value":{"error":"no such element","message":"no such element: Unable to locate element: {\"method\...
__WD_Post ==> No match: {"value":{"error":"no such element","message":"no such element: Unable to locate element: {\"method\":\"xpath\",\"selector\":\"//*[@name=\"aFSearchParameter\"]\"}\n  (Session info: chrome=86.0.4240.198)","stacktrace":"Backtrace:\n\tOrdinal0 [0x003EC013+3194899]\n\tOrdinal0 [0x002D6021+2056225]\n\tOrdinal0 [0x0016F608+587272]\n\tOrdinal0 [0x000FB5A1+112033]\n\tOrdinal0 [0x0011B182+242050]\n\tOrdinal0 [0x0010FDAA+196010]\n\tOrdinal0 [0x00119B22+236322]\n\tOrdinal0 [0x0010FC1B+195611]\n\tOrdinal0 [0x000F3B7F+80767]\n\tOrdinal0 [0x000F4B4E+84814]\n\tOrdinal0 [0x000F4AD9+84697]\n\tOrdinal0 [0x002ECE64+2149988]\n\tGetHandleVerifier [0x0055BE95+1400773]\n\tGetHandleVerifier [0x0055BB61+1399953]\n\tGetHandleVerifier [0x005631FA+1430314]\n\tGetHandleVerifier [0x0055C69F+1402831]\n\tOrdinal0 [0x002E3D61+2112865]\n\tOrdinal0 [0x002EE5CB+2155979]\n\tOrdinal0 [0x002EE6F5+2156277]\n\tOrdinal0 [0x002FF26E+2224750]\n\tBaseThreadInitThunk [0x775F495D+14]\n\tRtlInitializeExceptionChain [0x779B98EE+132]\n\tRtlInitializeExceptionChain [0x779B98C4+90]\n\t(No symbol) [0x00000000]\n"}}
_WD_FindElement: {"value":{"error":"no such element","message":"no such element: Unable to locate element: {\"method\":\"xpath\",\"selector\":\"//*[@name=\"aFSearchParameter\"]\"}\n  (Session info: chrome=86.0.4240.198)","stacktrace":"Backtrace:\n\tOrdinal0 [0x003EC013+3194899]\n\tOrdinal0 [0x002D6021+2056225]\n\tOrdinal0 [0x0016F608+587272]\n\tOrdinal0 [0x000FB5A1+112033]\n\tOrdinal0 [0x0011B182+242050]\n\tOrdinal0 [0x0010FDAA+196010]\n\tOrdinal0 [0x00119B22+236322]\n\tOrdinal0 [0x0010FC1B+195611]\n\tOrdinal0 [0x000F3B7F+80767]\n\tOrdinal0 [0x000F4B4E+84814]\n\tOrdinal0 [0x000F4AD9+84697]\n\tOrdinal0 [0x002ECE64+2149988]\n\tGetHandleVerifier [0x0055BE95+1400773]\n\tGetHandleVerifier [0x0055BB61+1399953]\n\tGetHandleVerifier [0x005631FA+1430314]\n\tGetHandleVerifier [0x0055C69F+1402831]\n\tOrdinal0 [0x002E3D61+2112865]\n\tOrdinal0 [0x002EE5CB+2155979]\n\tOrdinal0 [0x002EE6F5+2156277]\n\tOrdinal0 [0x002FF26E+2224750]\n\tBaseThreadInitThunk [0x775F495D+14]\n\tRtlInitializeExceptionChain [0x779B98EE+132]\n\tRtlInitializeExceptionChain [0x779B98C4+90]\n\t(No symbol) [0x00000000]\n"}}
_WD_FindElement ==> No match: HTTP status = 404
_WD_GetElementByName ==> No match
+>07:31:30 AutoIt3.exe ended.rc:0
+>07:31:30 AutoIt3Wrapper Finished.
>Exit code: 0    Time: 6.247

Thanks

[Danp2]

@samibb So the element isn't being found. What steps have you taken to figure out why? Have you ruled out frames?

[samibb]

@Danp2

when i use "//div" ,i get 35 elements . only labels, no text or button .

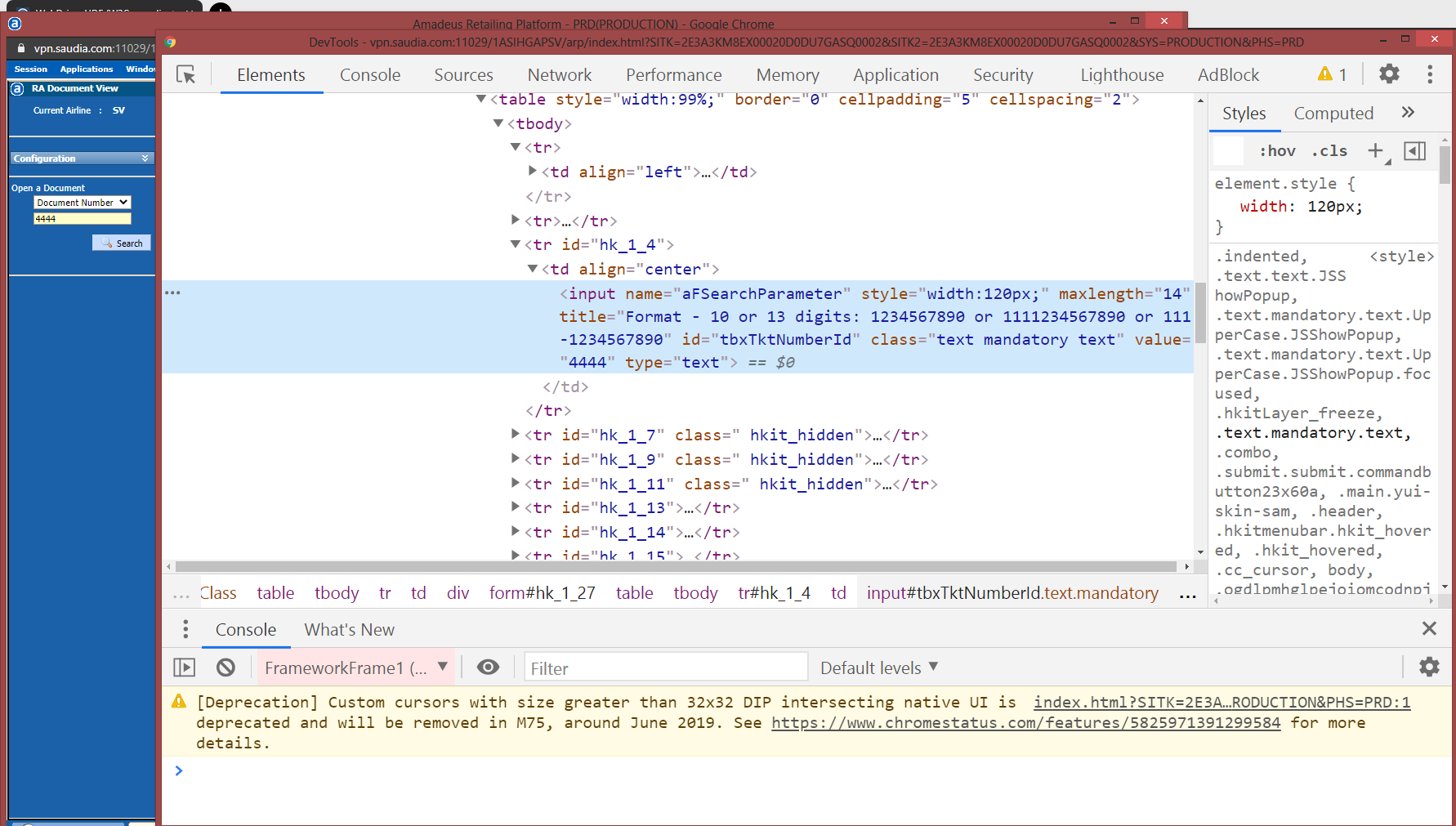

see as you see in the image down

 Have you ruled out frames? No, how please?

$aElements = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, "//div", Default, True)
    _ArrayDisplay($aElements, "Found Elements")

    ;msgBox(0,'clear',$sElement)
    for $i = 0 to UBound($aElements) - 1
      ;$sElement = "txtUsername"
      $sValue = _WD_ElementAction($sSession, $aElements[$i], 'text')
      MsgBox(0,$aElements[$i],$sValue)
    Next

Edited December 1, 2020 by samibb

[Danp2]

@samibb This thread was intended to be the "development" thread for the Webdriver UDF. Please either start a new thread or move to the "support" thread, which can be found here.

[samibb]

I have a problem with the RAM.
When the program runs Chrome, Chrome will gradually use the entire RAM until it stops and gives me this message :

“Aw, Snap. Something went wrong while displaying this webpage”

Error :Out of memory

How is it possible to free up memory and make Chrome to continue running ?

[Danp2]

@samibb Please read the post directly above your latest one and follow those instructions.

[DreamMaker]

有没有类似于  _IEBodyReadText()？

[Nine]

20 minutes ago, DreamMaker said:

_IEBodyReadText()？

First post and you made me laugh.  Thanks for that.

[Danp2]

1 hour ago, DreamMaker said:

 Is it similar to _IEBodyReadText()？

Untested, but you should be able to do something like this --

_WD_ExecuteScript($sSession, "return document.body.innerText;", '{}')

P.S. Next time, please use Google Translate and post your message in English instead of Chinese. 🙂
