WebDriver UDF (W3C compliant version) - 2024/09/21

[Danp2]

@NassauSky According to the W3C specs, the webdriver will automatically scroll the element into view when doing things like click it, setting its value, etc. If you need to manually scroll an element into view, then see my earlier response here --



[Danp2]

@NassauSky Another possible solution would be to use _WD_ElementActionEx with the hover action.

[samibb]

Dear Danp2

• I am Using a Windows shortcut that points to the executable.

How i make the additional parameters?

[Danp2]

@samibb Ever hear of Google? 🙄

[samibb]

Dear  @Danp2

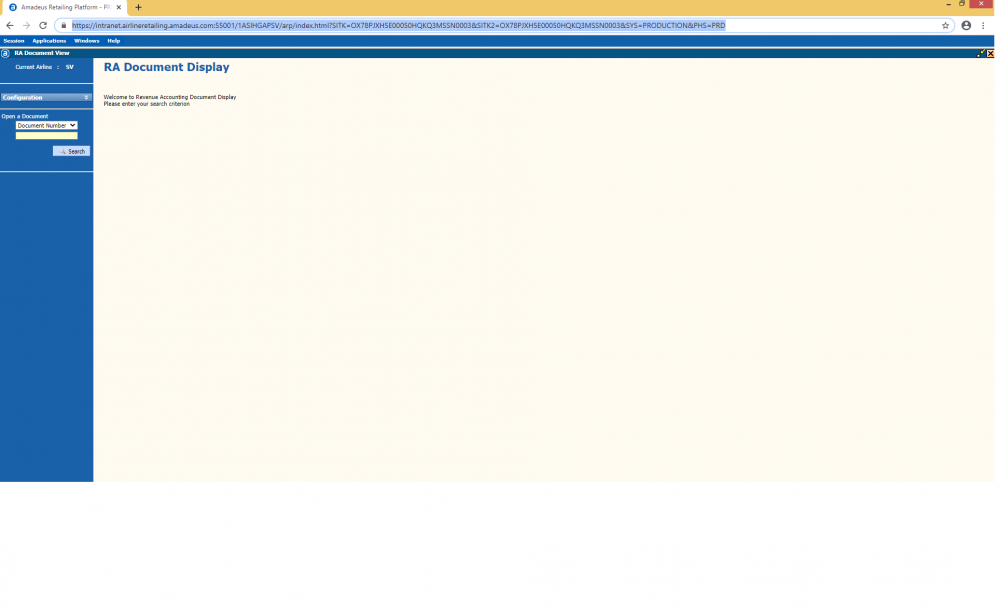

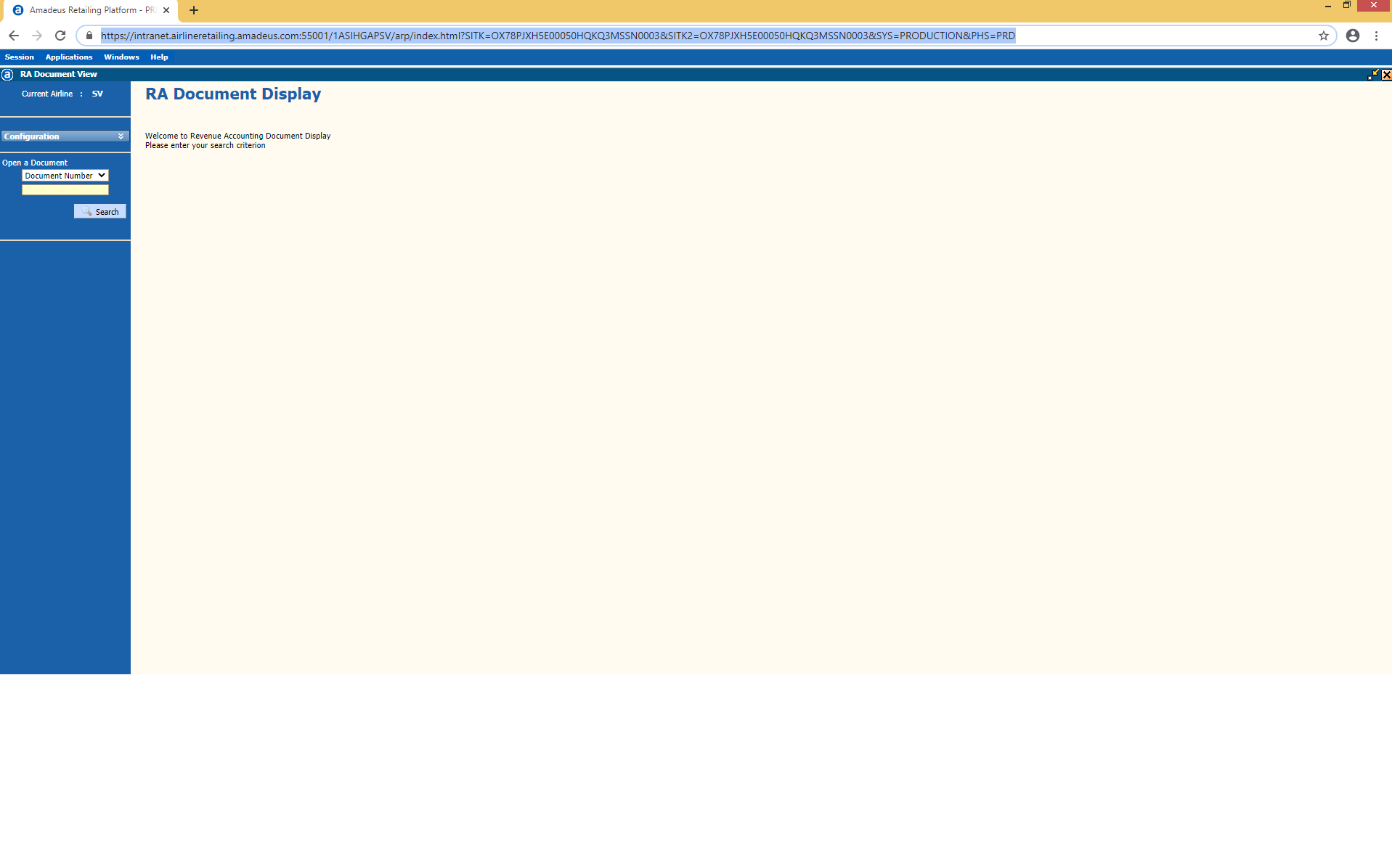

i have this page already opened in chrome browser.

i tried to to attached with it by using

_WD_Attach(_WD_Attach($sSession, "Amadeus Retailing Platform - PRD(PRODUCTION) - Google Chrome", Default),

my problem how getting   "$sSession " ID



Thanks in advance

[Danp2]

@samibb Haven't we already been down this road before?   Suggest that you go back and reread our recent interactions as the code I posted shows how to launch Chrome and subsequently obtain the session ID.



[VodkaDiva]

Hi @Danp2 !
i have search about chagne Screen resolution webdriver . but don't have in forum .
and i search google . have thist code . https://www.browserstack.com/docs/automate/selenium/change-screen-resolution
Can you help me ? trans this code on web to autoit ?
Thanks danp2

[samibb]

Dear  @Danp2

i have spend 6 hours trying to solve it

still open new web page

I am not very expert so i need your help please.



expandcollapse popup

#include <GUIConstantsEx.au3>
#include <ButtonConstants.au3>
#include <WindowsConstants.au3>

Local $sDesiredCapabilities, $sSession

;ShellExecute("chrome.exe", "--remote-debugging-port=9222")

SetupChrome()
_WD_Startup()

$sSession = _WD_CreateSession($sDesiredCapabilities)

_WD_Navigate($sSession, "HTTP://intranet.airlineretailing.amadeus.com:55001/1ASIHGAPSV/signin/index.html?TXT=Retailing%20Platform&URL=/1ASIHGAPSV/arp/index.html")

Func SetupChrome()

_WD_Option('Driver', 'chromedriver.exe')
_WD_Option('Port', 9515)
_WD_Option('DriverParams', '--verbose --log-path="' & @ScriptDir & '\chrome.log"')

$sDesiredCapabilities = '{"capabilities": {"alwaysMatch": {"goog:chromeOptions": {"debuggerAddress": "localhost:9222"}}}}'
EndFunc

-------------------------------------------------------------------------------------------------------------------------------------------
>"C:\Program Files (x86)\AutoIt3\SciTE\..\AutoIt3.exe" "C:\Program Files (x86)\AutoIt3\SciTE\AutoIt3Wrapper\AutoIt3Wrapper.au3" /run /prod /ErrorStdOut /in "C:\Users\11003813\Desktop\AutoIT\xxxx.au3" /UserParams
+>14:01:25 Starting AutoIt3Wrapper v.16.612.1119.0 SciTE v.3.6.6.0   Keyboard:00000409  OS:WIN_81/  CPU:X64 OS:X64  Environment(Language:0409)  CodePage:0  utf8.auto.check:4
+>         SciTEDir => C:\Program Files (x86)\AutoIt3\SciTE   UserDir => C:\Program Files (x86)\AutoIt3\SciTE\AutoIt3Wrapper
>Running AU3Check (3.3.14.2)  from:C:\Program Files (x86)\AutoIt3  input:C:\Users\11003813\Desktop\AutoIT\xxxx.au3
+>14:01:25 AU3Check ended.rc:0
>Running:(3.3.14.2):C:\Program Files (x86)\AutoIt3\autoit3.exe "C:\Users\11003813\Desktop\AutoIT\xxxx.au3"
--> Press Ctrl+Alt+Break to Restart or Ctrl+Break to Stop
_WD_IsLatestRelease: True
_WD_IsLatestRelease ==> Success
_WDStartup: OS: WIN_81 WIN32_NT 9600
_WDStartup: AutoIt: 3.3.14.2
_WDStartup: WD.au3: 0.3.1.0 (Up to date)
_WDStartup: WinHTTP:    1.6.4.1 (Download latest source at <https://raw.githubusercontent.com/dragana-r/autoit-winhttp/master/WinHttp.au3>)
_WDStartup: Driver: chromedriver.exe
_WDStartup: Params: --verbose --log-path="C:\Users\11003813\Desktop\AutoIT\chrome.log"
_WDStartup: Port:   9515
__WD_Post: URL=HTTP://127.0.0.1:9515/session; $sData={"capabilities": {"alwaysMatch": {"goog:chromeOptions": {"debuggerAddress": "localhost:9222"}}}}
__WD_Post: StatusCode=0; ResponseText=WinHTTP request timed out before Webdriver...
__WD_Post ==> Send / Recv error: WinHTTP request timed out before Webdriver
_WD_CreateSession: WinHTTP request timed out before Webdriver
_WD_CreateSession ==> Webdriver Exception: HTTP status = 0
__WD_Post: URL=HTTP://127.0.0.1:9515/session//url; $sData={"url":"HTTP://intranet.airlineretailing.amadeus.com:55001/1ASIHGAPSV/signin/index.html?TXT=Retailing%20Platform&URL=/1ASIHGAPSV/arp/index.html"}
__WD_Post: StatusCode=0; ResponseText=WinHTTP request timed out before Webdriver...
__WD_Post ==> Send / Recv error: WinHTTP request timed out before Webdriver
_WD_Navigate: WinHTTP request timed out before Webdriver
_WD_Navigate ==> Send / Recv error: HTTP status = 0



Thanks in advance

[Danp2]

@VodkaDiva That appears to be a Selenium feature, so isn't available AFAICS in the base webdriver specs. You can set the window size and position using _WD_Window, but not sure that meets your specific goals.

[Danp2]

2 hours ago, samibb said:

_WDStartup: WinHTTP:    1.6.4.1 (Download latest source at <https://raw.githubusercontent.com/dragana-r/autoit-winhttp/master/WinHttp.au3>)

This information is here for a reason. Follow the directions if you want the UDF to work correctly. See my earlier reply if you still don't understand.

Also, you need to explain in detail how the existing Chrome instance was launched. Be specific and be sure to show us that you used the --remote-debugging-port parameter.

Note -- You can use telnet to test if the port is open. From the command line, enter

telnet localhost 9222

If you get the following response, then the port isn't open

Connecting To localhost...Could not open connection to the host, on port 9222: Connect failed



[VodkaDiva]

Thanks danp2 ! 😄😄

[samibb]

Dear  @Danp2

I have update winhttp.au3 file.

2 I've got this response

Connecting To localhost...Could not open connection to the host, on port 9222: Connect failed

i think should open the local host on port 9222.

Thanks

[Danp2]

@samibb That indicates to me that you didn't launch Chrome with the correct options. 😞

At this point, I would recommend that you start your own thread seeking help since we haven't been able to move beyond this issue.

[NassauSky]

Does anyone have any idea how to get the parent of an element:

$mElement = _WD_GetMouseElement($sSession)

I'm interested in the outerHTML of the parent of the element under the mouse.

Thanks for any guidance.

[Danp2]

@NassauSky You should be able to do it with  _WD_FindElement (pass $mElement as the starting element and use ".." as the xpath) or _WD_ExecuteScript.

[NassauSky]

Thanks @Danp2. I tried that before asking but it doesn't return a value:



expandcollapse popup

#include <Constants.au3>
#include "wd_core.au3"
#include "wd_helper.au3"
HotKeySet ( "{F2}",  "_XpathMouseElem" )
HotKeySet ( "{F10}",  "_Exit" )
$_WD_DEBUG = $_WD_DEBUG_None ; to hide ChromeDriver console

Local $sDesiredCapabilities = SetupChrome()
_WD_Startup()
Sleep(2000)
_WD_ConsoleVisible()
Local $sSession = _WD_CreateSession($sDesiredCapabilities)

_WD_Navigate($sSession, "http://www.google.com")

Do
  Sleep (50)
Until False

Func _Exit()
   _WD_DeleteSession($sSession)
   _WD_Shutdown()
   Exit
EndFunc

Func SetupChrome()
  _WD_Option('Driver', 'chromedriver.exe')
  _WD_Option('Port', 9515)
  _WD_Option('DriverParams', '--verbose --log-path="' & @ScriptDir & '\chrome.log"')
  Return '{"capabilities": {"alwaysMatch": {"goog:chromeOptions": {"w3c": true, "excludeSwitches": [ "enable-automation"], "useAutomationExtension": false }}}}'
EndFunc   ;==>SetupChrome

Func _XpathMouseElem()
   $mElement = _WD_GetMouseElement($sSession)
   MsgBox($MB_TOPMOST, "Mouse Element Info", $mElement) ;Returns the id of the element under the mouse

;---- Find outer HTML of element under mouse after F2
   $sValue1 = _WD_ElementAction($sSession, $mElement, 'property', 'outerHTML') ; or innerText // was aElement
   MsgBox(0,"Element OuterHTML",$sValue1 )
;---- Find outer HTML of parent
   $sElement = _WD_FindElement($mElement, $_WD_LOCATOR_ByXPath,  '/..', Default, True)
   $sValue2 = _WD_ElementAction($sSession, $sElement, 'property', 'outerHTML') ; or innerText
   MsgBox(0,"Parent OuterHTML",$sValue2 )
EndFunc ;==>_XpathMouseElem

Simply press F2 over an element and you'll see what I mean.

Thanks.

Edited November 24, 2020 by NassauSky

[Gianni]

@NassauSky

change this line

$sElement = _WD_FindElement($mElement, $_WD_LOCATOR_ByXPath,  '/..', Default, True)

with this

$sElement = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath,  '..', $mElement, Default)



[NassauSky]

@Chimp Thanks  The extra parameter in the 2nd to last position.  Let me try that now.

Update. YES woooo! Thanks @Chimp and @Danp2

Edited November 24, 2020 by NassauSky

[satter]

Can anyone help me to use webdriver to bypass cloudflare. I run webdriver chrome but still reloaded for 5 seconds checking cloudflare.

[Danp2]

@satter AFAIK, there's no way to bypass cloudflare. Otherwise, what would be the point of using it?

Suggest that you post a short "reproducer" script that we can run to observe whatever issue you are having.
