WebDriver UDF (W3C compliant version) - 2024/09/21

[danylarson]

Hi @Danp2

I m trying to use the function _WD_Screenshot , the capture seem to be to the right dimension but the image i get on my folder is totally black

Here is my code :

; Name ..........: _WD_Screenshot
; Description ...:
; Syntax ........: _WD_Screenshot($sSession[, $sElement = ''[, $nOutputType = 1]])
; Parameters ....: $sSession            - Session ID from _WDCreateSession
;                  $sElement            - [optional] Element ID from _WDFindElement
;                  $nOutputType         - [optional] One of the following output types:
;                               | 1 - String (Default)
;                               | 2 - Binary
;                               | 3 - Base64



$ObjScreenShot = _WD_Screenshot($sSession)

    $FileName = "Test.png"
    $FilePath = FileOpen(@ScriptDir & "\ScreenShots\" & $FileName, 18) ; is another value i should use instead of 18 ?
    FileWrite($FilePath, $ObjScreenShot)
    FileClose($FilePath)

Can you tell me if my parameter are corrects, perhaps my parameters aren t on encoding ?
If not , can you tell me what paramer i should use on  _WD_Screenshot and on  FileOpen to get the image.

Can you tell us what should I use if I want screenshot on jpg format ?

Great Thanks for all


[Danp2]

@danylarson AFAICS, your code looks fine. Suggest that you post a runnable example along with the output from Scite.

P.S. You would need to convert the image to the desired format following the screen capture if you need it in somthing other that png.

[danylarson]

Hi Dan !


I Inserted my code on the  function  Demonavigation  and created a folder with the name "Screenshot" on my scripts directory.

I Joined :

a) A runable exemple
b) the image I got

And here is  my output on scythe  :

URL=https://consent.yahoo.com/collectConsent?sessionId=3_cc-session_bd6243e0-7530-4e8f-8d78-31c665bb9fc5&lang=fr-FR&inline=false
__WD_Get: URL=HTTP://127.0.0.1:9515/session/6fa80a09794121a4f812337185b20882/screenshot
__WD_Get: StatusCode=200; $iResult = 0; $sResponseText={"value":"iVBORw0KGgoAAAANSUhEUgAAB0gAAAb0CAYAAAByDkDwAAAAAXNSR0IArs4c6QAAIABJREFUeJzswQEBAAAAgJD+r+...
_WD_Window: {"value":"iVBORw0KGgoAAAANSUhEUgAAB0gAAAb0CAYAAAByDkDwAAAAAXNSR0IArs4c6QAAIABJREFUeJzswQEBAAAAgJD+r+...
_WD_Screenshot ==> Success

I still don't undestand why the capture is totally black.
In my example i m expecting to get a screen capture with the yahoo screens

Great Thanks for your help.







wd_demo.au3

[Danp2]

@danylarson Unfortunately, that doesn't give me the information I was hoping to receive. Can you post the complete output from the Scite window? That would allow me to check things like --

• OS and Autoit versions
• UDF versions
• browser and webdriver versions
• Etc.



[danylarson]

@danp2

Thanks for your fast help

Here is the complete output

Thanks for all

log.txt

[Danp2]

Quote

WinHTTP:    1.6.4.1

Please pull down the latest source from here and then retest.

[danylarson]

The capture is still black after retest

Here is the console output

Thanks

log2.txt

[rocije9440]

I not found option with class name. Is it possible like this:

C# Code:

Urls = Browser.FindElements(By.ClassName("entryLink"));

I want receive 100 links froms this url:

Spoiler

http://clubtone.net/top100_week

but my example with partial link not work :(

$sArLinks = _WD_FindElement($sSession, $_WD_LOCATOR_ByPartialLinkText, "clubtone.net/music", "", "True")



[Danp2]

Quote

"browserName":"chrome","browserVersion":"81.0.4044.92","chrome":{"chromedriverVersion":"80.0.3987.106

You've also got a mismatch here. Please upgrade your version of Chromedriver and retest.

[Danp2]

@rocije9440 "clubtone.net/music" is from the URL, not the link's text. Therefore, you can't use $_WD_LOCATOR_ByPartialLinkText.

Try it with an xpath of '//a[@class="entryLink"]'



[rocije9440]

28 minutes ago, Danp2 said:

@rocije9440 "clubtone.net/music" is from the URL, not the link's text. Therefore, you can't use $_WD_LOCATOR_ByPartialLinkText.

Try it with an xpath of '//a[@class="entryLink"]'



Tkank you! It's work, but I collect array of 100 lines like this "element-6066-11e4-a52e-4f735466cecf":"98f5f1c2-d5ba-441c-94c2-6fd245dfc4ea", how convert them to normal links?

[danylarson]

I downloaded the latest webdriver and got the same result

Do you think i need also the latest version of  WinHttpConstants.au3 ?

Can you tell us where you found the latest version of winhttp udf because the link on your requirement  in  your udf description is pointing to the version 1.6.4.1



Thanks for all

log2.txt

[Danp2]

@rocije9440 You have to retrieve the associated URL using _WD_ElementAction --

$sArLinks = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, '//a[@class="entryLink"]', "", "True")

For $sLink IN $sArLinks
    $sHref = _WD_ElementAction($sSession, $sLink, "attribute", "href")
    ; Do something here with retrieved value
Next



[Danp2]

@danylarson v1.6.4.1 of the WinHTTP UDF was released almost three years ago. Since that time, some needed changes have been made to WinHttp.au3 but there hasn't been a "official" release made by @trancexx. AFAICS, the only change that's been made to WinHttpConstants.au3 is the updated copyright info, but grabbing the latest version wouldn't hurt anything.

Have you tried testing with either Firefox or Edge? Can you post the screen capture file here so that we can download / view it's contents?

[danylarson]

@Danp2

It works on firefox

Here is the screenshot



[Danp2]

Please post the one you captured using Chome.

Edited April 12, 2020 by Danp2

[danylarson]

Here is the chrome screenshot (click on the white space under my  senrence ;the image is blanck on the forum)

Edited April 12, 2020 by danylarson

[Danp2]

@danylarson That's interesting, but I'm not able to reproduce on my end. Since Firefox works, it seems like there's something amiss with your Chrome installation.

[HJL]

Hi there,
with webdriver Firefox starts with a window the size of the last start, Chrome and Edge start with a window that is too narrow for me, only half the screen. How can I make the windows larger beforehand? With $sDesiredCapabilities?

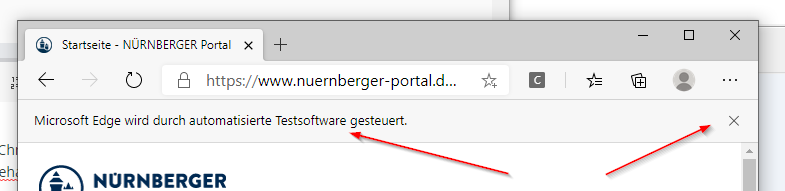

And Chrome and Edge have a bar at the top "Microsoft Edge (or Chrome) is controlled by automated test software." Is there a way to get the bar off?

And is there a web driver for Opera? How does the setup work?

Thanks for your help - It's great that you developed this UDF!

Hans

[Danp2]

@HJL Your questions have previously been covered on this forum. Try searching the forum on "start-maximized " and "disable-infobars"
