_ScreenCapture_Capture doesn't work correctly

[phipe]

hi Team,

i try to capture the specific range of destop, but don't know why _ScreenCapture_Capture doesn't return the correct picture (e.g. i am try to capture 0, 0, 800, 800, but it only capture 0, 0, 300, 300). i used WinGetPos("") to test the screen, it returns: - 6, -6, 1459, 837 (x, y, wide, high), could anyone help, thank you!

i am using:

1. Win 10 Pro

2. Autoit Version v3.3.16.0



;_ScreenCapture_Capture(@ScriptDir & "\RIAsScreenShoot\" & $aResult[$iA] & ".jpg", 0, 0, 800, 800)
;_ScreenCapture_Capture(@ScriptDir & "\RIAsScreenShoot\" & $aResult[$iA] & ".jpg")

[Deye]

phipe,

Have you tried to compare what's working versus what's not working, or have you?

For instance, try with a previous version of autoit v3.3.14.5



[junkew]

Number of monitors?

Whats the output of the help file examples?

Did you try bmp file?

...

[ioa747]

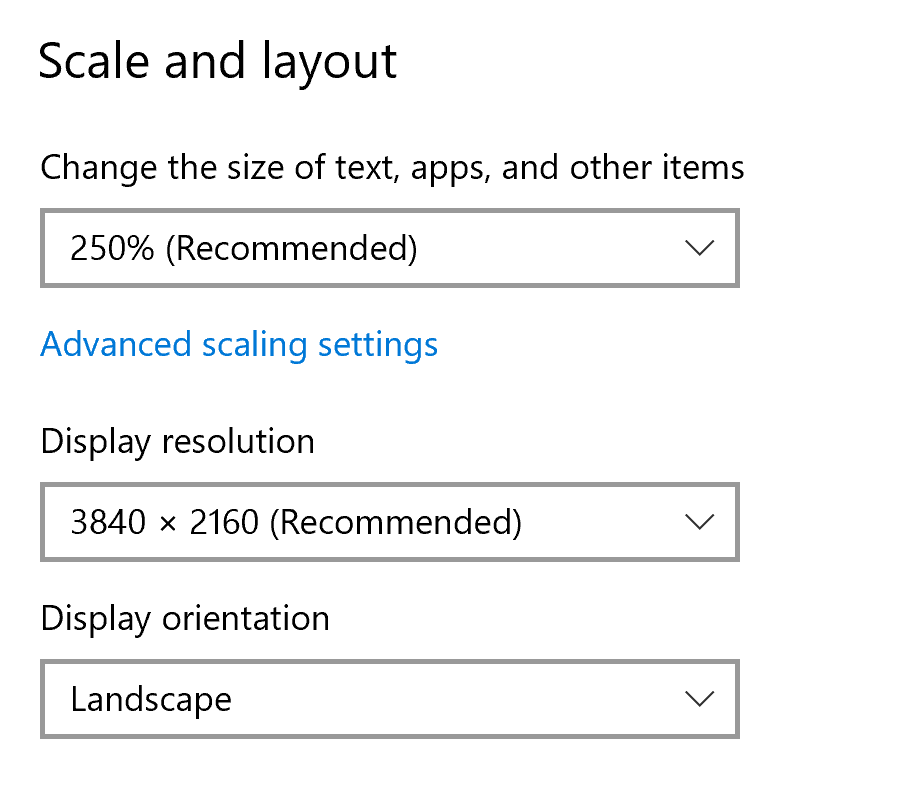

check  in Scale and layout configuration If it is 100%



[phipe]

@Deye Indeed, i upgrade from previous version (installed in 2021, forgot to check version number) to latest version due to this issue. Thank you!

@junkew i am using notebook computer, only one monitor, sorry, don't know how to try BPM file, i am finance background, only know how to apply basic autoit3 functions. The example script from help file shows the same issue, seems _screencapture doesn't work on my PC,  Thank you!

@ioa747 could you guide me how to check scale and layout configuration. Thank you!



[ioa747]

right click on desktop and point to display setting

then you find it.

[phipe]

@ioa747 Thank you, my scale and display is 250%, i think this is the issue come from, but i can't change it to 100%, the screen will become very small.

[ioa747]

But you can check it if the problem is solved or is something else 😉

[ioa747]

But it is definitely to blame for the huge photo that you post

[phipe]

@ioa747Thank you, my issue solved if i change it to 100%. But 😥 seems i can't change it to 100%, the desktop become too small to read. Anyway, thank you so much!!!

[junkew]



[ioa747]

junkew  Thanks for en-lighting

with a few words that is all they need

#Region ;**** Directives created by AutoIt3Wrapper_GUI ****
#AutoIt3Wrapper_Res_HiDpi=Y
#EndRegion ;**** Directives created by AutoIt3Wrapper_GUI ****

If Not (@Compiled ) Then DllCall("User32.dll","bool","SetProcessDPIAware")



Edited August 3, 2022 by ioa747
