SunAwtFrame - (Moved)

[derocco777]

I face the issue that i try to automate a Java gui.
Unfortunately i cant adress any button etc. directrly The window info only gives met he "Mainframe"

Now i use alt + to navigate but is very unreliable as sometime the app takes longer to load.

How can this be achived.

[Jos]

Moved to the appropriate forum.

Moderation Team

[junkew]

Search for JABSimplespy maybe that gives a direction but for sure there is no complete UDF around for the Java Accessibility Bridge

[derocco777]

Done that, installed that.

Mouse position is retrieved 2885-195
  JAVA window found <> Java Window Title= Handle=0x000000000011023E  res: 1
Result getAccessibleContextFromHWND is <> ubound: 4
  We have a VMid 262446 ac 154332256
Call version info: PASSED VMID found : 262446
  VMVersion: <1.7.0_45>
  bridgeJavaClassVersion: <1.7.0_45>
  bridgeJavaDLLVersion: <AccessBridge 2.0.2>
  bridgeWinDLLVersion: <AccessBridge 2.0.2>
 *** getAccessibleContextAT result is <0>
 *** getAccessibleContextAT result is <0>






0
0
0
0
0
0
0
0
End of getAcceccibleContextAt info

Thats all i get back from the AWT Frame.

Other Window

Mouse position is retrieved 2923-714
  JAVA window found <> Java Window Title= Handle=0x00000000009D16BA  res: 1
Result getAccessibleContextFromHWND is <> ubound: 4
  We have a VMid 262446 ac 154231376
Call version info: PASSED VMID found : 262446
  VMVersion: <1.7.0_45>
  bridgeJavaClassVersion: <1.7.0_45>
  bridgeJavaDLLVersion: <AccessBridge 2.0.2>
  bridgeWinDLLVersion: <AccessBridge 2.0.2>
 *** getAccessibleContextAT result is <0>
 *** getAccessibleContextAT result is <0>






0
0
0
0
0
0
0
0
End of getAcceccibleContextAt info

So how do I adress now the different windows?
Buttons I dont get any information. But just beeing able to see if a gui is active or not would help me somewhat.

something like WinActive("Handle=0x000000000011023E")

seems not to work

[derocco777]

Problem could be that my App that i want to inspect not uses same JRE as defined in Windows.
I updated all the paths to the dedicated JRE. Still face those issues.



+>Setting Hotkeys...--> Press Ctrl+Alt+Break to Restart or Ctrl+BREAK to Stop.
  Java Home: C:\Program Files\Java\jre1.8.0_321
  We are using OS X64 at cpu X64; Autoit 64 bit version @AutoItX64=1
C:\Program Files\Java\jre1.8.0_321\bin\WindowsAccessBridge-64.dll  PASS: Windows accessbridge WindowsAccessBridge-64.dll opened returns: 1
0 Windows_run returns:
Reading from regkey: HKLM64\SOFTWARE\JavaSoft\Java Runtime Environment
JAVAHOME=C:\Program Files\DClient 4.10.9\java_jdk_windows-x86-64\jre
The current working directory:
C:\Users\d\Documents\Sync\AutomationWe are using X64 at cpu X64 Autoit 64 bit version @AutoItX64=1
Opening C:\Program Files\DClient 4.10.9\java_jdk_windows-x86-64\jre\bin\WindowsAccessBridge-64.dll
  PASS : Windows accessbridge C:\Program Files\Dopix Client 4.10.9\java_jdk_windows-x86-64\jre\bin\WindowsAccessBridge-64.dll opened returns: 2
 0 initializeAccessBridge is finishedWindows_run passed :



Edited May 24, 2022 by derocco777

[junkew]

Did you try JavaMonkey or NVDA screen reader?

https://docs.oracle.com/javase/accessbridge/2.0.2/javamonkey.htm

When dealing with Java Accessibility Bridge there is not something like a free lunch. It really means google around and test the basic examples first if you get something recognized in your computer systems. From a distance its impossible to assist.

I am not in a Java world at the moment so only can give generic advice.

[derocco777]

Sure thank you. I have that all installed as defined.

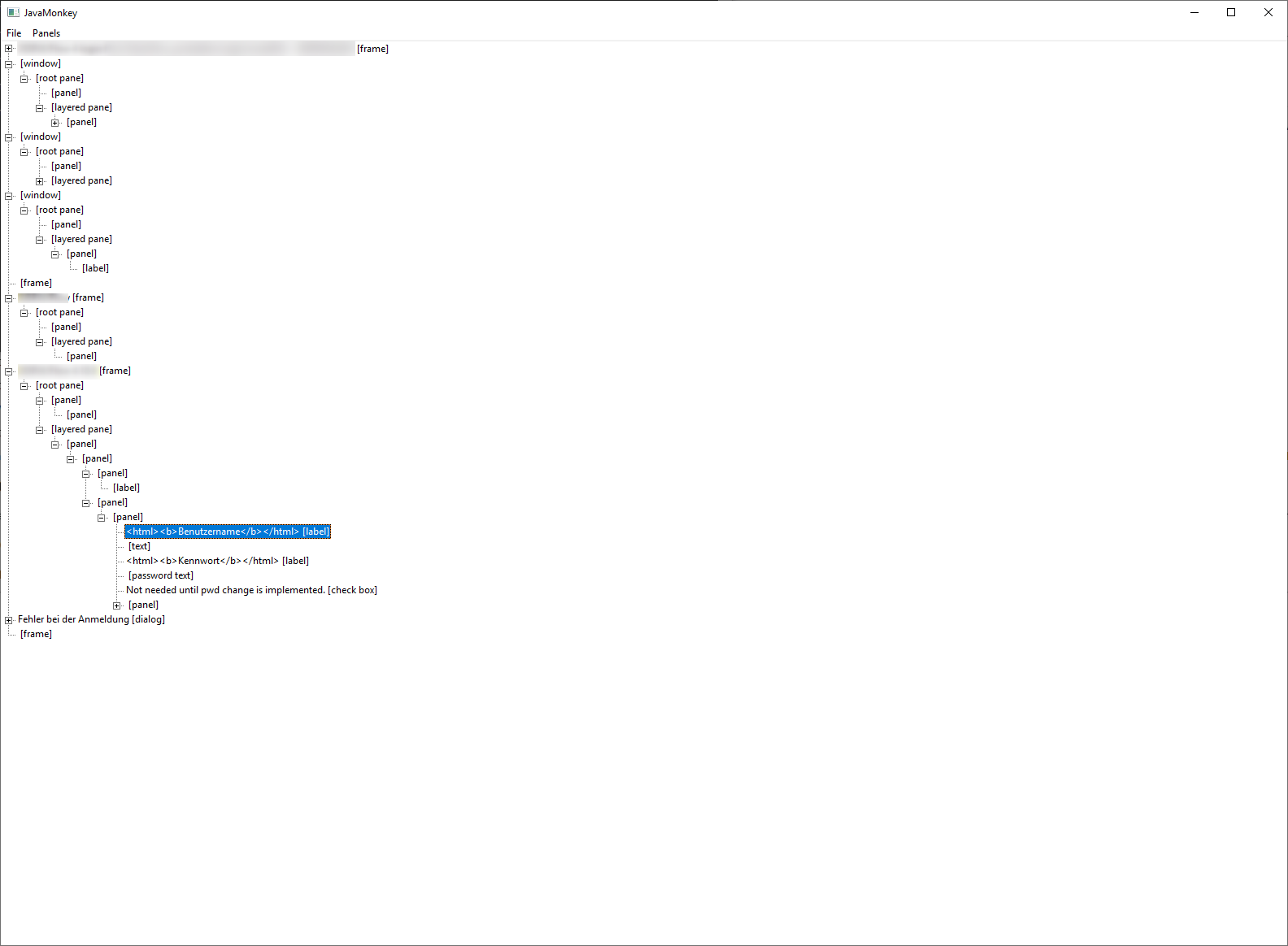

In the Monkey it seems to work. There i get some information out of it.

NVDA i have not tried so far.

But still i have no idea why your autoit script seems to fail nor how to acces an item now.



Strange is as soon as i click on "Display Accassbilty Information" then the Monkey crashes and closes without ANY information in the console.

Ferret: As soon I want to track someting it crashes as well...

Edited May 24, 2022 by derocco777

[junkew]

1. Try first with jdk 1.8.2 to reproduce what is in jabsimplespy thread

2. Maybe this can help

Define an environment variable "JAVA_ACCESSBRIDGE_LOGDIR" which when specified, and pointing to a writable file location, will enable logging of Java Access Bridge activity. Two log files will be created, namely "java_access_bridge.log" and "windows_access_bridge.log": one written by the JavaAccessBridge itself (loaded by Java), one written by AT which loads a Java provided DLL, windowsaccessbridge.dll If the variable is undefined or empty, or points to a non-writable location, no logging will be performed. This will be provided to customers on request. The logging is explicitly limited to be enabled for one application at a time, i.e. it cannot support concurrent applications, which is sufficient for its purpose as a debugging tool.

[autotest410]

@junkew - I really adore the work you've done for autoit. I'm trying to run jabsimplespy.au3 on javacpl.exe. Simple UAI Spy is crashing on pressing ctrl+w.

• My java version is as follows:

p:\>java -d32 -version

java version "1.8.0_231"

Java(TM) SE Runtime Environment (build 1.8.0_231-b11)

Java HotSpot(TM) Client VM (build 25.231-b11, mixed mode, sharing)

• Enabled JAB switch using below steps:

Go to Start > Control Panel > Ease of Access > Ease of Access Center. Alternatively, press Windows logo key+u to access the Ease of Access Center.

Select Use the computer without a display.

In the section Other programs installed, select the check box Enable Java Access Bridge (you may have to scroll down).

• Placed WindowsAccessBridge-32.dll in C:\Windows\SysWOW64
• Placed WindowsAccessBridge-64.dll in C:\Windows\SYSTEM32
• Placed JavaAccessBridge-32.dll and JAWTAccessBridge-32.dll in C:\Program Files (x86)\Java\jdk1.8.0_231\jre\bin and C:\Program Files (x86)\Java\jdk1.8.0_231\bin (as I wasn't sure about the destination location)
• Placed accessibility.properties in C:\Program Files (x86)\Java\jdk1.8.0_231\lib and C:\Program Files (x86)\Java\jdk1.8.0_231\jre\lib
• Placed access-bridge-32.jar in C:\Program Files (x86)\Java\jdk1.8.0_231\jre\lib\ext as there is no ext directory inside C:\Program Files (x86)\Java\jdk1.8.0_231\lib
• Placed jaccess.jar in C:\Program Files (x86)\Java\jdk1.8.0_231\jre\lib\ext

Kindly help me with debugging it and please let me know if you need more information from my end.

TIA





[junkew]

Did you try JavaMonkey or NVDA screen reader?

[autotest410]

@junkew

NVDA screen reader is reading all the actions and working absolutely perfect. javaMonkey is also working for me.
