GuiBuilderPlus [updated March 24, 2024]

[kurtykurtyboy]

Here is me playing with an upcoming feature - drawing graphic controls. This turned out to be more formidable than I had anticipated, but I think it ended up working out nicely.

Edited April 26, 2023 by kurtykurtyboy

[winkot]

I suggest changing the menu. Instead of "Import from au3", use "Open from au3". Instead of "Export to au3" use "Save as au3". So it will be much clearer.

[kurtykurtyboy]

@winkot I certainly understand your point. However, the open/close functions refer to working with the native agd files. So au3 files would be working with external files not necessarily created by GuiBuilder Plus. That's the reason for the "Import/Export" language.

I'll think about it.

[kurtykurtyboy]

A substantial update is now available, so check the first post. The list of changes is quite long, so I won't add them here. Just check the first post.

[pixelsearch]

There's a possible GUI improvement in GuiBuilderPlus_formGenerateCode.au3
In this GUI ($hFormGenerateCode) there's a RichEdit control ($editCodeGeneration) which doesn't resize when we resize the GUI (which has a $WS_SIZEBOX style)

@melba23 indicated in this post a way to do it (I tried it just now on your script and it works fine)

As this GUI has only a Close button (no Maximize or Restore Buttons) then Melba23's script should work fine. In case one day you want to apply it to a GUI having also Maximize and Restore Buttons, then there is a 2nd Melba23's script, on same web page, which shows how to do it (as simply as his 1st script)

Great job kurtykurtyboy

[kurtykurtyboy]

@pixelsearch Thanks for reporting and the tip for fixing it. Your proposed solution seems to work well. Fixed for the next release!

[Skeletor]

@kurtykurtyboy - Keep going with this project and never give up. I am seriously hoping this project continues and evolves into the Main GUI Builder for AutoIt.. Just like how @water made all those MS Office UDF which has been an absolutely, excellent addition to this language.




[winkot]

Why is the main function used? And without it, everything works.

[Skeletor]

Ok so I looked into this because I want this project to gain momentum. There is still alot to do.



Firstly, I was playing around with adding in some new icons. Im going to create some flat icons and some 3D type icons. Other ideas from the community are welcome.

I want to also know if these can be standardized to 32 X 32?
Here is a base icon view:

The other thing is, do you @kurtykurtyboy have a modified copy of the GuiEdit.au3?
Because mine did not have _GUICtrlEdit_SetPadding. So I had to create this function in order for it to startup.

The other issue I found was in the Resh file, I caught this error:  error: _GUICtrlRichEdit_GetTextLength() called with wrong number of args.

So just to fix it I deleted this , 0 and it worked.

; #FUNCTION# ====================================================================================================================
; Author ........: Chris Haslam (c.haslam)
; Modified.......: kurtykurtyboy
; ===============================================================================================================================
Func _GUICtrlRichEdit_GotoCharPosNoFocus($hWnd, $iCharPos)
    If $iCharPos > _GUICtrlRichEdit_GetTextLength($hWnd, True, True) Then Return SetError(103, 0, False)
    _GUICtrlRichEdit_SetSelNoFocus($hWnd, $iCharPos, $iCharPos)
    If @error Then Return SetError(@error, 0, False)
    Return True
EndFunc   ;==>_GUICtrlRichEdit_GotoCharPos



[Skeletor]

I've picked up one other thing.

When I try to create two rectangles, the first which is blue, disappears.

Edited May 5, 2023 by Skeletor

[pixelsearch]

kurtykurtyboy scripted everything with AutoIt 3.3.16.0 (as indicated at line #6 of GuiBuilderPlus.au3)

@skeletor You're probably using an old version of AutoIt, that's why _GUICtrlEdit_SetPadding() is missing and _GUICtrlRichEdit_GetTextLength() got less parameters than the new AutoIt versions.

Instead of patching your old version of AutoIt, why not installing the latest stable version 3.3.16.1 dated september 2022 ?

[kurtykurtyboy]

@winkot Are you referring to the "_main()" function? You're right, it's not absolutely required. But I like to make sure to encapsulate each piece of code in a function to minimize the amount of code that is just hanging out there in the ether.

[kurtykurtyboy]

@Skeletor I'm excited that others are interested in this project!

• Your icons look nice. I'm open to giving them a refresh. Let me know what you come up with.
• @pixelsearch is correct. It looks like _GUICtrlEdit_SetPadding was added in the latest version 3.3.16.0. But the RESH UDF was last updated in 2013!

5 hours ago, Skeletor said:

When I try to create two rectangles, the first which is blue, disappears.

This is something that I have experienced but only occasionally, and I have not been able to do it on command. Are you seeing this every time or just randomly? If I could recreate it, then I can try fixing it.

[pixelsearch]

@kurtykurtyboy it's true that "RESH.au3" version 3.1 scripted by @beege was released on Dec 24, 2013
But don't forget the fact that you added 3 new functions in your customized version of RESH, which are :

_GUICtrlRichEdit_SetSelNoFocus
_GUICtrlRichEdit_AppendTextNoFocus
_GUICtrlRichEdit_GotoCharPosNoFocus

You probably copied the 3 basic functions from "GuiRichEdit.au3" version 3.3.16.0 (where they exist without "NoFocus" in their names) then reworked them to reach your goal.

That's why some code found in _GUICtrlRichEdit_GotoCharPosNoFocus is not compatible with older versions of AutoIt (for example 3.3.15.4 from 2018) because of :

_GUICtrlRichEdit_GetTextLength($hWnd, True, True, 0)

This function had only 3 parameters in AutoIt 3.3.15.4 , that makes it incompatible with anyone running GuiBuilderPlus while using AutoIt 3.3.15.4 (2018) or less.

Anyway, imho we're spending too much time on this point. To avoid these so-called issues, everyone should update his AutoIt version with the last stable version, which is actually 3.3.16.1 dated September 2022

[pixelsearch]

@kurtykurtyboy I tried to modify the Tabs spacing in the RichEdit control, dividing each Tab spacing by 2 . The pic in your very 1st post shows how it appears on your computer (one Tab taking the space of 8 characters) . In the pic below, 1 Tab takes the space of 4 characters (it's still a Tab character of course, not 4 spaces characters)



You probably tried it too, because of your commented line _GUICtrlEdit_SetTabStops(...) in GuiBuilderPlus_codeGeneration.au3 , which btw returns in your case an @error = -1 (documented in the function, unfortunately not in the help file)

It wasn't really easy to do it (at least for me) because it required also some change in RESH. Not sure if it's important or not, you'll decide
Edited May 6, 2023 by pixelsearch

[kurtykurtyboy]

@pixelsearch You're right, I briefly looked at shrinking the tab size when it was still a regular edit control. I haven't tried yet with the rich edit.

I would be interested in seeing your solution if you got it to work.

[pixelsearch]

@kurtykurtyboy ok I'll try to explain in a long post what I did yesterday to shrink the Tabs size :
1) in a regular edit control
2) in a RichEdit control containing plain text
3) in a RichEdit control containing RTF text (as found in GuiBuilderPlus)

First of all there are 2 functions found in AutoIt, to set Tab Stops in edit controls :
_GUICtrlEdit_SetTabStops (for regular edit control)
_GUICtrlRichEdit_SetTabStops (for Richedit control)

_GUICtrlEdit_SetTabStops was scripted by Gary Frost in 2007 in this post and its 2nd parameter must be an Array of Tab stops

On the contrary, _GUICtrlRichEdit_SetTabStops 2nd parameter can't be an Array and must be an integer or a string.

imho both functions could have been combined into one, making it easier to use, especially they're both based on the same EM_SETTABSTOPS message. Here is what we read on msdn concerning this message :

The EM_SETTABSTOPS message sets the tab stops in a multiline edit control. When text is copied to the control, any tab character in the text causes space to be generated up to the next tab stop.
This message is processed only by multiline edit controls. You can send this message to either an edit control or a rich edit control.

In the following scripts, I won't use these 2 functions but a personal function named _SetTabStops() which contains only 2 lines (and a lot of comments inside it, comments that will be deleted after the 1st script)

1) Here is the 1st script concerning a regular edit control :

expandcollapse popup

#include <GuiEdit.au3>
#include <GUIConstantsEx.au3>
#include <SendMessage.au3>

Example()

Func Example()
    Local $hGUI = GUICreate("Edit Set Tab Stops", 500, 300)
    Local $idEdit = GUICtrlCreateEdit("", 1, 1, 498, 298)
    GUICtrlSetFont(-1, 11, 400, 0, "Lucida Console")

    ; An array as 2nd parameter would work fine when used with _GUICtrlEdit_SetTabStops
    ; Local $aTabStops[1] = [14]
    ; _GUICtrlEdit_SetTabStops($idEdit, $aTabStops)

    _SetTabStops($idEdit, 14) ; 14 corresponds approx. to 4 characters width (as my Scite) in this Standard Edit control with this font

                    GUISetState() ; placed here after 5 Tabs on purpose (for testing horizontal position)
    Do
    Until GUIGetMsg() = $GUI_EVENT_CLOSE
EndFunc   ;==>Example

;=================================================================
Func _SetTabStops($hWnd, $iTabStops)
    ; personal, based on simplified _GUICtrlEdit_SetTabStops() and _GUICtrlRichEdit_SetTabStops,  with an integer as 2nd parameter.
    ; See also discussion on  https://www.autoitscript.com/forum/topic/51587-tab-size-in-edit/

    ; msdn : EM_SETTABSTOPS message :
    ; The EM_SETTABSTOPS message sets the tab stops in a multiline edit control. When text is copied to the control, any tab character
    ; in the text causes space to be generated up to the next tab stop.
    ; This message is processed only by multiline edit controls. You can send this message to either an edit control or a rich edit control.

    If Not IsHWnd($hWnd) Then $hWnd = GUICtrlGetHandle($hWnd)

    ; Next line _SendMessage based on _GUICtrlEdit_SetTabStops / _GUICtrlRichEdit_SetTabStops, with "uint*" instead of "struct*" of course.
    _SendMessage($hWnd, $EM_SETTABSTOPS, 1, $iTabStops, 0, "wparam", "uint*")
EndFunc   ;==>_SetTabStops

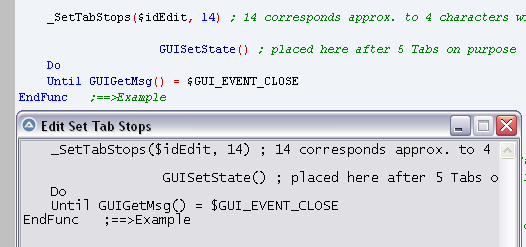

See the good result on my computer ?
The GuiSetState() line starts on purpose with 5 Tabs in my Scite window, the alignment is correct with the content of the Edit control.

2) Here is the 2nd script concerning a RichEdit control containing plain text

expandcollapse popup

#include <GUIConstantsEx.au3>
#include <GuiRichEdit.au3>
#include <SendMessage.au3>
#include <WindowsConstants.au3>

#include <FontConstants.au3> ; for _WinAPI_CreateFont
#include <WinAPIGdiInternals.au3> ; ditto

Example()

Func Example()
    Local $hGUI = GUICreate("RichEdit Set Tab Stops", 500, 300)
    Local $hRichEdit = _GUICtrlRichEdit_Create($hGUI, "", 1, 1, 498, 298, _
        BitOR($ES_MULTILINE, $WS_VSCROLL, $ES_AUTOVSCROLL, $WS_HSCROLL, $ES_AUTOHSCROLL, $ES_WANTRETURN, $ES_NOHIDESEL)) ; horizontal scrollbar

    ; Nine's - https://www.autoitscript.com/forum/topic/206070-setup-permanent-font-for-richedit-control/?do=findComment&comment=1484072
    Local $hFont = _WinAPI_CreateFont(14, 0, 0, 0, $FW_NORMAL, False, False, False, $DEFAULT_CHARSET, _
        $OUT_DEFAULT_PRECIS, $CLIP_DEFAULT_PRECIS, $DEFAULT_QUALITY, 0, 'Lucida Console') ; trying to match Standard Edit control having font 11 Lucida Console
    _SendMessage($hRichEdit, $WM_SETFONT, $hFont, True) ; True = the control redraws itself
    _WinAPI_DeleteObject($hFont)

    ; An array as 2nd parameter generates an error when used with _GUICtrlRichEdit_SetTabStops
    ; Local $aTabStops[1] = [14]
    ; _GUICtrlRichEdit_SetTabStops($hRichEdit, $aTabStops)
    ; ConsoleWrite("@error = " & @error & @crlf) ; 1021

    _SetTabStops($hRichEdit, 14) ; 14 corresponds approx. to 4 characters width (as my Scite) in this RichEdit control with this font

                    GUISetState() ; placed here after 5 Tabs on purpose (for testing horizontal position)
    Do
    Until GUIGetMsg() = $GUI_EVENT_CLOSE

    _GUICtrlRichEdit_Destroy($hRichEdit)
EndFunc   ;==>Example

;=================================================================
Func _SetTabStops($hWnd, $iTabStops)
    If Not IsHWnd($hWnd) Then $hWnd = GUICtrlGetHandle($hWnd)
    _SendMessage($hWnd, $EM_SETTABSTOPS, 1, $iTabStops, 0, "wparam", "uint*")
EndFunc   ;==>_SetTabStops

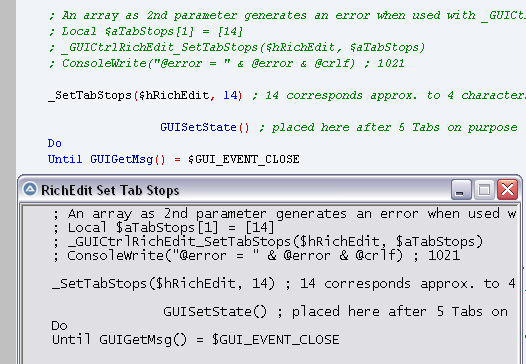

Good result again, this time it was in a RichEdit control containing plain text

3) The 3rd script concerns a RichEdit control containing RTF text (GuiBuilderPlus)

* First the code concerning "GuiBuilderPlus_formGenerateCode.au3" (e.g. 1 line _SetTabStops + Func _SetTabStops)

...
$editCodeGeneration = _GUICtrlRichEdit_Create($hFormGenerateCode, "", 10, 10, $w - 20, $h -     $titleBarHeight - 78, BitOR($ES_MULTILINE, $WS_VSCROLL, $WS_HSCROLL, $ES_AUTOVSCROLL))
GUICtrlSetResizing(-1, $GUI_DOCKBORDERS)
GUICtrlSetFont(-1, 9, -1, -1, "Courier New")

_SetTabStops($editCodeGeneration, 22) ; 22 corresponds approx. to 4 characters width (as my Scite) in this RichEdit control with this font

_RESH_SyntaxHighlight($editCodeGeneration, 0, _code_generation())
...

;=================================================================
Func _SetTabStops($hWnd, $iTabStops)
    If Not IsHWnd($hWnd) Then $hWnd = GUICtrlGetHandle($hWnd)
    _SendMessage($hWnd, $EM_SETTABSTOPS, 1, $iTabStops, 0, "wparam", "uint*")
EndFunc   ;==>_SetTabStops

* Then the code concerning your customized version of "RESH.au3" . Here is the reworked function __RESH_HeaderFooter with a header containing 32 Tab Stops :

Func __RESH_HeaderFooter(ByRef $sCode)

    Local $iFirstTab = 412, $sTabPos = "" ; 413 would be acceptable too
    For $i = 1 To 32 ; $MAX_TAB_STOPS = 32 (let's add them all in case of severe indentation)
        $sTabPos &= "\tx" & ($iFirstTab * $i) ; "\tx412\tx824\tx1236\..."
    Next

    #Tidy_Off
    $sCode =    "{"                                                         & _
                    "\rtf1\ansi\ansicpg1252\deff0\deflang1033"      & _
                    "{"                                                     & _
                        "\fonttbl"                                      & _
                        "{"                                                 & _
                        "\f0\fnil\fcharset0 " & $g_RESH_sFont & ";"     & _
                        "}"                                                 & _
                    "}"                                                     & _
                    "{"                                                     & _
                        "\colortbl;"                                        & _
                        $g_RESH_sColorTable                                 & _
                    "}"                                                     & _
                    "{"                                                     & _
                        "\*\generator Msftedit 5.41.21.2510;"           & _
                    "}"                                                     & _
                    "\viewkind4\uc1\pard" & $sTabPos                    & _
                    "\f0\fs" & $g_RESH_iFontSize & " "                  & _
                    StringStripWS($sCode, 2) & "\par"                   & _
                "}"
    #Tidy_On
EndFunc   ;==>__RESH_HeaderFooter

The result can be found in the pic of my preceding post ("Live Generated Code") which shows the shrinked Tabs size.

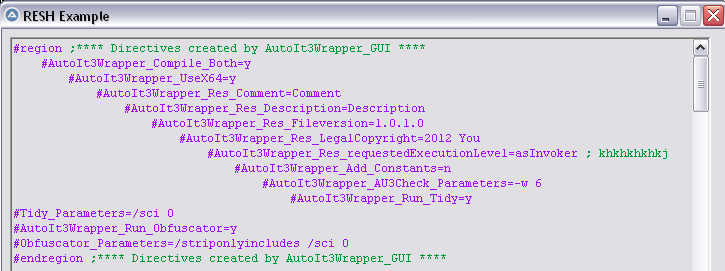

If applied it also to Beege's original "RESH.au3", here is the result when using his example, after I added for fun 1 Tab per line (going from 1 Tab to 10) :



Note: instead of these 32 \tx...\tx...\tx... I wish I could have added this :

\deftabn    Default tab width (720)

But I couldn't make it. If anyone knows how and where to place \deftab in a RTF file, please share your knowledge, thanks !
Hope it helps
Edited May 7, 2023 by pixelsearch
changed tab width to 412 (instead of 415)

[kurtykurtyboy]

@pixelsearch great investigation work! Your "\tx" loop solution seems to be the best (and only) solution right now.

The \deftabn property was my first thought as well. I believe it goes here in the header:

\rtf1\ansi\ansicpg1252\deff0\deflang1033\deftab414

However, I was also unable to get this to work.

Strangely though, if I paste the following into an RTF file using notepad then open it with Microsoft WordPad, it follows the deftab as expected. If you create another file with the exact same content but remove the \deftab414, the tabs are larger as expected. This suggests that the concept and method are sound, but there is something with the AutoIt implementation of the RichEdit control that does not follow/support the \deftab property.

{\rtf1\ansi\ansicpg1252\deff0\nouicompat\deflang1033\deftab414{\fonttbl{\f0\fnil\fcharset0 Courier New;}}
{\colortbl ;\red0\green0\blue255;\red255\green0\blue0;\red0\green0\blue144;\red240\green0\blue255;\red172\green0\blue169;\red170\green0\blue0;\red0\green153\blue51;}
{\*\generator Riched20 10.0.19041}\viewkind4\uc1
\pard\cf1\f0\fs18 Func\cf0  _main\cf2 ()\cf0\par
\tab _guiCreate\cf2 ()\cf0\par
\tab\cf3 GUISetState\cf2 (\cf4 @SW_SHOWNORMAL\cf2 )\cf0\par
\par
\tab\cf1 While\cf0  \cf5 1\cf0\par
\tab\tab\cf1 Switch\cf0  \cf3 GUIGetMsg\cf2 ()\cf0\par
\tab\tab\tab\cf1 Case\cf0  \cf6 $GUI_EVENT_CLOSE\cf0\par
\tab\tab\tab\tab\cf1 ExitLoop\cf0\par
\par
\tab\tab\tab\cf1 Case\cf0  \cf1 Else\cf0\par
\tab\tab\tab\tab\cf7 ;\par
\cf0\tab\tab\cf1 EndSwitch\cf0\par
\tab\cf1 WEnd\cf0\par
\cf1 EndFunc\cf0\par
}



Edited May 7, 2023 by kurtykurtyboy

[winkot]

On 5/5/2023 at 10:14 PM, kurtykurtyboy said:

But I like to make sure to encapsulate each piece of code in a function to minimize the amount of code that is just hanging out there in the ether.

I understand you. But if this is a public program for everyone I think it would be nice if it could create standard scripts, without regard to individual preferences. The one that Koda does, for example.

Edited May 7, 2023 by winkot

[mLipok]

Why not to use scite lexer dll ?
