Possible GUI with show hide group and scroll?

[Jtssi]

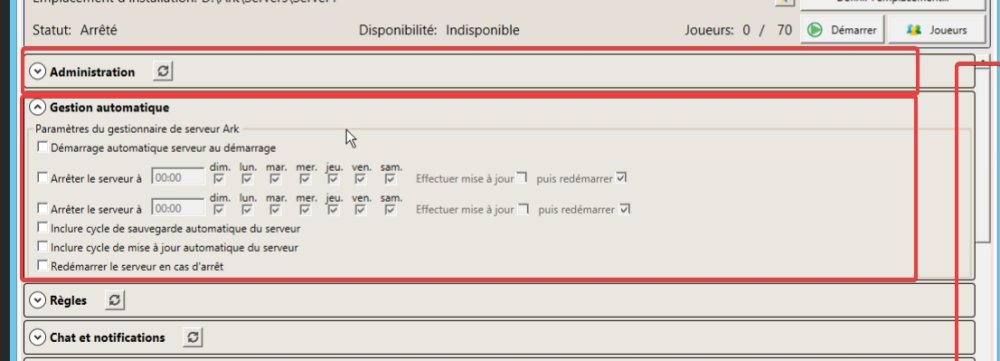

Hello, is it possible to do like the picture? A section that opens and closes, with a scrollbar on the right? Thanks

[ad777]

it's possible:see below  for ex:

this example when you scroll button is clicked:

expandcollapse popup

#include <GUIConstantsEx.au3>
#include <GuiScrollBars.au3>
#include <StructureConstants.au3>
#include <WindowsConstants.au3>

Example()

Func Example()
    Local $idFileMenu, $idExititem, $hGUIMsg, $hGUI, $h_GUIC, $h_GUIC2
    Local $idListview, $idButton

    $hGUI = GUICreate("ScrollBar Example", 400, 400, -1, -1, BitOR($WS_MINIMIZEBOX, $WS_CAPTION, $WS_POPUP, $WS_SYSMENU, $WS_SIZEBOX))
    GUISetBkColor(0x88AABB)

    $idFileMenu = GUICtrlCreateMenu("File")
    $idExititem = GUICtrlCreateMenuItem("Exit", $idFileMenu)
    $idListview = GUICtrlCreateListView("col1  |col2|col3  ", 10, 10, 200, 150) ; ,$LVS_SORTDESCENDING)
    $idButton = GUICtrlCreateButton("Value?", 75, 170, 70, 20)
    GUICtrlSetResizing($idButton, $GUI_DOCKALL)
    For $x = 1 To 30
        GUICtrlCreateListViewItem("item" & $x & "|col2|col3", $idListview)
    Next
    GUICtrlSetResizing($idListview, $GUI_DOCKALL)

    $h_GUIC = GUICreate("Child GUI", 200, 200, 10, 200, $WS_CHILD, $WS_EX_CLIENTEDGE, $hGUI)
 Global $button =   GUICtrlCreateButton("a button", 10, 10, 90, 20)
    GUISetBkColor(0X006400)
    GUISetState(@SW_SHOW)
    GUICtrlSetResizing($h_GUIC, $GUI_DOCKALL)

    GUISwitch($hGUI)

    GUIRegisterMsg($WM_VSCROLL, "WM_VSCROLL")


    GUISetState(@SW_SHOW)

    _GUIScrollBars_Init($hGUI)
    _GUIScrollBars_Init($h_GUIC)

    While 1
        $hGUIMsg = GUIGetMsg()

        Switch $hGUIMsg
            Case $GUI_EVENT_CLOSE, $idExititem
                ExitLoop
             Case $button
                MsgBox(0,"a button","Clicked from HSCROLL")
        EndSwitch
    WEnd

    Exit
EndFunc   ;==>Example


Func WM_VSCROLL($hWnd, $iMsg, $wParam, $lParam)
    #forceref $iMsg, $wParam, $lParam
    Local $iScrollCode = BitAND($wParam, 0x0000FFFF)
    Local $iIndex = -1, $iCharY, $iPosY
    Local $iMin, $iMax, $iPage, $iPos, $iTrackPos

    For $x = 0 To UBound($__g_aSB_WindowInfo) - 1
        If $__g_aSB_WindowInfo[$x][0] = $hWnd Then
            $iIndex = $x
            $iCharY = $__g_aSB_WindowInfo[$iIndex][3]
            ExitLoop
        EndIf
    Next
    If $iIndex = -1 Then Return 0

    ; Get all the vertial scroll bar information
    Local $tSCROLLINFO = _GUIScrollBars_GetScrollInfoEx($hWnd, $SB_VERT)
    $iMin = DllStructGetData($tSCROLLINFO, "nMin")
    $iMax = DllStructGetData($tSCROLLINFO, "nMax")
    $iPage = DllStructGetData($tSCROLLINFO, "nPage")
    ; Save the position for comparison later on
    $iPosY = DllStructGetData($tSCROLLINFO, "nPos")
    $iPos = $iPosY
    $iTrackPos = DllStructGetData($tSCROLLINFO, "nTrackPos")

    Switch $iScrollCode
        Case $SB_TOP ; user clicked the HOME keyboard key
            DllStructSetData($tSCROLLINFO, "nPos", $iMin)

        Case $SB_BOTTOM ; user clicked the END keyboard key
            DllStructSetData($tSCROLLINFO, "nPos", $iMax)

        Case $SB_LINEUP ; user clicked the top arrow
            DllStructSetData($tSCROLLINFO, "nPos", $iPos - 1)

        Case $SB_LINEDOWN ; user clicked the bottom arrow
            DllStructSetData($tSCROLLINFO, "nPos", $iPos + 1)

        Case $SB_PAGEUP ; user clicked the scroll bar shaft above the scroll box
            DllStructSetData($tSCROLLINFO, "nPos", $iPos - $iPage)

        Case $SB_PAGEDOWN ; user clicked the scroll bar shaft below the scroll box
            DllStructSetData($tSCROLLINFO, "nPos", $iPos + $iPage)

        Case $SB_THUMBTRACK ; user dragged the scroll box
            DllStructSetData($tSCROLLINFO, "nPos", $iTrackPos)
    EndSwitch

    ; // Set the position and then retrieve it.  Due to adjustments
    ; //   by Windows it may not be the same as the value set.

    DllStructSetData($tSCROLLINFO, "fMask", $SIF_POS)
    _GUIScrollBars_SetScrollInfo($hWnd, $SB_VERT, $tSCROLLINFO)
    _GUIScrollBars_GetScrollInfo($hWnd, $SB_VERT, $tSCROLLINFO)
    ;// If the position has changed, scroll the window and update it
    $iPos = DllStructGetData($tSCROLLINFO, "nPos")

    If ($iPos <> $iPosY) Then
       ControlClick("ScrollBar Example","",$button);ScrollBar Example title of window
        _GUIScrollBars_ScrollWindow($hWnd, 0, $iCharY * ($iPosY - $iPos))
        $iPosY = $iPos
    EndIf

    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_VSCROLL



[Melba23]

Jtssi,

You can use my GUIExtender UDF to get the extendable sections - and my GUIScrollbars UDF to get the scrollable area (look in my sig for the links). I have never tried to combine the two, but I will take a look and see what I can come up with this PM.

M23

[Melba23]

Jtssi,

Combining the 2 UDFs is proving very complicated - GUIExtender keeps wanting to change the size of the GUI, while GUIScrollbars_Ex tries to keep it the same size and only change the scrollable area within! I will keep plugging away at the problem over the Xmas holidays, but do not hold your breath for a working solution.

M23

[Melba23]

Jtssi,

That was a lot more trouble than I thought it might be - but my perseverance has paid off and i have a working example to show you. You will need all of the attached files to get it to run - please let me know if it does what you require.

Comments from anyone else also welcome of course.

M23



GUIExtender_Ex_Test.au3 GUIExtender_Ex_Test_Example.au3 GUIExtender_Test.au3 GUIScrollbars_Size.au3
