Pixel Counter

Dexter1993
 Share
Go to solution Solved by Nine,

Recommended Posts

Musashi Universalist

Musashi

Posted
Posted (edited)
  On 11/27/2021 at 12:42 AM, Dexter1993 said:

PixelCount ??? :D

Expand

Not a beauty, but may be sufficient ;).

EDIT : new version

#include <Timers.au3>
#include <MsgBoxConstants.au3>

HotKeySet("{ESC}", "_Terminate")
HotKeySet("+!1", "_PixelCount1") ; Shift-Alt-1 ==> start search using PixelGetColor
HotKeySet("+!2", "_PixelCount2") ; Shift-Alt-2 ==> start search using PixelSearch

Global $iLeft, $iTop, $iRight, $iBottom ; coordinates of a rectangle
Global $sColor, $iVariation, $iChecked, $iFound
; set values :
$iLeft      = 0
$iTop       = 0
$iRight     = 200
$iBottom    = 200
$sColor     = "FFFF00" ; color you are looking for
$iVariation = 0
$iChecked   = 0 ; Pixels checked
$iFound     = 0 ; Pixels found

While True
    Sleep(100)
WEnd

; 1. using PixelGetColor :
Func _PixelCount1()
    Local $iMsgID
    Local $hStarttime = _Timer_Init()

    ConsoleWrite("Process running ..." & @CRLF)
    $iChecked   = 0
    $iFound     = 0
    For $x = $iLeft To $iRight
        For $y = $iTop To $iBottom
            If (Hex(PixelGetColor($x, $y), 6)) = $sColor Then
                $iChecked += 1
                $iFound   += 1
            Else
                $iChecked += 1
            EndIf
        Next
    Next

    ConsoleWrite("Process finished" & @CRLF)
    $iMsgID = MsgBox(BitOR($MB_SYSTEMMODAL, $MB_ICONINFORMATION, $MB_RETRYCANCEL), _
                                      "PixelGetColor Result :", _
                                      "Pixels checked : " & @CRLF & $iChecked & @CRLF & _
                                      "Pixels found   : " & @CRLF & $iFound   & @CRLF & @CRLF & _
                                      "Time           : " & @CRLF & _Timer_Diff($hStarttime) & " ms" & @CRLF)
    If $iMsgID = $IDCANCEL Then Exit
EndFunc

; 2. using PixelSearch :
Func _PixelCount2()
    Local $iMsgID, $xColor
    Local $hStarttime = _Timer_Init()

    ConsoleWrite("Process running ..." & @CRLF)
    $iChecked   = 0
    $iFound     = 0
    For $x = $iLeft To $iRight
        For $y = $iTop To $iBottom
            PixelSearch($x, $y, $x, $y, Dec($sColor), $iVariation)
            If @error Then
                $iChecked += 1
            Else
                $iFound   += 1
                $iChecked += 1
            EndIf
        Next
    Next

    ConsoleWrite("Process finished" & @CRLF)
    $iMsgID = MsgBox(BitOR($MB_SYSTEMMODAL, $MB_ICONINFORMATION, $MB_RETRYCANCEL), _
                                      "PixelSearch Result :", _
                                      "Pixels checked : " & @CRLF & $iChecked & @CRLF & _
                                      "Pixels found   : " & @CRLF & $iFound   & @CRLF & @CRLF & _
                                      "Time           : " & @CRLF & _Timer_Diff($hStarttime) & " ms" & @CRLF)
    If $iMsgID = $IDCANCEL Then Exit
EndFunc


Func _Terminate()
    MsgBox(BitOR(4096, 64), "Message :", "Script terminated" & @CRLF)
    Exit
EndFunc



Edited by Musashi
new version


"In the beginning the Universe was created. This has made a lot of people very angry and been widely regarded as a bad move."

Nine Universalist

Nine

Posted
Posted

You can use my Screen Scraping UDF (see signature).  Would be lot faster especially on Win10.

“They did not know it was impossible, so they did it” ― Mark Twain

  Reveal hidden contents



  • Solution
Nine Universalist

Nine

Posted
  • Solution
Posted
  On 11/27/2021 at 3:51 PM, Dexter1993 said:

Very nice UDF!

Expand

Thank you.  The simplest way would be to use @Musashi 1st example but instead of calling PixelGetColor, you would use _GetScreen_GetPixel.

For an even faster way, you can also use _GetScreen_SearchArea repeatedly with the start information set at each loop until you get an error.

Put a script together and if you have issues, I will be glad to help you out.

“They did not know it was impossible, so they did it” ― Mark Twain

  Reveal hidden contents



Dexter1993 Seeker

Dexter1993

Posted
  • Author
Posted (edited)

hm... i dont know bro :( i test it the last 2 hours. My desktop is full of tests :D



#include <MsgBoxConstants.au3>
#include <Constants.au3>
#include "GetScreen.au3"
#include <Array.au3>

HotKeySet("{ESC}", "_PixelCount1")

Global $iLeft, $iTop, $iRight, $iBottom ; coordinates of a rectangle
Global $sColor, $iVariation, $iChecked, $iFound
; set values :
$iLeft      = 0
$iTop       = 0
$iRight     = 600
$iBottom    = 600
$sColor     = 0xD05E5E ; color you are looking for
$iVariation = 0
$iChecked   = 0 ; Pixels checked
$iFound     = 0 ; Pixels found

_PixelCount1()

Func _PixelCount1()

    $iChecked   = 0
    $iFound     = 0
    For $x = $iLeft To $iRight
        For $y = $iTop To $iBottom
            If (Hex(_GetScreen_GetPixel($x, $y), 6)) = $sColor Then
                $iChecked += 1
                $iFound   += 1
            Else
                $iChecked += 1
            EndIf
        Next
    Next

    MsgBox (1,"","Pixels checked :" & $iChecked & " Pixel found: " & $iFound)

EndFunc

I test it with a red point.

Edited by Dexter1993
Werty Universalist

Werty

Posted
Posted

The $iChecked counter in the loop is not needed, it will always be ($iRight-$iLeft)*($iBottom-$iTop).

Some guy's script + some other guy's script = my script!

Nine Universalist

Nine

Posted
Posted

Look at examples in the UDF.  You need to initialize the buffer and then read the screen.  You are not doing it properly.  Take a moment to understand what you are doing...

“They did not know it was impossible, so they did it” ― Mark Twain

  Reveal hidden contents



Musashi Universalist

Musashi

Posted
Posted (edited)
  On 11/27/2021 at 9:27 PM, Dexter1993 said:

hm... i dont know bro :( i test it the last 2 hours. My desktop is full of tests :D

Expand

Try :

#include <Timers.au3>
#include <MsgBoxConstants.au3>
#include <Constants.au3>
#include "GetScreen.au3"
#include <Array.au3>
Opt("MustDeclareVars", True)

HotKeySet("{ESC}", "_Terminate")
HotKeySet("+!1", "_PixelCount1") ; Shift-Alt-1 ==> start search with _GetScreen_GetPixel

Global $iLeft, $iTop, $iRight, $iBottom ; coordinates of a rectangle
Global $sColor, $iFound
; set values :
$iLeft      = 0
$iTop       = 0
$iRight     = 600
$iBottom    = 600
$sColor     = "D05E5E" ; color you are looking for
$iFound     = 0 ; Pixels found

While True
    Sleep(100)
WEnd

Func _PixelCount1()
    Local $iMsgID
    Local $hStarttime = _Timer_Init()
    $iFound  = 0

    _GetScreen_Initialize(($iRight - $iLeft), ($iBottom - $iTop))
    _GetScreen_GetScreen()
    For $x = $iLeft To $iRight
        For $y = $iTop To $iBottom
            If (Hex(_GetScreen_GetPixel($x, $y), 6)) = $sColor Then
                $iFound   += 1
            EndIf
        Next
    Next

    $iMsgID = MsgBox(BitOR($MB_SYSTEMMODAL, $MB_ICONINFORMATION, $MB_RETRYCANCEL), _
                                      "PixelSearch Result :", _
                                      "Pixels checked : " & @CRLF & ($iRight-$iLeft)*($iBottom-$iTop) & @CRLF & _
                                      "Pixels found   : " & @CRLF & $iFound   & @CRLF & @CRLF & _
                                      "Time           : " & @CRLF & _Timer_Diff($hStarttime) & " ms" & @CRLF)
    If $iMsgID = $IDCANCEL Then Exit
EndFunc

Func _Terminate()
    MsgBox(BitOR($MB_SYSTEMMODAL, $MB_ICONINFORMATION), "Message :", "Script terminated" & @CRLF)
    Exit
EndFunc

EDIT :

As already explained by @Nine : "You need to initialize the buffer and then read the screen."

Edited by Musashi


"In the beginning the Universe was created. This has made a lot of people very angry and been widely regarded as a bad move."

Nine Universalist

Nine

Posted
Posted

The UDF always starts at 0,0 from the top left, you can reduce the read to a lower right bottom but it will save only micro secs.  Better read the whole screen. Then you can search for specific area.

“They did not know it was impossible, so they did it” ― Mark Twain

  Reveal hidden contents



Nine Universalist

Nine

Posted
Posted
  On 11/27/2021 at 11:20 PM, Musashi said:

Besides, a nice UDF

Expand

Thanks.  I am using it a lot, and I know it is working very well.  Sometimes, you need pixel driven script to ease the complexity of a tool.

“They did not know it was impossible, so they did it” ― Mark Twain

  Reveal hidden contents



Dexter1993 Seeker

Dexter1993

Posted
  • Author
Posted

THX guys! Very Helpfull.
I have now adapted it the way I need it

thx @Nine !!!!

thx @Musashi

#include "GetScreen.au3"

MsgBox (1,"Founded pixel",_PixelCountInArea(0,0,500,500,"D05E5E"))

Func _PixelCountInArea($left,$top,$right,$bottom,$color)

    $founded  = 0

    _GetScreen_Initialize(($right - $left), ($bottom - $top))
    _GetScreen_GetScreen()

    For $x = $left To $right
        For $y = $top To $bottom
            If (Hex(_GetScreen_GetPixel($x, $y), 6)) = $color Then
                $founded += 1
            EndIf
        Next
    Next

    Return $founded
EndFunc



Nine Universalist

Nine

Posted
Posted

Initialize should say right and bottom, as I said the UDF always starts at 0,0

So code should be :

#include "GetScreen.au3"

MsgBox (1,"Founded pixel",_PixelCountInArea(0,0,500,500,"D05E5E"))

Func _PixelCountInArea($left,$top,$right,$bottom,$color)

    $founded  = 0

    _GetScreen_Initialize($right, $bottom)
    _GetScreen_GetScreen()

    For $x = $left To $right
        For $y = $top To $bottom
            If _GetScreen_GetPixel($x, $y) = $color Then  $founded += 1
         Next
    Next
    Return $founded
EndFunc



“They did not know it was impossible, so they did it” ― Mark Twain

  Reveal hidden contents



Dexter1993 Seeker

Dexter1993

Posted
  • Author
Posted

I have one more question:


i Creat a while and check my red point.

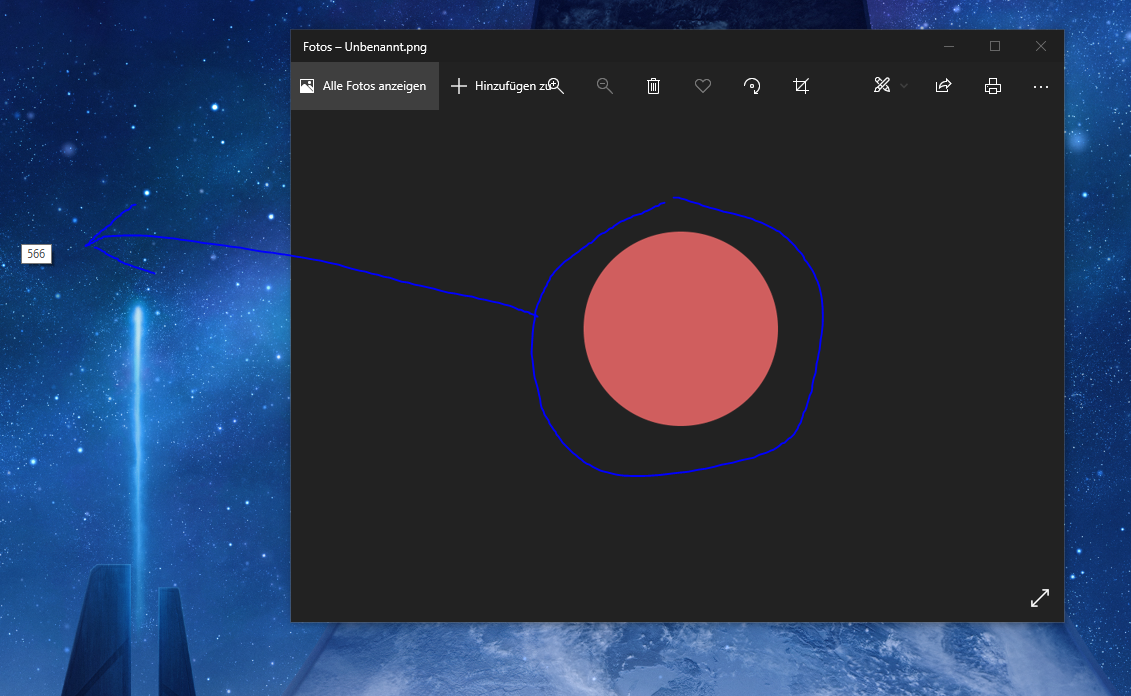

I am shown 566 pixels. If I now move a window in front of the point, there are considerably more pixels.

How can that be?

#include "GetScreen.au3"

While 1

    ToolTip (_PixelCountInArea(1131, 460,1406, 750,"D05E5E"),600,500)
    Sleep (100)

WEnd


Func _PixelCountInArea($left,$top,$right,$bottom,$color)

    $founded  = 0

    _GetScreen_Initialize($right, $bottom)
    _GetScreen_GetScreen()

    For $x = $left To $right
        For $y = $top To $bottom
            If _GetScreen_GetPixel($x, $y) = $color Then
                $founded += 1
            EndIf
         Next
    Next
    Return $founded
EndFunc



image.thumb.png.ee20c111973b4eb86c8a5764fd3780e8.pngimage.thumb.png.a6751ea61bb6a9db11fefc8ab98b7759.png

Werty Universalist

Werty

Posted
Posted (edited)

Here's a fast (and small) C DLL version (attached, or compile with TCC)

Takes a file, change it to screencap yourself if needed.

#include <GDIPlus.au3>

Global Static $CountColorDll = DllOpen("CountColor.dll")
Global $hImage, $iLeft = 0, $iTop = 0, $iRight = 1100, $iBottom = 600, $hPixels, $Count = 0, $Color = 0xFFd05e5e

_GDIPlus_Startup()
$hImage = _GDIPlus_BitmapCreateFromFile("image.png")

$Count = _CountColor($hImage, $Color)

_GDIPlus_Shutdown()
ConsoleWrite("Amount of " & Hex($Color, 8) & " = " & $Count & @crlf)

Func _CountColor(ByRef $hImage, $Color)
    $Pixels = _GDIPlus_BitmapLockBits($hImage, $iLeft, $iTop, $iRight, $iBottom, $GDIP_ILMREAD, $GDIP_PXF32ARGB)
    $aRet = DllCall($CountColorDLL, "int:cdecl", "CountColor", "ptr", $Pixels.Scan0, "int", ($iRight-$iLeft)*($iBottom-$iTop), "int", $Color)
    _GDIPlus_BitmapUnlockBits($hImage, $Pixels)
    _GDIPlus_BitmapDispose($hImage)
    Return $aRet[0]
 EndFunc

#cs
===================================================================================================
C code for the DLL, compile with 'Tiny C Compiler' (TCC) https://bellard.org/tcc/

tcc -shared CountColor.c
===================================================================================================
#include <stdlib.h>

__declspec(dllexport) int CountColor(int* pixel, int len, int color) {
    int i, count = 0;
    for(i=0;i<len;i++){if(pixel[i]==color){count+=1;}}
return count;}
===================================================================================================
#ce

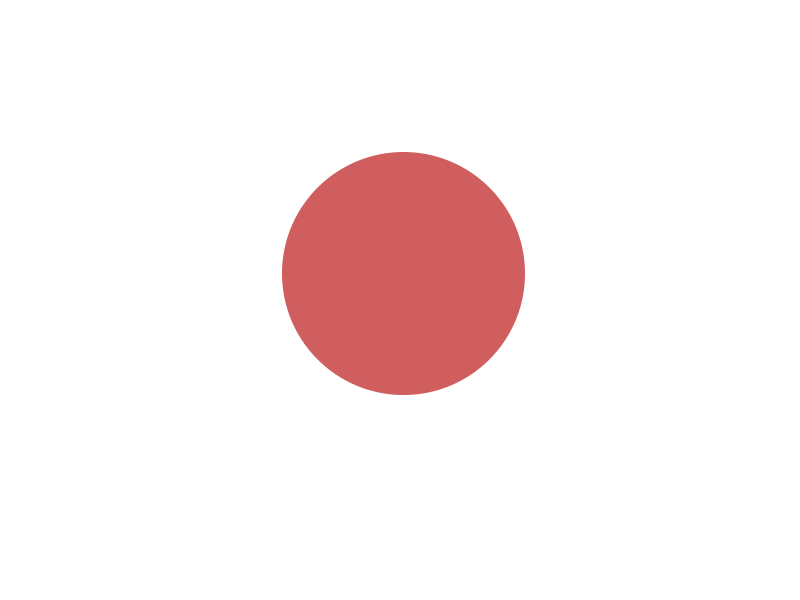

Btw, there are WAY more than 566 pixels that have color d05e5e, I count 28661 of them (and the edge of the circle is antialiased so they dont count)

CountColor.dllFetching info...

Edited by Werty

Some guy's script + some other guy's script = my script!

Musashi Universalist

Musashi

Posted
Posted
  On 11/28/2021 at 7:35 AM, Werty said:

Btw, there are WAY more than 566 pixels that have color d05e5e, I count 28661 of them

Expand

True !

For width and height I have given the complete screen (for trial purposes). I still use _GetScreen_GetPixel.

Screenshot without overlaying the area (the red dot) opened with Irfanview ==> 22291 Pixels found

Screenshot with overlaying the area (the red dot) opened with Irfanview ==> 6706 Pixels found

#include <Timers.au3>
#include <MsgBoxConstants.au3>
#include <Constants.au3>
#include "GetScreen.au3"
#include <Array.au3>
Opt("MustDeclareVars", True)

HotKeySet("{ESC}", "_Terminate")
HotKeySet("+!1", "_PixelCount1") ; Shift-Alt-1 ==> start search with _GetScreen_GetPixel

Global $iWidth, $iHeight, $sColor, $iFound
; set values :
$iWidth     = @DesktopWidth  ; Width of the primary display in pixels
$iHeight    = @DesktopHeight ; Height of the primary display in pixels
$sColor     = "D05E5E" ; color you are looking for
$iFound     = 0 ; Pixels found

While True
    Sleep(100)
WEnd

Func _PixelCount1()
    Local $iMsgID
    Local $hStarttime = _Timer_Init()
    $iFound  = 0

    _GetScreen_Initialize($iWidth, $iHeight)
    _GetScreen_GetScreen()
    For $x = 0 To $iWidth
        For $y = 0 To $iHeight
            If (Hex(_GetScreen_GetPixel($x, $y), 6)) = $sColor Then
                $iFound   += 1
            EndIf
        Next
    Next

    $iMsgID = MsgBox(BitOR($MB_SYSTEMMODAL, $MB_ICONINFORMATION, $MB_RETRYCANCEL), _
                                      "PixelSearch Result :", _
                                      "Pixels checked : " & @CRLF & ($iWidth * $iHeight) & @CRLF & _
                                      "Pixels found   : " & @CRLF & $iFound   & @CRLF & @CRLF & _
                                      "Time           : " & @CRLF & _Timer_Diff($hStarttime) & " ms" & @CRLF)
    If $iMsgID = $IDCANCEL Then Exit
EndFunc

Func _Terminate()
    MsgBox(BitOR($MB_SYSTEMMODAL, $MB_ICONINFORMATION), "Message :", "Script terminated" & @CRLF)
    Exit
EndFunc




"In the beginning the Universe was created. This has made a lot of people very angry and been widely regarded as a bad move."

Dexter1993 Seeker

Dexter1993

Posted
  • Author
Posted (edited)

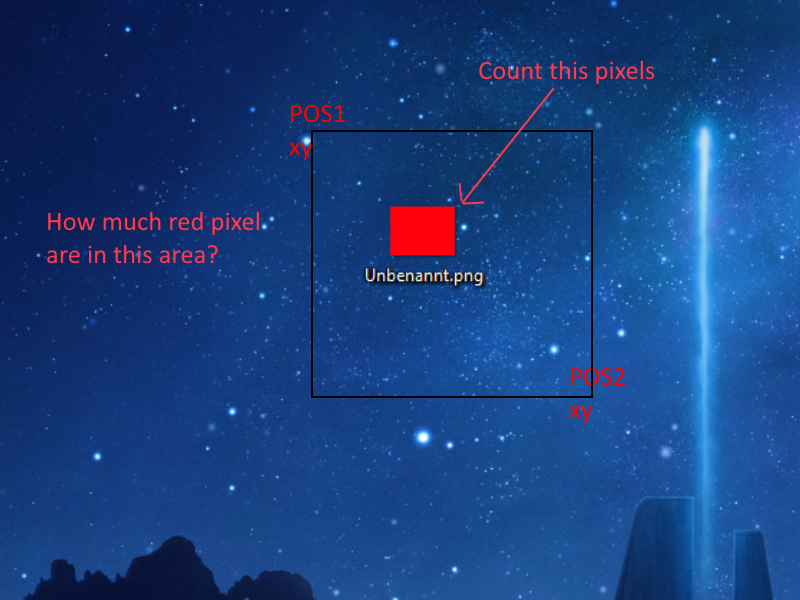

The red dot is only a test. I dont want to scan image files.

So it's not possible to scan an area in a repeat loop and count the pixels?
And if the number of employees changes, the new number of employees should be output live.



@Nine Can't you do a magic trick? :D




#include "GetScreen.au3"

While 1

    ToolTip (_PixelCountInArea(1131, 460,1406, 750,"D05E5E"),600,500)
    Sleep (100)

WEnd

Func _PixelCountInArea($left,$top,$right,$bottom,$color)

    $founded  = 0

    _GetScreen_Initialize($right, $bottom)
    _GetScreen_GetScreen()

    For $x = $left To $right
        For $y = $top To $bottom
            If _GetScreen_GetPixel($x, $y) = $color Then
                $founded += 1
            EndIf
         Next
    Next
    Return $founded
EndFunc



Edited by Dexter1993
Nine Universalist

Nine

Posted
Posted (edited)
  On 11/28/2021 at 11:43 AM, Dexter1993 said:

So it's not possible to scan an area in a repeat loop and count the pixels?

Expand

Of course it is possible.  Btw do not initialize repeatedly if the size of the screen does not change. Just do it once at the beginning of the script and only read the screen when you want to count the pixels.

#include "..\GetScreen\GetScreen.au3"

Local $hWnd = WinActivate("[CLASS:YourWindowClassHere]")
If Not $hWnd Then Exit MsgBox($MB_SYSTEMMODAL, "Error", "Unable to find window")
_GetScreen_Initialize(@DesktopWidth, @DesktopHeight)

While True
  ToolTip(_PixelCountInArea(700, 460, 800, 750, "D05E5E"), 600, 500)
  Sleep(100)
WEnd

Func _PixelCountInArea($left, $top, $right, $bottom, $color)
  Local $founded = 0
  _GetScreen_GetScreen()

  For $x = $left To $right
    For $y = $top To $bottom
      If Hex(_GetScreen_GetPixel($x, $y), 6) = $color Then $founded += 1
    Next
  Next
  Return $founded
EndFunc   ;==>_PixelCountInArea



Edited by Nine

“They did not know it was impossible, so they did it” ― Mark Twain

  Reveal hidden contents



Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
 Share
Go to topic listing

  • Recently Browsing   0 members

    • No registered users viewing this page.
×
×
  • Create New...
