Fading mouse trail

[mike2003]

When the mouse moves, a trail is left behind, which disappears over time.
Does anyone know if this can be done?

[Leendert-Jan]

You can use the _GDIPlus_GraphicsDrawLine function to make it draw a line at your cursor.

https://www.autoitscript.com/autoit3/docs/libfunctions/_GDIPlus_GraphicsDrawLine.htm



There is also this post that might help.



[mike2003]

But I need to control the lines, hide, change the transparency. But as far as I understood, it does not allow to do so.

[Leendert-Jan]

I made a test script that gets the mouse's position and draws a little dot in it's place. Snippet:

While 1
   $aPos = MouseGetPos()
   _GDIPlus_GraphicsDrawLine($hGraphic, $aPos[0], $aPos[1], $aPos[0] + 2.5, $aPos[1] + 2.5, $hPen)
WEnd

There is no Sleep function called in the while loop, so it should execute as frequent as possible.

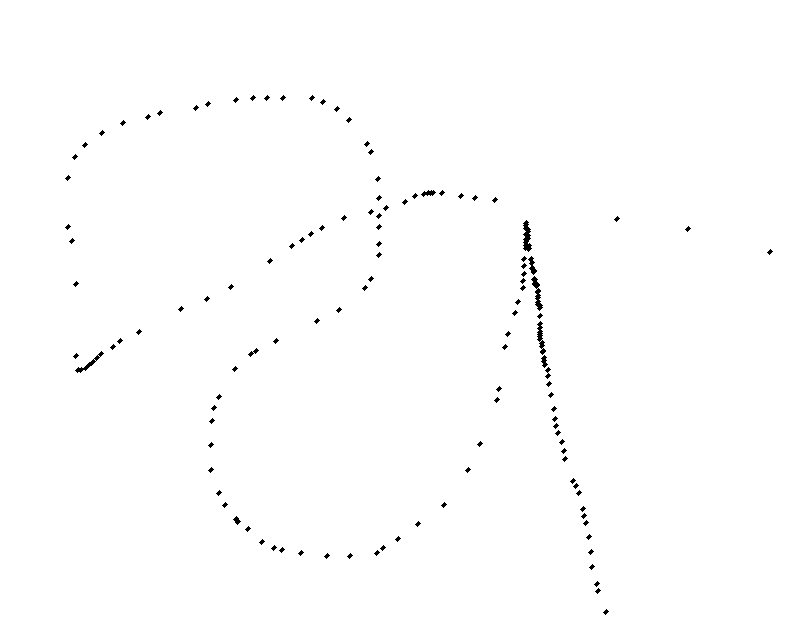

I am afraid AutoIt isn't the right tool to make what you are trying to do. Here is the result:

Edited September 17, 2021 by Leendert-Jan

[mike2003]

The tail should disappear ) This is not a drawing. In theory, for example, you need to draw 10 elements as a line from the coordinates of the mouse and then change their transparency.

[Leendert-Jan]

My point was that it is not going to work with AutoIt. There might be a way to make the line more transparent over time, creating the effect that you want, but if drawing a line in the first place does not work, why bother trying to make the line transparent?

First we need a working script that follows the mouse and draws a SOLID line, after that we can start worrying about making the effects possible. But as shown in my post, simply drawing  a line isn't possible in the first place.

Edited September 17, 2021 by Leendert-Jan
Spelling

[Danp2]

@Leendert-JanTry saving the prior mouse position and using that set of coordinates along with the current mouse position.

@mike2003I know that Windows offers the "Display pointer trails" feature. I'm guessing that there are other existing tools for doing what you want. Why is it necessary to do this with AutoIt?

[Werty]

#include <WinAPISys.au3>
#include <WinAPIsysinfoConstants.au3>

_WinAPI_SystemParametersInfo($SPI_SETMOUSETRAILS, 15, 0, NULL)

Change the "15" to 1 or 0 to turn it off

Though this is globally, but i'm sure UEZ could come up with a solution in gdiplus.

Edited September 17, 2021 by Werty

[Nine]

Maybe this :

expandcollapse popup

#include <GDIPlus.au3>
#include <GUIConstants.au3>

Global Const $SIZE = 600

Example()

Func Example()
  Local $hGUI = GUICreate("", $SIZE, $SIZE, 0, 0, $WS_POPUP, $WS_EX_TOPMOST)

  _GDIPlus_Startup()
  Global $hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGUI)
  Global $hBitmap = _GDIPlus_BitmapCreateFromGraphics($SIZE, $SIZE, $hGraphic)
  Global $hGfxCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap)
  _GDIPlus_GraphicsSetSmoothingMode($hGfxCtxt, 2)

  GUISetState(@SW_SHOW)

  Local $Xprev = MouseGetPos(0), $Yprev = MouseGetPos(1), $X, $Y, $iPointer = 0
  Global $aDraw[400][3] = [[$Xprev, $Yprev, 0xFF]]

  AdlibRegister(_Fade, 70)

  While True
    If GUIGetMsg() = $GUI_EVENT_CLOSE Then ExitLoop
    $X = MouseGetPos(0)
    $Y = MouseGetPos(1)
    If $X = $Xprev And $Yprev = $Y Then ContinueLoop

    $iPointer += 1
    If $iPointer = UBound($aDraw) Then $iPointer = 0

    $aDraw[$iPointer][0] = $X
    $aDraw[$iPointer][1] = $Y
    $aDraw[$iPointer][2] = 0xFF
    $Xprev = $X
    $Yprev = $Y
  WEnd

  _GDIPlus_GraphicsDispose($hGfxCtxt)
  _GDIPlus_BitmapDispose($hBitmap)
  _GDIPlus_GraphicsDispose($hGraphic)
  _GDIPlus_Shutdown()
EndFunc   ;==>Example

Func _Fade()
  Local $hPen
  _GDIPlus_GraphicsClear($hGfxCtxt, 0xFFFFFFFF)

  For $i = 0 to UBound($aDraw) - 1
    If $aDraw[$i][2] And $aDraw[Mod($i+1,UBound($aDraw))][2] Then
      $aDraw[$i][2] -= 51
      $hPen = _GDIPlus_PenCreate(Dec(Hex($aDraw[$i][2], 2) & "FF0000", $NUMBER_32BIT), 2)
      _GDIPlus_GraphicsDrawLine($hGfxCtxt, $aDraw[$i][0], $aDraw[$i][1], $aDraw[Mod($i+1,UBound($aDraw))][0], $aDraw[Mod($i+1,UBound($aDraw))][1], $hPen)
      _GDIPlus_PenDispose($hPen)
    EndIf
  Next
  _GDIPlus_GraphicsDrawImageRect($hGraphic, $hBitmap, 0, 0, $SIZE, $SIZE)
EndFunc



Edited September 18, 2021 by Nine

[Gianni]

Nice script @nine
... allow me just little modification on your listing:

expandcollapse popup

#include <GDIPlus.au3>
#include <GUIConstants.au3>
#include <WINAPI.au3>

Global Const $SIZEx = @DesktopWidth, $SIZEy = @DesktopHeight, $AlphaKey = 0xFFFFFFFF
Global $hGraphic, $hBitmap, $hGfxCtxt, $aDraw[400][3]
Example()

Func Example()
    ; Local $hGUI = GUICreate("", $SIZE, $SIZE, 0, 0, $WS_POPUP, $WS_EX_TOPMOST)
    Local $hBackground = GUICreate("", $SIZEx, $SIZEy, 0, 0, $WS_POPUPWINDOW, $WS_EX_LAYERED + $WS_EX_TOPMOST)
    GUISetBkColor($AlphaKey, $hBackground)
    _WinAPI_SetLayeredWindowAttributes($hBackground, $AlphaKey, 0, $LWA_COLORKEY)
    GUISetState(@SW_SHOW, $hBackground)

    _GDIPlus_Startup()
    $hGraphic = _GDIPlus_GraphicsCreateFromHWND($hBackground)
    $hBitmap = _GDIPlus_BitmapCreateFromGraphics($SIZEx, $SIZEy, $hGraphic)
    $hGfxCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap)

    _GDIPlus_GraphicsSetSmoothingMode($hGfxCtxt, 2)

    Local $Xprev = MouseGetPos(0), $Yprev = MouseGetPos(1), $X, $Y, $iPointer = 0
    ; $aDraw[400][3] = [[$Xprev, $Yprev, 0xFF]]
    $aDraw[0][0] = $Xprev
    $aDraw[0][1] = $Yprev
    $aDraw[0][2] = 0xFF

    AdlibRegister(_Fade, 70)

    While True
        If GUIGetMsg() = $GUI_EVENT_CLOSE Then ExitLoop
        $X = MouseGetPos(0)
        $Y = MouseGetPos(1)
        If $X = $Xprev And $Yprev = $Y Then ContinueLoop

        $iPointer += 1
        If $iPointer = UBound($aDraw) Then $iPointer = 0

        $aDraw[$iPointer][0] = $X
        $aDraw[$iPointer][1] = $Y
        $aDraw[$iPointer][2] = 0xFF
        $Xprev = $X
        $Yprev = $Y
    WEnd

    _GDIPlus_GraphicsDispose($hGfxCtxt)
    _GDIPlus_BitmapDispose($hBitmap)
    _GDIPlus_GraphicsDispose($hGraphic)
    _GDIPlus_Shutdown()
EndFunc   ;==>Example

Func _Fade()
    Local $hPen
    _GDIPlus_GraphicsClear($hGfxCtxt, 0xFFFFFFFF)

    For $i = 1 To UBound($aDraw) - 1
        If $aDraw[$i][2] And $aDraw[Mod($i + 1, UBound($aDraw))][2] Then
            $aDraw[$i][2] -= 51
            $hPen = _GDIPlus_PenCreate(Dec(Hex($aDraw[$i][2], 2) & "FF0000", $NUMBER_32BIT), 2)
            _GDIPlus_GraphicsDrawLine($hGfxCtxt, $aDraw[$i][0], $aDraw[$i][1], $aDraw[Mod($i + 1, UBound($aDraw))][0], $aDraw[Mod($i + 1, UBound($aDraw))][1], $hPen)
            _GDIPlus_PenDispose($hPen)
        EndIf
    Next
    _GDIPlus_GraphicsDrawImageRect($hGraphic, $hBitmap, 0, 0, $SIZEx, $SIZEy)
EndFunc   ;==>_Fade



[Nine]

@Chimp Thanks for your suggestions.

I just found a small bug (it would sometimes shortly draw a line from nowhere).  So I needed to change the _Fade function to this :

Func _Fade()
  Local Static $iFirst
  Local $hPen, $n
  _GDIPlus_GraphicsClear($hGfxCtxt, 0xFFFFFFFF)

  For $i = 0 to UBound($aDraw) - 1
    If $aDraw[$iFirst][2] Then ExitLoop
    $iFirst = Mod($iFirst + 1, UBound($aDraw))
  Next

  $n = $iFirst
  For $i = 0 To UBound($aDraw) - 1
    If Not $aDraw[Mod($n+1,UBound($aDraw))][2] Then ExitLoop
    $aDraw[$n][2] -= 51
    $hPen = _GDIPlus_PenCreate(Dec(Hex($aDraw[$n][2], 2) & "FF0000", $NUMBER_32BIT), 2)
    _GDIPlus_GraphicsDrawLine($hGfxCtxt, $aDraw[$n][0], $aDraw[$n][1], $aDraw[Mod($n+1,UBound($aDraw))][0], $aDraw[Mod($n+1,UBound($aDraw))][1], $hPen)
    _GDIPlus_PenDispose($hPen)
    $n = Mod($n+1, UBound($aDraw))
  Next
  _GDIPlus_GraphicsDrawImageRect($hGraphic, $hBitmap, 0, 0, $SIZE, $SIZE)
EndFunc
