_GUICtrlTreeView_ClickItem() problem

[mLipok]

I had a problem with _GUICtrlTreeView_ClickItem()

It not always click the proper palce.

Here is modified function which I use to check/test :

expandcollapse popup

Func _GUICtrlTreeView_ClickItem($hWnd, $hItem, $sButton = "left", $bMove = False, $iClicks = 1, $iSpeed = 0)
    If Not IsHWnd($hWnd) Then $hWnd = GUICtrlGetHandle($hWnd)

    Local $tRECT = _GUICtrlTreeView_DisplayRectEx($hWnd, $hItem, True)
    If @error Then Return SetError(@error, @error, 0)
    ; Always click on the left-most portion of the control, not the center.  A
    ; very wide control may be off-screen which means clicking on it's center
    ; will click outside the window.
    Local $tPoint = _WinAPI_PointFromRect($tRECT, False)
    _WinAPI_ClientToScreen($hWnd, $tPoint)
    Local $iX, $iY
    _WinAPI_GetXYFromPoint($tPoint, $iX, $iY)
    Local $iMode = Opt("MouseCoordMode", 1)

    #Region - checking
    Local $l = Number(DllStructGetData($tRECT, "Left"))
    Local $t = Number(DllStructGetData($tRECT, "Top"))
    Local $r = Number(DllStructGetData($tRECT, "Right"))
    Local $b = Number(DllStructGetData($tRECT, "Bottom"))
    Local $iX2 = $l + (($r - $l)/2)
    Local $iY2 = $t + (($b - $t)/2)
    MsgBox($MB_OK + $MB_TOPMOST + $MB_ICONINFORMATION, "Information #" & @ScriptLineNumber, _
            ' $iX = ' & $iX & ' $iY = ' & $iY & @CRLF & _
            ' $i2 = ' & $iX2 & ' $iY2 = ' & $iY2 & @CRLF & _
            $l & @CRLF & _
            $t & @CRLF & _
            $r & @CRLF & _
            $b & @CRLF & _
            '')
    #EndRegion - checking

    If Not $bMove Then
        Local $aPos = MouseGetPos()
        _WinAPI_ShowCursor(False)
        MouseClick($sButton, $iX, $iY, $iClicks, $iSpeed)
        MouseMove($aPos[0], $aPos[1], 0)
        _WinAPI_ShowCursor(True)
    Else
        MouseClick($sButton, $iX, $iY, $iClicks, $iSpeed)
    EndIf
    Opt("MouseCoordMode", $iMode)
    Return 1
EndFunc   ;==>_GUICtrlTreeView_ClickItem

and the result:



The information in message box shows that $iY = 655 this is the main problem.

QUESTION: Why $iY = 655 instead about 559 (value presented in Au3Info ) ?

Remarks:
This window is maximalized.
AutoIt 3.3.14.5

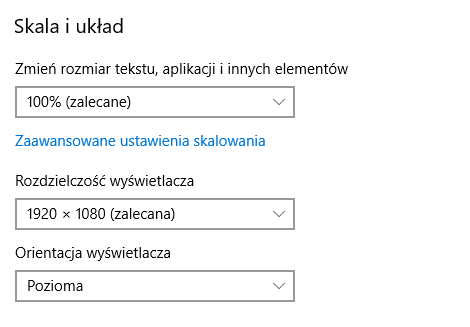

Windows DPI settings:

Edited April 22, 2021 by mLipok

[LarsJ]

The issue has already been addressed here.

[mLipok]

I will try your code tomorrow.

[mLipok]
