WebDriver UDF - Help & Support (III)

[n3wbie]

2 hours ago, minhuy said:

Hello everyone. i am using an application that requires cURL input to be able to run the program. currently it takes time to get cURL manually, is there any way I can get cURL quickly? i can login the website using webdriver

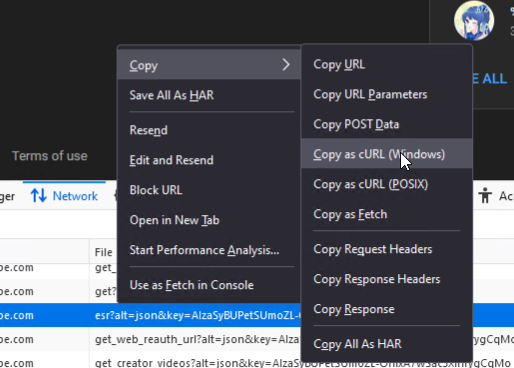

If you have ever encountered with software called postman it has a very good code generator for php curl and many other languages...

U can jus use that whole code and edit...

Its faster compared to writing the whole code...

[n3wbie]

On 2/23/2022 at 11:24 PM, n3wbie said:

I can use non compiled version to test...

Also I can share system via anydesk if required

I have system access .as the error is at my own place...

I ll download latest version...

I didn't change whole of udf as I had changed some of desired capabilities args as per my requirements.

Will test tomorrow and repost the results again





>"C:\Program Files (x86)\AutoIt3\SciTE\..\AutoIt3.exe" "C:\Program Files (x86)\AutoIt3\SciTE\AutoIt3Wrapper\AutoIt3Wrapper.au3" /run /prod /ErrorStdOut /in "G:\GIT\Vinfur 2\Vinfur-2\Application\Itax.au3" /UserParams
+>13:43:32 Starting AutoIt3Wrapper (19.1127.1402.0} from:SciTE.exe (4.2.0.0)  Keyboard:00000409  OS:WIN_7/Service Pack 1  CPU:X64 OS:X64  Environment(Language:0409)  CodePage:0  utf8.auto.check:4
+>         SciTEDir => C:\Program Files (x86)\AutoIt3\SciTE   UserDir => C:\Users\COMP\AppData\Local\AutoIt v3\SciTE\AutoIt3Wrapper   SCITE_USERHOME => C:\Users\COMP\AppData\Local\AutoIt v3\SciTE
>Running AU3Check (3.3.14.5)  from:C:\Program Files (x86)\AutoIt3  input:G:\GIT\Vinfur 2\Vinfur-2\Application\Itax.au3
+>13:43:34 AU3Check ended.rc:0
>Running:(3.3.14.5):C:\Program Files (x86)\AutoIt3\autoit3.exe "G:\GIT\Vinfur 2\Vinfur-2\Application\Itax.au3"
+>Setting Hotkeys...--> Press Ctrl+Alt+Break to Restart or Ctrl+BREAK to Stop.

"G:\GIT\Vinfur 2\Vinfur-2\Application\wd_helper1.au3" (1419) : ==> The requested action with this object has failed.:
$oShell.NameSpace($sInstallDir).CopyHere($FileItem, 20)
$oShell.NameSpace($sInstallDir)^ ERROR
->13:43:44 AutoIt3.exe ended.rc:1
+>13:43:44 AutoIt3Wrapper Finished.
>Exit code: 1    Time: 12.37



if $a=="Chrome" Then
    _WD_UpdateDriver('Chrome', $basedir & "/Dependencies/")
    $desiredcap = SetupChrome()
Elseif $a=="Firefox" then
    _WD_UpdateDriver('Firefox', $basedir & "/Dependencies/")
    $desiredcap = SetupGecko(0)
EndIf

This Is lates Version Code as Posted.

Getting Following Error

[n3wbie]

Thanks @mLipok for getting things corrected and helping find the error

The issue was with typing of path to chrome driver in update parameter which led to the following error.

The issue can be replicated by the following modified function in the wd_demo file with gecko /Firefox version.

the main issue is because of the use of slash instead of backslash.

Func SetupGecko($bHeadless)
    _WD_Option('Driver', 'geckodriver.exe')
    _WD_Option('DriverParams', '--log trace')
    _WD_Option('Port', 4444)
    Local $sDirectory = @ScriptDir & '/Dependencies/'
    DirCreate($sDirectory)
    ConsoleWrite("! " & FileExists($sDirectory) & @CRLF)
    ConsoleWrite("! " & $sDirectory & @CRLF)
    _WD_UpdateDriver('Firefox', $sDirectory, False, True)
    MsgBox(0, "", 'Testing')
    Exit
;~  Local $sCapabilities = '{"capabilities": {"alwaysMatch": {"browserName": "firefox", "acceptInsecureCerts":true}}}'
    _WD_CapabilitiesStartup()
    _WD_CapabilitiesAdd('alwaysMatch', 'firefox')
    _WD_CapabilitiesAdd('browserName', 'firefox')
    _WD_CapabilitiesAdd('acceptInsecureCerts', True)
    If $bHeadless Then _WD_CapabilitiesAdd('args', '--headless')
    _WD_CapabilitiesDump(@ScriptLineNumber) ; dump current Capabilities setting to console - only for testing in this demo
    Local $sCapabilities = _WD_CapabilitiesGet()
    Return $sCapabilities
EndFunc   ;==>SetupGecko



While working with the file we tried to change the main core file to the following file to trace the error.

we changed namespace to a different variable so as to ascertain the error.

it might be a very specific issue with windows 7 64 Bit arch..



Local $oNameSpace_Install = $oShell.NameSpace($sInstallDir)
                                ; delete webdriver from disk before unpacking to avoid potential problems
                                FileDelete($sInstallDir & $sDriverEXE)
                                Local $bEXEWasFound = False
                                For $FileItem In $FilesInZip ; Check the files in the archive separately
                                    ; https://docs.microsoft.com/en-us/windows/win32/shell/folderitem
                                    If StringRight($FileItem.Name, 4) = ".exe" Or StringRight($FileItem.Path, 4) = ".exe" Then ; extract only EXE files
                                        $bEXEWasFound = True
                                        $oNameSpace_Install.CopyHere($FileItem, 20) ; 20 = (4) Do not display a progress dialog box. + (16) Respond with "Yes to All" for any dialog box that is displayed.
                                    EndIf
                                Next
                                Exit

Thanks Once Again.



[mLipok]

2 hours ago, n3wbie said:

it might be a very specific issue with windows 7 64 Bit arch..

I check it on my Windows10 64Bit.

With:

#AutoIt3Wrapper_AutoIt3Dir="z:\AutoItPortable\AutoIt_3_3_14_5"

And I hit the same problem.

Recently I was not able fire the same issue as I'm using AutoIt Beta version (for testing, not for production scripts) which has fixed this issue.
So as I forget about it I was not able to catch the same problem on my side.

[mLipok]

@n3wbie and @Danp2 please take a look here:

https://github.com/Danp2/au3WebDriver/pull/227



[OsMiyaki]

Thanks, i knew the error was simpler.

[OsMiyaki]

On 2/3/2022 at 10:47 AM, mLipok said:

use <> because != is not correct syntax in AutoIt



Thanks for the answer.

[NolleWed]

I am using WebDriver for the first time as I need to convert all my AutoIt scripts from IE to Edge as I no longer have IE available with WIN 10 in my office.
Unfortunately all downloaded au3. files give syntax errors. (https://www.autoitscript.com/wiki/WebDriver)
Can you help me please?



"C:\AutoIt\AutoIt3\Include\wd_core.au3"(169,47) : warning: $SB_UTF8: possibly used before declaration.
Global $_WD_BFORMAT = $SB_UTF8 ; Binary format
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~^
"C:\AutoIt\AutoIt3\Include\wd_core.au3"(1713,59) : warning: $OBJ_STRING: possibly used before declaration.
    If (Not IsObj($vResult)) Or ObjName($vResult, $OBJ_STRING)
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~^
"C:\AutoIt\AutoIt3\Include\wd_helper.au3"(549,45) : warning: $KEYWORD_NULL: possibly used before declaration.
    If (IsKeyword($vIdentifier) = $KEYWORD_NULL)
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~^
"C:\AutoIt\AutoIt3\Include\wd_helper.au3"(1037,120) : warning: $ARRAYFILL_FORCE_SINGLEITEM: possibly used before declaration.
                        _ArrayAdd($aAllOptions, StringStripWS($vResult, $STR_STRIPTRAILING), 0, Default, @LF, $ARRAYFILL_FORCE_SINGLEITEM)
                        ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~^
"C:\AutoIt\AutoIt3\Include\wd_helper.au3"(1037,120) : error: _ArrayAdd() called with wrong number of args.
                        _ArrayAdd($aAllOptions, StringStripWS($vResult, $STR_STRIPTRAILING), 0, Default, @LF, $ARRAYFILL_FORCE_SINGLEITEM)
                        ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~^
"C:\AutoIt\AutoIt3\Include\wd_helper.au3"(1236,98) : warning: $STR_REGEXPARRAYMATCH: possibly used before declaration.
        Local $aLatestWDVersion = StringRegExp(BinaryToString($sResult), $sRegex, $STR_REGEXPARRAYMATCH)
        ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~^
"C:\AutoIt\AutoIt3\Include\wd_helper.au3"(1583,65) : warning: $STDOUT_CHILD: possibly used before declaration.
        Local $iPID = Run($sCmd, $sInstallDir, @SW_HIDE, $STDOUT_CHILD)
        ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~^
"C:\AutoIt\AutoIt3\Include\wd_helper.au3"(2462,31) : warning: $SB_UTF16LE: possibly used before declaration.
                $iConversion = $SB_UTF16LE
                ~~~~~~~~~~~~~~~~~~~~~~~~~~^
"C:\AutoIt\AutoIt3\Include\wd_helper.au3"(2468,31) : warning: $SB_UTF16BE: possibly used before declaration.
                $iConversion = $SB_UTF16BE
                ~~~~~~~~~~~~~~~~~~~~~~~~~~^
"C:\AutoIt\AutoIt3\Include\wd_helper.au3"(2477,28) : warning: $SB_ANSI: possibly used before declaration.
                $iConversion = $SB_ANSI
                ~~~~~~~~~~~~~~~~~~~~~~~^
"C:\AutoIt\AutoIt3\Include\wd_core.au3"(169,47) : error: $SB_UTF8: undeclared global variable.
Global $_WD_BFORMAT = $SB_UTF8 ; Binary format
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~^
"C:\AutoIt\AutoIt3\Include\wd_core.au3"(1713,59) : error: $OBJ_STRING: undeclared global variable.
    If (Not IsObj($vResult)) Or ObjName($vResult, $OBJ_STRING)
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~^
"C:\AutoIt\AutoIt3\Include\wd_helper.au3"(549,45) : error: $KEYWORD_NULL: undeclared global variable.
    If (IsKeyword($vIdentifier) = $KEYWORD_NULL)
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~^
"C:\AutoIt\AutoIt3\Include\wd_helper.au3"(1037,120) : error: $ARRAYFILL_FORCE_SINGLEITEM: undeclared global variable.
                        _ArrayAdd($aAllOptions, StringStripWS($vResult, $STR_STRIPTRAILING), 0, Default, @LF, $ARRAYFILL_FORCE_SINGLEITEM)
                        ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~^
"C:\AutoIt\AutoIt3\Include\wd_helper.au3"(1236,98) : error: $STR_REGEXPARRAYMATCH: undeclared global variable.
        Local $aLatestWDVersion = StringRegExp(BinaryToString($sResult), $sRegex, $STR_REGEXPARRAYMATCH)
        ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~^
"C:\AutoIt\AutoIt3\Include\wd_helper.au3"(1583,65) : error: $STDOUT_CHILD: undeclared global variable.
        Local $iPID = Run($sCmd, $sInstallDir, @SW_HIDE, $STDOUT_CHILD)
        ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~^
"C:\AutoIt\AutoIt3\Include\wd_helper.au3"(2462,31) : error: $SB_UTF16LE: undeclared global variable.
                $iConversion = $SB_UTF16LE
                ~~~~~~~~~~~~~~~~~~~~~~~~~~^
"C:\AutoIt\AutoIt3\Include\wd_helper.au3"(2468,31) : error: $SB_UTF16BE: undeclared global variable.
                $iConversion = $SB_UTF16BE
                ~~~~~~~~~~~~~~~~~~~~~~~~~~^
"C:\AutoIt\AutoIt3\Include\wd_helper.au3"(2477,28) : error: $SB_ANSI: undeclared global variable.
                $iConversion = $SB_ANSI
                ~~~~~~~~~~~~~~~~~~~~~~~^
"C:\AutoIt\AutoIt3\Include\wd_helper.au3"(1323,76) : error: _ArrayExtract(): undefined function.
            Local $aBrowser = _ArrayExtract($_WD_SupportedBrowsers, $iIndex, $iIndex)
            ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~^

[mLipok]

Which version of this UDF you are using ?

Please download and try to use this:

https://github.com/Danp2/au3WebDriver/archive/refs/heads/master.zip

or at least this:
https://github.com/Danp2/au3WebDriver/archive/refs/tags/0.7.0.zip



[carparso]

Hey there,



i tried to use WD with the new version of autoit (v3.3.16.0)

I get this error:

"##########\wd_capabilities.au3" (284) : ==> Variable subscript badly formatted.:
$s_SpecificOptions_KeyName = $_WD_SupportedBrowsers[$iIndex][$_WD_BROWSER_OptionsKey]
$s_SpecificOptions_KeyName = $_WD_SupportedBrowsers[^ ERROR



I used this webdriver-download:

https://github.com/Danp2/au3WebDriver/archive/refs/heads/master.zip



and this:

https://github.com/Danp2/au3WebDriver/releases/tag/0.7.0



It makes no difference.

Does anyone have simliar problems?

[NolleWed]

1 hour ago, mLipok said:

Which version of this UDF you are using ?

Please download and try to use this:

https://github.com/Danp2/au3WebDriver/archive/refs/heads/master.zip

or at least this:
https://github.com/Danp2/au3WebDriver/archive/refs/tags/0.7.0.zip



I just click all links in Wiki for the UDFs: https://github.com/Danp2/au3WebDriver/releases/tag/0.7.0

I will download from your links and will try again

[Danp2]

@carparso Please show us your code containing _WD_CapabilitiesAdd. I suspect that you've passed an invalid browser name into this function.

@mLipok Need to add error checking after the _ArraySearch.

[Danp2]

@NolleWedWhat version of Autoit are you running?

[NolleWed]

1 minute ago, Danp2 said:

@NolleWedWhat version of Autoit are you running?

not the newest one, because I´m afraid my old scripts don´t work with newer versions 😊

[Danp2]

@NolleWedThat your editor version. When you run a script, the Autoit version should appear in the console output.

You should investigate running the portable version of Autoit so that you can have access to multiple versions simultaneously.

[NolleWed]

3 minutes ago, Danp2 said:

@NolleWedThat your editor version. When you run a script, the Autoit version should appear in the console output.

You should investigate running the portable version of Autoit so that you can have access to multiple versions simultaneously.

AutoIt3 Syntax Checker v3.3.10.2  Copyright (c) 2007-2013 Tylo & AutoIt Team

[Danp2]

@NolleWedIt's been 8 years since that was released, so it's time to upgrade to something more recent if you want to use the Webdriver UDF.

[NolleWed]

4 minutes ago, Danp2 said:

@NolleWedIt's been 8 years since that was released, so it's time to upgrade to something more recent if you want to use the Webdriver UDF.

I just download the newest version: https://www.autoitscript.com/site/autoit/downloads/ now, I´m just seaching for a german HelpFile (AutoIt3Help.exe) to replace it

[carparso]

49 minutes ago, Danp2 said:

@carparso Please show us your code containing _WD_CapabilitiesAdd. I suspect that you've passed an invalid browser name into this function.

@mLipok Need to add error checking after the _ArraySearch.

        Local $a= SetupEdge(False)
       _WD_Startup()
       $sSession = _WD_CreateSession($a)





    Func SetupEdge($bHeadless)
        _WD_Option('Driver', 'msedgedriver.exe')
        _WD_Option('Port', 9515)
        _WD_Option('DriverParams', '--verbose --log-path="' & @ScriptDir & '\msedge.log"')

    ;~     Local $sDesiredCapabilities = '{"capabilities": {"alwaysMatch": {"ms:edgeOptions": {"excludeSwitches": [ "enable-automation"]}}}}'
        _WD_CapabilitiesStartup()
        _WD_CapabilitiesAdd('alwaysMatch', 'edge')
        _WD_CapabilitiesAdd('excludeSwitches', 'enable-automation')
        _WD_CapabilitiesAdd('acceptInsecureCerts', 'true')

        If $bHeadless Then _WD_CapabilitiesAdd('args', '--headless')
        _WD_CapabilitiesDump(@ScriptLineNumber) ; dump current Capabilities setting to console - only for testing in this demo
        Local $sDesiredCapabilities = _WD_CapabilitiesGet()
        Return $sDesiredCapabilities
    EndFunc   ;==>SetupEdge









I have an other pc with the autoit-version from 2018. I copied the include folder from this pc to my "new pc". Now it works. The webDriver-files are the same. I think it is the new version from Autoit which cuases this problem.

No more help needed. I just not use the new autoit-version and it works 🙂

BTW: thx for the great work and support 🙂









[Danp2]

1 minute ago, carparso said:

        _WD_CapabilitiesAdd('alwaysMatch', 'edge')

From the change log:

Quote

• _WD_CapabilitiesAdd: Must use 'msedge' instead of 'edge' when for browser name. Script breaking change

Changing 'edge' to 'msedge' should resolve your issue.
