WebDriver UDF - Help & Support (III)

[Danp2]

@mLipokIDK. You could try with a different browser. Other thought would be to add some debugging code that performs the click inside a loop until the secondary element is visible.

[mLipok]

2 minutes ago, Danp2 said:

@mLipokIDK. You could try with a different browser. Other thought would be to add some debugging code that performs the click inside a loop until the secondary element is visible.

WIP, will share results.

[ungovernable]

Where can I find a working example of automating Chrome browser with autoit? I tried various examples found on this forum but I can't get it to work...

I tested both "chrome_example.auto3" and "chrome_example_2.auto3" from this thread. Of course I made sure to follow the instructions and install the pre-requisites.
From this thread:

But when I launch the au3 script, it opens the page in the browser then it just hangs there. It doesn't fill any form element or click any link.

I'm afraid I'll get an answer saying "not working" is too vague, but I can't find any information as to why it's not working. It's not writing anything to the console and there is no error message.

I noticed the examples I used are from 2013 so maybe it's outdated. Is there a more recent version of those 2 examples files ?
I also tested with the most recent example from this page: https://www.autoitscript.com/wiki/WebDriver

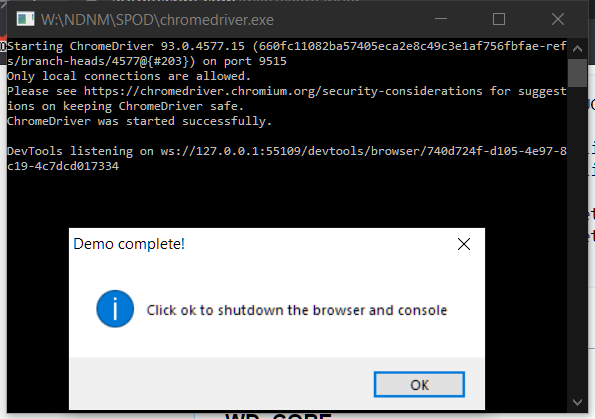

I followed the instructions but as soon as I open wd_demo.au3 and click the button to run DemoNavigation in Chrome, it doesn't work. The script opens the browser then instantly closes it.

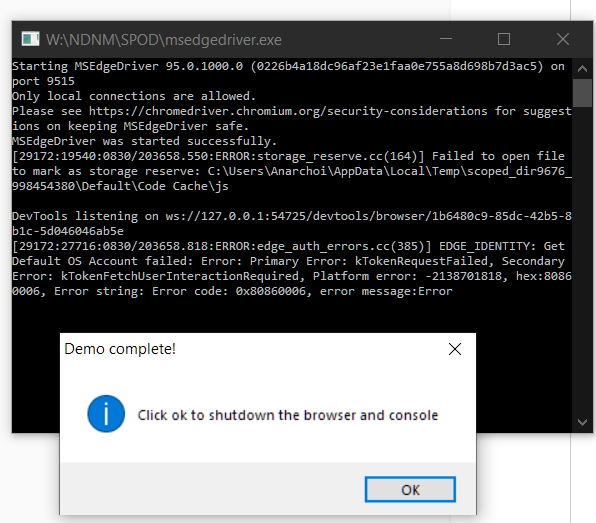

I also tried using Edge Driver instead, but the browser window instantly closes again



However, if I test with gecko driver (Firefox) then the demo works correctly.

Why isn't it working for Chrome and Edge?

[Danp2]

58 minutes ago, ungovernable said:

However, if I test with gecko driver (Firefox) then the demo works correctly.

Why isn't it working for Chrome and Edge?

Hard to say without additional details. My guess would be that it can't find the Chrome / Edge executable. To troubleshoot further, please post the results from the Scite output panel after you run wd_demo.

[ungovernable]

I didn't find the solution so I ended up using just the gecko driver. However i'm facing another problem now. I'm not able to click the button, I always get this error:

Quote

.........................
__WD_Post: URL=HTTP://127.0.0.1:4444/session/129f7eff-da9f-4c1d-b390-f9e765d09c2b/element; $sData={"using":"xpath","value":"//button[@id='onetrust-accept-btn-handler']"}
__WD_Post: StatusCode=0; ResponseText=WinHTTP request timed out before Webdriver...
__WD_Post ==> Send / Recv error: WinHTTP request timed out before Webdriver
_WD_FindElement: WinHTTP request timed out before Webdriver
_WD_FindElement ==> Send / Recv error: HTTP status = 0
__WD_Post: URL=HTTP://127.0.0.1:4444/session/129f7eff-da9f-4c1d-b390-f9e765d09c2b/element//click; $sData={"id":""}
__WD_Post: StatusCode=0; ResponseText=WinHTTP request timed out before Webdriver...
__WD_Post ==> Send / Recv error: WinHTTP request timed out before Webdriver
_WD_ElementAction: WinHTTP request timed out before Webdriver...
_WD_ElementAction ==> Send / Recv error: WinHTTP request timed out before Webdriver

Here's my code:

#include "wd_core.au3"
#include "wd_helper.au3"
#include <GuiComboBoxEx.au3>
#include <GUIConstantsEx.au3>
#include <ButtonConstants.au3>
#include <WindowsConstants.au3>

Local $sDesiredCapabilities, $iIndex, $sSession
Local $nMsg, $bProcess = False


SetupGecko()
_WD_Startup()
$sDesiredCapabilities = '{"desiredCapabilities":{"javascriptEnabled":true,"nativeEvents":true,"acceptInsecureCerts":true,"timeouts": {"implicit": 0, "pageLoad": 60000, "script": 30000}}}'
$sSession = _WD_CreateSession($sDesiredCapabilities)
_WD_Navigate($sSession, "https://app.spod.com/global")
ConsoleWrite("URL=" & _WD_Action($sSession, 'url') & @CRLF)
_WD_Shutdown()

Func SetupGecko()
_WD_Option('Driver', 'geckodriver.exe')
_WD_Option('DriverParams', '--log trace')
_WD_Option('Port', 4444)
EndFunc


WinWait("Sign-in to your account | SPOD App", "")
Sleep(5000)
ConsoleWrite("........................." & @CRLF)

$sElement = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, "//button[@id='onetrust-accept-btn-handler']")
_WD_ElementAction($sSession, $sElement, "click")


exit;



Edited August 31, 2021 by ungovernable

[Danp2]

@ungovernable I suspect that some of your UDFs are outdated, which is why I wanted you to post the full results.

[ungovernable]

Sorry here's the full log

Quote

>"C:\Program Files (x86)\AutoIt3\SciTE\..\autoit3.exe" /ErrorStdOut "W:\NDNM\SPOD\test firefox.au3"
_WD_IsLatestRelease: True
_WD_IsLatestRelease ==> Success
_WD_Startup: OS:    WIN_10 WIN32_NT 19043
_WD_Startup: AutoIt:    3.3.14.5
_WD_Startup: WD.au3:    0.4.1.0 (Up to date)
_WD_Startup: WinHTTP:    1.6.4.1 (Download latest source at <https://raw.githubusercontent.com/dragana-r/autoit-winhttp/master/WinHttp.au3>)
_WD_Startup: Driver:    geckodriver.exe
_WD_Startup: Params:    --log trace
_WD_Startup: Port:    4444
__WD_Post: URL=HTTP://127.0.0.1:4444/session; $sData={"desiredCapabilities":{"javascriptEnabled":true,"nativeEvents":true,"acceptInsecureCerts":true,"timeouts": {"implicit": 0, "pageLoad": 60000, "script": 30000}}}
__WD_Post: StatusCode=200; ResponseText={"value":{"sessionId":"9b22510e-d144-4cab-be92-c185b0ed8da2","capabilities":{"acceptInsecureCerts":t...
_WD_CreateSession: {"value":{"sessionId":"9b22510e-d144-4cab-be92-c185b0ed8da2","capabilities":{"acceptInsecureCerts":true,"browserName":"firefox","browserVersion":"91.0","javascriptEnabled":true,"moz:accessibilityChecks":false,"moz:buildID":"20210804193234","moz:geckodriverVersion":"0.29.1","moz:headless":false,"moz:processID":23968,"moz:profile":"C:\\Users\\Anarchoi\\AppData\\Local\\Temp\\rust_mozprofilen84tkH","moz:shutdownTimeout":60000,"moz:useNonSpecCompliantPointerOrigin":false,"moz:webdriverClick":true,"nativeEvents":true,"pageLoadStrategy":"normal","platformName":"windows","platformVersion":"10.0","proxy":{},"setWindowRect":true,"strictFileInteractability":false,"timeouts":{"implicit":0,"pageLoad":60000,"script":30000},"unhandledPromptBehavior":"dismiss and notify"}}}
__WD_Post: URL=HTTP://127.0.0.1:4444/session/9b22510e-d144-4cab-be92-c185b0ed8da2/url; $sData={"url":"https://app.spod.com/global"}
__WD_Post: StatusCode=200; ResponseText={"value":null}...
_WD_Navigate: {"value":null}
__WD_Get: URL=HTTP://127.0.0.1:4444/session/9b22510e-d144-4cab-be92-c185b0ed8da2/url
__WD_Get: StatusCode=200; $iResult = 0; $sResponseText={"value":"https://login.spod.com/"}...
_WD_Action: {"value":"https://login.spod.com/"}
URL=https://login.spod.com/
.........................
__WD_Post: URL=HTTP://127.0.0.1:4444/session/9b22510e-d144-4cab-be92-c185b0ed8da2/element; $sData={"using":"xpath","value":"//button[@id='onetrust-accept-btn-handler']"}
__WD_Post: StatusCode=0; ResponseText=WinHTTP request timed out before Webdriver...
__WD_Post ==> Send / Recv error: WinHTTP request timed out before Webdriver
_WD_FindElement: WinHTTP request timed out before Webdriver
_WD_FindElement ==> Send / Recv error: HTTP status = 0
__WD_Post: URL=HTTP://127.0.0.1:4444/session/9b22510e-d144-4cab-be92-c185b0ed8da2/element//click; $sData={"id":""}
__WD_Post: StatusCode=0; ResponseText=WinHTTP request timed out before Webdriver...
__WD_Post ==> Send / Recv error: WinHTTP request timed out before Webdriver
_WD_ElementAction: WinHTTP request timed out before Webdriver...
_WD_ElementAction ==> Send / Recv error: WinHTTP request timed out before Webdriver
>Exit code: 0    Time: 14.94




[Danp2]

2 minutes ago, ungovernable said:

_WD_Startup: WinHTTP:    1.6.4.1 (Download latest source at <https://raw.githubusercontent.com/dragana-r/autoit-winhttp/master/WinHttp.au3>)

Please do this and then try again.

[ungovernable]

I just updated WinHttp.au3 but I get the same error

Quote

>"C:\Program Files (x86)\AutoIt3\SciTE\..\autoit3.exe" /ErrorStdOut "W:\NDNM\SPOD\test firefox.au3"
_WD_IsLatestRelease: True
_WD_IsLatestRelease ==> Success
_WD_Startup: OS:    WIN_10 WIN32_NT 19043
_WD_Startup: AutoIt:    3.3.14.5
_WD_Startup: WD.au3:    0.4.1.0 (Up to date)
_WD_Startup: WinHTTP:    1.6.4.2
_WD_Startup: Driver:    geckodriver.exe
_WD_Startup: Params:    --log trace
_WD_Startup: Port:    4444
__WD_Post: URL=HTTP://127.0.0.1:4444/session; $sData={"desiredCapabilities":{"javascriptEnabled":true,"nativeEvents":true,"acceptInsecureCerts":true,"timeouts": {"implicit": 0, "pageLoad": 60000, "script": 30000}}}
__WD_Post: StatusCode=200; ResponseText={"value":{"sessionId":"ca8f2c59-8e10-43e6-9de3-dbff66aad230","capabilities":{"acceptInsecureCerts":t...
_WD_CreateSession: {"value":{"sessionId":"ca8f2c59-8e10-43e6-9de3-dbff66aad230","capabilities":{"acceptInsecureCerts":true,"browserName":"firefox","browserVersion":"91.0","javascriptEnabled":true,"moz:accessibilityChecks":false,"moz:buildID":"20210804193234","moz:geckodriverVersion":"0.29.1","moz:headless":false,"moz:processID":33860,"moz:profile":"C:\\Users\\Anarchoi\\AppData\\Local\\Temp\\rust_mozprofileHHGozM","moz:shutdownTimeout":60000,"moz:useNonSpecCompliantPointerOrigin":false,"moz:webdriverClick":true,"nativeEvents":true,"pageLoadStrategy":"normal","platformName":"windows","platformVersion":"10.0","proxy":{},"setWindowRect":true,"strictFileInteractability":false,"timeouts":{"implicit":0,"pageLoad":60000,"script":30000},"unhandledPromptBehavior":"dismiss and notify"}}}
__WD_Post: URL=HTTP://127.0.0.1:4444/session/ca8f2c59-8e10-43e6-9de3-dbff66aad230/url; $sData={"url":"https://app.spod.com/global"}
__WD_Post: StatusCode=200; ResponseText={"value":null}...
_WD_Navigate: {"value":null}
__WD_Get: URL=HTTP://127.0.0.1:4444/session/ca8f2c59-8e10-43e6-9de3-dbff66aad230/url
__WD_Get: StatusCode=200; $iResult = 0; $sResponseText={"value":"https://login.spod.com/"}...
_WD_Action: {"value":"https://login.spod.com/"}
URL=https://login.spod.com/
.........................
__WD_Post: URL=HTTP://127.0.0.1:4444/session/ca8f2c59-8e10-43e6-9de3-dbff66aad230/element; $sData={"using":"xpath","value":"//button[@id='onetrust-accept-btn-handler']"}
__WD_Post: StatusCode=0; ResponseText=WinHTTP request timed out before Webdriver...
__WD_Post ==> Send / Recv error: WinHTTP request timed out before Webdriver
_WD_FindElement: WinHTTP request timed out before Webdriver
_WD_FindElement ==> Send / Recv error: HTTP status = 0
__WD_Post: URL=HTTP://127.0.0.1:4444/session/ca8f2c59-8e10-43e6-9de3-dbff66aad230/element//click; $sData={"id":""}
__WD_Post: StatusCode=0; ResponseText=WinHTTP request timed out before Webdriver...
__WD_Post ==> Send / Recv error: WinHTTP request timed out before Webdriver
_WD_ElementAction: WinHTTP request timed out before Webdriver...
_WD_ElementAction ==> Send / Recv error: WinHTTP request timed out before Webdriver
>Exit code: 0    Time: 15.59


Thanks for the fast answers 👍

[Danp2]

26 minutes ago, ungovernable said:

$sDesiredCapabilities = '{"desiredCapabilities":{"javascriptEnabled":true,"nativeEvents":true,"acceptInsecureCerts":true,"timeouts": {"implicit": 0, "pageLoad": 60000, "script": 30000}}}'

Have you tried it without the modified timeouts? Something like --

$sDesiredCapabilities = '{"capabilities": {"alwaysMatch": {"browserName": "firefox", "acceptInsecureCerts":true}}}'



[ungovernable]

Yes I tried without the timeouts, I added it because I googled the error and it was suggested in another thread to add timeouts to $sDesiredCapabilities

Just reverted it back to the code you posted and I got the same error

[Danp2]

1 hour ago, ungovernable said:

_WD_Shutdown()

Remove this (or move it to the end)  if you want the rest of the script to work 😏

[ungovernable]

15 hours ago, Danp2 said:

Remove this (or move it to the end)  if you want the rest of the script to work 😏

lol omg how did I miss this, should have been obvious 🤦‍♂️😅 it's working now... thank you!

[Danp2]

Latest update just released. See below for change log.

Quote

    v0.4.1.1
    - Fix (_WD_NewTab): Properly detect $sCurrentTabHandle retrieval
    - Changed (_WD_UpdateDriver): Improve error handling (seadoggie01)
    - Added: __WD_Sleep
        - Changed (_WD_Option): Added support for "Sleep" option
        - Chore: Use __WD_Sleep instead of Sleep in "helper" functions
    - Chore: Updated wd_demo.au3
        - Call correct Base64 decode function
        - Remove "binary" portion of MS Edge Capabilities string
    - Chore: Add remark to _WD_GetSession



[ungovernable]

Is there a way to save cookies with WebDriver so I don't have to re-login every time I restart my script?

[mLipok]

@Danp2

Big thanks for adding this feature that we talked about earlier - I mean   __WD_Sleep().
Unfortunately, I didn't have time to do it myself.

I will do my tests and post my DEMO script in next few days.

btw.
In change log for v0.4.1.1
Please  consider to add remark about: $_WD_ERROR_UserAbort


[ungovernable]

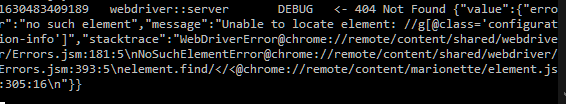

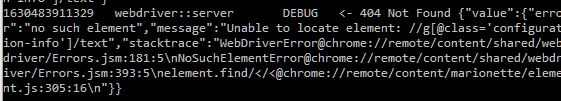

I have another question... What's wrong with my XPath?

$spod_image_size_element = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, "//g[@class='configuration-info']/text")
        $spod_image_size = _WD_ElementAction($sSession, $spod_image_size_element, 'property', 'value')

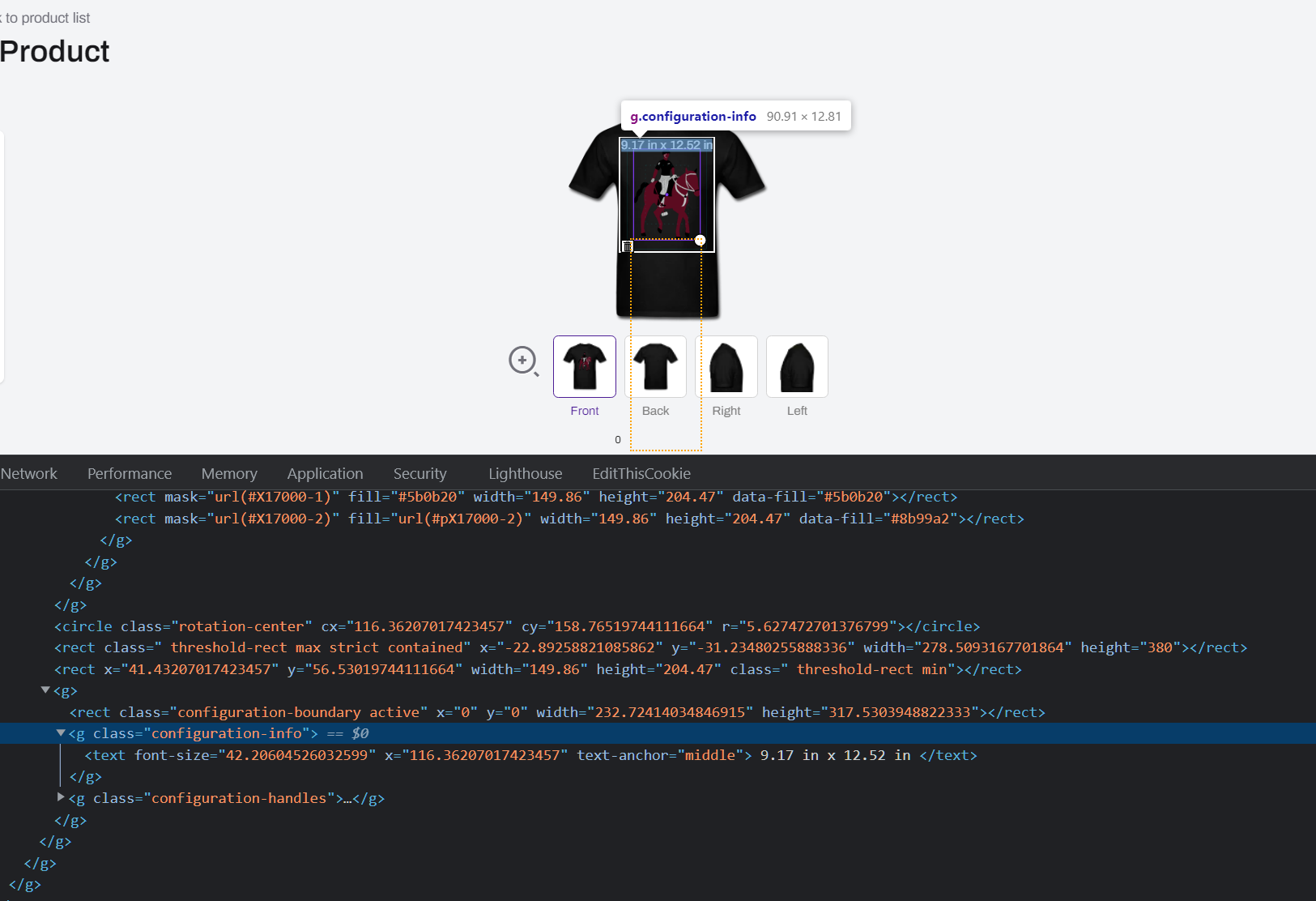

here's the element in dev console:



the <text> element shows up dynamically, it appears only when I hold the mouse button over the image to resize it. So I try to catch it in a loop:

while 1
        sleep(5000)
        $spod_image_size_element = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, "//g[@class='configuration-info']")
        $spod_image_size = _WD_ElementAction($sSession, $spod_image_size_element, 'property', 'value')
            msgbox(0,"Element text = " & $spod_image_size, "")
WEnd



I also tried to get the parent element instead (g.configuration-info) but still can't be found:

this doesn't work either:

//g[contains(@class, 'configuration-info')]



[Danp2]

@mLipokYou're welcome.

[Danp2]

9 hours ago, ungovernable said:

Is there a way to save cookies with WebDriver so I don't have to re-login every time I restart my script?

Unless you instruct otherwise, a new temporary user profile is used each time you launch the browser with webdriver. I haven't needed to save / restore cookies, so I don't really have advice in this area other than to point you to the _WD_Cookies function.

5 hours ago, ungovernable said:

What's wrong with my XPath?

Have you checked to see if the page uses frames?

[mLipok]

For those interested - please have a look here:
