IE - Accessing a table in HTML

[CaptainBeardsEyesBeard]

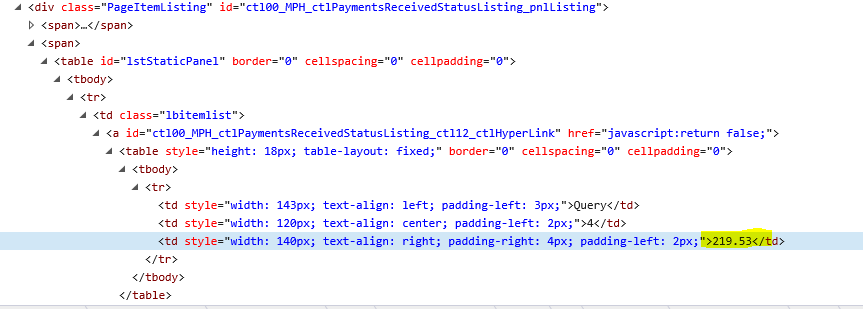

I would like to be able to determine if the highlighted part has a value above 0

To start with I just wanted to return a value using



Local $oDiv = _IEGetObjById($oIE, "ctl00_MPH_ctlPaymentsReceivedStatusListing_ctl12_ctlHyperLink")

MsgBox($MB_SYSTEMMODAL, "Line1", $oDiv.value)

I also tried on inner text

Local $oDiv = _IEGetObjById($oIE, "ctl00_MPH_ctlPaymentsReceivedStatusListing_ctl12_ctlHyperLink")

MsgBox($MB_SYSTEMMODAL, "Line1", $oDiv.value)

However I get a thing telling me that it is not of object type on my console output

(75) : ==> Variable must be of type "Object".:
MsgBox($MB_SYSTEMMODAL, "Line1", $oDiv.value)
MsgBox($MB_SYSTEMMODAL, "Line1", $oDiv^ ERROR
>Exit code: 1    Time: 39.26



[Danp2]

I would use _IETableWriteToArray and then locate the desired value within the array.

[CaptainBeardsEyesBeard]

28 minutes ago, Danp2 said:

I would use _IETableWriteToArray and then locate the desired value within the array.

Thanks I'll look into that



At the moment I'm not able to return the value correctly though.



Is there a better way to return the value than the below?



Local $oDiv = _IEGetObjById($oIE, "ctl00_MPH_ctlPaymentsReceivedStatusListing_ctl12_ctlHyperLink")

MsgBox($MB_SYSTEMMODAL, "Line1", $oDiv.value)



[Danp2]

You are retrieving the link element, so not sure why you would expect this to give you the value of a table cell. If _IETableWriteToArray doesn't work for you, then perhaps you could use the IE xpath UDF that's floating around the forum.

[CaptainBeardsEyesBeard]

OK so I tried

Local $oTable = _IETableGetCollection($oIE)
Local $aTableData = _IETableWriteToArray($oTable)
If @error then
   ConsoleWrite(@CRLF & "Error writing to table array")
EndIf



_ArrayDisplay($aTableData)

and got this



--> IE.au3 T3.0-2 Error from function _IETableWriteToArray, $_IESTATUS_InvalidObjectType

Error writing to table array>Exit code: 0    Time: 27.1



[Danp2]

That because you can't pass a collection object to IETableWriteToArray. Change your code to  retrieve an individual table by passing an index to _IETableGetCollection.

[CaptainBeardsEyesBeard]

What would be an index in that instance?

[Danp2]

From the help file --

Quote

0 or positive integer returns an indexed instance

The value you use will depending on which table instance you want to target. If there is only one on the web page, then use 0. Otherwise, use whatever value is appropriate to retrieve the desired table.

[CaptainBeardsEyesBeard]

Thanks using 0 I got a return of the below. I tried 1 also and got an empty table

Where would the number of the table be defined?



[Danp2]

It will vary depending on the website involved. You could do something like this to figure it out --

_IETableGetCollection($oIE)
$iNumTables = @extended

For $i = 0 To $iNumTables - 1
    $oTable = _IETableGetCollection($oIE, $i)
    $aTableData = _IETableWriteToArray($oTable)
    _ArrayDisplay($aTableData, "Table #" & $i)
Next

Code is untested, so YMMV. 😉

[CaptainBeardsEyesBeard]

That was really great thank you
