RDP Automation

[gcriaco]

I am looking for a Script with which i can automate the RDP to a Windows10 PC.
The examples based on RDP Embedded Sessions ("MsTscAx.MsTscAx.x / MsRDP.MsRDP.x" - http://msdn.microsoft.com/en-us/library/aa381344(v=VS.85).aspx)
from several posts are working just in case the target machine is running IIS.
I'm wondering if it's possible to use these ActiveX or other features for PCs without IIS too.

Any help?

Thanks
Peppe

[JLogan3o13]

Please check your link, is not working for me.

[FrancescoDiMuro]

@JLogan3o13
Try this one (without the round parentheses at the end) removed

[gcriaco]

Correct MS link: https://docs.microsoft.com/it-it/windows/win32/termserv/imsrdpclient-interface?redirectedfrom=MSDN



This is an old thread related to ActiveX RDP:



[gcriaco]

This "quick and dirty" workaround works:

local $iPid = run("mstsc.exe /v:IP /public", "", @SW_HIDE)
WinWaitActive("Sicurezza di Windows", "", 3)
Sleep(1000)
Send("User")
Sleep(500)
send("{TAB}")
Sleep(500)
send("Password")
Sleep(500)
send("{ENTER}")
Exit

If somebody knows how to connect to Win10 PCs via ActiveX please let me know. Otherwise, maybe this code could be useful to someone.



Regards

Peppe

[FrancescoDiMuro]

@gcriaco

Did you try the script in the post you provided?



[gcriaco]

Yes, of course. You have to substitute IP, User and Password with your data.

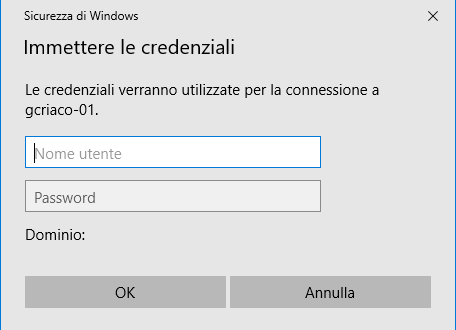

Moreover, "Sicurezza di Windows" is the RDP Window Title (italian Windows O.S. version):

You have to sustitute "Sicurezza di Windows" with the correct title of the window.

 As I already said, it's just a workaround, but unfortunately I'm not able to use the RDP ActiveX objects to connect to PCs (just IIS servers)

[BigDaddyO]

This one works for me for RDP connection, but you have to have your credentials stored in cmdkey for the specified target machine:  TERMSRV/TargetName



ShellExecute(@SystemDir & "\mstsc.exe", "/v:" & $sServer & " /w:1024 /h:768")            ;Launch the RDP session


[gcriaco]

Found the solution (described here: stackoverflow)

I need to add the following step to ptrex old topic:

$oRDP.AdvancedSettings8.EnableCredSspSupport = true

Script example:

expandcollapse popup

#include <GUIConstantsEx.au3>
#include <WinAPI.au3>
#include <WindowsConstants.au3>

$host = "IP Address" ;<<<<<<< enter here the host name or ip address
;Remote Desktop ActiveX Control Interfaces -> http://msdn.microsoft.com/en-us/library/aa383022(v=VS.85).aspx
$hGUI = GUICreate("RDP Embedded Sessions", 952, 675, -1, -1, $WS_OVERLAPPEDWINDOW + $WS_CLIPSIBLINGS + $WS_CLIPCHILDREN)
$oRDP = ObjCreate("MsTscAx.MsTscAx") ;http://msdn.microsoft.com/en-us/library/aa381344(v=VS.85).aspx
$oRDP_Ctrl = GUICtrlCreateObj($oRDP, 64, 44, 800, 600)
GUICtrlSetResizing(-1, $GUI_DOCKALL)
GUICtrlSetStyle($oRDP_Ctrl , $WS_VISIBLE)
$oRDP.DesktopWidth = 1366
$oRDP.DesktopHeight = 768
$oRDP.Fullscreen = 768
$oRDP.ColorDepth = 32
$oRDP.AdvancedSettings2.RedirectDrives = True ; Sollen die Laufwerke mitgenommen werden
$oRDP.AdvancedSettings2.RedirectPrinters = False ; Sollen die Drucker mitgenommen werden
$oRDP.AdvancedSettings2.RedirectPorts = False ; Ports wie LPT1 etc
$oRDP.AdvancedSettings2.RedirectSmartCards = False ; SmartCards für Authentifizierung
$oRDP.AdvancedSettings2.EnableAutoReconnect = False
$oRDP.AdvancedSettings2.allowBackgroundInput = False
$oRDP.AdvancedSettings2.ConnectionBarShowRestoreButton = False
$oRDP.AdvancedSettings3.SmartSizing = True
$oRDP.AdvancedSettings5.AudioRedirectionMode = 0
$oRDP.AdvancedSettings2.ClearTextPassword = "Password" ; <<<<<<< enter here the user password
$oRDP.AdvancedSettings8.EnableCredSspSupport = true
$oRDP.Server = $host
$oRDP.UserName = "Username" ;<<<<<<< enter here the user name
$oRDP.Domain = "domain" ;<<<<<<< enter here the domain name
$oRDP.ConnectingText = "Connecting to " & $host
$oRDP.DisconnectedText = "Disconnected from " & $host
$oRDP.StartConnected = True
$oRDP.Connect()

GUISetState(@SW_SHOW, $hGUI)
;~ ConsoleWrite($oRDP.GetErrorDescription() & @CRLF)
While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            $oRDP.Disconnect()
            Exit
    EndSwitch
WEnd

Hope this post is useful to someone else.



regards

Peppe

[maniootek]

Is there any way to automate rdp login without creating gui? I want to bring back the restore button.
