@DonChunior I haven't used that browser, so I'm not sure how much help I can be. I did have a few questions / comments --

  • You are using an older version of the Webdriver UDF. Please update to the latest version (0.3.0.1)
  • There's a newer version of the WinHTTP UDF. Grab the source from here.
  • What version of Geckodriver are you attempting to use?
  • Why the switch from port 4444 to 9150?
Link to comment
Share on other sites

@Danp2, Hi, sometimes I have to run 2 independent webdriver programs concurrenntly. As the _WD_Startup in the 2nd program closes existing chromedriver.exe and its child processes, the first program stops functioning when the 2nd program is initiated. So I put the following code in the 2nd program.

If Not ProcessExists("chromedriver.exe") Then
    _WD_Startup()
EndIf

Apparently this works. But I'd like to have your input as to the viability of this approach.

Edited by CYCho
Link to comment
Share on other sites

On 6/5/2020 at 2:06 PM, Danp2 said:

@DonChunior I haven't used that browser, so I'm not sure how much help I can be. I did have a few questions / comments --

  • You are using an older version of the Webdriver UDF. Please update to the latest version (0.3.0.1)
  • There's a newer version of the WinHTTP UDF. Grab the source from here.
  • What version of Geckodriver are you attempting to use?
  • Why the switch from port 4444 to 9150?

@Danp2, thanks for your advice.
I've updated the UDFs to the latest versions.
For the Geckodriver I use the latest version 0.26.0 (64 bit).

Last but not least, I made the Tor Browser start with the following code:

_WD_Option('Driver', 'geckodriver.exe')
_WD_Option('Port', 4444)
_WD_Startup()
Local $sSession = _WD_CreateSession('{"capabilities": {"alwaysMatch": {"moz:firefoxOptions": {"binary": "C:\\Program Files\\Tor Browser\\Browser\\firefox.exe", "args": ["-profile", "C:\\Program Files\\Tor Browser\\Browser\\TorBrowser\\Data\\Browser\\profile.default"]}}}}')

However, I still get error messages in the console output:

_WDStartup: OS: WIN_10 WIN32_NT 18362
_WDStartup: AutoIt: 3.3.14.5
_WDStartup: WD.au3: 0.3.0.1
_WDStartup: WinHTTP:    1.6.4.2
_WDStartup: Driver: geckodriver.exe
_WDStartup: Params:
_WDStartup: Port:   4444
__WD_Post: URL=HTTP://127.0.0.1:4444/session; $sData={"capabilities": {"alwaysMatch": {"moz:firefoxOptions": {"binary": "C:\\Program Files\\Tor Browser\\Browser\\firefox.exe", "args": ["-profile", "C:\\Program Files\\Tor Browser\\Browser\\TorBrowser\\Data\\Browser\\profile.default"]}}}}
__WD_Post: StatusCode=0; ResponseText=0...
__WD_Post ==> Send / Recv error
_WD_CreateSession: 0
_WD_CreateSession ==> Webdriver Exception: HTTP status = 0

So the solution was to pass the Tor default profile as argument.

Do you have an idea how to get rid of them

Link to comment
Share on other sites

On 6/8/2020 at 2:28 PM, Danp2 said:

@DonChunior If you check the Geckodriver console, does it provide any additional details?

Here's the output of the Geckodriver console:

1591707385254   geckodriver     DEBUG   Listening on 127.0.0.1:4444
1591707385717   webdriver::server       DEBUG   -> POST /session {"capabilities": {"alwaysMatch": {"moz:firefoxOptions": {"binary": "C:\\Program Files\\Tor Browser\\Browser\\firefox.exe", "args": ["-profile", "C:\\Program Files\\Tor Browser\\Browser\\TorBrowser\\Data\\Browser\\profile.default"]}}}}
1591707385767   mozrunner::runner       INFO    Running command: "C:\\Program Files\\Tor Browser\\Browser\\firefox.exe" "-marionette" "-profile" "C:\\Program Files\\Tor Browser\\Browser\\TorBrowser\\Data\\Browser\\profile.default" "-foreground" "-no-remote"
1591707385777   geckodriver::marionette DEBUG   Waiting 60s to connect to browser on 127.0.0.1:54414
1591707446918   mozrunner::runner       DEBUG   Killing process 10812
1591707446921   webdriver::server       DEBUG   <- 500 Internal Server Error {"value":{"error":"timeout","message":"connection refused","stacktrace":""}}



Link to comment
Share on other sites

4 minutes ago, Danp2 said:

@DonChunior It seems that geckodriver isn't able to connect to the browser instance. As I mentioned before, I'm not familiar with this browser. Are you sure that TorBrowser supports Marionette / webdriver protocol?

I can't say for sure, but I assume so, since Tor Browser 9.5 is based on Firefox 68.9.0esr.

Link to comment
Share on other sites



@Danp2 is there a way to not have webdriver close all my existing Microsoft Edge pages and tabs?

When I run this code:

; Edge (standard)
_WD_Option('Driver', 'MicrosoftWebDriver.exe')
_WD_Option('Port', 17556)
_WD_Option('DriverParams', '--verbose')

$sDesiredCapabilities = '{"capabilities":{}}'

;Start the WebDriver.exe console
_WD_Startup()

; Hide the WebDriver Console
_WD_ConsoleVisible(True)

If @error <> $_WD_ERROR_Success Then
    Exit -1
EndIf

$sSession = _WD_CreateSession($sDesiredCapabilities)

; Navigates to the Maximo login page
_WD_Navigate($sSession, "https://maximoapp.pcci.edu/maximo/webclient/login/login.jsp?appservauth=true")

; Maximizes the page
_WD_Window($sSession, "Maximize")

it closes all of my existing Edge pages and any tabs I had open.

Link to comment
Share on other sites

23 hours ago, Danp2 said:

@DonChunior Looks like you need to tell geckodriver to use the correct port --

_WD_Option('DriverParams', '--log trace --marionette-port 2828')



@Danp2, thank you very much for the decisive hint!
With the following code, the Tor browser will now start as desired:

_WD_Option('Driver', 'geckodriver.exe')
_WD_Option('DriverParams', '--marionette-port 2828')
_WD_Option('Port', 4444)
_WD_Startup()
Local $sSession = _WD_CreateSession('{"capabilities": {"alwaysMatch": {"moz:firefoxOptions": {"binary": "C:\\Program Files\\Tor Browser\\Browser\\firefox.exe", "args": ["-profile", "C:\\Program Files\\Tor Browser\\Browser\\TorBrowser\\Data\\Browser\\profile.default"]}}}}')



Link to comment
Share on other sites

@Danp2 How do I go about clicking on unseen links. There is a menu that only appears when the user hovers their mouse over a portion of the main menu.

See pictures below.

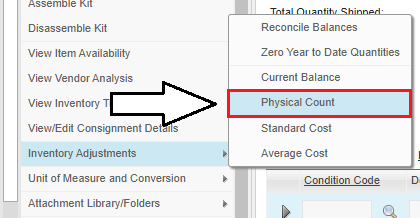

Before hovering the mouse over:




After hovering the mouse over:


I am trying to get my script to click on 'Physical Count' but everything I have tried failed. Even The code below failed.

_WD_LinkClickByText($sSession, "Physical Count")

If I can not use the standard

_WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, "//a[@id='m74daaf83_ns_menu_AM55_HEADER_sub_PHYSCNTADJ_OPTION_a']")
_WD_ElementAction($sSession, $wPsyCount, 'click')

how would I go about achieving this?



If you want to see the HTML code I have to work with DM me. too much to post here.

Edited by nooneclose
grammar
Link to comment
Share on other sites

1 hour ago, nooneclose said:

The code below failed

It would be useful if you showed the results from the Scite output panel so that we can determine why it failed. Was the element not found? Or was the error due to a non-interactable element? How can we guide you without these necessary details? 🙄

P.S. You likely will need to use "actions" to force the menu to appear. See DemoActions in wd_demo.au3 for an example.

Link to comment
Share on other sites

@Danp2 my bad. Here is the output from the Scite:

__WD_Post: URL=HTTP://?/session/cbbda3c6857fdb412a4beab05d978cce/element; $sData={"using":"xpath","value":"//a[@id='m30dc4336_tfrow_[C:7]_txt-tb']"}
__WD_Post: StatusCode=404; ResponseText={"value":{"error":"no such element","message":"no such element: Unable to locate element: {\"method\...
_WD_FindElement: {"value":{"error":"no such element","message":"no such element: Unable to locate element: {\"method\":\"xpath\",\"selector\":\"//a[@id='m30dc4336_tfrow_[C:7]_txt-tb']\"}\n  (Session info: chrome=83.0.4103.97)","stacktrace":"Backtrace:\n\tOrdinal0 [0x005D9563+2725219]\n\tOrdinal0 [0x004D8551+1672529]\n\tOrdinal0 [0x003C0359+525145]\n\tOrdinal0 [0x00359755+104277]\n\tOrdinal0 [0x003753C0+218048]\n\tOrdinal0 [0x0036AAD0+174800]\n\tOrdinal0 [0x00373D7C+212348]\n\tOrdinal0 [0x0036A94B+174411]\n\tOrdinal0 [0x00352528+75048]\n\tOrdinal0 [0x003535A0+79264]\n\tOrdinal0 [0x00353539+79161]\n\tOrdinal0 [0x004ED607+1758727]\n\tGetHandleVerifier [0x006F6546+1050150]\n\tGetHandleVerifier [0x006F6291+1049457]\n\tGetHandleVerifier [0x007010D7+1094071]\n\tGetHandleVerifier [0x006F6B46+1051686]\n\tOrdinal0 [0x004E5B06+1727238]\n\tOrdinal0 [0x004EEB7B+1764219]\n\tOrdinal0 [0x004EECE3+1764579]\n\tOrdinal0 [0x00504C05+1854469]\n\tBaseThreadInitThunk [0x75A16359+25]\n\tRtlGetAppContainerNamedObjectPath [0x77E77C24+228]\n\tRtlGetAppContainerNamedObjectPath [0x77E77BF4+180]\n"}}
_WD_FindElement ==> No match: HTTP status = 404
__WD_Post: URL=HTTP://?/session/cbbda3c6857fdb412a4beab05d978cce/element; $sData={"using":"xpath","value":"//a[@id='m74daaf83_ns_menu_AM55_HEADER_sub_PHYSCNTADJ_OPTION_a']"}
__WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"817ceafa-5d5b-4235-a6e8-63f95a5e41d4"}}...
_WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"817ceafa-5d5b-4235-a6e8-63f95a5e41d4"}}
__WD_Post: URL=HTTP://?/session/cbbda3c6857fdb412a4beab05d978cce/element/817ceafa-5d5b-4235-a6e8-63f95a5e41d4/click; $sData={"id":"817ceafa-5d5b-4235-a6e8-63f95a5e41d4"}
__WD_Post: StatusCode=400; ResponseText={"value":{"error":"element not interactable","message":"element not interactable\n  (Session info: c...
_WD_ElementAction: {"value":{"error":"element not interactable","message":"element not interactable\n  (Session info: c...
_WD_ElementAction ==> Element interaction issue: {"value":{"error":"element not interactable","message":"element not interactable\n  (Session info: chrome=83.0.4103.97)","stacktrace":"Backtrace:\n\tOrdinal0 [0x005D9563+2725219]\n\tOrdinal0 [0x004D8551+1672529]\n\tOrdinal0 [0x003C0202+524802]\n\tOrdinal0 [0x0035A0BA+106682]\n\tOrdinal0 [0x003543B1+82865]\n\tOrdinal0 [0x0036AA9D+174749]\n\tOrdinal0 [0x003541F6+82422]\n\tOrdinal0 [0x0036ACE1+175329]\n\tOrdinal0 [0x00373D7C+212348]\n\tOrdinal0 [0x0036A94B+174411]\n\tOrdinal0 [0x00352528+75048]\n\tOrdinal0 [0x003535A0+79264]\n\tOrdinal0 [0x00353539+79161]\n\tOrdinal0 [0x004ED607+1758727]\n\tGetHandleVerifier [0x006F6546+1050150]\n\tGetHandleVerifier [0x006F6291+1049457]\n\tGetHandleVerifier [0x007010D7+1094071]\n\tGetHandleVerifier [0x006F6B46+1051686]\n\tOrdinal0 [0x004E5B06+1727238]\n\tOrdinal0 [0x004EEB7B+1764219]\n\tOrdinal0 [0x004EECE3+1764579]\n\tOrdinal0 [0x00504C05+1854469]\n\tBaseThreadInitThunk [0x75A16359+25]\n\tRtlGetAppContainerNamedObjectPath [0x77E77C24+228]\n\tRtlGetAppContainerNamedObjectPath [0x77E77BF4+180]\n"}}
__WD_Post: URL=HTTP://?/session/cbbda3c6857fdb412a4beab05d978cce/element; $sData={"using":"partial link text","value":"Physical Count"}
__WD_Post: StatusCode=404; ResponseText={"value":{"error":"no such element","message":"no such element: Unable to locate element: {\"method\...
_WD_FindElement: {"value":{"error":"no such element","message":"no such element: Unable to locate element: {\"method\":\"partial link text\",\"selector\":\"Physical Count\"}\n  (Session info: chrome=83.0.4103.97)","stacktrace":"Backtrace:\n\tOrdinal0 [0x005D9563+2725219]\n\tOrdinal0 [0x004D8551+1672529]\n\tOrdinal0 [0x003C0359+525145]\n\tOrdinal0 [0x00359755+104277]\n\tOrdinal0 [0x003753C0+218048]\n\tOrdinal0 [0x0036AAD0+174800]\n\tOrdinal0 [0x00373D7C+212348]\n\tOrdinal0 [0x0036A94B+174411]\n\tOrdinal0 [0x00352528+75048]\n\tOrdinal0 [0x003535A0+79264]\n\tOrdinal0 [0x00353539+79161]\n\tOrdinal0 [0x004ED607+1758727]\n\tGetHandleVerifier [0x006F6546+1050150]\n\tGetHandleVerifier [0x006F6291+1049457]\n\tGetHandleVerifier [0x007010D7+1094071]\n\tGetHandleVerifier [0x006F6B46+1051686]\n\tOrdinal0 [0x004E5B06+1727238]\n\tOrdinal0 [0x004EEB7B+1764219]\n\tOrdinal0 [0x004EECE3+1764579]\n\tOrdinal0 [0x00504C05+1854469]\n\tBaseThreadInitThunk [0x75A16359+25]\n\tRtlGetAppContainerNamedObjectPath [0x77E77C24+228]\n\tRtlGetAppContainerNamedObjectPath [0x77E77BF4+180]\n"}}
_WD_FindElement ==> No match: HTTP status = 404
_WD_LinkClickByText ==> No match

Here is the output from the Chrome webdriver window:

DevTools listening on ws://?/devtools/browser/6f666135-245b-4f84-ae17-7bdfadb3d720
[12032:11960:0612/075721.363:ERROR:device_event_log_impl.cc(208)] [07:57:21.363] Bluetooth: bluetooth_adapter_winrt.cc:1060 Getting Default Adapter failed.

I looked at the actions in the demo file. Do they move the mouse to click or something? because I cannot guarantee the web-page to be opened the same every time.

here is the HTML:

<a id="m74daaf83_ns_menu_AM55_HEADER_sub_PHYSCNTADJ_OPTION_a" role="menuitem" tabindex="-1" draggable="false" clickid="undefined" eventtype="PHYSCNTADJ" href="javascript: topLevelMenus['m74daaf83_ns_MC'].menuClick({&quot;id&quot;:&quot;PHYSCNTADJ_OPTION&quot;,&quot;text&quot;:&quot;Physical Count&quot;,&quot;mxevent&quot;:&quot;PHYSCNTADJ&quot;,&quot;target&quot;:&quot;inventor&quot;,&quot;event&quot;:&quot;PHYSCNTADJ&quot;});" aria-labelledby="m74daaf83_ns_menu_AM55_HEADER_sub_PHYSCNTADJ_OPTION_a_tnode" xpath="1" style=""><img class="menuimg" alt="" src="menus/blank.gif"><span id="m74daaf83_ns_menu_AM55_HEADER_sub_PHYSCNTADJ_OPTION_a_tnode">Physical Count</span></a>



Edited by nooneclose
missing info
Link to comment
Share on other sites

3 minutes ago, nooneclose said:

_WD_FindElement ==> No match:

Can't click on what you can't find. 😀

Quote

_WD_ElementAction ==> Element interaction issue

This is what I was guessing the problem was.

Quote

I looked at the actions in the demo file. Do they move the mouse to click or something? because I cannot guarantee the web-page to be opened the same every time

Yes, you use it to simulate mouse movement among other things. How the web page is opened / rendered shouldn't matter as long as the target element exists.

The alternative is to find a way to programmatically trigger the menu to popup so that the click action can occur.

Link to comment
Share on other sites

@Danp2 I do not know if I made progress or not but I think I got it to find this element but it didnt click on it.

__WD_Post: URL=HTTP://127.0.0.1:9515/session/28f4d06d7c3c5f791b93aeab473ebf2e/element; $sData={"using":"xpath","value":"//a[@id='m74daaf83_ns_menu_AM55_HEADER_sub_PHYSCNTADJ_OPTION_a']"}
__WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"b2b970bc-81f2-4de4-9557-1f770ac0a926"}}...
_WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"b2b970bc-81f2-4de4-9557-1f770ac0a926"}}
_WD_Action ==> Invalid data type: (Back|Forward|Refresh|Url|Title|Actions) $sCommand=>b2b970bc-81f2-4de4-9557-1f770ac0a926

I tried this:

ConsoleWrite("Frames=" & _WD_GetFrameCount($sSession) & @CRLF)
ConsoleWrite("TopWindow=" & _WD_IsWindowTop($sSession) & @CRLF)
$sElement = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, "//iframe[@id='iframeResult']")
_WD_FrameEnter($sSession, $sElement)

$wPsyCount = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, "//a[@id='m74daaf83_ns_menu_AM55_HEADER_sub_PHYSCNTADJ_OPTION_a']")
_WD_Action($sSession, $wPsyCount, 'click')

that is the element that contains the javascript link.



is this right for actions?

$sAction &= $sElement & '","' & $_WD_ELEMENT_ID & '":"' & $sElement & '"}},{"button":1,"type":"pointerDown"},{"button":1,"type":"pointerUp"}]}]}'



Link to comment
