Mohana Posted November 22, 2019 Share Posted November 22, 2019 Hi all, I am a doctor in a hospital having an application that display the patient's list and their procedures (shown below) Unfortunately, it does not have an 'export' feature. I need to get the list for research purposes. I wonder if AutoIt can help!? Thanks Link to comment Share on other sites More sharing options...
FrancescoDiMuro Posted November 22, 2019 Share Posted November 22, 2019 (edited) Hi @Mohana, and welcome to the AutoIt forums Start from downloading the Full AutoIt installer and the Full SciTE editor; then, open AutoIt Window Info tool and spy the window you want to automate. Once you've done these steps, post the result here, so we can see how we can assist you Edited November 22, 2019 by FrancescoDiMuro Click here to see my signature: Spoiler ALWAYS GOOD TO READ: Forum Rules Forum Etiquette Link to comment Share on other sites More sharing options...
Mohana Posted November 22, 2019 Author Share Posted November 22, 2019 Thanks! I tried AutoItWindow. Unfortunately, it doesn't display the content Link to comment Share on other sites More sharing options...
FrancescoDiMuro Posted November 22, 2019 Share Posted November 22, 2019 @Mohana Then you should look at UI Automation Click here to see my signature: Spoiler ALWAYS GOOD TO READ: Forum Rules Forum Etiquette Link to comment Share on other sites More sharing options...
Mohana Posted November 22, 2019 Author Share Posted November 22, 2019 Seems very complicated 😩 Link to comment Share on other sites More sharing options...
rudi Posted November 22, 2019 Share Posted November 22, 2019 Hello, The window you've posted a screenshot of looks like a "PURE TEXT APP", like a "Windows CMD Box"? Has your program a GUI (Graphical User Interface) or is it some prehistoric text based program from the last millenium? Earth is flat, pigs can fly, and Nuclear Power is SAFE! Link to comment Share on other sites More sharing options...
Mohana Posted November 22, 2019 Author Share Posted November 22, 2019 6 minutes ago, rudi said: Hello, The window you've posted a screenshot of looks like a "PURE TEXT APP", like a "Windows CMD Box"? Has your program a GUI (Graphical User Interface) or is it some prehistoric text based program from the last millenium? thanks for the reply. it does has GUI (attached) Link to comment Share on other sites More sharing options...
rudi Posted November 22, 2019 Share Posted November 22, 2019 Okay, that's PACS. That one came across my way a few times and quite a number of years ago. IIRC it's storing every scan in a separate file, and it's using a database to store all the meta information. So you will need to access that database, if you want to get all the info you're asking for. CU, Rudi. Earth is flat, pigs can fly, and Nuclear Power is SAFE! Link to comment Share on other sites More sharing options...
Mohana Posted November 22, 2019 Author Share Posted November 22, 2019 1 minute ago, rudi said: Okay, that's PACS. That one came across my way a few times and quite a number of years ago. IIRC it's storing every scan in a separate file, and it's using a database to store all the meta information. So you will need to access that database, if you want to get all the info you're asking for. CU, Rudi. Is there any way to get them from the list displayed? Link to comment Share on other sites More sharing options...
Mohana Posted November 22, 2019 Author Share Posted November 22, 2019 1 minute ago, rudi said: Okay, that's PACS. That one came across my way a few times and quite a number of years ago. IIRC it's storing every scan in a separate file, and it's using a database to store all the meta information. So you will need to access that database, if you want to get all the info you're asking for. CU, Rudi. Is there any way to get them from the list displayed? Link to comment Share on other sites More sharing options...
rudi Posted November 22, 2019 Share Posted November 22, 2019 (edited) If the Autoit Window Info Tool can't "see" the content, then, sorry, I don't know howto accomplish this using autoit. <edit> PACS is always using a PACS server, so you should be able to connect an additional PACS client to access the data directly from the WS you are working at. PACS is using DICOM, that's a communications standard. This should give you a start: https://en.wikipedia.org/wiki/DICOM </edit> Edited November 22, 2019 by rudi Earth is flat, pigs can fly, and Nuclear Power is SAFE! Link to comment Share on other sites More sharing options...
Nine Posted November 22, 2019 Share Posted November 22, 2019 The only other solution would be to use some form of OCR. Seem to me that it should be quite easy to implement as the font is very basic and it is all white on black. “They did not know it was impossible, so they did it” ― Mark Twain Spoiler Block all input without UAC Save/Retrieve Images to/from Text Monitor Management (VCP commands) Tool to search in text (au3) files Date Range Picker Virtual Desktop Manager Sudoku Game 2020 Overlapped Named Pipe IPC HotString 2.0 - Hot keys with string x64 Bitwise Operations Multi-keyboards HotKeySet Recursive Array Display Fast and simple WCD IPC Multiple Folders Selector Printer Manager GIF Animation (cached) Screen Scraping Multi-Threading Made Easy Link to comment Share on other sites More sharing options...
seadoggie01 Posted November 22, 2019 Share Posted November 22, 2019 6 hours ago, Mohana said: Seems very complicated 😩 It's not nearly as complicated as it sounds/looks at first, I wouldn't put off so fast. If you look at LarsJ's example code it's really not that hard to understand, especially when you start to see the pattern. I would give it a try Musashi 1 All my code provided is Public Domain... but it may not work. Use it, change it, break it, whatever you want. Spoiler My Humble Contributions:Personal Function Documentation - A personal HelpFile for your functionsAcro.au3 UDF - Automating Acrobat ProToDo Finder - Find #ToDo: lines in your scriptsUI-SimpleWrappers UDF - Use UI Automation more Simply-erKeePass UDF - Automate KeePass, a password managerInputBoxes - Simple Input boxes for various variable types Link to comment Share on other sites More sharing options...

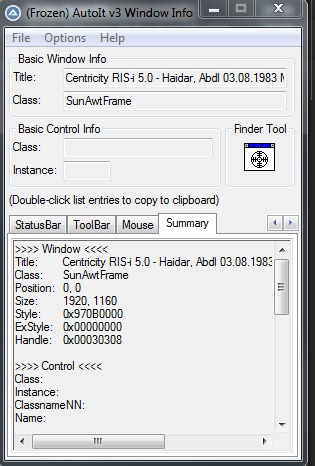

Mohana Posted December 7, 2019 Author Share Posted December 7, 2019 It shows SunAwtFrame .... Java App .... Can anyone advise on this?? (even if there's any third-party app that can help) Thanks Link to comment Share on other sites More sharing options...
Mohana Posted December 7, 2019 Author Share Posted December 7, 2019 On 11/22/2019 at 5:22 PM, Nine said: The only other solution would be to use some form of OCR. Seem to me that it should be quite easy to implement as the font is very basic and it is all white on black. tried screen OCR; not perfect Link to comment Share on other sites More sharing options...
seadoggie01 Posted December 7, 2019 Share Posted December 7, 2019 3 hours ago, Mohana said: It shows SunAwtFrame .... Java App .... Yup, unless you want to try and find a Java automation solution, I would look at UI Automation (with UIASpy to find the controls). I find that this topic is easier to understand than junkew's, but junkew's is admittedly a lot less code All my code provided is Public Domain... but it may not work. Use it, change it, break it, whatever you want. Spoiler My Humble Contributions:Personal Function Documentation - A personal HelpFile for your functionsAcro.au3 UDF - Automating Acrobat ProToDo Finder - Find #ToDo: lines in your scriptsUI-SimpleWrappers UDF - Use UI Automation more Simply-erKeePass UDF - Automate KeePass, a password managerInputBoxes - Simple Input boxes for various variable types Link to comment Share on other sites More sharing options...
