Point which get closer to another

[Dohko]

Hello All

I'm trying to create a au3 script for get closer one point from another with iterations.

I'm bad at math, and I didn't succeed to create the GetCloser() Func (see below), if anyone have an idea... ^^ Ty

expandcollapse popup

#cs ----------------------------------------------------------------------------

 AutoIt Version: 3.3.14.2
 Author:         myName

 Script Function:
    Template AutoIt script.

#ce ----------------------------------------------------------------------------

; Script Start - Add your code below here
#include <Math.au3>
#include <MsgBoxConstants.au3>

;Best geometrical representation :)
;~                             |
;~                             |
;~                             |
;~          *B3                |                *B1
;~                             |
;~                             |
;~                             |
;~                             +1
;~ ----------------------..-1,*A +1,..-------------------------
;~                             -1
;~                             |
;~                             |
;~                             |
;~          *B4                |                *B2
;~                             |
;~                             |
;~                             |


Local $A[2]
Local $B1[2]
Local $B2[2]
Local $B3[2]
Local $B4[2]
$A[0] = 0
$A[1] = 0

;xB > xA & yB > yA (top right corner)
$B1[0] = 100
$B1[1] = 100

;xB > xA & yB < yA (bottom right corner)
$B2[0] = 100
$B2[1] = -100

;xB < xA & yB > yA (top left corner)
$B3[0] = -100
$B3[1] = 100

;xB < xA & yB < yA (bottom right corner)
$B4[0] = -100
$B4[1] = -100

;Same dist for all B points, its ok
Local $D1 = Distance($A,$B1);141
Local $D2 = Distance($A,$B2)
Local $D3 = Distance($A,$B3)
Local $D4 = Distance($A,$B4)
;MsgBox(0,"Dist A <-> B1",$D1)
;MsgBox(0,"Dist A <-> B2",$D2)
;MsgBox(0,"Dist A <-> B3",$D3)
;MsgBox(0,"Dist A <-> B4",$D4)

;get the new $A pos every ($D-20)
$step = 20

;141/6 Then 8 loops ?
While $D1 <> 0
   $A = GetCloser($A,$B1,$D1,$step)
   $D1 = Distance($A,$B1)
   MsgBox(0,"NEW POS","A = "&$A[0]&","&$A[1])
WEnd

 MsgBox(0,"Pos A = B","A = "&$A[0]&","&$A[1]&" B= "$B[0]&","$B[1])

;B2,B3,B4 loop laters....

Func Distance($A,$B)
   local $valeur = (($B[0]-$A[0])^2) + (($B[1]-$A[1])^2)
   $valeur = Sqrt($valeur)
   $valeur = Round($valeur,0)
   return $valeur
EndFunc

;Try to understand mathematics... :)
;~ Func Angle($A,$B)
;~    local $angle = _Degree(ATan(($B[1]-$A[1])/($B[0]-$A[0])))
;~    return $angle
;~ EndFunc

;I really dont know how to do this, I find this
;https://www.developpez.net/forums/d830412/general-developpement/algorithme-mathematiques/mathematiques/calcul-rapprocher-point-d/ (souviron34 answer)
Func GetCloser($A,$B,$D,$step)
   local $newPosA[2]

   ;x
   $newPosA[0] = -1;how to calcuate... ACos (or something like this?)
   ;y
   $newPosA[1] = -1;how to calcuate...ASin (or something like this?)

   ;I need this x/y pos
   return $newposA
EndFunc



[jdelaney]

+=-1.  but you might need to +=1 depending on your coords

Edited April 26, 2019 by jdelaney

[Sidley]

Can't remember where AutoIt measures 0 degrees from, but Cosine is +1 at 0 degrees and -1 at 180 degrees, Sine is +1 at 90 degrees, -1 at 270 degrees. Multiply by your radius by Sine to reduce/expand in the y direction, and by Cosine to reduce/expand in the x direction (I think). I think the trig functions use radians, so multiply the degrees by Pi/180 to convert.

[jchd]

Post mentionned "simple"? Geez!

There is no need for trigonometry here:

Local $aPts = [ _
    [-1.58, 1.06], _        ; start point
    [6.06, 4.46], _         ; goal 1
    [-8.32, 7.44], _
    [6.22, -7.3], _
    [3.02, 6.36] _          ; goal 4
]

Local $Step = 5
For $i = 1 To 4
    _Walk($aPts[0][0], $aPts[0][1], $aPts[$i][0], $aPts[$i][1], $Step)
Next

; walk from point (x0, y0) to point (x1, y1) in n steps
Func _Walk($x0, $y0, $x1, $y1, $n)
    Local $dX = ($x1 - $x0) / $n, $dY = ($y1 - $y0) / $n
    For $i = 0 To $n
        ConsoleWrite('(' & Round($x0 + $dX * $i, 2) & '), (' & Round($y0 + $dY * $i, 2) & ')' & @LF)
    Next
    ConsoleWrite(@LF)
EndFunc

"Look 'Ma: no Cos()"

[Dohko]

Hello all

Thx for all your comments, I'm able to find a way to achieve this.

The code is verbos and not optimise I think if anyone has idea to improve this

For jchd, I badly name my var $step but its not step but the distance to do for a loop (see ex below) :

expandcollapse popup

#cs ----------------------------------------------------------------------------

 AutoIt Version: 3.3.14.2
 Author:         myName

 Script Function:
    Template AutoIt script.

#ce ----------------------------------------------------------------------------

; Script Start - Add your code below here
#include <Math.au3>
#include <MsgBoxConstants.au3>

;Best geometrical representation :)
;~                             |
;~                             |
;~                             |
;~          *B3                |                *B1
;~                             |
;~                             |
;~                             |
;~                             +1
;~ ----------------------..-1,*A +1,..-------------------------
;~                             -1
;~                             |
;~                             |
;~                             |
;~          *B4                |                *B2
;~                             |
;~                             |
;~                             |


Local $A[2]
Local $B1[2]
Local $B2[2]
Local $B3[2]
Local $B4[2]

;xB > xA & yB > yA (top right corner)
$B1[0] = 100
$B1[1] = 100

;xB > xA & yB < yA (bottom right corner)
$B2[0] = 100
$B2[1] = -100

;xB < xA & yB > yA (top left corner)
$B3[0] = -100
$B3[1] = 100

;xB < xA & yB < yA (bottom right corner)
$B4[0] = -100
$B4[1] = -100

;Same dist for all B points, its ok
Local $D1 = Distance($A,$B1);141
Local $D2 = Distance($A,$B2)
Local $D3 = Distance($A,$B3)
Local $D4 = Distance($A,$B4)
;MsgBox(0,"Dist A <-> B1",$D1)
;MsgBox(0,"Dist A <-> B2",$D2)
;MsgBox(0,"Dist A <-> B3",$D3)
;MsgBox(0,"Dist A <-> B4",$D4)

$DistToDo = 20
$A[0] = 0
$A[1] = 0
While $D1 <> 0
   $A = GetCloser($A,$B1,$D1,$DistToDo)
   $D1 = Distance($A,$B1)
   If $D1 <= $DistToDo Then
      $DistToDo = $D1
   EndIf

   MsgBox(0,"NEW POS","A = "&$A[0]&","&$A[1]&" DIST LEFT = "&$D1&" DISTTODO = "&$DistToDo)
WEnd

$DistToDo = 20
$A[0] = 0
$A[1] = 0
While $D2 <> 0
   $A = GetCloser($A,$B2,$D2,$DistToDo)
   $D2 = Distance($A,$B2)
   If $D2 <= $DistToDo Then
      $DistToDo = $D2
   EndIf

   MsgBox(0,"NEW POS","A = "&$A[0]&","&$A[1]&" DIST LEFT = "&$D2&" DISTTODO = "&$DistToDo)
WEnd

$DistToDo = 20
$A[0] = 0
$A[1] = 0
While $D3 <> 0
   $A = GetCloser($A,$B3,$D3,$DistToDo)
   $D3 = Distance($A,$B3)
   If $D3 <= $DistToDo Then
      $DistToDo = $D3
   EndIf

   MsgBox(0,"NEW POS","A = "&$A[0]&","&$A[1]&" DIST LEFT = "&$D3&" DISTTODO = "&$DistToDo)
WEnd

$DistToDo = 20
$A[0] = 0
$A[1] = 0
While $D4 <> 0
   $A = GetCloser($A,$B4,$D4,$DistToDo)
   $D4 = Distance($A,$B4)
   If $D4 <= $DistToDo Then
      $DistToDo = $D4
   EndIf

   MsgBox(0,"NEW POS","A = "&$A[0]&","&$A[1]&" DIST LEFT = "&$D4&" DISTTODO = "&$DistToDo)
WEnd

;~ ;Use Case *A not from origin
Local $ATopRight[2]
$ATopRight[0] = 20
$ATopRight[1] = 15
$DistToDo = 20
$D1 = Distance($ATopRight,$B1)
While $D1 <> 0
   $ATopRight = GetCloser($ATopRight,$B1,$D1,$DistToDo)
   $D1 = Distance($ATopRight,$B1)
   If $D1 <= $DistToDo Then
      $DistToDo = $D1
   EndIf

   MsgBox(0,"NEW POS","A = "&$ATopRight[0]&","&$ATopRight[1]&" DIST LEFT = "&$D1&" DISTTODO = "&$DistToDo)
WEnd

Local $ATopLeft[2]
$ATopLeft[0] = -33
$ATopLeft[1] = 72
$DistToDo = 20
$D1 = Distance($ATopLeft,$B1)
While $D1 <> 0
   $ATopLeft = GetCloser($ATopLeft,$B1,$D1,$DistToDo)
   $D1 = Distance($ATopLeft,$B1)
   If $D1 <= $DistToDo Then
      $DistToDo = $D1
   EndIf

   MsgBox(0,"NEW POS","A = "&$ATopLeft[0]&","&$ATopLeft[1]&" DIST LEFT = "&$D1&" DISTTODO = "&$DistToDo)
WEnd

Func Distance($A,$B)
   local $valeur = (($B[0]-$A[0])^2) + (($B[1]-$A[1])^2)
   $valeur = Sqrt($valeur)
   $valeur = Round($valeur,0)
   return $valeur
EndFunc

Func GetCloser($A,$B,$D,$DistToDo)
   local $newPosA[2]
   $newPosA[0] = $A[0]
   $newPosA[1] = $A[1]

   local $CurrentDist = Distance($newPosA,$B)

   While $CurrentDist >= ($D-$DistToDo) And $CurrentDist <> 0
      ;MsgBox(0,"","NEWPOS A x = "&$newPosA[0]&" B x "&$B[0])
      ;MsgBox(0,"","NEWPOS A y = "&$newPosA[1]&" B y "&$B[1])
      ;x
      If $newPosA[0] < $B[0] Then
         $newPosA[0] = $newPosA[0]+1
      ElseIf $newPosA[0] <> $B[0] Then
         $newPosA[0] = $newPosA[0]-1
      EndIf

      ;y
      If $newPosA[1] < $B[1]  Then
         $newPosA[1] = $newPosA[1]+1
      ElseIf $newPosA[1] <> $B[1] Then
         $newPosA[1] = $newPosA[1]-1
      EndIf

      $CurrentDist = Distance($newposA,$B)
   WEnd


   return $newposA
EndFunc



[jchd]

3 hours ago, Dohko said:

I badly name my var $step but its not step but the distance to do for a loop

OK. Then it just needs a little change in initialization:

Local $aPts = [ _
    [-1.58, 1.06], _        ; start point
    [6.06, 4.46], _         ; goal 1
    [-8.32, 7.44], _
    [-6.22, -7.3], _
    [3.02, -6.36] _         ; goal 4
]

Local $StepDist = 3.84      ; distance to move at every step (except the last)
For $i = 1 To UBound($aPts) - 1
    _Walk($aPts[0][0], $aPts[0][1], $aPts[$i][0], $aPts[$i][1], $StepDist)
Next

; walk from point (x0, y0) to point (x1, y1) moving at most dist at each step
Func _Walk($x0, $y0, $x1, $y1, $dist)
    Local $Steps = Sqrt(($x1 - $x0) ^ 2 + ($y1 - $y0) ^ 2) / $dist
    Local $dX = ($x1 - $x0) / $Steps, $dY = ($y1 - $y0) / $Steps
    For $i = 0 To Floor($Steps)
        ConsoleWrite('(' & Round($x0 + $dX * $i, 2) & ', ' & Round($y0 + $dY * $i, 2) & ')' & @LF)
    Next
    ConsoleWrite('(' & $x1 & ', ' & $y1 & ')' & @LF)
    ConsoleWrite(@LF)
EndFunc

NOTE: there was a couple of sign errors of point coordinates in my previous post (I wanted to illustrate all four quadrants).

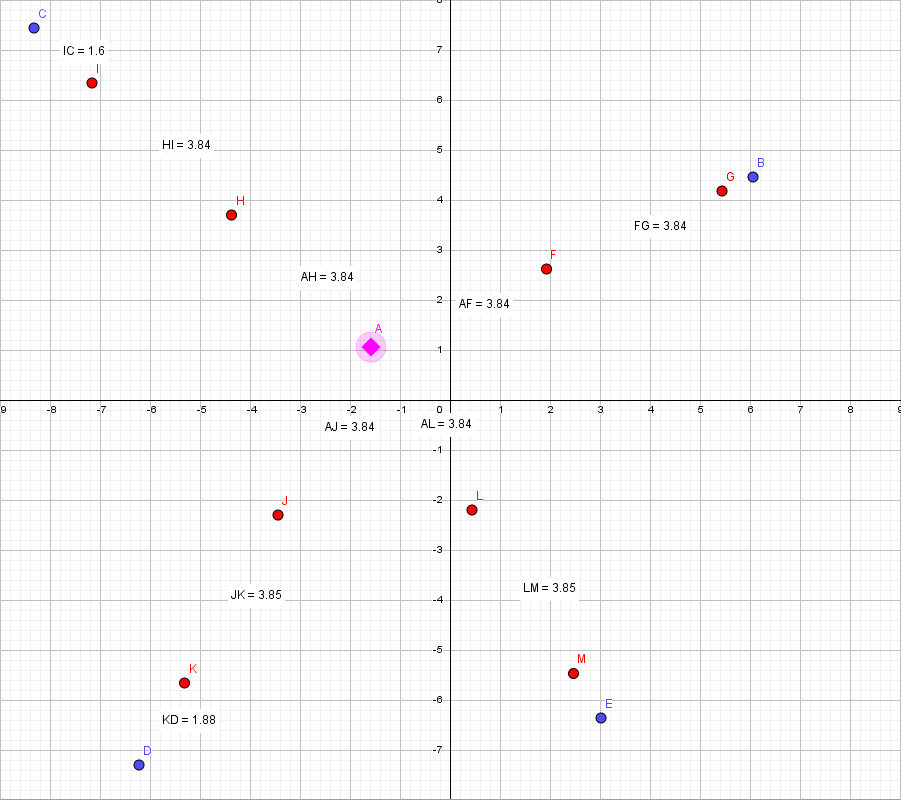

Here you can see the walks in all quadrants. Some distances display slightly in excess of the limit, but that's a cosmetic effect due to marginal floating-point rounding. And still no trigonometry is needed.

EDIT: you may have to check that the last step is indeed required. It is not needed if ever the distance to go is an integral multiple of the step distance (pretty unlikely in random real-world data). Simply test whether $Step = Int($Step)

Edited April 27, 2019 by jchd

[Dohko]

Hello ty its working 😛
