Slider with MoueOnEvent.au3

[kara2004]

Hi there,

while looking around to control sliders with the mouse wheeI I found MouseOnEvent.au3 which seems to fit my needs.

But there's a strange behaviour, which I can't locate (my env Win 7x64 with au3 3.3.14.5, the UDF or the slider itself): Using the mouse wheel to change the slider the value shown/set is always "one step behind".

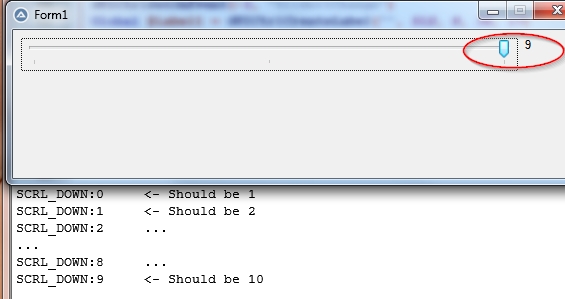

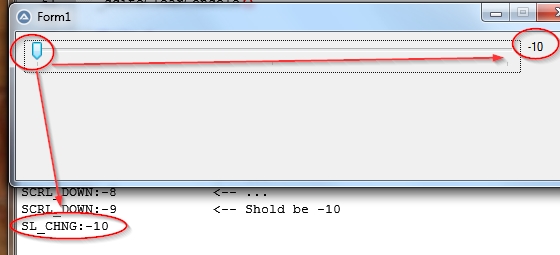

I made a simple gui with one slider (limit -10 to 10) and after ten wheel moves the slider looks correct, but the label shows '9' (see picture "slider_1.jpg" which shows the gui after 10 wheel moves). A manual mouse click at the slider control at this time adjusts the label to the correct value (see picture "slider_2.jpg") but using the wheel ro get a value of "10" (or -10) I have to scroll eleven times. The UDF seems to work correct, every event is recognized (checked with additional debug messages added), controlling the slider with arrow keys or direct via left mouse button shows the correct value at the label.

Probably it's just a simple problem with the code, but I have no idea for getting the expected behaviour (Note: I renamed the udf to '_MouseOnEvent.au3' to get all udfs togeter in my code directory).

Thanks for any suggestion or correction.

kara



expandcollapse popup

#include <_MouseOnEvent.au3>

#Region ### START Koda GUI section ### Form=
Global $Form1 = GUICreate("Form1", 567, 148, 192, 124)
GUISetOnEvent($GUI_EVENT_CLOSE, "Form1Close")
Global $Slider1 = GUICtrlCreateSlider(8, 8, 497, 33)
GUICtrlSetLimit(-1, 10, -10)
GUICtrlSetData(-1, 0)
GUICtrlSetOnEvent(-1, "Slider1Change")
Global $Label1 = GUICtrlCreateLabel("", 512, 8, 36, 17)

GUICtrlSetData($Label1, GUICtrlRead($Slider1))

_MouseSetOnEvent($MOUSE_WHEELSCROLLUP_EVENT, "MOUSE_WHELLSCROLL_UP", $Form1)
_MouseSetOnEvent($MOUSE_WHEELSCROLLDOWN_EVENT, "MOUSE_WHELLSCROLL_DOWN", $Form1)

GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

_sciteClearConsole()

While 1
    Sleep(100)
WEnd

Exit

Func Form1Close()
    Exit
EndFunc   ;==>Form1Close

Func Slider1Change()
    ConsoleWrite("SL_CHNG:" & GUICtrlRead($Slider1) & @CRLF)
    GUICtrlSetData($Label1, GUICtrlRead($Slider1))
EndFunc   ;==>Slider1Change

Func MOUSE_WHELLSCROLL_UP()
    ConsoleWrite("SCRL_UP:" & GUICtrlRead($Slider1) & @CRLF)
    GUICtrlSetData($Label1, GUICtrlRead($Slider1))
EndFunc   ;==>MOUSE_WHELLSCROLL_UP

Func MOUSE_WHELLSCROLL_DOWN()
    ConsoleWrite("SCRL_DOWN:" & GUICtrlRead($Slider1) & @CRLF)
    GUICtrlSetData($Label1, GUICtrlRead($Slider1))
EndFunc   ;==>MOUSE_WHELLSCROLL_DOWN



[Nine]

Opt ("GUIOnEventMode", 1)

is missing at the top of your script...

GUICtrlSetState ($Slider1, $GUI_FOCUS)

Maybe for some reason, you are loosing focus on the slider so add this line in both up and down functions.

Edited February 24, 2019 by Nine

[kara2004]

Thanks for your reply, Nine - but that didn't help.

[careca]

expandcollapse popup

#include <WindowsConstants.au3>
#include <GUIConstantsEx.au3>
#include <Misc.au3>
#include <File.au3>
#include <Array.au3>
#include <WinAPI.au3>
#include <String.au3>
#include <Timers.au3>
#include <GuiEdit.au3>
#include <GDIPlus.au3>
#include <Process.au3>
#include <WinAPIEx.au3>
#include <WinAPISys.au3>
#include <GuiButton.au3>
#include <Constants.au3>
#include <GuiSlider.au3>
#include <WinAPISys.au3>
#include <WinAPIMisc.au3>
#include <GuiToolTip.au3>
#include <GUIListBox.au3>
#include <GuiListView.au3>
#include <GuiStatusBar.au3>
#include <GUIConstants.au3>
#include <GuiImageList.au3>
#include <TrayConstants.au3>
#include <FileConstants.au3>
#include <GuiComboBoxEx.au3>
#include <GUIConstantsEx.au3>
#include <APISysConstants.au3>
#include <MsgBoxConstants.au3>
#include <StaticConstants.au3>
#include <SliderConstants.au3>
#include <ButtonConstants.au3>
#include <WindowsConstants.au3>
#include <ListViewConstants.au3>
Opt("GUIOnEventMode", 1)
#Region ### START Koda GUI section ### Form=
Global $Form1 = GUICreate("Form1", 567, 148, 192, 124)
GUISetOnEvent($GUI_EVENT_CLOSE, "Form1Close")
Global $Slider1 = GUICtrlCreateSlider(8, 8, 497, 33)
GUICtrlSetLimit($Slider1, 10, -10)
GUICtrlSetData($Slider1, 0)
Global $Label1 = GUICtrlCreateLabel("", 512, 8, 36, 17)
;=============================================================================
Local $iFlags, $aData
Local $tRID = DllStructCreate($tagRAWINPUTDEVICE)
DllStructSetData($tRID, 'UsagePage', 0x01) ; Generic Desktop Controls
DllStructSetData($tRID, 'Usage', 0x02) ; Mouse
DllStructSetData($tRID, 'Flags', $RIDEV_INPUTSINK)
DllStructSetData($tRID, 'hTarget', $Form1)
_WinAPI_RegisterRawInputDevices($tRID)
GUIRegisterMsg($WM_INPUT, 'WM_INPUT')
;=============================================================================
GUICtrlSetData($Label1, GUICtrlRead($Slider1))

GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    Sleep(100)
    GUICtrlSetData($Label1, GUICtrlRead($Slider1))
WEnd

Func Form1Close()
    Exit
EndFunc   ;==>Form1Close

Func MOUSE_WHELLSCROLL_UP()
    ConsoleWrite("SCRL_UP:" & GUICtrlRead($Slider1) & @CRLF)
    GUICtrlSetData($Label1, GUICtrlRead($Slider1))
EndFunc   ;==>MOUSE_WHELLSCROLL_UP

Func MOUSE_WHELLSCROLL_DOWN()
    ConsoleWrite("SCRL_DOWN:" & GUICtrlRead($Slider1) & @CRLF)
    GUICtrlSetData($Label1, GUICtrlRead($Slider1))
EndFunc   ;==>MOUSE_WHELLSCROLL_DOWN

;=============================================================================
Func WM_INPUT($hWnd, $iMsg, $wParam, $lParam)
    #forceref $hWnd, $iMsg, $wParam
    If WinActive("[CLASS:YOURWINDOWCLASS]") <> 0 Then
            Local $tRIM = DllStructCreate($tagRAWINPUTMOUSE)
            If _WinAPI_GetRawInputData($lParam, $tRIM, DllStructGetSize($tRIM), $RID_INPUT) Then
                $iFlags = DllStructGetData($tRIM, 'ButtonFlags')
                If BitAND($iFlags, $RI_MOUSE_WHEEL) Then
                    $aData = _WinAPI_WordToShort(DllStructGetData($tRIM, 'ButtonData'))
                    If $aData > 0 Then
                        ;ConsoleWrite(' - Up - '&@CRLF)
                MOUSE_WHELLSCROLL_UP()
                    Else
                        ;ConsoleWrite(' - Down - '&@CRLF)
                MOUSE_WHELLSCROLL_DOWN()
                    EndIf
                Else
                    ToolTip('')
                EndIf
            EndIf
    Return $GUI_RUNDEFMSG
    EndIf
    Return $GUI_RUNDEFMSG
    Sleep(50)
EndFunc   ;==>WM_INPUT



Edited February 26, 2019 by careca

[kara2004]

Hi careca,

this works as expected.

Looks like there's something wrong with MouseOnEvent.au3  - maybe only in this example/case!?

Now I'll need some time to figure out, what you've done an how it works

Thanks for your response

kara2004
