No commands working on window with CLASS #32770

[TheLug]

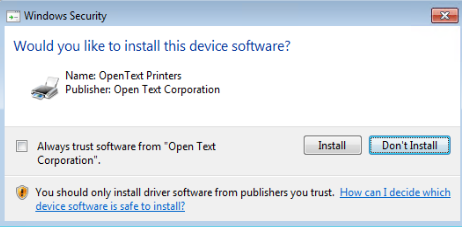

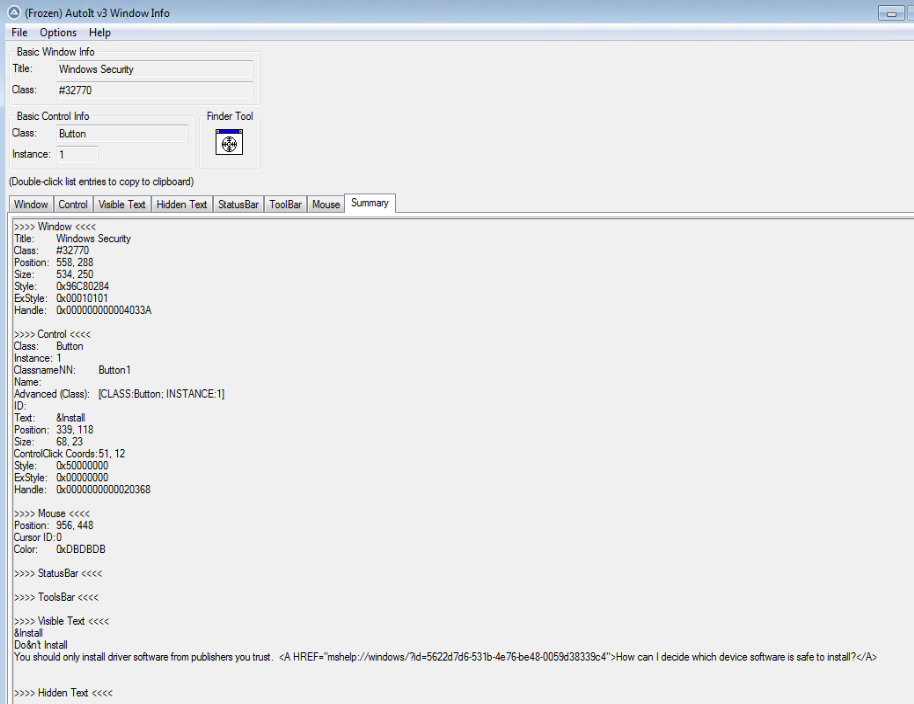

Window Screen Grab Attached, Window Info Screen Grad Attached. Code with multiple things trying below. Nothing will interact with this window. Is this a problem because it is a windows security window?

Pulling my hair out over here.

#RequireAdmin

#include <AutoItConstants.au3>

Sleep (5000)

MouseMove (940, 450, 50)

Sleep (5000)

WinActivate ("Windows Security")

ControlClick('[CLASS:#32770]', 'Windows Security', '[CLASS:Button; INSTANCE:1]')

ControlClick ("Windows Security", "", "","left",1,940,450)

MouseClick ($MOUSE_CLICK_LEFT)
MouseClick ($MOUSE_CLICK_LEFT)

Also asked for help in this post but moved to this since nothing is working.

https://www.autoitscript.com/forum/topic/196877-rundll32-silent-help/

[FrancescoDiMuro]

@TheLug

Have you already tried with PnPUtil?

[TheLug]

16 minutes ago, FrancescoDiMuro said:

@TheLug

Have you already tried with PnPUtil?

just tried still need to click the Install button

[AdamUL]

Did you use the /install switch for PnPUtil?  What command line did you run?



Adam



Edited December 5, 2018 by AdamUL

[TheLug]

32 minutes ago, AdamUL said:

Did you use the /install switch for PnPUtil?  What command line did you run?



Adam



PnPutil.exe -i -a c:\Users\user1\Desktop\RF_162\Source\RightFax\Drivers\rfps.inf

[AdamUL]

Did you run this with AutoIt's Run or RunWait command?  If so, are you running the script as 32 or 64 bit?



Adam



[TheLug]

36 minutes ago, AdamUL said:

Did you use the /install switch for PnPUtil?  What command line did you run?



Adam



/install & /add-driver i guess are not valid in mine tells me to use -i & -a

[TheLug]

Just now, AdamUL said:

Did you run this with AutoIt's Run or RunWait command?  If so, are you running the script as 32 or 64 bit?



Adam



I tried even running it manually in CMD. I also ran with auto it and used runwait comspec, and tried x86 & x64

[FrancescoDiMuro]

9 minutes ago, TheLug said:

PnPutil.exe -i -a c:\Users\user1\Desktop\RF_162\Source\RightFax\Drivers\rfps.inf

What does this command do (or don't do) in this case?

[AdamUL]

Is this driver part of an installation package?  I did some googling on "open text printers driver install silent," and I found quite a few things.  I'm not sure what you are using.  You may be able to install the printer through the installation package.



Adam



[jdelaney]

I bet you may interact with the window and it's controls if you include:

#RequireAdmin

oops, there go my reading comprehension skills.  Disregard.



Try this instead: WinActivate returns a handle.  Use that handle to the controlclick.

You can also do a ConsoleOutput of that handle variable to make sure that you properly grabbed the window.



A second note: you are looking for specific text in your first ControlClick function that doesn't exist in your window.

A third note: when you use control click, the coordiantes only relate to INSIDE the control.  If you click outside of the bounds of the control, no click will occur (that I'm aware of)...I can double check this in a bit...confirmed that doing a controlclick outside the bounds of the control will not actually click anything.



So I would do this:

#RequireAdmin
$h = WinWait("Windows Security")
ConsoleWrite("winwait handle=" & $h & @CRLF)
$c = ControlGetHandle($h,"","Button1")
ConsoleWrite("ControlGetHandle handle=" & $c & @CRLF)
ControlClick($h,"",$c)

Notice how I put in some error handling, so I can compare the handles against the spy tool to ensure that what I'm doing is working properly.

Edited December 6, 2018 by jdelaney

[TheLug]

16 hours ago, FrancescoDiMuro said:

What does this command do (or don't do) in this case?

It trys to install the driver. But it pops up the screen shot asking for you to click install / don't install.

[TheLug]

16 hours ago, AdamUL said:

Is this driver part of an installation package?  I did some googling on "open text printers driver install silent," and I found quite a few things.  I'm not sure what you are using.  You may be able to install the printer through the installation package.



Adam



Yes it is part of the rightfax package for digital faxing. I am using the package and getting this. IF i try to do it manually i get the same pop up.

[TheLug]

14 hours ago, jdelaney said:

I bet you may interact with the window and it's controls if you include:

#RequireAdmin

oops, there go my reading comprehension skills.  Disregard.



Try this instead: WinActivate returns a handle.  Use that handle to the controlclick.

You can also do a ConsoleOutput of that handle variable to make sure that you properly grabbed the window.



A second note: you are looking for specific text in your first ControlClick function that doesn't exist in your window.

A third note: when you use control click, the coordiantes only relate to INSIDE the control.  If you click outside of the bounds of the control, no click will occur (that I'm aware of)...I can double check this in a bit...confirmed that doing a controlclick outside the bounds of the control will not actually click anything.



So I would do this:

#RequireAdmin
$h = WinWait("Windows Security")
ConsoleWrite("winwait handle=" & $h & @CRLF)
$c = ControlGetHandle($h,"","Button1")
ConsoleWrite("ControlGetHandle handle=" & $c & @CRLF)
ControlClick($h,"",$c)

Notice how I put in some error handling, so I can compare the handles against the spy tool to ensure that what I'm doing is working properly.

Thanks! Will try this now.

[Earthshine]

you can't automate the Windows Security forms for a reason. I am not sure they will allow a program to auto install a driver nowadays. good luck though

Edited December 6, 2018 by Earthshine

[junkew]

Uia should be able to handle these windows. Many examples when you google.

http://blog.majcica.com/2015/04/02/manage-with-codedui-sites-that-are-using-windows-authentication/
