Clickable list with shell commands

[hausl78]

Hello,

I wanted to ask if mine project is generally possible. It's about a list of paths that should contain all clickable shell commands. You should also be able to search (filter). Whether this happens with CTRL+F or via a search field doesn't matter to me.

I would have a database that is CSV or a SQLite DB, from this come the shell commands with arguments and they should be clickable.

Background is a kind of list for a media player to be able to directly access single songs over several video concerts (mp4) via MPC player command.

I would save the data ~ in this form.

Artist;Track;VideoPath;VideoPos

A shell command would be like:

"C:\Program Files\MPC-BE x64\mpc-be64.exe" "E:\Videos\Artist - Gig ABC.mp4" /startpos 01:20:20

Can you do that with Autoit? And would you use CSV or SQLite? Especially for the search and sorting possibilities I would be here rather for SQLite. How is the support in Autoit, does it work well?

Thanks a lot!

Edited October 15, 2018 by hausl78

[careca]

Seems doable, i would probably use ini files, depending on the size of the list.

[hausl78]

Thank you, currently are about 30 commands, can grow to about 200 i think, so thats not as much. I just think about Sorting and filtering.. So the Data go from an ini file in an array i assume, and can then be sorted and/or filtered, correct?

Just found this..

This might be my way, so i "only" have to make the parsing from the ini file into the list view.







[FrancescoDiMuro]

@hausl78
Always post your code, so we can see how can help you

[hausl78]

Ahm, there ist no code at this moment. Before i spend work i want to know if its possible what i want. First evaluating.. then coding.

Quote

I wanted to ask if mine project is generally possible.

Though this made that clear.

Edited October 15, 2018 by hausl78

[FrancescoDiMuro]

@hausl78
Yes, I read that.
Just to inform you that, if you would need any help, just post the code you have
And, since I made a little reproducer of what you are trying to do, I tell you that your project is 100% doable

[hausl78]

Uh great news.. thanks. Did you use a SQLiteDB or from an ini? I will start if i have enough freetime.. its a private thing, not for work so i can during the day not really do a lot. If i have Code i will post it.

[FrancescoDiMuro]

@hausl78
Talking about 200 tracks, it can be done with one .ini file in which there are all the tracks, and you store whatever you want with the track
Directly with the ListView, you can search for a specific track and, by double-clicking the row, for example, you can start the track or whatever you want.
It always depends from what are your goals

[hausl78]

I think i could have troubles with the ini file. Because i have the following data for each song:

1. the video-filename (one file contains a lot of songs, its a complete show)
2. the artist name
3. the track name
4. the position (~ "timestamp") of this track within the videofile

I think this can be clear stored within an ini file?


[e:/video/shows/the complete show 2016.mp4]
230=sting|fields of gold
12050=queen|radio gaga

[e:/video/shows/the complete show 2017.mp4]
120=GunsNRoses|Knocking on heavens door
8500=Bob Geldof|tell me why i dont hate mondays

[e:/video/single/queen - innuendo.mp4]
0=Queen|Innuendo

[...]
...



[FrancescoDiMuro]

@hausl78
Maybe this one could be more "dynamic" ( from your first post ):

[Track1]
Artist=NameOfTheArtist
Track=NameOfTheTrack
VideoPath=PathOfTheVideo
VideoPos=PosOfTheVideo

You can have as much tracks as you want, since the things you are interested are the values of the keys

[hausl78]

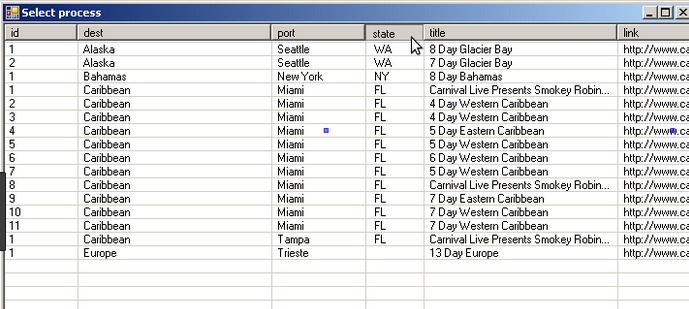

I think about it, thank you. But its also possible to build with this a list like this, that would be my goal. And sortable with click on the head is also possible?

(Image from the web, just as example)

Edited October 15, 2018 by hausl78

[FrancescoDiMuro]

It's 100% possibile
If you want to make it "simple", you can use an .ini file as I've said above; but, if you want to make a SQLite DB, then it would be a little less simple, since you have to manage your data with SQLite functions, and not directly in the ListView as you would do with the .ini file.

[hausl78]

Great! As its just an simple tool for me and my friends it should be as simple as possible at all. So than i will install AutoIt at Home and try it. Thanks meanwhile.

[FrancescoDiMuro]

Go for the .ini files then
Be sure to install AutoIt Full Installation and AutoIt Script Editor before you start scripting

[hausl78]

ok thanks.. I just forgot to the possibility to search within the list. If i make a search-textfield, that should only find in artist and track, ist this to be handled with the fileliste-array (ini) ?

My first idea was on every keypress within the search-textfield to trigger a Query to the SQLite DB something like

WHERE artist LIKE '%input%' OR track LIKE '%input%'

Currently i got them in an SQLite DB, and read it with:


SELECT s.title, s.interpret, f.filename, s.timecode
FROM song s
INNER JOIN file f ON s.file_id = f.id
ORDER BY title



Edited October 15, 2018 by hausl78

[hausl78]

Look, I just found this one, i think this is a good help for creating, filtering etc.. the control.



[careca]

Yes, we can guide you.

The idea is that the input will be read in the main loop, checking for changes in said input.

As soon as there is a change, compare the input withc stringinstr with the listview items, filter what doesn't match.

Re-Do the list as to show only the filtered items, but i figure this is too complex at the moment, we'll get there when we do.

[hausl78]

Now i tried something.. Lets assume i have the following songs.ini

;[]
;artist=
;title=
;filepath=
;timecode=


[10]
artist=Santiano
title=Sound of Silence
filepath=Konzerte, Shows\Helene Fischer Show 2017.mp4
timecode=02:35:13

[20]
artist=Seer
title=Hoamatgfühl
filepath=Konzerte, Shows\Seer - Open Air in Grundlsee 2014.mp4
timecode=00:23:54

I try to import this to the control, but i dont know how to "translate" the correct order from the ini-Array to the control. Is my way with the _IniReadFile good?

expandcollapse popup

; -----------------------------------------------------------------------------
;  S T A R T   O P T I O N S
; -----------------------------------------------------------------------------
; no tray-icon
#NoTrayIcon
; OnEvent Modus
AutoItSetOption('GUIOnEventMode', 1)
; ~ option explicit
AutoItSetOption('MustDeclareVars', 1)
; ESC trigger $GUI_EVENT_CLOSE ?
AutoItSetOption('GUICloseOnESC', 1)


; -----------------------------------------------------------------------------
;  I N C L U D E S
; -----------------------------------------------------------------------------
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <WindowsConstants.au3>

#include <Array.au3>




; -----------------------------------------------------------------------------
;  G U I
; -----------------------------------------------------------------------------

Func GUIMain()

    Local $i

    Local $hGUIMain = GUICreate('Video Launcher', 500, 300, 300, 150, -1)

    ; klick to "X" (ESC is deactivated)
    GUISetOnEvent($GUI_EVENT_CLOSE, 'exitProgramm', $hGUIMain)


    Local $idListview = GUICtrlCreateListView('Interpret|Titel|Datei|', 20, 50, 450, 200)

    Local $aSongsArray = _IniReadFile(@ScriptDir & '\songs.ini')

    _ArrayDisplay($aSongsArray)

    For $i = 1 To $aSongsArray[0][0] - 2
        ;ConsoleWrite($aSongsArray[$i][0] & @LF)
        ConsoleWrite($aSongsArray[$i][1] & @LF)
        ;ConsoleWrite($aSongsArray[$i][2] & @LF)
        ConsoleWrite("--------" & @LF)

        GUICtrlCreateListViewItem( _
            $aSongsArray[$i][1] & '|' & $aSongsArray[$i+1][1] & '|' & $aSongsArray[$i+2][1], _
            $idListview _
        )
    Next



    GUISetState(@SW_SHOW)

    While 1
       Sleep(1000) ; Idle.. wait for user input
    WEnd

EndFunc


; -----------------------------------------------------------------------------
;  S T A R T   P R O G R A M
; -----------------------------------------------------------------------------

guiMain()


; -----------------------------------------------------------------------------
;  F U N C T I O N S
; -----------------------------------------------------------------------------
Func _IniReadFile($sFilePath)
    Local $aReturn[1][3] = [[0, 3]], $aSectionArray, $aSectionNameArray, $iCount = 0
    $aSectionNameArray = IniReadSectionNames($sFilePath)
    If @error Then
        Return SetError(1, 0, $aReturn)
    EndIf
    For $A = 1 To $aSectionNameArray[0]
        $aSectionArray = IniReadSection($sFilePath, $aSectionNameArray[$A])
        If @error Then
            ContinueLoop
        EndIf
        For $B = 1 To $aSectionArray[0][0]
            $aReturn[0][0] += 1
            $iCount += 1
            If $aReturn[0][0] <= $iCount + 1 Then
                ReDim $aReturn[$aReturn[0][0] * 2][$aReturn[0][1]]
            EndIf
            $aReturn[$iCount][0] = $aSectionArray[$B][0]
            $aReturn[$iCount][1] = $aSectionArray[$B][1]
            $aReturn[$iCount][2] = $aSectionNameArray[$A]
        Next
    Next
    ReDim $aReturn[$aReturn[0][0] + 1][$aReturn[0][1]] ; Remove empty entries.
    Return $aReturn
EndFunc   ;==>_IniReadFile

; Handle event
Func exitProgramm()
    Exit
EndFunc



Its somehow thr wrong order...



Edited October 15, 2018 by hausl78

[careca]

expandcollapse popup

; -----------------------------------------------------------------------------
;  S T A R T   O P T I O N S
; -----------------------------------------------------------------------------
; no tray-icon
#NoTrayIcon
; OnEvent Modus
AutoItSetOption('GUIOnEventMode', 1)
; ~ option explicit
AutoItSetOption('MustDeclareVars', 1)
; ESC trigger $GUI_EVENT_CLOSE ?
AutoItSetOption('GUICloseOnESC', 1)

; -----------------------------------------------------------------------------
;  I N C L U D E S
; -----------------------------------------------------------------------------
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <WindowsConstants.au3>
#include <Array.au3>
; -----------------------------------------------------------------------------
;  S T A R T   P R O G R A M
; -----------------------------------------------------------------------------

GUIMain()

While 1
    Sleep(1000)
WEnd

; -----------------------------------------------------------------------------
;  G U I
; -----------------------------------------------------------------------------

Func GUIMain()
    Global $aSectionArray, $aSectionNameArray
    Global $Artist, $Title, $Path, $Time
    Local $hGUIMain = GUICreate('Video Launcher', 500, 300, 300, 150, -1)
    GUISetOnEvent($GUI_EVENT_CLOSE, 'exitProgramm', $hGUIMain)
    Local $idListview = GUICtrlCreateListView('Interpret|Titel|Datei|Timecode', 20, 50, 450, 200)
    Global $sFilePath = @ScriptDir & '\songs.ini'
    GUISetState(@SW_SHOW)
    ;=============================================================================
    $aSectionNameArray = IniReadSectionNames($sFilePath)
    For $A = 1 To $aSectionNameArray[0]
        $Artist = IniRead($sFilePath, $aSectionNameArray[$A], 'artist', 'error')
        $Title = IniRead($sFilePath, $aSectionNameArray[$A], 'title', 'error')
        $Path = IniRead($sFilePath, $aSectionNameArray[$A], 'filepath', 'error')
        $Time = IniRead($sFilePath, $aSectionNameArray[$A], 'timecode', 'error')
        GUICtrlCreateListViewItem($Artist & '|' & $Title & '|' & $Path & '|' & $Time, $idListview)
    Next
    ;=============================================================================
EndFunc   ;==>GUIMain

; ----------------------------------------------------------------------------
;  F U N C T I O N S
; -----------------------------------------------------------------------------

; Handle event
Func exitProgramm()
    Exit
EndFunc   ;==>exitProgramm



[hausl78]

Thank you. So now my next steps...

- Trigger shell cmd on double clich of the actual list entry

Then .. nice to have
- Sorting by click on the column header
- Searchfiled (filter) to input a word what on keypress acutals the list if the word > 3 chars and the searchpart is within artist oder title.

Will try now the double click.. Thank you meanwhile. (and sorry if my english is "crypted" somehow, im austrian, so not realy a native )
