[SOLVED] WMI: Retrieve out params from method

[colombeen]

Hi guys,

I'm trying to get some information using WMI, from the Win32_EncryptableVolume class.

I exec my query, filter out the C-drive, but when I need more info using the objects methods, I only get 1 value back and I can't seem to retrieve the other out params that should be there.

A very minimal version of what I'm trying to do (no error checking etc, very basic). You need to start SciTE as admin or you won't see any results in the console!

#RequireAdmin
$strComputer = @ComputerName

$objWMIService = ObjGet("winmgmts:{impersonationLevel=impersonate}!\\" & $strComputer & "\root\CIMV2\Security\MicrosoftVolumeEncryption")
$objWMIQuery = $objWMIService.ExecQuery("SELECT * FROM Win32_EncryptableVolume WHERE DriveLetter='C:'", "WQL", 0)

For $objDrive In $objWMIQuery
    ConsoleWrite("> " & $objDrive.GetConversionStatus() & @CRLF)
    ConsoleWrite("> " & $objDrive.GetConversionStatus().ConversionStatus & @CRLF)
    ConsoleWrite("> " & $objDrive.GetConversionStatus().EncryptionPercentage & @CRLF)
Next

The result from the console is :

> 0
>
>

What I'm expecting to get back is :

> 0
> 0
> 0

When using powershell I get this (run as admin is required!!!) :

PS C:\WINDOWS\system32> (Get-WmiObject -namespace "Root\cimv2\security\MicrosoftVolumeEncryption" -ClassName "Win32_Encryptablevolume" -Filter "DriveLetter='C:'").GetConversionStatus()
...
ConversionStatus     : 0
EncryptionFlags      : 0
EncryptionPercentage : 0
ReturnValue          : 0
...

All I seem to be getting is the ReturnValue when I use the method.

I've tried this on multiple methods, always ending up with the same result

Anyone here who has experience with this type of thing?



Greetz

colombeen

Edited August 22, 2018 by colombeen

[Juvigy]

Try this:

global $a,$b,$c

$strComputer = @ComputerName
$objWMIService = ObjGet("winmgmts:{impersonationLevel=impersonate}!\\" & $strComputer & "\root\CIMV2\Security\MicrosoftVolumeEncryption")
$objWMIQuery = $objWMIService.ExecQuery("SELECT * FROM Win32_EncryptableVolume WHERE DriveLetter='C:'", "WQL", 0)

For $objDrive In $objWMIQuery
    $res = $objDrive.GetConversionStatus($a,$b,$c)
    ConsoleWrite("> " & $res & @CRLF)
    ConsoleWrite("> " & $a & @CRLF)
    ConsoleWrite("> " & $b & @CRLF)
    ConsoleWrite("> " & $c & @CRLF)
Next
Exit

And here is the documentation:

uint32 GetConversionStatus(
  [out] uint32 ConversionStatus,
  [out] uint32 EncryptionPercentage,
  [out] uint32 EncryptionFlags,
  [out] uint32 WipingStatus,
  [out] uint32 WipingPercentage,
  [in]  uint32 PrecisionFactor
);



[colombeen]

On 17-8-2018 at 11:14 AM, Juvigy said:

Try this:

global $a,$b,$c

$strComputer = @ComputerName
$objWMIService = ObjGet("winmgmts:{impersonationLevel=impersonate}!\\" & $strComputer & "\root\CIMV2\Security\MicrosoftVolumeEncryption")
$objWMIQuery = $objWMIService.ExecQuery("SELECT * FROM Win32_EncryptableVolume WHERE DriveLetter='C:'", "WQL", 0)

For $objDrive In $objWMIQuery
    $res = $objDrive.GetConversionStatus($a,$b,$c)
    ConsoleWrite("> " & $res & @CRLF)
    ConsoleWrite("> " & $a & @CRLF)
    ConsoleWrite("> " & $b & @CRLF)
    ConsoleWrite("> " & $c & @CRLF)
Next
Exit



I'll definitely try that out!

Edited August 21, 2018 by colombeen

[colombeen]

Mhhmmnn... Some of the values that I get back aren't what I'm expecting.

I'll just show you guys what I'm working on (FYI: it's far from ready, but the end result will be shared) :

; newer version in latest post

When I run this the $intWipingStatus contains "-1", but in powershell I get this value "4294967295", while the documentation shows that it could only be an int between 0 and 3

https://docs.microsoft.com/en-us/windows/desktop/secprov/getconversionstatus-win32-encryptablevolume



Any idea?

Edited August 19, 2018 by colombeen

[colombeen]

Guessing it's not a very popular subject.

Another thing that frustrates me is the return value of the "IsAutoUnlockKeyStored"-method (I'm not talking about the out param, just the return value).

The documentation shows

uint32 IsAutoUnlockKeyStored(
  [out] boolean IsAutoUnlockKeyStored
);

And the return values should be

Return code/value           Description
---------------------------------------------------
S_OK                        The method was successful.
0 (0x0)

FVE_E_NOT_ACTIVATED         BitLocker is not enabled on the volume. Add a key protector to enable BitLocker.
2150694920 (0x80310008)

FVE_E_NOT_OS_VOLUME         The method can only be run for the currently running operating system volume.
2150694952 (0x80310028)

But then why do I keep getting "-2144272376"

Is there some kind of conversion I'm forgetting or is MS just screwing me over?

Edited August 18, 2018 by colombeen

[ripdad]

-2144272376 converts to 0x80310008 (FVE_E_NOT_ACTIVATED)

MsgBox(0, '', '0x' & Hex(-2144272376))



[colombeen]

3 minutes ago, ripdad said:

-2144272376 converts to 0x80310008 (FVE_E_NOT_ACTIVATED)

MsgBox(0, '', '0x' & Hex(-2144272376))



YOU
ARE
A
LIFE
SAVER



But I'm still not sure what to do with the -1 I'm getting from the $intWipingStatus :-s

Edited August 18, 2018 by colombeen

[ripdad]

-1 in WMI usually means: UNKNOWN

In powershell...

4294967295 converts to 0xFFFFFFFF which usually means allow or enabled and 0x00000000 usualy means disabled.

Not 100% sure this is the case for your issue though.



[colombeen]

23 hours ago, ripdad said:

-1 in WMI usually means: UNKNOWN

In powershell...

4294967295 converts to 0xFFFFFFFF which usually means allow or enabled and 0x00000000 usualy means disabled.

Not 100% sure this is the case for your issue though.



I was coming to the same conclusion as well on the -1 being UNKNOWN in most cases.

I've added it to my array as the first item and just +1 the result I get for now

; newer version in latest post

If anyone who is using bitlocker could test this out (and post back the results), it would be greatly appreciated!

Edited August 19, 2018 by colombeen

[colombeen]

I've made some more changes. I'm hoping it will work (can't test it here, I'm not allowed to encrypt my system just yet).

If anyone is willing to test my script (doens't matter if your system is or isn't using bitlocker, you just need WinVista or newer), please let me know what the result was so that I can fix bugs etc before I implement it (and also share it here ofcourse)

Please run SciTE as admin, otherwise you won't see the errors etc in the console

; newer version in latest post

Also, I'm not sure if it's possible to read this information remotely because of safety precautions by MS.

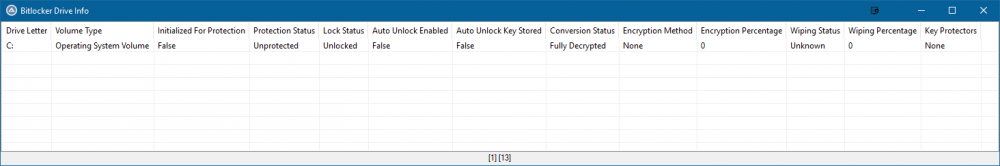

This is my result :

My console output :

!> GetConversionStatus      0x00000000
!> GetEncryptionMethod      0x00000000
!> GetKeyProtectors         0x00000000
!> GetLockStatus            0x00000000
!> GetProtectionStatus      0x00000000
!> IsAutoUnlockEnabled      0x80310008
!> IsAutoUnlockKeyStored    0x80310008

EDIT:

I had a little issue that the secondary pop-up didn't show because I forgot to change $test[0][11] to $test[0][12] when I added another item to the array.

Edited August 20, 2018 by colombeen
bugfix

[Juvigy]

This is the output of your script:

!> GetConversionStatus        0x00000000
!> GetEncryptionMethod        0x00000000
!> GetKeyProtectors       0x00000000
!> GetLockStatus      0x00000000
!> GetProtectionStatus        0x00000000
!> IsAutoUnlockEnabled        0x80310019
!> IsAutoUnlockKeyStored  0x00000000
"C:\Documents and Settings\delchevs\Desktop\COM fixes\BitLocker.au3" (58) : ==> The requested action with this object has failed.:
$aResult[$iRow][1]  =   $aVolumeTypeMsg[$objDrive.VolumeType]
$aResult[$iRow][1]  =   $aVolumeTypeMsg[$objDrive^ ERROR

And if i run the example script from my first post i get:

> 0
> 1
> 100
>

I am using win7 and have bitlocker.

[colombeen]

; newer version in latest post

This is an attempt to fix the missing properties in Win7

Edited August 21, 2018 by colombeen

[Juvigy]

Now it works.

C:|Operating System Volume|Unkown|Protected|Unlocked|False|False|Fully Encrypted|AES_256|100|Free Space Not Wiped||{Array}

{CF607D86-743D-4E29-8FF2-A49D0D7AB820}|Numerical password
{B1AA7EF7-AC39-4D21-A278-B12EA6AA5F2B}|Trusted Platform Module (TPM)

!> GetConversionStatus        0x00000000
!> GetEncryptionMethod        0x00000000
!> GetKeyProtectors       0x00000000
!> GetLockStatus      0x00000000
!> GetProtectionStatus        0x00000000
!> IsAutoUnlockEnabled        0x80310019
!> IsAutoUnlockKeyStored  0x00000000



[colombeen]

Awesome!

I'll still need to fix some things but I'm getting there

EDIT:

I've added a few checks to make sure everything works fine, I'm not noticing alot of performance loss.

; newer version in latest post



Edited August 22, 2018 by colombeen

[colombeen]

I'm just having one last issue before I can post the "final" version in the example scripts

I need to add

#AutoIt3Wrapper_Au3Check_Parameters=-d -w 1 -w 2 -w 3 -w- 4 -w 5 -w 6 -w- 7

But the changes I need to make so that my script will still work is what I can't figure out.

This is the part that will show errors :

If IsArray($aVolumeKeyProtectorID) And UBound($aVolumeKeyProtectorID) > 0 Then
    Local $aVolumeKeyProtectors[UBound($aVolumeKeyProtectorID)][2], $iKeyProtectorType

    For $i = 0 To UBound($aVolumeKeyProtectorID) - 1
        $aVolumeKeyProtectors[$i][0]        =   $aVolumeKeyProtectorID[$i]
        If _WMIMethodExists($objDrive, "GetKeyProtectorType") Then
            If $objDrive.GetKeyProtectorType($aVolumeKeyProtectorID[$i], $iKeyProtectorType) = 0 Then
                $aVolumeKeyProtectors[$i][1]=   $aKeyProtectorTypeMsg[$iKeyProtectorType]
            Else
                $aVolumeKeyProtectors[$i][1]=   "Unknown"
            EndIf
        Else
            $aVolumeKeyProtectors[$i][1]    =   "Unknown"
        EndIf
    Next
Else
    Local $aVolumeKeyProtectors             =   "None"
EndIf

I declare the $aVolumeKeyProtectors 2 times, which I know is wrong, even more so when you put it inside of a loop.

Any suggestions? I can't seem to figure it out

[colombeen]

Anyone who can help me fix this?

[LarsJ]

It's easy if you know how to do it:

Local $aVolumeKeyProtectors
If IsArray($aVolumeKeyProtectorID) And UBound($aVolumeKeyProtectorID) > 0 Then
    Dim $aVolumeKeyProtectors[UBound($aVolumeKeyProtectorID)][2]
    Local $iKeyProtectorType
    ; ...
Else
    $aVolumeKeyProtectors             =   "None"
EndIf



[colombeen]

3 hours ago, LarsJ said:

It's easy if you know how to do it:

Local $aVolumeKeyProtectors
If IsArray($aVolumeKeyProtectorID) And UBound($aVolumeKeyProtectorID) > 0 Then
    Dim $aVolumeKeyProtectors[UBound($aVolumeKeyProtectorID)][2]
    Local $iKeyProtectorType
    ; ...
Else
    $aVolumeKeyProtectors             =   "None"
EndIf



Is it that simple? I'll try that out! Thx!

EDIT:

Just tried it, WORKS LIKE A CHARM!



I moved the script to the examples :



Edited August 22, 2018 by colombeen
