Capture video image

Belini · June 7, 2018

I've tried several ways to capture the video screen but the image always turns black, does anyone have a hint how to capture the image without turning black?

FrancescoDiMuro · June 7, 2018

Hi @Belini
Post some code, maybe?

Best Regards.

Belini · June 7, 2018

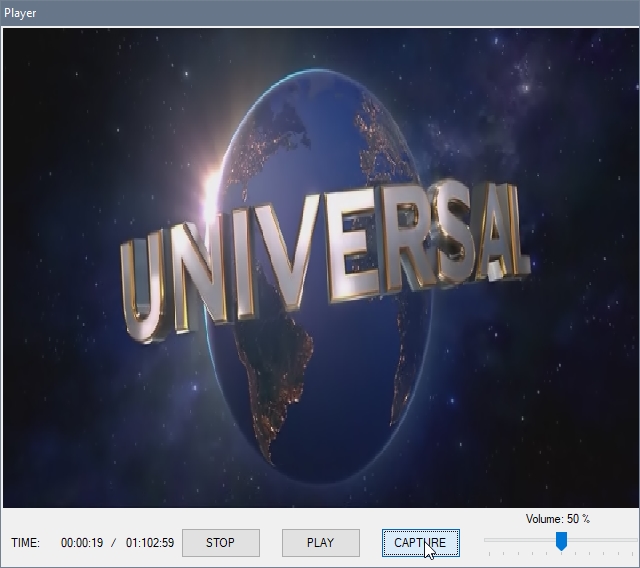

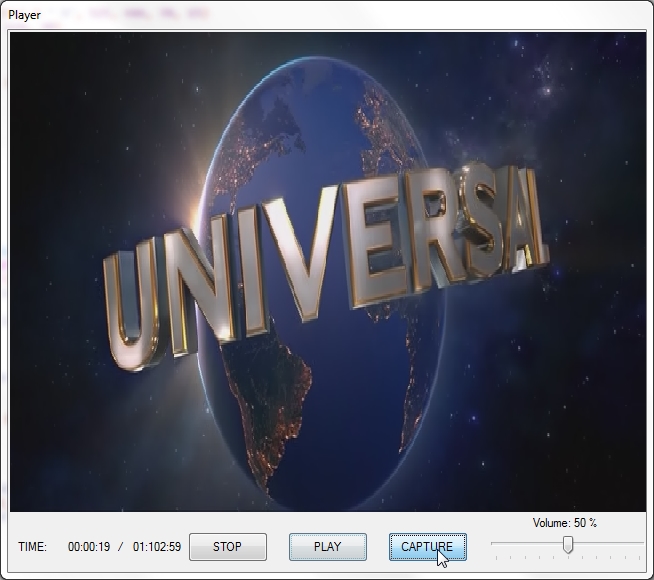

Here is an example of the player I want to capture the image.

#include <File.au3>
#include <Array.au3>
#include <ScreenCapture.au3>
#include <GUIConstantsEX.au3>
#include <WindowsConstants.au3>
#include <SliderConstants.au3>

Global $idS, $Tam, $Pos, $local, $arquivos
Global $BtnMais, $BtnMenos, $Vol = 50, $SlideWave, $video, $capture
Global $Tocando = False, $soundhandle, $hGUI, $posicao, $tamanho, $abrir, $play

$hGUI = GUICreate("Player", 644, 570, -1, -1, $WS_CLIPCHILDREN)

GUICtrlCreateLabel("TIME:", 10, 510, 50, 20)
$posicao = GUICtrlCreateLabel("00:00:00", 60, 510, 50, 20)
GUICtrlCreateLabel("/", 110, 510, 10, 20)
$tamanho = GUICtrlCreateLabel("00:00:00", 125, 510, 50, 20)

$open = GUICtrlCreateButton("OPEN", 180, 502, 80, 30)
$play = GUICtrlCreateButton("PLAY", 280, 502, 80, 30)
$capture = GUICtrlCreateButton("CAPTURE", 380, 502, 80, 30)

$Volume = GUICtrlCreateLabel("Volume: " & $Vol & " %", 525, 486, 70, 15)
$SlideWave = GUICtrlCreateSlider(475, 504, 170, 30)
GUICtrlSetLimit($SlideWave, 100, 0)
GUICtrlSetData($SlideWave, $Vol)

$soundhandle = ControlGetHandle($hGUI, "", $SlideWave)
GUICtrlSetState($play, $GUI_DISABLE)
GUISetState(@SW_SHOW, $hGUI)

GUIRegisterMsg($Wm_Hscroll, "_WM_HSCROLL")

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit (0)
        Case $capture
            If $Tocando = True Then
                If Not @error Then _ScreenCapture_Capture(@ScriptDir & "\Capture_Capture.jpg")
                _ScreenCapture_CaptureWnd(@ScriptDir & "\CaptureWnd.jpg", $hGUI)
                GUICtrlSetData($capture, "CAPTURED")
                SLEEP(1500)
                GUICtrlSetData($capture, "CAPTURE")
                endif
        Case $open
            If Not $Tocando Then
                $video = FileOpenDialog("Abrir arquivos .mp4", @ScriptDir, "Midia (*.avi;*.cdg;*.mpg;*.mp4)")
                If Not @error Then
                    _PLAYER($video)
                    GUICtrlSetState($play, $GUI_ENABLE)
                EndIf
            Else
                $Tocando = False
                _Video_close($idS)
                GUICtrlSetData($posicao, "00:00:00")
                GUICtrlSetState($play, $GUI_DISABLE)
                GUICtrlSetData($open, "OPEN")
            EndIf
        Case $play
            _PLAYER("PLAY")
    EndSwitch
WEnd

Func _PLAYER($local = False)
    Local $randon, $i
    If $local = "PLAY" Then
        If GUICtrlRead($play) = "PLAY" Then
            $Tocando = True
            AdlibRegister("_PLAYER", 1000)
            _Video_Play($idS)
            _Video_Volume($idS, 50)
            GUICtrlSetData($play, "PLAY")
            GUICtrlSetData($open, "STOP")
        Else
            _Video_Pause($idS)
            GUICtrlSetData($play, "PLAY")
        EndIf
        Return
    EndIf

    If $local Then
        $idS = _Video_Open($video, $hGUI, 2, 2, 640, 480)
        $Tam = _Video_Length($idS, 1)
        GUICtrlSetData($tamanho, _Video_Length($idS))
        GUICtrlSetData($play, "PLAY")
        Return
    EndIf

    $Pos = _Video_TimePos($idS, 1)

    If $Pos = $Tam Then
        GUICtrlSetData($posicao, "00:00:00")
        _Video_close($idS)
        GUICtrlSetState($play, $GUI_DISABLE)
        GUICtrlSetData($play, "PLAY")
        GUICtrlSetData($open, "OPEN")
        $Tocando = False
    ElseIf $Pos <> 0 Then
        GUICtrlSetData($posicao, _Video_TimePos($idS))
    EndIf

EndFunc   ;==>_PLAYER


Func _WM_HSCROLL($hWnd, $iMsg, $wParam, $lParam)
    #forceref $iMsg, $wParam

    Switch $lParam
        Case $soundhandle
            _Video_Volume($idS, GUICtrlRead($SlideWave))
            GUICtrlSetData($Volume, "Volume: " & GUICtrlRead($SlideWave) & " %")
    EndSwitch

    Return $GUI_RUNDEFMSG

EndFunc   ;==>_WM_HSCROLL
; ========================================================= EXAMPLE =========================================================

#region ==> UDF Vídeo By: smashly
#include-once
Global $vRet, $iTicks
;==================================== #CURRENT FUNCTIONS#==================================================
; _Video_Close
; _Video_Dimension ==> Adicionado
; _Video_FrameRate ==> Adicionado
; _Video_Length
; _Video_Mute
; _Video_Open
; _Video_Pause
; _Video_Play
; _Video_Resume
; _Video_Seek
; _Video_Status  ==> Adicionado
; _Video_Step    ==> Adicionado
; _Video_Stop    ==> Adicionado
; _Video_TimePos
; _Video_Volume  ==> Adicionado
; _RandomStr
; _MSToHMS
; _mciDeviceExists
; _mciListDevices
; _mciSendString
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Close
; Description....: Close a video.
; Syntax.........: _Video_Close($sAlias)
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
; Return values .: Success    - Return 1 and sets Alias name to "".
;                  Failure    - Return 0 and @error 1~2
;                               @error 1 = Invalid Alias
;                               @error 2 = MCI failed to close video
; Author ........: smashly
Func _Video_Close(ByRef $sAlias)
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    If _mciSendString("close " & $sAlias) = 0 Then
        $sAlias = ""
        Return SetError(0, 0, 1)
    Else
        Return SetError(2, 0, 0)
    EndIf
EndFunc   ;==>_Video_Close
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Dimension
; Description....: Retrieves the Width and Height of the source video.
; Syntax.........: _Video_Dimension($sFile)
; Parameters ....: $sFile     - The full path to video file.
; Return values .: Success    - Returns an array. array[0] = Width, array[1] = Height
;                  Failure    - Return 0 and @error 1~3
;                               @error 1 = File doesn't exist.
;                               @error 2 = MCI failed to open the video file.
;                               @error 3 = MCI failed to get the source video dimensions.
; Author ........: smashly
Func _Video_Dimension($sFile)
    Local $iRet, $sVID, $aTmp
    If Not FileExists($sFile) Then Return SetError(1, 0, 0)
    $sVID = _RandomStr()
    $iRet = _mciSendString("open " & FileGetShortName($sFile) & " alias " & $sVID)
    If $iRet <> 0 Then Return SetError(2, 0, 0)
    $iRet = _mciSendString("where " & $sVID & " source", 255)
    If $iRet = "" Then
        _mciSendString("close " & $sVID)
        Return SetError(3, 0, 0)
    EndIf
    _mciSendString("close " & $sVID)
    $aTmp = StringSplit($iRet, Chr(32))
    $aTmp[1] = $aTmp[$aTmp[0]]
    $aTmp[0] = $aTmp[$aTmp[0] - 1]
    ReDim $aTmp[2]
    Return $aTmp
EndFunc   ;==>_Video_Dimension
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_FrameRate
; Description....: Close a video.
; Syntax.........: _Video_FrameRate($sAlias)
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
; Return values .: Success    - Returns the Frames Per Second of the video.
;                  Failure    - Return 0 and @error 1
;                               @error 1 = Invalid Alias
; Author ........: smashly
Func _Video_FrameRate($sAlias)
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    Return _mciSendString("status " & $sAlias & " nominal frame rate", 255) / 1000
EndFunc   ;==>_Video_FrameRate
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Length
; Description....: Get the time length of a video in Milliseconds or Hours, Minutes, Seconds (HH:MM:SS)
; Syntax.........: _Video_Length($sAlias[, $iTime = 0])
; Parameters ....: $sAlias    - Alias name returned by _Video_Open
;                  $iTime     - 0 Return time lenth in Hours, Minutes, Seconds (HH:MM:SS)
;                             - 1 Return time lenth in Milliseconds.
; Return values .: Success    - Return time length in Milliseconds or Hours, Minutes, Seconds (HH:MM:SS)
;                  Failure    - Return 0 and @error 1
;                               @error 1 = Invalid Alias
; Author ........: smashly
Func _Video_Length($sAlias, $iTime = 0)
    Local $iMS
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    _mciSendString("set " & $sAlias & " time format ms")
    $iMS = _mciSendString("status " & $sAlias & " length", 255)
    If Not $iTime Then Return _MSToHMS($iMS)
    If $iTime Then Return $iMS
EndFunc   ;==>_Video_Length
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Mute
; Description....: Turn off/on the audio in a video.
; Syntax.........: _Video_Mute($sAlias[, $iMute = 0])
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
;                  $iAudio    - 0 = Audio On, 1 = Audio Off
; Return values .: Success    - Return 1 and @error 0
;                  Failure    - Return 0 and @error 1~2
;                               @error 1 = Invalid Alias
;                               @error 2 = MCI failed to turn the video audio off/on
; Author ........: smashly
Func _Video_Mute($sAlias, $iMute = 0)
    Local $iRet, $iAM = "on"
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    If $iMute Then $iAM = "off"
    $iRet = _mciSendString("set " & $sAlias & " audio all " & $iAM)
    If $iRet = 0 Then
        Return SetError(0, 0, 1)
    Else
        Return SetError(2, 0, 0)
    EndIf
EndFunc   ;==>_Video_Mute
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Open
; Description ...: Opens a Video file ready for use with other _Video_xxxx functions.
; Syntax.........: _Video_Open($sFile, $hWnd, $iX, $iY, $iW, $iH[, $sDevice = ""])
; Parameters ....: $sFile     - The full path to video file.
;                  $hWnd      - Handle to a window or control that the video will be displayed on
;                  $iX        - Left position of the video.
;                  $iY        - Top position of the video.
;                  $iW        - Width of the video.
;                  $iH        - Height of the video.
;                  $sDevice   - MCI Device type to play video with. (See Remarks for more info)
; Return values .: Success    - Return an Alias name for use with other _Video_xxxx functions.
;                  Failure    - Return an empty String "" and @error 1~5
;                               @error 1 = File doesn't exist
;                               @error 2 = Window or Control handle not valid.
;                               @error 3 = Invalid MCI Device type specified.
;                               @error 4 = MCI failed to open video file
;                               @error 5 = MCI failed window for video.
;                               @error 5 = MCI failed to put video at the deignated location.
;
; Remarks .......: If your having trouble with avi playback (eg; playing fast, slow, choppy or no audio)
;                  or a video won't play but it plays fine in any other player ...
;                  Then set the $sDevice parameter to "MPEGVideo"
;                  If the $sDevice parameter is left blank then windows will decide which MCI Device type
;                  to use.
;                  Most current day avi/wmv/mp4 formats dont play properly or at all when windows selects
;                  the mci device type to use.
;                  Windows would default use "AVIVideo" MCI Device type to play avi with mci.
;                  When you specify "MPEGVideo" for an avi and mci fails it then uses the windows native
;                  chain of codecs that would be used by any other player not using mci ;)
;                  Because of this behaviour you can usually play almost any type of video that normally
;                  fails when using mci just by specifying "MPEGVideo" mci device type.
;                  For playing video on an autoit gui then be sure to add the $WS_CLIPCHILDREN style
;                  to your Gui. This will keep the Video dislpayed on your Gui all the time.
; PT-BR :: Observações:
; ... Se você tiver problemas com a reprodução avi (por exemplo, jogar rápido, lento, intermitente ou sem áudio)
; Ou um vídeo não será reproduzido, mas reproduz bem em qualquer outro player ...
; Em seguida, defina o parâmetro $sDevice como "MPEGVideo"
; Se o parâmetro $sDevice for deixado em branco, o Windows decidirá qual tipo de dispositivo MCI usar.
; A maioria dos formatos atuais de avi / wmv / mp4 não jogam corretamente ou quando o Windows seleciona
; O tipo de dispositivo mci a ser usado.
; Windows usaria padrão "AVIVideo" tipo de dispositivo MCI para jogar avi com mci.
; Quando você especifica "MPEGVideo" para um avi e mci falha, em seguida, usa as janelas nativas
; Cadeia de codecs que seriam usados ??por qualquer outro jogador que não usasse mci;)
; Devido a esse comportamento, você geralmente pode reproduzir quase qualquer tipo de vídeo que normalmente
; Falha ao usar mci apenas especificando "MPEGVideo" tipo de dispositivo mci.
; Para reproduzir o vídeo em um gui autoit, então certifique-se de adicionar o estilo $WS_CLIPCHILDREN
; Para o seu Gui. Isto manterá o vídeo dislpayed em seu Gui todo o tempo.
;
; Author ........: smashly
Func _Video_Open($sFile, $hWnd, $iX, $iY, $iH, $iW, $sDevice = "MPEGVideo")
    Local $sVID, $gId, $iRet, $sDT = ""
    $sDevice = "MPEGVideo"
    If Not FileExists($sFile) Then Return SetError(1, 0, "")
    If Not IsHWnd($hWnd) Then Return SetError(2, 0, "")
    If $sDevice <> "" Then
        If Not _mciDeviceExists($sDevice) Then Return SetError(3, 0, "")
        $sDT = " type " & $sDevice
    EndIf
    $gId = Dec(StringTrimLeft($hWnd, 2))
    $sVID = _RandomStr()
    $iRet = _mciSendString("open " & FileGetShortName($sFile) & " alias " & $sVID & $sDT)
    If $iRet <> 0 Then Return SetError(4, 0, "")
    $iRet = _mciSendString("window " & $sVID & " handle " & $gId)
    If $iRet <> 0 Then
        _mciSendString("close " & $sVID)
        Return SetError(5, 0, "")
    EndIf
    $iRet = _mciSendString("put " & $sVID & " destination at " & $iX & " " & $iY & " " & $iH & " " & $iW)
    If $iRet <> 0 Then
        _mciSendString("close " & $sVID)
        Return SetError(6, 0, "")
    EndIf
    Return SetError(0, 0, $sVID)
EndFunc   ;==>_Video_Open
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Pause
; Description....: Pause a Video at the current playing position.
; Syntax.........: _Video_Pause($sAlias)
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
; Return values .: Success    - Return 1 and @error 0
;                  Failure    - Return 0 and @error 1~2
;                               @error 1 = Invalid Alias
;                               @error 2 = Failed to pause video.
; Author ........: smashly
Func _Video_Pause($sAlias)
    Local $iRet
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    $iRet = _mciSendString("pause " & $sAlias)
    If $iRet = 0 Then
        Return SetError(0, 0, 1)
    Else
        Return SetError(2, 0, 0)
    EndIf
EndFunc   ;==>_Video_Pause
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Play
; Description....: Plays a Video from the current position.
; Syntax.........: _Video_Play($sAlias[, $iMode = 0])
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
;                  $iMode     - 0 play video on the window or control as specified in _Video_Open
;                             - 1 play video in Fullscreen mode.
; Return values .: Success    - Return 1 and @error 0
;                  Failure    - Return 0 and @error 1~2
;                               @error 1 = Invalid Alias
;                               @error 2 = MCI failed to play video.
; Author ........: smashly
Func _Video_Play($sAlias, $iMode = 0)
    Local $iRet
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    If _Video_TimePos($sAlias, 1) = _Video_Length($sAlias, 1) Then _Video_Seek($sAlias, "start")
    If $iMode Then
        $vRet = _mciSendString("play " & $sAlias & " fullscreen")
    Else
        $iRet = _mciSendString("play " & $sAlias)
    EndIf
    If $iRet = 0 Then
        Return SetError(0, 0, 1)
    Else
        Return SetError(1, 0, 0)
    EndIf
EndFunc   ;==>_Video_Play
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Resume
; Description....: Resume playing a video after pausing.
; Syntax.........: _Video_Resume($sAlias)
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
; Return values .: Success    - Return 1 and @error 0
;                  Failure    - Return 0 and @error 1~2
;                               @error 1 = Invalid Alias
;                               @error 2 = MCI failed to resume video.
; Author ........: smashly
Func _Video_Resume($sAlias)
    Local $iRet
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    $iRet = _mciSendString("resume " & $sAlias)
    If $iRet = 0 Then
        Return SetError(0, 0, 1)
    Else
        Return SetError(2, 0, 0)
    EndIf
EndFunc   ;==>_Video_Resume
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Seek
; Description....: Seek a video to the specified time position.
; Syntax.........: _Video_Seek($sAlias, $iTime)
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
;                  $iTime     - Time to Seek. Can be Millisecons or HH:MM:SS or "start" or "end"
; Return values .: Success    - Return 1 and @error 0
;                  Failure    - Return 0 and @error 1~3
;                               @error 1 = Invalid Alias
;                               @error 2 = Invalid time format.
;                               @error 3 = MCI Seek error
; Author ........: smashly
Func _Video_Seek($sAlias, $iTime)
    Local $iMS, $aTime, $iRet
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    If StringInStr($iTime, ":") Then
        $aTime = StringSplit($iTime, ":")
        If $aTime[0] <> 3 Then Return SetError(2, 0, 0)
        $iMS = 1000 * ((3600 * $aTime[1]) + (60 * $aTime[2]) + $aTime[3])
    ElseIf StringIsInt($iTime) Or $iTime = "start" Or $iTime = "end" Then
        $iMS = $iTime
    Else
        Return SetError(2, 0, 0)
    EndIf
    _mciSendString("set " & $sAlias & " time format ms")
    $iRet = _mciSendString("seek " & $sAlias & " to " & $iMS)
    If $iRet = 0 Then
        Return SetError(0, 0, 1)
    Else
        Return SetError(3, 0, 0)
    EndIf
EndFunc   ;==>_Video_Seek
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Status
; Description....: Get a status status message from a video device.
; Syntax.........: _Video_Status($sAlias[, $sQuery = "mode"])
; Parameters ....: $sAlias    - Alias name returned by _Video_Open
;                  $sQuery    - What to get the status of:
;                               "audio" - returns the "on" or "off"
;                               "mode"  - returns "paused", "playing" and "stopped"
; Return values .: Success    - Returns a Status message from the video device.
;                  Failure    - Return 0 and @error 1
;                               @error 1 = Invalid Alias
;                               @error 2 = Invalid query (To be implemented)
; Author ........: smashly
Func _Video_Status($sAlias, $sQuery = "mode")
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    ;; error check for the $sQuery goes here
    Return _mciSendString("status " & $sAlias & " " & $sQuery, 255)
EndFunc   ;==>_Video_Status
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Step
; Description....: Step a video forwards or backwards by a number of frames.
; Syntax.........: _Video_Step($sAlias, $iFrames)
; Parameters ....: $sAlias    - Alias name returned by _Video_Open
;                  $iFrames   - The number of frames to step, use negative numbers to step backwards.
; Return values .: Success    - Returns 1 and @error 0
;                  Failure    - Return 0 and @error 1~3
;                               @error 1 = Invalid Alias
;                               @error 2 = Invalid frames
;                               @error 3 = MCI Step error
; Author ........: smashly
Func _Video_Step($sAlias, $iFrames)
    Local $iRet
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    If StringRegExp(StringReplace($iFrames, "-", ""), '\D', 0) Then Return SetError(2, 0, 0)
    $iRet = _mciSendString("step " & $sAlias & " by " & $iFrames)
    If $iRet = 0 Then
        Return SetError(0, 0, 1)
    Else
        Return SetError(3, 0, 0)
    EndIf
EndFunc   ;==>_Video_Step
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Stop
; Description....: Stop a Video playing. (seeks video to start)
; Syntax.........: _Video_Stop($sAlias)
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
; Return values .: Success    - Return 1 and @error 0
;                  Failure    - Return 0 and @error 1~2
;                               @error 1 = Invalid Alias
;                               @error 2 = Failed to stop or seek
; Author ........: smashly
Func _Video_Stop($sAlias)
    Local $iRet, $iRet2
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    $iRet = _Video_Seek($sAlias, "start")
    $iRet2 = _mciSendString("stop " & $sAlias)
    If $iRet = 0 And $iRet2 = 0 Then
        Return SetError(0, 0, 1)
    Else
        Return SetError(2, 0, 0)
    EndIf
EndFunc   ;==>_Video_Stop
;==========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_TimePos
; Description....: Get the time poition of a video in Milliseconds or Hours, Minutes, Seconds (HH:MM:SS)
; Syntax.........: _Video_TimePos($sAlias[, $iTime = 0])
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
;                  $iTime     - 0 Return time lenth in Hours, Minutes, Seconds (HH:MM:SS)
;                             - 1 Return time lenth in Milliseconds.
; Return values .: Success    - Return time position in Milliseconds or Hours, Minutes, Seconds (HH:MM:SS)
;                  Failure    - Return 0 and @error 1
;                               @error 1 = Invalid Alias
; Author ........: smashly
Func _Video_TimePos($sAlias, $iTime = 0)
    Local $iMS
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    _mciSendString("set " & $sAlias & " time format ms")
    $iMS = _mciSendString("status " & $sAlias & " position", 255)
    If Not $iTime Then Return _MSToHMS($iMS)
    If $iTime Then Return $iMS
EndFunc   ;==>_Video_TimePos
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Volume
; Description....: Turn the video audio volume up or down.
; Syntax.........: _Video_AudioVolume($sAlias[, $iVolume = 100])
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
;                  $iVolume   - 0 = Min, 100 = Max
; Return values .: Success    - Return 1 and @error 0
;                  Failure    - Return 0 and @error 1~2
;                               @error 1 = Invalid Alias
;                               @error 2 = Invalid Volume
;                               @error 3 = MCI failed to set volume
; Author ........: smashly
;~ Func _Video_Volume($sAlias, $iVolume = 100)
;~  Local $iRet, $iVol
;~  If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
;~  If StringRegExp($iVolume, '\D', 0) Then Return SetError(2, 0, 0)
;~  If $iVolume >= 100 Then
;~      $iVol = 1000
;~  ElseIf $iVolume <= 0 Then
;~      $iVol = 0
;~  ElseIf $iVolume > 0 And $iVolume < 100 Then
;~      $iVol = $iVolume * 10
;~  EndIf
;~  $iRet = _mciSendString("setaudio " & $sAlias & " volume to " & $iVol)
;~  If $iRet = 0 Then
;~      Return SetError(0, 0, 1)
;~  Else
;~      Return SetError(3, 0, 0)
;~  EndIf
;~ EndFunc   ;==>_Video_Volume

;By PedroWarlock
Func _Video_Volume($sAlias, $iVol = 100, $sName = "")

    ;Declare variables
    Local $iRet

    If $iVol >= 0 And $iVol <= 100 Then
        $iVol *= 10 ; vol goes here from 0 - 1000
    EndIf

    Switch $sName
        Case "LEFT"
            $iRet = _mciSendString("setaudio " & $sAlias & " left volume to " & $iVol & " wait")

        Case "RIGHT"
            $iRet = _mciSendString("setaudio " & $sAlias & " right volume to " & $iVol & " wait")

        Case "BASS"
            $iRet = _mciSendString("setaudio " & $sAlias & " bass to " & $iVol & " wait")

        Case "TREBLE"
            $iRet = _mciSendString("setaudio " & $sAlias & " treble to " & $iVol & " wait")

        Case Else ; default 0 ""
            $iRet = _mciSendString("setaudio " & $sAlias & " volume to " & $iVol & " wait")
    EndSwitch

    ;return
    If $iRet = 0 Then
        Return 1
    Else
        Return SetError(1, 0, 0)
    EndIf
EndFunc   ;==>_Video_Volume
; =========================================================================================================
;==========================================================================================================
; Internal use functions beyond this point / Funções de uso interno além deste ponto
;==========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _mciDeviceExists
; Description....: Check if a MCI Device type exists
; Syntax.........: _mciDeviceExists($sDevice)
; Parameters ....: $sDevice   - Name of MCI Device type to check for
; Return values .: Success    - Return 1 if MCI Device type exists and @error 0
;                  Failure    - Return 0 if MCI Device type does not exist and @error 1~2
;                               @error 1 = No matching MCI Device type found.
;                               @error 2 = Failed to list any MCI Device types
; Author ........: smashly
Func _mciDeviceExists($sDevice)
    Local $aDT = _mciListDevices()
    If @error Then Return SetError(2, 0, 0)
    For $idx = 1 To $aDT[0]
        If $sDevice = $aDT[$idx] Then Return SetError(0, 0, 1)
    Next
    Return SetError(1, 0, 0)
EndFunc   ;==>_mciDeviceExists
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _mciListDevices
; Description....: List all found MCI Device types in an array
; Syntax.........: _mciListDevices()
; Parameters ....: None
; Return values .: Success    - Return 1D array of found MCI Device types and @error 0
;                               array[0] Number of MCI Device types found
;                               array[n] MCI Device type name
;                  Failure    - Return empty 1D array and @error 1
; Author ........: smashly
Func _mciListDevices()
    Local $iMD, $sTmp
    $iMD = _mciSendString("sysinfo all quantity", 255)
    If StringIsInt($iMD) Then
        For $idx = 1 To $iMD
            $sTmp &= _mciSendString("sysinfo all name " & $idx, 255) & Chr(0)
        Next
        Return SetError(0, 0, StringSplit(StringTrimRight($sTmp, 1), Chr(0)))
    EndIf
    Return SetError(1, 0, StringSplit($sTmp, Chr(0)))
EndFunc   ;==>_mciListDevices
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _mciSendString
; Description....:
; Syntax.........: _mciSendString($string[, $iLen = 0])
; Parameters ....: $string
;                  $iLen
; Return values .:
; Author ........: RazerM
Func _mciSendString($string, $iLen = 0)
    Local $iRet ; winmm.dll Fica na Pasta System32.
;~   $iRet = DllCall("winmm.dll", "int", "mciSendStringA", "str", $string, "str", "", "long", $iLen, "long", 0) ; Usado pelo smashly.
    $iRet = DllCall("winmm.dll", "dword", "mciSendStringW", "wstr", $string, "wstr", "", "uint", $iLen, "ptr", 0) ; Usado por jscript.
    If Not @error Then Return $iRet[2]
EndFunc   ;==>_mciSendString
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _MSToHMS
; Description....: Converts Milliseconds to Hours, Minutes, Seconds
; Syntax.........: _MSToHMS($iMS)
; Parameters ....: $iMS       - Milliseconds to convert
; Return values .: Success    - Returns Hours, Minutes, Seconds (HH:MM:SS)
; Author ........: smashly
Func _MSToHMS($iMS)
    Local $iHours = 0, $iMins = 0, $iSecs = 0
    If Number($iMS) > 0 Then
        $iMS = Round($iMS / 1000)
        $iHours = Int($iMS / 3600)
        $iTicks = Mod($iMS, 3600)
        $iMins = Int($iMS / 60)
        $iSecs = Round(Mod($iMS, 60))
        Return StringFormat("%02i:%02i:%02i", $iHours, $iMins, $iSecs)
    EndIf

    Return StringFormat("%02i:%02i:%02i", $iHours, $iMins, $iSecs)
EndFunc   ;==>_MSToHMS
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _RandomStr
; Description....: Creates a random string
; Syntax.........: _RandomStr([$iLen = 10])
; Parameters ....: $iLen      - Length of string to return
; Return values .: Success    - Returns a string of random letters (a~z)
; Author ........: RazerM
Func _RandomStr($iLen = 10)
    Local $sTmp = ''
    For $i = 1 To $iLen
        $sTmp &= Chr(Random(97, 122, 1))
    Next
    Return $sTmp
EndFunc   ;==>_RandomStr
; =========================================================================================================
#endregion ==> UDF Vídeo By: smashly

Edited June 7, 2018 by Belini

AutoBert · June 7, 2018

WebCam.zip example works for me most times. If not a restart from windows is needed.

Edited June 7, 2018 by AutoBert

Skeletor · June 7, 2018

Have you tried using :
_ScreenCapture_Capture and _GDIPlus_Startup()

Belini · June 8, 2018

@AutoBert I could not use functions of this UDF to capture video but thanks for posting because I use another UDF for webcam and I will exchange for this one that you have posted.

@Skeletor tried _GDIPlus_Startup () with _ScreenCapture_Capture and also _ScreenCapture_CaptureWnd but still giving black screen when capturing the image.

#include <File.au3>
#include <Array.au3>
#include <WinAPI.au3>
#include <GDIPlus.au3>
#include <ScreenCapture.au3>
#include <GUIConstantsEX.au3>
#include <WindowsConstants.au3>
#include <SliderConstants.au3>

Global $idS, $Tam, $Pos, $local, $arquivos
Global $BtnMais, $BtnMenos, $Vol = 50, $SlideWave, $video, $capture
Global $Tocando = False, $soundhandle, $hGUI, $posicao, $tamanho, $abrir, $play

$hGUI = GUICreate("Player", 644, 570, 0, 0, $WS_CLIPCHILDREN)

GUICtrlCreateLabel("TIME:", 10, 510, 50, 20)
$posicao = GUICtrlCreateLabel("00:00:00", 60, 510, 50, 20)
GUICtrlCreateLabel("/", 110, 510, 10, 20)
$tamanho = GUICtrlCreateLabel("00:00:00", 125, 510, 50, 20)

$open = GUICtrlCreateButton("OPEN", 180, 502, 80, 30)
$play = GUICtrlCreateButton("PLAY", 280, 502, 80, 30)
$capture = GUICtrlCreateButton("CAPTURE", 380, 502, 80, 30)

$Volume = GUICtrlCreateLabel("Volume: " & $Vol & " %", 525, 486, 70, 15)
$SlideWave = GUICtrlCreateSlider(475, 504, 170, 30)
GUICtrlSetLimit($SlideWave, 100, 0)
GUICtrlSetData($SlideWave, $Vol)

$soundhandle = ControlGetHandle($hGUI, "", $SlideWave)
GUICtrlSetState($play, $GUI_DISABLE)
GUISetState(@SW_SHOW, $hGUI)

GUIRegisterMsg($Wm_Hscroll, "_WM_HSCROLL")

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit (0)
        Case $capture
            If $Tocando = True Then
                _Capture()
                GUICtrlSetData($capture, "CAPTURED")
                Sleep(1500)
                GUICtrlSetData($capture, "CAPTURE")
            EndIf
        Case $open
            If Not $Tocando Then
                $video = FileOpenDialog("Abrir arquivos .mp4", @ScriptDir, "Midia (*.avi;*.cdg;*.mpg;*.mp4)")
                If Not @error Then
                    _PLAYER($video)
                    GUICtrlSetState($play, $GUI_ENABLE)
                EndIf
            Else
                $Tocando = False
                _Video_close($idS)
                GUICtrlSetData($posicao, "00:00:00")
                GUICtrlSetState($play, $GUI_DISABLE)
                GUICtrlSetData($open, "OPEN")
            EndIf
        Case $play
            _PLAYER("PLAY")
    EndSwitch
WEnd

Func _Capture()
    Local $hGUI, $hBMP, $hBitmap, $hGraphic

    If WinExists("GDI+") Then WinClose("GDI+")

    ; Capture upper left corner of screen
    $hBMP = _ScreenCapture_Capture("", 0, 0, 644, 570)

    ; Create GUI
    $hGUI = GUICreate("GDI+", 644, 570, 0, 0)
    GUISetState()

    ; Initialize GDI+ library
    _GDIPlus_Startup()

    ; Draw bitmap to GUI
    $hBitmap = _GDIPlus_BitmapCreateFromHBITMAP($hBMP)
    $hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGUI)
    _GDIPlus_GraphicsDrawImage($hGraphic, $hBitmap, 0, 0)

    _ScreenCapture_Capture(@ScriptDir & "\Capture_Capture1.jpg")
    _ScreenCapture_CaptureWnd(@ScriptDir & "\CaptureWnd.jpg", $hGUI)

    ; Clean up resources
    _GDIPlus_GraphicsDispose($hGraphic)
    _GDIPlus_ImageDispose($hBitmap)
    _WinAPI_DeleteObject($hBMP)

    ; Shut down GDI+ library
    _GDIPlus_Shutdown()
EndFunc   ;==>_Capture

Func _PLAYER($local = False)
    Local $randon, $i
    If $local = "PLAY" Then
        If GUICtrlRead($play) = "PLAY" Then
            $Tocando = True
            AdlibRegister("_PLAYER", 1000)
            _Video_Play($idS)
            _Video_Volume($idS, 50)
            GUICtrlSetData($play, "PLAY")
            GUICtrlSetData($open, "STOP")
        Else
            _Video_Pause($idS)
            GUICtrlSetData($play, "PLAY")
        EndIf
        Return
    EndIf

    If $local Then
        $idS = _Video_Open($video, $hGUI, 2, 2, 640, 480)
        $Tam = _Video_Length($idS, 1)
        GUICtrlSetData($tamanho, _Video_Length($idS))
        GUICtrlSetData($play, "PLAY")
        Return
    EndIf

    $Pos = _Video_TimePos($idS, 1)

    If $Pos = $Tam Then
        GUICtrlSetData($posicao, "00:00:00")
        _Video_close($idS)
        GUICtrlSetState($play, $GUI_DISABLE)
        GUICtrlSetData($play, "PLAY")
        GUICtrlSetData($open, "OPEN")
        $Tocando = False
    ElseIf $Pos <> 0 Then
        GUICtrlSetData($posicao, _Video_TimePos($idS))
    EndIf

EndFunc   ;==>_PLAYER


Func _WM_HSCROLL($hWnd, $iMsg, $wParam, $lParam)
    #forceref $iMsg, $wParam

    Switch $lParam
        Case $soundhandle
            _Video_Volume($idS, GUICtrlRead($SlideWave))
            GUICtrlSetData($Volume, "Volume: " & GUICtrlRead($SlideWave) & " %")
    EndSwitch

    Return $GUI_RUNDEFMSG

EndFunc   ;==>_WM_HSCROLL

; =========================================================================================================
#region ==> UDF Vídeo By: smashly
#include-once
Global $vRet, $iTicks
;==================================== #CURRENT FUNCTIONS#==================================================
; _Video_Close
; _Video_Dimension ==> Added
; _Video_FrameRate ==> Added
; _Video_Length
; _Video_Mute
; _Video_Open
; _Video_Pause
; _Video_Play
; _Video_Resume
; _Video_Seek
; _Video_Status  ==> Added
; _Video_Step    ==> Added
; _Video_Stop    ==> Added
; _Video_TimePos
; _Video_Volume  ==> Added
; _RandomStr
; _MSToHMS
; _mciDeviceExists
; _mciListDevices
; _mciSendString
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Close
; Description....: Close a video.
; Syntax.........: _Video_Close($sAlias)
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
; Return values .: Success    - Return 1 and sets Alias name to "".
;                  Failure    - Return 0 and @error 1~2
;                               @error 1 = Invalid Alias
;                               @error 2 = MCI failed to close video
; Author ........: smashly
Func _Video_Close(ByRef $sAlias)
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    If _mciSendString("close " & $sAlias) = 0 Then
        $sAlias = ""
        Return SetError(0, 0, 1)
    Else
        Return SetError(2, 0, 0)
    EndIf
EndFunc   ;==>_Video_Close
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Dimension
; Description....: Retrieves the Width and Height of the source video.
; Syntax.........: _Video_Dimension($sFile)
; Parameters ....: $sFile     - The full path to video file.
; Return values .: Success    - Returns an array. array[0] = Width, array[1] = Height
;                  Failure    - Return 0 and @error 1~3
;                               @error 1 = File doesn't exist.
;                               @error 2 = MCI failed to open the video file.
;                               @error 3 = MCI failed to get the source video dimensions.
; Author ........: smashly
Func _Video_Dimension($sFile)
    Local $iRet, $sVID, $aTmp
    If Not FileExists($sFile) Then Return SetError(1, 0, 0)
    $sVID = _RandomStr()
    $iRet = _mciSendString("open " & FileGetShortName($sFile) & " alias " & $sVID)
    If $iRet <> 0 Then Return SetError(2, 0, 0)
    $iRet = _mciSendString("where " & $sVID & " source", 255)
    If $iRet = "" Then
        _mciSendString("close " & $sVID)
        Return SetError(3, 0, 0)
    EndIf
    _mciSendString("close " & $sVID)
    $aTmp = StringSplit($iRet, Chr(32))
    $aTmp[1] = $aTmp[$aTmp[0]]
    $aTmp[0] = $aTmp[$aTmp[0] - 1]
    ReDim $aTmp[2]
    Return $aTmp
EndFunc   ;==>_Video_Dimension
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_FrameRate
; Description....: Close a video.
; Syntax.........: _Video_FrameRate($sAlias)
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
; Return values .: Success    - Returns the Frames Per Second of the video.
;                  Failure    - Return 0 and @error 1
;                               @error 1 = Invalid Alias
; Author ........: smashly
Func _Video_FrameRate($sAlias)
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    Return _mciSendString("status " & $sAlias & " nominal frame rate", 255) / 1000
EndFunc   ;==>_Video_FrameRate
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Length
; Description....: Get the time length of a video in Milliseconds or Hours, Minutes, Seconds (HH:MM:SS)
; Syntax.........: _Video_Length($sAlias[, $iTime = 0])
; Parameters ....: $sAlias    - Alias name returned by _Video_Open
;                  $iTime     - 0 Return time lenth in Hours, Minutes, Seconds (HH:MM:SS)
;                             - 1 Return time lenth in Milliseconds.
; Return values .: Success    - Return time length in Milliseconds or Hours, Minutes, Seconds (HH:MM:SS)
;                  Failure    - Return 0 and @error 1
;                               @error 1 = Invalid Alias
; Author ........: smashly
Func _Video_Length($sAlias, $iTime = 0)
    Local $iMS
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    _mciSendString("set " & $sAlias & " time format ms")
    $iMS = _mciSendString("status " & $sAlias & " length", 255)
    If Not $iTime Then Return _MSToHMS($iMS)
    If $iTime Then Return $iMS
EndFunc   ;==>_Video_Length
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Mute
; Description....: Turn off/on the audio in a video.
; Syntax.........: _Video_Mute($sAlias[, $iMute = 0])
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
;                  $iAudio    - 0 = Audio On, 1 = Audio Off
; Return values .: Success    - Return 1 and @error 0
;                  Failure    - Return 0 and @error 1~2
;                               @error 1 = Invalid Alias
;                               @error 2 = MCI failed to turn the video audio off/on
; Author ........: smashly
Func _Video_Mute($sAlias, $iMute = 0)
    Local $iRet, $iAM = "on"
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    If $iMute Then $iAM = "off"
    $iRet = _mciSendString("set " & $sAlias & " audio all " & $iAM)
    If $iRet = 0 Then
        Return SetError(0, 0, 1)
    Else
        Return SetError(2, 0, 0)
    EndIf
EndFunc   ;==>_Video_Mute
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Open
; Description ...: Opens a Video file ready for use with other _Video_xxxx functions.
; Syntax.........: _Video_Open($sFile, $hWnd, $iX, $iY, $iW, $iH[, $sDevice = ""])
; Parameters ....: $sFile     - The full path to video file.
;                  $hWnd      - Handle to a window or control that the video will be displayed on
;                  $iX        - Left position of the video.
;                  $iY        - Top position of the video.
;                  $iW        - Width of the video.
;                  $iH        - Height of the video.
;                  $sDevice   - MCI Device type to play video with. (See Remarks for more info)
; Return values .: Success    - Return an Alias name for use with other _Video_xxxx functions.
;                  Failure    - Return an empty String "" and @error 1~5
;                               @error 1 = File doesn't exist
;                               @error 2 = Window or Control handle not valid.
;                               @error 3 = Invalid MCI Device type specified.
;                               @error 4 = MCI failed to open video file
;                               @error 5 = MCI failed window for video.
;                               @error 5 = MCI failed to put video at the deignated location.
;
; Remarks .......: If your having trouble with avi playback (eg; playing fast, slow, choppy or no audio)
;                  or a video won't play but it plays fine in any other player ...
;                  Then set the $sDevice parameter to "MPEGVideo"
;                  If the $sDevice parameter is left blank then windows will decide which MCI Device type
;                  to use.
;                  Most current day avi/wmv/mp4 formats dont play properly or at all when windows selects
;                  the mci device type to use.
;                  Windows would default use "AVIVideo" MCI Device type to play avi with mci.
;                  When you specify "MPEGVideo" for an avi and mci fails it then uses the windows native
;                  chain of codecs that would be used by any other player not using mci ;)
;                  Because of this behaviour you can usually play almost any type of video that normally
;                  fails when using mci just by specifying "MPEGVideo" mci device type.
;                  For playing video on an autoit gui then be sure to add the $WS_CLIPCHILDREN style
;                  to your Gui. This will keep the Video dislpayed on your Gui all the time.
; PT-BR :: Observações:
; ... Se você tiver problemas com a reprodução avi (por exemplo, jogar rápido, lento, intermitente ou sem áudio)
; Ou um vídeo não será reproduzido, mas reproduz bem em qualquer outro player ...
; Em seguida, defina o parâmetro $sDevice como "MPEGVideo"
; Se o parâmetro $sDevice for deixado em branco, o Windows decidirá qual tipo de dispositivo MCI usar.
; A maioria dos formatos atuais de avi / wmv / mp4 não jogam corretamente ou quando o Windows seleciona
; O tipo de dispositivo mci a ser usado.
; Windows usaria padrão "AVIVideo" tipo de dispositivo MCI para jogar avi com mci.
; Quando você especifica "MPEGVideo" para um avi e mci falha, em seguida, usa as janelas nativas
; Cadeia de codecs que seriam usados ??por qualquer outro jogador que não usasse mci;)
; Devido a esse comportamento, você geralmente pode reproduzir quase qualquer tipo de vídeo que normalmente
; Falha ao usar mci apenas especificando "MPEGVideo" tipo de dispositivo mci.
; Para reproduzir o vídeo em um gui autoit, então certifique-se de adicionar o estilo $WS_CLIPCHILDREN
; Para o seu Gui. Isto manterá o vídeo dislpayed em seu Gui todo o tempo.
;
; Author ........: smashly
Func _Video_Open($sFile, $hWnd, $iX, $iY, $iH, $iW, $sDevice = "MPEGVideo")
    Local $sVID, $gId, $iRet, $sDT = ""
    $sDevice = "MPEGVideo"
    If Not FileExists($sFile) Then Return SetError(1, 0, "")
    If Not IsHWnd($hWnd) Then Return SetError(2, 0, "")
    If $sDevice <> "" Then
        If Not _mciDeviceExists($sDevice) Then Return SetError(3, 0, "")
        $sDT = " type " & $sDevice
    EndIf
    $gId = Dec(StringTrimLeft($hWnd, 2))
    $sVID = _RandomStr()
    $iRet = _mciSendString("open " & FileGetShortName($sFile) & " alias " & $sVID & $sDT)
    If $iRet <> 0 Then Return SetError(4, 0, "")
    $iRet = _mciSendString("window " & $sVID & " handle " & $gId)
    If $iRet <> 0 Then
        _mciSendString("close " & $sVID)
        Return SetError(5, 0, "")
    EndIf
    $iRet = _mciSendString("put " & $sVID & " destination at " & $iX & " " & $iY & " " & $iH & " " & $iW)
    If $iRet <> 0 Then
        _mciSendString("close " & $sVID)
        Return SetError(6, 0, "")
    EndIf
    Return SetError(0, 0, $sVID)
EndFunc   ;==>_Video_Open
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Pause
; Description....: Pause a Video at the current playing position.
; Syntax.........: _Video_Pause($sAlias)
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
; Return values .: Success    - Return 1 and @error 0
;                  Failure    - Return 0 and @error 1~2
;                               @error 1 = Invalid Alias
;                               @error 2 = Failed to pause video.
; Author ........: smashly
Func _Video_Pause($sAlias)
    Local $iRet
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    $iRet = _mciSendString("pause " & $sAlias)
    If $iRet = 0 Then
        Return SetError(0, 0, 1)
    Else
        Return SetError(2, 0, 0)
    EndIf
EndFunc   ;==>_Video_Pause
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Play
; Description....: Plays a Video from the current position.
; Syntax.........: _Video_Play($sAlias[, $iMode = 0])
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
;                  $iMode     - 0 play video on the window or control as specified in _Video_Open
;                             - 1 play video in Fullscreen mode.
; Return values .: Success    - Return 1 and @error 0
;                  Failure    - Return 0 and @error 1~2
;                               @error 1 = Invalid Alias
;                               @error 2 = MCI failed to play video.
; Author ........: smashly
Func _Video_Play($sAlias, $iMode = 0)
    Local $iRet
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    If _Video_TimePos($sAlias, 1) = _Video_Length($sAlias, 1) Then _Video_Seek($sAlias, "start")
    If $iMode Then
        $vRet = _mciSendString("play " & $sAlias & " fullscreen")
    Else
        $iRet = _mciSendString("play " & $sAlias)
    EndIf
    If $iRet = 0 Then
        Return SetError(0, 0, 1)
    Else
        Return SetError(1, 0, 0)
    EndIf
EndFunc   ;==>_Video_Play
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Resume
; Description....: Resume playing a video after pausing.
; Syntax.........: _Video_Resume($sAlias)
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
; Return values .: Success    - Return 1 and @error 0
;                  Failure    - Return 0 and @error 1~2
;                               @error 1 = Invalid Alias
;                               @error 2 = MCI failed to resume video.
; Author ........: smashly
Func _Video_Resume($sAlias)
    Local $iRet
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    $iRet = _mciSendString("resume " & $sAlias)
    If $iRet = 0 Then
        Return SetError(0, 0, 1)
    Else
        Return SetError(2, 0, 0)
    EndIf
EndFunc   ;==>_Video_Resume
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Seek
; Description....: Seek a video to the specified time position.
; Syntax.........: _Video_Seek($sAlias, $iTime)
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
;                  $iTime     - Time to Seek. Can be Millisecons or HH:MM:SS or "start" or "end"
; Return values .: Success    - Return 1 and @error 0
;                  Failure    - Return 0 and @error 1~3
;                               @error 1 = Invalid Alias
;                               @error 2 = Invalid time format.
;                               @error 3 = MCI Seek error
; Author ........: smashly
Func _Video_Seek($sAlias, $iTime)
    Local $iMS, $aTime, $iRet
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    If StringInStr($iTime, ":") Then
        $aTime = StringSplit($iTime, ":")
        If $aTime[0] <> 3 Then Return SetError(2, 0, 0)
        $iMS = 1000 * ((3600 * $aTime[1]) + (60 * $aTime[2]) + $aTime[3])
    ElseIf StringIsInt($iTime) Or $iTime = "start" Or $iTime = "end" Then
        $iMS = $iTime
    Else
        Return SetError(2, 0, 0)
    EndIf
    _mciSendString("set " & $sAlias & " time format ms")
    $iRet = _mciSendString("seek " & $sAlias & " to " & $iMS)
    If $iRet = 0 Then
        Return SetError(0, 0, 1)
    Else
        Return SetError(3, 0, 0)
    EndIf
EndFunc   ;==>_Video_Seek
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Status
; Description....: Get a status status message from a video device.
; Syntax.........: _Video_Status($sAlias[, $sQuery = "mode"])
; Parameters ....: $sAlias    - Alias name returned by _Video_Open
;                  $sQuery    - What to get the status of:
;                               "audio" - returns the "on" or "off"
;                               "mode"  - returns "paused", "playing" and "stopped"
; Return values .: Success    - Returns a Status message from the video device.
;                  Failure    - Return 0 and @error 1
;                               @error 1 = Invalid Alias
;                               @error 2 = Invalid query (To be implemented)
; Author ........: smashly
Func _Video_Status($sAlias, $sQuery = "mode")
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    ;; error check for the $sQuery goes here
    Return _mciSendString("status " & $sAlias & " " & $sQuery, 255)
EndFunc   ;==>_Video_Status
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Step
; Description....: Step a video forwards or backwards by a number of frames.
; Syntax.........: _Video_Step($sAlias, $iFrames)
; Parameters ....: $sAlias    - Alias name returned by _Video_Open
;                  $iFrames   - The number of frames to step, use negative numbers to step backwards.
; Return values .: Success    - Returns 1 and @error 0
;                  Failure    - Return 0 and @error 1~3
;                               @error 1 = Invalid Alias
;                               @error 2 = Invalid frames
;                               @error 3 = MCI Step error
; Author ........: smashly
Func _Video_Step($sAlias, $iFrames)
    Local $iRet
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    If StringRegExp(StringReplace($iFrames, "-", ""), '\D', 0) Then Return SetError(2, 0, 0)
    $iRet = _mciSendString("step " & $sAlias & " by " & $iFrames)
    If $iRet = 0 Then
        Return SetError(0, 0, 1)
    Else
        Return SetError(3, 0, 0)
    EndIf
EndFunc   ;==>_Video_Step
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Stop
; Description....: Stop a Video playing. (seeks video to start)
; Syntax.........: _Video_Stop($sAlias)
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
; Return values .: Success    - Return 1 and @error 0
;                  Failure    - Return 0 and @error 1~2
;                               @error 1 = Invalid Alias
;                               @error 2 = Failed to stop or seek
; Author ........: smashly
Func _Video_Stop($sAlias)
    Local $iRet, $iRet2
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    $iRet = _Video_Seek($sAlias, "start")
    $iRet2 = _mciSendString("stop " & $sAlias)
    If $iRet = 0 And $iRet2 = 0 Then
        Return SetError(0, 0, 1)
    Else
        Return SetError(2, 0, 0)
    EndIf
EndFunc   ;==>_Video_Stop
;==========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_TimePos
; Description....: Get the time poition of a video in Milliseconds or Hours, Minutes, Seconds (HH:MM:SS)
; Syntax.........: _Video_TimePos($sAlias[, $iTime = 0])
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
;                  $iTime     - 0 Return time lenth in Hours, Minutes, Seconds (HH:MM:SS)
;                             - 1 Return time lenth in Milliseconds.
; Return values .: Success    - Return time position in Milliseconds or Hours, Minutes, Seconds (HH:MM:SS)
;                  Failure    - Return 0 and @error 1
;                               @error 1 = Invalid Alias
; Author ........: smashly
Func _Video_TimePos($sAlias, $iTime = 0)
    Local $iMS
    If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
    _mciSendString("set " & $sAlias & " time format ms")
    $iMS = _mciSendString("status " & $sAlias & " position", 255)
    If Not $iTime Then Return _MSToHMS($iMS)
    If $iTime Then Return $iMS
EndFunc   ;==>_Video_TimePos
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _Video_Volume
; Description....: Turn the video audio volume up or down.
; Syntax.........: _Video_AudioVolume($sAlias[, $iVolume = 100])
; Parameters ....: $sAlias    - Alias name returned by _Video_Open.
;                  $iVolume   - 0 = Min, 100 = Max
; Return values .: Success    - Return 1 and @error 0
;                  Failure    - Return 0 and @error 1~2
;                               @error 1 = Invalid Alias
;                               @error 2 = Invalid Volume
;                               @error 3 = MCI failed to set volume
; Author ........: smashly
;~ Func _Video_Volume($sAlias, $iVolume = 100)
;~  Local $iRet, $iVol
;~  If $sAlias = "" Or StringRegExp($sAlias, "\W|_", 0) Then Return SetError(1, 0, 0)
;~  If StringRegExp($iVolume, '\D', 0) Then Return SetError(2, 0, 0)
;~  If $iVolume >= 100 Then
;~      $iVol = 1000
;~  ElseIf $iVolume <= 0 Then
;~      $iVol = 0
;~  ElseIf $iVolume > 0 And $iVolume < 100 Then
;~      $iVol = $iVolume * 10
;~  EndIf
;~  $iRet = _mciSendString("setaudio " & $sAlias & " volume to " & $iVol)
;~  If $iRet = 0 Then
;~      Return SetError(0, 0, 1)
;~  Else
;~      Return SetError(3, 0, 0)
;~  EndIf
;~ EndFunc   ;==>_Video_Volume

;By PedroWarlock
Func _Video_Volume($sAlias, $iVol = 100, $sName = "")

    ;Declare variables
    Local $iRet

    If $iVol >= 0 And $iVol <= 100 Then
        $iVol *= 10 ; vol goes here from 0 - 1000
    EndIf

    Switch $sName
        Case "LEFT"
            $iRet = _mciSendString("setaudio " & $sAlias & " left volume to " & $iVol & " wait")

        Case "RIGHT"
            $iRet = _mciSendString("setaudio " & $sAlias & " right volume to " & $iVol & " wait")

        Case "BASS"
            $iRet = _mciSendString("setaudio " & $sAlias & " bass to " & $iVol & " wait")

        Case "TREBLE"
            $iRet = _mciSendString("setaudio " & $sAlias & " treble to " & $iVol & " wait")

        Case Else ; default 0 ""
            $iRet = _mciSendString("setaudio " & $sAlias & " volume to " & $iVol & " wait")
    EndSwitch

    ;return
    If $iRet = 0 Then
        Return 1
    Else
        Return SetError(1, 0, 0)
    EndIf
EndFunc   ;==>_Video_Volume
; =========================================================================================================
;==========================================================================================================
; Internal use functions beyond this point / Funções de uso interno além deste ponto
;==========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _mciDeviceExists
; Description....: Check if a MCI Device type exists
; Syntax.........: _mciDeviceExists($sDevice)
; Parameters ....: $sDevice   - Name of MCI Device type to check for
; Return values .: Success    - Return 1 if MCI Device type exists and @error 0
;                  Failure    - Return 0 if MCI Device type does not exist and @error 1~2
;                               @error 1 = No matching MCI Device type found.
;                               @error 2 = Failed to list any MCI Device types
; Author ........: smashly
Func _mciDeviceExists($sDevice)
    Local $aDT = _mciListDevices()
    If @error Then Return SetError(2, 0, 0)
    For $idx = 1 To $aDT[0]
        If $sDevice = $aDT[$idx] Then Return SetError(0, 0, 1)
    Next
    Return SetError(1, 0, 0)
EndFunc   ;==>_mciDeviceExists
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _mciListDevices
; Description....: List all found MCI Device types in an array
; Syntax.........: _mciListDevices()
; Parameters ....: None
; Return values .: Success    - Return 1D array of found MCI Device types and @error 0
;                               array[0] Number of MCI Device types found
;                               array[n] MCI Device type name
;                  Failure    - Return empty 1D array and @error 1
; Author ........: smashly
Func _mciListDevices()
    Local $iMD, $sTmp
    $iMD = _mciSendString("sysinfo all quantity", 255)
    If StringIsInt($iMD) Then
        For $idx = 1 To $iMD
            $sTmp &= _mciSendString("sysinfo all name " & $idx, 255) & Chr(0)
        Next
        Return SetError(0, 0, StringSplit(StringTrimRight($sTmp, 1), Chr(0)))
    EndIf
    Return SetError(1, 0, StringSplit($sTmp, Chr(0)))
EndFunc   ;==>_mciListDevices
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _mciSendString
; Description....:
; Syntax.........: _mciSendString($string[, $iLen = 0])
; Parameters ....: $string
;                  $iLen
; Return values .:
; Author ........: RazerM
Func _mciSendString($string, $iLen = 0)
    Local $iRet ; winmm.dll Fica na Pasta System32.
;~   $iRet = DllCall("winmm.dll", "int", "mciSendStringA", "str", $string, "str", "", "long", $iLen, "long", 0) ; Usado pelo smashly.
    $iRet = DllCall("winmm.dll", "dword", "mciSendStringW", "wstr", $string, "wstr", "", "uint", $iLen, "ptr", 0) ; Usado por jscript.
    If Not @error Then Return $iRet[2]
EndFunc   ;==>_mciSendString
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _MSToHMS
; Description....: Converts Milliseconds to Hours, Minutes, Seconds
; Syntax.........: _MSToHMS($iMS)
; Parameters ....: $iMS       - Milliseconds to convert
; Return values .: Success    - Returns Hours, Minutes, Seconds (HH:MM:SS)
; Author ........: smashly
Func _MSToHMS($iMS)
    Local $iHours = 0, $iMins = 0, $iSecs = 0
    If Number($iMS) > 0 Then
        $iMS = Round($iMS / 1000)
        $iHours = Int($iMS / 3600)
        $iTicks = Mod($iMS, 3600)
        $iMins = Int($iMS / 60)
        $iSecs = Round(Mod($iMS, 60))
        Return StringFormat("%02i:%02i:%02i", $iHours, $iMins, $iSecs)
    EndIf

    Return StringFormat("%02i:%02i:%02i", $iHours, $iMins, $iSecs)
EndFunc   ;==>_MSToHMS
; =========================================================================================================
; #FUNCTION# ==============================================================================================
; Name...........: _RandomStr
; Description....: Creates a random string
; Syntax.........: _RandomStr([$iLen = 10])
; Parameters ....: $iLen      - Length of string to return
; Return values .: Success    - Returns a string of random letters (a~z)
; Author ........: RazerM
Func _RandomStr($iLen = 10)
    Local $sTmp = ''
    For $i = 1 To $iLen
        $sTmp &= Chr(Random(97, 122, 1))
    Next
    Return $sTmp
EndFunc   ;==>_RandomStr
; =========================================================================================================
#endregion ==> UDF Vídeo By: smashly

Edited June 8, 2018 by Belini

Belini · June 9, 2018

@Skeletor is right the way I used _GDIPlus_Startup () or have another way to use it along with _ScreenCapture_Capture?

Edited June 9, 2018 by Belini

InnI · June 9, 2018

@Belini

Can you make screenshot of video window by "PrintScreen" button?

It seems like you use basic Windows 7 theme without aero. If so then choose some aero theme and try again.

I tried to run your script on Win7 (with aero theme) and on Win10 and got a normal screenshot for avi-file.

Belini · June 10, 2018

@innl of windows 7 up works but I need to run on older operating systems like windows xp also and in these earlier windows 7 gives black screen in capture!

InnI · June 11, 2018

@Belini

I don't know how to disable the overlay. But if you run a second copy of the player, the overlay will be disabled for this copy, and you can take a screenshot.

Try this function on WinXP. I tested on Win7 with and without aero and got a normal screenshot for avi-file in both cases. Negative effect is a strong flicker.

...
        Case $capture
            If $Tocando = True Then
                $sFilePath = @ScriptDir & "\scr.jpg"
                If @OSVersion = "WIN_XP" Or Not _WinAPI_DwmIsCompositionEnabled() Then
                  _ScreenShot($sFilePath)
                Else
                  _ScreenCapture_CaptureWnd($sFilePath, ControlGetHandle($hGUI, "", "VideoRenderer1"))
                EndIf
            EndIf
...



Func _ScreenShot($sFilePath)
      Local $aVidPos, $tPoint, $hScr, $iVid
      _Video_Pause($idS)
      $aVidPos = ControlGetPos($hGUI, "", "VideoRenderer1")
      $tPoint = DllStructCreate($tagPoint)
      $tPoint.X = 0
      $tPoint.Y = 0
      _WinAPI_ClientToScreen(ControlGetHandle($hGUI, "", "VideoRenderer1"), $tPoint)
      $hScr = GUICreate("GUI for ScreenShot", $aVidPos[2], $aVidPos[3], $tPoint.X, $tPoint.Y, $WS_POPUP, -1, $hGUI)
      GUISetState(@SW_SHOWNOACTIVATE)
      $iVid = _Video_Open($video, $hScr, 0, 0, $aVidPos[2], $aVidPos[3])
      _Video_Seek($iVid, _Video_TimePos($idS, 1))
      _ScreenCapture_CaptureWnd($sFilePath, $hScr)
      _Video_close($iVid)
      GUIDelete($hScr)
      _Video_Resume($idS)
EndFunc  ;==>_ScreenShot

Edited June 11, 2018 by InnI

Belini · June 12, 2018

@innl of the way you did and adding _Video_Play () and _Video_Pause () worked perfectly, thanks for the great help.

Case $capture
    If $Tocando = True Then
        $sFilePath = @ScriptDir & "\scr.jpg"
        If @OSVersion = "WIN_XP" Or Not _WinAPI_DwmIsCompositionEnabled() Then
            _ScreenShot($sFilePath)
        Else
            _ScreenCapture_CaptureWnd($sFilePath, ControlGetHandle($hGUI, "", "VideoRenderer1"))
        EndIf
    EndIf

    Func _ScreenShot($sFilePath)
        Local $aVidPos, $tPoint, $hScr, $iVid
        _Video_Pause($idS)
        $aVidPos = ControlGetPos($hGUI, "", "VideoRenderer1")
        $tPoint = DllStructCreate($tagPoint)
        $tPointX = 0
        $tPointY = 0
        _WinAPI_ClientToScreen(ControlGetHandle($hGUI, "", "VideoRenderer1"), $tPoint)
        $hScr = GUICreate("GUI for ScreenShot", $aVidPos[2], $aVidPos[3], $tPointX, $tPointY, $WS_POPUP, -1, $hGUI)
        GUISetState(@SW_SHOWNOACTIVATE)
        $iVid = _Video_Open($video, $hScr, 0, 0, $aVidPos[2], $aVidPos[3])
        _Video_Seek($iVid, _Video_TimePos($idS, 1))
        _Video_Play($iVid)
        _Video_Pause($iVid)
        _ScreenCapture_CaptureWnd($sFilePath, $hScr)
        _Video_close($iVid)
        GUIDelete($hScr)
        _Video_Resume($idS)
    EndFunc   ;==>_ScreenShot

Capture video image

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Create an account or sign in to comment

Create an account

Sign in

Recently Browsing 0 members
