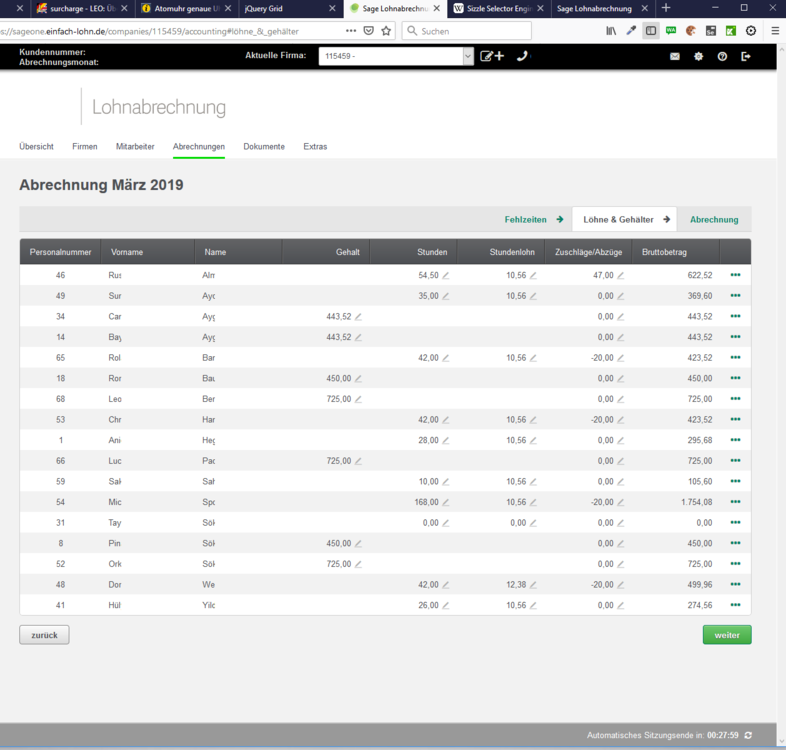

Please have a look at the picturre. It shows a table to declare the salary for employees.

This table is a sortable grid from jquery. In each line in the rows Gehalt, Stunden and Stundenlohn are buttons looks like a pen.

After a click on one of these buttons the application open a modal-form to modify the value of this row by each employee. To

handle the modal forms will not be so difficult.

A look in the source-code of page shows that the buttons are not in the grid. They will be overlay by javascript functions.

Has anybody a idea how can I click each of the pen-buttons by each employee ?

If you are needing more informations or ditails, please let me know.

Many thanks


Link to comment
Share on other sites

Here are the line from the employee with the Personalnummer 68:

<tr data-id="6" class="even">
 <td class="grid-data locked sortable grid-center grid-employee-number noescape EmployeeNumber " data-tag="col_Id" data-json="{&quot;Id&quot;:68,&quot;LastName&quot;:&quot;Berg&quot;,&quot;FirstName&quot;:&quot;Leon Benjamin&quot;,&quot;Salary&quot;:725,&quot;Hours&quot;:-1,&quot;HourlyRate&quot;:-1,&quot;RegularHours&quot;:-1,&quot;Overtime&quot;:-1,&quot;OvertimePremium&quot;:-1,&quot;Surcharge&quot;:0,&quot;Total&quot;:&quot;&quot;}">
68
 </td>
 <td class="grid-data locked sortable grid-left grid-medium-150 noescape FirstName " data-tag="col_FirstName">
Leo
 </td>
 <td class="grid-data locked sortable grid-left noescape LastName " data-tag="col_LastName">
Ber
 </td>
 <td class="grid-data locked sortable grid-right text-right Salary  editable" data-tag="col_Salary">
725,00
 </td>
 <td class="grid-data locked sortable grid-right text-right Hours " data-tag="col_Hours">
 </td>
 <td class="grid-data locked sortable grid-right text-right HourlyRate " data-tag="col_HourlyRate">
 </td>
 <td class="grid-data locked grid-right text-right surcharge editable" data-tag="col_Surcharge">
0,00
 </td>
 <td class="grid-data locked grid-right" data-tag="col_Total">
0,00
 </td>
 <td class="grid-data locked grid-small grid-center noescape actionmenu-absence">
  <a class="UILink font-size-m" data-ui-widget="UILink" data-target="actionmenu_68" target="_parent">
   <span><i class="fa fa-ellipsis-h fa-grid sage-green"></i></span>
  </a>
  <div id="proxy-reserve">
   <div class="UIPopOver UIPopOverSwapped" data-tag="actionmenu_68" data-target="actionlink_68" data-ui-widget="UIPopOver">
    <div class="pointer" style="right:25px"></div>
    <div class="content actions left">
     <a class="action" href="#" data-tag="trigger_surcharge">
      <i class="fa fa-edit"></i>
      &nbsp;Zuschläge bearbeiten
     </a>
     <a class="action" href="#" data-tag="trigger_new_surcharge">
      <i class="fa fa-edit"></i>
      &nbsp;Neuen Zuschlag-/Abzug hinzufügen
     </a>
    </div>
   </div>
  </div>
 </td>
</tr>



Link to comment
Share on other sites

55 minutes ago, Hamburgo said:

A look in the source-code of page shows that the buttons are not in the grid. They will be overlay by javascript functions.

Chances are that these button are being controlled by CSS. Look at the cell definition and notice that each one with a button has a class containing "editable".

Link to comment
Share on other sites

Sorry, you are right. The following example show what you wrote:


<tr data-id="11" class="odd">
 <td class="grid-data locked sortable grid-center grid-employee-number noescape EmployeeNumber " data-tag="col_Id" data-json="{&quot;Id&quot;:54,&quot;LastName&quot;:&quot;Spo&quot;,&quot;FirstName&quot;:&quot;Mic&quot;,&quot;Salary&quot;:-1,&quot;Hours&quot;:168,&quot;HourlyRate&quot;:10.56,&quot;RegularHours&quot;:168,&quot;Overtime&quot;:0,&quot;OvertimePremium&quot;:0,&quot;Surcharge&quot;:-20,&quot;Total&quot;:1774.08}">
54
 </td>
 <td class="grid-data locked sortable grid-left grid-medium-150 noescape FirstName " data-tag="col_FirstName">
Mic
 </td>
 <td class="grid-data locked sortable grid-left noescape LastName " data-tag="col_LastName">
Spo
 </td>
 <td class="grid-data locked sortable grid-right text-right Salary " data-tag="col_Salary">
 </td>
 <td class="grid-data locked sortable grid-right text-right Hours  editable" data-tag="col_Hours">
168,00
 </td>
 <td class="grid-data locked sortable grid-right text-right HourlyRate  editable" data-tag="col_HourlyRate">
10,56
 </td>
 <td class="grid-data locked grid-right text-right surcharge editable" data-tag="col_Surcharge">
-20,00
 </td>
 <td class="grid-data locked grid-right" data-tag="col_Total">
1.774,08
 </td>
 <td class="grid-data locked grid-small grid-center noescape actionmenu-absence">
  <a class="UILink font-size-m" data-ui-widget="UILink" data-target="actionmenu_54" target="_parent">
   <span><i class="fa fa-ellipsis-h fa-grid sage-green"></i></span>
  </a>
  <div id="proxy-reserve">
   <div class="UIPopOver UIPopOverSwapped" data-tag="actionmenu_54" data-target="actionlink_54" data-ui-widget="UIPopOver">
    <div class="pointer" style="right:25px"></div>
    <div class="content actions left">
     <a class="action" href="#" data-tag="trigger_surcharge">
      <i class="fa fa-edit"></i>
      &nbsp;Zuschläge bearbeiten
     </a>
     <a class="action" href="#" data-tag="trigger_new_surcharge">
      <i class="fa fa-edit"></i>
      &nbsp;Neuen Zuschlag-/Abzug hinzufügen
     </a>
    </div>
   </div>
  </div>
 </td>
</tr>



Link to comment
Share on other sites

Take a look at the underlying CSS declarations to try to get an understanding of how it works. Have you tried using the element selector in the Developer Tools to "pick" one of the buttons and then examining it's coding?

Since I can't access the site, I'm not going to be able to offer much help going forward.

Link to comment
Share on other sites

Yes, I have had a look in the Developer Tools and tried to learn how it works.

But my skill of css is not height enough to understand how it works in details.

What I understood is and this is similar to my experiences by live clicking on this page, every whole cell with the css-property "editable" works like a button.



Link to comment
Share on other sites

@Danp2 I am successful !😀

I am be able to click on each cell in the different rows at this table that has a amount of salary, to open the modal form for changing the value.

It is as I wrote, yesterday. The whole cell with the css-property "editable" works like a button.

I am only needing the id of the td-element and have to click on it and the modal-form will open.

I believe that the rest will be a little bit easier, to store the values etc.

Very helpful to find this solution was the function _WD_HighlightElement: I am modifying it a little bit, to be able to use different colors.

Func _WD_HighlightElement($sSession, $sElement, $sColor="red", $iMethod = 1)
    Local Const $aMethod[] = ["border: 2px dotted " & $sColor, _
            "background: #FFFF66; border-radius: 5px; padding-left: 3px;", _
            "border:2px dotted  red;background: #FFFF66; border-radius: 5px; padding-left: 3px;"]
    If $iMethod < 1 Or $iMethod > 3 Then $iMethod = 1
    Local $sJsonElement = '{"' & $_WD_ELEMENT_ID & '":"' & $sElement & '"}'
    Local $sResponse = _WD_ExecuteScript($sSession, "arguments[0].style='" & $aMethod[$iMethod - 1] & "'; return true;", $sJsonElement)
    Local $sJSON = Json_Decode($sResponse)
    Local $sResult = Json_Get($sJSON, "[value]")
    Return ($sResult = "true" ? SetError(0, 0, $sResult) : SetError(1, 0, False))
EndFunc   ;==>_WD_HighlightElement



Link to comment
Share on other sites

Hello @Danp2 And everyone else :) Could you help me to have a working syntax with a strange element I have. Please 🤗



I tryed a lot of things but i ll stick with this fail attemp here :

$sElement0 = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, "//input[@class='form_input_undefined']") ; SERVICE
$sElement0 = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, "//input[@tabindex='0']") ; SERVICE

When all I have for this element is

<input type="text"
aria-label="autocomplete"
autocomplete="off"
class="form_input_undefined"
tabindex="0"
aria-labelledby="label_AM_RECIPIENT.LAST_NAME"
style="display: inline-block; width: 200px;">

Thanks all :)

My video tutorials : ( In construction )  || My Discord : https://discord.gg/S9AnwHw

How to Ask Help ||  UIAutomation From Junkew || WebDriver From Danp2 || And Water's UDFs in the Quote

Spoiler

 Water's UDFs:
Active Directory (NEW 2018-10-19 - Version 1.4.10.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (2018-10-31 - Version 1.3.4.1) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:

ADO - Wiki



Link to comment
Share on other sites

@caramen for me both are works.

But only if enter it manual in the editor.

If I enter it in the editor by copy & paste, than the 2nd one fails.

It has a question-mark in front of the equal sign.

I do not know, if you have the same error.


Output in the console:

>"D:\Develop\AutoIT\SciTE\..\autoit3.exe" /ErrorStdOut "D:\Develop\AutoIT\FireFox\WebDriver\WebDriver-TestPage.au3"
D:\Develop\AutoIT\FireFox\WebDriver\WebDriver-TestPage.au3 (162) : ==> Unable to parse line.:
$sElement0 ?= _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, "//input[@tabindex='0']")
$sElement0 ^ ERROR
>Exit code: 1    Time: 0.7262

Edited by Hamburgo
Link to comment
Share on other sites

1 minute ago, Hamburgo said:

If I enter it in the editor by copy & paste, than the 2nd one fails.

what is the editor ?🕵️‍♂️

My video tutorials : ( In construction )  || My Discord : https://discord.gg/S9AnwHw

How to Ask Help ||  UIAutomation From Junkew || WebDriver From Danp2 || And Water's UDFs in the Quote

Spoiler

 Water's UDFs:
Active Directory (NEW 2018-10-19 - Version 1.4.10.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (2018-10-31 - Version 1.3.4.1) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:

ADO - Wiki



Link to comment
Share on other sites

Just now, Hamburgo said:

I am using SciTE.exe, the standard-editor of AutoIT.

I wonder how can you test it without my web site ?

My video tutorials : ( In construction )  || My Discord : https://discord.gg/S9AnwHw

How to Ask Help ||  UIAutomation From Junkew || WebDriver From Danp2 || And Water's UDFs in the Quote

Spoiler

 Water's UDFs:
Active Directory (NEW 2018-10-19 - Version 1.4.10.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (2018-10-31 - Version 1.3.4.1) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:

ADO - Wiki



Link to comment
Share on other sites

You take the problem from the wrong way :) Anyway thanks for your time.

From what i know you cannot do that kind of test it totaly depend of how my site is dev not of how you dev your test environement.

My video tutorials : ( In construction )  || My Discord : https://discord.gg/S9AnwHw

How to Ask Help ||  UIAutomation From Junkew || WebDriver From Danp2 || And Water's UDFs in the Quote

Spoiler

 Water's UDFs:
Active Directory (NEW 2018-10-19 - Version 1.4.10.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (2018-10-31 - Version 1.3.4.1) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
PowerPoint (2017-06-06 - Version 0.0.5.0) - Download - General Help & Support
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:

ADO - Wiki



Link to comment
Share on other sites

Guest
This topic is now closed to further replies.
