Check Checkbox by Name

[13lack13lade]

Hi All!

Feel like a noob here but im trying to get the status of a check box or just simply set it to checked.

I have tried controlclick, controlcommand, without luck... i think it is due to only being able to select the checkbox by name...

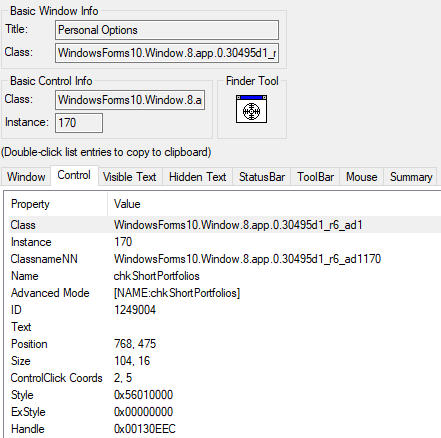

Here is the autoit window info:



[InnI]

3 hours ago, 13lack13lade said:

just simply set it to checked.

I have tried controlclick

Does this code really not work?

WinActivate("Personal Options")
ControlClick("Personal Options", "", "[NAME:chkShortPortfolios]")

Also try this

ControlSend("Personal Options", "", "[NAME:chkShortPortfolios]", "{space}")
; or
ControlCommand("Personal Options", "", "[NAME:chkShortPortfolios]", "SendCommandID", 0xF5) ; $BM_CLICK



Edited September 21, 2017 by InnI

[13lack13lade]

Hi Innl

Thanks for your help!

The only one that works is :

ControlSend("Personal Options", "", "[NAME:chkShortPortfolios]", "{space}")

and that is not viable as the checkbox might already be ticked in which case that would uncheck it.

[InnI]

#include "CUIAutomation2.au3"

$Checked = _GetCheckBoxState(ControlGetHandle("Personal Options", "", "[NAME:chkShortPortfolios]"))
If Not @error And Not $Checked Then ControlSend("Personal Options", "", "[NAME:chkShortPortfolios]", "{space}")

Func _GetCheckBoxState($hControl)
  Local $oUIAutomation, $pElement, $oElement, $iState, $iErrorCode
  $oUIAutomation = ObjCreateInterface($sCLSID_CUIAutomation, $sIID_IUIAutomation, $dtagIUIAutomation)
  If Not IsObj($oUIAutomation) Then Return SetError(1, 0, -1)
  $oUIAutomation.ElementFromHandle($hControl, $pElement)
  $oElement = ObjCreateInterface($pElement, $sIID_IUIAutomationElement, $dtagIUIAutomationElement)
  If Not IsObj($oElement) Then Return SetError(2, 0, -1)
  $iErrorCode = $oElement.GetCurrentPropertyValue($UIA_ToggleToggleStatePropertyId, $iState)
  If $iErrorCode Then Return SetError(3, 0, -1)
  Return $iState
EndFunc



[SlackerAl]

Can this not be made to work with:

If Not ControlCommand("Personal Options", "", "[NAME:chkShortPortfolios]", "IsChecked") Then
  ControlCommand("Personal Options", "", "[NAME:chkShortPortfolios]", "Check")
EndIf

Edit: Oops, need to add a NOT into that IsChecked

Edited September 22, 2017 by SlackerAl

[13lack13lade]

Slacker, unfortunately that does not work as i cannot control the object using usual methods for some reason that is the whole dilemma.

Fortunately InnI has provided a solution for me! - Thank you !!!! will be using this IUIAutomation in the future !!!!!!
