How to get 4 Winhandle Coord by mouse dragg rect

Wanarmal

By Wanarmal,
in AutoIt General Help and Support

 Share

Recommended Posts

Wanarmal Seeker

Wanarmal

Posted
Posted

I want to get and show value 4 coordinate of windows or application (in client coord mode)  by dragging mouse a rectangle. But I have code get value of screen only.

I try add this but not work. :(

Opt("MouseCoordMode", 2)
Opt("PixelCoordMode", 2)
Opt("CaretCoordMode", 2)

Global $Prog = WinGetHandle ("Untitled - Notepad")
Global $testPos = WinGetPos($Prog)
Global $testsize = WinGetClientSize($Prog)
WinActivate($Prog)
WinWaitActive($Prog)

and change "@DesktopWidth, @DesktopHeight" to $testpost[2], $testpost[3]

The below is original code.

ps.Sorry, I'm very bad English and newbie coding.

#include <GuiConstantsEx.au3>
#include <WindowsConstants.au3>
#Include <ScreenCapture.au3>
#Include <Misc.au3>

;~ Opt("MouseCoordMode", 2)
;~ Opt("PixelCoordMode", 2)
;~ Opt("CaretCoordMode", 2)

Global $iX1, $iY1, $iX2, $iY2, $aPos, $sMsg, $sBMP_Path

; Create GUI
$hMain_GUI = GUICreate("Select Rectangle", 240, 50)

$hRect_Button   = GUICtrlCreateButton("Mark Area",  10, 10, 80, 30)
$hCancel_Button = GUICtrlCreateButton("Cancel",    150, 10, 80, 30)

GUISetState()

While 1

    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE, $hCancel_Button
            FileDelete(@ScriptDir & "Rect.bmp")
            Exit
        Case $hRect_Button
            GUISetState(@SW_HIDE, $hMain_GUI)
            Mark_Rect()
            ; Capture selected area
            MsgBox($MB_SYSTEMMODAL, "Coords", "Left: " & $iX1 & @CRLF & "Top: " & $iY1 & @CRLF & "Right: " & $iX2 & @CRLF & "Bott0m: " & $iY2)
            GUISetState()
    EndSwitch

WEnd

; -------------

Func Mark_Rect()

    Local $aMouse_Pos, $hMask, $hMaster_Mask, $iTemp
    Local $UserDLL = DllOpen("user32.dll")

    ; Create transparent GUI with Cross cursor
    $hCross_GUI = GUICreate("Test", @DesktopWidth, @DesktopHeight - 20, 0, 0, $WS_POPUP, $WS_EX_TOPMOST)
    WinSetTrans($hCross_GUI, "", 8)
    GUISetState(@SW_SHOW, $hCross_GUI)
    GUISetCursor(3, 1, $hCross_GUI)

    Global $hRectangle_GUI = GUICreate("", @DesktopWidth, @DesktopHeight, 0, 0, $WS_POPUP, $WS_EX_TOOLWINDOW + $WS_EX_TOPMOST)
    GUISetBkColor(0x000000)

    ; Wait until mouse button pressed
    While Not _IsPressed("01", $UserDLL)
        Sleep(10)
    WEnd

    ; Get first mouse position
    $aMouse_Pos = MouseGetPos()
    $iX1 = $aMouse_Pos[0]
    $iY1 = $aMouse_Pos[1]

    ; Draw rectangle while mouse button pressed
    While _IsPressed("01", $UserDLL)

        $aMouse_Pos = MouseGetPos()

        $hMaster_Mask = _WinAPI_CreateRectRgn(0, 0, 0, 0)
        $hMask = _WinAPI_CreateRectRgn($iX1,  $aMouse_Pos[1], $aMouse_Pos[0],  $aMouse_Pos[1] + 1) ; Bottom of rectangle
        _WinAPI_CombineRgn($hMaster_Mask, $hMask, $hMaster_Mask, 2)
        _WinAPI_DeleteObject($hMask)
        $hMask = _WinAPI_CreateRectRgn($iX1, $iY1, $iX1 + 1, $aMouse_Pos[1]) ; Left of rectangle
        _WinAPI_CombineRgn($hMaster_Mask, $hMask, $hMaster_Mask, 2)
        _WinAPI_DeleteObject($hMask)
        $hMask = _WinAPI_CreateRectRgn($iX1 + 1, $iY1 + 1, $aMouse_Pos[0], $iY1) ; Top of rectangle
        _WinAPI_CombineRgn($hMaster_Mask, $hMask, $hMaster_Mask, 2)
        _WinAPI_DeleteObject($hMask)
        $hMask = _WinAPI_CreateRectRgn($aMouse_Pos[0], $iY1, $aMouse_Pos[0] + 1,  $aMouse_Pos[1]) ; Right of rectangle
        _WinAPI_CombineRgn($hMaster_Mask, $hMask, $hMaster_Mask, 2)
        _WinAPI_DeleteObject($hMask)
        ; Set overall region
        _WinAPI_SetWindowRgn($hRectangle_GUI, $hMaster_Mask)

        If WinGetState($hRectangle_GUI) < 15 Then GUISetState()
        Sleep(10)

    WEnd

    ; Get second mouse position
    $iX2 = $aMouse_Pos[0]
    $iY2 = $aMouse_Pos[1]

    ; Set in correct order if required
    If $iX2 < $iX1 Then
        $iTemp = $iX1
        $iX1 = $iX2
        $iX2 = $iTemp
    EndIf
    If $iY2 < $iY1 Then
        $iTemp = $iY1
        $iY1 = $iY2
        $iY2 = $iTemp
    EndIf

    GUIDelete($hRectangle_GUI)
    GUIDelete($hCross_GUI)
    DllClose($UserDLL)

EndFunc   ;==>Mark_Rect



I found this code (credit : @Melba23 ) from topic

Quote



Link to comment
Share on other sites
  • Moderators
Melba23 Universalist

Melba23

Posted
  • Moderators
Posted

Wanarmal,

Once you have the screen coords, you can use _WinAPI_ScreenToClient to convert them to client cords.

M23

Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Link to comment
Share on other sites
Wanarmal Seeker

Wanarmal

Posted
  • Author
Posted

@Melba23 Thank you so much for reply to me.

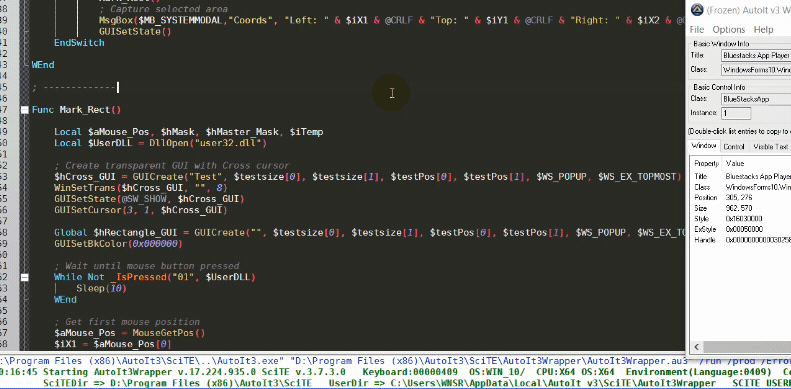

I try this. The coordinate for client is correct. But when I drag mouse the area  is black screen.

How to fix this ?

#include <GuiConstantsEx.au3>
#include <WindowsConstants.au3>
#Include <ScreenCapture.au3>
#Include <Misc.au3>

Opt("MouseCoordMode", 2)
Opt("PixelCoordMode", 2)
Opt("CaretCoordMode", 2)

Global $iX1, $iY1, $iX2, $iY2, $aPos, $sMsg, $sBMP_Path
Global $Prog = WinGetHandle("Bluestacks App Player")
Global $testPos = WinGetPos($Prog)
Global $testsize = WinGetClientSize($Prog)
Global $tPoint = DllStructCreate("int X;int Y")
                 DllStructSetData($tPoint, "X", $testsize[0])
                 DllStructSetData($tPoint, "Y", $testsize[1])


; Create GUI
$hMain_GUI = GUICreate("Select Rectangle", 240, 50)

$hRect_Button   = GUICtrlCreateButton("Mark Area",  10, 10, 80, 30)
$hCancel_Button = GUICtrlCreateButton("Cancel",    150, 10, 80, 30)

GUISetState()

While 1

    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE, $hCancel_Button
            FileDelete(@ScriptDir & "Rect.bmp")
            Exit
        Case $hRect_Button
            GUISetState(@SW_HIDE, $hMain_GUI)
            WinActivate($Prog)
;~          WinWaitActive($Prog)
            Mark_Rect()
            ; Capture selected area
            MsgBox($MB_SYSTEMMODAL,"Coords", "Left: " & $iX1 & @CRLF & "Top: " & $iY1 & @CRLF & "Right: " & $iX2 & @CRLF & "Bott0m: " & $iY2 & @CRLF & "Size: " & $testsize[0] & ", " & $testsize [1])
            GUISetState()
    EndSwitch

WEnd

; -------------

Func Mark_Rect()

    Local $aMouse_Pos, $hMask, $hMaster_Mask, $iTemp
    Local $UserDLL = DllOpen("user32.dll")

    ; Create transparent GUI with Cross cursor
    $hCross_GUI = GUICreate("Test", $testsize[0], $testsize[1], $testPos[0], $testPos[1], $WS_POPUP, $WS_EX_TOPMOST)
    WinSetTrans($hCross_GUI, "", 8)
    GUISetState(@SW_SHOW, $hCross_GUI)
    GUISetCursor(3, 1, $hCross_GUI)

    Global $hRectangle_GUI = GUICreate("", $testsize[0], $testsize[1], $testPos[0], $testPos[1], $WS_POPUP, $WS_EX_TOOLWINDOW + $WS_EX_TOPMOST)
    GUISetBkColor(0x000000)

    ; Wait until mouse button pressed
    While Not _IsPressed("01", $UserDLL)
        Sleep(10)
    WEnd

    ; Get first mouse position
    $aMouse_Pos = MouseGetPos()
    $iX1 = $aMouse_Pos[0]
    $iY1 = $aMouse_Pos[1]

    ; Draw rectangle while mouse button pressed
    While _IsPressed("01", $UserDLL)

        $aMouse_Pos = MouseGetPos()

        $hMaster_Mask = _WinAPI_ScreenToClient($Prog,$tPoint)
        $hMask = _WinAPI_CreateRectRgn($iX1,  $aMouse_Pos[1], $aMouse_Pos[0],  $aMouse_Pos[1] + 1) ; Bottom of rectangle
        _WinAPI_CombineRgn($hMaster_Mask, $hMask, $hMaster_Mask, 2)
        _WinAPI_DeleteObject($hMask)
        $hMask = _WinAPI_CreateRectRgn($iX1, $iY1, $iX1 + 1, $aMouse_Pos[1]) ; Left of rectangle
        _WinAPI_CombineRgn($hMaster_Mask, $hMask, $hMaster_Mask, 2)
        _WinAPI_DeleteObject($hMask)
        $hMask = _WinAPI_CreateRectRgn($iX1 + 1, $iY1 + 1, $aMouse_Pos[0], $iY1) ; Top of rectangle
        _WinAPI_CombineRgn($hMaster_Mask, $hMask, $hMaster_Mask, 2)
        _WinAPI_DeleteObject($hMask)
        $hMask = _WinAPI_CreateRectRgn($aMouse_Pos[0], $iY1, $aMouse_Pos[0] + 1,  $aMouse_Pos[1]) ; Right of rectangle
        _WinAPI_CombineRgn($hMaster_Mask, $hMask, $hMaster_Mask, 2)
        _WinAPI_DeleteObject($hMask)
        ; Set overall region
        _WinAPI_SetWindowRgn($hRectangle_GUI, $hMaster_Mask)

        If WinGetState($hRectangle_GUI) < 15 Then GUISetState()
        Sleep(10)

    WEnd

    ; Get second mouse position
    $iX2 = $aMouse_Pos[0]
    $iY2 = $aMouse_Pos[1]

    ; Set in correct order if required
    If $iX2 < $iX1 Then
        $iTemp = $iX1
        $iX1 = $iX2
        $iX2 = $iTemp
    EndIf
    If $iY2 < $iY1 Then
        $iTemp = $iY1
        $iY1 = $iY2
        $iY2 = $iTemp
    EndIf

    GUIDelete($hRectangle_GUI)
    GUIDelete($hCross_GUI)
    DllClose($UserDLL)

EndFunc   ;==>Mark_Rect




Link to comment
Share on other sites
  • Moderators
Melba23 Universalist

Melba23

Posted
  • Moderators
Posted

Wanarmal,

I have no idea why you made the changes you did to the code - it made no sense at all. But this seems to work fine using the SciTE window:

#include <GuiConstantsEx.au3>
#include <WindowsConstants.au3>
#include <ScreenCapture.au3>
#include <WinAPI.au3>
#include <Misc.au3>

Opt("MouseCoordMode", 2)
Opt("PixelCoordMode", 2)
Opt("CaretCoordMode", 2)

Global $iX1, $iY1, $iX2, $iY2, $aPos, $sMsg, $sBMP_Path
Global $Prog = WinGetHandle("[CLASS:SciTEWindow]")

; Create GUI
$hMain_GUI = GUICreate("Select Rectangle", 240, 50)

$hRect_Button = GUICtrlCreateButton("Mark Area", 10, 10, 80, 30)
$hCancel_Button = GUICtrlCreateButton("Cancel", 150, 10, 80, 30)

GUISetState()

While 1

    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE, $hCancel_Button
            FileDelete(@ScriptDir & "Rect.bmp")
            Exit
        Case $hRect_Button
            GUISetState(@SW_HIDE, $hMain_GUI)
            WinActivate($Prog)
;~          WinWaitActive($Prog)
            Mark_Rect()
            ; Capture selected area

            ; Convert to client coords
            Local $tPoint = DllStructCreate("int X;int Y")
            DllStructSetData($tPoint, "X", $iX1)
            DllStructSetData($tPoint, "Y", $iY1)
            _WinAPI_ScreenToClient($Prog, $tPoint)
            $iX1 = DllStructGetData($tPoint, "X")
            $iY1 = DllStructGetData($tPoint, "Y")
            DllStructSetData($tPoint, "X", $iX2)
            DllStructSetData($tPoint, "Y", $iY2)
            _WinAPI_ScreenToClient($Prog, $tPoint)
            $iX2 = DllStructGetData($tPoint, "X")
            $iY2 = DllStructGetData($tPoint, "Y")

            MsgBox($MB_SYSTEMMODAL, "Coords", "Left: " & $iX1 & @CRLF & "Top: " & $iY1 & @CRLF & "Right: " & $iX2 & @CRLF & "Bottom: " & $iY2 & @CRLF & "Size: " & $iX2 - $iX1 & " x " & $iY2 - $iY1)

            GUISetState()
    EndSwitch

WEnd

; -------------

Func Mark_Rect()

    Local $aMouse_Pos, $hMask, $hMaster_Mask, $iTemp
    Local $UserDLL = DllOpen("user32.dll")

    ; Create transparent GUI with Cross cursor
    $hCross_GUI = GUICreate("Test", @DesktopWidth, @DesktopHeight - 20, 0, 0, $WS_POPUP, $WS_EX_TOPMOST)
    WinSetTrans($hCross_GUI, "", 8)
    GUISetState(@SW_SHOW, $hCross_GUI)
    GUISetCursor(3, 1, $hCross_GUI)

    Global $hRectangle_GUI = GUICreate("", @DesktopWidth, @DesktopHeight, 0, 0, $WS_POPUP, $WS_EX_TOOLWINDOW + $WS_EX_TOPMOST)
    GUISetBkColor(0x000000)

    ; Wait until mouse button pressed
    While Not _IsPressed("01", $UserDLL)
        Sleep(10)
    WEnd

    ; Get first mouse position
    $aMouse_Pos = MouseGetPos()
    $iX1 = $aMouse_Pos[0]
    $iY1 = $aMouse_Pos[1]

    ; Draw rectangle while mouse button pressed
    While _IsPressed("01", $UserDLL)

        $aMouse_Pos = MouseGetPos()

        $hMaster_Mask = _WinAPI_CreateRectRgn(0, 0, 0, 0)

        $hMask = _WinAPI_CreateRectRgn($iX1, $aMouse_Pos[1], $aMouse_Pos[0], $aMouse_Pos[1] + 1) ; Bottom of rectangle
        _WinAPI_CombineRgn($hMaster_Mask, $hMask, $hMaster_Mask, 2)
        _WinAPI_DeleteObject($hMask)
        $hMask = _WinAPI_CreateRectRgn($iX1, $iY1, $iX1 + 1, $aMouse_Pos[1]) ; Left of rectangle
        _WinAPI_CombineRgn($hMaster_Mask, $hMask, $hMaster_Mask, 2)
        _WinAPI_DeleteObject($hMask)
        $hMask = _WinAPI_CreateRectRgn($iX1 + 1, $iY1 + 1, $aMouse_Pos[0], $iY1) ; Top of rectangle
        _WinAPI_CombineRgn($hMaster_Mask, $hMask, $hMaster_Mask, 2)
        _WinAPI_DeleteObject($hMask)
        $hMask = _WinAPI_CreateRectRgn($aMouse_Pos[0], $iY1, $aMouse_Pos[0] + 1, $aMouse_Pos[1]) ; Right of rectangle
        _WinAPI_CombineRgn($hMaster_Mask, $hMask, $hMaster_Mask, 2)
        _WinAPI_DeleteObject($hMask)
        ; Set overall region
        _WinAPI_SetWindowRgn($hRectangle_GUI, $hMaster_Mask)

        If WinGetState($hRectangle_GUI) < 15 Then GUISetState()
        Sleep(10)

    WEnd

    ; Get second mouse position
    $iX2 = $aMouse_Pos[0]
    $iY2 = $aMouse_Pos[1]

    ; Set in correct order if required
    If $iX2 < $iX1 Then
        $iTemp = $iX1
        $iX1 = $iX2
        $iX2 = $iTemp
    EndIf
    If $iY2 < $iY1 Then
        $iTemp = $iY1
        $iY1 = $iY2
        $iY2 = $iTemp
    EndIf

    GUIDelete($hRectangle_GUI)
    GUIDelete($hCross_GUI)
    DllClose($UserDLL)

EndFunc   ;==>Mark_Rect

Does it work for you using the window you are trying to use?

M23

Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Link to comment
Share on other sites
Wanarmal Seeker

Wanarmal

Posted
  • Author
Posted (edited)

@Melba23

Wow, It work very fine. Thank you so much for fix.

I'm not programmer. I just learned the autoit by my self from internet in one week ago.

I'm want to make bot for game by my self.

I want to fast get 4 coordinate value from function on this topic for using with Tesseract OCR function.

I want to get "Text" automatic from game on  android emulator (bluestack, KOplayer) while running behind.

But my Tesseract OCR function have many error now. :sweating:

ps.The image is from Url


Edited by Wanarmal
Link to comment
Share on other sites
  • Developers
Jos Universalist

Jos

Posted
  • Developers
Posted

@Wanarmal,

Welcome to the AutoIt forum. :)

Unfortunately you appear to have missed the Forum rules on your way in. (there is also a link in my signature)
Please read them now particularly the bit about not discussing game automation - and then you will understand why you will get no help and this thread will now be locked. :naughty:

See you soon with a legitimate question I hope. :)

Jos

SciTE4AutoIt3 Full installer Download page   - Beta files       Read before posting     How to post scriptsource   Forum etiquette  Forum Rules

Live for the present,
Dream of the future,
Learn from the past.  :)

Link to comment
Share on other sites
  • Jos locked this topic
Guest
This topic is now closed to further replies.
 Share
Go to topic listing

  • Recently Browsing   0 members

    • No registered users viewing this page.
×
×
  • Create New...
