TimerDiff returns with very large offset

[Balthamel]

Expected behaviour, TimerDiff prints 0,1000,2000... (or thereabouts)

Local $timer
$timer = TimerInit

For $i = 0 to 10
    ConsoleWrite(TimerDiff($timer)&@LF)
    Sleep(1000)
Next

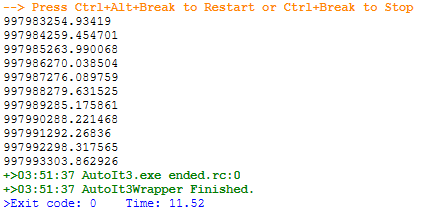

Actual output

[Simpel]

Hi.

You missed the () after TimerInit. Then give it another try.

Regards, Conrad

[Balthamel]

Ah thanks.

[Simpel]

As we can see in your console output the numbers are very big but each with a difference round about 1000ms.

Maybe someone can explain how the init would have been set nearly 99799 seconds (or 27,7 hours) ago.

Conrad

[Simpel]

Try this:

For $i = 0 to 10
    ConsoleWrite(TimerDiff(Default)&@LF)
    Sleep(1000)
Next

Output should be next to your first posted code. So something inside TimerDiff() seems to look to some internal everlasting clock. Can someone explain this?

Conrad

[TheDcoder]

Works for me after adding the brackets/parenthesis after TimerInit:

0.011973808149944
1004.30429893923
2009.74953074076
3019.25103259841
4019.33998088752
5019.45743824366
6028.8517460093
7034.04780856504
8042.60680066688
9048.60396800598
10053.0570842751



[Simpel]

By the way:

Local $timer
$timer = TimerInit()
ConsoleWrite($timer & @CRLF & @CRLF)
For $i = 0 to 3
    ConsoleWrite((TimerDiff(Default)) & @CRLF)
    Sleep(1000)
Next

5594216671992

559421667.2591
559422680.1801
559423694.0777
559424708.1486

So $timer is set to the "clock" in nanoseconds. And TimerDiff($timer) is just the difference. But what is the clock?

[yamakawa]

32 minutes ago, Simpel said:



Local $timer
$timer = TimerInit()
ConsoleWrite($timer & @CRLF & @CRLF);$timer is a handle!!!
For $i = 0 to 3
    ConsoleWrite((TimerDiff(Default)) & @CRLF);you need to change it to TimerDiff($timer)
    Sleep(1000)
Next





[TurionAltec]

3 hours ago, Simpel said:

By the way:

Local $timer
$timer = TimerInit()
ConsoleWrite($timer & @CRLF & @CRLF)
For $i = 0 to 3
    ConsoleWrite((TimerDiff(Default)) & @CRLF)
    Sleep(1000)
Next

5594216671992

559421667.2591
559422680.1801
559423694.0777
559424708.1486

So $timer is set to the "clock" in nanoseconds. And TimerDiff($timer) is just the difference. But what is the clock?

TimerDiff is based on The "QueryPerformanceCounter", and "QueryPerformanceFrequency" Windows APIs. Performance frequency depends on CPU speed, and the counter starts at boot. Here's an example using functions from Timers.au3 UDF that directly call those Windows API

expandcollapse popup

$hTimerInternal = TimerInit()
$hTimerUDF = _Timer_Init()
ConsoleWrite("Internal Init: " & $hTimerInternal & @CRLF)
ConsoleWrite("UDF Init     : " & $hTimerUDF & @CRLF & @CRLF)

Sleep(1000)

ConsoleWrite("Internal Diff: " & TimerDiff($hTimerInternal) & @CRLF)
ConsoleWrite("UDF Diff     : " & _Timer_Diff($hTimerUDF) & @CRLF & @CRLF)

$hTimerUDF2 = _Timer_Init()
$iTimerfreq = __Timer_QueryPerformanceFrequency()
ConsoleWrite("UDF Time 2   : " & $hTimerUDF2 & @CRLF)
ConsoleWrite("Perf Freq    : " & $iTimerfreq & @CRLF)
ConsoleWrite("1000 * (" & $hTimerUDF2 & " - " & $hTimerUDF & ")/" & $iTimerfreq & " = " & 1000 * ($hTimerUDF2 - $hTimerUDF) / $iTimerfreq & @CRLF&@CRLF)

$iUptimeSeconds=$hTimerUDF2 / $iTimerfreq
ConsoleWrite("Uptime Seconds: "&$iUptimeSeconds&@CRLF)

;Functions from Timers.au3 UDF
Func __Timer_QueryPerformanceCounter()
    Local $aResult = DllCall("kernel32.dll", "bool", "QueryPerformanceCounter", "int64*", 0)
    If @error Then Return SetError(@error, @extended, -1)
    Return SetExtended($aResult[0], $aResult[1])
EndFunc   ;==>__Timer_QueryPerformanceCounter

Func __Timer_QueryPerformanceFrequency()
    Local $aResult = DllCall("kernel32.dll", "bool", "QueryPerformanceFrequency", "int64*", 0)
    If @error Then Return SetError(@error, @extended, 0)
    Return SetExtended($aResult[0], $aResult[1])
EndFunc   ;==>__Timer_QueryPerformanceFrequency

Func _Timer_Diff($iTimeStamp)
    Return 1000 * (__Timer_QueryPerformanceCounter() - $iTimeStamp) / __Timer_QueryPerformanceFrequency()
EndFunc   ;==>_Timer_Diff

Func _Timer_Init()
    Return __Timer_QueryPerformanceCounter()
EndFunc   ;==>_Timer_Init

The output I get is:

Internal Init: 977233559322
UDF Init     : 977233559410

Internal Diff: 996.996298670489
UDF Diff     : 997.127965359638

UDF Time 2   : 977236960227
Perf Freq    : 3410126
1000 * (977236960227 - 977233559410)/3410126 = 997.270188843462

Uptime Seconds: 286569.164959594

286569 seconds is 3.32 days, which matches my system uptime.

[Simpel]

Thanks @TurionAltec.

@Yamakawa : I know. Should only show what else seems to be valid. (What it isn't.)

Conrad

Edited August 10, 2017 by Simpel

[AndyG]

Hi,

there is a correlation between the Clockticks of the CPU (can be read by RDTSC) and the Autoit-TimerInit()-Function....

;RDTSC returns the clockticks since computer start in EDX:EAX
$struct = DllStructCreate("byte[3]")                           ;reserve memory
DllStructSetData($struct, 1, "0x0F31C3")                       ;RDTSC and RET into memory


;testroutine correlation between RDTSC and TimerInit()
$ret = DllCallAddress("uint:cdecl", DllStructGetPtr($struct))  ;call memory returns colockticks in EAX
$rdtsc_old = $ret[0]                                           ;get clockticks in EAX
$t_old = TimerInit()

For $i = 1 To 10

    $ret = DllCallAddress("uint:cdecl", DllStructGetPtr($struct)) ;call memory returns clockticks in EAX
    $t = TimerInit()
    $rdtsc = $ret[0]                                           ;get clockticks in EAX

    ConsoleWrite("delta RDTSC = " & Int(($rdtsc - $rdtsc_old) / 1000) & @CRLF) ;difference RDTSC
    ConsoleWrite("delta Timer = " & $t - $t_old & @CRLF & @CRLF) ;difference TimerInit()

    $rdtsc_old = $rdtsc
    $t_old = $t

Next



Edited August 10, 2017 by AndyG

[Simpel]

Oh, getting this:

Conrad

[BrewManNH]

In the original code posted, $timer wasn't being assigned the VALUE of the return from TimerInit, it was creating a reference to the FUNCTION TimerInit. So every time that TimerDiff was being called, it was also calling the FUNCTION TimerInit, rather than the handle that the function returns. I don't know how TimerDiff works internally, but this misuse of the reference to the function, rather than the return from the function is bound to cause some idiosyncrasies.

Local $timer
$timer = TimerInit ; Original code
ConsoleWrite("$timer is " & (Isfunc($timer) ?"a ": "not a ") & "function"& @lf)
$timer = TimerInit() ; Corrected code
ConsoleWrite("$timer is " & (Isfunc($timer) ?"a ": "not a ") & "function"& @lf)
For $i = 0 To 10
    ConsoleWrite(TimerDiff($timer) & @LF)
    Sleep(1000)
Next



[AndyG]

@Simpel (was ein Name... :o)  )

habe die erste Zeile vergessen zu kopieren , did lost the first line while copy/paste

#AutoIt3Wrapper_UseX64=n   ;32-Bit mode

(original code in post#11 edited)

Edited August 10, 2017 by AndyG
