Remove White Spaces in image

darkshark

By darkshark,
in AutoIt General Help and Support

 Share

Recommended Posts

darkshark Wayfarer

darkshark

Posted
Posted (edited)

Hi, everyone!


I have some pictures on my computer that I need to "remove the white parts".

Basically I need to crop images only where it has some content ...

I wrote this code that seems to work, but, it is very very slow ...

I wonder if there is any other alternative to do this service!

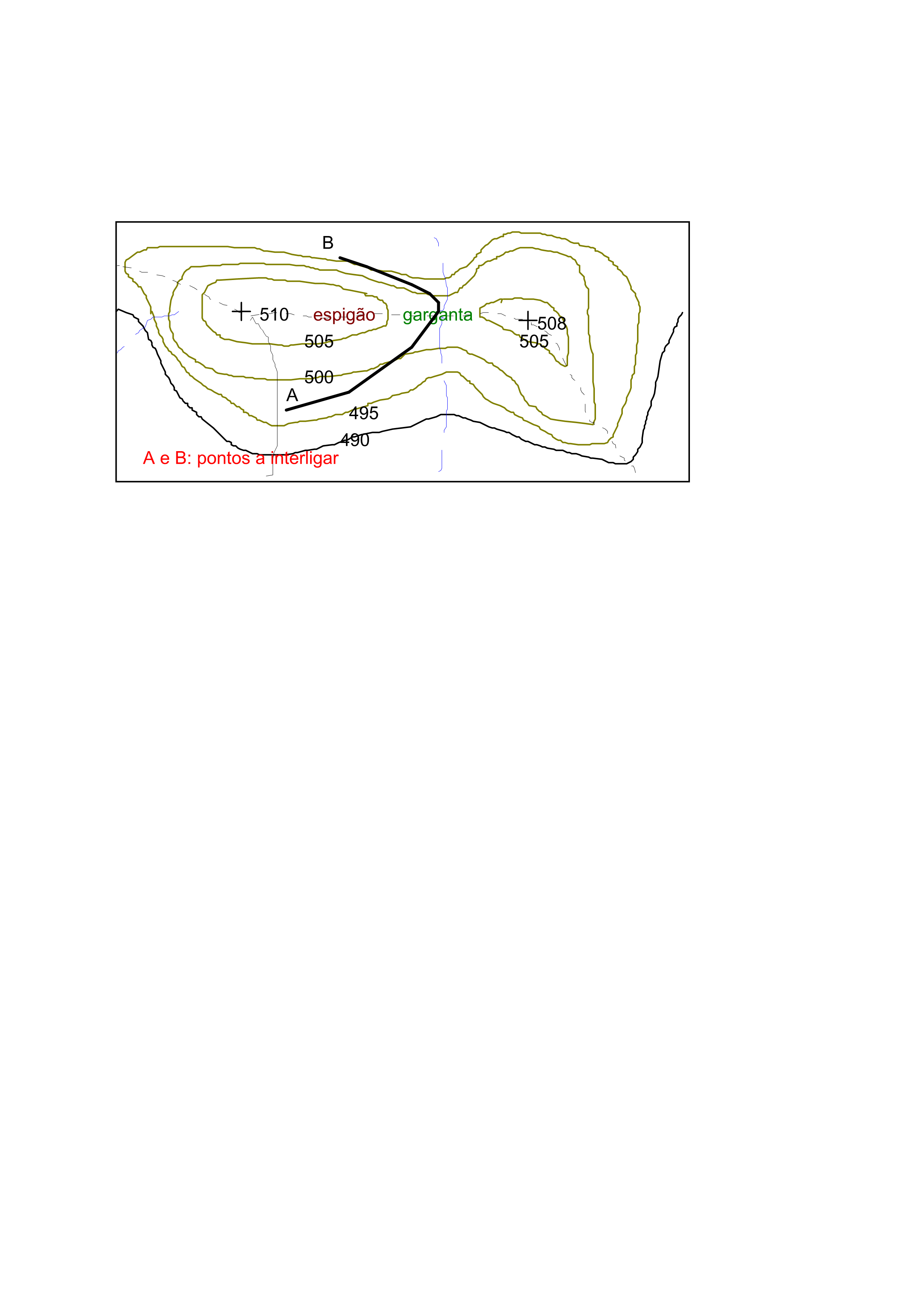

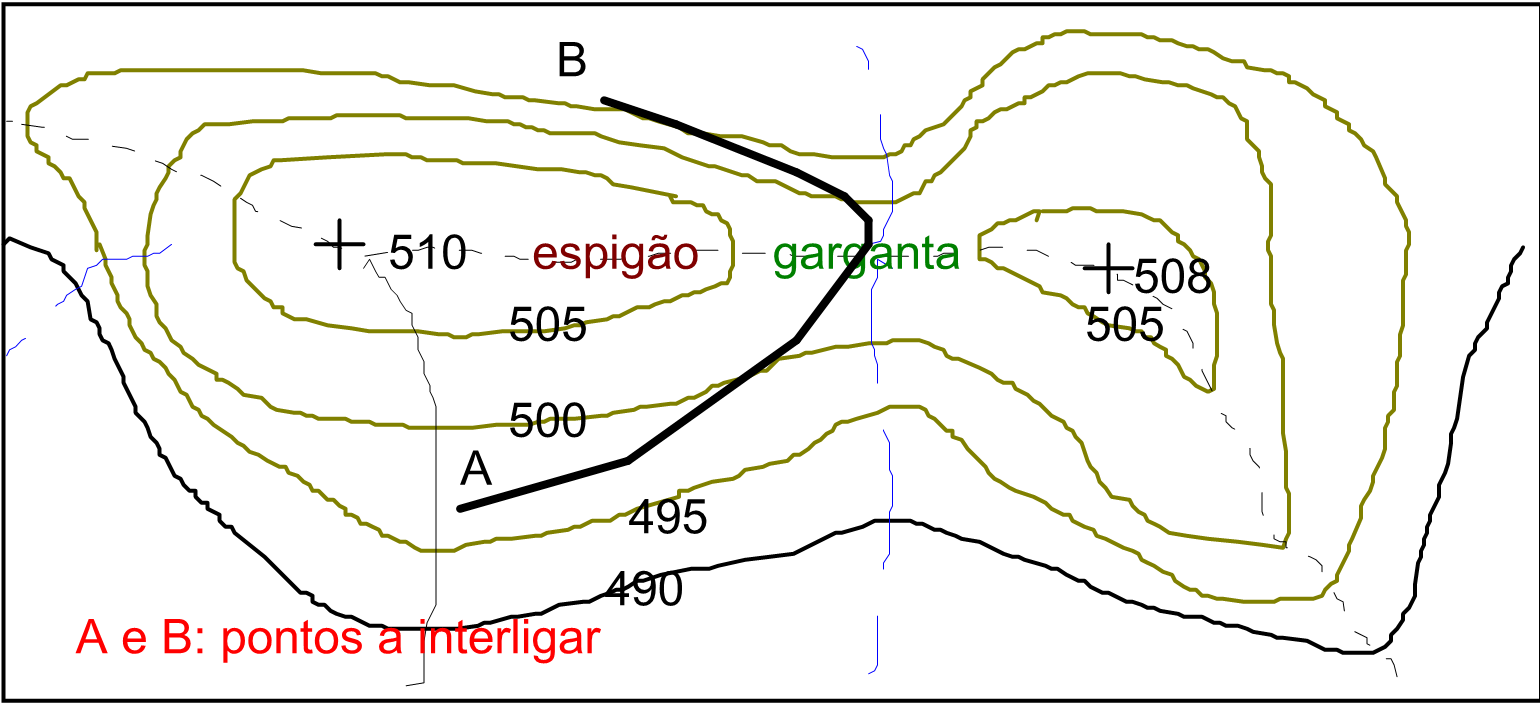

Attached I left the image used as test and what I expect result!

If anyone could help me I would be very happy.

Thank you very much



#include <File.au3>
#Include <GDIPlus.au3>


Global $iMinX = 0
Global $iMinY = 0
Global $iMaxX = 0
Global $iMaxY = 0


_GDIPlus_Startup()

Local $hImage = _GDIPlus_ImageLoadFromFile(@ScriptDir & "\test.png")
Local $iHeight =  _GDIPlus_ImageGetHeight($hImage)
Local $iWidth = _GDIPlus_ImageGetWidth($hImage)


For $x = 0 To $iWidth
    For $y = 0 To $iHeight
        Local $iPixelColor = _GDIPlus_BitmapGetPixel($hImage, $x, $y)
        If $iPixelColor <> 4294967295 Then
            If $x < $iMinX or $iMinX = 0 Then
                $iMinX = $x
            EndIf
            If $x > $iMaxX Then
                $iMaxX = $x
            EndIf
            If $y < $iMinY or $iMinY = 0 Then
                $iMinY = $y
            EndIf
            If $y > $iMaxY Then
                $iMaxY = $y
            EndIf
        EndIf
    Next
Next

 $hClone = _GDIPlus_BitmapCloneArea($hImage, $iMinY, $iMaxX, $iMaxY, $GDIP_PXF24RGB)
_GDIPlus_ImageSaveToFile($hClone, @ScriptDir & "\croped.png")
_GDIPlus_ImageDispose($hClone)
_GDIPlus_ImageDispose($hImage)


_GDIPlus_ShutDown ()









Edited by darkshark
Link to comment
Share on other sites
UEZ Universalist

UEZ

Posted
Posted

Reading directly from the bitmap is much faster:

#include <File.au3>
#Include <GDIPlus.au3>


Global $iMinX = 0xFFFF
Global $iMinY = 0xFFFF
Global $iMaxX = 0
Global $iMaxY = 0


_GDIPlus_Startup()

Local $hImage = _GDIPlus_ImageLoadFromFile(@ScriptDir & "\test.png")

Local $iHeight =  _GDIPlus_ImageGetHeight($hImage)
Local $iWidth = _GDIPlus_ImageGetWidth($hImage)
Local $hClone = _GDIPlus_BitmapCloneArea($hImage, 0, 0, $iWidth, $iHeight, $GDIP_PXF01INDEXED)


;version darkshark
Local $iPixelColor, $fTimer = TimerInit()
For $x = 0 To $iWidth - 1
    For $y = 0 To $iHeight - 1
        $iPixelColor = _GDIPlus_BitmapGetPixel($hClone, $x, $y)
        If $iPixelColor = 4278190080 Then
            If $x < $iMinX Then $iMinX = $x
            If $y < $iMinY Then $iMinY = $y
            If $x > $iMaxX Then $iMaxX = $x
            If $y > $iMaxY Then $iMaxY = $y
        EndIf
    Next
Next
ConsoleWrite("Took " & Round(TimerDiff($fTimer), 2) & " ms." & @CRLF)
Local $hCropped1 = _GDIPlus_BitmapCloneArea($hImage, $iMinX, $iMinY, $iMaxX - $iMinX + 1, $iMaxY - $iMinY + 1)
_GDIPlus_ImageSaveToFile($hCropped1, @ScriptDir & "\cropped1.png")


;version reading directly from the bitmap

$iMinX = 0xFFFF
$iMinY = 0xFFFF
$iMaxX = 0
$iMaxY = 0
$fTimer = TimerInit()
Local $tBitmapData = _GDIPlus_BitmapLockBits($hClone, 0, 0, $iWidth, $iHeight)
Local $tPixel = DllStructCreate("int[" & $iWidth * $iHeight & "];", DllStructGetData($tBitmapData, "Scan0"))
Local $iRowOffset, $iPixel
For $y = 0 To $iHeight - 1
    $iRowOffset = $y * $iWidth + 1
    For $x = 0 To $iWidth - 1
        If DllStructGetData($tPixel, 1, $iRowOffset + $x) = 0xFF000000 Then
            If $x < $iMinX Then $iMinX = $x
            If $y < $iMinY Then $iMinY = $y
            If $x > $iMaxX Then $iMaxX = $x
            If $y > $iMaxY Then $iMaxY = $y
        EndIf
    Next
Next
_GDIPlus_BitmapUnlockBits($hImage, $tBitmapData)
ConsoleWrite("Took " & Round(TimerDiff($fTimer), 2) & " ms." & @CRLF)
Local $hCropped2 = _GDIPlus_BitmapCloneArea($hImage, $iMinX, $iMinY, $iMaxX - $iMinX + 1, $iMaxY - $iMinY + 1)
_GDIPlus_ImageSaveToFile($hCropped2, @ScriptDir & "\cropped2.png")


_GDIPlus_ImageDispose($hClone)
_GDIPlus_ImageDispose($hImage)
_GDIPlus_ImageDispose($hCropped1)
_GDIPlus_ImageDispose($hCropped2)


_GDIPlus_ShutDown ()



The fastest solution is using inline assembler which I don't want to code now 'cause it's too late here (11pm).



Please don't send me any personal message and ask for support! I will not reply!
