GUIListViewEx - New Version 11Dec 24

[Melba23]

Anthony72,

Which "blue bar"? The one in the combo or rhte one on the ListView?

M23

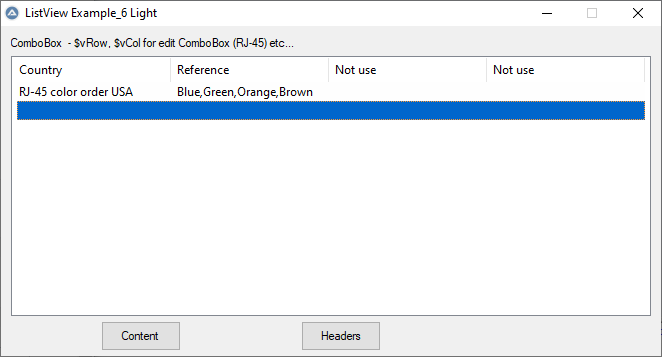

[Anthony72]

ListeView

Edited January 16 by Anthony72
Ajout de capture d'écran

[Melba23]

Antony72,

Then you are looking at an owner-drawn ListView - which you can produce by using my UDF. Look at the right ListView in Example 6 - the only highlight is in the cell you actually select.

M23

[Nine]

I don't want to interfere here but (based on french forum of AutoIt) I believe he wants to remove all reference to selected rows when he launches a "SelectClear" on the ListView.  So all blue lines are removed.

I had to do something similar in one of my scripts, maybe it will help (or maybe not) :

Case $NM_CUSTOMDRAW
          Local $tCustDraw = DllStructCreate($tagNMLVCUSTOMDRAW, $lParam)
          Local $iDrawStage = $tCustDraw.dwDrawStage
          If $iDrawStage = $CDDS_PREPAINT Then Return $CDRF_NOTIFYITEMDRAW
          If $iDrawStage = $CDDS_ITEMPREPAINT Then Return $CDRF_NOTIFYSUBITEMDRAW
          Local $iSubItem = $tCustDraw.iSubItem
          Local $iItem = $tCustDraw.dwItemSpec
          If ControlListView($hWnd, "", $tNMHDR.hWndFrom, "IsSelected", $iItem) Then Return $CDRF_DODEFAULT
...
          Return $CDRF_NEWFONT



[Anthony72]

5 hours ago, Nine said:

I don't want to interfere here but (based on french forum of AutoIt) I believe he wants to remove all reference to selected rows when he launches a "SelectClear" on the ListView.  So all blue lines are removed.

I had to do something similar in one of my scripts, maybe it will help (or maybe not) :

Case $NM_CUSTOMDRAW
          Local $tCustDraw = DllStructCreate($tagNMLVCUSTOMDRAW, $lParam)
          Local $iDrawStage = $tCustDraw.dwDrawStage
          If $iDrawStage = $CDDS_PREPAINT Then Return $CDRF_NOTIFYITEMDRAW
          If $iDrawStage = $CDDS_ITEMPREPAINT Then Return $CDRF_NOTIFYSUBITEMDRAW
          Local $iSubItem = $tCustDraw.iSubItem
          Local $iItem = $tCustDraw.dwItemSpec
          If ControlListView($hWnd, "", $tNMHDR.hWndFrom, "IsSelected", $iItem) Then Return $CDRF_DODEFAULT
...
          Return $CDRF_NEWFONT



Hello Melba23, NINE, yes that’s right, I probably worded my request poorly.
I found a piece of code but it creates an additional function which I find cumbersome, I really have to put it in a "Func WM_NOTIFY" or can I put it after the code of a single function?
Which would be much lighter and more fluid.

Edited January 17 by Anthony72

[Melba23]

Anthony72,

In that case I would do something like the following when you want to clear the selections:

; Read current content from UDF
$aContent = _GUIListViewEx_ReturnArray($iLV_Index)
; Clear ListView from UDF
_GUIListViewEx_Close($iLV_Index)
; Delete all items with NON-UDF function <<<<<<<<<<<<<<<<<<<<
_GUICtrlListView_DeleteAllItems($hListView)
; Re-initiate ListView with saved array
$iLV_Index = _GUIListViewEx_Init($hListView, $aContent [plus whatever other parameters you need])
; Activate ListView
_GUIListViewEx_SetActive($iLV_Index)

As long as your ListView is not enormous that will not take overlong. Note the use of a non-UDF function in there - use the correct parameter in the various calls!

M23

[Anthony72]

Spoiler

expandcollapse popup

#include <GuiListBox.au3>
   #include <Date.au3>

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <AutoItConstants.au3>
#include <StaticConstants.au3>
#include <UpDownConstants.au3>
#include <EditConstants.au3>

#include <File.au3>
#include <Misc.au3>
#include <String.au3>
#include <Array.au3>

;~ #include "GUIListViewEx.au3"
#include ".\GUIListViewEx\GUIListViewEx.au3"

$hGUI = GUICreate("ListView Example_6 Light", 660, 330)

; Create ListView
GUICtrlCreateLabel("ComboBox  - $vRow, $vCol for edit Multi ComboBox's) etc...", 10, 10, 400, 20)
$cLV_1 = GUICtrlCreateListView("Col 0|Col 1|Col 2|Col 3", 10, 30, 640, 260, BitOR($LVS_SINGLESEL, $LVS_SHOWSELALWAYS))

_GUICtrlListView_SetExtendedListViewStyle($cLV_1, BitOR($LVS_EX_FULLROWSELECT, $LVS_EX_HEADERDRAGDROP))
For $i = 0 To 3
    _GUICtrlListView_SetColumnWidth($cLV_1, $i, 158)
Next

; Create Cols & Rows
Global $vCols = 6, $vRows = 4

; Create array and fill listview
Global $aLVArray_1[$vCols][$vRows]

$aLVArray_1[0][0] = "RJ-45 color order USA|RJ-45 color order EUROPE|RJ-45 color order ASIA"
$aLVArray_1[0][2] = "Blue,Green,Orange,Brown|Blue,Orange,Green,Brown"
$aLVArray_1[1][0] = "Standard TV USA|Standard TV EUROPE"
$aLVArray_1[1][2] = "NTSC|Pal/Secam|Pal/Secam/NTSC"
$aLVArray_1[2][1] = "Black|White|Yellow|Green|Red|Blue"
$aLVArray_1[3][2] = "50 HZ|55 hZ|60 hZ|120 hZ|144 hZ"
$aLVArray_1[4][0] = "Janvier|Février|Mars|Avril|Mai|Juin|Juillet|Août|Septembre|Octobre|Novembre|Décembre"
$aLVArray_1[5][3] = "Lundi|Mardi|Mercredi|Jeudi|Vendredi|Samedi|Dimanche"

_Combo_Set( $cLV_1, $vRows, $vCols, $aLVArray_1)

; Initiate ListView = sort on column click - editable headers
$iLVIndex_1 = _GUIListViewEx_Init( $cLV_1, $aLVArray_1, 0, 0, True, 1 + 8 + 32) ; + 16

; Set column edit status
_GUIListViewEx_SetEditStatus( $iLVIndex_1, "0", 9, _Combo_Edit) ; Call function when double clicked
_GUIListViewEx_SetEditStatus( $iLVIndex_1, "1", 9, _Combo_Edit)
_GUIListViewEx_SetEditStatus( $iLVIndex_1, "2", 9, _Combo_Edit)
_GUIListViewEx_SetEditStatus( $iLVIndex_1, "3", 9, _Combo_Edit)

$cContent        = GUICtrlCreateButton("Content", 100, 295, 80, 30)
$cLVArray        = GUICtrlCreateButton("LVArray", 200, 295, 80, 30)
$cHeaders        = GUICtrlCreateButton("Headers", 300, 295, 80, 30)

_GUIListViewEx_MsgRegister()

GUISetState()

While 1

    $iMsg = GUIGetMsg()
    Switch $iMsg
        Case $GUI_EVENT_CLOSE
            Exit

        Case $cContent
            $aRet = _GUIListViewEx_ReturnArray($iLVIndex_1)
            _ArrayDisplay($aRet, "$cContent", Default, 8)
        Case $cLVArray
            _ArrayDisplay( $aLVArray_1, "$aLVArray_1", Default, 8)
        Case $cHeaders
            $aRet = _GUIListViewEx_ReturnArray($iLVIndex_1, 4)
            _ArrayDisplay($aRet, "$cHeaders", Default, 8)

    EndSwitch

    $vRet = _GUIListViewEx_EventMonitor()
    If @error Then
        MsgBox($MB_SYSTEMMODAL, "Error", "Event error: " & @error)
    EndIf
    Switch @extended
        Case 0
            ; No event detected
        Case 1
            If $vRet = "" Then
;~                 MsgBox($MB_SYSTEMMODAL, "Edit", "Edit aborted" & @CRLF)
            Else
                _ArrayDisplay($vRet, "ListView " & _GUIListViewEx_GetActive() & " content edited", Default, 8)
            EndIf
        Case 2
            If $vRet = "" Then
;~                 MsgBox($MB_SYSTEMMODAL, "Header edit", "Header edit aborted" & @CRLF)
            Else
                _ArrayDisplay($vRet, "ListView " & _GUIListViewEx_GetActive() & " header edited", Default, 8)
            EndIf
        Case 3
            MsgBox($MB_SYSTEMMODAL, "Sorted", "ListView: " & $vRet & @CRLF)
        Case 4
            Local $aRet = StringSplit($vRet, ":")
            MsgBox($MB_SYSTEMMODAL, "Dragged", "From ListView " & $aRet[1] & @CRLF & "To ListView " & $aRet[2])
    EndSwitch

WEnd


Func _Combo_Set( $hLV, $iRow, $iCol, $vValue)
   Local $vRet = "", $vValueCombo = ""
   For $i = 0 To $iCol -1
      $vRet = ""
      $vValueCombo = ""
      For $j = 0 To $iRow -1
         $vRet          = StringLeft( $vValue[$i][$j], StringInStr( $vValue[$i][$j], "|") -1)
         $vValueCombo &= $vRet & "|"
      Next
      If $vValueCombo <> "" Or $vRet = "" Then GUICtrlCreateListViewItem( $vValueCombo, $hLV)
   Next
EndFunc


Func _Combo_Edit( $hLV, $iIndexLV, $iRow, $iCol)

   Local $a_LVArray = $aLVArray_1       ; External Global Array to Local

   Local $sCombo_Fill
   Switch $iRow
      Case 0 To UBound( $a_LVArray, $UBOUND_ROWS) -1
         Switch $iCol
            Case 0 To UBound( $a_LVArray, $UBOUND_COLUMNS) -1
               $sCombo_Fill = $a_LVArray[ $iRow][ $iCol]
         EndSwitch
   EndSwitch

   ; Retrieve the position x, y and size (width and height)
   Local $aPos = ControlGetPos( $hGUI, "", $hLV)
;~   ConsoleWrite( "Line=" & @ScriptLineNumber & @TAB & "Position: " & $aPos[0] & ", " & $aPos[1] & ", Size: " & $aPos[2] & ", " & $aPos[3] &@CRLF)

   $aRect = _GUICtrlListView_GetSubItemRect( $hLV, $iRow, $iCol)
   $X = $aPos[0]+$aRect[0]  +2
   $Y = $aPos[1]+$aRect[1]  +1
;~ $W = $aRect[2]-$aRect[0]
   $W = _GUICtrlListView_GetColumnWidth($hLV, $iCol)
   $H = $aRect[3]-$aRect[1] +2
;~    ConsoleWrite( "Line=" & @ScriptLineNumber & @TAB & "$hLV=" & $hLV & ", $iRow=" & $iRow & ", $iCol=" & $iCol & StringFormat(", Subitem Rectangle "&$iRow&","&$iCol&" OK : [%d, %d, %d, %d]", $X, $Y, $W, $Y)&@CRLF)

   ; Create combo dialog
   $hCombo_Dialog = GUICreate( "", $W, $H, -1, -1, BitOR($WS_POPUP, $WS_SYSMENU), $WS_EX_TOOLWINDOW+$WS_EX_TOPMOST)

   ; Attach window to the desktop (always on bottom)
   _WinAPI_SetParent( $hCombo_Dialog, $hGUI)

   ; Move GUI 2
   WinMove( $hCombo_Dialog, "", $X, $Y, $W, $H)

   ; Move GUI 2 Combo OK
   Local $aLVPos = WinGetClientSize( $hCombo_Dialog)
   $cCombo = GUICtrlCreateCombo( "", 0, 0, $aLVPos[0], $aLVPos[0])

   ; Fill combo with required elements
   GUICtrlSetData( $cCombo, $sCombo_Fill, _GUICtrlListView_GetItemText( $hLV, $iRow, $iCol))

   ; ---> -------------------------------------------------------------------------------------------------------------------

;~ _GUIListViewEx_BlockReDraw( $cLV_1, True)        ; True  = Prevent redrawing during Insert/Delete/Change calls

   GUICtrlSetState( $cLV_1, $GUI_NOFOCUS)
;~    ConsoleWrite(  "Line=" & @ScriptLineNumber & @TAB & GUICtrlRead( GUICtrlRead( $cLV_1)) &@CRLF)

;~    For $i = 0 To _GUICtrlListView_GetColumnCount( $hLV)
;~    _GUIListViewEx_SetColour( $cLV_1, ";" , $iRow, $i)    ;   ";" <= par Default  > ";" & $iWhite <=Par couleur
;~    Next

   WinActivate( $hCombo_Dialog, "")

;~ _GUIListViewEx_BlockReDraw( $cLV_1, False)       ; False = Allow future redrawing and force a redraw

   ; <--- -------------------------------------------------------------------------------------------------------------------

   GUISetState()

   While 1
      Switch GUIGetMsg()
         Case $GUI_EVENT_CLOSE, WinActive( $hCombo_Dialog)
            GUIDelete( $hCombo_Dialog)
            Return
         Case $cCombo
            ExitLoop
      EndSwitch
   WEnd

   ; Change ListView element to match selection
   _GUIListViewEx_ChangeItem( $iIndexLV, $iRow, $iCol, GUICtrlRead( $cCombo))

   GUIDelete( $hCombo_Dialog)

EndFunc



Hello Melba23,
I have just done a big update of the code, I am almost finished, all I have to do is look at your code but I want to avoid breaking the ListView each time a cell is refreshed for example

Edited January 17 by Anthony72
Code update

[Anthony72]

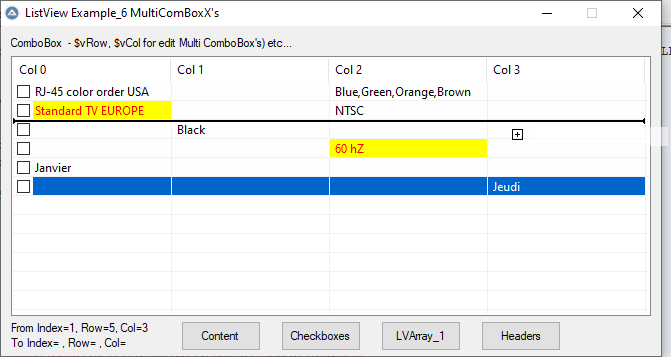

Here I have arrived at the goal, I know Melba23's UDF by heart now.
Thanks to NINE who also offered to help me.
Looking forward...



expandcollapse popup

#include <GuiListBox.au3>
   #include <Date.au3>

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <AutoItConstants.au3>
#include <StaticConstants.au3>
#include <UpDownConstants.au3>
#include <EditConstants.au3>

#include <File.au3>
#include <Misc.au3>
#include <String.au3>
#include <Array.au3>

#include "GUIListViewEx.au3"
;~ #include ".\GUIListViewEx\GUIListViewEx.au3"

$hGUI = GUICreate("ListView Example_6 MultiComBoxX's", 660, 330)

; Create ListView
GUICtrlCreateLabel("ComboBox  - $vRow, $vCol for edit Multi ComboBox's) etc...", 10, 10, 400, 20)
$idListview_1   = GUICtrlCreateListView("Col 0|Col 1|Col 2|Col 3", 10, 30, 640, 260, BitOR( $LVS_SINGLESEL, $LVS_SHOWSELALWAYS))    ; $iD
$hListView_1    = ControlGetHandle( $hGUI, "", $idListview_1)

_GUICtrlListView_SetExtendedListViewStyle( $idListview_1, BitOR( $LVS_EX_FULLROWSELECT, $LVS_EX_GRIDLINES)) ; BitOR( $LVS_EX_FULLROWSELECT, $LVS_EX_HEADERDRAGDROP))
For $i = 0 To 3
    _GUICtrlListView_SetColumnWidth( $idListview_1, $i, 158)
Next

; Create Cols & Rows
Global $vCols = 6, $vRows = 4

; Create array and fill listview
Global $aLVArray_1[$vCols][$vRows]

$aLVArray_1[0][0] = "RJ-45 color order USA|RJ-45 color order EUROPE|RJ-45 color order ASIA"
$aLVArray_1[0][2] = "Blue,Green,Orange,Brown|Blue,Orange,Green,Brown"
$aLVArray_1[1][0] = "Standard TV USA|Standard TV EUROPE"
$aLVArray_1[1][2] = "NTSC|Pal/Secam|Pal/Secam/NTSC"
$aLVArray_1[2][1] = "Black|White|Yellow|Green|Red|Blue"
$aLVArray_1[3][2] = "50 HZ|55 hZ|60 hZ|120 hZ|144 hZ"
$aLVArray_1[4][0] = "Janvier|Février|Mars|Avril|Mai|Juin|Juillet|Août|Septembre|Octobre|Novembre|Décembre"
$aLVArray_1[5][3] = "Lundi|Mardi|Mercredi|Jeudi|Vendredi|Samedi|Dimanche"

_Combo_Array( $idListview_1, $aLVArray_1, $vRows, $vCols)   ;

; Initiate ListView = sort on column click - editable headers
$iLVIndex_1 = _GUIListViewEx_Init( $idListview_1, $aLVArray_1, 0, 0, True, 8 + 256 +512) ; + 16

; Set column edit status
_GUIListViewEx_SetEditStatus( $iLVIndex_1, "0", 9, _Combo_Edit) ; Call function when double clicked
;~ _GUIListViewEx_SetEditStatus( $iLVIndex_1, "1", 9, _Combo_Edit)
_GUIListViewEx_SetEditStatus( $iLVIndex_1, "1") ; "0;2;3"
_GUIListViewEx_SetEditStatus( $iLVIndex_1, "2", 9, _Combo_Edit)
_GUIListViewEx_SetEditStatus( $iLVIndex_1, "3", 9, _Combo_Edit)

$cContent        = GUICtrlCreateButton("Content", 100, 295, 80, 30)
$cLVArray        = GUICtrlCreateButton("LVArray_1", 200, 295, 80, 30)
$cHeaders        = GUICtrlCreateButton("Headers", 300, 295, 80, 30)

GUISetState()

_GUIListViewEx_MsgRegister()

While 1

    $iMsg = GUIGetMsg()
    Switch $iMsg
        Case $GUI_EVENT_CLOSE
            Exit

        Case $cContent
            $aRet = _GUIListViewEx_ReturnArray($iLVIndex_1)
            _ArrayDisplay($aRet, "$cContent", Default, 8)
        Case $cLVArray
            _ArrayDisplay( $aLVArray_1, "$aLVArray_1", Default, 8)
        Case $cHeaders
            $aRet = _GUIListViewEx_ReturnArray($iLVIndex_1, 4)
            _ArrayDisplay($aRet, "$cHeaders", Default, 8)

    EndSwitch

    $vRet = _GUIListViewEx_EventMonitor()
    If @error Then
        MsgBox($MB_SYSTEMMODAL, "Error", "Event error: " & @error)
    EndIf
    Switch @extended
        Case 0
            ; No event detected
        Case 1
            If $vRet = "" Then
;~                 MsgBox($MB_SYSTEMMODAL, "Edit", "Edit aborted" & @CRLF)
            Else
                _ArrayDisplay($vRet, "ListView " & _GUIListViewEx_GetActive() & " content edited", Default, 8)
            EndIf
        Case 2
            If $vRet = "" Then
;~                 MsgBox($MB_SYSTEMMODAL, "Header edit", "Header edit aborted" & @CRLF)
            Else
                _ArrayDisplay($vRet, "ListView " & _GUIListViewEx_GetActive() & " header edited", Default, 8)
            EndIf
        Case 3
            MsgBox($MB_SYSTEMMODAL, "Sorted", "ListView: " & $vRet & @CRLF)
        Case 4
            Local $aRet = StringSplit($vRet, ":")
            MsgBox($MB_SYSTEMMODAL, "Dragged", "From ListView " & $aRet[1] & @CRLF & "To ListView " & $aRet[2])
    EndSwitch

WEnd


Func _Combo_Array( $hLV, $vValue, $iRow, $iCol)
   Local $vRet = "", $vValueCombo = ""
   For $i = 0 To $iCol -1
      $vRet = ""
      $vValueCombo = ""
      For $j = 0 To $iRow -1
         $vRet          = StringLeft( $vValue[$i][$j], StringInStr( $vValue[$i][$j], "|") -1)
         $vValueCombo &= $vRet & "|"
      Next
      If $vValueCombo <> "" Or $vRet = "" Then GUICtrlCreateListViewItem( $vValueCombo, $hLV)
   Next
EndFunc


Func _Combo_Edit( $hLV, $iIndexLV, $iRow, $iCol)

   _GUIListViewEx_BlockReDraw( $idListview_1, True)     ; True  = Prevent redrawing during Insert/Delete/Change calls

   Local $a_LVArray = $aLVArray_1   ; <=== External Global Array to Local

   Local $sCombo_Fill
   Switch $iRow
      Case 0 To UBound( $a_LVArray, $UBOUND_ROWS) -1
         Switch $iCol
            Case 0 To UBound( $a_LVArray, $UBOUND_COLUMNS) -1
               $sCombo_Fill = $a_LVArray[ $iRow][ $iCol]
         EndSwitch
   EndSwitch

   ; Retrieve the position x, y and size (width and height)
   Local $aPos = ControlGetPos( $hGUI, "", $hLV)

   $aRect = _GUICtrlListView_GetSubItemRect( $hLV, $iRow, $iCol)
   $X = $aPos[0]+$aRect[0]  +2
   $Y = $aPos[1]+$aRect[1]  +1
   $W = _GUICtrlListView_GetColumnWidth($hLV, $iCol)
   $H = $aRect[3]-$aRect[1] +2

   ; Create combo dialog
   $hCombo_Dialog = GUICreate( "", $W, $H, -1, -1, BitOR($WS_POPUP, $WS_SYSMENU), $WS_EX_TOOLWINDOW+$WS_EX_TOPMOST)

   ; Attach window to the desktop (always on bottom)
   _WinAPI_SetParent( $hCombo_Dialog, $hGUI)

   ; Move GUI 2
   WinMove( $hCombo_Dialog, "", $X, $Y, $W, $H)

   ; Move GUI 2 Combo OK
   Local $aLVPos = WinGetClientSize( $hCombo_Dialog)
   $cCombo = GUICtrlCreateCombo( "", 0, 0, $aLVPos[0], $aLVPos[1])

   ; Fill combo with required elements
   GUICtrlSetData( $cCombo, $sCombo_Fill, _GUICtrlListView_GetItemText( $hLV, $iRow, $iCol))

   GUISetState()

   ControlClick( $hCombo_Dialog, "", $cCombo, "left", 1, $aLVPos[0]-5, $aLVPos[1]-5)

   While 1
      Switch GUIGetMsg()
         Case $GUI_EVENT_CLOSE, WinActive( $hCombo_Dialog)
            GUIDelete( $hCombo_Dialog)
            Return
         Case $cCombo
            ExitLoop
      EndSwitch
   WEnd

   ; Change ListView element to match selection
   _GUIListViewEx_ChangeItem( $iIndexLV, $iRow, $iCol, GUICtrlRead( $cCombo))

   ControlListView( $hGUI, "", $idListview_1, "DeSelect", $iRow)
   _GUICtrlListView_SetItemFocused( $hListView_1, $iRow, False)

   _GUIListViewEx_BlockReDraw( $idListview_1, False)    ; False = Allow future redrawing and force a redraw

   GUIDelete( $hCombo_Dialog)

EndFunc



MultiComBoxX's.au3

[Melba23]

Antony72,

Quote

Here I have arrived at the goal

Great!

Quote

I know Melba23's UDF by heart now

Probably better then me then!

M23

[Anthony72]

Good evening

On 1/18/2024 at 10:08 AM, Melba23 said:

Great!

Well almost.

On 1/18/2024 at 10:08 AM, Melba23 said:

Probably better then me then!

I'm not the author, I'm far from the best, I'm doing my best

[Anthony72]

I would like to be able to update the position of a Drag and Drop of rows and columns in

$aLVArray_1 [$vCols][$vRows]

So far I haven't found a solution.



expandcollapse popup

#include <GuiListBox.au3>
   #include <Date.au3>

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <AutoItConstants.au3>
#include <StaticConstants.au3>
#include <UpDownConstants.au3>
#include <EditConstants.au3>

#include <File.au3>
#include <Misc.au3>
#include <String.au3>
#include <Array.au3>

;~ #include "GUIListViewEx.au3"
#include ".\GUIListViewEx\GUIListViewEx.au3"

Global  $iYellow = "0xFFFF00", _
        $iLtBlue = "0xCCCCFF", _
        $iGreen = "0x00FF00", _
        $iBlack = "0x000000", _
        $iRed = "0xFF0000", _
        $iBlue = "0x0000FF", _
        $iWhite = "0xFFFFFF"

$hGUI = GUICreate("ListView Example_6 MultiComBoxX's", 660, 330)

; Create ListView
$idLabel_1        = GUICtrlCreateLabel("ComboBox  - $vRow, $vCol for edit Multi ComboBox's) etc...", 10, 10, 400, 20)
$idLabel_2        = GUICtrlCreateLabel("From Index= , Row= , Col= ", 10, 295, 150, 15)
$idLabel_3        = GUICtrlCreateLabel("To Index= , Row= , Col= ", 10, 310, 150, 15)
$idListview_1    = GUICtrlCreateListView("Col 0|Col 1|Col 2|Col 3", 10, 30, 640, 260, BitOR( $LVS_EDITLABELS, $LVS_SINGLESEL))    ; $iD
$hListView_1    = ControlGetHandle( $hGUI, "", $idListview_1)

_GUICtrlListView_SetExtendedListViewStyle( $idListview_1, BitOR( $LVS_EX_CHECKBOXES, $LVS_EX_GRIDLINES, $LVS_EX_FULLROWSELECT, $LVS_EX_HEADERDRAGDROP))

For $i = 0 To 3
    _GUICtrlListView_SetColumnWidth( $idListview_1, $i, 158)
Next

;~ ; Create Cols & Rows
Global $vCols = 6, $vRows = 4

; Create array and fill listview
Global $aLVArray_1    [$vCols][$vRows]

$aLVArray_1[0][0] = "RJ-45 color order USA|RJ-45 color order EUROPE|RJ-45 color order ASIA"
$aLVArray_1[0][2] = "Blue,Green,Orange,Brown|Blue,Orange,Green,Brown"
$aLVArray_1[1][0] = "Standard TV USA|Standard TV EUROPE"
$aLVArray_1[1][2] = "NTSC|Pal/Secam|Pal/Secam/NTSC"
$aLVArray_1[2][1] = "Black|White|Yellow|Green|Red|Blue"
$aLVArray_1[3][2] = "50 HZ|55 hZ|60 hZ|120 hZ|144 hZ"
$aLVArray_1[4][0] = "Janvier|Février|Mars|Avril|Mai|Juin|Juillet|Août|Septembre|Octobre|Novembre|Décembre"
$aLVArray_1[5][3] = "Lundi|Mardi|Mercredi|Jeudi|Vendredi|Samedi|Dimanche"

_Combo_Array( $idListview_1, $aLVArray_1, $vRows, $vCols)    ;

; Initiate ListView = sort on column click - editable headers
$iLVIndex_1 = _GUIListViewEx_Init( $idListview_1, $aLVArray_1, 0, 0, True, 8 + 32 + 256)            ; $iLVIndex_1 = _GUIListViewEx_Init( $idListview_1, $aLVArray_1, 0, 0, True, 8 + 256 +512) ; + 16

; Set column edit status
_GUIListViewEx_SetEditStatus( $iLVIndex_1, "0", 9, _Combo_Edit) ; Call function when double clicked
;~ _GUIListViewEx_SetEditStatus( $iLVIndex_1, "1", 9, _Combo_Edit)
_GUIListViewEx_SetEditStatus( $iLVIndex_1, "1")    ; "0;2;3"
_GUIListViewEx_SetEditStatus( $iLVIndex_1, "2", 9, _Combo_Edit)
_GUIListViewEx_SetEditStatus( $iLVIndex_1, "3", 9, _Combo_Edit)

$cContent        = GUICtrlCreateButton("Content", 180, 295, 80, 30)        ; $iMode  -    0 = Content of ListView
$sCheckboxes    = GUICtrlCreateButton("Checkboxes", 280, 295, 80, 30)    ;            1 - State of the checkboxes
                                                                        ;            2 - User colours (if initialised)
                                                                        ;            3 - Content of ListView forced to 2D for saving
$cLVArray        = GUICtrlCreateButton("LVArray_1", 380, 295, 80, 30)    ;
$cHeaders        = GUICtrlCreateButton("Headers", 480, 295, 80, 30)        ;            4 - ListView header titles
                                                                        ;            5 - Header colours (if initialised)

GUISetState()

_GUIListViewEx_MsgRegister()


While 1

   $iMsg = GUIGetMsg()
   Switch $iMsg
         Case $GUI_EVENT_CLOSE
            Exit
         Case $cContent
            $aRet = _GUIListViewEx_ReturnArray($iLVIndex_1, 0)            ; $iMode  -    0 = Content of ListView
            _ArrayDisplay($aRet, "$cContent", Default, 8)
         Case $sCheckboxes
            $aRet = _GUIListViewEx_ReturnArray($iLVIndex_1, 1)            ;            1 - State of the checkboxes
            _ArrayDisplay($aRet, "$cContent", Default, 8)
         Case $cLVArray
            _ArrayDisplay( $aLVArray_1, "$aLVArray_1", Default, 8)
         Case $cHeaders
            $aRet = _GUIListViewEx_ReturnArray($iLVIndex_1, 4)            ;            4 - ListView header titles
            _ArrayDisplay($aRet, "$cHeaders", Default, 8)
   EndSwitch

   $vRet = _GUIListViewEx_EventMonitor()
   If @error Then
      MsgBox($MB_SYSTEMMODAL, "Error", "Event error: " & @error)
   EndIf

   Switch @extended
         Case 0
            ; No event detected
         Case 1
            If $vRet = "" Then
;~                 MsgBox($MB_SYSTEMMODAL, "Edit", "Edit aborted" & @CRLF)
            Else
;~                _ArrayDisplay($vRet, "ListView " & _GUIListViewEx_GetActive() & " content edited", Default, 8)
            EndIf
         Case 2
            If $vRet = "" Then
;~                MsgBox($MB_SYSTEMMODAL, "Header edit", "Header edit aborted" & @CRLF)
            Else
;~                _ArrayDisplay($vRet, "ListView " & _GUIListViewEx_GetActive() & " header edited", Default, 8)
            EndIf
         Case 3
            MsgBox($MB_SYSTEMMODAL, "Sorted", "ListView: " & $vRet & @CRLF)
         Case 4
            Local $aRet = StringSplit($vRet, ":")
            MsgBox($MB_SYSTEMMODAL, "Dragged", "From "&$vDrag&@CR&" ListView " & $aRet[1] & @CRLF & "To ListView " & $aRet[2])
            ControlCommand( $hGUI, "", $cLVArray, "SendCommandID")
            ; ---> -------------------------------------------------------------------------------------------------------------------
            ; <--- -------------------------------------------------------------------------------------------------------------------
         Case 9
            If $vRet = "" Then
            Else
;~                _ArrayDisplay($vRet, "ListView " & _GUIListViewEx_GetActive() & " header edited", Default, 8)
               $vDrag    = $vRet[0]&"|"&$vRet[1]&"|"&$vRet[2]
               GUICtrlSetData( $idLabel_2, "From Index=" & $vRet[0] &", Row="& $vRet[1] &", Col="& $vRet[2])            ; [ListView index, zero-based row, zero-based col]
;~                GUICtrlSetData( $idLabel_3, "To Index=" & $vRet[0] &", Row="& $vRet[1] &", Col="& $vRet[2])                ; [ListView index, zero-based row, zero-based col]
            EndIf
   EndSwitch

WEnd


Func _Combo_Array( $hLV, $vValue, $iRow, $iCol)
   Local $vRet = "", $vValueCombo = ""
   For $i = 0 To $iCol -1
      $vRet = ""
      $vValueCombo = ""
      For $j = 0 To $iRow -1
         $vRet            = StringLeft( $vValue[$i][$j], StringInStr( $vValue[$i][$j], "|") -1)
         $vValueCombo &= $vRet & "|"
      Next
      If $vValueCombo <> "" Or $vRet = "" Then GUICtrlCreateListViewItem( $vValueCombo, $hLV)
   Next
EndFunc


Func _Combo_Edit( $hLV, $iIndexLV, $iRow, $iCol)

   _GUIListViewEx_BlockReDraw( $idListview_1, True)        ; True  = Prevent redrawing during Insert/Delete/Change calls

   Local $a_LVArray = $aLVArray_1                        ; <=== External Global Array to Local

   Local $sCombo_Fill
   Switch $iRow
      Case 0 To UBound( $a_LVArray, $UBOUND_ROWS) -1
         Switch $iCol
            Case 0 To UBound( $a_LVArray, $UBOUND_COLUMNS) -1
               $sCombo_Fill = $a_LVArray[ $iRow][ $iCol]
         EndSwitch
   EndSwitch

   ; Retrieve the position x, y and size (width and height)
   Local $aPos = ControlGetPos( $hGUI, "", $hLV)

   $aRect = _GUICtrlListView_GetSubItemRect( $hLV, $iRow, $iCol)
   $X = $aPos[0]+$aRect[0]    +2
   $Y = $aPos[1]+$aRect[1]    +1
   $W = _GUICtrlListView_GetColumnWidth($hLV, $iCol)
   $H = $aRect[3]-$aRect[1] +2

   ; Create combo dialog
   $hCombo_Dialog = GUICreate( "", $W, $H, -1, -1, BitOR($WS_POPUP, $WS_SYSMENU), $WS_EX_TOOLWINDOW+$WS_EX_TOPMOST)

   ; Attach window to the desktop (always on bottom)
   _WinAPI_SetParent( $hCombo_Dialog, $hGUI)

   ; Move GUI 2
   WinMove( $hCombo_Dialog, "", $X, $Y, $W, $H)

   ; Move GUI 2 Combo OK
   Local $aLVPos = WinGetClientSize( $hCombo_Dialog)
   $cCombo = GUICtrlCreateCombo( "", 0, 0, $aLVPos[0], $aLVPos[1])

   ; Fill combo with required elements
   GUICtrlSetData( $cCombo, $sCombo_Fill, _GUICtrlListView_GetItemText( $hLV, $iRow, $iCol))

   GUISetState()

   ControlClick( $hCombo_Dialog, "", $cCombo, "left", 1, $aLVPos[0]-5, $aLVPos[1]-5)

   While 1
      Switch GUIGetMsg()
         Case $GUI_EVENT_CLOSE, WinActive( $hCombo_Dialog)
            GUIDelete( $hCombo_Dialog)
            Return
         Case $cCombo
            ExitLoop
      EndSwitch
   WEnd

   ; Change ListView element to match selection
   _GUIListViewEx_ChangeItem( $iIndexLV, $iRow, $iCol, GUICtrlRead( $cCombo))

   _GUIListViewEx_SetColour( $iLVIndex_1, $iRed&";"&$iYellow, $iRow, $iCol)        ; _GUIListViewEx_SetColour( $iLV_Index, $sColSet, $iRow, $iCol)

   ControlListView( $hGUI, "", $idListview_1, "DeSelect", $iRow)
   _GUICtrlListView_SetItemFocused( $hListView_1, $iRow, False)

   _GUIListViewEx_BlockReDraw( $idListview_1, False)                            ; False = Allow future redrawing and force a redraw

   GUIDelete( $hCombo_Dialog)

EndFunc



[Melba23]

Antony72,

That was fun!

You can now get start/end details of a "drag/drop" row from the returned event notification in Mode 4. And I have added a new Mode 6 for a column reorder event which shows the original and new ordering. You need to amend your script a bit to access the new data:

Case 4
    Local $aRet = StringSplit($vRet, ":")
    MsgBox($MB_SYSTEMMODAL, "Drag Event", "Row " & $aRet[3] & " dragged to row "& $aRet[4])
    ControlCommand( $hGUI, "", $cLVArray, "SendCommandID")
Case 6
    MsgBox($MB_SYSTEMMODAL, "Column Reorder", $vRet)

And here is the amended UDF: GUIListViewEx_Drag.au3

Let me know what you think.

M23

[Anthony72]

Hi Melba23,

Nice work
So I added support for rows without any problem but here I am stuck.
No matter how much I debug, I don't see the problem, probably an oversight, but I really don't see my error.
Grrrrr that blue selection bar. 🟦

expandcollapse popup

#include <GuiListBox.au3>
   #include <Date.au3>

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <AutoItConstants.au3>
#include <StaticConstants.au3>
#include <UpDownConstants.au3>
#include <EditConstants.au3>

#include <File.au3>
#include <Misc.au3>
#include <String.au3>
#include <Array.au3>

;~ #include "GUIListViewEx.au3"
#include ".\GUIListViewEx\GUIListViewEx.au3"

Global  $iYellow = "0xFFFF00", _
        $iLtBlue = "0xCCCCFF", _
        $iGreen = "0x00FF00", _
        $iBlack = "0x000000", _
        $iRed = "0xFF0000", _
        $iBlue = "0x0000FF", _
        $iWhite = "0xFFFFFF"

$hGUI = GUICreate("ListView Example_6 MultiComBoxX's", 660, 330)

; Create ListView
$idLabel_1        = GUICtrlCreateLabel("ComboBox  - $vRow, $vCol for edit Multi ComboBox's) etc...", 10, 10, 400, 20)
$idLabel_2        = GUICtrlCreateLabel("From Index= , Row= , Col= ", 10, 295, 150, 15)
$idLabel_3        = GUICtrlCreateLabel("To Index= , Row= , Col= ", 10, 310, 150, 15)
$idListview_1    = GUICtrlCreateListView("Col 0|Col 1|Col 2|Col 3", 10, 30, 640, 260, BitOR( $LVS_EDITLABELS, $LVS_SINGLESEL))    ; $iD
$hListView_1    = ControlGetHandle( $hGUI, "", $idListview_1)

_GUICtrlListView_SetExtendedListViewStyle( $idListview_1, BitOR( $LVS_EX_CHECKBOXES, $LVS_EX_GRIDLINES, $LVS_EX_FULLROWSELECT, $LVS_EX_HEADERDRAGDROP))

For $i = 0 To 3
    _GUICtrlListView_SetColumnWidth( $idListview_1, $i, 158)
Next

;~ ; Create Cols & Rows
Global $vCols = 6, $vRows = 4

; Create array and fill listview
Global $aLVArray_1    [$vCols][$vRows]

$aLVArray_1[0][0] = "RJ-45 color order USA|RJ-45 color order EUROPE|RJ-45 color order ASIA"
$aLVArray_1[0][2] = "Blue,Green,Orange,Brown|Blue,Orange,Green,Brown"
$aLVArray_1[1][0] = "Standard TV USA|Standard TV EUROPE"
$aLVArray_1[1][2] = "NTSC|Pal/Secam|Pal/Secam/NTSC"
$aLVArray_1[2][1] = "Black|White|Yellow|Green|Red|Blue"
$aLVArray_1[3][2] = "50 HZ|55 hZ|60 hZ|120 hZ|144 hZ"
$aLVArray_1[4][0] = "Janvier|Février|Mars|Avril|Mai|Juin|Juillet|Août|Septembre|Octobre|Novembre|Décembre"
$aLVArray_1[5][3] = "Lundi|Mardi|Mercredi|Jeudi|Vendredi|Samedi|Dimanche"

;~ _ArrayDisplay( $aLVArray_1)

_Combo_Array( $idListview_1, $aLVArray_1, $vRows, $vCols)    ;

; Initiate ListView = sort on column click - editable headers
$iLVIndex_1 = _GUIListViewEx_Init( $idListview_1, $aLVArray_1, 0, 0, True, 8 + 32 + 256)            ; $iLVIndex_1 = _GUIListViewEx_Init( $idListview_1, $aLVArray_1, 0, 0, True, 8 + 256 +512) ; + 16

; Set column edit status
_GUIListViewEx_SetEditStatus( $iLVIndex_1, "0", 9, _Combo_Edit) ; Call function when double clicked
;~ _GUIListViewEx_SetEditStatus( $iLVIndex_1, "1", 9, _Combo_Edit)
_GUIListViewEx_SetEditStatus( $iLVIndex_1, "1")    ; "0;2;3"
_GUIListViewEx_SetEditStatus( $iLVIndex_1, "2", 9, _Combo_Edit)
_GUIListViewEx_SetEditStatus( $iLVIndex_1, "3", 9, _Combo_Edit)

$cContent        = GUICtrlCreateButton("Content", 180, 295, 80, 30)        ; $iMode  -    0 = Content of ListView
$sCheckboxes    = GUICtrlCreateButton("Checkboxes", 280, 295, 80, 30)    ;            1 - State of the checkboxes
                                                                        ;            2 - User colours (if initialised)
                                                                        ;            3 - Content of ListView forced to 2D for saving
$cLVArray        = GUICtrlCreateButton("LVArray_1", 380, 295, 80, 30)    ;
$cHeaders        = GUICtrlCreateButton("Headers", 480, 295, 80, 30)        ;            4 - ListView header titles
                                                                        ;            5 - Header colours (if initialised)

GUISetState()

_GUIListViewEx_MsgRegister()


While 1

   $iMsg = GUIGetMsg()
   Switch $iMsg
         Case $GUI_EVENT_CLOSE
            Exit
         Case $cContent
            $aRet = _GUIListViewEx_ReturnArray($iLVIndex_1, 0)            ; $iMode  -    0 = Content of ListView
            _ArrayDisplay($aRet, "$cContent", Default, 8)
         Case $sCheckboxes
            $aRet = _GUIListViewEx_ReturnArray($iLVIndex_1, 1)            ;            1 - State of the checkboxes
            _ArrayDisplay($aRet, "$cContent", Default, 8)
         Case $cLVArray
            _ArrayDisplay( $aLVArray_1, "$aLVArray_1", Default, 8)
         Case $cHeaders
            $aRet = _GUIListViewEx_ReturnArray($iLVIndex_1, 4)            ;            4 - ListView header titles
            _ArrayDisplay($aRet, "$cHeaders", Default, 8)
   EndSwitch

   $vRet = _GUIListViewEx_EventMonitor()
   If @error Then
      MsgBox($MB_SYSTEMMODAL, "Error", "Event error: " & @error)
   EndIf

   Switch @extended
         Case 0
            ; No event detected
         Case 1
            If $vRet = "" Then
;~                 MsgBox($MB_SYSTEMMODAL, "Edit", "Edit aborted" & @CRLF)
            Else
;~                _ArrayDisplay($vRet, "ListView " & _GUIListViewEx_GetActive() & " content edited", Default, 8)
            EndIf
         Case 2
            If $vRet = "" Then
;~                MsgBox($MB_SYSTEMMODAL, "Header edit", "Header edit aborted" & @CRLF)
            Else
;~                _ArrayDisplay($vRet, "ListView " & _GUIListViewEx_GetActive() & " header edited", Default, 8)
            EndIf
         Case 3
            MsgBox($MB_SYSTEMMODAL, "Sorted", "ListView: " & $vRet & @CRLF)
         Case 4
            Local $aRet = StringSplit($vRet, ":")
;~             _ArrayDisplay( $aRet)
            Local $iRows = UBound( $aLVArray_1, $UBOUND_ROWS)-1, $iCols = UBound( $aLVArray_1, $UBOUND_COLUMNS)-1
            Local $aExtract = _ArrayExtract( $aLVArray_1, $aRet[3], $aRet[3], 0, $iCols)
            _ArrayDelete( $aLVArray_1, $aRet[3])
            _ArrayInsert($aLVArray_1, $aRet[4], $aExtract)
            GUICtrlSetData( $idLabel_3, "Row " & $aRet[3] & " dragged to row "& $aRet[4])
            ControlCommand( $hGUI, "", $cLVArray, "SendCommandID")                                                        ; Get Array $cLVArray
         Case 6
            ; ---> -------------------------------------------------------------------------------------------------------------------
            Local $aRet = StringSplit($vRet, "-")
;~             _ArrayDisplay( $aRet)
;~             ConsoleWrite( "$aRet[1]="&$aRet[1]& ", $aRet[2]="&$aRet[2] &@CRLF)
            Local $Array1    = StringSplit( StringTrimLeft( $aRet[1], 4), "|")    ; 0,1,2,3
            Local $Array2    = StringSplit( StringTrimLeft( $aRet[2], 4), "|")    ; 3,0,1,2
;~             _ArrayDisplay( $Array1, "Return Before")
;~             _ArrayDisplay( $Array2, "Return After")
            ;
            Local $iRows = UBound( $aLVArray_1, $UBOUND_ROWS), $iCols = UBound( $aLVArray_1, $UBOUND_COLUMNS)
            Local $aRet[$iRows][$iCols]        ; [6][4]
;~             _ArrayDisplay( $aRet, "$aRet")
            For $i = 0 To $iRows-1            ; 5
               For $j = 0 To $iCols-1        ; 3
                  $aRet[$i][$j] = $aLVArray_1[ $i][ $Array1[$j]]
                  ConsoleWrite( "[" & $i &"]["& $j &"],       $aRet = "& $aRet[$i][$j] & @CRLF)
;~                   ConsoleWrite( "[" & $i &"]["& $j &"], $aLVArray_1 = "& $aLVArray_1[$i][$j] & @CRLF&@CRLF)
               Next
            Next
            $aLVArray_1 = $aRet
;~             _ArrayDisplay( $aRet, "$aRet")
;~             _ArrayDisplay( $aLVArray_1, "$aLVArray_1")
            ControlCommand( $hGUI, "", $cLVArray, "SendCommandID")                                                        ; Get Array $cLVArray
            ; <--- -------------------------------------------------------------------------------------------------------------------
         Case 9
            If $vRet = "" Then
            Else
;~                _ArrayDisplay($vRet, "ListView " & _GUIListViewEx_GetActive() & " header edited", Default, 8)
               $vDrag    = $vRet[0]&"|"&$vRet[1]&"|"&$vRet[2]
               GUICtrlSetData( $idLabel_2, "From Index=" & $vRet[0] &", Row="& $vRet[1] &", Col="& $vRet[2])            ; [ListView index, zero-based row, zero-based col]
            EndIf
   EndSwitch

WEnd


Func _Combo_Array( $hLV, $vValue, $iRow, $iCol)
   Local $vRet = "", $vValueCombo = ""
   For $i = 0 To $iCol -1
      $vRet = ""
      $vValueCombo = ""
      For $j = 0 To $iRow -1
         $vRet            = StringLeft( $vValue[$i][$j], StringInStr( $vValue[$i][$j], "|") -1)
         $vValueCombo &= $vRet & "|"
      Next
      If $vValueCombo <> "" Or $vRet = "" Then GUICtrlCreateListViewItem( $vValueCombo, $hLV)
   Next
EndFunc


Func _Combo_Edit( $hLV, $iIndexLV, $iRow, $iCol)

   _GUIListViewEx_BlockReDraw( $idListview_1, True)        ; True  = Prevent redrawing during Insert/Delete/Change calls

   Local $a_LVArray = $aLVArray_1                        ; <=== External Global Array to Local

   Local $sCombo_Fill
   Switch $iRow
      Case 0 To UBound( $a_LVArray, $UBOUND_ROWS) -1
         Switch $iCol
            Case 0 To UBound( $a_LVArray, $UBOUND_COLUMNS) -1
               $sCombo_Fill = $a_LVArray[ $iRow][ $iCol]
         EndSwitch
   EndSwitch

   ; Retrieve the position x, y and size (width and height)
   Local $aPos = ControlGetPos( $hGUI, "", $hLV)

   $aRect = _GUICtrlListView_GetSubItemRect( $hLV, $iRow, $iCol)
   $X = $aPos[0]+$aRect[0]    +2
   $Y = $aPos[1]+$aRect[1]    +1
   $W = _GUICtrlListView_GetColumnWidth($hLV, $iCol)
   $H = $aRect[3]-$aRect[1] +2

   ; Create combo dialog
   $hCombo_Dialog = GUICreate( "", $W, $H, -1, -1, BitOR($WS_POPUP, $WS_SYSMENU), $WS_EX_TOOLWINDOW+$WS_EX_TOPMOST)

   ; Attach window to the desktop (always on bottom)
   _WinAPI_SetParent( $hCombo_Dialog, $hGUI)

   ; Move GUI 2
   WinMove( $hCombo_Dialog, "", $X, $Y, $W, $H)

   ; Move GUI 2 Combo OK
   Local $aLVPos = WinGetClientSize( $hCombo_Dialog)
   $cCombo = GUICtrlCreateCombo( "", 0, 0, $aLVPos[0], $aLVPos[1])

   ; Fill combo with required elements
   GUICtrlSetData( $cCombo, $sCombo_Fill, _GUICtrlListView_GetItemText( $hLV, $iRow, $iCol))

   GUISetState()

   ControlClick( $hCombo_Dialog, "", $cCombo, "left", 1, $aLVPos[0]-5, $aLVPos[1]-5)

   While 1
      Switch GUIGetMsg()
         Case $GUI_EVENT_CLOSE, WinActive( $hCombo_Dialog)
            GUIDelete( $hCombo_Dialog)
            Return
         Case $cCombo
            ExitLoop
      EndSwitch
   WEnd

   ; Change ListView element to match selection
   _GUIListViewEx_ChangeItem( $iIndexLV, $iRow, $iCol, GUICtrlRead( $cCombo))

   _GUIListViewEx_SetColour( $iLVIndex_1, $iRed&";"&$iYellow, $iRow, $iCol)        ; _GUIListViewEx_SetColour( $iLV_Index, $sColSet, $iRow, $iCol)

   ControlListView( $hGUI, "", $idListview_1, "DeSelect", $iRow)
   _GUICtrlListView_SetItemFocused( $hListView_1, $iRow, False)

   _GUIListViewEx_BlockReDraw( $idListview_1, False)                            ; False = Allow future redrawing and force a redraw

   GUIDelete( $hCombo_Dialog)

EndFunc



[Anthony72]

If only #include <Array.au3> could be updated"
I already did this just in case...

#include <Array.au3>

Local $aArray[4][4]
For $i = 0 To 3
        For $j = 0 To 3
                $aArray[$i][$j] = $i & $j
        Next
Next
_ArrayDisplay($aArray, "Original")


_ArrayRowMove( $aArray, 3, 0)
_ArrayDisplay( $aArray, "Return Rows")

_ArrayColMove( $aArray, 2, 3)
_ArrayDisplay( $aArray, "Return Cols")

Func _ArrayRowMove(ByRef $aArray, $iStart, $iEnd)
   Local $iRows = UBound( $aArray, $UBOUND_ROWS)-1, $iCols = UBound( $aArray, $UBOUND_COLUMNS)-1
   Local $aExtract = _ArrayExtract( $aArray, $iStart, $iStart, 0, $iCols)
   _ArrayDelete( $aArray, $iStart)
   _ArrayInsert( $aArray, $iEnd, $aExtract)
EndFunc

Func _ArrayColMove(ByRef $aArray, $iStart, $iEnd)
   Local $iRows = UBound( $aArray, $UBOUND_ROWS)-1, $iCols = UBound( $aArray, $UBOUND_COLUMNS)-1
   Local $aExtract = _ArrayExtract( $aArray, 0, $iRows, $iStart, $iStart)
   _ArrayColDelete( $aArray, $iStart)
   _ArrayColInsert( $aArray, $iEnd)
   For $i = 0 To $iRows
      $aArray[$i][$iEnd] = $aExtract[$i]
   Next
EndFunc

[Melba23]

Anthony72,

Quote

here I am stuck

No matter how much I debug, I don't see the problem

Stuck with what? Since you started posting about my UDF you constantly say you have problems without clearly explaining what the problems are. So please just explain (en francais si tu veux) exactly what it is that you need to do and what is not happening as you wish.

From the scripts you have posted above you appear to be having problems with the column reordering - but what is not to your liking? You have the old and new column order returned from the UDF - it is up to you to do as you wish with that information.

And what are these "new" array functions that you have suddenly introduced? What do they have to do with my UDF?

Please start explaining  your problems in more details or I am going to stop offering assistance as I have no real idea what it is that you are seeking to achieve.

M23

[Anthony72]

I apologize, I seemed to have made that clear, I'm sorry.
It's the reorganization of the "Columns" that is causing me problems, I can't get the correct correspondence.

I put this code so that it could be useful to someone, I also apologize for the off-topic, it can be deleted.

[Melba23]

Antony72,

Quote

It's the reorganization of the "Columns" that is causing me problems, I can't get the correct correspondence

And once again you do not explain in detail. What "correspondence" are you talking about? The ListView obviously reflects what you have done in reordering the columns and the _EventMonitor tells you the old and new order. Just what is is that is not working for you?

M23

[queensoft]

See SOLUTION below!!!

I'm struggling with 2 problems:

1. How do I update a sub-item of a ListView?

Using your example GLVEx_Example_1.au3

Add a button / line of code that changes one single item (cell), let's say column 2, row 2.

Right now, I'm using this:

_GUICtrlListView_SetItem($cListView_Left, "xxxx", 2, 2)

And it works, the new value shows in the proper cell. Also _GUICtrlListView_GetItemTextArray works perfectly on that roe, it returns the new value "xxxx".

Later edit: this does NOT work for me, am I doing something wrong??

_GUIListViewEx_ChangeItem($cListView_Left, 2, 2, 'xxxxxx')

But here comes problem 2.

2. Drag & drop ANY line/row (not just row 2,  updated above).

The "xxxx" value disappears and is replaced with the original value.

If I use the standard edit function (double click > $iMode     - 1 = Editable using manual input, - 2 = Editable using combo) - everything is OK, values are kept after drag&drop.

Thank you.



SOLUTION:

I was using $cListView_Left - $cListView_Left = GUICtrlCreateListView("............

Correct way is to use $iLV_Left_Index = _GUIListViewEx_Init($cListView_Left,..........

And, of course, solution to 1. is to use proper custom function from UDF: _GUIListViewEx_ChangeItem($iLV_Left_Index,

Edited January 30 by queensoft

[Melba23]

queensoft,

I wish all the UDF problems were solved by the OP!

M23

[queensoft]

New question: how do I accept only some values into a cell?

Examples:

- accept only numbers (any, inside an interval....) / letters

- accept only values from combo (right now, I can enter any text, even tough $iMode     - 2 = Editable using combo)

Is there an automatic way, already in place in the UDF?

Or should I manually check, using _GUIListViewEx_EventMonitor?



And question 2: can I add icons to first column?



Thank you.

Edited January 30 by queensoft
