Function to select from a list

[Blaxxun]

Hello Forum,

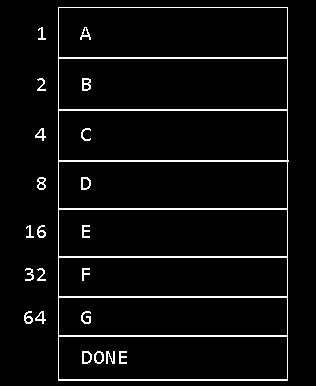

Iam looking for an elegant way to select points in a menu (see below).

In this menu one can go up and down with the arrow keys and select with enter. There is also a "Done" field when the points are selected.

To cover all possibilities i thought it might be wise to use something like Func select($mode)

where $mode is a number which represents a menu point.

Lets say i wanna select B and D then the number would be 10.

After selection the cursor moves to "Done"



My problem now is how to split up the given number back into the single numbers.

Im sure there is a name for this process. I just dont know how it is called or what i should look for.

Thankfull for every hint.







Edited March 5, 2016 by Blaxxun

[Melba23]

Blaxxun,

Quote

My problem now is how to split up the given number back into the single numbers

You can use BitAnd to check if a single number is present within the given number.

M23

[Blaxxun]

Oh wow, that was quick.

Thank you.

This means with BitAND i can extract 7 numbers from 127 ?

Okay, i have to check that out.

[Blaxxun]

It WORKS!!!!

Func BitAndTest()

    Local $Mode = 21

    If BitAND($Mode, 1) Then ConsoleWrite("1 is in" & @CRLF)
    If BitAND($Mode, 2) Then ConsoleWrite("2 is in" & @CRLF)
    If BitAND($Mode, 4) Then ConsoleWrite("4 is in" & @CRLF)
    If BitAND($Mode, 8) Then ConsoleWrite("8 is in" & @CRLF)
    If BitAND($Mode, 16) Then ConsoleWrite("16 is in" & @CRLF)
    If BitAND($Mode, 32) Then ConsoleWrite("32 is in" & @CRLF)
    If BitAND($Mode, 64) Then ConsoleWrite("64 is in" & @CRLF)

EndFunc   ;==>BitAndTest

THANK YOU!!!!

[Melba23]

Blaxxun,

Of course it works - that is how Windows decides which out of the many styles we choose to apply to GUIs and controls.  But it will only work if the numbers in question are powers of 2, of course.

M23

[Blaxxun]

Cool, thanks.

Never used that command before. But i was on the right way with my powers of two.

[AutoBert]

You can solve this i a function like this:

#include <Array.au3>

Do
    $iVar = InputBox('number to check', 'Please enter number', '', '', 3)
    If Not @error Then
        $aVar = _GetSetBits($iVar)
        _ArrayDisplay($aVar)
    Else
        $iVar=999
    EndIf
Until $iVar=999

Func _GetSetBits($iToCheck)
    ConsoleWrite('checking: '&$iToCheck&@CRLF)
    Local $aBits[8]
    For $x = 0 to 7
        If BitAND(2 ^ $x, $iToCheck) Then
            $aBits[$x] = 1
            ConsoleWrite('Bit: '&$x&' is set    (2^'&$x&' is in '&$iVar&')')
        Else
            $aBits[$x] = 0
            ConsoleWrite('Bit: '&$x&' isn''t set (2^'&$x&' isn''t in '&$iVar&')')
        EndIf
        ConsoleWrite(@CRLF)
    Next
    ConsoleWrite(@CRLF)
    Return $aBits
EndFunc   ;==>_GetSetBits



[Blaxxun]

Cool AutoBert,

Isnt that a so called "Bit Viewer" ? Or kind of.

Nice attempt. Thank you for that!



In the meanwhile i was able to finalize my "menu chooser" with button control.

expandcollapse popup

Func SetMenue($Mode)

; The "s" key moves the cursor one menue item down

    Local $AZ = 1

    Send("{SPACE}") ; Press Menue Button to open menue
    Sleep(200)

    If BitAND($Mode, 1) Then
        ;ConsoleWrite("Punkt 1 gewählt" & @CRLF)
        Send("{SPACE}")
        $AZ = 1
    EndIf

    If BitAND($Mode, 2) Then
        ;ConsoleWrite("Punkt 2 gewählt" & @CRLF)
        Send("s")
        Send("{SPACE}")
        $AZ = 2
    EndIf

    If BitAND($Mode, 4) Then
        ;ConsoleWrite("Punkt 4 gewählt" & @CRLF)
        Send("{s " & 3 - $AZ & "}")
        Send("{SPACE}")
        $AZ = 3
    EndIf

    If BitAND($Mode, 8) Then
        ;ConsoleWrite("Punkt 8 gewählt" & @CRLF)
        Send("{s " & 4 - $AZ & "}")
        Send("{SPACE}")
        $AZ = 4
    EndIf

    If BitAND($Mode, 16) Then
        ;ConsoleWrite("Punkt 16 gewählt" & @CRLF)
        Send("{s " & 5 - $AZ & "}")
        Send("{SPACE}")
        $AZ = 5
    EndIf

    If BitAND($Mode, 32) Then
        ;ConsoleWrite("Punkt 32 gewählt" & @CRLF)
        Send("{s " & 6 - $AZ & "}")
        Send("{SPACE}")
        $AZ = 6
    EndIf

    If BitAND($Mode, 64) Then
        ;ConsoleWrite("Punkt 64 gewählt" & @CRLF)
        Send("{s " & 7 - $AZ & "}")
        Send("{SPACE}")
        $AZ = 7
    EndIf

    Send("{BACKSPACE}"); Exit Menue

EndFunc   ;==>SetMenue



Edited March 5, 2016 by Blaxxun

[AutoBert]

The logic behind you can also use for your menu chooser:

Func SetMenue($Mode)
; The "s" key moves the cursor one menue item down
    Local $AZ = 1
    Send("{SPACE}") ; Press Menue Button to open menue
    Sleep(200)
    For $x= 1 to 7
        If BitAND($Mode, $2^x) Then
            ;ConsoleWrite("Punkt "&$x&" gewählt" & @CRLF)
            if $x< 3 Then   ;müßte logisch eigentlich < 2 bzw. =1 sein
                Send("{SPACE}")
                ;warum diese Sonderbehandlung vom 1. und 2. Menüeintrag?
                ;vom Original übernommen aber nicht verstanden warum auch der 2. Eintrag
                ;ein anderes Send benötigt.
            Else
                Send("{s " & $x - $AZ & "}")
            EndIf
        EndIf
        $AZ = $x
    Next
    Send("{BACKSPACE}"); Exit Menue
EndFunc   ;==>SetMenue



Edited March 4, 2016 by AutoBert

[Blaxxun]

Oh nice. Thanks AutoBert!

I thought already that my code could have been more compressed but since it worked fine i just left it as it is.

The reason behind the special treatment of menu 1 is that the cursor is always on it when you enter the menu.

So it doesnt need a cursor down.

The second entry needs only 1 move downwards, so i used Send("s") only without variable. I guess it would also work with

Send("{s " & $x - $AZ & "}")

when $x = 0

Ill check it out.

Thank you! Vielen Dank!



[Blaxxun]

I checked it out but i cant seem to make it work properly.

The first problem was that my list started with 1,2,4,8,16,32,64 but 2^$x starts with 2.

If i set $mode to 254 it selects everything which is correct, but if i set it to 192 it selects the first 3 entrys instead of the last 2.

Func SetMenue($Mode)

; The "s" key moves the cursor one menue item down
    Local $AZ = 1
    Send("{SPACE}") ; Press Menue Button to open menue
    Sleep(200)
    For $x= 1 to 7
        If BitAND($Mode, 2^$x) Then
                Send("{s" & $x - $AZ & "}")
                Send("{SPACE}")
         EndIf
        $AZ = $x
    Next
    Send("{BACKSPACE}"); Exit Menue
EndFunc   ;==>SetMenue

I get the idea, but have to look into it further. Thanks a lot

[AutoBert]

Sorry, the for $x must start with0:

Func SetMenue($Mode)

; The "s" key moves the cursor one menue item down
    Local $AZ = 1
    Send("{SPACE}") ; Press Menue Button to open menue
    Sleep(200)
    For $x= 0 to 7
        If BitAND($Mode, 2^$x) Then
                Send("{s" & $x+1-$AZ & "}")
                Send("{SPACE}")
         EndIf
        $AZ = $x+1
    Next
    Send("{BACKSPACE}"); Exit Menue
EndFunc   ;==>SetMenue
