_GUIConsole - Create and write to alternative console + Enter inputs through the console (new!)


Guest
 Share

Recommended Posts

Hello,

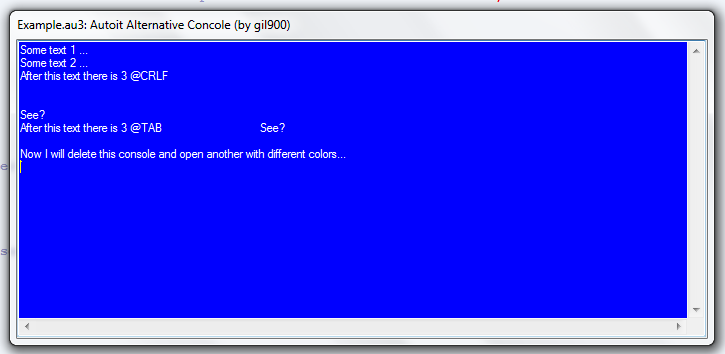

Example 1:

example.png.1e93d1a64e2992c59e2b8d2ba10e

*^ Please ignore from the "concole". I fixed it

56bfaae5ae686_example2.png.de86aa0257abb





#include "_GUIConsole.au3"


; Set exit on exit key
HotKeySet('{ESC}','Exit1')


; Create the Console GUI
_GUIConsole_Create(Default,$COLOR_BLUE,$COLOR_WHITE)

Sleep(500)
; Print some text
_GUIConsole_Out('Some text 1 ...');,$iAddLines = 1,$sAddChar = @CRLF)

Sleep(500)
; Print some text
_GUIConsole_Out('Some text 2 ...')

Sleep(500)

_GUIConsole_Out('After this text there is 3 @CRLF',3)

Sleep(500)

_GUIConsole_Out('See?')

Sleep(1000)

_GUIConsole_Out('After this text there is 3 @TAB',3,@TAB)

Sleep(500)

_GUIConsole_Out('See?',2)

Sleep(1000)

_GUIConsole_Out('Now I will delete this console and open another with different colors...')

Sleep(1500)

; Delete the Console GUI
_GUIConsole_Delete()

Sleep(500)

; Create the Console GUI
_GUIConsole_Create('Just another title',$COLOR_RED,$COLOR_WHITE)

Sleep(500)


_GUIConsole_Out('As you can see, now console looks different.'&@CRLF&'Enjoy!')


While Sleep(100)
WEnd



#Region functions
Func Exit1()
    Exit
EndFunc

#EndRegion



Example 2 (NEW) :
56c6702791026_example33.png.8f9e3952b441

An example much better included here
56c78fb067639_sharedvarsexample.thumb.pn

Example 3 code:

#include "_GUIConsole.au3"
HotKeySet('{ESC}','Exit1')

_GUIConsole_Create()


While 1
    _GUIConsole_Out('Please enter value for $number1: ',0)
    $number1 = _GUIConsole_In()
    _GUIConsole_Out(' The value of $number1 is: '&$number1)

    _GUIConsole_Out('Please enter the value of $number2: ',0)
    $number2 = _GUIConsole_In()
    _GUIConsole_Out(' The value of $number2 is: '&$number2,2)


    _GUIConsole_Out('$number1+$number2 = '&$number1+$number2)
    _GUIConsole_Out('$number1-$number2 = '&$number1-$number2)
    _GUIConsole_Out('$number1*$number2 = '&$number1*$number2)
    _GUIConsole_Out('$number1/$number2 = '&$number1/$number2,2)


    While 1
        _GUIConsole_Out('To exit: press X, To reset press R :')
        Switch _GUIConsole_In()
            Case 'x', 'X'
                Exit
            Case 'r', 'R'
                 _GUIConsole_Clean()
                ExitLoop
            Case Else
                _GUIConsole_Out('You must enter X or R')

        EndSwitch
    WEnd

WEnd






Func Exit1()
    Exit
EndFunc





Example 3:

56c60a7bbb7e4_example22.png.939f407a1811

#include "_GUIConsole.au3"
#include "Array.au3"


HotKeySet('{ESC}','Exit1')

$haConsole1 = _GUIConsole_Create('Console 1 - Events of X',$COLOR_BLUE,$COLOR_WHITE) ; Create this console and set this to be the active one
$haConsole2 = _GUIConsole_Create('Console 2 - Events of Y',$COLOR_RED,$COLOR_WHITE) ; Create this console and set this to be the active one
$haConsole3 = _GUIConsole_Create('Console 3 - Events of Z',$COLOR_GREEN,$COLOR_WHITE) ; Create this console and set this to be the active one


Sleep(1000)

; Write something in the active console
; NOTE: If _GUIConsole_SetActiveConsole was not called before then the active console will be always the
; Last created one ($haConsole3)
_GUIConsole_Out('Event 1 ...')
Sleep(500)
_GUIConsole_Out('Event 2 ...')
Sleep(500)



; Write something in the $haConsole1
_GUIConsole_SetActiveConsole($haConsole1) ; To write something in another console you must first set the another
; Console to be the active so when you use _GUIConsole_Out(*) , the text will be printed in the another console.

_GUIConsole_Out('Event 1 ...')
Sleep(500)
_GUIConsole_Out('Event 2 ...')
Sleep(500)


Sleep(1000)

; Write some critical and important event in $haConsole2
;   OK, so the event we are going to print is very important one so we may want to print the event and also
;   to highlight this event by bringing the active console to top and flash the window.
_GUIConsole_SetActiveConsole($haConsole2)
_GUIConsole_Out("This is a very important event !!! Don't miss it!")
_GUIConsole_Out("Y just crashed!")
_GUIConsole_Flash($haConsole2) ; To highlight the console


While Sleep(100)
WEnd






Func Exit1()
    Exit
EndFunc




Functions:


Quote



; #FUNCTION# ====================================================================================================================
; Name ..........: _GUIConsole_Create
; Description ...: Create alternative GUI console (Similar to c++ console but better
; Syntax ........: _GUIConsole_Create([$sTitle = Default[, $hBkColor = Default[, $hTextColor = Default[, $x_size = 690[,
;                  $y_size = 298]]]]])
; Parameters ....: $sTitle              - [optional] The title of the console. Default is Default.
;                  $hBkColor            - [optional] The background color of the console. Default is Default.
;                  $hTextColor          - [optional] The color of the text in the console. Default is Default.
;                  $x_size              - [optional] The x size of the console. Default is 690.
;                  $y_size              - [optional] The y size of the console. Default is 298.
; Return values .: handle of the console (You need this if you create more then one console and you switch between them.
; Author ........: gil900
; Link ..........: https://www.autoitscript.com/forum/topic/180608-_guiconsole-create-and-write-to-alternative-console/
; Example .......: YES
; ===============================================================================================================================



; #FUNCTION# ====================================================================================================================
; Name ..........: _GUIConsole_Out
; Description ...: Print text data in the console
; Syntax ........: _GUIConsole_Out($sText[, $iAddLines = 1[, $sAddChar = @CRLF]])
; Parameters ....: $sText               - A string value.
;                  $iAddLines           - An integer value. Default is 1.
;                                        [optional] If set to 0, It will not add "ENTER" (@CRLF of something else you set in the next parameter)
;                                        after the text.
;                                        If set bigger then 0 then it will add $iAddLines times "ENTER"(or something else) after the text.
;                  $sAddChar            - [optional] Default is @CRLF. This variable matter if $iAddLines > 0. It will add $iAddLines times
;                                        $sAddChar ( @CRLF in this case if set to default)
; Return values .: None
; Author ........: gil900
; Link ..........: https://www.autoitscript.com/forum/topic/180608-_guiconsole-create-and-write-to-alternative-console/
; Example .......: YES
; ===============================================================================================================================


; #FUNCTION# ====================================================================================================================
; Name ..........: _GUIConsole_In
; Description ...: Get input from the console
; Syntax ........: _GUIConsole_In()
; Parameters ....: $bCleanEnter                - [optional] If set to 1 then it will remove the enter that the user enter...
; Return values .: Return the text that entered in the console
; Author ........: gil900
; Example .......: YES
; ===============================================================================================================================


; #FUNCTION# ====================================================================================================================
; Name ..........: _GUIConsole_Clean
; Description ...: Remove all text that printed in the console
; Syntax ........: _GUIConsole_Clean()
; Return values .: None
; Author ........: gil900
; Example .......: Yes
; ===============================================================================================================================


; #FUNCTION# ====================================================================================================================
; Name ..........: _GUIConsole_Delete
; Description ...: Delete the Console GUI
; Syntax ........: _GUIConsole_Delete()
; Return values .: None
; Author ........: gil900
; Link ..........: https://www.autoitscript.com/forum/topic/180608-_guiconsole-create-and-write-to-alternative-console/
; Example .......: YES
; ===============================================================================================================================


; #FUNCTION# ====================================================================================================================
; Name ..........: _GUIConsole_SetActiveConsole
; Description ...: Set in which console the data will be printed
; Syntax ........: _GUIConsole_SetActiveConsole($haConsole)
; Parameters ....: $haConsole           - The handle for the target console that returned from _GUIConsole_Create.
; Return values .: Failure: sets the @error the line number of the error.
; Author ........: gil900
; Link ..........: https://www.autoitscript.com/forum/topic/180608-_guiconsole-create-and-write-to-alternative-console/
; Example .......: YES
; ===============================================================================================================================


; #FUNCTION# ====================================================================================================================
; Name ..........: _GUIConsole_Flash
; Description ...: Flash this console - Useful if there is something important to see in the console
; Syntax ........: _GUIConsole_Flash($haConsole[, $iFlashes = 4[, $iDelay = 500]])
; Parameters ....: $haConsole           - The handle for the target console that returned from _GUIConsole_Create.
;                  $iFlashes            - [optional] The amount of times to flash the console. Default 4.
;                  $iDelay              - [optional] The time in milliseconds to sleep between each flash. Default 500 ms.
; Return values .: None
; Author ........: gil900
; Modified ......:
; Remarks .......:
; Related .......:
; Link ..........: https://www.autoitscript.com/forum/topic/180608-_guiconsole-create-and-write-to-alternative-console/
; Example .......: YES
; ===============================================================================================================================





Download UDF:

_GUIConsole r3.1.rar

_GUIConsole r3.rar

* Added:  _GUIConsole_In(*) - The ability to enter input  through the console (See example 3)
* Changed: Name of _GUIConsole_Write changed to _GUIConsole_Out
* Added: GUIConsole_Clean



_GUIConsole - r2.rar

* Fixed: problem in the title when set to Default and the script is Compiled
* Added: The ability to create and work with more than console (See example 2)
* _GUIConsole_Flash

* You can now resize the console


_GUIConsole.au3



Hope you find it useful.
Enjoy :)





Edited by Guest
Link to comment
Share on other sites

It's useful but I like the richedit console I made a while back for a large application I was working on. Went through and pieced it all together to work as a standalone .au3 file if you wanna take a look. Uses hex colors to highlight words (or even letters) using the color tags (<color=0xFF00FF>Hello</color> <color=0x00FF00>World</color>)

Example:

#include <File.au3>
#include <ButtonConstants.au3>
#include "GUICreateConsole.au3"

Global $hGUI = GUICreate("", 540, 400)
Global $btnSelectPic = GUICtrlCreateButton("Select Picture", 10, 10, 100, 30)
Global $btnRandom = GUICtrlCreateButton("Random properties", 10, 40, 100, 20)
Global $lblLabel = GUICtrlCreateLabel("", 120, 10, 480, 25)
GLobal $picPic = GUICtrlCreatePic("", 10, 70, 520, 320)
Global $file_path = ""
Global $drive = ""
Global $dir = ""
Global $filename = ""
Global $ext = ""
Global $font_names[] = ["Arial", "Segoe UI", "Consolas", "MS Sans Serif", "Courier New", "Georgia"]
Global $font_sizes[] = [10, 11, 13, 8, 9, 12]
Global $text_colors[] = [0xFF0000, 0xFFFFFF, 0xFFFF00, 0x00FFFF, 0x98F3CE]
Global $back_colors[] = [0x8B8B8B, 0x1F1F1F, 0xFBFA96, 0x000000, 0xFB96CA]
Global $trans[] = [255, 230, 210, 200, 190, 150]

GUISetState(@SW_SHOW, $hGUI)
ConsoleSetAttributes("Arial", 12, "+bo+it", "", "", 225)
GUIConsoleCreate()
ConsoleOut("Set console attributes before creating console!" & @CRLF)
ConsoleOut("Resetting Attributes" & @CRLF)
ConsoleSetAttributes("Consolas", 10, "-bo-it", "", "", 255)

While (True)
    Switch (GUIGetMsg())
        Case $GUI_EVENT_CLOSE
            GUIConsoleDelete()
            GUIDelete($hGUI)
            Exit 0
        Case $btnSelectPic
            $file_path = FileOpenDialog("Select a picture", @UserProfileDir & "\Pictures\", "All (*.*)|Jpg (*.jpg)|Bmp (*.bmp)")
            If (Not @Error) Then
                _PathSplit($file_path, $drive, $dir, $filename, $ext )
                GUICtrlSetData($lblLabel, $file_path)
                ConsoleOut("Loading image " & $filename & $ext & @CRLF)
                If (GUICtrlSetImage($picPic, $file_path)) Then
                    ConsoleOut("Successfully loaded image" & @CRLF)
                Else
                    ConsoleOut("<color=0xFF0000>Failed</color> to load " & $filename & $ext & " ... ")
                    If ($ext <> "bmp" or $ext <> "jpg" or $ext <> "gif") Then ConsoleOut("<color=0x9EAC00>" & $ext & " is not supported</color>" & @CRLF, False)
                EndIf
            EndIf
        Case $btnRandom
            ConsoleSetAttributes($font_names[Random(0, UBound($font_names) -1, 1)], $font_sizes[Random(0, UBound($font_sizes) -1, 1)], "", _
            $text_colors[Random(0, UBound($text_colors) -1, 1)], $back_colors[Random(0, UBound($back_colors) -1, 1)], $trans[Random(0, UBound($trans) -1, 1)], 225)
            ConsoleOut("New attributes updated" & @CRLF)
    EndSwitch
WEnd

GUICreateConsole.au3

#include-once
#include <GuiRichEdit.au3>
#include <WindowsConstants.au3>
#include <StaticConstants.au3>
#include <GUIConstantsEx.au3>
#include <String.au3>
#include <Color.au3>
#include <Date.au3>
#include <GuiMenu.au3>
#include <WinAPI.au3>
#include <File.au3>

#Region Global-Variables
Global Const $ANSI_CHARSET = 0
Global Const $BALTIC_CHARSET = 186
Global Const $CHINESEBIG5_CHARSET = 136
Global Const $DEFAULT_CHARSET = 1
Global Const $EASTEUROPE_CHARSET = 238
Global Const $GB2312_CHARSET = 134
Global Const $GREEK_CHARSET = 161
Global Const $HANGEUL_CHARSET = 129
Global Const $MAC_CHARSET = 77
Global Const $OEM_CHARSET = 255
Global Const $RUSSIAN_CHARSET = 204
Global Const $SHIFTJIS_CHARSET = 128
Global Const $SYMBOL_CHARSET = 2
Global Const $TURKISH_CHARSET = 162
Global Const $VIETNAMESE_CHARSET = 163
Global $__hWnd_console = Default
Global $__hWnd_parent = 0
Global $__hWnd_ctxt_menu = 0
Global $__use_parent = False
Global $__hWnd_richedit = 0
Global $__console_width = 600
Global $__console_height = 150
Global $__console_left = -1
Global $__console_top = -1
Global $__console_font_name = "Consolas"
Global $__console_font_size = 10
Global $__console_char_attributes = ""
Global $__console_txt_color = 0xC8C8C8
Global $__console_bk_color = 0x1F1F1F
Global $__console_transparency = 255
Global $__console_charset = $DEFAULT_CHARSET
Global $__rtf_console_text = ""
Global $__hWnd_wndproc = 0
Global $__ptr_procold = 0
Global $__idOpen = 0
Global $__idSave = 0
Global $__idSaveAs = 0
Global $__idClear = 0
Global $__idCopyPlain = 0
Global $__idCopyRtf = 0
Global $__idUndo = 0
Global Enum $idOpen = 1000, $idSave, $idSaveAs, $idClear, $idCopyPlain, $idCopyRtf, $idUndo
#EndRegion Global-Variables

; #FUNCTION# ====================================================================================================================
; Name ..........: GUIConsoleCreate
; Description ...: Create a RichEdit console that allows more formatting options
; Syntax ........: GUIConsoleCreate([$iWidth = Default[, $iHeight = Default[, $iLeft = Default[, $iTop = Default[,
;                   $hWndParent = Default]]]]])
; Parameters ....: $iWidth      - [optional] Width of console
;                  $iHeight     - [optional] Height of console
;                  $iLeft       - [optional] X position of console
;                  $iTop        - [optional] Y position of console
;                  $hWndParent  - [optional] Handle to the parent window
; Return values .: Handle to the console.
; Author ........: InunoTaishou
; ===============================================================================================================================

Func GUIConsoleCreate($iWidth = Default, $iHeight = Default, $iLeft = Default, $iTop = Default, $hWndParent = Default)
    If (WinExists($__hWnd_console)) Then
        ConsoleOut("Only one console allowed" & @CRLF)
        Return SetError(-1, -1, -1)
    EndIf

    If ($iWidth <> Default And $iWidth <> "") Then $iWidth = $__console_width
    If ($iHeight <> Default And $iHeight <> "") Then $iHeight = $__console_height
    If ($iLeft <> Default And $iLeft <> "") Then $iLeft = $__console_left
    If ($iTop <> Default And $iTop <> "") Then $iTop = $__console_top
    If ($hWndParent <> Default Or IsHWnd($hWndParent)) Then $__use_parent = True

    $__hWnd_parent = ($__use_parent ? $hWndParent : 0)
    $__hWnd_console = GUICreate("GUICreateConsole", $__console_width, $__console_height, $__console_left, $__console_top, BitOR($WS_POPUP, $WS_BORDER, $WS_SIZEBOX), -1, $__hWnd_parent)
    Local $__title_label = GUICtrlCreateLabel("", 0, 0, $__console_width + 1, 20, $SS_CENTER, $GUI_WS_EX_PARENTDRAG)
    $__hWnd_richedit = _GUICtrlRichEdit_Create($__hWnd_console, "", 0, 0, $__console_width + 1, $__console_height + 1, BitOR($ES_MULTILINE, $WS_VSCROLL, $ES_AUTOVSCROLL, $ES_READONLY))

    $__hWnd_ctxt_menu = GUICtrlCreateContextMenu(GUICtrlCreateDummy())

    $__idOpen = GUICtrlCreateMenuItem("Open", $__hWnd_ctxt_menu)
    $__idSave = GUICtrlCreateMenuItem("Save", $__hWnd_ctxt_menu)
    $__idSaveAs = GUICtrlCreateMenuItem("Save As...", $__hWnd_ctxt_menu)
    GUICtrlCreateMenuItem("", $__hWnd_ctxt_menu)
    $__idClear = GUICtrlCreateMenuItem("Clear", $__hWnd_ctxt_menu)
    $__idUndo = GUICtrlCreateMenuItem("Undo", $__hWnd_ctxt_menu)
    GUICtrlCreateMenuItem("", $__hWnd_ctxt_menu)
    $__idCopyPlain = GUICtrlCreateMenuItem("Copy Plain Text", $__hWnd_ctxt_menu)
    $__idCopyRtf = GUICtrlCreateMenuItem("Copy With Rtf Format", $__hWnd_ctxt_menu)
    _GUICtrlRichEdit_SetEventMask($__hWnd_richedit, $ENM_MOUSEEVENTS)
    #cs
    ; Use a WindowProc to handle the popup menu instead of a GUICtrlCreateContextMenu
        $__hWnd_ctxt_menu = _GUICtrlMenu_CreatePopup()
        _GUICtrlMenu_AddMenuItem($__hWnd_ctxt_menu, "Open", $idOpen)
        _GUICtrlMenu_AddMenuItem($__hWnd_ctxt_menu, "Save", $idSave)
        _GUICtrlMenu_AddMenuItem($__hWnd_ctxt_menu, "Save As...", $idSaveAs)
        _GUICtrlMenu_AddMenuItem($__hWnd_ctxt_menu, "", 0)
        _GUICtrlMenu_AddMenuItem($__hWnd_ctxt_menu, "Clear", $idClear)
        _GUICtrlMenu_AddMenuItem($__hWnd_ctxt_menu, "Undo", $idUndo)
        _GUICtrlMenu_AddMenuItem($__hWnd_ctxt_menu, "", 0)
        _GUICtrlMenu_AddMenuItem($__hWnd_ctxt_menu, "Copy Plain Text", $idCopyPlain)
        _GUICtrlMenu_AddMenuItem($__hWnd_ctxt_menu, "Copy With Rtf Format", $idCopyRtf)

        $__hWnd_wndproc = DllCallbackRegister("__CONSOLE_WNDPROC", "ptr", "hwnd;uint;wparam;lparam")
        $__ptr_procold = _WinAPI_SetWindowLong($__hWnd_richedit, $GWL_WNDPROC, DllCallbackGetPtr($__hWnd_wndproc))
    #ce
    GUICtrlSetResizing($__title_label, $GUI_DOCKHEIGHT)
    GUICtrlSetBkColor($__title_label, $GUI_BKCOLOR_TRANSPARENT)
    GUIRegisterMsg($WM_SIZE, "__CONSOLE_WM_SIZE")
    GUIRegisterMsg($WM_GETMINMAXINFO, "__WM_GETMINMAXINFO")
    GUIRegisterMsg($WM_NOTIFY, "__CONSOLE_WM_NOTIFY")
    GUIRegisterMsg($WM_COMMAND, "__CONSOLE_WM_COMMAND")
    OnAutoItExitRegister("GUIConsoleDelete")

    ConsoleSetAttributes()
    ConsoleOut("<color=0xFF0000>[Console initialized]</color> : <color=0xC000FF>[You can drag the console from this top line]</color>" & @CRLF)

    GUISetState(@SW_SHOW, $__hWnd_console)
    Return $__hWnd_console
EndFunc   ;==>GUIConsoleCreate

; #FUNCTION# ====================================================================================================================
; Name ..........: GUIConsoleDelete
; Description ...: Delete the created console.
; Syntax ........: GUIConsoleDelete()
; Parameters ....:
; Return values .: If an error occurs returns an array, otherwise returns 0.
;                  [0]  = 0 if failed to delete the RichEdit control.
;                  [1]  = 1 if destroying a RichEdit control belonging to another application.
;                  [2]  = 0 if failed to destroy the console GUI.
; Remarks .......: If you created the Console under a parent, call this before deleting your GUI.
; Author ........: InunoTaishou
; ===============================================================================================================================
Func GUIConsoleDelete()
    OnAutoItExitUnRegister("GUIConsoleDelete")
    GUIRegisterMsg($WM_SIZE, "")
    GUIRegisterMsg($WM_GETMINMAXINFO, "")
    GUIRegisterMsg($WM_NOTIFY, "")
    GUIRegisterMsg($WM_COMMAND, "")
    ;DllCallbackFree($__hWnd_wndproc)
    Local $__rect_console = WinGetPos($__hWnd_console)
    If (Not @error) Then
        $__console_width = $__rect_console[2]
        $__console_height = $__rect_console[3]
        $__console_left = $__rect_console[0]
        $__console_top = $__rect_console[1]
    EndIf
    Local $__richedit_destroy = _GUICtrlRichEdit_Destroy($__hWnd_richedit)
    Local $__richedit_error = @error
    Local $__console_delete = GUIDelete($__hWnd_console)
    Local $__delete_return = ""
    $__use_parent = False

    If (Not $__richedit_destroy) Then $__delete_return &= $__richedit_destroy & '|' & $__richedit_error & '|'
    If (Not $__console_delete) Then $__delete_return &= $__console_delete

    Return (StringInStr($__delete_return, '|') ? SetError(1, 0, StringSplit($__delete_return, '|', $STR_NOCOUNT)) : 0)
EndFunc   ;==>GUIConsoleDelete

; #FUNCTION# ====================================================================================================================
; Name ..........: ConsoleSetAttributes
; Description ...: Delete the created console.
; Syntax ........: ConsoleSetAttributes([$sFontName = Default[, $iFontSize = Default[, $sCharAttributes = Default[,
;                   $iTxtColor = Default[, $iBkColor = Default[, $iTransparency = Default[, $iCharset = Default]]]]])
; Parameters ....: $sFontName       - [optional] Name of font.
;                  $iFontSize       - [optional] Font size.
;                  $sCharAttributes - [optional] RichEdit character attributes (See _GUICtrlRichEdit_SetCharAttributes for more info).
;                  $iTxtColor       - [optional] Hex color to set text.
;                  $iBkColor        - [optional] Hex color to set the background.
;                  $iTransparency   - [optional] A number in the range 0 - 255. The lower the number, the more transparent the window
;                                                   will become. 255 = Solid, 0 = Invisible.
;                  $iCharset        - [optional] Character set to use (See _GUICtrlRichEdit_SetFont for more info).
; Return values .: None.
; Remarks .......: Sets the console attributes of selected text or, if none selected, sets text inserted at insertion point.
;                   Function can be called before creating a console.
; Author ........: InunoTaishou
; ===============================================================================================================================
Func ConsoleSetAttributes($sFontName = Default, $iFontSize = Default, $sCharAttributes = Default, $iTxtColor = Default, $iBkColor = Default, $iTransparency = Default, $iCharset = Default)
    If ($sFontName <> Default And $sFontName <> "") Then $__console_font_name = $sFontName
    If ($iFontSize <> Default And $iFontSize <> "") Then $__console_font_size = $iFontSize
    If ($sCharAttributes <> Default And $sCharAttributes <> "") Then $__console_char_attributes = $sCharAttributes
    If ($iTxtColor <> Default And $iTxtColor <> "") Then $__console_txt_color = $iTxtColor
    If ($iBkColor <> Default And $iBkColor <> "") Then $__console_bk_color = $iBkColor
    If ($iTransparency > 255 Or $iTransparency < 0) Then $iTransparency = 255
    If ($iTransparency <> Default And $iTransparency <> "") Then $__console_transparency = $iTransparency
    If ($iCharset <> Default And $iCharset <> "") Then $__console_charset = $iCharset
    If ($__hWnd_richedit) Then
        Local Const $__console_rtf_format = StringReplace(_GUICtrlRichEdit_StreamToVar($__hWnd_richedit, True), "\par", "", -1)
        GUISetBkColor($__console_bk_color, $__hWnd_console)
        WinSetTrans($__hWnd_console, "", $__console_transparency)
        _GUICtrlRichEdit_SetBkColor($__hWnd_richedit, $__console_bk_color)
        _GUICtrlRichEdit_SetCharColor($__hWnd_richedit, $__console_txt_color)
        _GUICtrlRichEdit_SetCharAttributes($__hWnd_richedit, $__console_char_attributes)
        _GUICtrlRichEdit_SetFont($__hWnd_richedit, $__console_font_size, $__console_font_name, $__console_charset)
        _GUICtrlRichEdit_StreamFromVar($__hWnd_richedit, $__console_rtf_format)
    EndIf
EndFunc   ;==>ConsoleSetAttributes

; #FUNCTION# ====================================================================================================================
; Name ..........: ConsoleOut
; Description ...: Append text to console
; Syntax ........: ConsoleOut([$sMsg[, $bTimeStamp = True[, $iTxtColor = $__console_txt_color]]])
; Parameters ....: $sMsg        - [optional] String to appenend. Function does not automatically appened a newline.
;                  $bTimeStamp  - [optional] Add timestamp to beginning of the text.
;                  $iTxtColor   - [optional] Hex color for text for this message.
; Return values .: None.
; Author ........: InunoTaishou
; ===============================================================================================================================
Func ConsoleOut(Const ByRef $sMsg, Const $bTimeStamp = True, Const $iTxtColor = $__console_txt_color)
    Local $__split_message
    Local $__message_text_color = $iTxtColor
    Local $__text_to_append = ""

    If ($bTimeStamp) Then _GUICtrlRichEdit_AppendTextColored('[' & _NowTime(5) & "] ", $iTxtColor, $__console_char_attributes)

    If (StringInStr($sMsg, "<color=")) Then
        $__split_message = StringSplit($sMsg, "", $STR_CHRSPLIT)
        For $i = 1 To $__split_message[0]
            If ($__split_message[$i] = '<') Then
                If ($__split_message[$i + 1] = 'c') Then
                    If (StringLen($__text_to_append)) Then
                        _GUICtrlRichEdit_AppendTextColored($__text_to_append, $__message_text_color, $__console_charset)
                        $__text_to_append = ""
                    EndIf

                    $__message_text_color = ""
                    $i += 7

                    While ($__split_message[$i] <> '>')
                        $__message_text_color &= $__split_message[$i]
                        $i += 1
                    WEnd

                    ContinueLoop
                ElseIf ($__split_message[$i + 1] = '/') Then
                    If (StringLen($__text_to_append)) Then
                        _GUICtrlRichEdit_AppendTextColored($__text_to_append, $__message_text_color, $__console_charset)
                        $__text_to_append = ""
                        $i += 7
                        $__message_text_color = $iTxtColor
                        ContinueLoop
                    EndIf
                EndIf
            Else
                $__text_to_append &= $__split_message[$i]
            EndIf
        Next

        If (StringLen($__text_to_append)) Then
            _GUICtrlRichEdit_AppendTextColored($__text_to_append, $__message_text_color, $__console_charset)
            $__text_to_append = ""
        EndIf
    Else
        _GUICtrlRichEdit_AppendTextColored($sMsg, $__message_text_color, $__console_charset)
    EndIf
EndFunc   ;==>ConsoleOut

; #FUNCTION# ====================================================================================================================
; Name ..........: ConsoleSetFromFile
; Description ...: Sets console data from path specified.
; Syntax ........: ConsoleSetFromFile(Const ByRef $sFileName)
; Parameters ....: $sFileName   - Full path to file to set console.
; Return values .: True if success, False otherwise and sets @Error to the same @Error from _GUICtrlRichEdit_StreamFromFile.
; Author ........: InunoTaishou
; ===============================================================================================================================
Func ConsoleSetFromFile(Const ByRef $sFileName)
    ConsoleClear()
    Local $__stream_from_file = _GUICtrlRichEdit_StreamFromFile($__hWnd_richedit, $sFileName)
    If (Not $__stream_from_file) Then
        $__stream_from_file = @Error
        ConsoleOut((@Error = 1021 ? "Cannot open file" : @Error = 1022 ? "File is empty" : @Error = 700 ? "Attempt to stream in too many characters" : "") & @CRLF)
        Return SetError($__stream_from_file, 0, False)
    EndIf
    Return 1
EndFunc   ;==>ConsoleSetFromFile

; #FUNCTION# ====================================================================================================================
; Name ..........: ConsoleSaveToFile
; Description ...: Save console data to file specified.
; Syntax ........: ConsoleSaveToFile(Const ByRef $sFileName)
; Parameters ....: $sFileName   - Full path to file. If extension is rtf saves in rtf format, otherwise saves as plain text.
; Return values .: True if saved successfully. Sets @Error to -1 if FileOpen fails.
; Author ........: InunoTaishou
; ===============================================================================================================================
Func ConsoleSaveToFile(ByRef $sFileName)
    Local $__plain_console_text = _GUICtrlRichEdit_GetText($__hWnd_richedit)
    Local $__drive = ""
    Local $__dir = ""
    Local $__file_name = ""
    Local $__file_ext = ""
    Local $__split_path = _PathSplit($sFileName, $__drive, $__dir, $__file_name, $__file_ext)
    If ($__file_ext = "") Then
        $sFileName &= ".txt"
        $__file_ext = "txt"
    EndIf
    Local $__hWnd_file = FileOpen($sFileName, $FO_OVERWRITE + $FO_CREATEPATH)

    $__rtf_console_text = StringReplace(_GUICtrlRichEdit_StreamToVar($__hWnd_richedit, True), "\par", "", -1)

    If ($__hWnd_file = -1) Then
        ConsoleOut("Failed to save to file " & $__file_name & '.' & $__file_ext & @CRLF)
        Return SetError(-1, 0, False)
    Else
        FileWrite($__hWnd_file, ($__file_ext = "rtf" ? $__rtf_console_text : $__plain_console_text))
        FileClose($__hWnd_file)
    EndIf

    Return True
EndFunc   ;==>ConsoleSaveToFile

; #FUNCTION# ====================================================================================================================
; Name ..........: ConsoleClear
; Description ...: Clears console.
; Syntax ........: ConsoleClear(Const $bRtfReturn = False)
; Parameters ....: $bRtfReturn      - Set to true will return the RTF formatted text, False returns plain text.
; Return values .: The RTF text or plain text, depending on the $bRtfReturn value.
; Author ........: InunoTaishou
; ===============================================================================================================================
Func ConsoleClear(Const $bRtfReturn = False)
    Local $__plain_console_text = _GUICtrlRichEdit_GetText($__hWnd_richedit)
    $__rtf_console_text = StringReplace(_GUICtrlRichEdit_StreamToVar($__hWnd_richedit, True), "\par", "", -1)
    _GUICtrlRichEdit_SetText($__hWnd_richedit, "")
    Return ($bRtfReturn ? $__rtf_console_text : $__plain_console_text)
EndFunc   ;==>ConsoleClear

#Region Internal-Functions
; #FUNCTION# ====================================================================================================================
; Name ..........: _GUICtrlRichEdit_AppendTextColored
; Description ...: Appends colored text to console
; Syntax ........: _GUICtrlRichEdit_AppendTextColored(Const ByRef $__sText, Const ByRef $__iColor, Const ByRef $__char_attribute)
; Parameters ....: $__sText             - Text to append.
;                  $__iColor            - Hex color to set the text.
;                  $__char_attribute    - Sets the character attributes.
; Return values .: None.
; Author ........: InunoTaishou
; ===============================================================================================================================
Func _GUICtrlRichEdit_AppendTextColored(Const ByRef $__sText, Const ByRef $__iColor, Const ByRef $__char_attribute)
    _GUICtrlRichEdit_SetTextColor(_ColorSetCOLORREF(_ColorGetRGB($__iColor)))
    _GUICtrlRichEdit_SetFont($__hWnd_richedit, $__console_font_size, $__console_font_name)
    _GUICtrlRichEdit_SetCharAttributes($__hWnd_richedit, $__char_attribute)
    _GUICtrlRichEdit_AppendText($__hWnd_richedit, $__sText)
    _GUICtrlRichEdit_ScrollLines($__hWnd_richedit, 1)
EndFunc   ;==>_GUICtrlRichEdit_AppendTextColored

; #FUNCTION# ====================================================================================================================
; Name ..........: _GUICtrlRichEdit_SetTextColor
; Description ...: If any text is highlighted it changes the highlighted text's color, otherwise changes all text color at the
;                   current caret position.
; Syntax ........: _GUICtrlRichEdit_SetTextColor(Const ByRef $__iColor)
; Parameters ....: $__iColor    - Hex color to set the text.
; Return values .: None.
; Author ........: InunoTaishou
; ===============================================================================================================================
Func _GUICtrlRichEdit_SetTextColor(Const ByRef $__iColor)
    Local $__tCharFormat = DllStructCreate($tagCHARFORMAT)

    DllStructSetData($__tCharFormat, 1, DllStructGetSize($__tCharFormat))
    DllStructSetData($__tCharFormat, 2, $CFM_COLOR)
    DllStructSetData($__tCharFormat, 6, $__iColor)

    _SendMessage($__hWnd_richedit, $EM_SETCHARFORMAT, $SCF_SELECTION, DllStructGetPtr($__tCharFormat))
EndFunc   ;==>_GUICtrlRichEdit_SetTextColor

; #FUNCTION# ====================================================================================================================
; Name ..........: __CONSOLE_WM_SIZE
; Description ...: Resizes the RichEdit control to match the Console Window when it is being resized.
; Author ........: InunoTaishou
; ===============================================================================================================================
Func __CONSOLE_WM_SIZE($hWndFrom, $iMsg, $wParam, $lParam)
    #forceref $hWndFrom, $iMsg, $wParam, $lParam
    Local $__iWidth = _WinAPI_LoWord($lParam)
    Local $__iHeight = _WinAPI_HiWord($lParam)

    Switch ($hWndFrom)
        Case $__hWnd_console
            _WinAPI_MoveWindow($__hWnd_richedit, 0, 0, $__iWidth + 1, $__iHeight + 1)
    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>__CONSOLE_WM_SIZE

; #FUNCTION# ====================================================================================================================
; Name ..........: __WM_GETMINMAXINFO
; Description ...: Prevents Console Window from going below 400px wide and 50px tall.
; Author ........: InunoTaishou
; ===============================================================================================================================
Func __WM_GETMINMAXINFO($hWndFrom, $iMsg, $wParam, $lParam)
    #forceref $hWndFrom, $iMsg, $wParam, $lParam
    Local $tagMaxinfo = DllStructCreate("int;int;int;int;int;int;int;int;int;int", $lParam)

    Switch ($hWndFrom)
        Case $__hWnd_console
            DllStructSetData($tagMaxinfo, 7, 400) ; min X
            DllStructSetData($tagMaxinfo, 8, 50) ; min Y
    EndSwitch

    Return $GUI_RUNDEFMSG
EndFunc   ;==>__WM_GETMINMAXINFO

; #FUNCTION# ====================================================================================================================
; Name ..........: __CONSOLE_WM_NOTIFY
; Description ...: WM_NOTIFY function to track popup menu.
; Author ........: InunoTaishou
; ===============================================================================================================================
Func __CONSOLE_WM_NOTIFY($hWndFrom, $iMsg, $wParam, $lParam)
    #forceref $iMsg, $wParam
    Local $__tNMHDR = DllStructCreate($tagNMHDR, $lParam)
    Local $__iCode = DllStructGetData($__tNMHDR, "Code")
    Local $__hWnd = HWnd(DllStructGetData($__tNMHDR, "hWndFrom"))
    Local $__tMsgFilter = DllStructCreate($tagMSGFILTER, $lParam)

    Switch $__hWnd
        Case $__hWnd_richedit
            Select
                Case $__iCode = $EN_MSGFILTER
                    If DllStructGetData($__tMsgFilter, "msg") = $WM_RBUTTONUP Then
                        _GUICtrlMenu_TrackPopupMenu(GUICtrlGetHandle($__hWnd_ctxt_menu), $hWndFrom)
                    EndIf
            EndSelect
    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>__CONSOLE_WM_NOTIFY

; #FUNCTION# ====================================================================================================================
; Name ..........: __CONSOLE_WM_COMMAND
; Description ...: WM_COMMAND function for menu items.
; Author ........: InunoTaishou
; ===============================================================================================================================
Func __CONSOLE_WM_COMMAND($hWndFrom, $iMsg, $wParam, $lParam)
    Local $iIDFrom = BitAND($wParam, 0xFFFF) ; Low Word
    Local $iCode = BitShift($wParam, 16) ; Hi Word
    Local static $__current_file_path
    Local $__user_input_path

    Switch ($hWndFrom)
        Case $__hWnd_console
            Switch ($iIDFrom)
                Case $__idOpen
                    $__user_input_path = FileOpenDialog("Select console output", @ScriptDir & "\", "All (*.*)|Rtf (*.rtf)|Text Files (*.txt)")
                    If (@error) Then
                        ConsoleOut((@error = 1 ? "File selection failed" : "Bad file filter") & @CRLF)
                    Else
                        $__current_file_path = $__user_input_path
                        ConsoleSetFromFile($__current_file_path)
                    EndIf
                Case $__idSave
                    If ($__current_file_path = "") Then
                        $__user_input_path = FileSaveDialog("Save console output", @ScriptDir & "\", "All (*.*)|Rtf (*.rtf)|Text Files (*.txt)")
                        If (@error) Then
                            ConsoleOut((@error = 1 ? "File selection failed" : "Bad file filter") & @CRLF)
                        Else
                            $__current_file_path = $__user_input_path
                        EndIf
                    EndIf
                    ConsoleSaveToFile($__current_file_path)
                Case $__idSaveAs
                    $__user_input_path = FileSaveDialog("Save console output", @ScriptDir & "\", "All (*.*)|Rtf (*.rtf)|Text Files (*.txt)")
                    If (@error) Then
                        ConsoleOut((@error = 1 ? "File selection failed" : "Bad file filter") & @CRLF)
                    Else
                        $__current_file_path = $__user_input_path
                        ConsoleSaveToFile($__current_file_path)
                    EndIf
                Case $__idClear
                    ConsoleClear()
                Case $__idCopyPlain
                    ClipPut(_GUICtrlRichEdit_GetText($__hWnd_richedit))
                Case $idCopyRtf
                    ClipPut(StringReplace(_GUICtrlRichEdit_StreamToVar($__hWnd_richedit, True), "\par", "", -1))
                Case $__idUndo
                    _GUICtrlRichEdit_StreamFromVar($__hWnd_richedit, $__rtf_console_text)
            EndSwitch
    EndSwitch

    Return $GUI_RUNDEFMSG
EndFunc   ;==>__CONSOLE_WM_COMMAND

; #FUNCTION# ====================================================================================================================
; Name ..........: __CONSOLE_WNDPROC
; Description ...: WindowProc that can be used for the popup menu.
; Remarks .......: This does the same thing as WM_COMMAND and WM_NOTIFY. I just like the other context menu better, no other reason.
; Author ........: InunoTaishou
; ===============================================================================================================================
Func __CONSOLE_WNDPROC($hWndFrom, $iMsg, $wParam, $lParam)
    Local Static $__current_file_path = ""
    Local $__user_input_path = ""

    Switch ($hWndFrom)
        Case $__hWnd_richedit
            Switch ($iMsg)
                Case $WM_RBUTTONUP
                    _GUICtrlMenu_TrackPopupMenu($__hWnd_ctxt_menu, $hWndFrom)
                    Return 0
                Case $WM_COMMAND
                    Switch $wParam
                        Case $idOpen
                            $__user_input_path = FileOpenDialog("Select console output", @ScriptDir & "\", "All (*.*)|Rtf (*.rtf)|Text Files (*.txt)")
                            If (@error) Then
                                ConsoleOut((@error = 1 ? "File selection failed" : "Bad file filter") & @CRLF)
                            Else
                                $__current_file_path = $__user_input_path
                                ConsoleSetFromFile($__current_file_path)
                            EndIf
                        Case $idSave
                            If ($__current_file_path = "") Then
                                $__user_input_path = FileSaveDialog("Save console output", @ScriptDir & "\", "All (*.*)|Rtf (*.rtf)|Text Files (*.txt)")
                                If (@error) Then
                                    ConsoleOut((@error = 1 ? "File selection failed" : "Bad file filter") & @CRLF)
                                Else
                                    $__current_file_path = $__user_input_path
                                EndIf
                            EndIf
                            ConsoleSaveToFile($__current_file_path)
                        Case $idSaveAs
                            $__user_input_path = FileSaveDialog("Save console output", @ScriptDir & "\", "All (*.*)|Rtf (*.rtf)|Text Files (*.txt)")
                            If (@error) Then
                                ConsoleOut((@error = 1 ? "File selection failed" : "Bad file filter") & @CRLF)
                            Else
                                $__current_file_path = $__user_input_path
                                ConsoleSaveToFile($__current_file_path)
                            EndIf
                        Case $idClear
                            ConsoleClear()
                        Case $idCopyPlain
                            ClipPut(_GUICtrlRichEdit_GetText($__hWnd_richedit))
                        Case $idCopyRtf
                            ClipPut(StringReplace(_GUICtrlRichEdit_StreamToVar($__hWnd_richedit, True), "\par", "", -1))
                        Case $idUndo
                            ;_GUICtrlRichEdit_StreamFromVar($__hWnd_richedit, $__rtf_console_text)
                            _GUICtrlRichEdit_Undo($__hWnd_richedit)
                    EndSwitch
            EndSwitch
    EndSwitch
    Return _WinAPI_CallWindowProc($__ptr_procold, $hWndFrom, $iMsg, $wParam, $lParam)
EndFunc   ;==>__CONSOLE_WNDPROC
#EndRegion Internal-Functions

Here's what it looks like


Edited by InunoTaishou
Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
 Share

  • Recently Browsing   0 members

    • No registered users viewing this page.
×
×
  • Create New...
