GDI+ Text Transparency

[CodeTinkerer]

How would I go about getting a Transparent background for this _GDIPlus_GraphicsDrawStringEx ?, Ive already tried multiple UDF's that would work properly with the standard controls.



expandcollapse popup

#include <GDIPlus.au3>

Opt("GUIOnEventMode", 1)

$hwnd = GUICreate("GDI+ Example", 400, 300)
$label = GUICtrlCreateLabel("", 10, 10, 380, 40)
GUICtrlCreateButton("Start/Stop scrolling",150,50,100,30)
GUICtrlSetOnEvent(-1,"startstop")
GUISetOnEvent(-3, "close")
GUICtrlCreatePic(@ScriptDir & '\Img\Main2.jpg' ,0 ,0 ,0 ,0 ,0 ,0 )
GUISetState()

_GDIPlus_Startup()
$graphics = _GDIPlus_GraphicsCreateFromHWND(ControlGetHandle($hwnd, "", $label))
$bitmap = _GDIPlus_BitmapCreateFromGraphics(380, 40, $graphics)
$backbuffer = _GDIPlus_ImageGetGraphicsContext($bitmap)

$ffamily = _GDIPlus_FontFamilyCreate("Arial")
$arial = _GDIPlus_FontCreate($ffamily, 24)

$sformat = _GDIPlus_StringFormatCreate()
_GDIPlus_StringFormatSetAlign($sformat, 1)
$blackbrush = _GDIPlus_BrushCreateSolid()

$pos = 0
$speed=0


Do
    _GDIPlus_GraphicsClear($backbuffer, 0xFFF0F0F0)

    $pos -= $speed
    $rectf = _GDIPlus_RectFCreate($pos, 0, 380, 40)
    If $pos < -300 Then $pos = 300


    _GDIPlus_GraphicsDrawStringEx($backbuffer, "Scrolling text", $arial, $rectf, $sformat, $blackbrush)

    _GDIPlus_GraphicsDrawImageRect($graphics, $bitmap, 0, 0, 380, 40)
    Sleep(10)
Until False

Func startstop()
    $speed=Not $speed
EndFunc



Func close()
    _GDIPlus_BrushDispose($blackbrush)
    _GDIPlus_StringFormatDispose($sformat)
    _GDIPlus_FontDispose($arial)
    _GDIPlus_FontFamilyDispose($ffamily)
    _GDIPlus_GraphicsDispose($backbuffer)
    _GDIPlus_BitmapDispose($bitmap)
    _GDIPlus_GraphicsDispose($graphics)
    _GDIPlus_Shutdown()
    Exit
EndFunc  ;==>close



Edited May 6, 2015 by CodeTinkerer

[UEZ]

Instead of creating a background pic control create a bitmap with that image and copy it everytime to $backbuffer instead of using _GDIPlus_GraphicsClear($backbuffer, 0xFFF0F0F0).

Otherwise it is directly not possible to move a transparent image over another.

[CodeTinkerer]

Thank you UEZ. So Using _GDIPlus_BitmapCreateFromFile, How would I as you had said "copy" it to the $backbuffer? looking through the help I couldnt find a "copy" func per say

[UEZ]

Then try this:

expandcollapse popup

#include <GDIPlus.au3>

Opt("GUIOnEventMode", 1)

$hwnd = GUICreate("GDI+ Example", 400, 300)
$label = GUICtrlCreateLabel("", 10, 10, 380, 40)
GUICtrlCreateButton("Start/Stop scrolling",150,50,100,30)
GUICtrlSetOnEvent(-1,"startstop")
GUISetOnEvent(-3, "close")
;~ GUICtrlCreatePic(@ScriptDir & '\Test.jpg' , 0, 0, 400, 300)
GUISetState()

_GDIPlus_Startup()
$graphics = _GDIPlus_GraphicsCreateFromHWND(ControlGetHandle($hwnd, "", $label))
$bitmap = _GDIPlus_BitmapCreateFromGraphics(380, 40, $graphics)
$backbuffer = _GDIPlus_ImageGetGraphicsContext($bitmap)
$background = _GDIPlus_BitmapCreateFromFile(@ScriptDir & '\Test.jpg')
$ffamily = _GDIPlus_FontFamilyCreate("Arial")
$arial = _GDIPlus_FontCreate($ffamily, 24)

$sformat = _GDIPlus_StringFormatCreate()
_GDIPlus_StringFormatSetAlign($sformat, 1)
$blackbrush = _GDIPlus_BrushCreateSolid()

$pos = 0
$speed=0


Do
    _GDIPlus_GraphicsDrawImageRect($backbuffer, $background, 0, 0, 400, 300)

    $pos -= $speed
    $rectf = _GDIPlus_RectFCreate($pos, 0, 380, 40)
    If $pos < -300 Then $pos = 300


    _GDIPlus_GraphicsDrawStringEx($backbuffer, "Scrolling text", $arial, $rectf, $sformat, $blackbrush)

    _GDIPlus_GraphicsDrawImageRect($graphics, $bitmap, 0, 0, 380, 40)
    Sleep(10)
Until False

Func startstop()
    $speed=Not $speed
EndFunc



Func close()
    _GDIPlus_BrushDispose($blackbrush)
    _GDIPlus_StringFormatDispose($sformat)
    _GDIPlus_FontDispose($arial)
    _GDIPlus_FontFamilyDispose($ffamily)
    _GDIPlus_GraphicsDispose($backbuffer)
    _GDIPlus_BitmapDispose($bitmap)
    _GDIPlus_BitmapDispose($background)
    _GDIPlus_GraphicsDispose($graphics)
    _GDIPlus_Shutdown()
    Exit
EndFunc  ;==>close



[qwert]

This method is nice to know of.

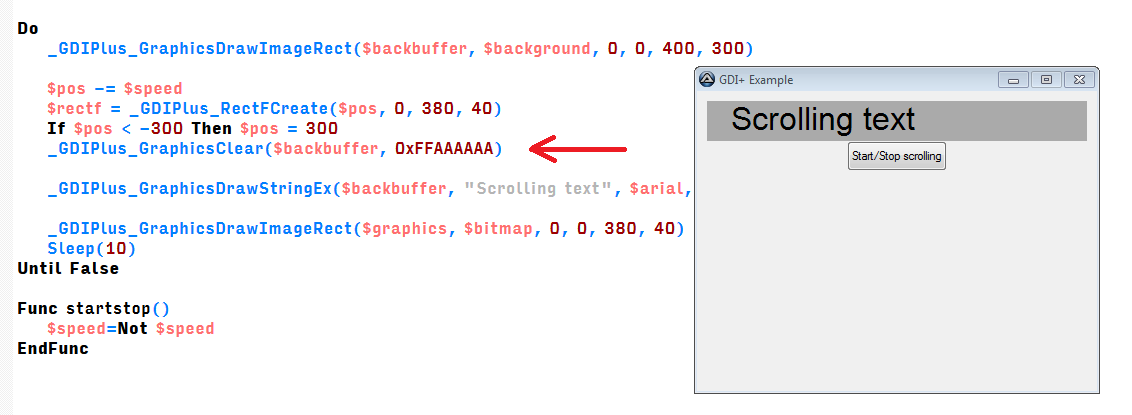

I added a GraphicsClear statement to keep the text from smearing into black on black.

But is that the proper solution?  It seems to add a slight hesitation.



[UEZ]

_GDIPlus_GraphicsClear() erases the graphic context with the color you provide or by default with 0xFF000000 (black). So for moving objects you have to clear the graphic context otherwise smearing will appear.

For alpha tranparency it might be a little bit more complicated depending on what you want to achieve.
