Graphic Gui display problem

JakeJohnson74 · January 29, 2015

I'm trying to create a GUI that is split (2 ListViews and with draggable divider)

I followed some example code and it seems to work, but graphically it's like the GUI isn't redrawing correctly. It is leaving graphic "remnants" of where things used to be, or the borders of the controls are missing / not in the right spots.

Here is a simple example you can run to see if you are seeing what I am seeing.

#include <GUIConstants.au3>
 #include <GuiStatusbar.au3>


opt("GUIResizeMode",$GUI_DOCKAUTO)
$Form1  = GUICreate("Test", 660, 320, 192, 125, BitOr($WS_SIZEBOX,  $WS_MAXIMIZEBOX, $WS_MINIMIZEBOX, $WS_CAPTION, $WS_POPUP, $WS_SYSMENU,$WS_CLIPCHILDREN))

$ListView1  = GUICtrlCreateListView("col1|col2|col3",0, 10, 200, 300, -1,$WS_EX_CLIENTEDGE)
$ListView2 = GUICtrlCreateListView("col1|col2|col3", 205, 10, 450, 300, -1, $WS_EX_CLIENTEDGE)
GUISetState()

While 1
     $msg = GUIGetMsg()
     Select
         Case $msg = $GUI_EVENT_CLOSE
             ExitLoop
     EndSelect
 WEnd
 Exit

When you run the code - Resize the window, Maximize it and then restore it. When I do this, I see the graphical glitches.

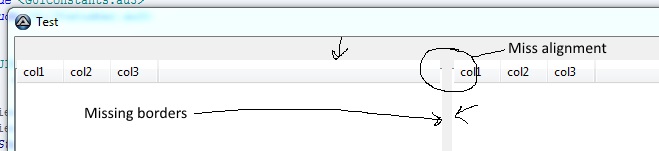

I've also attached a pic showing the effect I am seeing.

MikahS · January 29, 2015

Here is an easy fix:

#include <GUIConstants.au3>
#include <GuiStatusbar.au3>

Opt("GUIResizeMode", $GUI_DOCKAUTO)

$Form1 = GUICreate("Test", 660, 320, 192, 125, BitOR($WS_POPUP, $WS_OVERLAPPEDWINDOW)) ;<< here

$ListView1 = GUICtrlCreateListView("col1|col2|col3", 0, 10, 200, 300, -1, $WS_EX_CLIENTEDGE)
$ListView2 = GUICtrlCreateListView("col1|col2|col3", 205, 10, 450, 300, -1, $WS_EX_CLIENTEDGE)
GUISetState()

While 1
    $msg = GUIGetMsg()
    Select
        Case $msg = $GUI_EVENT_CLOSE
            ExitLoop
    EndSelect
WEnd

Edited January 29, 2015 by MikahS

JakeJohnson74 · January 29, 2015

I've narrowed it down to $WS_CLIPCHILDREN

If I use that style - it causes the graphic issues whenever I resize controls.

Without it though, I don't get the visual update I want when I drag my vertical split. From what I am reading, there is a lot of trouble resizing controls on the fly like this

Edited January 29, 2015 by JakeKenmode

MikahS · January 29, 2015

Have you tried the fix I proposed?

It does everything the same as your original script, without the graphic issues.

EDIT: If there is more to the script, please post it so we can help you further if my solution did not fix this.

Edited January 29, 2015 by MikahS

DutchCoder · January 29, 2015

Your primairy problem lies in the $WS_CLIPCHILDREN on GUICreate

This would be the working code:

#include <GUIConstants.au3>
 #include <GuiStatusbar.au3>

opt("GUIResizeMode",$GUI_DOCKAUTO)
$Form1  = GUICreate("Test", 660, 320, 192, 125, BitOr($WS_SIZEBOX,  $WS_MAXIMIZEBOX, $WS_MINIMIZEBOX, $WS_CAPTION, $WS_POPUP, $WS_SYSMENU))
$ListView1  = GUICtrlCreateListView("col1|col2|col3",10, 10, 200, 300, -1, $WS_EX_CLIENTEDGE)
$ListView2 = GUICtrlCreateListView("col1|col2|col3", 215, 10, 435, 300, -1, $WS_EX_CLIENTEDGE)
GUISetState()

While 1
     $msg = GUIGetMsg()
     Select
         Case $msg = $GUI_EVENT_CLOSE
             ExitLoop
     EndSelect
 WEnd
 Exit

But more little things like $WS_EX_CLIENTEDGE are used om GUICtrlCreateListView...

I would start with the following to have the edges stay the same width:

#include <GUIConstants.au3>
#include <GuiStatusbar.au3>

$Form1  = GUICreate("Test", 660, 320, 192, 125, BitOR($WS_OVERLAPPEDWINDOW, $WS_POPUP))
$ListView1  = GUICtrlCreateListView("col1|col2|col3",10, 10, 200, 300)
GUICtrlSetResizing(-1, BitOR($GUI_DOCKLEFT, $GUI_DOCKTOP, $GUI_DOCKBOTTOM, $GUI_DOCKWIDTH))
$ListView2 = GUICtrlCreateListView("col1|col2|col3", 215, 10, 435, 300)
GUICtrlSetResizing(-1, BitOR($GUI_DOCKLEFT, $GUI_DOCKTOP, $GUI_DOCKBOTTOM, $GUI_DOCKRIGHT))
GUISetState()

While 1
     Switch GUIGetMsg()
         Case $GUI_EVENT_CLOSE
             ExitLoop
     EndSwitch
WEnd

Exit

Edited January 29, 2015 by DutchCoder

MikahS · January 29, 2015

DutchCoder have you tested that? As, it does not resize correctly.

JakeKenmode - $WS_POPUP -- creates a popup window

$WS_OVERLAPPEDWINDOW -- Creates an overlapped window with the WS_OVERLAPPED, WS_CAPTION, WS_SYSMENU, WS_THICKFRAME, WS_MINIMIZEBOX, and WS_MAXIMIZEBOX styles. Same as the WS_TILEDWINDOW style.

JakeJohnson74 · January 29, 2015

Yes thanks, I am aware of the styles via the help files.

Here is a modified example of the splitter code I found on these forums that I am using. Many of the UDF's were old and needed to be updated to work correctly.

#include <GUIConstants.au3>
 #include <GuiStatusbar.au3>

;===============================================================================
; FileName:         splitterdemo.au3
; Description:    Splitter Bar demo
;
; Requirement:    Beta
; Author(s):        eltorro (Steve Podhajecki <[email="gehossafats@netmdc.com"]gehossafats@netmdc.com[/email]>)
; Note(s):          This is just a proof of concept at the moment.
;                   This could be tweaked into a udf with a little more work
;                   The basic principle is to create a pic box and drag it
;                   then resize the controls.
;                   I bowwored some filler for the tree and list from the help files.
;===============================================================================
;~  $WM_SIZE =0x0005
 $Form1  = GUICreate("Splitter Demo", 622, 448, 192, 125, BitOr($WS_SIZEBOX,  $WS_MAXIMIZEBOX, $WS_MINIMIZEBOX, $WS_CAPTION, $WS_POPUP, $WS_SYSMENU,$WS_CLIPCHILDREN))

 $TreeView1  = GUICtrlCreateTreeView(0, 8, 145, 313, BitOR($TVS_HASBUTTONS,  $TVS_HASLINES, $TVS_LINESATROOT, $TVS_DISABLEDRAGDROP,  $TVS_SHOWSELALWAYS), $WS_EX_CLIENTEDGE)
 GUICtrlSetResizing(-1, 42)
     $generalitem = GUICtrlCreateTreeViewItem("General", $TreeView1)
     GUICtrlSetColor(-1, 0x0000C0)
     $displayitem = GUICtrlCreateTreeViewItem("Display", $TreeView1)
     GUICtrlSetColor(-1, 0x0000C0)
     $aboutitem = GUICreate
     $aboutitem = GUICtrlCreateTreeViewItem("About", $generalitem)
     $compitem = GUICtrlCreateTreeViewItem("Computer", $generalitem)
     $useritem = GUICtrlCreateTreeViewItem("User", $generalitem)
     $resitem = GUICtrlCreateTreeViewItem("Resolution", $displayitem)
     $otheritem = GUICtrlCreateTreeViewItem("Other", $displayitem)

$ListView1 = GUICtrlCreateListView("col1  |col2|col3  ", 152, 8, 465, 313, -1, $WS_EX_CLIENTEDGE)
 GUICtrlSetResizing(-1, 44)
     $item1 = GUICtrlCreateListViewItem("item2|col22|col23", $ListView1)
     $item2 = GUICtrlCreateListViewItem("item1|col12|col13", $ListView1)
     $item3 = GUICtrlCreateListViewItem("item3|col32|col33", $ListView1)
     GUICtrlSetState(-1, $GUI_DROPACCEPTED); to allow drag and dropping
     GUISetState()
     GUICtrlSetData($item2, "ITEM1")
     GUICtrlSetData($item3, "||COL33")

;vertical divider
 $Pic1 = GUICtrlCreatePic("", 144, 8, 5, 313, $SS_NOTIFY)
 GUICtrlSetResizing($Pic1, 128 + 2 + 256)
 GUICtrlSetCursor($Pic1, 13)
;horizontal divider.
 $Pic2 = GUICtrlCreatePic("", 0, 320, 617, 20, BitOR($SS_NOTIFY, $SS_ETCHEDFRAME), $WS_EX_CLIENTEDGE)
 GUICtrlSetResizing($Pic2, 8 + 64 +  512)
 GUICtrlSetCursor($Pic2, 11)

 Local $a[3] = [150,150, -1]
 Local $b[3] = ["Ready.", "",""], $InitiateDrag = "False", $DragCtrl

 $Edit1 = GUICtrlCreateEdit("", 0, 328, 617, 113, -1, $WS_EX_CLIENTEDGE)
 GUICtrlSetResizing(-1, 128)
 GUICtrlSetData($Edit1, "Drag the bars between the controls and they will resize." & @CRLF & _
         "Resize the screen and see what happens."& @CRLF & _
         "The Status bar show True the left mouse button is down and over a splitter.")

 opt("MouseCoordMode", 2)
 GUICtrlSetState($generalitem, BitOR($GUI_EXPAND, $GUI_DEFBUTTON)) ; Expand the "General"-item and paint in bold
 GUICtrlSetState($displayitem, BitOR($GUI_EXPAND, $GUI_DEFBUTTON)) ; Expand the "Display"-item and paint in bold

 GUISetState(@SW_SHOW)
 ResizeControls()
 GUIRegisterMsg($WM_SIZE,"RESIZECONTROLS")
 While 1
     $msg = GUIGetMsg()
     Select
         Case $msg = $GUI_EVENT_PRIMARYDOWN
         Case $msg = $Pic1
             $InitiateDrag = "True"
             $DragCtrl = $Pic1
         Case $msg = $Pic2
             $InitiateDrag = "True"
             $DragCtrl = $Pic2
         Case $msg = $GUI_EVENT_PRIMARYUP
             $InitiateDrag = "False"
             Select
                 Case $DragCtrl = $Pic1
                     SplitterVert($TreeView1, $ListView1, $Pic1, $Pic2)
                     $DragCtrl = ""
                 Case $DragCtrl = $Pic2
                     SplitterHort($TreeView1, $ListView1, $Edit1, $Pic2)
                     $DragCtrl = ""
             EndSelect
         Case $msg = $GUI_EVENT_SECONDARYDOWN
         Case $msg = $GUI_EVENT_SECONDARYUP
         Case $msg = $GUI_EVENT_MOUSEMOVE
             If $InitiateDrag = "True" Then
                 Local $picpos = ControlGetPos("", "", $DragCtrl)
                 Local $mousepos = MouseGetPos()
                 Local $winpos = WinGetClientSize("")
                 If $DragCtrl = $Pic1 Then
                      If $mousepos[0] > 25 And $mousepos[0]<  ($winpos[0] - 25) Then GUICtrlSetPos($Pic1, $mousepos[0], $picpos[1])
                 EndIf
                 If $DragCtrl = $Pic2 Then
                      If $mousepos[1] > 25 And $mousepos[1]<  ($winpos[1] - 25) Then GUICtrlSetPos($Pic2, $picpos[0], $mousepos[1])
                 EndIf
             EndIf
         Case $msg = $GUI_EVENT_RESIZED or $msg = $GUI_EVENT_MAXIMIZE
             ResizeControls()
         Case $msg = $GUI_EVENT_CLOSE
             ExitLoop
     EndSelect
 WEnd
 Exit
 Func RESIZE_CONTROLS($hWnd, $Msg, $wParam, $lParam)
     ResizeControls()
     Return $GUI_RUNDEFMSG
 EndFunc

 Func ResizeControls()
     Local $winpos = WinGetPos("")
     Local $picpos1 = ControlGetPos("", "", $Pic1)
     Local $picpos2 = ControlGetPos("", "", $Pic2)
     Local $pos = $picpos2

     GUICtrlSetPos($Pic2, 0, $picpos2[1], $winpos[2], $picpos2[3])
     GUICtrlSetPos($Pic1, $picpos1[0], $picpos1[1], $picpos1[2], $picpos2[1])
     SplitterHort($TreeView1, $ListView1, $Edit1, $Pic2)
     SplitterVert($TreeView1, $ListView1, $Pic1, $Pic2)
 EndFunc;==>ResizeControls

 Func SplitterVert($ctrl1, $ctrl2, $split1, $split2)
     Local $splitpos1 = ControlGetPos("", "", $split1)
     Local $splitpos2 = ControlGetPos("", "", $split2)
     Local $ctrl1pos = ControlGetPos("", "", $ctrl1)
     Local $ctrl2pos = ControlGetPos("", "", $ctrl2)
     Local $winpos = WinGetClientSize("")
     GUICtrlSetPos($ctrl1, $ctrl1pos[0], _
             $ctrl1pos[1], _
             (($splitpos1[0] - 1) - $ctrl1pos[0]), _
             $splitpos2[1]-10)
     Local $nw = $winpos[0] - $splitpos1[0] - 5
     GUICtrlSetPos($ctrl2, $splitpos1[0] + 5, _
             $ctrl2pos[1], _
             $nw, _
             $splitpos2[1] - 10)

 EndFunc;==>SplitterVert

 Func SplitterHort($ctrl1, $ctrl2, $ctrl3, $split)
     Local $splitpos = ControlGetPos("", "", $split)
     Local $ctrl1pos = ControlGetPos("", "", $ctrl1)
     Local $ctrl2pos = ControlGetPos("", "", $ctrl2)
     Local $ctrl3pos = ControlGetPos("", "", $ctrl3)
     Local $winpos = WinGetClientSize("")
     Local $nh
     Select
         Case $splitpos[1] > $ctrl1pos[3]
             $nh = ($ctrl1pos[3]+ ($splitpos[1] - $ctrl1pos[3])) - 10
         Case $splitpos[1] < $ctrl1pos[3]
             $nh = ($ctrl1pos[3]- ($ctrl1pos[3] - $splitpos[1])) - 10
     EndSelect

     GUICtrlSetPos($ctrl1, $ctrl1pos[0], _
             $ctrl1pos[1], _
             $ctrl1pos[2], _
             $nh)

     GUICtrlSetPos($ctrl2, $ctrl2pos[0], _
             $ctrl2pos[1], _
             $ctrl2pos[2], _
             $nh)
     Local $nh
     $nh = $winpos[1] - $splitpos[1] + $splitpos[3] - 60; move this up above the status bar
     GUICtrlSetPos($ctrl3,  $ctrl3pos[0], _
                               $splitpos[1] + $splitpos[3] + 1, _
                             $winpos[0], _
                             $nh)
 EndFunc;==>SplitterHort

Now if this is run, you will see the graphic issues.

If you simply remove $WS_CLIPCHILDREN it will "work" but you will not see the split's updating properly until you mouse up. The clipping allows you to drag the split and see it move. That is what I am looking to achieve.

I mean - If I had to go without it to avoid glitches, I will, but if there is a way to fix it - I'd love to investigate it

Melba23 · January 29, 2015

JakeKenmode,

Why not use my GUIFrame UDF and let it do all the work for you? :huh:

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>

#include "GUIFrame.au3"

$hGUI  = GUICreate("Test", 660, 320, 192, 125, BitOr($WS_SIZEBOX, $WS_MAXIMIZEBOX, $WS_MINIMIZEBOX, $WS_CAPTION, $WS_SYSMENU))

GUISetState()

$iIndex = _GUIFrame_Create($hGUI, 0, 200)

_GUIFrame_Switch($iIndex, 1)

$ListView1  = GUICtrlCreateListView("col1|col2|col3",0, 10, 200, 300, -1,$WS_EX_CLIENTEDGE)

_GUIFrame_Switch($iIndex, 2)

$ListView2 = GUICtrlCreateListView("col1|col2|col3", 0, 10, 450, 300, -1, $WS_EX_CLIENTEDGE)

_GUIFrame_ResizeSet(0)

_GUIFrame_ResizeReg()

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch
WEnd

That seems to work quite nicely.

M23

JakeJohnson74 · January 29, 2015

I would love to I didn't know of its existence till just now, so thanks for that!

I do seem to have a problem though - that file isn't on my system (or in the path it's looking in). I'll dig around, perhaps I need an update

Current Version: Version 3.4.1

*edit using SciTE 3.4.4 now and AutoIT 3.3.12 - still can't find that include.

and.... one day I'll learn to read - and realize you said "why not try my UDF"

Edited January 29, 2015 by JakeKenmode

Melba23 · January 29, 2015

JakeKenmode,

It is one of my personal UDFs - look in my sig for the link to find it. Once you have downloaded it you might like to look at the Adding UDFs to AutoIt and SciTE tutorial in the Wiki to see how to get it running properly on your system.

M23

JakeJohnson74 · January 29, 2015

Yeah - I added it, and it does work

One little thing, Is there a way to stop the slight flicker I see on the drag? (not a major thing, just being picky! haha)

Melba23 · January 29, 2015

JakeKenmode,

"Picky" is the word!

You are resizing ListViews - which are one of the flakiest controls in Windows - so I feel a little flicker is a small price to pay.

M23

MikahS · January 29, 2015

Glad Melba was able to help you.

JakeJohnson74 · January 29, 2015

Yeah - im sticking with it, The users are low end users as it is. I'm sure they won't even notice anything. Visual Studio has made me picky! it's not my fault! HAHA

Thanks again for the UDF. I'm using your GUIListViewEx.au3 as well for the final result.

How do UDF list views function with your GUIFrame.au3? Do they play nice?

Melba23 · January 29, 2015

JakeKenmode,

There is no reason why they should not as the "frames" are just standard GUIs. I suggest you try it and see.

M23

JakeJohnson74 · January 29, 2015

@ Melba

Am I missing something here? I have been tinkering for a while and I can't seem to get this one to behave like the built in Listview.

When resize the Window the UDF ListView doesn't move, nor does it update if I drag the separator.

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include "GUIListViewEx.au3"
#include "GUIFrame.au3"

$hGUI  = GUICreate("Test", 660, 320, 192, 125, BitOr($WS_SIZEBOX, $WS_MAXIMIZEBOX, $WS_MINIMIZEBOX, $WS_CAPTION, $WS_SYSMENU))

GUISetState()

$iIndex = _GUIFrame_Create($hGUI, 0, 200)

_GUIFrame_Switch($iIndex, 1)

$ListView1  = GUICtrlCreateListView("col1|col2|col3",0, 10, 200, 300, -1,-1)

_GUIFrame_Switch($iIndex, 2)

; Create Right ListView

$hListView_Right = _GUICtrlListView_Create($hGUI, "Peter|Paul|Mary", 210, 10, 200, 300, BitOR($LVS_SHOWSELALWAYS, $LVS_REPORT, $WS_BORDER))
_GUICtrlListView_SetExtendedListViewStyle($hListView_Right, $LVS_EX_FULLROWSELECT)


_GUIFrame_ResizeSet(0)

_GUIFrame_ResizeReg()

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch
WEnd

Melba23 · January 29, 2015

JakeKenmode,

UDF-created controls do not respond to the native GUICtrlSetResizing commands, so you have to do it yourself as I explained here. A good reason to stick with the native ListViews unless you really need the UDF ones.

M23

JakeJohnson74 · January 29, 2015

Gotcha I'll see if I can achieve what I am trying to do with native ListViews then.

DutchCoder · January 29, 2015

I wrote a little routine for you (and others)

I hope it helps

#include <GUIConstants.au3>
#include <GuiStatusbar.au3>
AutoItSetOption('MouseCoordMode', 2)
$DividerOffset = 330

$Form1  = GUICreate("Test", 660, 320, 192, 125, BitOR($WS_OVERLAPPEDWINDOW, $WS_POPUP))
$ListView1  = GUICtrlCreateListView("col1|col2|col3", 5, 5, $DividerOffset - 5, 310)
GUICtrlSetResizing(-1, BitOR($GUI_DOCKLEFT, $GUI_DOCKTOP, $GUI_DOCKBOTTOM, $GUI_DOCKWIDTH))
$ListView2 = GUICtrlCreateListView("col1|col2|col3", $DividerOffset + 5, 5, 660 - $DividerOffset - 10, 310)
GUICtrlSetResizing(-1, BitOR($GUI_DOCKLEFT, $GUI_DOCKTOP, $GUI_DOCKBOTTOM, $GUI_DOCKRIGHT))
$Divider = GUICtrlCreateLabel('', $DividerOffset, 5, 5, 310)
GUICtrlSetResizing(-1, BitOR($GUI_DOCKLEFT, $GUI_DOCKTOP, $GUI_DOCKBOTTOM, $GUI_DOCKRIGHT))
GUICtrlSetCursor(-1, 13)
GUISetState()

While 1
     Switch GUIGetMsg()
         Case $GUI_EVENT_CLOSE
             ExitLoop
         Case $Divider
             Resize()
     EndSwitch
WEnd

Exit

Func Resize()
    GUISetCursor(13, 1, $Form1)
    $siz = WinGetClientSize($Form1)
    Do
        $arr = GUIGetCursorInfo($Form1)
        $pos = MouseGetPos(0)
        Select
            Case $pos < 100
                $pos = 100
            Case $pos > $siz[0] - 100
                $pos = $siz[0] - 100
        EndSelect
        If $pos <> $DividerOffset Then
            $DividerOffset = $pos
            GUICtrlSetPos($ListView1, -1, -1, $DividerOffset - 5)
            GUICtrlSetPos($ListView2, $DividerOffset + 5, -1, $siz[0] - $DividerOffset - 10)
        EndIf
    Until Not $arr[2]
    GUICtrlSetPos($Divider, $DividerOffset)
    GUISetCursor(-1, 0, $Form1)
EndFunc

Graphic Gui display problem

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Create an account or sign in to comment

Create an account

Sign in

Recently Browsing 0 members
