mLipok Posted December 30, 2014 Share Posted December 30, 2014 (edited) Some time ago I fought doggedly with the issue: Writing DPI-Aware Desktop and Win32 Applications It was here: MSDN: SetProcessDpiAwareness function MSDN <> AutoIt : Developing a Per-Monitor DPI-Aware WPF Application AppCompatFlags UDF And I see other members also ask for this solution: Autoit and DPI awareness And finaly solution comes thanks to UEZ, exactly here: DPI Resolution problem Now I would like to present a working example. The following scirpt is based on: "C:\Program Files (x86)\AutoIt3\Beta\ExamplesGUISampleControls.au3" expandcollapse popup#Region INCLUDE #include <AVIConstants.au3> #include <GuiConstantsEx.au3> #include <TreeViewConstants.au3> #include <GDIPlus.au3> #include <MsgBoxConstants.au3> #EndRegion INCLUDE #Region GUI GUICreate("Sample GUI", 400, 400) If MsgBox($MB_YESNO,'Question:','Do you want to set DPI Awareness ?') = $IDYES Then GUISetFont(8.5 * _GDIPlus_GraphicsGetDPIRatio()[0]) EndIf GUISetIcon(@SystemDir & "\mspaint.exe", 0) #EndRegion GUI #Region MENU Local $idMenu1 = GUICtrlCreateMenu("Menu &One") Local $idMenu2 = GUICtrlCreateMenu("Menu &Two") GUICtrlCreateMenu("Menu Th&ree") GUICtrlCreateMenu("Menu &Four") GUICtrlCreateMenuItem('SubMenu One &A', $idMenu1) GUICtrlCreateMenuItem('SubMenu One &B', $idMenu1) #EndRegion MENU #Region CONTEXT MENU Local $idContextMenu = GUICtrlCreateContextMenu() GUICtrlCreateMenuItem("Context Menu", $idContextMenu) GUICtrlCreateMenuItem("", $idContextMenu) ; Separator GUICtrlCreateMenuItem("&Properties", $idContextMenu) #EndRegion CONTEXT MENU #Region PIC GUICtrlCreatePic("logo4.gif", 0, 0, 169, 68) GUICtrlSetTip(-1, '#Region PIC') GUICtrlCreateLabel("Sample Pic", 75, 1, 53, 15) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) GUICtrlSetColor(-1, 0xFFFFFF) #EndRegion PIC #Region AVI GUICtrlCreateAvi("SampleAVI.avi", 0, 180, 10, 32, 32, $ACS_AUTOPLAY) GUICtrlSetTip(-1, '#Region AVI') ; TODO GUICtrlCreateLabel("Sample avi", 175, 50) GUICtrlSetTip(-1, '#Region AVI - Label') #EndRegion AVI #Region TAB GUICtrlCreateTab(240, 0, 150, 70) GUICtrlCreateTabItem("One") GUICtrlSetTip(-1, '#Region TAB1') GUICtrlCreateLabel("Sample Tab with TabItems", 250, 40) GUICtrlCreateTabItem("Two") GUICtrlSetTip(-1, '#Region TAB2') GUICtrlCreateTabItem("Three") GUICtrlSetTip(-1, '#Region TAB3') GUICtrlCreateTabItem("") #EndRegion TAB #Region COMBO GUICtrlCreateCombo("Sample Combo", 250, 80, 120, 100) GUICtrlSetTip(-1, '#Region COMBO') #EndRegion COMBO #Region PROGRESS GUICtrlCreateProgress(60, 80, 150, 20) GUICtrlSetTip(-1, '#Region PROGRES') GUICtrlSetData(-1, 60) GUICtrlCreateLabel("Progress:", 5, 82) GUICtrlSetTip(-1, '#Region PROGRES - Label') #EndRegion PROGRESS #Region EDIT GUICtrlCreateEdit(@CRLF & " Sample Edit Control", 10, 110, 150, 70) GUICtrlSetTip(-1, '#Region EDIT') #EndRegion EDIT #Region LIST GUICtrlCreateList("", 5, 190, 100, 90) GUICtrlSetTip(-1, '#Region LIST') GUICtrlSetData(-1, "A.Sample|B.List|C.Control|D.Here", "B.List") #EndRegion LIST #Region ICON GUICtrlCreateIcon("explorer.exe", 0, 175, 120) GUICtrlSetTip(-1, '#Region ICON') GUICtrlCreateLabel("Icon", 180, 160, 50, 20) GUICtrlSetTip(-1, '#Region ICON - Label') #EndRegion ICON #Region LIST VIEW Local $idListView = GUICtrlCreateListView("Sample|ListView|", 110, 190, 110, 80) GUICtrlSetTip(-1, '#Region LIST VIEW') GUICtrlCreateListViewItem("A|One", $idListView) GUICtrlCreateListViewItem("B|Two", $idListView) GUICtrlCreateListViewItem("C|Three", $idListView) #EndRegion LIST VIEW #Region GROUP WITH RADIO BUTTONS GUICtrlCreateGroup("Sample Group", 230, 120) GUICtrlCreateRadio("Radio One", 250, 140, 80) GUICtrlSetTip(-1, '#Region GROUP WITH RADIO BUTTONS- RADIO1') GUICtrlSetState(-1, $GUI_CHECKED) GUICtrlCreateRadio("Radio Two", 250, 165, 80) GUICtrlSetTip(-1, '#Region GROUP WITH RADIO BUTTONS- RADIO2') GUICtrlCreateGroup("", -99, -99, 1, 1) ;close group #EndRegion GROUP WITH RADIO BUTTONS #Region UPDOWN GUICtrlCreateLabel("UpDown", 350, 115) GUICtrlSetTip(-1, '#Region UPDOWN - Label') GUICtrlCreateInput("42", 350, 130, 40, 20) GUICtrlSetTip(-1, '#Region UPDOWN - Input') GUICtrlCreateUpdown(-1) GUICtrlSetTip(-1, '#Region UPDOWN - Updown') #EndRegion UPDOWN #Region LABEL GUICtrlCreateLabel("Green" & @CRLF & "Label", 350, 165, 40, 40) GUICtrlSetTip(-1, '#Region LABEL') GUICtrlSetBkColor(-1, 0x00FF00) #EndRegion LABEL #Region SLIDER GUICtrlCreateLabel("Slider:", 235, 215) GUICtrlSetTip(-1, '#Region SLIDER - Label') GUICtrlCreateSlider(270, 210, 120, 30) GUICtrlSetTip(-1, '#Region SLIDER') GUICtrlSetData(-1, 30) #EndRegion SLIDER #Region INPUT GUICtrlCreateInput("Sample Input Box", 235, 255, 130, 20) GUICtrlSetTip(-1, '#Region INPUT') #EndRegion INPUT #Region DATE GUICtrlCreateDate("", 5, 280, 200, 20) GUICtrlSetTip(-1, '#Region DATE') GUICtrlCreateLabel("(Date control expands into a calendar)", 10, 305, 200, 20) GUICtrlSetTip(-1, '#Region DATE - Label') #EndRegion DATE #Region BUTTON GUICtrlCreateButton("Sample Button", 10, 330, 100, 30) GUICtrlSetTip(-1, '#Region BUTTON') #EndRegion BUTTON #Region CHECKBOX GUICtrlCreateCheckbox("Checkbox", 130, 335, 80, 20) GUICtrlSetTip(-1, '#Region CHECKBOX') GUICtrlSetState(-1, $GUI_CHECKED) #EndRegion CHECKBOX #Region TREEVIEW ONE Local $idTreeView_1 = GUICtrlCreateTreeView(210, 290, 80, 80) GUICtrlSetTip(-1, '#Region TREEVIEW ONE') Local $idTreeItem = GUICtrlCreateTreeViewItem("TreeView", $idTreeView_1) GUICtrlCreateTreeViewItem("Item1", $idTreeItem) GUICtrlCreateTreeViewItem("Item2", $idTreeItem) GUICtrlCreateTreeViewItem("Foo", -1) GUICtrlSetState($idTreeItem, $GUI_EXPAND) #EndRegion TREEVIEW ONE #Region TREEVIEW TWO Local $idTreeView_2 = GUICtrlCreateTreeView(295, 290, 103, 80, $TVS_CHECKBOXES) GUICtrlSetTip(-1, '#Region TREEVIEW TWO') GUICtrlCreateTreeViewItem("TreeView", $idTreeView_2) GUICtrlCreateTreeViewItem("With", $idTreeView_2) GUICtrlCreateTreeViewItem("$TVS_CHECKBOXES", $idTreeView_2) GUICtrlSetState(-1, $GUI_CHECKED) GUICtrlCreateTreeViewItem("Style", $idTreeView_2) #EndRegion TREEVIEW TWO #Region GUI MESSAGE LOOP GUISetState(@SW_SHOW) While 1 Switch GUIGetMsg() Case $GUI_EVENT_CLOSE ExitLoop EndSwitch WEnd GUIDelete() #EndRegion GUI MESSAGE LOOP ;###################################################################################################################################### ; #FUNCTION# ==================================================================================================================== ; Name ..........: _GDIPlus_GraphicsGetDPIRatio ; Description ...: ; Syntax ........: _GDIPlus_GraphicsGetDPIRatio([$iDPIDef = 96]) ; Parameters ....: $iDPIDef - [optional] An integer value. Default is 96. ; Return values .: None ; Author ........: UEZ ; Modified ......: ; Remarks .......: ; Related .......: ; Link ..........: http://www.autoitscript.com/forum/topic/159612-dpi-resolution-problem/?hl=%2Bdpi#entry1158317 ; Example .......: No ; =============================================================================================================================== Func _GDIPlus_GraphicsGetDPIRatio($iDPIDef = 96) _GDIPlus_Startup() Local $hGfx = _GDIPlus_GraphicsCreateFromHWND(0) If @error Then Return SetError(1, @extended, 0) Local $aResult #forcedef $__g_hGDIPDll, $ghGDIPDll $aResult = DllCall($__g_hGDIPDll, "int", "GdipGetDpiX", "handle", $hGfx, "float*", 0) If @error Then Return SetError(2, @extended, 0) Local $iDPI = $aResult[2] Local $aresults[2] = [$iDPIDef / $iDPI, $iDPI / $iDPIDef] _GDIPlus_GraphicsDispose($hGfx) _GDIPlus_Shutdown() Return $aresults EndFunc ;==>_GDIPlus_GraphicsGetDPIRatio What was changed ? Added: expandcollapse popup.... .... If MsgBox($MB_YESNO,'Question:','Do you want to set DPI Awareness ?') = $IDYES Then GUISetFont(8.5 * _GDIPlus_GraphicsGetDPIRatio()[0]) EndIf .... .... .... ;###################################################################################################################################### ; #FUNCTION# ==================================================================================================================== ; Name ..........: _GDIPlus_GraphicsGetDPIRatio ; Description ...: ; Syntax ........: _GDIPlus_GraphicsGetDPIRatio([$iDPIDef = 96]) ; Parameters ....: $iDPIDef - [optional] An integer value. Default is 96. ; Return values .: None ; Author ........: UEZ ; Modified ......: ; Remarks .......: ; Related .......: ; Link ..........: http://www.autoitscript.com/forum/topic/159612-dpi-resolution-problem/?hl=%2Bdpi#entry1158317 ; Example .......: No ; =============================================================================================================================== Func _GDIPlus_GraphicsGetDPIRatio($iDPIDef = 96) _GDIPlus_Startup() Local $hGfx = _GDIPlus_GraphicsCreateFromHWND(0) If @error Then Return SetError(1, @extended, 0) Local $aResult #forcedef $__g_hGDIPDll, $ghGDIPDll $aResult = DllCall($__g_hGDIPDll, "int", "GdipGetDpiX", "handle", $hGfx, "float*", 0) If @error Then Return SetError(2, @extended, 0) Local $iDPI = $aResult[2] Local $aresults[2] = [$iDPIDef / $iDPI, $iDPI / $iDPIDef] _GDIPlus_GraphicsDispose($hGfx) _GDIPlus_Shutdown() Return $aresults EndFunc ;==>_GDIPlus_GraphicsGetDPIRatio Best regards mLipok edit: wording Edited December 30, 2014 by mLipok Signature beginning:* Please remember: "AutoIt"..... * Wondering who uses AutoIt and what it can be used for ? * Forum Rules ** ADO.au3 UDF * POP3.au3 UDF * XML.au3 UDF * IE on Windows 11 * How to ask ChatGPT for AutoIt Code * for other useful stuff click the following button: Spoiler Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind. My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API * ErrorLog.au3 UDF - A logging Library * Include Dependency Tree (Tool for analyzing script relations) * Show_Macro_Values.au3 * My contribution to others projects or UDF based on others projects: * _sql.au3 UDF * POP3.au3 UDF * RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF * SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane * Useful links: * Forum Rules * Forum etiquette * Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator * Wiki: * Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt * OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX IE Related: * How to use IE.au3 UDF with AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler * IE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) * PDF Related: * How to get reference to PDF object embeded in IE * IE on Windows 11 * I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions * EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *I also encourage you to check awesome @trancexx code: * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuff * OnHungApp handler * Avoid "AutoIt Error" message box in unknown errors * HTML editor * winhttp.au3 related : * https://www.autoitscript.com/forum/topic/206771-winhttpau3-download-problem-youre-speaking-plain-http-to-an-ssl-enabled-server-port/ "Homo sum; humani nil a me alienum puto" - Publius Terentius Afer"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming" , be and \\//_. Anticipating Errors : "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty." Signature last update: 2023-04-24 Link to comment Share on other sites More sharing options...

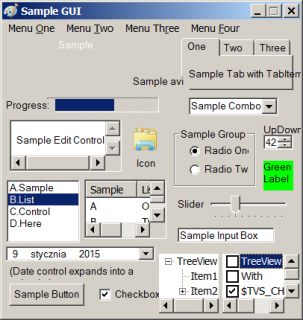

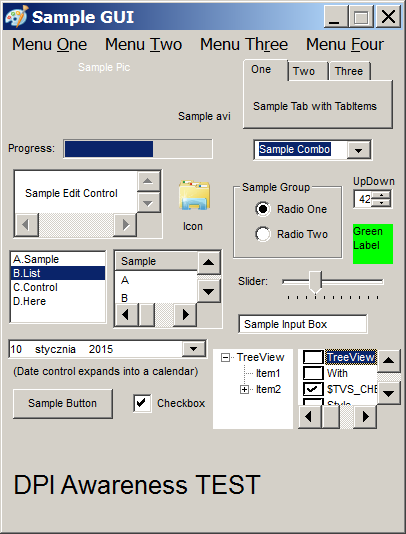

mLipok Posted January 9, 2015 Author Share Posted January 9, 2015 For those who do not know what's going on, here I attach screenshots. Loz and TheSaint 2 Signature beginning:* Please remember: "AutoIt"..... * Wondering who uses AutoIt and what it can be used for ? * Forum Rules ** ADO.au3 UDF * POP3.au3 UDF * XML.au3 UDF * IE on Windows 11 * How to ask ChatGPT for AutoIt Code * for other useful stuff click the following button: Spoiler Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind. My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API * ErrorLog.au3 UDF - A logging Library * Include Dependency Tree (Tool for analyzing script relations) * Show_Macro_Values.au3 * My contribution to others projects or UDF based on others projects: * _sql.au3 UDF * POP3.au3 UDF * RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF * SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane * Useful links: * Forum Rules * Forum etiquette * Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator * Wiki: * Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt * OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX IE Related: * How to use IE.au3 UDF with AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler * IE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) * PDF Related: * How to get reference to PDF object embeded in IE * IE on Windows 11 * I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions * EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *I also encourage you to check awesome @trancexx code: * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuff * OnHungApp handler * Avoid "AutoIt Error" message box in unknown errors * HTML editor * winhttp.au3 related : * https://www.autoitscript.com/forum/topic/206771-winhttpau3-download-problem-youre-speaking-plain-http-to-an-ssl-enabled-server-port/ "Homo sum; humani nil a me alienum puto" - Publius Terentius Afer"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming" , be and \\//_. Anticipating Errors : "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty." Signature last update: 2023-04-24 Link to comment Share on other sites More sharing options...
mLipok Posted January 10, 2015 Author Share Posted January 10, 2015 (edited) a better example expandcollapse popup#Region INCLUDE #include <AVIConstants.au3> #include <GuiConstantsEx.au3> #include <TreeViewConstants.au3> #include <GDIPlus.au3> #include <MsgBoxConstants.au3> #EndRegion INCLUDE Global $bDPI_Awareness = MsgBox($MB_YESNO, 'Question:', 'Do you want to set DPI Awareness ?') = $IDYES #Region GUI GUICreate("Sample GUI", 400, 500) If $bDPI_Awareness Then GUISetFont(8.5 * _GDIPlus_GraphicsGetDPIRatio()[0]) EndIf GUISetIcon(@SystemDir & "\mspaint.exe", 0) #EndRegion GUI #Region MENU Local $idMenu1 = GUICtrlCreateMenu("Menu &One") Local $idMenu2 = GUICtrlCreateMenu("Menu &Two") GUICtrlCreateMenu("Menu Th&ree") GUICtrlCreateMenu("Menu &Four") GUICtrlCreateMenuItem('SubMenu One &A', $idMenu1) GUICtrlCreateMenuItem('SubMenu One &B', $idMenu1) #EndRegion MENU #Region CONTEXT MENU Local $idContextMenu = GUICtrlCreateContextMenu() GUICtrlCreateMenuItem("Context Menu", $idContextMenu) GUICtrlCreateMenuItem("", $idContextMenu) ; Separator GUICtrlCreateMenuItem("&Properties", $idContextMenu) #EndRegion CONTEXT MENU #Region PIC GUICtrlCreatePic("logo4.gif", 0, 0, 169, 68) GUICtrlSetTip(-1, '#Region PIC') GUICtrlCreateLabel("Sample Pic", 75, 1, 53, 15) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) GUICtrlSetColor(-1, 0xFFFFFF) #EndRegion PIC #Region AVI GUICtrlCreateAvi("SampleAVI.avi", 0, 180, 10, 32, 32, $ACS_AUTOPLAY) GUICtrlSetTip(-1, '#Region AVI') ; TODO GUICtrlCreateLabel("Sample avi", 175, 50) GUICtrlSetTip(-1, '#Region AVI - Label') #EndRegion AVI #Region TAB GUICtrlCreateTab(240, 0, 150, 70) GUICtrlCreateTabItem("One") GUICtrlSetTip(-1, '#Region TAB1') GUICtrlCreateLabel("Sample Tab with TabItems", 250, 40) GUICtrlCreateTabItem("Two") GUICtrlSetTip(-1, '#Region TAB2') GUICtrlCreateTabItem("Three") GUICtrlSetTip(-1, '#Region TAB3') GUICtrlCreateTabItem("") #EndRegion TAB #Region COMBO GUICtrlCreateCombo("Sample Combo", 250, 80, 120, 100) GUICtrlSetTip(-1, '#Region COMBO') #EndRegion COMBO #Region PROGRESS GUICtrlCreateProgress(60, 80, 150, 20) GUICtrlSetTip(-1, '#Region PROGRES') GUICtrlSetData(-1, 60) GUICtrlCreateLabel("Progress:", 5, 82) GUICtrlSetTip(-1, '#Region PROGRES - Label') #EndRegion PROGRESS #Region EDIT GUICtrlCreateEdit(@CRLF & " Sample Edit Control", 10, 110, 150, 70) GUICtrlSetTip(-1, '#Region EDIT') #EndRegion EDIT #Region LIST GUICtrlCreateList("", 5, 190, 100, 90) GUICtrlSetTip(-1, '#Region LIST') GUICtrlSetData(-1, "A.Sample|B.List|C.Control|D.Here", "B.List") #EndRegion LIST #Region ICON GUICtrlCreateIcon("explorer.exe", 0, 175, 120) GUICtrlSetTip(-1, '#Region ICON') GUICtrlCreateLabel("Icon", 180, 160, 50, 20) GUICtrlSetTip(-1, '#Region ICON - Label') #EndRegion ICON #Region LIST VIEW Local $idListView = GUICtrlCreateListView("Sample|ListView|", 110, 190, 110, 80) GUICtrlSetTip(-1, '#Region LIST VIEW') GUICtrlCreateListViewItem("A|One", $idListView) GUICtrlCreateListViewItem("B|Two", $idListView) GUICtrlCreateListViewItem("C|Three", $idListView) #EndRegion LIST VIEW #Region GROUP WITH RADIO BUTTONS GUICtrlCreateGroup("Sample Group", 230, 120) GUICtrlCreateRadio("Radio One", 250, 140, 80) GUICtrlSetTip(-1, '#Region GROUP WITH RADIO BUTTONS- RADIO1') GUICtrlSetState(-1, $GUI_CHECKED) GUICtrlCreateRadio("Radio Two", 250, 165, 80) GUICtrlSetTip(-1, '#Region GROUP WITH RADIO BUTTONS- RADIO2') GUICtrlCreateGroup("", -99, -99, 1, 1) ;close group #EndRegion GROUP WITH RADIO BUTTONS #Region UPDOWN GUICtrlCreateLabel("UpDown", 350, 115) GUICtrlSetTip(-1, '#Region UPDOWN - Label') GUICtrlCreateInput("42", 350, 130, 40, 20) GUICtrlSetTip(-1, '#Region UPDOWN - Input') GUICtrlCreateUpdown(-1) GUICtrlSetTip(-1, '#Region UPDOWN - Updown') #EndRegion UPDOWN #Region LABEL GUICtrlCreateLabel("Green" & @CRLF & "Label", 350, 165, 40, 40) GUICtrlSetTip(-1, '#Region LABEL') GUICtrlSetBkColor(-1, 0x00FF00) #EndRegion LABEL #Region SLIDER GUICtrlCreateLabel("Slider:", 235, 215) GUICtrlSetTip(-1, '#Region SLIDER - Label') GUICtrlCreateSlider(270, 210, 120, 30) GUICtrlSetTip(-1, '#Region SLIDER') GUICtrlSetData(-1, 30) #EndRegion SLIDER #Region INPUT GUICtrlCreateInput("Sample Input Box", 235, 255, 130, 20) GUICtrlSetTip(-1, '#Region INPUT') #EndRegion INPUT #Region DATE GUICtrlCreateDate("", 5, 280, 200, 20) GUICtrlSetTip(-1, '#Region DATE') GUICtrlCreateLabel("(Date control expands into a calendar)", 10, 305, 200, 20) GUICtrlSetTip(-1, '#Region DATE - Label') #EndRegion DATE #Region BUTTON GUICtrlCreateButton("Sample Button", 10, 330, 100, 30) GUICtrlSetTip(-1, '#Region BUTTON') #EndRegion BUTTON #Region CHECKBOX GUICtrlCreateCheckbox("Checkbox", 130, 335, 80, 20) GUICtrlSetTip(-1, '#Region CHECKBOX') GUICtrlSetState(-1, $GUI_CHECKED) #EndRegion CHECKBOX #Region TREEVIEW ONE Local $idTreeView_1 = GUICtrlCreateTreeView(210, 290, 80, 80) GUICtrlSetTip(-1, '#Region TREEVIEW ONE') Local $idTreeItem = GUICtrlCreateTreeViewItem("TreeView", $idTreeView_1) GUICtrlCreateTreeViewItem("Item1", $idTreeItem) GUICtrlCreateTreeViewItem("Item2", $idTreeItem) GUICtrlCreateTreeViewItem("Foo", -1) GUICtrlSetState($idTreeItem, $GUI_EXPAND) #EndRegion TREEVIEW ONE #Region TREEVIEW TWO Local $idTreeView_2 = GUICtrlCreateTreeView(295, 290, 103, 80, $TVS_CHECKBOXES) GUICtrlSetTip(-1, '#Region TREEVIEW TWO') GUICtrlCreateTreeViewItem("TreeView", $idTreeView_2) GUICtrlCreateTreeViewItem("With", $idTreeView_2) GUICtrlCreateTreeViewItem("$TVS_CHECKBOXES", $idTreeView_2) GUICtrlSetState(-1, $GUI_CHECKED) GUICtrlCreateTreeViewItem("Style", $idTreeView_2) #EndRegion TREEVIEW TWO #Region DPI Awareness - example GUICtrlCreateLabel("DPI Awareness TEST", 10, 410, 380, 25) If $bDPI_Awareness Then GUICtrlSetFont(-1, 20 * _GDIPlus_GraphicsGetDPIRatio()[0]) Else GUICtrlSetFont(-1, 20) EndIf #EndRegion DPI Awareness - the best example #Region GUI MESSAGE LOOP GUISetState(@SW_SHOW) While 1 Switch GUIGetMsg() Case $GUI_EVENT_CLOSE ExitLoop EndSwitch WEnd GUIDelete() #EndRegion GUI MESSAGE LOOP ;###################################################################################################################################### ; #FUNCTION# ==================================================================================================================== ; Name ..........: _GDIPlus_GraphicsGetDPIRatio ; Description ...: ; Syntax ........: _GDIPlus_GraphicsGetDPIRatio([$iDPIDef = 96]) ; Parameters ....: $iDPIDef - [optional] An integer value. Default is 96. ; Return values .: None ; Author ........: UEZ ; Modified ......: ; Remarks .......: ; Related .......: ; Link ..........: http://www.autoitscript.com/forum/topic/159612-dpi-resolution-problem/?hl=%2Bdpi#entry1158317 ; Example .......: No ; =============================================================================================================================== Func _GDIPlus_GraphicsGetDPIRatio($iDPIDef = 96) _GDIPlus_Startup() Local $hGfx = _GDIPlus_GraphicsCreateFromHWND(0) If @error Then Return SetError(1, @extended, 0) Local $aResult #forcedef $__g_hGDIPDll, $ghGDIPDll $aResult = DllCall($__g_hGDIPDll, "int", "GdipGetDpiX", "handle", $hGfx, "float*", 0) If @error Then Return SetError(2, @extended, 0) Local $iDPI = $aResult[2] Local $aresults[2] = [$iDPIDef / $iDPI, $iDPI / $iDPIDef] _GDIPlus_GraphicsDispose($hGfx) _GDIPlus_Shutdown() Return $aresults EndFunc ;==>_GDIPlus_GraphicsGetDPIRatio and screenshots EDIT: The following screenshots was made in Windows 7 Pro x64 - With Classic theme, and 150% * STANDARD DPI Edited January 12, 2015 by mLipok TheSaint 1 Signature beginning:* Please remember: "AutoIt"..... * Wondering who uses AutoIt and what it can be used for ? * Forum Rules ** ADO.au3 UDF * POP3.au3 UDF * XML.au3 UDF * IE on Windows 11 * How to ask ChatGPT for AutoIt Code * for other useful stuff click the following button: Spoiler Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind. My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API * ErrorLog.au3 UDF - A logging Library * Include Dependency Tree (Tool for analyzing script relations) * Show_Macro_Values.au3 * My contribution to others projects or UDF based on others projects: * _sql.au3 UDF * POP3.au3 UDF * RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF * SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane * Useful links: * Forum Rules * Forum etiquette * Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator * Wiki: * Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt * OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX IE Related: * How to use IE.au3 UDF with AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler * IE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) * PDF Related: * How to get reference to PDF object embeded in IE * IE on Windows 11 * I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions * EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *I also encourage you to check awesome @trancexx code: * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuff * OnHungApp handler * Avoid "AutoIt Error" message box in unknown errors * HTML editor * winhttp.au3 related : * https://www.autoitscript.com/forum/topic/206771-winhttpau3-download-problem-youre-speaking-plain-http-to-an-ssl-enabled-server-port/ "Homo sum; humani nil a me alienum puto" - Publius Terentius Afer"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming" , be and \\//_. Anticipating Errors : "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty." Signature last update: 2023-04-24 Link to comment Share on other sites More sharing options...
ResNullius Posted January 12, 2015 Share Posted January 12, 2015 KaFu posted a wrapper for GuiSetFont/GuiCtrlSetFont that has a Dpi Ratio function (by Phillip123Adams) using straight dll call without GDI+. See Link to comment Share on other sites More sharing options...
mLipok Posted January 12, 2015 Author Share Posted January 12, 2015 Thanks. I have not seen this before. btw. @KaFu script using: Local $aRet = DllCall("gdi32.dll", "long", "GetDeviceCaps", "long", $hDC[0], "long", $Logpixelsy) Signature beginning:* Please remember: "AutoIt"..... * Wondering who uses AutoIt and what it can be used for ? * Forum Rules ** ADO.au3 UDF * POP3.au3 UDF * XML.au3 UDF * IE on Windows 11 * How to ask ChatGPT for AutoIt Code * for other useful stuff click the following button: Spoiler Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind. My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API * ErrorLog.au3 UDF - A logging Library * Include Dependency Tree (Tool for analyzing script relations) * Show_Macro_Values.au3 * My contribution to others projects or UDF based on others projects: * _sql.au3 UDF * POP3.au3 UDF * RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF * SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane * Useful links: * Forum Rules * Forum etiquette * Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator * Wiki: * Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt * OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX IE Related: * How to use IE.au3 UDF with AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler * IE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) * PDF Related: * How to get reference to PDF object embeded in IE * IE on Windows 11 * I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions * EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *I also encourage you to check awesome @trancexx code: * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuff * OnHungApp handler * Avoid "AutoIt Error" message box in unknown errors * HTML editor * winhttp.au3 related : * https://www.autoitscript.com/forum/topic/206771-winhttpau3-download-problem-youre-speaking-plain-http-to-an-ssl-enabled-server-port/ "Homo sum; humani nil a me alienum puto" - Publius Terentius Afer"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming" , be and \\//_. Anticipating Errors : "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty." Signature last update: 2023-04-24 Link to comment Share on other sites More sharing options...
TheSaint Posted January 12, 2015 Share Posted January 12, 2015 Very interesting. Thanks for sharing! Make sure brain is in gear before opening mouth! Remember, what is not said, can be just as important as what is said. Spoiler What is the Secret Key? Life is like a Donut If I put effort into communication, I expect you to read properly & fully, or just not comment. Ignoring those who try to divert conversation with irrelevancies. If I'm intent on insulting you or being rude, I will be obvious, not ambiguous about it. I'm only big and bad, to those who have an over-active imagination. I may have the Artistic Liesense to disagree with you. TheSaint's Toolbox (be advised many downloads are not working due to ISP screwup with my storage) Link to comment Share on other sites More sharing options...
mLipok Posted January 12, 2015 Author Share Posted January 12, 2015 You're welcome. mLipok Signature beginning:* Please remember: "AutoIt"..... * Wondering who uses AutoIt and what it can be used for ? * Forum Rules ** ADO.au3 UDF * POP3.au3 UDF * XML.au3 UDF * IE on Windows 11 * How to ask ChatGPT for AutoIt Code * for other useful stuff click the following button: Spoiler Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind. My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API * ErrorLog.au3 UDF - A logging Library * Include Dependency Tree (Tool for analyzing script relations) * Show_Macro_Values.au3 * My contribution to others projects or UDF based on others projects: * _sql.au3 UDF * POP3.au3 UDF * RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF * SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane * Useful links: * Forum Rules * Forum etiquette * Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator * Wiki: * Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt * OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX IE Related: * How to use IE.au3 UDF with AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler * IE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) * PDF Related: * How to get reference to PDF object embeded in IE * IE on Windows 11 * I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions * EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *I also encourage you to check awesome @trancexx code: * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuff * OnHungApp handler * Avoid "AutoIt Error" message box in unknown errors * HTML editor * winhttp.au3 related : * https://www.autoitscript.com/forum/topic/206771-winhttpau3-download-problem-youre-speaking-plain-http-to-an-ssl-enabled-server-port/ "Homo sum; humani nil a me alienum puto" - Publius Terentius Afer"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming" , be and \\//_. Anticipating Errors : "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty." Signature last update: 2023-04-24 Link to comment Share on other sites More sharing options...
mLipok Posted January 14, 2015 Author Share Posted January 14, 2015 (edited) Below I list some other "topic" related to this case: '?do=embed' frameborder='0' data-embedContent>> '?do=embed' frameborder='0' data-embedContent>> '?do=embed' frameborder='0' data-embedContent>> '?do=embed' frameborder='0' data-embedContent>> '?do=embed' frameborder='0' data-embedContent>> '?do=embed' frameborder='0' data-embedContent>> '?do=embed' frameborder='0' data-embedContent>> '?do=embed' frameborder='0' data-embedContent>> '?do=embed' frameborder='0' data-embedContent>> And MSDN links https://msdn.microsoft.com/en-us/library/windows/desktop/dn469266(v=vs.85).aspx https://msdn.microsoft.com/en-us/library/ms701681(v=vs.85).aspx https://msdn.microsoft.com/en-us/library/windows/desktop/ee308410(v=vs.85).aspx https://msdn.microsoft.com/en-us/library/windows/desktop/dd371771(v=vs.85).aspx https://msdn.microsoft.com/en-us/library/windows/desktop/dd464646(v=vs.85).aspx Edited February 23, 2015 by mlipok Signature beginning:* Please remember: "AutoIt"..... * Wondering who uses AutoIt and what it can be used for ? * Forum Rules ** ADO.au3 UDF * POP3.au3 UDF * XML.au3 UDF * IE on Windows 11 * How to ask ChatGPT for AutoIt Code * for other useful stuff click the following button: Spoiler Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind. My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API * ErrorLog.au3 UDF - A logging Library * Include Dependency Tree (Tool for analyzing script relations) * Show_Macro_Values.au3 * My contribution to others projects or UDF based on others projects: * _sql.au3 UDF * POP3.au3 UDF * RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF * SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane * Useful links: * Forum Rules * Forum etiquette * Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator * Wiki: * Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt * OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX IE Related: * How to use IE.au3 UDF with AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler * IE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) * PDF Related: * How to get reference to PDF object embeded in IE * IE on Windows 11 * I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions * EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *I also encourage you to check awesome @trancexx code: * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuff * OnHungApp handler * Avoid "AutoIt Error" message box in unknown errors * HTML editor * winhttp.au3 related : * https://www.autoitscript.com/forum/topic/206771-winhttpau3-download-problem-youre-speaking-plain-http-to-an-ssl-enabled-server-port/ "Homo sum; humani nil a me alienum puto" - Publius Terentius Afer"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming" , be and \\//_. Anticipating Errors : "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty." Signature last update: 2023-04-24 Link to comment Share on other sites More sharing options...
Mugen Posted February 22, 2015 Share Posted February 22, 2015 I think you doing it wrong. These reason of larger font on higher DPI windows setting, is because otherwise they would be to small to be read on high resolutions. Writing a DPI aware app means you have to make sure your window and all the controls are big enough to hold the text. Also you use GdipGetDpiX, but whats with GdipGetDpiY. Actually, I can't image a case when they will be different. But than again, why would there be two, if not for a reason? Link to comment Share on other sites More sharing options...
mLipok Posted February 22, 2015 Author Share Posted February 22, 2015 (edited) I think you doing it wrong. These reason of larger font on higher DPI windows setting, is because otherwise they would be to small to be read on high resolutions. Writing a DPI aware app means you have to make sure your window and all the controls are big enough to hold the text. Also you use GdipGetDpiX, but whats with GdipGetDpiY. Actually, I can't image a case when they will be different. But than again, why would there be two, if not for a reason? You do not take into account a case such as this followed. This is a full screen screenshot from Win7 with 1280*720 and 150% DPI EDIT1: in this case (following example) function is used. BTW: I have few clients who works with that wired desktop setup EDIT2: and here is example without using this function. Edited February 22, 2015 by mLipok Signature beginning:* Please remember: "AutoIt"..... * Wondering who uses AutoIt and what it can be used for ? * Forum Rules ** ADO.au3 UDF * POP3.au3 UDF * XML.au3 UDF * IE on Windows 11 * How to ask ChatGPT for AutoIt Code * for other useful stuff click the following button: Spoiler Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind. My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API * ErrorLog.au3 UDF - A logging Library * Include Dependency Tree (Tool for analyzing script relations) * Show_Macro_Values.au3 * My contribution to others projects or UDF based on others projects: * _sql.au3 UDF * POP3.au3 UDF * RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF * SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane * Useful links: * Forum Rules * Forum etiquette * Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator * Wiki: * Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt * OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX IE Related: * How to use IE.au3 UDF with AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler * IE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) * PDF Related: * How to get reference to PDF object embeded in IE * IE on Windows 11 * I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions * EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *I also encourage you to check awesome @trancexx code: * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuff * OnHungApp handler * Avoid "AutoIt Error" message box in unknown errors * HTML editor * winhttp.au3 related : * https://www.autoitscript.com/forum/topic/206771-winhttpau3-download-problem-youre-speaking-plain-http-to-an-ssl-enabled-server-port/ "Homo sum; humani nil a me alienum puto" - Publius Terentius Afer"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming" , be and \\//_. Anticipating Errors : "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty." Signature last update: 2023-04-24 Link to comment Share on other sites More sharing options...
mLipok Posted February 22, 2015 Author Share Posted February 22, 2015 Also you use GdipGetDpiX, but whats with GdipGetDpiY. The main problem which I want to solve was to make sure text in controls fits size of this controls. So the main problem was X dimension. Signature beginning:* Please remember: "AutoIt"..... * Wondering who uses AutoIt and what it can be used for ? * Forum Rules ** ADO.au3 UDF * POP3.au3 UDF * XML.au3 UDF * IE on Windows 11 * How to ask ChatGPT for AutoIt Code * for other useful stuff click the following button: Spoiler Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind. My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API * ErrorLog.au3 UDF - A logging Library * Include Dependency Tree (Tool for analyzing script relations) * Show_Macro_Values.au3 * My contribution to others projects or UDF based on others projects: * _sql.au3 UDF * POP3.au3 UDF * RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF * SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane * Useful links: * Forum Rules * Forum etiquette * Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator * Wiki: * Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt * OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX IE Related: * How to use IE.au3 UDF with AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler * IE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) * PDF Related: * How to get reference to PDF object embeded in IE * IE on Windows 11 * I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions * EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *I also encourage you to check awesome @trancexx code: * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuff * OnHungApp handler * Avoid "AutoIt Error" message box in unknown errors * HTML editor * winhttp.au3 related : * https://www.autoitscript.com/forum/topic/206771-winhttpau3-download-problem-youre-speaking-plain-http-to-an-ssl-enabled-server-port/ "Homo sum; humani nil a me alienum puto" - Publius Terentius Afer"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming" , be and \\//_. Anticipating Errors : "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty." Signature last update: 2023-04-24 Link to comment Share on other sites More sharing options...
Mugen Posted February 23, 2015 Share Posted February 23, 2015 I saw your pictures, in post #2 already. That's the reason I posted here. People set high DPI, to have better readable and bigger text on their small monitor with very high resolution. Windows makes the text bigger, that's wanted. If you decrease the font size, they will have a problem. Link to comment Share on other sites More sharing options...
mLipok Posted February 23, 2015 Author Share Posted February 23, 2015 (edited) so you suggest to make example EDIT: to show how to resize main Window and all controls ? Edited February 23, 2015 by mlipok Signature beginning:* Please remember: "AutoIt"..... * Wondering who uses AutoIt and what it can be used for ? * Forum Rules ** ADO.au3 UDF * POP3.au3 UDF * XML.au3 UDF * IE on Windows 11 * How to ask ChatGPT for AutoIt Code * for other useful stuff click the following button: Spoiler Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind. My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API * ErrorLog.au3 UDF - A logging Library * Include Dependency Tree (Tool for analyzing script relations) * Show_Macro_Values.au3 * My contribution to others projects or UDF based on others projects: * _sql.au3 UDF * POP3.au3 UDF * RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF * SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane * Useful links: * Forum Rules * Forum etiquette * Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator * Wiki: * Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt * OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX IE Related: * How to use IE.au3 UDF with AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler * IE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) * PDF Related: * How to get reference to PDF object embeded in IE * IE on Windows 11 * I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions * EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *I also encourage you to check awesome @trancexx code: * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuff * OnHungApp handler * Avoid "AutoIt Error" message box in unknown errors * HTML editor * winhttp.au3 related : * https://www.autoitscript.com/forum/topic/206771-winhttpau3-download-problem-youre-speaking-plain-http-to-an-ssl-enabled-server-port/ "Homo sum; humani nil a me alienum puto" - Publius Terentius Afer"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming" , be and \\//_. Anticipating Errors : "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty." Signature last update: 2023-04-24 Link to comment Share on other sites More sharing options...
Mugen Posted February 23, 2015 Share Posted February 23, 2015 so you suggest to make example EDIT: to show how to resize main Window and all controls ? Yes, this would be nice. Link to comment Share on other sites More sharing options...

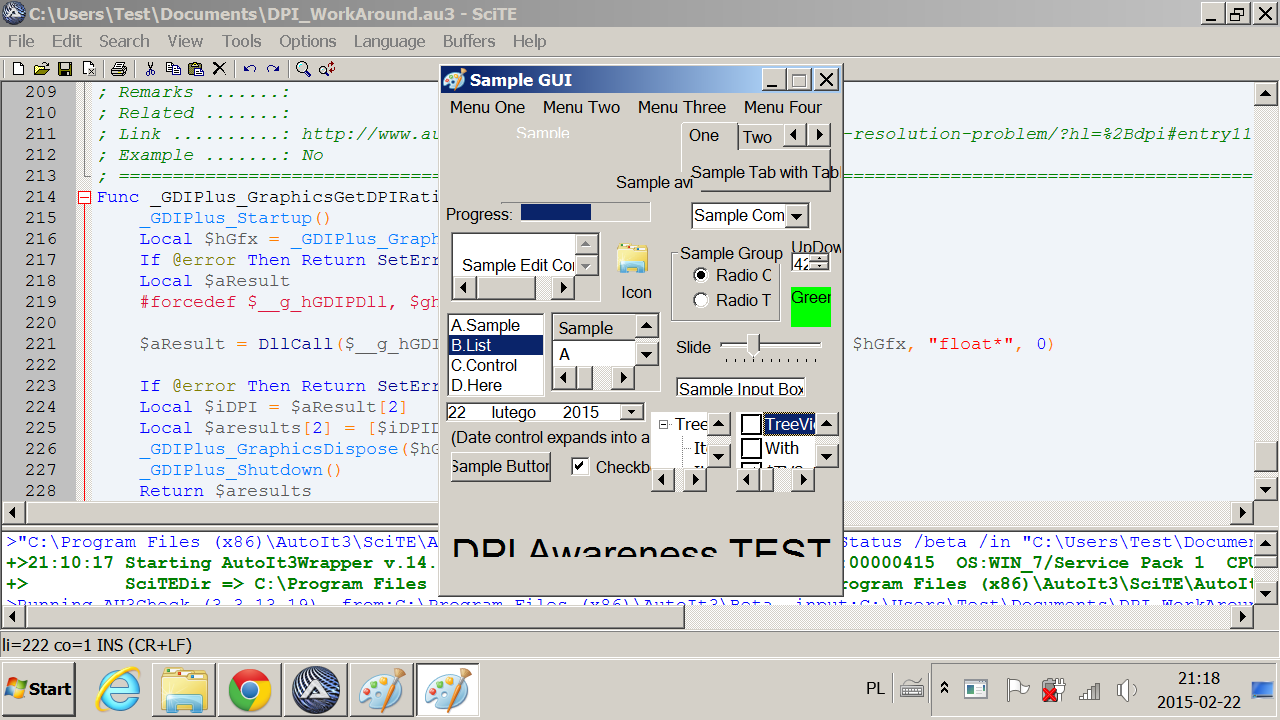

mLipok Posted February 23, 2015 Author Share Posted February 23, 2015 (edited) Run this example on yours system settings. Make fullscreen screenshot. Put it here. And say what a resolution and DPI ratio is used. Edited February 23, 2015 by mlipok Signature beginning:* Please remember: "AutoIt"..... * Wondering who uses AutoIt and what it can be used for ? * Forum Rules ** ADO.au3 UDF * POP3.au3 UDF * XML.au3 UDF * IE on Windows 11 * How to ask ChatGPT for AutoIt Code * for other useful stuff click the following button: Spoiler Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind. My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API * ErrorLog.au3 UDF - A logging Library * Include Dependency Tree (Tool for analyzing script relations) * Show_Macro_Values.au3 * My contribution to others projects or UDF based on others projects: * _sql.au3 UDF * POP3.au3 UDF * RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF * SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane * Useful links: * Forum Rules * Forum etiquette * Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator * Wiki: * Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt * OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX IE Related: * How to use IE.au3 UDF with AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler * IE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) * PDF Related: * How to get reference to PDF object embeded in IE * IE on Windows 11 * I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions * EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *I also encourage you to check awesome @trancexx code: * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuff * OnHungApp handler * Avoid "AutoIt Error" message box in unknown errors * HTML editor * winhttp.au3 related : * https://www.autoitscript.com/forum/topic/206771-winhttpau3-download-problem-youre-speaking-plain-http-to-an-ssl-enabled-server-port/ "Homo sum; humani nil a me alienum puto" - Publius Terentius Afer"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming" , be and \\//_. Anticipating Errors : "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty." Signature last update: 2023-04-24 Link to comment Share on other sites More sharing options...
mLipok Posted February 26, 2015 Author Share Posted February 26, 2015 Yes, this would be nice. Working example is here. Signature beginning:* Please remember: "AutoIt"..... * Wondering who uses AutoIt and what it can be used for ? * Forum Rules ** ADO.au3 UDF * POP3.au3 UDF * XML.au3 UDF * IE on Windows 11 * How to ask ChatGPT for AutoIt Code * for other useful stuff click the following button: Spoiler Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind. My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API * ErrorLog.au3 UDF - A logging Library * Include Dependency Tree (Tool for analyzing script relations) * Show_Macro_Values.au3 * My contribution to others projects or UDF based on others projects: * _sql.au3 UDF * POP3.au3 UDF * RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF * SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane * Useful links: * Forum Rules * Forum etiquette * Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator * Wiki: * Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt * OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX IE Related: * How to use IE.au3 UDF with AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler * IE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) * PDF Related: * How to get reference to PDF object embeded in IE * IE on Windows 11 * I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions * EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *I also encourage you to check awesome @trancexx code: * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuff * OnHungApp handler * Avoid "AutoIt Error" message box in unknown errors * HTML editor * winhttp.au3 related : * https://www.autoitscript.com/forum/topic/206771-winhttpau3-download-problem-youre-speaking-plain-http-to-an-ssl-enabled-server-port/ "Homo sum; humani nil a me alienum puto" - Publius Terentius Afer"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming" , be and \\//_. Anticipating Errors : "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty." Signature last update: 2023-04-24 Link to comment Share on other sites More sharing options...
argumentum Posted June 5, 2015 Share Posted June 5, 2015 (edited) did not test it but I think this would be better:#Region DPI Awareness App - workaround ; #FUNCTION# ==================================================================================================================== ; Name ..........: _GDIPlus_GraphicsGetDPIRatio ; Description ...: Get DPI Ratio ; Syntax ........: _GDIPlus_GraphicsGetDPIRatio([$iDPIDef = 96]) ; Parameters ....: $iDPIDef - [optional] An integer value. Default is 96. ; Return values .: actual DPI Ratio as Array, or set @error to non zero, also @extended may be set ; Author ........: UEZ ; Modified ......: argumentum 2015.06.05 / better error return ; Remarks .......: ; Related .......: ; Link ..........: https://www.autoitscript.com/forum/topic/166479-writing-dpi-awareness-app-workaround/ ; Example .......: yes ; =============================================================================================================================== Func _GDIPlus_GraphicsGetDPIRatio($iDPIDef = 96) Local $aResults[2] = [1, 1] _GDIPlus_Startup() Local $hGfx = _GDIPlus_GraphicsCreateFromHWND(0) If @error Then Return SetError(1, @extended, $aResults) Local $aResult #forcedef $__g_hGDIPDll, $ghGDIPDll $aResult = DllCall($__g_hGDIPDll, "int", "GdipGetDpiX", "handle", $hGfx, "float*", 0) If @error Then Return SetError(2, @error, $aResults) Local $iDPI = $aResult[2] Local $aResults[2] = [$iDPIDef / $iDPI, $iDPI / $iDPIDef] _GDIPlus_GraphicsDispose($hGfx) _GDIPlus_Shutdown() Return $aResults EndFunc ;==>_GDIPlus_GraphicsGetDPIRatio #EndRegion DPI Awareness App - workaroundso in case of failure, the script don't crash Edited June 6, 2015 by argumentum fix the code I previously posted Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting. Link to comment Share on other sites More sharing options...
mLipok Posted June 5, 2015 Author Share Posted June 5, 2015 so in case of failure, the script don't crashYou have right, but it should be used in this way:Local $aresults[2] = [1, 1] argumentum 1 Signature beginning:* Please remember: "AutoIt"..... * Wondering who uses AutoIt and what it can be used for ? * Forum Rules ** ADO.au3 UDF * POP3.au3 UDF * XML.au3 UDF * IE on Windows 11 * How to ask ChatGPT for AutoIt Code * for other useful stuff click the following button: Spoiler Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind. My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API * ErrorLog.au3 UDF - A logging Library * Include Dependency Tree (Tool for analyzing script relations) * Show_Macro_Values.au3 * My contribution to others projects or UDF based on others projects: * _sql.au3 UDF * POP3.au3 UDF * RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF * SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane * Useful links: * Forum Rules * Forum etiquette * Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator * Wiki: * Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt * OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX IE Related: * How to use IE.au3 UDF with AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler * IE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) * PDF Related: * How to get reference to PDF object embeded in IE * IE on Windows 11 * I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions * EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *I also encourage you to check awesome @trancexx code: * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuff * OnHungApp handler * Avoid "AutoIt Error" message box in unknown errors * HTML editor * winhttp.au3 related : * https://www.autoitscript.com/forum/topic/206771-winhttpau3-download-problem-youre-speaking-plain-http-to-an-ssl-enabled-server-port/ "Homo sum; humani nil a me alienum puto" - Publius Terentius Afer"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming" , be and \\//_. Anticipating Errors : "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty." Signature last update: 2023-04-24 Link to comment Share on other sites More sharing options...
mLipok Posted June 5, 2015 Author Share Posted June 5, 2015 New version with @argumentum contribution, and some more description expandcollapse popup#Region INCLUDE #include <AVIConstants.au3> #include <GuiConstantsEx.au3> #include <TreeViewConstants.au3> #include <GDIPlus.au3> #include <MsgBoxConstants.au3> #EndRegion INCLUDE Global $bDPI_Awareness = MsgBox($MB_YESNO, 'Question:', 'Do you want to set DPI Awareness ?') = $IDYES #Region GUI GUICreate("Sample GUI", 400, 500) If $bDPI_Awareness Then GUISetFont(8.5 * _GDIPlus_GraphicsGetDPIRatio()[0]) EndIf GUISetIcon(@SystemDir & "\mspaint.exe", 0) #EndRegion GUI #Region MENU Local $idMenu1 = GUICtrlCreateMenu("Menu &One") Local $idMenu2 = GUICtrlCreateMenu("Menu &Two") GUICtrlCreateMenu("Menu Th&ree") GUICtrlCreateMenu("Menu &Four") GUICtrlCreateMenuItem('SubMenu One &A', $idMenu1) GUICtrlCreateMenuItem('SubMenu One &B', $idMenu1) #EndRegion MENU #Region CONTEXT MENU Local $idContextMenu = GUICtrlCreateContextMenu() GUICtrlCreateMenuItem("Context Menu", $idContextMenu) GUICtrlCreateMenuItem("", $idContextMenu) ; Separator GUICtrlCreateMenuItem("&Properties", $idContextMenu) #EndRegion CONTEXT MENU #Region PIC GUICtrlCreatePic("logo4.gif", 0, 0, 169, 68) GUICtrlSetTip(-1, '#Region PIC') GUICtrlCreateLabel("Sample Pic", 75, 1, 53, 15) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) GUICtrlSetColor(-1, 0xFFFFFF) #EndRegion PIC #Region AVI GUICtrlCreateAvi("SampleAVI.avi", 0, 180, 10, 32, 32, $ACS_AUTOPLAY) GUICtrlSetTip(-1, '#Region AVI') ; TODO GUICtrlCreateLabel("Sample avi", 175, 50) GUICtrlSetTip(-1, '#Region AVI - Label') #EndRegion AVI #Region TAB GUICtrlCreateTab(240, 0, 150, 70) GUICtrlCreateTabItem("One") GUICtrlSetTip(-1, '#Region TAB1') GUICtrlCreateLabel("Sample Tab with TabItems", 250, 40) GUICtrlCreateTabItem("Two") GUICtrlSetTip(-1, '#Region TAB2') GUICtrlCreateTabItem("Three") GUICtrlSetTip(-1, '#Region TAB3') GUICtrlCreateTabItem("") #EndRegion TAB #Region COMBO GUICtrlCreateCombo("Sample Combo", 250, 80, 120, 100) GUICtrlSetTip(-1, '#Region COMBO') #EndRegion COMBO #Region PROGRESS GUICtrlCreateProgress(60, 80, 150, 20) GUICtrlSetTip(-1, '#Region PROGRES') GUICtrlSetData(-1, 60) GUICtrlCreateLabel("Progress:", 5, 82) GUICtrlSetTip(-1, '#Region PROGRES - Label') #EndRegion PROGRESS #Region EDIT GUICtrlCreateEdit(@CRLF & " Sample Edit Control", 10, 110, 150, 70) GUICtrlSetTip(-1, '#Region EDIT') #EndRegion EDIT #Region LIST GUICtrlCreateList("", 5, 190, 100, 90) GUICtrlSetTip(-1, '#Region LIST') GUICtrlSetData(-1, "A.Sample|B.List|C.Control|D.Here", "B.List") #EndRegion LIST #Region ICON GUICtrlCreateIcon("explorer.exe", 0, 175, 120) GUICtrlSetTip(-1, '#Region ICON') GUICtrlCreateLabel("Icon", 180, 160, 50, 20) GUICtrlSetTip(-1, '#Region ICON - Label') #EndRegion ICON #Region LIST VIEW Local $idListView = GUICtrlCreateListView("Sample|ListView|", 110, 190, 110, 80) GUICtrlSetTip(-1, '#Region LIST VIEW') GUICtrlCreateListViewItem("A|One", $idListView) GUICtrlCreateListViewItem("B|Two", $idListView) GUICtrlCreateListViewItem("C|Three", $idListView) #EndRegion LIST VIEW #Region GROUP WITH RADIO BUTTONS GUICtrlCreateGroup("Sample Group", 230, 120) GUICtrlCreateRadio("Radio One", 250, 140, 80) GUICtrlSetTip(-1, '#Region GROUP WITH RADIO BUTTONS- RADIO1') GUICtrlSetState(-1, $GUI_CHECKED) GUICtrlCreateRadio("Radio Two", 250, 165, 80) GUICtrlSetTip(-1, '#Region GROUP WITH RADIO BUTTONS- RADIO2') GUICtrlCreateGroup("", -99, -99, 1, 1) ;close group #EndRegion GROUP WITH RADIO BUTTONS #Region UPDOWN GUICtrlCreateLabel("UpDown", 350, 115) GUICtrlSetTip(-1, '#Region UPDOWN - Label') GUICtrlCreateInput("42", 350, 130, 40, 20) GUICtrlSetTip(-1, '#Region UPDOWN - Input') GUICtrlCreateUpdown(-1) GUICtrlSetTip(-1, '#Region UPDOWN - Updown') #EndRegion UPDOWN #Region LABEL GUICtrlCreateLabel("Green" & @CRLF & "Label", 350, 165, 40, 40) GUICtrlSetTip(-1, '#Region LABEL') GUICtrlSetBkColor(-1, 0x00FF00) #EndRegion LABEL #Region SLIDER GUICtrlCreateLabel("Slider:", 235, 215) GUICtrlSetTip(-1, '#Region SLIDER - Label') GUICtrlCreateSlider(270, 210, 120, 30) GUICtrlSetTip(-1, '#Region SLIDER') GUICtrlSetData(-1, 30) #EndRegion SLIDER #Region INPUT GUICtrlCreateInput("Sample Input Box", 235, 255, 130, 20) GUICtrlSetTip(-1, '#Region INPUT') #EndRegion INPUT #Region DATE GUICtrlCreateDate("", 5, 280, 200, 20) GUICtrlSetTip(-1, '#Region DATE') GUICtrlCreateLabel("(Date control expands into a calendar)", 10, 305, 200, 20) GUICtrlSetTip(-1, '#Region DATE - Label') #EndRegion DATE #Region BUTTON GUICtrlCreateButton("Sample Button", 10, 330, 100, 30) GUICtrlSetTip(-1, '#Region BUTTON') #EndRegion BUTTON #Region CHECKBOX GUICtrlCreateCheckbox("Checkbox", 130, 335, 80, 20) GUICtrlSetTip(-1, '#Region CHECKBOX') GUICtrlSetState(-1, $GUI_CHECKED) #EndRegion CHECKBOX #Region TREEVIEW ONE Local $idTreeView_1 = GUICtrlCreateTreeView(210, 290, 80, 80) GUICtrlSetTip(-1, '#Region TREEVIEW ONE') Local $idTreeItem = GUICtrlCreateTreeViewItem("TreeView", $idTreeView_1) GUICtrlCreateTreeViewItem("Item1", $idTreeItem) GUICtrlCreateTreeViewItem("Item2", $idTreeItem) GUICtrlCreateTreeViewItem("Foo", -1) GUICtrlSetState($idTreeItem, $GUI_EXPAND) #EndRegion TREEVIEW ONE #Region TREEVIEW TWO Local $idTreeView_2 = GUICtrlCreateTreeView(295, 290, 103, 80, $TVS_CHECKBOXES) GUICtrlSetTip(-1, '#Region TREEVIEW TWO') GUICtrlCreateTreeViewItem("TreeView", $idTreeView_2) GUICtrlCreateTreeViewItem("With", $idTreeView_2) GUICtrlCreateTreeViewItem("$TVS_CHECKBOXES", $idTreeView_2) GUICtrlSetState(-1, $GUI_CHECKED) GUICtrlCreateTreeViewItem("Style", $idTreeView_2) #EndRegion TREEVIEW TWO #Region DPI Awareness - example GUICtrlCreateLabel("DPI Awareness TEST", 10, 410, 380, 25) If $bDPI_Awareness Then GUICtrlSetFont(-1, 20 * _GDIPlus_GraphicsGetDPIRatio()[0]) Else GUICtrlSetFont(-1, 20) EndIf #EndRegion DPI Awareness - example #Region GUI MESSAGE LOOP GUISetState(@SW_SHOW) While 1 Switch GUIGetMsg() Case $GUI_EVENT_CLOSE ExitLoop EndSwitch WEnd GUIDelete() #EndRegion GUI MESSAGE LOOP #Region DPI Awareness App - workaround ; #FUNCTION# ==================================================================================================================== ; Name ..........: _GDIPlus_GraphicsGetDPIRatio ; Description ...: Get DPI Ratio ; Syntax ........: _GDIPlus_GraphicsGetDPIRatio([$iDPIDef = 96]) ; Parameters ....: $iDPIDef - [optional] An integer value. Default is 96. ; Return values .: actual DPI Ratio as Array, or set @error to non zero, also @extended may be set ; Author ........: UEZ ; Modified ......: argumentum 2015.06.05 / better error return ; Remarks .......: ; Related .......: ; Link ..........: https://www.autoitscript.com/forum/topic/166479-writing-dpi-awareness-app-workaround/ ; Example .......: yes ; =============================================================================================================================== Func _GDIPlus_GraphicsGetDPIRatio($iDPIDef = 96) Local $aResults[2] = [1, 1] _GDIPlus_Startup() Local $hGfx = _GDIPlus_GraphicsCreateFromHWND(0) If @error Then Return SetError(1, @extended, $aResults) Local $aResult #forcedef $__g_hGDIPDll, $ghGDIPDll $aResult = DllCall($__g_hGDIPDll, "int", "GdipGetDpiX", "handle", $hGfx, "float*", 0) If @error Then Return SetError(2, @error, $aResults) Local $iDPI = $aResult[2] $aResults[0] = [$iDPIDef / $iDPI, $iDPI / $iDPIDef] _GDIPlus_GraphicsDispose($hGfx) _GDIPlus_Shutdown() Return $aResults EndFunc ;==>_GDIPlus_GraphicsGetDPIRatio #EndRegion DPI Awareness App - workaround Signature beginning:* Please remember: "AutoIt"..... * Wondering who uses AutoIt and what it can be used for ? * Forum Rules ** ADO.au3 UDF * POP3.au3 UDF * XML.au3 UDF * IE on Windows 11 * How to ask ChatGPT for AutoIt Code * for other useful stuff click the following button: Spoiler Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind. My contribution (my own projects): * Debenu Quick PDF Library - UDF * Debenu PDF Viewer SDK - UDF * Acrobat Reader - ActiveX Viewer * UDF for PDFCreator v1.x.x * XZip - UDF * AppCompatFlags UDF * CrowdinAPI UDF * _WinMergeCompare2Files() * _JavaExceptionAdd() * _IsBeta() * Writing DPI Awareness App - workaround * _AutoIt_RequiredVersion() * Chilkatsoft.au3 UDF * TeamViewer.au3 UDF * JavaManagement UDF * VIES over SOAP * WinSCP UDF * GHAPI UDF - modest begining - comunication with GitHub REST API * ErrorLog.au3 UDF - A logging Library * Include Dependency Tree (Tool for analyzing script relations) * Show_Macro_Values.au3 * My contribution to others projects or UDF based on others projects: * _sql.au3 UDF * POP3.au3 UDF * RTF Printer - UDF * XML.au3 UDF * ADO.au3 UDF * SMTP Mailer UDF * Dual Monitor resolution detection * * 2GUI on Dual Monitor System * _SciLexer.au3 UDF * SciTE - Lexer for console pane * Useful links: * Forum Rules * Forum etiquette * Forum Information and FAQs * How to post code on the forum * AutoIt Online Documentation * AutoIt Online Beta Documentation * SciTE4AutoIt3 getting started * Convert text blocks to AutoIt code * Games made in Autoit * Programming related sites * Polish AutoIt Tutorial * DllCall Code Generator * Wiki: * Expand your knowledge - AutoIt Wiki * Collection of User Defined Functions * How to use HelpFile * Good coding practices in AutoIt * OpenOffice/LibreOffice/XLS Related: WriterDemo.au3 * XLS/MDB from scratch with ADOX IE Related: * How to use IE.au3 UDF with AutoIt v3.3.14.x * Why isn't Autoit able to click a Javascript Dialog? * Clicking javascript button with no ID * IE document >> save as MHT file * IETab Switcher (by LarsJ ) * HTML Entities * _IEquerySelectorAll() (by uncommon) * IE in TaskScheduler * IE Embedded Control Versioning (use IE9+ and HTML5 in a GUI) * PDF Related: * How to get reference to PDF object embeded in IE * IE on Windows 11 * I encourage you to read: * Global Vars * Best Coding Practices * Please explain code used in Help file for several File functions * OOP-like approach in AutoIt * UDF-Spec Questions * EXAMPLE: How To Catch ConsoleWrite() output to a file or to CMD *I also encourage you to check awesome @trancexx code: * Create COM objects from modules without any demand on user to register anything. * Another COM object registering stuff * OnHungApp handler * Avoid "AutoIt Error" message box in unknown errors * HTML editor * winhttp.au3 related : * https://www.autoitscript.com/forum/topic/206771-winhttpau3-download-problem-youre-speaking-plain-http-to-an-ssl-enabled-server-port/ "Homo sum; humani nil a me alienum puto" - Publius Terentius Afer"Program are meant to be read by humans and only incidentally for computers and execute" - Donald Knuth, "The Art of Computer Programming" , be and \\//_. Anticipating Errors : "Any program that accepts data from a user must include code to validate that data before sending it to the data store. You cannot rely on the data store, ...., or even your programming language to notify you of problems. You must check every byte entered by your users, making sure that data is the correct type for its field and that required fields are not empty." Signature last update: 2023-04-24 Link to comment Share on other sites More sharing options...
argumentum Posted June 6, 2015 Share Posted June 6, 2015 @mLipok, I made a mistake at$aResults[0] = [$iDPIDef / $iDPI, $iDPI / $iDPIDef]I shoud have writtenLocal $aResults[2] = [$iDPIDef / $iDPI, $iDPI / $iDPIDef]please fix your post, thanks. Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting. Link to comment Share on other sites More sharing options...
