PowerPoint COM object trouble

[AdamUL]

After some research, I found something interesting.  When you use the RGB property through COM, it sees it as BGR.  Give this a try.

.Shapes.Item(5).Fill.ForeColor.RGB = _WinAPI_SwitchColor(_WinAPI_RGB(255, 0, 0))

Adam

[water]

I noticed something similar when working on the ExcelChart UDF.

I created an internal function to get the desired result - but using WinAPI is much cleaner I think..

It is completely insane to specify a red value and get a blue shape - that's why I love MS

[Jewtus]



This script sets the background color of item 5 to a dark blue and writes @error = 0 to the SciTE console.

Tested with PP 2010.

$oPPT = ObjCreate("PowerPoint.Application")
If @error Then Exit MsgBox(0, "Error", "No PowerPoint available")
AddSlide(2, 11, "Example Project")
MsgBox(0, "Information", "Test ended.")
Func AddSlide($slideNum, $format, $projectName)
    $oPresentation = $oPPT.Presentations.Open(@ScriptDir & "\Test.potx")
    If @error Then Exit MsgBox(0, "Error", "Error opening potx")
    $rows = 10
    $cols = 3
    $oSlide1 = $oPresentation.Slides.Add($slideNum, $format)
    With $oSlide1
        .Shapes.Item(1).TextFrame.TextRange.Text = $projectName
        .Shapes.AddTextBox(1, 35, 60, 400, 50) ;type,left,top,width,height
        .Shapes.Item(2).TextFrame.TextRange.Text = "Overall Status"
        .Shapes.AddTextBox(1, 300, 60, 400, 50)
        .Shapes.Item(3).TextFrame.TextRange.Text = "Issues"
        .Shapes.AddTextBox(1, 500, 60, 400, 50)
        .Shapes.Item(4).TextFrame.TextRange.Text = "Next Week"
        .Shapes.AddShape(151, 30, 100, 200, 200)
        .Shapes.Item(6).Fill.ForeColor.RGB = 0xff0000 ; RGB(255, 0, 0)
        ConsoleWrite("@error = " & @error & @CRLF)
        .Shapes.AddTable($rows, $cols, 60, 120, 100, 100)
    EndWith
EndFunc   ;==>AddSlide

I tried this and oddly I don't get any error (when I correct the shape index to 5 for the fill command), but the object still refuses to change colors.... Does there need to be a line around it first or something weird?



After some research, I found something interesting.  When you use the RGB property through COM, it sees it as BGR.  Give this a try.

.Shapes.Item(5).Fill.ForeColor.RGB = _WinAPI_SwitchColor(_WinAPI_RGB(255, 0, 0))

Adam

I also tried this and again, no error, but no color change...

[water]

Which version of PowerPoint do you run (2010, 2013 ...)? On which operating sytem?

[Jewtus]

Which version of PowerPoint do you run (2010, 2013 ...)? On which operating sytem?

2010 on a windows 7 machine.

[water]

I run the same version and it works just fine here.

Can you try on another computer?

[Jewtus]

Tried it on another machine and I still get the same output. The box shows up, but there is no fill. I'm using the portable version of Autoit so maybe there is something different in the _WinAPI_SwitchColor UDF?

[water]

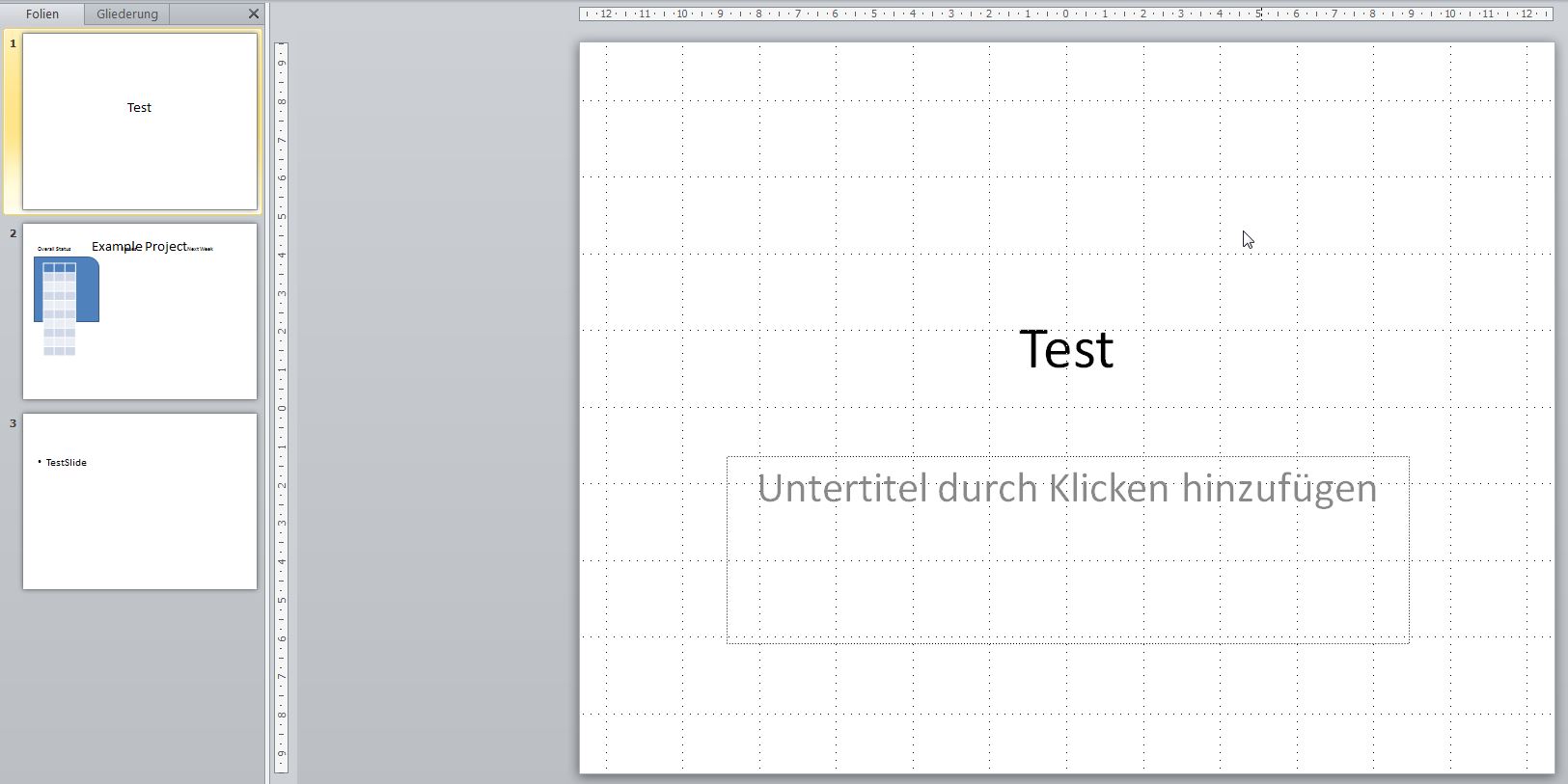

The script I posted in #19 returns the following result.

What do you get?

[trancexx]

And what do you get when you run this:

expandcollapse popup

#include <WinAPIGdi.au3>

$oError = ObjEvent("AutoIt.Error", "MyErrFunc")
Func MyErrFunc($oErrorParam)
    ConsoleWrite("COM Error !" & @CRLF & @CRLF & _
            "err.description is: " & @TAB & $oErrorParam.description & @CRLF & _
            "err.windescription:" & @TAB & $oErrorParam.windescription & @CRLF & _
            "err.number is: " & @TAB & $oErrorParam.number & @CRLF & _
            "err.lastdllerror is: " & @TAB & $oErrorParam.lastdllerror & @CRLF & _
            "err.scriptline is: " & @TAB & $oErrorParam.scriptline & @CRLF & _
            "err.source is: " & @TAB & $oErrorParam.source & @CRLF _
            )
EndFunc


$oPPT = ObjCreate("PowerPoint.Application")
If @error Then Exit MsgBox(0, "Error", "No PowerPoint available")

$oPPT.Visible = True

$oPresentation = $oPPT.Presentations.Open(@ScriptDir & "\b.potx")
If @error Then Exit MsgBox(0, "Error", "Error opening potx")

With $oPresentation.Slides(1).Shapes
    .Item(1).TextFrame.TextRange.Text = "Example Thing"
    .AddTextBox(1, 35, 60, 400, 50)
    .Item(2).TextFrame.TextRange.Text = "Color changes, pay attention!"
    .Item(2).Fill.ForeColor.RGB = _WinAPI_SwitchColor(_WinAPI_RGB(255, 0, 0))
    .AddTextBox(1, 300, 60, 400, 50)
    .Item(3).TextFrame.TextRange.Text = "Issues"
    .AddTextBox(1, 500, 60, 400, 50)
    .Item(4).TextFrame.TextRange.Text = "Next Weekx"
    .AddShape(151, 30, 100, 200, 200)
    $rows = 10
    $cols = 3
    .AddTable($rows, $cols, 60, 120, 100, 100)
EndWith


With $oPresentation.Slides(1).Shapes
    For $i = 0 To 255
        If IsObj(.Item(2)) Then .Item(2).Fill.ForeColor.RGB = _WinAPI_SwitchColor(_WinAPI_RGB(255 - $i, $i/10, $i))
        Sleep(10)
    Next
EndWith

...with this (unzip it): b.zip

[Myicq]

Does it make a difference if you just use a "long" value instead of the RGB function ?

RGB() in VBA returns a long = red*1 + green*256 + blue * 65536

This should give you full red

debug.print RGB(255,0,0)  ; will print 255

.Item(2).Fill.ForeColor.RGB = 255

If I try to use _WinAPI_RGB(255,0,0) I get :

#include <WinAPIGdi.au3>
ConsoleWrite(_WinAPI_RGB(255,0,0) & @LF)

Output: 16711680

don't know why the formula is opposite in WinAPI.

Edited September 18, 2014 by Myicq

[BrewManNH]

Because 0xFF0000 doesn't equal 255, it's 16711680 in decimal. If you're getting 255 back, it's being returned in BGR or COLORREF format and not in RGB format. Red = ## * 65536, while blue = ## * 1

[Jewtus]

After messing with this for a while, I found out I had windows updates to perform (which was causing a number of app on my PC to be semi functional).

I installed the update and reset and the code posted in #19 is now working.

Thanks everyone!

[water]

Glad that the problem could be solved

[Jewtus]

There was also a weird issue with the template I was using.. I just started from scratch and it used the same code and now it works much better. This is what it looks like in its final form:

#include <WinAPIGdi.au3>

$oPPT = ObjCreate("PowerPoint.Application")
If @error Then
    MsgBox(0, "Error", "No PowerPoint available")
    Exit
EndIf

AddSlide(2, 11, "Example Project")
Func AddSlide($slideNum, $format, $projectName)
    $oPresentation = $oPPT.Presentations.Open(@ScriptDir & "\Test.pptx")
    If @error Then
        MsgBox(0, "Error", "Error opening Presentation")
        Exit
    EndIf
    $rows = 10
    $cols = 3
    $oSlide1 = $oPresentation.Slides.Add($slideNum, $format)
    With $oSlide1
        .Shapes.Item(1).TextFrame.TextRange.Text = $projectName
        .Shapes.AddTextBox(1,35,60,400,50) ;type,left,top,width,height
        .Shapes.Item(2).TextFrame.TextRange.Text = "Overall Status"
        .Shapes.AddTextBox(1,300,60,400,50)
        .Shapes.Item(3).TextFrame.TextRange.Text = "Issues"
        .Shapes.AddTextBox(1,500,60,400,50)
        .Shapes.Item(4).TextFrame.TextRange.Text = "Next Week"
        .Shapes.AddShape(1,30,100,60,120)
        .Shapes.Item(5).Fill.ForeColor.RGB = _WinAPI_RGB(178,178,178)
        .Shapes.AddTable($rows, $cols, 120, 100, 130, 100)
    EndWith
    $oPresentation.SaveAs(@ScriptDir&"\Output.ppt")
    $oPresentation.Quit
EndFunc   ;==>AddSlide
