LarsJ Posted November 25, 2016 Author Share Posted November 25, 2016 There are a lot of empty areas in Windows Explorer. Which part of the empty areas do you want to double click to go up one folder level? I'm not familiar with QTtabBar. Controls, File Explorer, ROT objects, UI Automation, Windows Message MonitorCompiled code: Accessing AutoIt variables, DotNet.au3 UDF, Using C# and VB codeShell menus: The Context menu, The Favorites menu. Shell related: Control Panel, System Image ListsGraphics related: Rubik's Cube, OpenGL without external libraries, Navigating in an image, Non-rectangular selectionsListView controls: Colors and fonts, Multi-line header, Multi-line items, Checkboxes and icons, Incremental searchListView controls: Virtual ListViews, Editing cells, Data display functions Link to comment Share on other sites More sharing options...

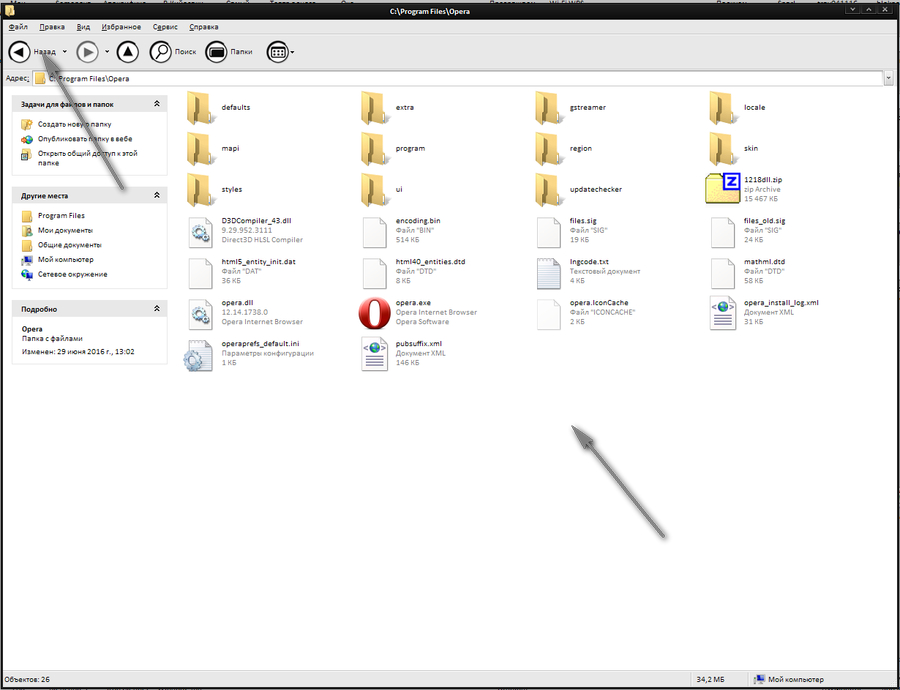

sceatch Posted November 26, 2016 Share Posted November 26, 2016 (edited) Thanks for answer. On any empty area of opened folder, except folders and folder names. Edited November 26, 2016 by sceatch Link to comment Share on other sites More sharing options...
LarsJ Posted November 27, 2016 Author Share Posted November 27, 2016 I'll see what I can do. But I need some time. A week or so. Controls, File Explorer, ROT objects, UI Automation, Windows Message MonitorCompiled code: Accessing AutoIt variables, DotNet.au3 UDF, Using C# and VB codeShell menus: The Context menu, The Favorites menu. Shell related: Control Panel, System Image ListsGraphics related: Rubik's Cube, OpenGL without external libraries, Navigating in an image, Non-rectangular selectionsListView controls: Colors and fonts, Multi-line header, Multi-line items, Checkboxes and icons, Incremental searchListView controls: Virtual ListViews, Editing cells, Data display functions Link to comment Share on other sites More sharing options...
sceatch Posted November 27, 2016 Share Posted November 27, 2016 Ok, thanks. I ll post it here, if i can do it myself. Link to comment Share on other sites More sharing options...
junkew Posted November 28, 2016 Share Posted November 28, 2016 (edited) I do not think there is a direct way to get whitespace area My logic would be 1. Activate the window where you want to look for whitespace 2. Go to right bottom based on the width, height, x, y properties 3. Go up in pixels about 5% from height and go left about 5% from width or initially start just per 1 pixel up/left 4. getElementFromPoint 5. if Element equal to windowelement then you have whitespace area 6. if not repeat 3 Edited November 28, 2016 by junkew FAQ 31 How to click some elements, FAQ 40 Test automation with AutoIt, Multithreading CLR .NET Powershell CMDLets Link to comment Share on other sites More sharing options...
sceatch Posted November 29, 2016 Share Posted November 29, 2016 (edited) 23 hours ago, junkew said: I do not think there is a direct way to get whitespace area My logic would be 1. Activate the window where you want to look for whitespace 2. Go to right bottom based on the width, height, x, y properties 3. Go up in pixels about 5% from height and go left about 5% from width or initially start just per 1 pixel up/left 4. getElementFromPoint 5. if Element equal to windowelement then you have whitespace area 6. if not repeat 3 Wow. A little bit difficult ) I ll try to disassamble a QTTabBar program, and try to find a code in it.... Edited November 29, 2016 by sceatch Link to comment Share on other sites More sharing options...
LarsJ Posted December 5, 2016 Author Share Posted December 5, 2016 sceatch, I have been delayed with this. Sorry. In worst case I need another week. Controls, File Explorer, ROT objects, UI Automation, Windows Message MonitorCompiled code: Accessing AutoIt variables, DotNet.au3 UDF, Using C# and VB codeShell menus: The Context menu, The Favorites menu. Shell related: Control Panel, System Image ListsGraphics related: Rubik's Cube, OpenGL without external libraries, Navigating in an image, Non-rectangular selectionsListView controls: Colors and fonts, Multi-line header, Multi-line items, Checkboxes and icons, Incremental searchListView controls: Virtual ListViews, Editing cells, Data display functions Link to comment Share on other sites More sharing options...
junkew Posted December 8, 2016 Share Posted December 8, 2016 expandcollapse popup#include <WinAPI.au3> #include <MsgBoxConstants.au3> #include <WindowsConstants.au3> Example() Func Example() ; Retrieve a list of window handles. Local $aList = WinList() ; Loop through the array displaying only visable windows with a title. For $i = 1 To $aList[0][0] If $aList[$i][0] <> "" And BitAND(WinGetState($aList[$i][1]), 2) Then $hWND=$aList[$i][1] $wClass=_WinAPI_GetClassName($hWnd) if $wClass="CabinetWClass" then consolewrite("Title: " & $aList[$i][0] & " Handle: " & $hWnd & " Class: " & $wClass & @CRLF ) $controlTxt="[CLASS:DirectUIHWND; INSTANCE:3]" ; Retrieve the position x, y and size (width and height) Local $aPos = controlgetpos($hwnd,"",$controltxt) Local $aHandle = controlgethandle($hwnd,"",$controlTxt) consolewrite($apos[0] & $apos[1] & $apos[2] & $apos[3]) ;~ _UIA_DrawRect($apos[0], $apos[1], $apos[0]+$apos[2], $apos[1] + $apos[3]) ;~ left,right,top,bottom _UIA_DrawRect($apos[0], $apos[0]+$apos[2], $apos[1],$apos[1]+$apos[3]) ;~ mousemove($apos[0]+5,$apos[1]+30) mouseclick("left",$apos[0]+5,$apos[1]+30,2) endif endif Next EndFunc ;==>Example ; Draw rectangle on screen. Func _UIA_DrawRect($tLeft, $tRight, $tTop, $tBottom, $color = 0xFF, $PenWidth = 4) Local $hDC, $hPen, $obj_orig, $x1, $x2, $y1, $y2 $x1 = $tLeft $x2 = $tRight $y1 = $tTop $y2 = $tBottom $hDC = _WinAPI_GetWindowDC(0) ; DC of entire screen (desktop) $hPen = _WinAPI_CreatePen($PS_SOLID, $PenWidth, $color) $obj_orig = _WinAPI_SelectObject($hDC, $hPen) _WinAPI_DrawLine($hDC, $x1, $y1, $x2, $y1) ; horizontal to right _WinAPI_DrawLine($hDC, $x2, $y1, $x2, $y2) ; vertical down on right _WinAPI_DrawLine($hDC, $x2, $y2, $x1, $y2) ; horizontal to left right _WinAPI_DrawLine($hDC, $x1, $y2, $x1, $y1) ; vertical up on left ; clear resources _WinAPI_SelectObject($hDC, $obj_orig) _WinAPI_DeleteObject($hPen) _WinAPI_ReleaseDC(0, $hDC) EndFunc ;==>_UIA_DrawRect FAQ 31 How to click some elements, FAQ 40 Test automation with AutoIt, Multithreading CLR .NET Powershell CMDLets Link to comment Share on other sites More sharing options...
sceatch Posted December 9, 2016 Share Posted December 9, 2016 junkew, I run this script and nothing happens. Dont know what to do? Link to comment Share on other sites More sharing options...
junkew Posted December 9, 2016 Share Posted December 9, 2016 (edited) Check help file for winlist and run that example. dumps all your mainwindows. helps in understanding. script first selects the first explorer. Then within that third control of directuiwind is selected. Please check with au3inf your area with controls and post output here.probably change this line $controlTxt="[CLASS:DirectUIHWND; INSTANCE:3]" Edited December 9, 2016 by junkew Add info FAQ 31 How to click some elements, FAQ 40 Test automation with AutoIt, Multithreading CLR .NET Powershell CMDLets Link to comment Share on other sites More sharing options...
LarsJ Posted December 14, 2016 Author Share Posted December 14, 2016 (edited) The idea to execute a function when you click in empty space is very interesting. In this example a mouse hook is used to detect double click in empty space of the listview in Windows Explorer right pane window (or File Explorer as it's called in Windows 10). Then the Back button in the navigation toolbar is clicked to navigate to the previous folder. You can open several Explorer windows. If you limit the empty space to the listview in the right pane window it's easy to detect empty space: In empty space of a listview the control under the mouse is the listview itself. If it isn't empty space the control under the mouse is a listview item or a child control of a listview item eg. an edit control. expandcollapse popup;#AutoIt3Wrapper_UseX64=n #include <WinAPI.au3> #include "CUIAutomation2.au3" Opt( "MustDeclareVars", 1 ) Global $hHook, $hRightPaneWnd Example() Func Example() ; Press Esc to quit HotKeySet( "{ESC}", "Quit" ) OnAutoItExitRegister( "OnAutoItExit" ) ; Low level mouse hook to catch double clicks: Executes LowLevelMouseProc() on double click $hHook = _WinAPI_SetWindowsHookEx( $WH_MOUSE_LL, DllCallbackGetPtr( DllCallbackRegister( "LowLevelMouseProc", "long", "int;wparam;lparam" ) ), _WinAPI_GetModuleHandle( 0 ) ) LowLevelMouseProc( 0, 0, 0 ) ; Initialize $hTimer, $iDoubleClickSpeed and $oUIAutomation variables ; Wait for double clicks While 1 Sleep( 50 ) WEnd EndFunc Func Quit() Exit EndFunc Func OnAutoItExit() _WinAPI_UnhookWindowsHookEx( $hHook ) EndFunc Func LowLevelMouseProc( $iCode, $wParam, $lParam ) Static $hTimer = TimerInit(), $iDoubleClickSpeed = 0, $hExplorer, $fXP = ( @OSVersion = "WIN_XP" ) Static $oUIAutomation = ObjCreateInterface( $sCLSID_CUIAutomation, $sIID_IUIAutomation, $dtagIUIAutomation ) If $iDoubleClickSpeed = 0 Then $iDoubleClickSpeed = RegRead( "HKEY_CURRENT_USER\Control Panel\Mouse", "DoubleClickSpeed" ) If @error Then $iDoubleClickSpeed = 500 EndIf If $iCode = 0 And $wParam = 0 And $lParam = 0 Then Return If $iCode < 0 Then Return _WinAPI_CallNextHookEx( $hHook, $iCode, $wParam, $lParam ) If $wParam = 0x0201 Then ; 0x0201 = $WM_LBUTTONDOWN If TimerDiff( $hTimer ) > $iDoubleClickSpeed Then ; First click ; Any open Explorer windows? Windows Explorer on XP, Vista, 7, 8, 10 Local $aExplorer = WinList( "[REGEXPCLASS:^(Cabinet|Explore)WClass$]" ) If $aExplorer[0][0] = 0 Then ConsoleWrite( "No open Explorer windows" & @CRLF & @CRLF ) Return _WinAPI_CallNextHookEx( $hHook, $iCode, $wParam, $lParam ) EndIf ; Get a window to check that mouse click is inside an Explorer right pane ; listview. We want the same window as returned by _WinAPI_WindowFromPoint ; for a point inside an Explorer right pane listview. Local $iExplorer = 0 ReDim $aExplorer[$aExplorer[0][0]+1][3] For $i = 1 To $aExplorer[0][0] $hRightPaneWnd = 0 GetRightPaneWnd( $aExplorer[$i][1] ) If $hRightPaneWnd Then $aExplorer[$i][2] = $hRightPaneWnd $iExplorer += 1 EndIf Next If Not $iExplorer Then _ Return _WinAPI_CallNextHookEx( $hHook, $iCode, $wParam, $lParam ) ; _WinAPI_WindowFromPoint is used to check if a mouse click is inside an Explorer listview ; _WinAPI_WindowFromPoint returns the proper handle only if Explorer is the topmost window Local $tPoint = _WinAPI_GetMousePos() Local $hWindow = _WinAPI_WindowFromPoint( $tPoint ) For $i = 1 To $aExplorer[0][0] If $hWindow = $aExplorer[$i][2] Then ExitLoop Next If $i > $aExplorer[0][0] Then ConsoleWrite( "Mouse click not inside Explorer listview" & @CRLF & @CRLF ) Return _WinAPI_CallNextHookEx( $hHook, $iCode, $wParam, $lParam ) EndIf ; Explorer handle $hExplorer = $aExplorer[$i][1] ; Reset timer to check if it's a double click $hTimer = TimerInit() Else ; Double click ConsoleWrite( "Double click inside Explorer listview" & @CRLF ) ; Get control type and class name Local $pElement, $oElement, $iControlType, $sClassName $oUIAutomation.ElementFromPoint( _WinAPI_GetMousePos(), $pElement ) $oElement = ObjCreateInterface( $pElement, $sIID_IUIAutomationElement, $dtagIUIAutomationElement ) $oElement.GetCurrentPropertyValue( $UIA_ControlTypePropertyId, $iControlType ) $oElement.GetCurrentPropertyValue( $UIA_ClassNamePropertyId, $sClassName ) ; If it's a double click in empty space of a listview the control under the mouse is the listview itself. ; A double click not in empty space would have been a double click at a listview item or a child control. ; Double click in empty space of listview? If Not ( $iControlType = $UIA_ListControlTypeId _ And ( $sClassName = "UIItemsView" Or $sClassName = "SysListView32" ) ) Then ConsoleWrite( "Double click not in empty space of listview" & @CRLF & @CRLF ) Return _WinAPI_CallNextHookEx( $hHook, $iCode, $wParam, $lParam ) EndIf ConsoleWrite( "Double click in empty space of listview" & @CRLF ) ; Perform double click action ; Go to previous folder by clicking the Back button in the navigation toolbar ; Explorer object Local $pExplorer, $oExplorer $oUIAutomation.ElementFromHandle( $hExplorer, $pExplorer ) ; $hExplorer handle is calculated above $oExplorer = ObjCreateInterface( $pExplorer, $sIID_IUIAutomationElement, $dtagIUIAutomationElement ) If Not IsObj( $oExplorer ) Then ConsoleWrite( "$oExplorer ERR" & @CRLF & @CRLF ) Return _WinAPI_CallNextHookEx( $hHook, $iCode, $wParam, $lParam ) EndIf ConsoleWrite( "$oExplorer OK" & @CRLF ) Local $pCondition1, $pCondition2, $pCondition Local $pButton, $oButton If $fXP Then ; Windows XP ; The Back button is the first splitbutton ; Condition to find Back button $oUIAutomation.CreatePropertyCondition( $UIA_ControlTypePropertyId, $UIA_SplitButtonControlTypeId, $pCondition ) If Not $pCondition Then ConsoleWrite( "$pCondition (button) ERR" & @CRLF & @CRLF ) Return _WinAPI_CallNextHookEx( $hHook, $iCode, $wParam, $lParam ) EndIf ConsoleWrite( "$pCondition (button) OK" & @CRLF ) ; Find Back button $oExplorer.FindFirst( $TreeScope_Descendants, $pCondition, $pButton ) $oButton = ObjCreateInterface( $pButton, $sIID_IUIAutomationElement, $dtagIUIAutomationElement ) If Not IsObj( $oButton ) Then ConsoleWrite( "$oButton ERR" & @CRLF & @CRLF ) Return _WinAPI_CallNextHookEx( $hHook, $iCode, $wParam, $lParam ) EndIf ConsoleWrite( "$oButton OK" & @CRLF ) Else ; Other Windows versions ; The Back button is the first button in the first ToolbarWindow32-class toolbar ; Condition to find toolbar $oUIAutomation.CreatePropertyCondition( $UIA_ControlTypePropertyId, $UIA_ToolBarControlTypeId, $pCondition1 ) If Not $pCondition1 Then ConsoleWrite( "$pCondition1 (toolbar) ERR" & @CRLF & @CRLF ) Return _WinAPI_CallNextHookEx( $hHook, $iCode, $wParam, $lParam ) EndIf ConsoleWrite( "$pCondition1 (toolbar) OK" & @CRLF ) ; Condition to find ToolbarWindow32-class $oUIAutomation.CreatePropertyCondition( $UIA_ClassNamePropertyId, "ToolbarWindow32", $pCondition2 ) If Not $pCondition2 Then ConsoleWrite( "$pCondition2 (toolbar) ERR" & @CRLF & @CRLF ) Return _WinAPI_CallNextHookEx( $hHook, $iCode, $wParam, $lParam ) EndIf ConsoleWrite( "$pCondition2 (toolbar) OK" & @CRLF ) ; And condition, both conditions $oUIAutomation.CreateAndCondition( $pCondition1, $pCondition2, $pCondition ) If Not $pCondition Then ConsoleWrite( "$pCondition (toolbar) ERR" & @CRLF & @CRLF ) Return _WinAPI_CallNextHookEx( $hHook, $iCode, $wParam, $lParam ) EndIf ConsoleWrite( "$pCondition (toolbar) OK" & @CRLF ) ; Find toolbar Local $pToolbar, $oToolbar $oExplorer.FindFirst( $TreeScope_Descendants, $pCondition, $pToolbar ) $oToolbar = ObjCreateInterface( $pToolbar, $sIID_IUIAutomationElement, $dtagIUIAutomationElement ) If Not IsObj( $oToolbar ) Then ConsoleWrite( "$oToolbar ERR" & @CRLF & @CRLF ) Return _WinAPI_CallNextHookEx( $hHook, $iCode, $wParam, $lParam ) EndIf ConsoleWrite( "$oToolbar OK" & @CRLF ) ; Condition to find Back button $oUIAutomation.CreatePropertyCondition( $UIA_ControlTypePropertyId, $UIA_ButtonControlTypeId, $pCondition ) If Not $pCondition Then ConsoleWrite( "$pCondition (button) ERR" & @CRLF & @CRLF ) Return _WinAPI_CallNextHookEx( $hHook, $iCode, $wParam, $lParam ) EndIf ConsoleWrite( "$pCondition (button) OK" & @CRLF ) ; Find Back button $oToolbar.FindFirst( $TreeScope_Descendants, $pCondition, $pButton ) $oButton = ObjCreateInterface( $pButton, $sIID_IUIAutomationElement, $dtagIUIAutomationElement ) If Not IsObj( $oButton ) Then ConsoleWrite( "$oButton ERR" & @CRLF & @CRLF ) Return _WinAPI_CallNextHookEx( $hHook, $iCode, $wParam, $lParam ) EndIf ConsoleWrite( "$oButton OK" & @CRLF ) EndIf ; Button enabled? Local $bEnabled $oButton.CurrentIsEnabled( $bEnabled ) If Not $bEnabled Then ConsoleWrite( "Disabled" & @CRLF & @CRLF ) If $bEnabled Then ; Get Invoke object Local $pInvoke, $oInvoke $oButton.GetCurrentPattern( $UIA_InvokePatternId, $pInvoke ) $oInvoke = ObjCreateInterface( $pInvoke, $sIID_IUIAutomationInvokePattern, $dtagIUIAutomationInvokePattern ) If Not IsObj( $oInvoke ) Then ConsoleWrite( "$oInvoke ERR" & @CRLF & @CRLF ) Return _WinAPI_CallNextHookEx( $hHook, $iCode, $wParam, $lParam ) EndIf ConsoleWrite( "$oInvoke OK" & @CRLF & @CRLF ) ; Invoke (click) button $oInvoke.Invoke() EndIf EndIf EndIf Return _WinAPI_CallNextHookEx( $hHook, $iCode, $wParam, $lParam ) EndFunc ; The window of interest is the child of the SHELLDLL_DefView-class window. ; This window is one of the right pane windows which contains the listview. ; The window is the same as returned by _WinAPI_WindowFromPoint function. Func GetRightPaneWnd( $hParent ) If Not $hParent Then Return Local $hChild = _WinAPI_GetWindow( $hParent, $GW_CHILD ) While $hChild If _WinAPI_GetClassName( $hChild ) = "SHELLDLL_DefView" Then $hRightPaneWnd = _WinAPI_GetWindow( $hChild, $GW_CHILD ) ; A SysListView32-class listview is three levels down If _WinAPI_GetClassName( $hRightPaneWnd ) <> "DirectUIHWND" Then $hRightPaneWnd = _WinAPI_GetWindow( $hRightPaneWnd, $GW_CHILD ) $hRightPaneWnd = _WinAPI_GetWindow( $hRightPaneWnd, $GW_CHILD ) $hRightPaneWnd = _WinAPI_GetWindow( $hRightPaneWnd, $GW_CHILD ) EndIf $hChild = 0 EndIf GetRightPaneWnd( $hChild ) $hChild = _WinAPI_GetWindow( $hChild, $GW_HWNDNEXT ) WEnd EndFunc If you run the example in SciTE you should see output similar to this in the console: No open Explorer windows Mouse click not inside Explorer listview Double click inside Explorer listview Double click not in empty space of listview Double click inside Explorer listview Double click in empty space of listview $oExplorer OK $pCondition1 (toolbar) OK $pCondition2 (toolbar) OK $pCondition (toolbar) OK $oToolbar OK $pCondition (button) OK $oButton OK Disabled Double click inside Explorer listview Double click in empty space of listview $oExplorer OK $pCondition1 (toolbar) OK $pCondition2 (toolbar) OK $pCondition (toolbar) OK $oToolbar OK $pCondition (button) OK $oButton OK $oInvoke OK You need AutoIt 3.3.10 or later. Tested on Windows 10/7 32/64 bit and Windows XP 32 bit. I've not been able to test under Windows Vista or Windows 7 where Windows Explorer is based on a SysListView32-class listview. Let me know if there are any issues. The zip contains all code: DoubleClick.7z Edited December 14, 2016 by LarsJ KaFu 1 Controls, File Explorer, ROT objects, UI Automation, Windows Message MonitorCompiled code: Accessing AutoIt variables, DotNet.au3 UDF, Using C# and VB codeShell menus: The Context menu, The Favorites menu. Shell related: Control Panel, System Image ListsGraphics related: Rubik's Cube, OpenGL without external libraries, Navigating in an image, Non-rectangular selectionsListView controls: Colors and fonts, Multi-line header, Multi-line items, Checkboxes and icons, Incremental searchListView controls: Virtual ListViews, Editing cells, Data display functions Link to comment Share on other sites More sharing options...
sceatch Posted December 15, 2016 Share Posted December 15, 2016 (edited) LarsJ, It Works!!! ))) Thanks you a lot!!! I dont think it would be so difficult! Really sorry fot that. Just one moment - when script goes me back to previous folder, it highlights the folder where the cursor is now located. Dont know how to explain correctly. (I work in WinXP x86) Edited December 15, 2016 by sceatch Link to comment Share on other sites More sharing options...
LarsJ Posted December 15, 2016 Author Share Posted December 15, 2016 I'll take a closer look. I think this idea can be very useful. Controls, File Explorer, ROT objects, UI Automation, Windows Message MonitorCompiled code: Accessing AutoIt variables, DotNet.au3 UDF, Using C# and VB codeShell menus: The Context menu, The Favorites menu. Shell related: Control Panel, System Image ListsGraphics related: Rubik's Cube, OpenGL without external libraries, Navigating in an image, Non-rectangular selectionsListView controls: Colors and fonts, Multi-line header, Multi-line items, Checkboxes and icons, Incremental searchListView controls: Virtual ListViews, Editing cells, Data display functions Link to comment Share on other sites More sharing options...
SharkyEXE Posted February 12, 2017 Share Posted February 12, 2017 LarsJ Hello 1) My Operating System; Microsoft Windows 7 Professional Service Pack 1 x64 2) User Control Account: Off 3) My Autoit Version: 3.3.14.2 Block 1 1) I use GetSetIconView.au3 on this post https://www.autoitscript.com/forum/topic/162905-automating-windows-explorer/?do=findComment&comment=1227436 to Change Icon View on " Details " in " Desktop -> Computer " expandcollapse popup#include "G:\P\AutoIt3\P\Includes\AutomatingWindowsExplorer.au3" Opt( "MustDeclareVars", 1 ) ShellExecuteWait ( "::{20D04FE0-3AEA-1069-A2D8-08002B30309D}" ) WinWait ( "Computer", "" ) WinActivate ( "Computer", "" ) WinWaitActive ( "Computer", "" ) WinSetOnTop ( "Computer", "", 1 ) Example() While WinExists ( "Computer", "" ) WinClose ( "Computer", "" ) Sleep ( 1000 ) WEnd Func Example() ; Windows Explorer on XP, Vista, 7, 8 Local $hExplorer = WinGetHandle( "[REGEXPCLASS:^(Cabinet|Explore)WClass$]" ) If Not $hExplorer Then MsgBox( 0, "Automating Windows Explorer", "Could not find Windows Explorer. Terminating." ) Return EndIf ; Get an IShellBrowser interface GetIShellBrowser( $hExplorer ) If Not IsObj( $oIShellBrowser ) Then MsgBox( 0, "Automating Windows Explorer", "Could not get an IShellBrowser interface. Terminating." ) Return EndIf ; Get other interfaces GetShellInterfaces() ; Get current icon view Local $view = GetIconView() Local $iView, $iSize If IsArray( $view ) Then ; OS > XP $iView = $view[0] ; Icon view $iSize = $view[1] ; Icon size If $iView <> $FVM_DETAILS Then ; Not details view SetIconView( $FVM_DETAILS, 16 ) ; Set details view ; ElseIf $iView <> $FVM_ICON Then ; Not icon view ; SetIconView( $FVM_ICON, 48 ) ; Set icon view EndIf Sleep( 3000 ) ; Wait 3 seconds ; SetIconView( $iView, $iSize ) ; Restore old view Else ; OS = XP $iView = $view If $iView <> $FVM_DETAILS Then ; Not details view SetIconView( $FVM_DETAILS ) ; Set details view ElseIf $iView <> $FVM_ICON Then ; Not icon view SetIconView( $FVM_ICON ) ; Set icon view EndIf Sleep( 3000 ) ; Wait 3 seconds SetIconView( $iView ) ; Restore old view EndIf EndFunc 2) I Run File " C:\Windows\Notepad.exe " 3) I See Windows with Title Name " Untitled - Notepad " 4) In Windows with Title Name " Untitled - Notepad " I Make One Click Left Button Mouse On Button " File " 5) I See Menu , In Menu I Make One Click Left Button Mouse On Button " Save As... " 6) I See Windows with Title Name " Save As " 7) In Windows with Title Name " Save As " Icon View as " Large Icon " 8) LarsJ , Please Make " GetSetIconViewOnNotepad.au3 " file To Change Icon View on " Details " In Windows with Title Name " Save As " In " C:\Windows\Notepad.exe " Block 2 1) On " DeskTop " I Make One Click Right Button Mouse 2) I See Menu , In Menu I Make One Click Right Button Mouse On Stroke " View " 3) I See Menu , In Menu I Make One Click Right Button Mouse On Stroke " Small Icons " 4) LarsJ , Please Make " GetSetIconViewOnDesktop.au3 " file To Change Icon View on " Small Icons " On " DeskTop " 4) Thank You! Link to comment Share on other sites More sharing options...
LarsJ Posted February 13, 2017 Author Share Posted February 13, 2017 SharkyEXE Block 2: This version of the code does not support the desktop. I'll probably add support for the desktop at some point, but it'll not be right now. Block 1: This code cannot be used for an Open or "Save as" dialog. The tasks can be solved with standard automation by the Windows and Controls functions. I'll recommend you to add a post in the General Help and Support forum. Controls, File Explorer, ROT objects, UI Automation, Windows Message MonitorCompiled code: Accessing AutoIt variables, DotNet.au3 UDF, Using C# and VB codeShell menus: The Context menu, The Favorites menu. Shell related: Control Panel, System Image ListsGraphics related: Rubik's Cube, OpenGL without external libraries, Navigating in an image, Non-rectangular selectionsListView controls: Colors and fonts, Multi-line header, Multi-line items, Checkboxes and icons, Incremental searchListView controls: Virtual ListViews, Editing cells, Data display functions Link to comment Share on other sites More sharing options...
Michael_1106 Posted July 4, 2017 Share Posted July 4, 2017 LarsJ, Thank you for these functions. I really needed something like this. My question is: How can I use SetCurrentFolder to go to one of my folders? Like "C:\My Folder\My Subfolder" I've read through the examples, but wasn't able to figure it out. Will I need to use a pointer to the PIDL of the folder? If so, how do I get that? Thank you. – Michael Link to comment Share on other sites More sharing options...
LarsJ Posted July 5, 2017 Author Share Posted July 5, 2017 Michael, Welcome to the AutoIt forums. Yes, you need the PIDL but you can easily get it with _WinAPI_ShellILCreateFromPath. You do it this way: 1. Save this code somewhere on your disk eg. C:\Windows\Temp\GotoFolder.au3 #include <WinAPIShellEx.au3> #include "Includes\AutomatingWindowsExplorer.au3" Opt( "MustDeclareVars", 1 ) Example() Func Example() ; Windows Explorer on XP, Vista, 7, 8 Local $hExplorer = WinGetHandle( "[REGEXPCLASS:^(Cabinet|Explore)WClass$]" ) If Not $hExplorer Then MsgBox( 0, "Automating Windows Explorer", "Could not find Windows Explorer. Terminating." ) Return EndIf ; Get an IShellBrowser interface GetIShellBrowser( $hExplorer ) If Not IsObj( $oIShellBrowser ) Then MsgBox( 0, "Automating Windows Explorer", "Could not get an IShellBrowser interface. Terminating." ) Return EndIf ; Get other interfaces GetShellInterfaces() ; Get PIDL from folder Local $pFolder = _WinAPI_ShellILCreateFromPath( "C:\My Folder\My Subfolder" ) ; Set folder SetCurrentFolder( $pFolder, $SBSP_ABSOLUTE ) ; Free memory _WinAPI_CoTaskMemFree( $pFolder ) EndFunc You can get the include files in bottom of post 7. 2. Right click the file, create shortcut, copy shortcut to desktop 3. Windows explorer must be open, "C:\My Folder\My Subfolder" must exist, double click the shortcut Now "C:\My Folder\My Subfolder" should be the current folder Note that this is a lot of code to execute just to set the current folder. This code should only be used if you also need to do other things, eg. to use some of the other examples in post 7. There are easier ways to set the current folder. You can Create a new question in the "General Help and Support" forum if you are in doubt about something. Regards Lars. Controls, File Explorer, ROT objects, UI Automation, Windows Message MonitorCompiled code: Accessing AutoIt variables, DotNet.au3 UDF, Using C# and VB codeShell menus: The Context menu, The Favorites menu. Shell related: Control Panel, System Image ListsGraphics related: Rubik's Cube, OpenGL without external libraries, Navigating in an image, Non-rectangular selectionsListView controls: Colors and fonts, Multi-line header, Multi-line items, Checkboxes and icons, Incremental searchListView controls: Virtual ListViews, Editing cells, Data display functions Link to comment Share on other sites More sharing options...
LarsJ Posted July 16, 2017 Author Share Posted July 16, 2017 (edited) Make item visible. The following is an answer to this question. expandcollapse popup#include "CUIAutomation2.au3" Opt( "MustDeclareVars", 1 ) MakeItemVisible( "ItemName" ) Func MakeItemVisible( $sItemName ) ; Windows Explorer on XP, Vista, 7, 8, 10 Local $hExplorer = WinGetHandle( "[REGEXPCLASS:^(Cabinet|Explore)WClass$]" ) If Not $hExplorer Then Return ConsoleWrite( "$hExplorer ERR" & @CRLF ) ConsoleWrite( "$hExplorer OK" & @CRLF ) ; Create UI Automation object Local $oUIAutomation = ObjCreateInterface( $sCLSID_CUIAutomation, $sIID_IUIAutomation, $dtagIUIAutomation ) If Not IsObj( $oUIAutomation ) Then Return ConsoleWrite( "$oUIAutomation ERR" & @CRLF ) ConsoleWrite( "$oUIAutomation OK" & @CRLF ) ; Get Explorer object Local $pExplorer, $oExplorer $oUIAutomation.ElementFromHandle( $hExplorer, $pExplorer ) $oExplorer = ObjCreateInterface( $pExplorer, $sIID_IUIAutomationElement, $dtagIUIAutomationElement ) If Not IsObj( $oExplorer ) Then Return ConsoleWrite( "$oExplorer ERR" & @CRLF ) ConsoleWrite( "$oExplorer OK" & @CRLF ) ; Get ListView (right pane window) object Local $pCondition, $pListView, $oListView $oUIAutomation.CreatePropertyCondition( $UIA_ControlTypePropertyId, $UIA_ListControlTypeId, $pCondition ) $oExplorer.FindFirst( $TreeScope_Descendants, $pCondition, $pListView ) $oListView = ObjCreateInterface( $pListView, $sIID_IUIAutomationElement, $dtagIUIAutomationElement ) If Not IsObj( $oListView ) Then Return ConsoleWrite( "$oListView ERR" & @CRLF ) ConsoleWrite( "$oListView OK" & @CRLF ) ; Find visible item by name Local $pVisibleItem, $oVisibleItem $oUIAutomation.CreatePropertyCondition( $UIA_NamePropertyId, $sItemName, $pCondition ) $oListView.FindFirst( $TreeScope_Descendants, $pCondition, $pVisibleItem ) $oVisibleItem = ObjCreateInterface( $pVisibleItem, $sIID_IUIAutomationElement, $dtagIUIAutomationElement ) If IsObj( $oVisibleItem ) Then Return ConsoleWrite( "$oVisibleItem OK" & @CRLF ) ; Continue only if item is non-visible ConsoleWrite( "$oVisibleItem ERR" & @CRLF ) ; Create ItemContainer object Local $pItemContainer, $oItemContainer $oListView.GetCurrentPattern( $UIA_ItemContainerPatternId, $pItemContainer ) $oItemContainer = ObjCreateInterface( $pItemContainer, $sIID_IUIAutomationItemContainerPattern, $dtagIUIAutomationItemContainerPattern ) If Not IsObj( $oItemContainer ) Then Return ConsoleWrite( "$oItemContainer ERR" & @CRLF ) ConsoleWrite( "$oItemContainer OK" & @CRLF ) ; Find non-visible item by name Local $pNonVisibleItem, $oNonVisibleItem $oItemContainer.FindItemByProperty( 0, $UIA_NamePropertyId, $sItemName, $pNonVisibleItem ) $oNonVisibleItem = ObjCreateInterface( $pNonVisibleItem, $sIID_IUIAutomationElement, $dtagIUIAutomationElement ) If Not IsObj( $oNonVisibleItem ) Then Return ConsoleWrite( "$oNonVisibleItem ERR" & @CRLF ) ConsoleWrite( "$oNonVisibleItem OK" & @CRLF ) ; Make non-visible item visible Local $pVirtualItem, $oVirtualItem $oNonVisibleItem.GetCurrentPattern( $UIA_VirtualizedItemPatternId, $pVirtualItem ) $oVirtualItem = ObjCreateInterface( $pVirtualItem, $sIID_IUIAutomationVirtualizedItemPattern, $dtagIUIAutomationVirtualizedItemPattern ) If Not IsObj( $oVirtualItem ) Then Return ConsoleWrite( "$oVirtualItem ERR" & @CRLF ) ConsoleWrite( "$oVirtualItem OK" & @CRLF ) $oVirtualItem.Realize() ; Make item visible EndFunc All code: MakeItemVisible.7z Edited July 16, 2017 by LarsJ InnI 1 Controls, File Explorer, ROT objects, UI Automation, Windows Message MonitorCompiled code: Accessing AutoIt variables, DotNet.au3 UDF, Using C# and VB codeShell menus: The Context menu, The Favorites menu. Shell related: Control Panel, System Image ListsGraphics related: Rubik's Cube, OpenGL without external libraries, Navigating in an image, Non-rectangular selectionsListView controls: Colors and fonts, Multi-line header, Multi-line items, Checkboxes and icons, Incremental searchListView controls: Virtual ListViews, Editing cells, Data display functions Link to comment Share on other sites More sharing options...
Michael_1106 Posted August 1, 2017 Share Posted August 1, 2017 LarsJ, I'm very sorry I never responded to your post, especially since you wrote such an excellent, detailed answer. I didn't know to "follow" this thread, so I never got an e-mail. Again, please accept my apology. Thank you for the code! It fills my needs beautifully. You mentioned that "this is a lot of code just to set the current folder". Here's my situation: I use speech recognition, and like to go to a folder by saying, "folder multimedia" or "folder PHP". Until now, I've had AutoIt go to the Windows Explorer address bar and "Send" the folder (which is slow), or paste the folder (which replaces the existing clipboard contents). So your solution here works better than either of those. Given my situation, is there a better way that I'm not aware of? Thank you again. Sincerely, Michael Link to comment Share on other sites More sharing options...
LarsJ Posted August 10, 2017 Author Share Posted August 10, 2017 I'm quite inactive myself here in the summer period. These were the ideas I was thinking about. But if they do not fit your purpose, keep the code that works. You can delete the part of the code you do not use. Regards Lars. Controls, File Explorer, ROT objects, UI Automation, Windows Message MonitorCompiled code: Accessing AutoIt variables, DotNet.au3 UDF, Using C# and VB codeShell menus: The Context menu, The Favorites menu. Shell related: Control Panel, System Image ListsGraphics related: Rubik's Cube, OpenGL without external libraries, Navigating in an image, Non-rectangular selectionsListView controls: Colors and fonts, Multi-line header, Multi-line items, Checkboxes and icons, Incremental searchListView controls: Virtual ListViews, Editing cells, Data display functions Link to comment Share on other sites More sharing options...
