Chrome UDF

junkew · May 17, 2019

See faq31 for alternatives

Letraindusoir · October 18, 2019

Can Guicreateobj be embedded in the Chrome-browser-webpage like embedded IE-webpage?

junkew · October 18, 2019

I assume you can not sure if anybody tried CEF https://github.com/chromiumembedded/cef

samibb · April 2, 2020

Hi

i am using Google Chrome Version 80.0.3987.162 (Official Build) (64-bit)

i loaded


AutoIT for Google Chrome

1.0

ID: leakmpklghcpopcfgkkjjfhmlkhocjlj

Inspect viewsbackground page

Enabled checkbox next to AutoIT for Google Chrome is checked. Also make sure the Allow access to file URLs box is checked

and

DOWNLOAD :

Latest Version - v0.5 (29/09/13)

Chrome.au3

when i run example

chrome_example.au3 and chrome_example_2.au3

i work but no result on ConsoleWrite nothing at all.

Can any one help?

zeenmakr · April 8, 2020

On 4/2/2020 at 9:54 AM, samibb said:

i am using Google Chrome Version 80.0.3987.162 (Official Build) (64-bit)

...

when i run example

chrome_example.au3 and chrome_example_2.au3

i work but no result on ConsoleWrite nothing at all.

Can any one help?

has the issue been resolved?

so scripts filled out all the input into chrome page okay but you see nothing in SciTE debugging window?

chrome_example.au3 - submission page is broken ( 505 Error ) therefore is no return 'Thank You' Page to retrieve info so you should see error output like these.

_ChromeObjGetHTMLByTagName("h1") = Cannot read property 'innerHTML' of undefined
_ChromeObjGetHTMLByTagName("p", 1) = Cannot read property 'innerHTML' of undefined
_ChromeObjGetHTMLByTagName("p", 2) = Cannot read property 'innerHTML' of undefined
_ChromeObjGetHTMLByTagName("p", 3) = Cannot read property 'innerHTML' of undefined
_ChromeObjGetHTMLByTagName("p", 4) = Cannot read property 'innerHTML' of undefined
_ChromeObjGetHTMLByTagName("p", 5) = Cannot read property 'innerHTML' of undefined
_ChromeObjGetHTMLByTagName("p", 6) = Cannot read property 'innerHTML' of undefined
_ChromeObjGetHTMLByTagName("p", 7) = Cannot read property 'innerHTML' of undefined
_ChromeObjGetHTMLByTagName("p", 8) = Cannot read property 'innerHTML' of undefined
_ChromeObjGetHTMLByTagName("p", 9) = Cannot read property 'innerHTML' of undefined

chrome_example_2.au3 - since this is offline page and it doesn't submit anything it tries to retreive the info that random generated like so.

_ChromeObjGetPropertyByName("ExampleForm", "method") = post
_ChromeObjGetValueByName("hiddenExample") = secret value
_ChromeObjSetValueByName("textExample", _RandomText(10)) = FZFMHWHAHN
_ChromeObjGetValueByName("textExample") = FZFMHWHAHN
_ChromeObjSetValueByName("passwordExample", _RandomText(10)) = YNHBZQBMIU
_ChromeObjGetValueByName("passwordExample") = YNHBZQBMIU
_ChromeObjGetPropertyByName("fileExample", "type") = file
_ChromeObjGetPropertyByName("imageExample", "src") = http://www.autoitscript.com/images/autoit_6_240x100.jpg
_ChromeObjGetHTMLById("messages") = Form Submitted!<br>
_ChromeObjSetValueByName("textareaExample", _RandomText(10)) = FFXBTBRTZU
_ChromeObjGetValueByName("textareaExample") = FFXBTBRTZU
_ChromeObjGetPropertyByName("checkboxG1Example", "checked") = true
_ChromeObjGetPropertyByName("checkboxG2Example", "checked") = false
_ChromeObjGetPropertyByName("radioExample", "checked", 0) = true
_ChromeObjGetPropertyByName("selectExample", "selectedIndex") = 1
_ChromeObjGetPropertyByName("multipleSelectExample", "selectedIndex") = 1
_ChromeObjGetHTMLById("messages") = Form Submitted!<br>Form Submitted!<br>

zeenmakr · April 8, 2020

Just case someone is wondering whether I edited the output.

changes were made in Chrome.au3 functions. Because $response returns as '{"text":"some string"}', regex was used to return just 'some string'

;~ modified from
    return $response

;~ to
    return StringRegExpReplace($response, '\{\".+\":\"(.+)\"\}$', '$1')

As pointed out earlier, function _ChromeDocWaitForReadyStateCompleted() fails and exit on timeout, culprit is StringCompare() fails at least on my end win8os/autoit 3.3.14.5

;~ fixed from
     Until @error > 0 Or StringLen($response) = 0 or StringCompare($response, "complete") = 0

;~to
    Until @error > 0 Or StringLen($response) = 0 or StringCompare($response, '{"text":"complete"}') = 0

zeenmakr · April 9, 2020

Quote

...StringCompare() fails at least on my end...

on the topic of Chrome.au3, i'm wondering what's this function returns back in 2013 but StringCompare() in 2020 returns exact string match with option of case-sensitivities .

Suggest to modify all StringCompare() to example showed above or switch to StringInStr() or StringRegExp() in place of it. (note: the check statement required attention as return for each suggested function is different)

samibb · April 15, 2020

thank you for previous notes, and it is working for normal pages

>>>> Window INFO <<<<
Title:   Chrome UDF - Page 7 - AutoIt Example Scripts - AutoIt Forums - Google Chrome
Class:   Chrome_WidgetWin_1
Position:   -8, -8
Size:   1936, 1056
Style:   0x17CF0000
ExStyle:   0x00000100
Handle:   0x00000000004D06EC

>>>> Control <<<<
Class:   Chrome_RenderWidgetHostHWND
Instance:   1
ClassnameNN:   Chrome_RenderWidgetHostHWND1
Name:
Advanced (Class):   [CLASS:Chrome_RenderWidgetHostHWND; INSTANCE:1]
ID:   890826400
Text:   Chrome Legacy Window
Position:   0, 111
Size:   1920, 937
ControlClick Coords:   308, 318
Style:   0x56300000
ExStyle:   0x00000020
Handle:   0x0000000000150636

>>>> Mouse <<<<
Position:   316, 429
Cursor ID:   0
Color:   0xFAFAFA

>>>> StatusBar <<<<

>>>> ToolsBar <<<<

>>>> Visible Text <<<<
Chrome Legacy Window

>>>> Hidden Text <<<<
Chrome Legacy Window

but not working with this page

PRD(PRODUCTION) - Google Chrome

zeenmakr · April 23, 2020

Quote

...it is working for normal pages ... but not working with this page

Could you be more specific? What is a normal pages and what is this page? how is the window info you provided relevant?

So you get the examples provided working? are these the 'normal pages' you referring to?

samibb · April 30, 2020

1- dose autoit work with VPN web sit?

2-this page come via VPN

3- by the way i used ID

4- all objects with no name only ID and chrome functions are by name is there more function using ID instead of names.

5- is there new update for AutoIt working with chrome because microsoft not supporteing Explorer any more.

please my brain will blow

Edited May 2, 2020 by samibb

zeenmakr · May 6, 2020

Quote

4- all objects with no name only ID and chrome functions are by name is there more function using ID instead of names.

All functions in Chrome.au3 are just wrappers, you can create your own functions. It uses Javascript. Just open up Chrome.au3 look through a few of existing functions then you will quickly realized that _ChromeEval() is your friend.

Here is quick example to get you started. 2 new functions created bellow to get and set value by id: _ChromeObjSetValueById('id', 'string') & _ChromeObjGetValueById('id') you can copy and paste them to Chrome.au3

#include <Chrome.au3>

; -----------------------
; test site: www.bing.com
; -----------------------

_ChromeStartup('http://bing.com')
_ChromeDocWaitForReadyStateCompleted()


Local $currTabTitle = 'Bing'
_ChromeDocWaitForExistenceByTitle($currTabTitle)
Local $IsNotActive = @error
ConsoleWrite(($IsNotActive = 0) ? $IsNotActive &" - SUCCESS! Found: "& $currTabTitle&@CRLF : $IsNotActive &" - FAILED! NOT Found: "& $currTabTitle&@CRLF)

If $IsNotActive Then
    MsgBox(0, $IsNotActive&' | Title Status', 'Not Found: '&$currTabTitle)
Else

  $_IsPageReady = _ChromeDocWaitForReadyStateCompleted()
  If $_IsPageReady Then
    MsgBox(0, $IsNotActive&' | Page Status: '&$_IsPageReady, 'success, ok to get html')

    $_SearchInput = _ChromeObjGetHTMLById('sb_form')
    MsgBox(0, 'id=sb_form', $_SearchInput)

    _ChromeObjSetValueById('sb_form_q', 'samibb string')
    $_SearchInput = _ChromeObjGetValueById('sb_form_q')
    MsgBox(0, 'id=sb_form_q', $_SearchInput)

  Else
    MsgBox(0, $IsNotActive&' | Page Status: '&$_IsPageReady, 'try again, failed to load page')
  EndIf

EndIf
Exit

; ========================================================================================
; ========================================================================================
Func _ChromeObjSetValueById($objId, $value, $timeout = 5)

    dim $response = ""

    if StringLen($value) < 1 Then $value = "Missing $value"

    $response = _ChromeEval("document.getElementById('" & $objId & "').value = '" & $value & "';", $timeout)

    SetError(@error)

    return StringRegExpReplace($response, '\{\".+\":\"(.+)\"\}$', '$1')
EndFunc

; ========================================================================================
; ========================================================================================
Func _ChromeObjGetValueById($objid, $timeout = 5)

    dim $response = ""

    $response = _ChromeEval("document.getElementById('" & $objid & "').value;", $timeout)

    return StringRegExpReplace($response, '\{\".+\":\"(.+)\"\}$', '$1')
EndFunc

Quote

5- is there new update for AutoIt working with chrome because microsoft not supporteing Explorer any more.

If you are referring to other UDFs then you might also want to look into UIAutomation and WebDriver.

samibb · May 6, 2020

Many thanks

samibb · May 6, 2020

_ChromeObjGetHTMLById  this function working

_ChromeObjSetValueById Not working

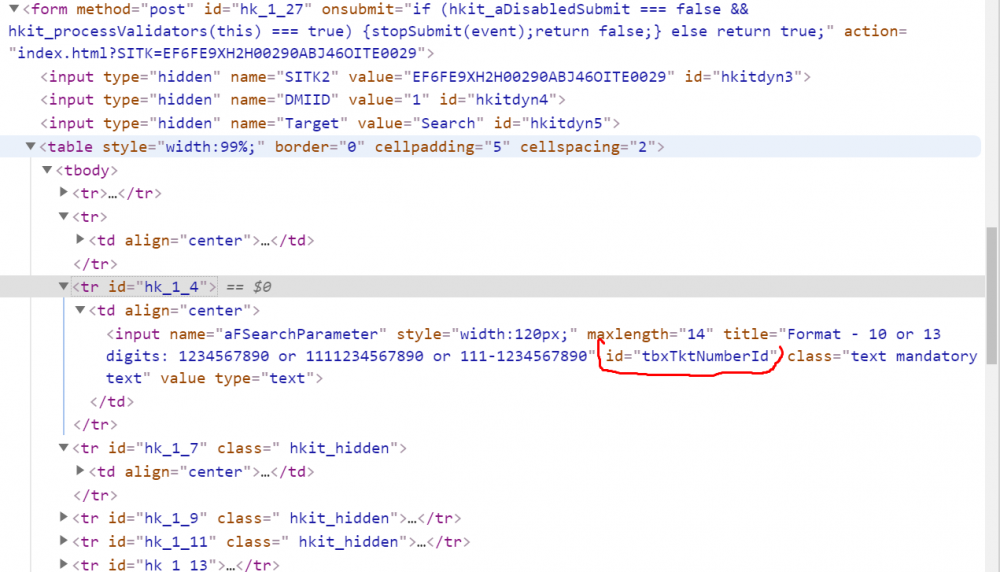

_ChromeObjSetValueById('tbxTktNumberId', '065') not working .

the obj is in table.

any ideas please

zeenmakr · May 7, 2020

Quote

_ChromeObjSetValueById('tbxTktNumberId', '065') not working

Did you get the example above working? and what is the website url you having trouble with?

zeenmakr · May 7, 2020

as pointed out earlier. here is the javascript HTML DOM document that you can use to create your own functions if needs be. https://www.w3schools.com/js/js_htmldom_elements.asp

test and check what works for you

Local $objId = 'idName'
Local $index = 0                ;<--the order of id that it in, if multiple ids present
Local $value = 'new string'
Local $timeout = 5              ;<--in second


_ChromeDocWaitForReadyStateCompleted()
;try this
_ChromeEval("document.getElementsById('" & $objId & "')[" &$index& "].value = '" & $value & "';", $timeout)        ;<---multiple ids present
;if it doesn't work try this
_ChromeEval("document.getElementsById('" & $objId & "')[" &$index& "].innerHTML = '" & $value & "';", $timeout)    ;<---multiple ids present

;OR

_ChromeDocWaitForReadyStateCompleted()
;try this
_ChromeEval("document.getElementById('" & $objId & "').value = '" & $value & "';", $timeout)        ;<--only one unique id present
;if it doesn't work try this
_ChromeEval("document.getElementById('" & $objId & "').innerHTML = '" & $value & "';", $timeout)    ;<--only one unique id present


;if everything failed, then try other Javascript HTML DOM Methods from document above

Method	Description
document.getElementById(id)	Find an element by element id
document.getElementsByTagName(name)	Find elements by tag name
document.getElementsByClassName(name)	Find elements by class name

ect..

zeenmakr · May 7, 2020

update: hope you can spot the different between .value and .innerHTML

#include <Chrome.au3>

; -----------------------
; test #1 site: www.bing.com
; -----------------------
;~ $testSite = 'bing'
;~ Local $currTabTitle = 'Bing'    ;bing.com
;~ _ChromeStartup('http://bing.com')


; -----------------------
; test #2 site: vpn.saudia.com
; -----------------------
$testSite = 'saudia'
Local $currTabTitle = 'Welcome to SSL VPN' ;vpn.saudia.com
_ChromeStartup('https://vpn.saudia.com/')



_ChromeDocWaitForReadyStateCompleted(30)
_ChromeDocWaitForExistenceByTitle($currTabTitle)
Local $IsNotActive = @error
ConsoleWrite(($IsNotActive = 0) ? $IsNotActive &" - SUCCESS! Found: "& $currTabTitle&@CRLF : $IsNotActive &" - FAILED! NOT Found: "& $currTabTitle&@CRLF)

If $IsNotActive Then
    MsgBox(0, $IsNotActive&' | Title Status', 'Not Found: '&$currTabTitle)
Else

  $_IsPageReady = _ChromeDocWaitForReadyStateCompleted()
  If $_IsPageReady Then
    MsgBox(0, $IsNotActive&' | Page Status: '&$_IsPageReady, 'success, ok to get/set html')



    ; -----------------------
    ; test #1 site: www.bing.com
    ; -----------------------
    If $testSite == 'bing' Then
      $_innerHtml = _ChromeObjGetHTMLById('sb_form')              ;This works (innerHTML)
      MsgBox(0, 'innerHTML | id=sb_form', $_innerHtml)

      _ChromeObjSetValueById('sb_form_q', 'samibb string')
      Sleep(500)
      _ChromeDocWaitForReadyStateCompleted(30)

      $_value = _ChromeObjGetValueById('sb_form_q')               ;This works (value) <--see and compare vpn.saudia.com example bellow
      MsgBox(0, 'value | id=sb_form_q', $_value)

      $_innerHTML = _ChromeObjGetHTMLById('sb_form_q')            ;But this is NOT working (innerHTML)
      MsgBox(0, 'innerHTML | id=sb_form_q', $_innerHTML)
    EndIf

    ; -----------------------
    ; test #2 site: vpn.saudia.com
    ; -----------------------
    If $testSite == 'saudia' Then
      _ChromeObjSetValueById('username', 'samibb')
      _ChromeObjSetValueById('credential', 'samibbpassword')
      _ChromeInputClickByName("login_button")
      ;_ChromeInputClickById("login_button")
      ;_ChromeInputClickByType("button")
      Sleep(500)
      _ChromeDocWaitForReadyStateCompleted(30)

      $loginStatus_value = _ChromeObjGetValueById('err_val')           ;This is NOT working (value)
      MsgBox(0, 'value | id=err_val', $loginStatus_value)

      $loginStatus_innerHTML = _ChromeObjGetHTMLById('err_val')        ;but this works (innerHTML) <---see and compare bing.com example above
      MsgBox(0, 'innerHTML | id=err_val', $loginStatus_innerHTML)
    EndIf


  Else
    MsgBox(0, $IsNotActive&' | Page Status: '&$_IsPageReady, 'try again, failed to load page')
  EndIf

EndIf
Exit

; ========================================================================================
; ========================================================================================
Func _ChromeObjSetValueById($objId, $value, $timeout = 5)

    dim $response = ""

    if StringLen($value) < 1 Then $value = "Missing $value"

    $response = _ChromeEval("document.getElementById('" & $objId & "').value = '" & $value & "';", $timeout)

    SetError(@error)

    return StringRegExpReplace($response, '\{\".+\":\"(.+)\"\}$', '$1')
EndFunc

; ========================================================================================
; ========================================================================================
Func _ChromeObjGetValueById($objid, $timeout = 5)

    dim $response = ""

    $response = _ChromeEval("document.getElementById('" & $objid & "').value;", $timeout)

    return StringRegExpReplace($response, '\{\".+\":\"(.+)\"\}$', '$1')
EndFunc

; ========================================================================================
; ========================================================================================
Func _ChromeInputClickById($objid, $index = 0, $timeout = 5)

    dim $response = ""

;~     $response = _ChromeEval("document.getElementsById('" & $objid & "')[" & $index & "].click();", $timeout)      ;if multiple input present
    $response = _ChromeEval("document.getElementById('" & $objid & "').click();", $timeout)                       ; if only 1 input present

    SetError(@error)

    return StringRegExpReplace($response, '\{\".+\":\"(.+)\"\}$', '$1')
EndFunc

Edited May 8, 2020 by zeenmakr

rlvitorino · June 9, 2020

autoit-chrome-native-messaging-host_.au3

AU3 autoit-chrome-native-messaging-host_.au3

dedekoko · August 22, 2020

On 4/2/2019 at 11:05 PM, yeisson said:
Hi!

Currently I have Windows 10, version 1809, I'm also running Chrome version 73.0.3683.86 and work correctly by only ensuring that after installing "autoit_chrome_native_messaging_host_install" and have the correct id of the Chrome extension to be used in the manifest file:

😄 \ Users \ <User> \ AppData \ Roaming \ AutoIt3 \ Chrome Native Messaging Host \ manifest.json
"allowed_origins": [

    "chrome-extension://leakmpklghcpopcfgkkjjfhmlkhocjlj/"

  ]
To know your extension id you must enable the developer mode and it immediately appears, after that you update the manifest and everything will work fine.

I hope it helps, greetings.

its work after do the change my win 10 pro thx alot

Iraj · August 24, 2020

Its not working for https based websites. Can someone help?

Jos · August 24, 2020

7 minutes ago, Iraj said:

Its not working for https based websites. Can someone help?

Care to share all information that would be required to help you with that?

Chrome UDF

Recommended Posts

Link to comment

Share on other sites

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

seangriffin

seangriffin

seangriffin

Posted Images

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Create an account or sign in to comment

Create an account

Sign in

Recently Browsing 0 members

Similar Content
